Rock Gold Ore Gravity Processing Plant Mineral Separation Machine Gold Recovery Centrifugal Concentrator
Hengchang machinery gold centrifugal concentrator can be used for some minerals separating, such as gold,copper,iron,tungsten, tin and zinc,ore and so on. If you want to buy mining equipment, choose Hengchang, we must ensure that you are satisfied.
Products Description

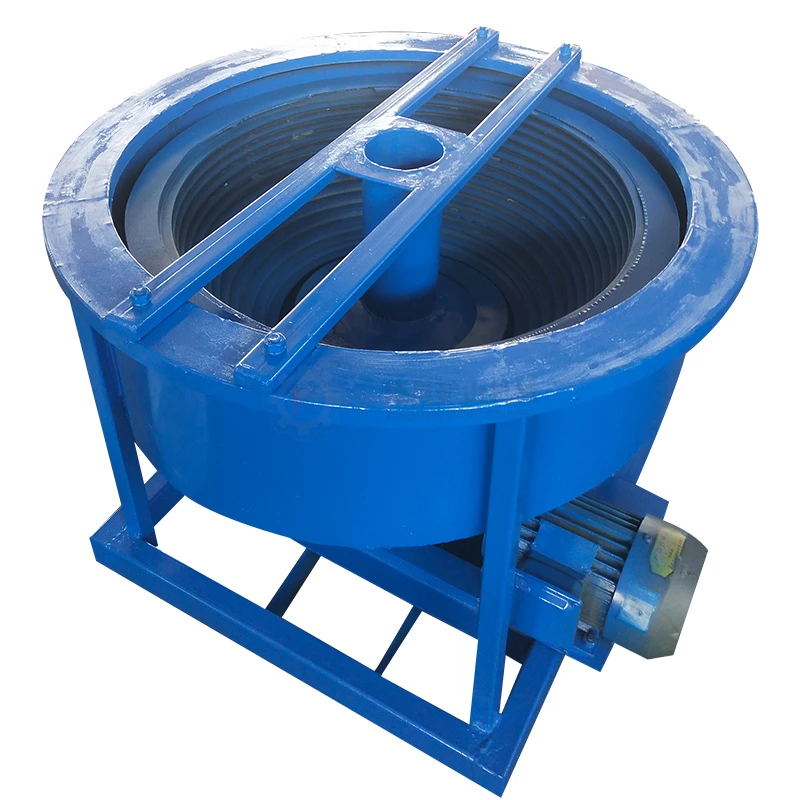

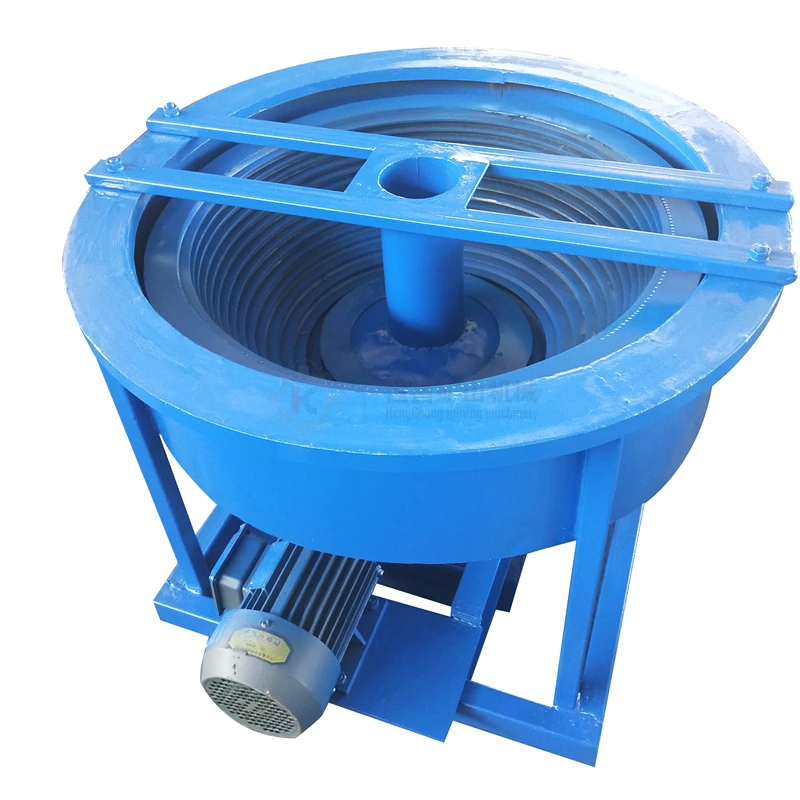

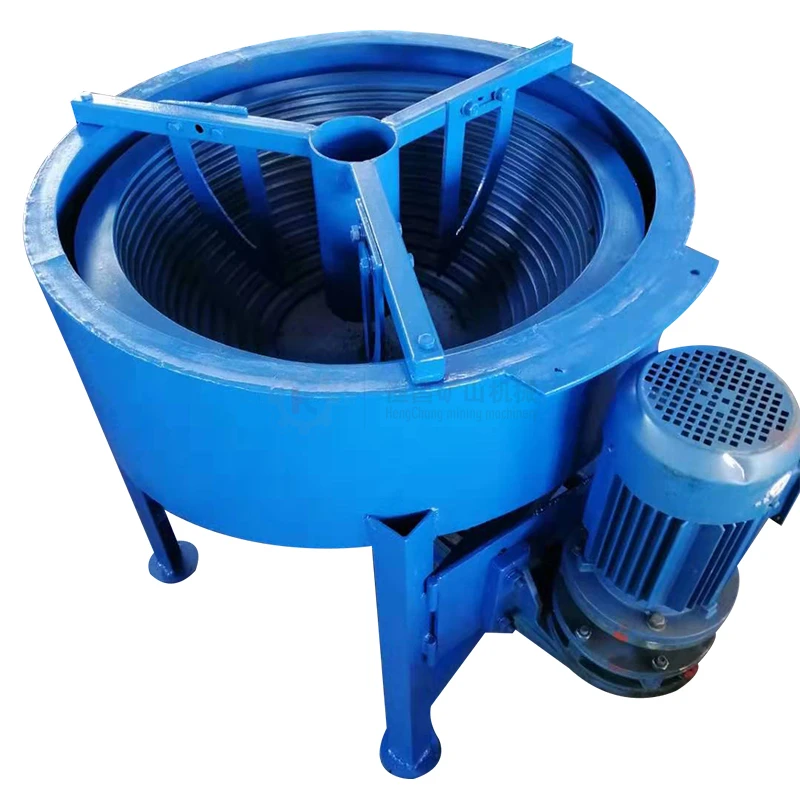

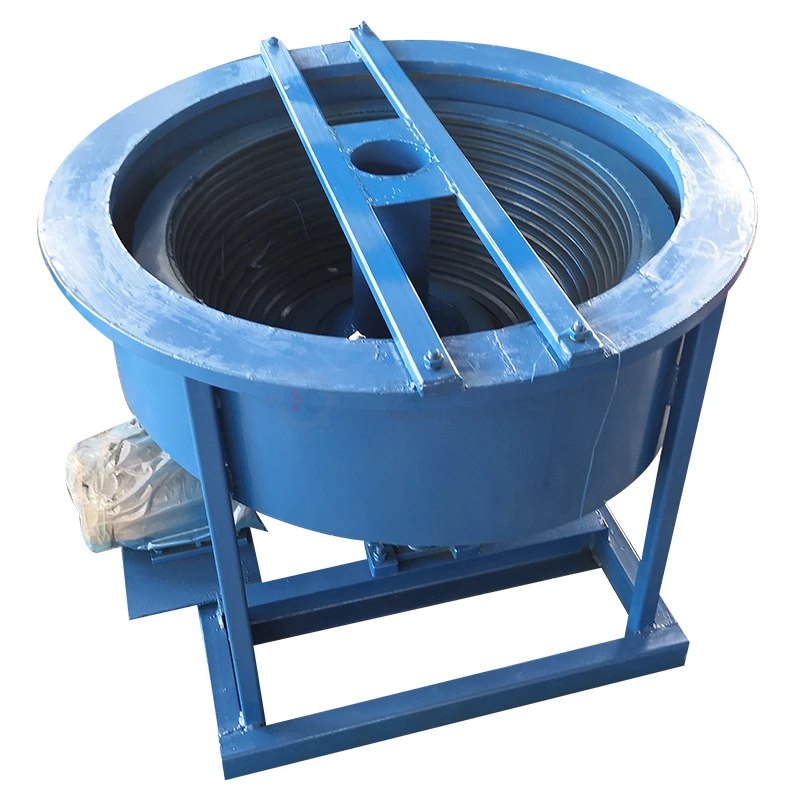

Centrifugal bowl concentrator is a new type of gravity concentration equipment for concentrating gold and other high density minerals. It is an efficient equipment for recovering free gold in all particle size ranges, specially for recovery of fine gold which is lost during the operation of the gravitational concentrators(sluice boxes and jigs). It can be used not only for placer gold mining, but also for hard rock mining to recover the natural gold, replacing amalgamation, and recover gold from the old tailing. Application shows that the recovery can be as high as 99%, and the concentrating ratio is up to 1,000 times. In recovering the natural gold in lode ore with size -0.074 mm, the gold is up to 98%, For 0.004 mm in particle size, the gold recovery is 97%.
Application Range:
1. Recovery of Gold from Alluvial or hard rock deposits
2. Upgrading and recovery of gold from concentrates from other gravity separation stages eg jigs, spirals and cone concentrators
3. Used for exploration and evaluation of gold deposits as well as small production
2. Upgrading and recovery of gold from concentrates from other gravity separation stages eg jigs, spirals and cone concentrators
3. Used for exploration and evaluation of gold deposits as well as small production
4. Other mineral applications include copper,iron,gold ore,niobium, tantalum, coltan, tin, tungsten, and scheelite
Product Working Principle
Motor drive inner rubber bowl rolling at high speed by belt and axis. Separation work will be strengthened in the rubber bowl by centrifugal force. Light material will be discharged with the water, and final refined gold ore will come out from the outlet after stopping work.
Product Features
1. Batch operation with simple cleaning to remove concentrate
2. Relatively low rotational speed to minimize maintenance requirements
3. No added water for bed dilation
4. Simple construction
5. Low capital cost
6. Compact and lightweight
7. Bowl geometry designed for maximum gold retention
3. No added water for bed dilation
4. Simple construction
5. Low capital cost
6. Compact and lightweight
7. Bowl geometry designed for maximum gold retention
Product Paramenters
Model | Specification | Feeding Size | Feed Density | Capacity | Power | Weight |
CB-80 | 960*850*750 mm | 0-3 mm | 0--30% | 3-5 t/h | 1.1 kw | 150 kg |
KCB-80 | 1050*800*920 mm | 0-3 mm | 0-30% | 3-5 t/h | 1.1 kw | 150kg |
Recommend Products
Hammer Crusher
Hammer crusher is used as fine crusher for mining, metallurgy, construction and some other industries. It is used for crushing medium hard materials with weak abrasiveness, and the compression strength of the materials to be crushed should not exceed 100MPa, and the water content should be lower than 15%.
Hammer Mill
Hammer mill is a fine crushing machine whose purpose is to shred or crush aggregate material into smaller particulates (under 2mm) by the repeated blows of little hammers.
Jaw Crusher
Jaw crusher is often used as primary and secondary crusher for mining, metallurgy, construction and some other industries. It takes large pieces of rock, ore, concrete, or other materials, and crush them down to smaller sizes for further processing in a ball mill or hammer crusher.
Ball Mill
Ball mill is a key mineral processing machine for milling the materials into powders after they are crushed, it has wet and dry type.
Agitating Tank
Agitation tank is the necessary equipment to extend the medicament reaction time and strengthen the drug reaction quality. It is mainly used to mix pulp before flotation in beneficiation processing and make potions and pulp fully mixed. Also it can be used for roiling mixing or dilution mixing in chemical industry. It is installed before the flotation machine and makes the reagent and the ore pulp to be fully mixed. This machine is suitable for mixing the ore pulp whose density is lower than 3.5 and the flotation reagents whose density is lower than 30%.
Shaking Table
Shaking table is one of the main equipment of gravity concentration, which is suitable for rough separation and concentration.
Packing & Delivery
Company Profile
FAQ
Q1: Are you manufacturer or trade company?
A1: We are manufacturer with CE certificate. Our factory has more than 25 years history.
Q2: Where your products have been exported before?
A2: Our products have been sold to Southeast Asia, Africa, North America, Oceania, South America, Middle East and so on.
Q3: How will you help the customer to install the equipment?
#1 Our senior engineer will supply installation and training service on-line or on-site.
#2 We have engineer in Southeast Asia and Africa, we can supply 7*24 service.
Q4: How about the wear parts supply?
A4: We will supply the wear parts with factory price. You can buy them from our factory in China.
Q5: What about after-sale service?
A5:12 months warranty for all kinds of products.
Q6: How to get the free solution and quotation?
A6: Please send inquiry to us ,leave your whatsapp and email address, our sales manager will contact you within 1 hours.
Q2: Where your products have been exported before?
A2: Our products have been sold to Southeast Asia, Africa, North America, Oceania, South America, Middle East and so on.
Q3: How will you help the customer to install the equipment?
#1 Our senior engineer will supply installation and training service on-line or on-site.
#2 We have engineer in Southeast Asia and Africa, we can supply 7*24 service.
Q4: How about the wear parts supply?
A4: We will supply the wear parts with factory price. You can buy them from our factory in China.
Q5: What about after-sale service?
A5:12 months warranty for all kinds of products.
Q6: How to get the free solution and quotation?
A6: Please send inquiry to us ,leave your whatsapp and email address, our sales manager will contact you within 1 hours.
