Умный Солнечный Микро Мини Инвертор 600 Вт/800 Вт преобразователь постоянного тока в переменный
15 208,76 ₽ - 17 412,93 ₽

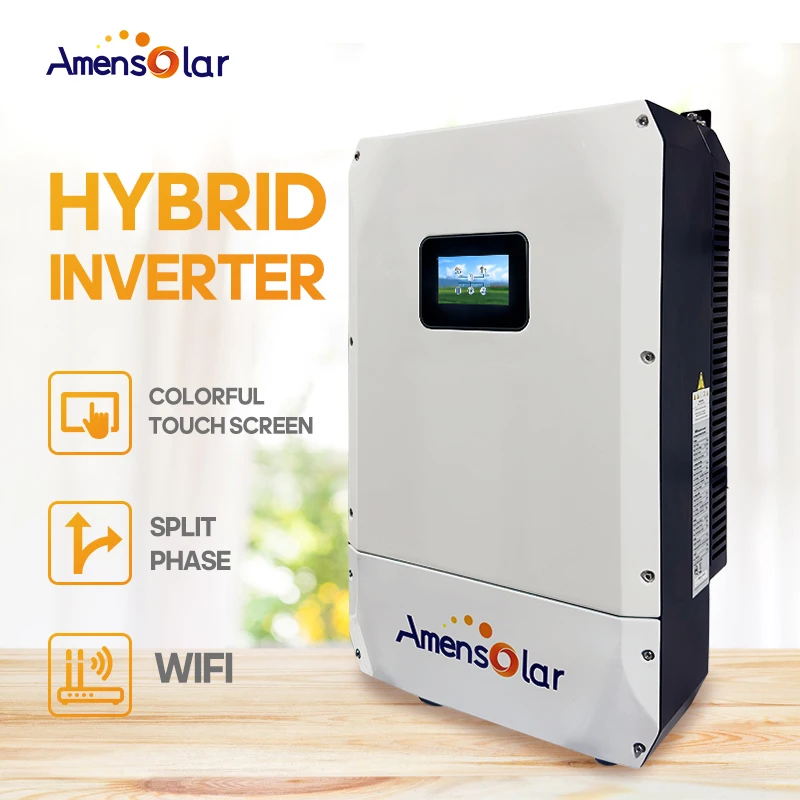

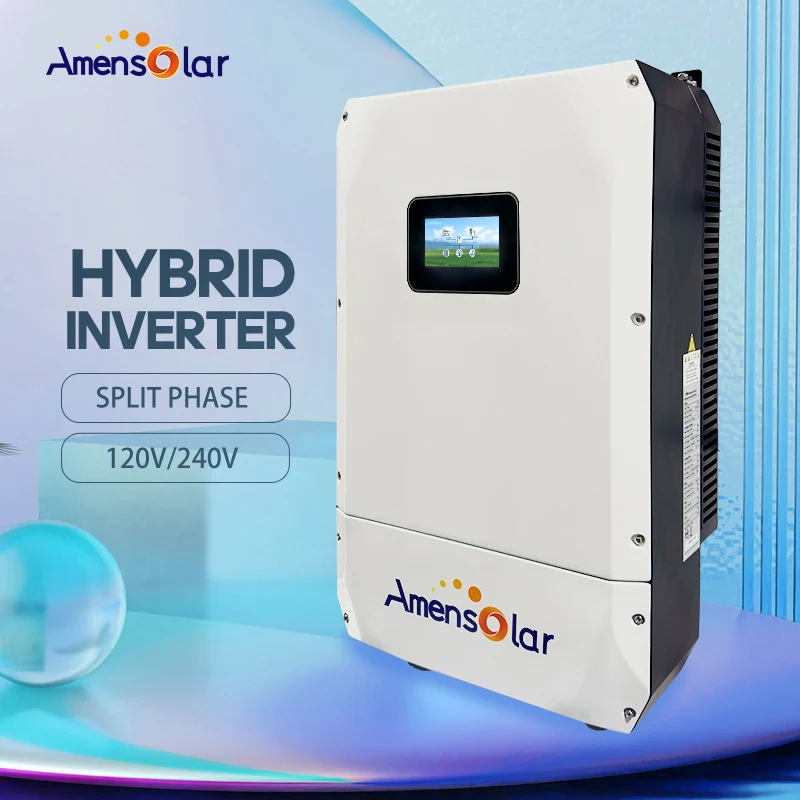

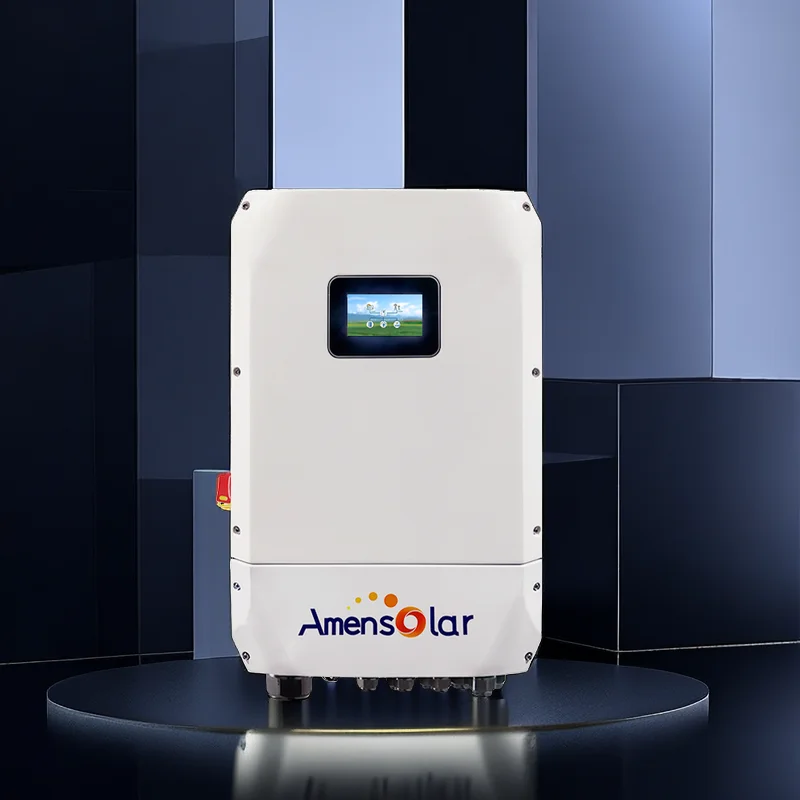

Новый дизайн гибридный солнечный инвертор постоянного тока 48 В 60 110 220
- Категория: >>>
- Поставщик: Amensolar Ess Co. ltd
Сохранить в закладки 1601075071126:
Описание и отзывы
Характеристики

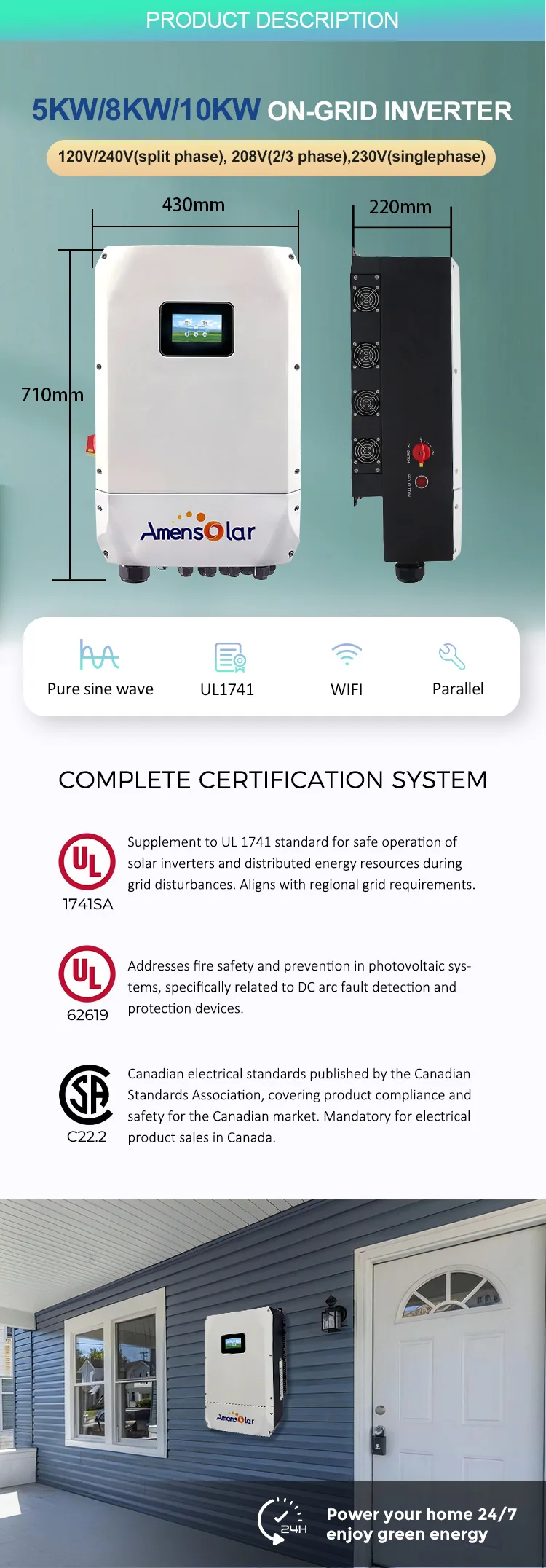

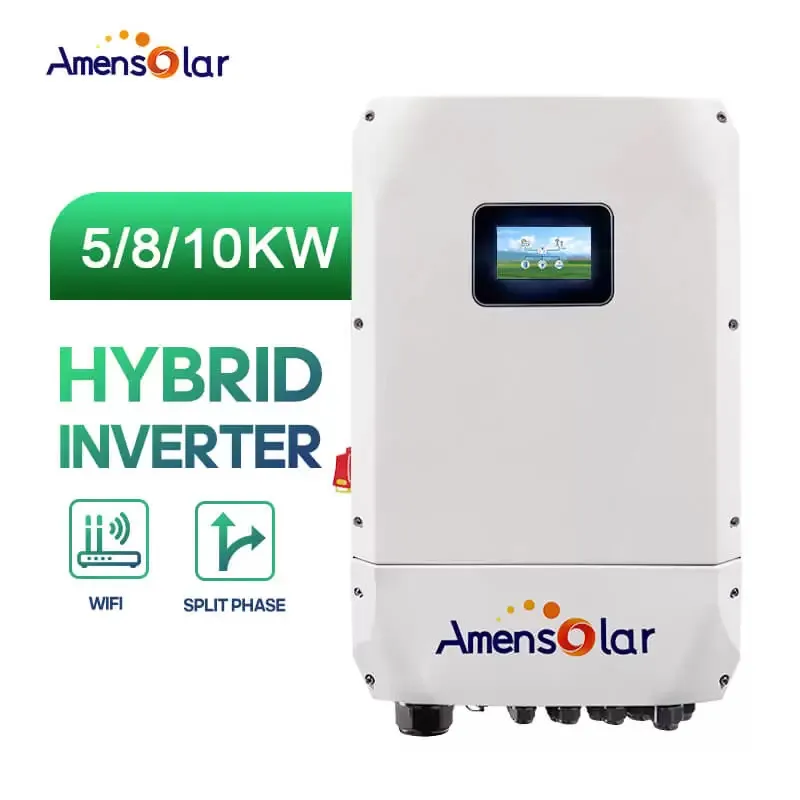

Amensolar HYBRID ON/OFF GRID INVERTER
◆ UL Certification
◆ 48V low-voltage batteries
◆ 120V/240V(split phase), 208V(2/3 phase), 230V(singlephase)
◆ Exclusive Appearance Designed by Mercedes-Benz Designers
◆ Solarman APP Remote Monitoring for IOS and Android
◆ High-Quality Touch Color Screen, Easy to Operate
◆ IP65 Rated
◆ 5 Years Warranty
◆ 7 * 24 Hours Engineer Online Support
◆ Solarman APP Remote Monitoring for IOS and Android
◆ High-Quality Touch Color Screen, Easy to Operate
◆ IP65 Rated
◆ 5 Years Warranty
◆ 7 * 24 Hours Engineer Online Support
Product Paramenters
Model | N3H-X5.0-US | N3H-X8.0-US | N3H-X10.0-US | |||||||||
INPUT(PV) | ||||||||||||
Max power(kw) | 7.5 | 12 | 13 | |||||||||
Max. DC voltage (V) | 500 | |||||||||||
MPPT voltage range (V) | 120~500 | |||||||||||
Max. Input current of single MPPT (A) | 12 | |||||||||||
MPPT tracker/strings | 4 | |||||||||||
AC Output | ||||||||||||
Rated output power (kVA) | 5 | 8 | 10 | |||||||||
Max, output current (A) | 24 | 38.3 | 47.8 | |||||||||
Ac output voltage(V) | 120/240(split phase), 208(2/3 phase),230 (single phase) | |||||||||||
Frequency (Hz) | 50/60 | |||||||||||
PF | 0.8lagging-0.8leading | |||||||||||
THDi | ＜3% | |||||||||||
AC output topology | Split phase, 2/3 phase, single phase | |||||||||||
Battery | ||||||||||||
Battery voltage range (V) | 40~58 | |||||||||||
Max. charging voltage (V) | 58 | |||||||||||
Max. charge/discharge current (A) | 120/120 | 190/190 | 210/210 | |||||||||
Battery type | lithium /Lead-acid | |||||||||||
Communication interface | CAN/RS485 | |||||||||||
EPS Output | ||||||||||||
Rated power (kVA) | 5 | 8 | 10 | |||||||||
Rated output voltage (V) | 120/240 (split phase), 208 (2/3 phase),230 (single phase) | |||||||||||
Rated output current (A) | 24 | 38.3 | 47.8 | |||||||||
Rated frequency (Hz) | 50/60 | |||||||||||
Automatic switching time (ms) | ＜20 | |||||||||||
THDu | ＜2% | |||||||||||
Overload capacity | 125%,60S/150%,15 | |||||||||||
General Data | ||||||||||||
Ingress protection | IP65/NEMA 3R | |||||||||||
Noise emission (dB) | ＜25 | ＜29 | ＜29 | |||||||||
Operation temperature | —25℃~60℃ | |||||||||||
Cooling | Natural | |||||||||||
Dimensions W*D *H (mm) | 500x810 x350 | |||||||||||
Weight (kg) | 44kg | |||||||||||
Display and Communication | ||||||||||||
Display | LCD, Color Touch Screen | |||||||||||
Interface:RS485/Wifi/4G/CAN/DRM | Yes | |||||||||||
Safety standard | UL1741SA all options, UL1699B, CSA 22.2 | |||||||||||
EMC | FCC Part 15, Class B | |||||||||||
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2010,sell to North America(35.00%),South America(15.00%),Africa(10.00%),Western
Europe(8.00%),Central America(7.00%),Oceania(5.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Northern Europe(3.00%),Mid
East(3.00%),Eastern Asia(2.00%),Southern Europe(2.00%),South Asia(0.00%),Domestic Market(0.00%). There are total about 11-50
people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Lithium Ion Batteries, Energy Storage Battery, Home Energy Storage, Solar Inverter, Solar Energy System
4. why should you buy from us not from other suppliers?
Amensolar is a high-tech phtovoltaic and energy storage company for more than 10 years, which has been the stategic partner of
many world famous solar energy companies, such as CATL, PYLONTECH, BYD, DEYE, FOX, LONGI, etc.. Well done on OEM for customers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
FAQs of this Product：
Q: Can I run my AC/refrigerator with this inverter?
A: Yes, the ABC 3KVA can power small window ACs and refrigerators up to 3000W continuous. Larger units may need a larger inverter.
Q: What battery bank do you recommend?
A: We recommend deep cycle lead-acid, AGM or lithium batteries suitable for renewable energy applications. Battery bank voltage
should match the inverter's rating of 12V, 24V or 48V DC input.
Q: How long will the batteries last on backup power?
A: Battery backup time depends on the battery bank size, the power drawn by connected loads and other factors. As a guide, a 200Ah
lead-acid battery bank can power small essential loads for 4-8 hours.
Q: Can I add more solar panels later?
A: Yes, the built-in MPPT solar charge controller supports expanding the solar array up to 600W maximum power from the panels.
Q: Can I parallel multiple units for more power?
A: Yes, up to 12 units can be paralleled for increased output power of 36kW. Cables for parallel operation sold separately.
Q: What is the warranty period?
A: The ABC 3KVA comes with a standard 2 year limited warranty on defects in materials and workmanship.
Q: Is this suitable for an RV application?
A: Yes, this inverter is perfectly suited for motorhome and RV applications when combined with suitable solar, batteries and a
generator.
Q: What is the operating temperature range?
A: The ABC 3KVA has an operating temperature range of -10°C to 55°C (-14°F to 131°F) and can be stored at -15°C to 60°C (5°F to
140°F).
We are based in Jiangsu, China, start from 2010,sell to North America(35.00%),South America(15.00%),Africa(10.00%),Western
Europe(8.00%),Central America(7.00%),Oceania(5.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Northern Europe(3.00%),Mid
East(3.00%),Eastern Asia(2.00%),Southern Europe(2.00%),South Asia(0.00%),Domestic Market(0.00%). There are total about 11-50
people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Lithium Ion Batteries, Energy Storage Battery, Home Energy Storage, Solar Inverter, Solar Energy System
4. why should you buy from us not from other suppliers?
Amensolar is a high-tech phtovoltaic and energy storage company for more than 10 years, which has been the stategic partner of
many world famous solar energy companies, such as CATL, PYLONTECH, BYD, DEYE, FOX, LONGI, etc.. Well done on OEM for customers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
FAQs of this Product：
Q: Can I run my AC/refrigerator with this inverter?
A: Yes, the ABC 3KVA can power small window ACs and refrigerators up to 3000W continuous. Larger units may need a larger inverter.
Q: What battery bank do you recommend?
A: We recommend deep cycle lead-acid, AGM or lithium batteries suitable for renewable energy applications. Battery bank voltage
should match the inverter's rating of 12V, 24V or 48V DC input.
Q: How long will the batteries last on backup power?
A: Battery backup time depends on the battery bank size, the power drawn by connected loads and other factors. As a guide, a 200Ah
lead-acid battery bank can power small essential loads for 4-8 hours.
Q: Can I add more solar panels later?
A: Yes, the built-in MPPT solar charge controller supports expanding the solar array up to 600W maximum power from the panels.
Q: Can I parallel multiple units for more power?
A: Yes, up to 12 units can be paralleled for increased output power of 36kW. Cables for parallel operation sold separately.
Q: What is the warranty period?
A: The ABC 3KVA comes with a standard 2 year limited warranty on defects in materials and workmanship.
Q: Is this suitable for an RV application?
A: Yes, this inverter is perfectly suited for motorhome and RV applications when combined with suitable solar, batteries and a
generator.
Q: What is the operating temperature range?
A: The ABC 3KVA has an operating temperature range of -10°C to 55°C (-14°F to 131°F) and can be stored at -15°C to 60°C (5°F to
140°F).
