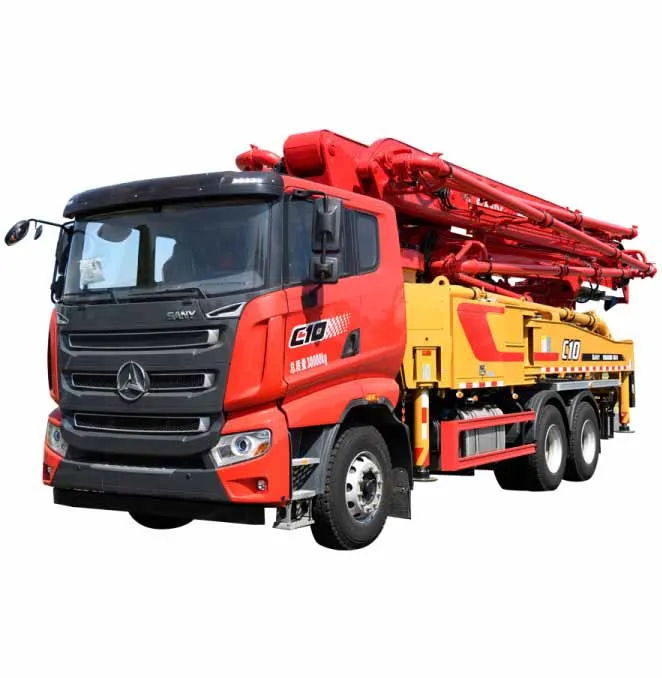

Оптовая продажа недорогой бетононасос SYM5300THBES 430C-10 с инструментами по низкой цене хорошее состояние 43 м
127 000,00-128 000,00 $
Дизельный бетононасос
- Категория: >>>
- Поставщик: Henan Spark Machinery Co. Ltd.Henan Ltd.
Сохранить в закладки 1601076362444:
Описание и отзывы
Характеристики
Product Overview
mini concrete pump For Construction diesel 40m3/h concrete capacity china concrete pump concrete pump remote control
On the basis of mature electric commutation technology,we have developed overall hydraulic concrete pumps with excellent performance. This hydraulic system deletes PCL, constent pressure pump, accumulator and approach switch four parts that are extremely damageable parts in electronic commutation system. It greatly improves the reliability of the machine and makes sure it can work in any hard condition. Our various motor concrete pumps( diesel engine concrete pumps) mainly cover capacity from 30-120m³/h and pressure from 5-20Mpa.
PRODUCT SPECIFICATIONS

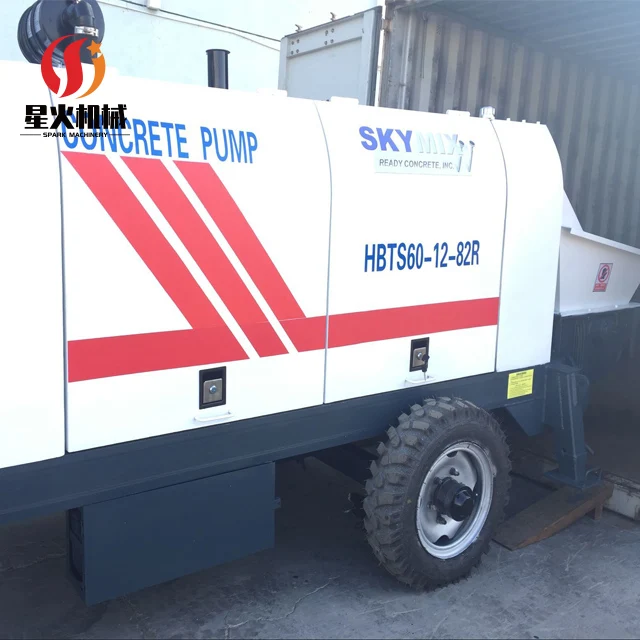

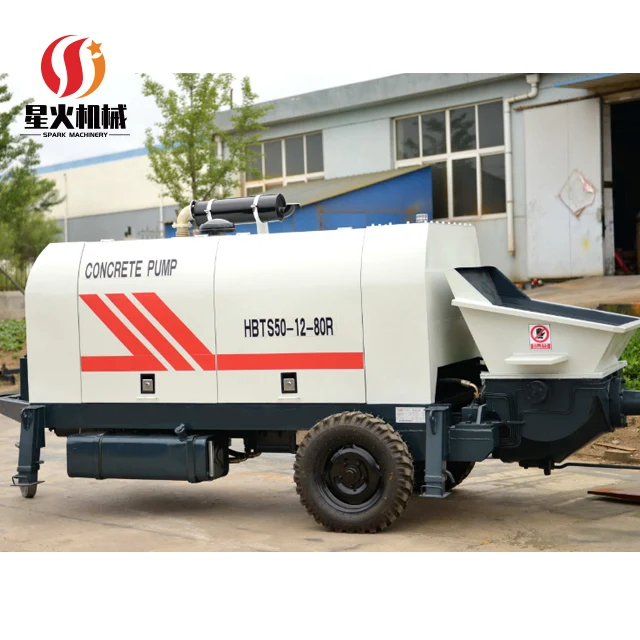

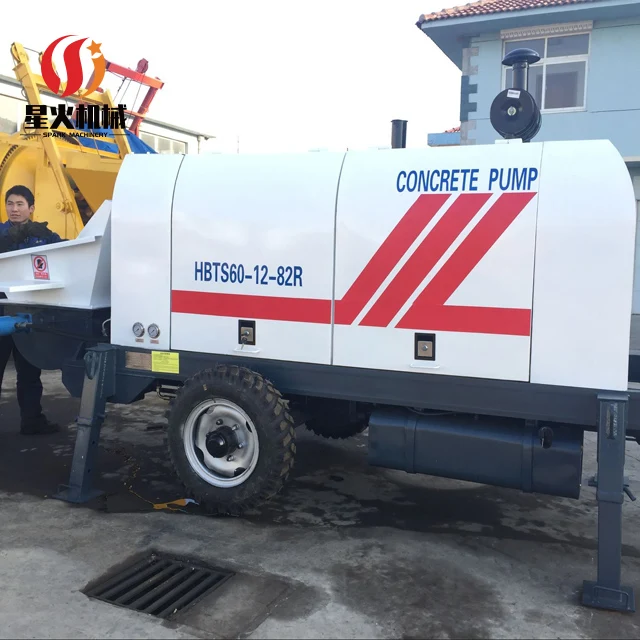

Model | HBT20-10-56R | HBT30-10-56R | HBTS40-12-66R | HBTS50-12-82R | HBTS60-12-82R |
Pump capacity | 20m3/h | 30m3/h | 40m3/h | 50m3/h | 60m3/h |
Max. pump pressure | 10Mpa | 10Mpa | 12Mpa | 12Mpa | 12Mpa |
Distribution valve | S Valve | S Valve | S Valve | S Valve | S Valve |
Concrete cylinder diameter×stroke | Ф140×1200mm | Ф140×1200mm | Ф160×1300mm | Ф180×1300mm | Ф180×1300mm |
Hopper capacity | 400L | 400L | 400L | 680L | 680L |
Feeding height | 1200mm | 1200mm | 1200mm | 1400mm | 1400mm |
Outlet diameter | 100mm | 100mm | 125mm | 150mm | 150mm |
Diesel engine power | 56kw | 56kw | 66kw | 82kw | 82kw |
Pumping pressure | 26Mpa | 26Mpa | 28Mpa | 31.5Mpa | 31.5Mpa |
Oil tank | 260L | 260L | 370L | 370L | 370L |
Max. aggregate size | 20mm | 20mm | 30mm | 40-50mm | 40-50mm |
Vertical pump height | 120m | 160m | 160m | 125m | 125m |
Horizontal pump length | 500m | 500m | 500m | 500m | 500m |
Circuit type | Open circuit | Open circuit | Open circuit | Open circuit | Open circuit |
Weight | 3500kg | 3700kg | 4500kg | 5500kg | 6480kg |
Dimension | 4500*1750*1600 | 4500*1750*1600 | 5000*1850*1700 | 5000*2100*2260 | 6000*2160*2600 |

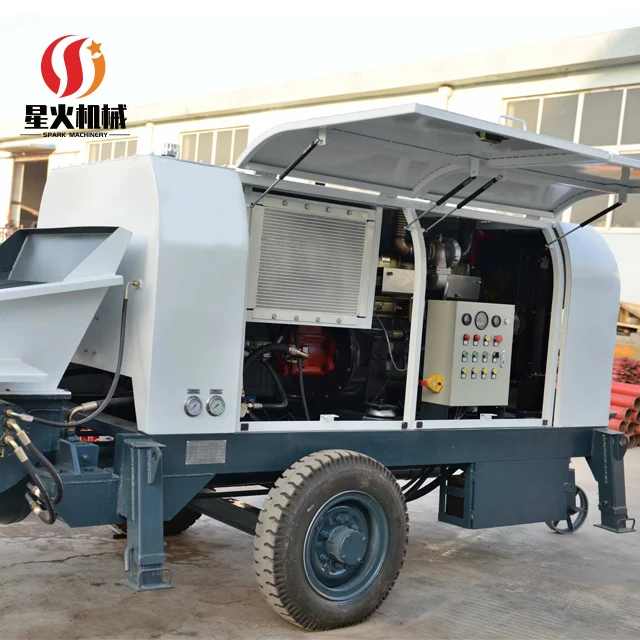

High Quality Diesel Engine
PLC With Omron Brand
High quality inside cylinder
Water cooling and air cooling two system
Seamless Steel pipe No leakage
Cast iron clamp ensure no leakage
All using new tyre, long life time
100m far distance remote control
Successful Project
SIMILAR PRODUCTS
FAQ
Q:Do you have set up an independent factory?
A:We have been engaged in the production of concrete machine for more than 30 years.
Q:What can you do for us?
A:1. Before sales can be targeted to give some constructive Suggestions.
2.Make a specific plan for your needs.
3. After sales reference specific products, different products have different services. Refer to the specific product description.
Q:The aggregate size that you usually use?
A: Pebble 40mm, crushed stone 30mm.
Q:Can your engineers train our workers in our factories?
A:Yes, we have a very large engineering installation team that can train and instruct your workers to operate the installation equipment.
Q:What is your payment method?
A: 30% of total price should be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery. We also support L/C, Western Union.
Q:How long is your lead time?
A:Our delivery time varies according to the quantity of the order, usually around 5-10 days.
A:We have been engaged in the production of concrete machine for more than 30 years.
Q:What can you do for us?
A:1. Before sales can be targeted to give some constructive Suggestions.
2.Make a specific plan for your needs.
3. After sales reference specific products, different products have different services. Refer to the specific product description.
Q:The aggregate size that you usually use?
A: Pebble 40mm, crushed stone 30mm.
Q:Can your engineers train our workers in our factories?
A:Yes, we have a very large engineering installation team that can train and instruct your workers to operate the installation equipment.
Q:What is your payment method?
A: 30% of total price should be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery. We also support L/C, Western Union.
Q:How long is your lead time?
A:Our delivery time varies according to the quantity of the order, usually around 5-10 days.
Похожие товары

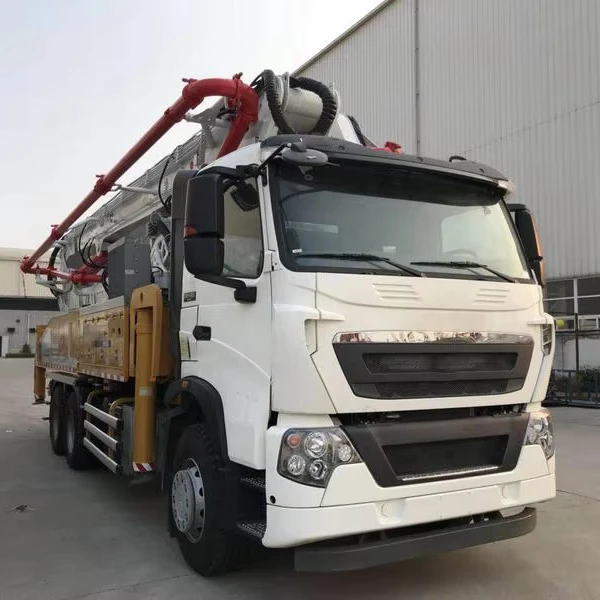

6*4 бетонный насос для бетонной стрелы на грузовике XZS5280THBQ с максимальной высотой 39 1 м хорошей продажи
249 000,00-258 000,00 $

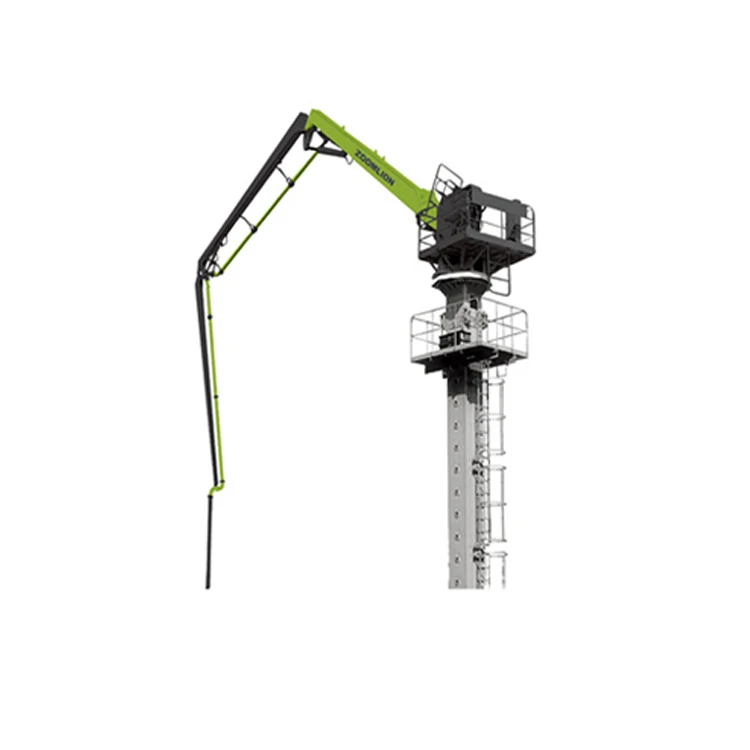

Легкого восхождения операции ZOOMLION HGC33A-4Z 33m бетонное размещение боны-натриевый вкладыш GCL
