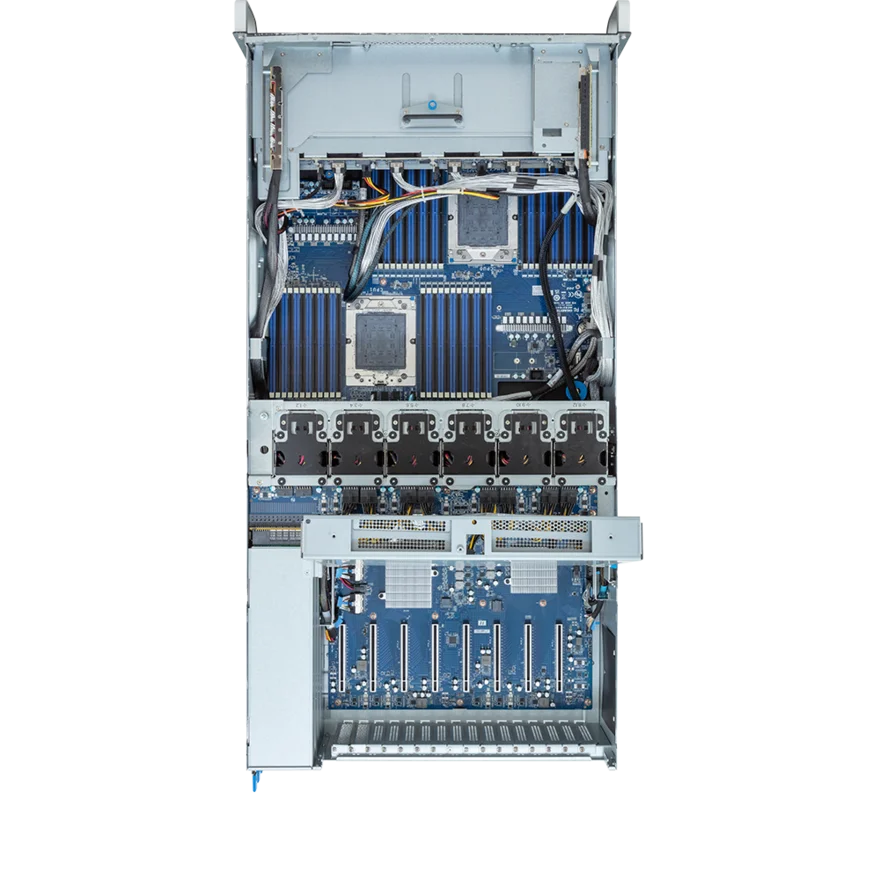

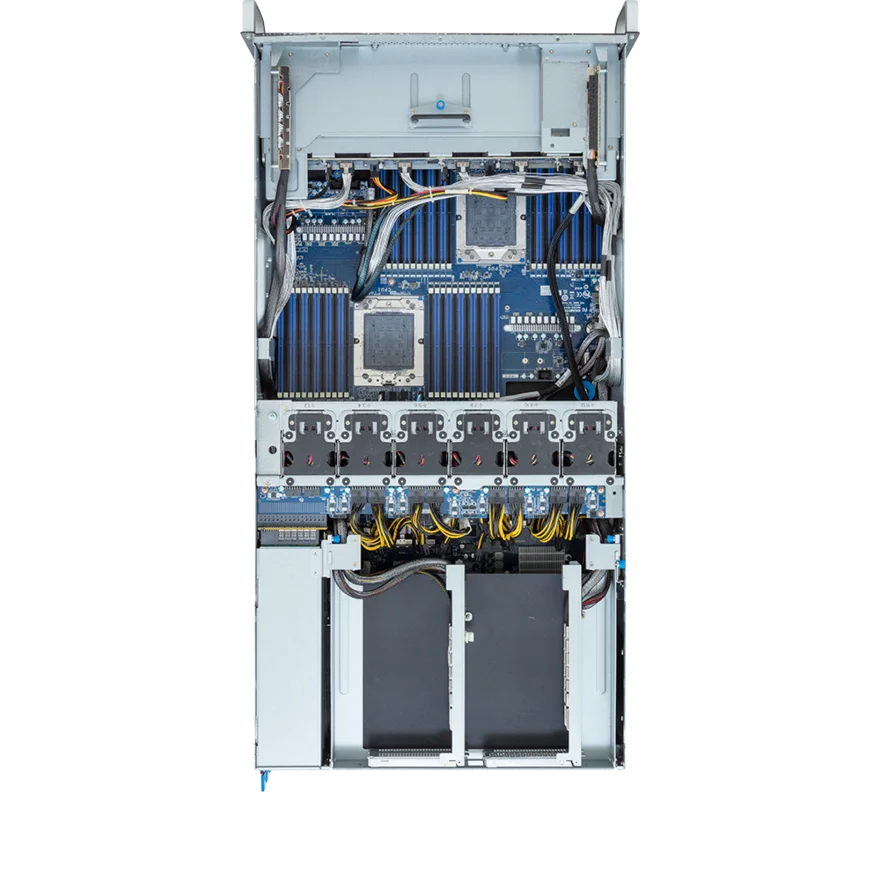

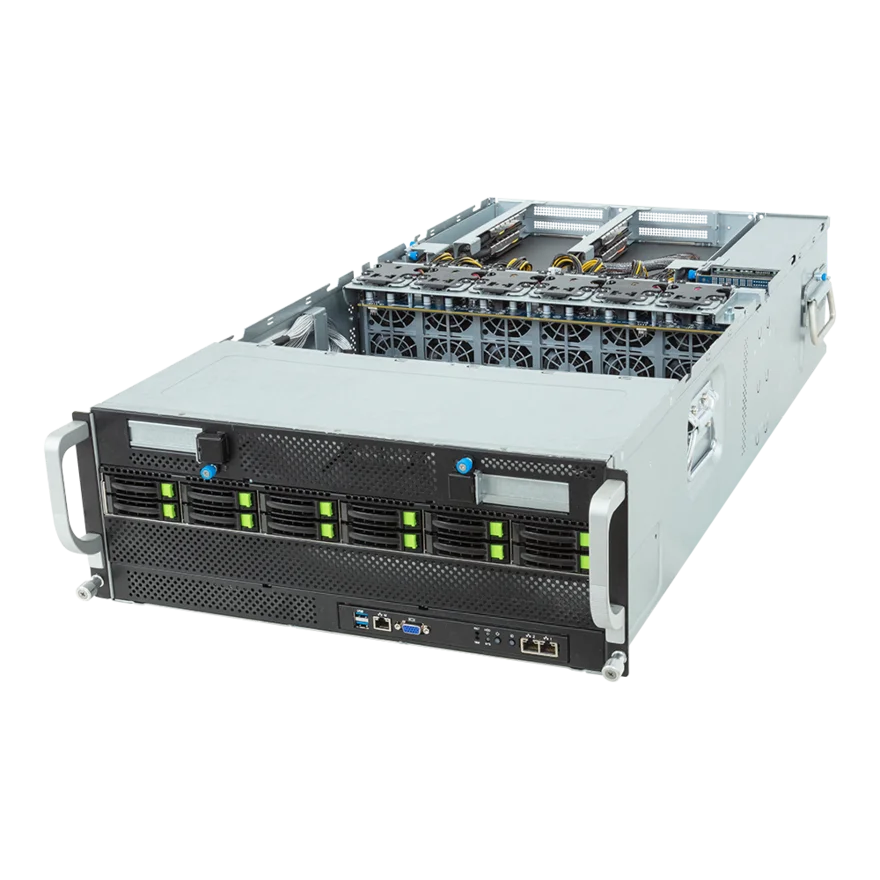

Gigabyte G493 ZB2 GPU вычислительный сервер настроить пользовательский HPC AI AMD EPYC 9004 4U DP 8 x PCIe Gen5 GPUs

Dimensions (WxHxD, mm) 4U 448 x 176 x 880
Motherboard MZB3-G41

CPU
AMD EPYC™ 9004 Series processors
AMD EPYC™ 9004 Series processors with AMD 3D V-Cache™ Technology
Dual processor, 5nm technology
*Up to 128 cores, 256 threads per processor
cTDP up to 300W at ambient 35°C

*cTDP supported up to 400W under limited thermal conditions. Please contact technical support for more details.

Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

Socket
2 x LGA 6096
Socket SP5
Chipset
System on Chip

Memory
48 x DIMM slots
DDR5 memory supported only
12-Channel memory architecture
RDIMM modules up to 96GB supported
3DS RDIMM modules up to 256GB supported
Memory speed: Up to 4800 MT/s (1DPC), 3600 MT/s (2DPC)

LAN
Front side:
2 x 1Gb/s BASE-T LAN ports (1 x Intel® I350-AM2)
NCSI function supported

1 x 10/100/1000 Mbps Management LAN

Video
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

Storage
Front side:
12 x 2.5" Gen5 NVMe/SATA/SAS hot-swappable bays
- (2 x NVMe from CPU_0, 2 x NVMe from CPU_1, 4 x NVMe from PEX89144_0, 4 x NVMe from PEX89144_1)

SAS card is required for SAS devices support
SAS
Depends on SAS add-in cards
RAID N/A

Expansion Slots
4 x PCIe x16 (Gen5 x16) FHFL slots, from PEX89144_0, for GPUs
4 x PCIe x16 (Gen5 x16) FHFL slots, from PEX89144_1, for GPUs

2 x PCIe x16 (Gen5 x16) FHFL slots, from PEX89144_0
2 x PCIe x16 (Gen5 x16) FHFL slots, from PEX89144_1

1 x PCIe x16 (Gen5 x16) low-profile slot on the front side, from CPU_0
1 x PCIe x16 (Gen5 x16) low-profile slot on the front side, from CPU_1

- System is validated for population with a uniform GPU model.
- Support is not provided for mixed GPU populations.

1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports 2280/22110 cards

1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_1
- Supports 2280/22110 cards

Internal I/O
1 x TPM header

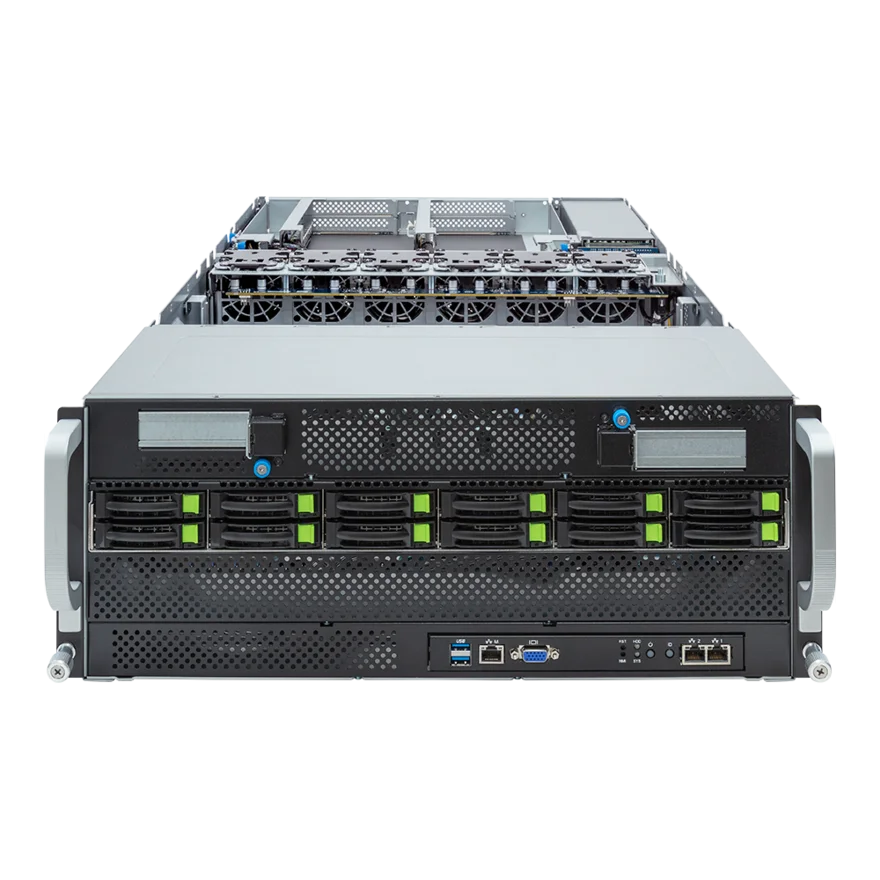

Front I/O
2 x USB 3.2 Gen1
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x Storage activity LED

Rear I/O
N/A

Backplane Board
Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS 12Gb/s

TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

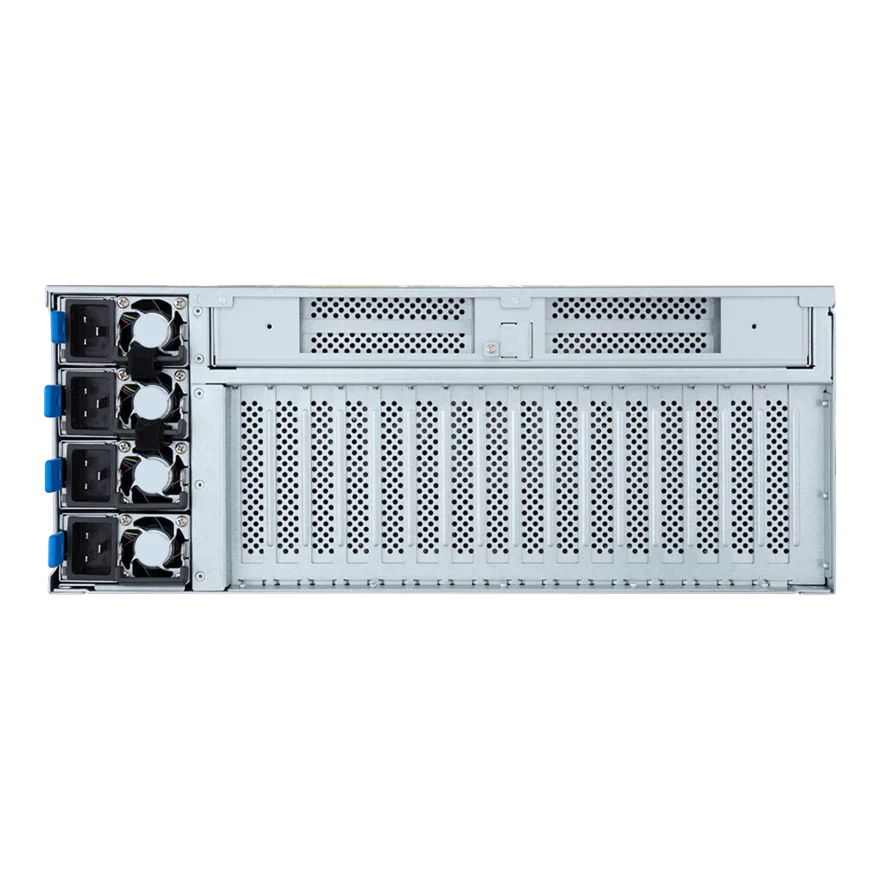

Power Supply
3+1 3000W 80 PLUS Titanium redundant power supplies

AC Input:
- 100-127V~/ 15.5A, 50-60Hz
- 200-220V~/ 15.5A, 50-60Hz
- 220-240V~/ 15.5A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 15.5A

DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 81A
+12Vsb/ 3A
- Max 2600W/ 200-220V~
+12.2V/ 213A
+12Vsb/ 3A
- Max 3000W/ 220-240V~ or 240Vdc Input
+12.2V/ 245A
+12Vsb/ 3A

Note: The system power supply requires C19 power cord.

System Management
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

OS Compatibility
Please refer to OS compatibility table in support page

Additional certifications:
Red Hat Enterprise Linux 9.0 or later

Weight
Net Weight: 47 kg
Gross Weight: 69.4 kg

System Fans
12 x 60x60x38mm (23,000rpm)*

*Two fans share a single power connector.
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Dimensions
1200 x 800 x 444 mm w/ pallet
Packaging Content
1 x G493-ZB2-AAP1
2 x CPU fansinks
8 x GPU power cables (12VHPWR to 12VHPWR, 150mm)
1 x L-shape Rail kit

Part Numbers
- Barebone package: 6NG493ZB2DR000AAP1*
- Motherboard: 9MZB3G41UR-00
- L-shape Rail kit: 25HB2-A96100-K0R
- CPU fansink: 25ST0-0Z6023-C1R/25ST0-0Z6024-C1R
- Backplane board - CBP10C2: 9CBP10C2NR-00
- Fan module: 25ST2-663823-F1R
- PCIe switch board - CPBGA80: 9CPBGA80NR-00
- G-SCM board - CDCG110: 9CDCG110UR-00
- GPU power cable (12VHPWR, 150mm): 25CRI-150004-Y4R
- Power supply: 25EP0-230005-G1S

Optional parts:

- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- RMA packaging: 6NG493ZB2SR-RMA-A100
