Оборудование для сборки литий-ионных полимерных аккумуляторов
45 504 086,00 ₽ - 49 341 780,00 ₽
PDKJ высокомощный стоячий точечный сварочный аппарат 4 мм алюминиевая медь латунная защита вентилятора 18650 батарейки машина для точечной сварки болтов
- Категория: >>>
- Поставщик: Guangdong Pudian Automation Technology Co. ltd.
Сохранить в закладки 1601077813012:
Описание и отзывы
Характеристики
High Power / Intermediate Frequency / DC output current

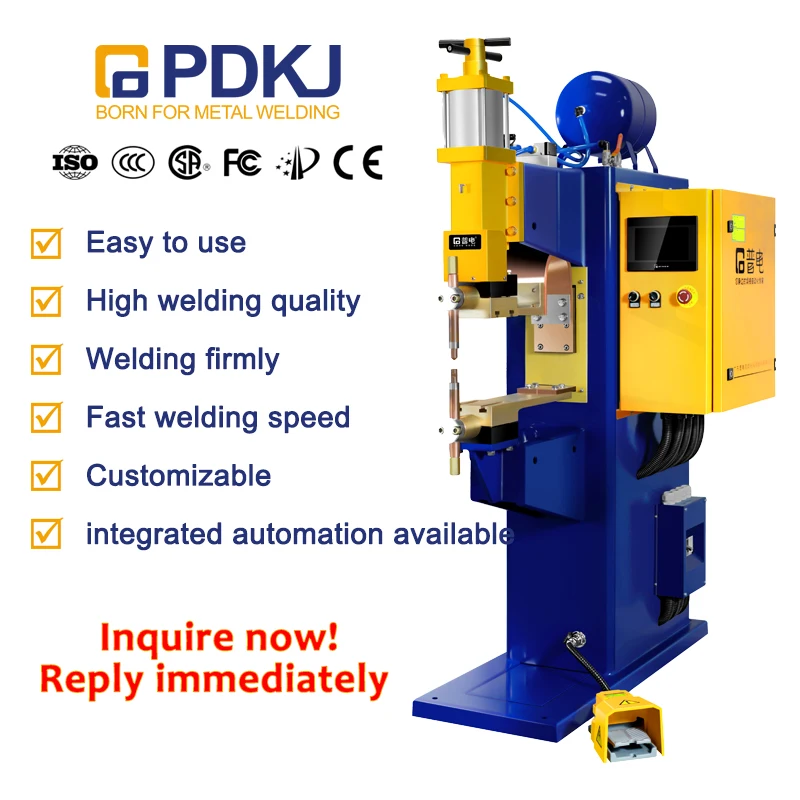

Intermediate Frequency Inverter DC Spot (Convex) Welder
DTB-80 DTB-160 DTB-240 DTB-280 DTB-340 DTB-450
Energy saving, power saving, high efficiency, low operating cost, and high welding quality.
Product Parameters
Parameters of PDKJ Intermediate Frequency Inverter DC Spot Welder (1)
Parameter | DTB-80 | DTB-160 | DTB-240 | ||
Rated capacity | 80KVA | 160KVA | 240KVA | ||
Input power | 3Φ 380V | ||||
Short-circuit current | 25KA | 35KA | 50KA | ||
Duty cycle | 20% | ||||
Control mode | Primary / Secondary constant current | ||||
Inverter frequency | 1000HZ | ||||
Maximum pressure | 6000N | 6000N | 12000N | ||
Electrode stroke | 80mm | 80mm | 100mm | ||
Cooling water flow | 12L/min | 12L/min | 14L/min | ||
Welding ability /Aluminum | 2.0+2.0mm | 2.5+2.5mm | 3.0+3.0mm | ||
Welding ability /Carbon steel | 2.5+2.5mm | 3.0+3.0mm | 4.0+4.0mm | ||
Arm extension size | 500 x 250mm | 500 x 250mm | 500 x 350mm | ||
Electrode arm size | φ59 x 173mm | φ59 x 173mm | φ74 x 195mm | ||
Electrode holder size | φ24.6 x 180mm | φ24.6 x 180mm | φ31.6 x 250mm | ||
Electrode head size | φ16 x 50mm | φ16 x 50mm | φ20 x 60mm | ||
Weight | 336kg | 384kg | 733kg | ||
Overall dimension | 1180×750×1830mm | 1180×750×1830mm | 1200×870×2070mm | ||
Parameters of PDKJ Intermediate Frequency Inverter DC Spot Welder (2)
Parameter | DTB-280 | DTB-340 | DTB-450 | ||
Rated capacity | 280KVA | 340KVA | 450KVA | ||
Input power | 3Φ 380V | ||||
Short-circuit current | 65KA | 80KA | 100KA | ||
Duty cycle | 20% | ||||
Control mode | Primary / Secondary constant current | ||||
Inverter frequency | 1000HZ | ||||
Maximum pressure | 12000N | ||||
Electrode stroke | 100mm | 100mm | |||
Cooling water flow | 14L/min | 16L/min | 20L/min | ||
Welding capacity /Aluminum | 3.5+3.5mm | 4.0+4.0mm | 5.0+5.0mm | ||
Welding capacity /Carbon steel | 4.5+4.5mm | 5.0+5.0mm | 6.0+6.0mm | ||
Arm extension size | 500 x 350mm | ||||
Electrode arm size | φ74 x 195mm | ||||
Electrode holder size | φ31.6 x 250mm | ||||
Electrode head size | φ20 x 60mm | ||||
Weight | 820kg | 900kg | 980kg | ||
Overall dimension | 1205*870*2140mm | 1205*870*2140mm | |||
Details Images
Application
Why Choose Us

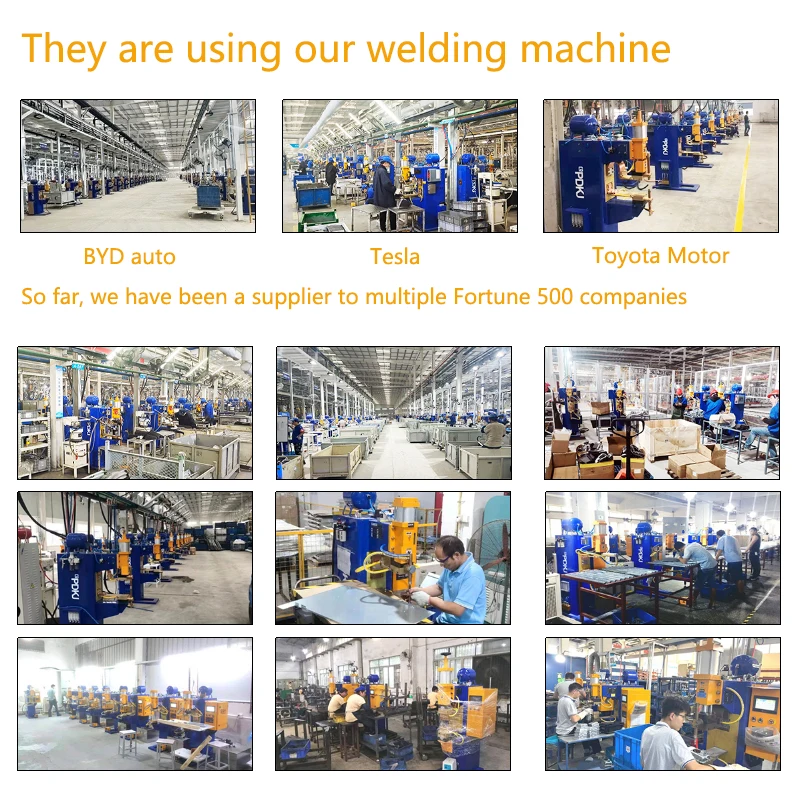

Our Customer
Patents & Certifications
Recommend Products
FAQ
1. How are the exhaust gases generated during the use of the spot welding machine treated?
Answer: The spot welding machine may generate some exhaust gases during the welding process, mainly smoke and harmful gases. To reduce the impact on the environment and operators, you can take the following measures: Firstly, ensure that the workplace has good ventilation conditions to timely exhaust the exhaust gases. Secondly, you can install exhaust gas treatment equipment, such as air purifiers, to filter and purify the exhaust gases.
2. Is the operation interface of the spot welding machine user-friendly and easy to use?
Answer: Our spot welding machine features a user-friendly operation interface designed with clear and intuitive icons and buttons, making it easy for even first-time users to quickly get started. Additionally, we provide detailed operation manuals and video tutorials to help users better master the operation skills of the equipment..
3.How is the cooling system of the spot welding machine maintained?
Answer: The cooling system of the spot welding machine is crucial for ensuring stable equipment operation. When maintaining the cooling system, the quantity and quality of the cooling liquid should be checked regularly to ensure it is sufficient and free from contamination. Additionally, clean the radiator of the cooling system to prevent dust and dirt from blocking the heat dissipation channels. If the cooling liquid becomes turbid or has an unusual odor, it should be replaced promptly.
Answer: The spot welding machine may generate some exhaust gases during the welding process, mainly smoke and harmful gases. To reduce the impact on the environment and operators, you can take the following measures: Firstly, ensure that the workplace has good ventilation conditions to timely exhaust the exhaust gases. Secondly, you can install exhaust gas treatment equipment, such as air purifiers, to filter and purify the exhaust gases.
2. Is the operation interface of the spot welding machine user-friendly and easy to use?
Answer: Our spot welding machine features a user-friendly operation interface designed with clear and intuitive icons and buttons, making it easy for even first-time users to quickly get started. Additionally, we provide detailed operation manuals and video tutorials to help users better master the operation skills of the equipment..
3.How is the cooling system of the spot welding machine maintained?
Answer: The cooling system of the spot welding machine is crucial for ensuring stable equipment operation. When maintaining the cooling system, the quantity and quality of the cooling liquid should be checked regularly to ensure it is sufficient and free from contamination. Additionally, clean the radiator of the cooling system to prevent dust and dirt from blocking the heat dissipation channels. If the cooling liquid becomes turbid or has an unusual odor, it should be replaced promptly.
