Product Description

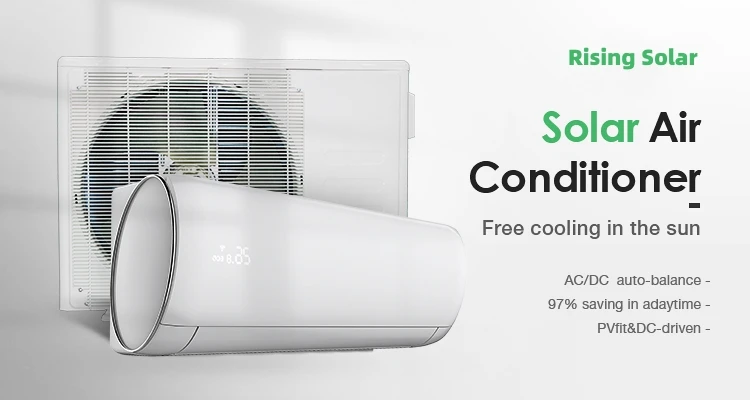

What Is Off-Grid Solar Air Conditioner：
Rising Solar Recreate Series Off-Grid Solar Air Conditioner is engineered from the ground up for use with solar. All electrical components are DC powered including DC Compressor, high-efﬁciency DC Fan Motors, DC Valves & Solenoids, etc.

Off-Grid Solar Air Conditioner uses Solar Direct Drive Technology(SDDA) and IPS Model, It combines the feature of ACDC Hybrid Solar Air Conditioner and adds the function of battery backup though the IPS Control Model. So the A/C Unit can use AC, DC, and Battery power according to the customer requirement and the energy situation.

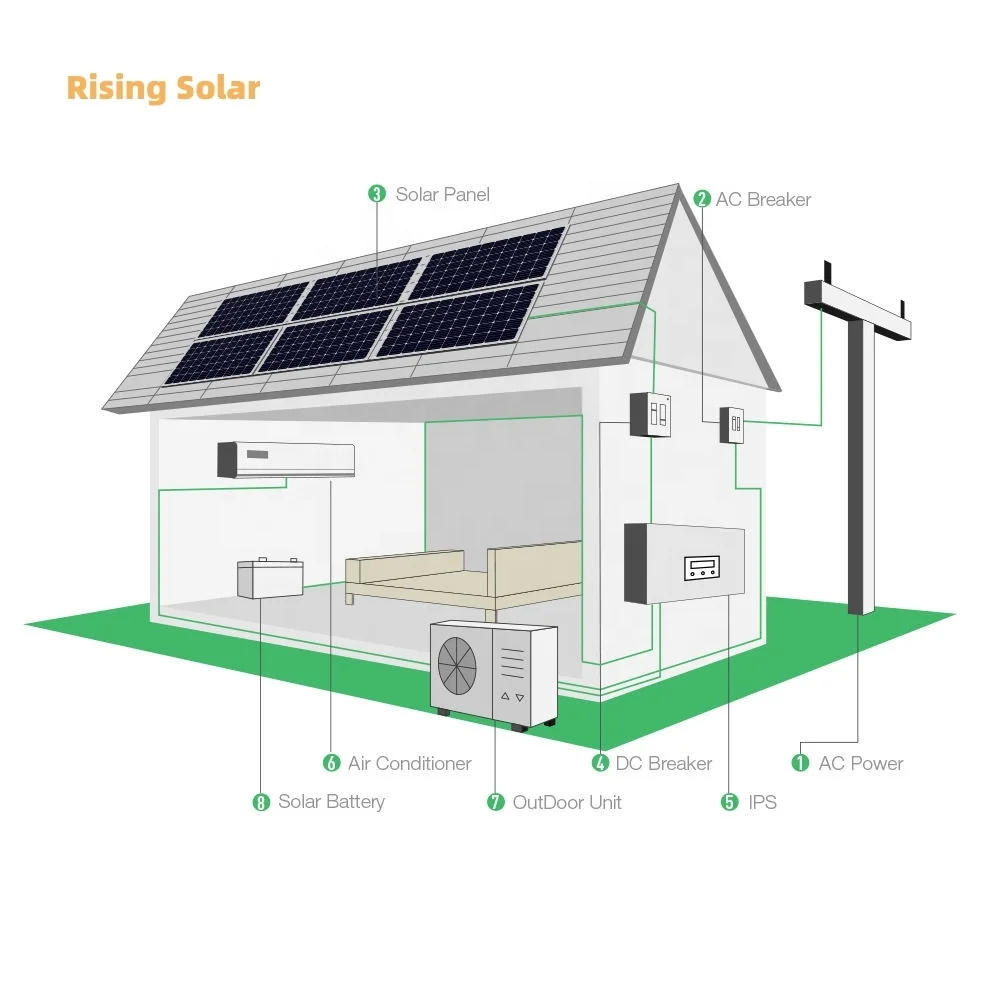

The whole system just contains an A/C Unit, an IPS Model, a few PV panels and batteries. Compare with the regular AC Unit + Off-Grid Solar System, the solar energy utilization rate will enhance 20%-40%.
The A/C unit working time will enhance 30-50%, in the same quantity of the battery and solar panel.

Model1. With Grid Power:

1. Grid Power

During the night, the A/C unit take the power from the grid power and running with same principle of regular air conditioner, the SEER is over 22, it can saving 20-30% energy compare with the regular A/C unit.

2. GRID AND SOLAR

When Sunshine is weak, like the morning or cloudy day. The A/C unit will take the solar as the priority choice, the insufficient power will take from the grid to make sure 24H working.

Model2. Without Grid Power:

3. 100% Solar

When solar energy meet the Min Running requirement of compressor, the A/C unit can start and operate by solar energy only, even the grid off. 100% energy saving. In same time, the system will charge the battery automatically.

4. Grid Off

When the grid off or the customer turns off the grid power, the system will automatically take the battery energy to run the A/C unit, it will ensure you enjoy cooling summer in any situation.

A/C Unit Description

Specification

Model No	ADC09GW-XA	ADC12GW-XA	ADC18GW-XA	ADC24GW-XA
Power Supply:
Solar Power	DC90-380V
Max Solar Charging Current	15A
AC Power Connected	200-230V (50/60HZ)
Cooling:
Capacity	9000 Btu/h	12000 Btu/h	18000 Btu/h	24000 Btu/h
Inverter Capacity Range	2808-9536 Btu/h	3099-1298 Btu/h	3482-19389 Btu/h	4294-25280 Btu/h
Power Input	0.81Kw	0.98Kw	1.51Kw	1.87Kw
SEER/EER	22/12.3 Btu/W	22/12.6 Btu/W	20/12.1 Btu/W	20/12.1 Btu/W
Heating:
Capacity	9000 Btu/h	12000 Btu/h	18000 Btu/h	24000 Btu/h
Inverter Capacity Range	2858-9685 Btu/h	2808-9536Btu/h	2808-9536Btu/h	2808-9536Btu/h
Power Input	0.87 Kw	1.12 Kw	1.29 Kw	1.82 Kw
HSPF/COP	12/13.4 Btu/W	11/12.38 Btu/W	10/12.41 Btu/W	11/12.31 Btu/W
Operation Temperature:
Indoor Unit	60.8-89.6 ºF
Outdoor Unit	50-125.6 ºF
Indoor Unit
Dimension(WDH)	895x300x203mm	895x300x203mm	1000x310x240mm	1130x320x245mm
Packing(WDH*)	1080x385x327mm	1080x385x327mm	1080x385x327mm	1195x310x390mm
Net/Gross Weight	9/11.1kg	9/11.1kg	12.5/14.5kg	15.5/17.5kg
Outdoor Unit
Dimension(WDH)	795x290x555mm	795x290x555mm	790x290x555mm	860x304x733mm
Packing(WDH*)	970x300x630mm	970x300x630mm	970x300x630mm	1005x450x820mm
Net/Gross Weight(KG)	33/37kg	33/37kg	35/39kg	51/55kg
Approvals	IEC/EMC/CB/GCC/SASO
Container Load 20'/40'/40'HQ	84/177/206	84/177/206	78/171/179	54/115/128

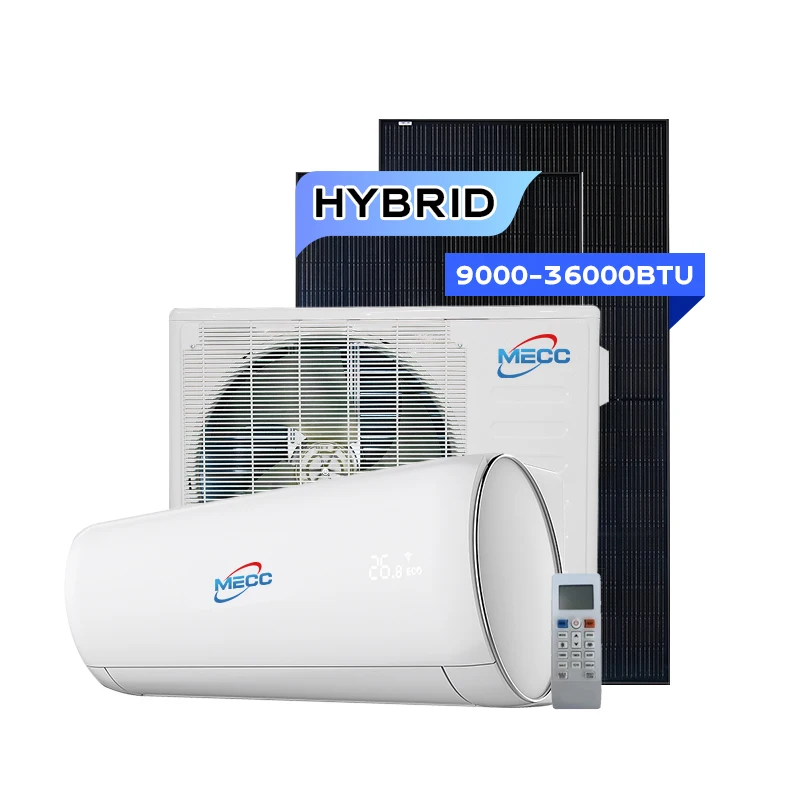

A/C Unit.

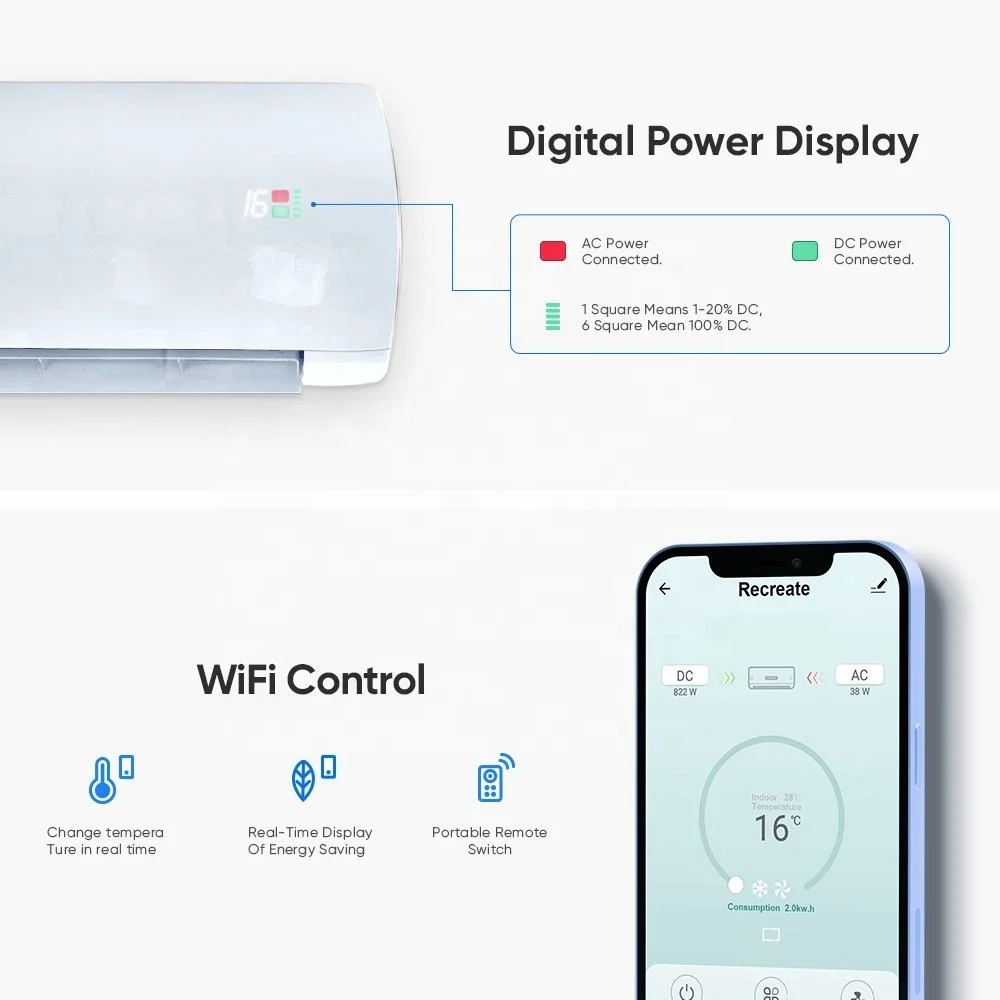

>ACDC Hybrid Indoor Unit Available Capacity 9k, 12k, 18k, 24k Btu ; Digital display
>ACDC Hybrid Outdoor Unit AC Input 180~240V 50/60HZ; R410A;
Low Noise 53~60dB
>Full DC Inverter A/C Unit;
>Eco Friendly R410A

Solar Panel.

Peak Power Watts: 280W (SP280M-60)
Maximum Power Voltage: 31.8V
Maximum Power Current: 8.81A
Open Circuit Voltage: 38.8V
Short Circuit Current: 9.33A
Dimensions:1650×992×35 mm (65.0×39.1×1.38 inches)
Weight:18.6 kg (41.0 lb)

IPS.

High-efficiency MPPT control algorithm, MPPT efficiency ≥99.5%, whole machine conversion efficiency up to 93%; Input PV
voltage:60-145VDC
Output voltage range: 280-360VDC
Charge mode: three stages (fast charge, constant charge, floating charge). It prolongs
service life of the batteries.
Warranty: 2 years.

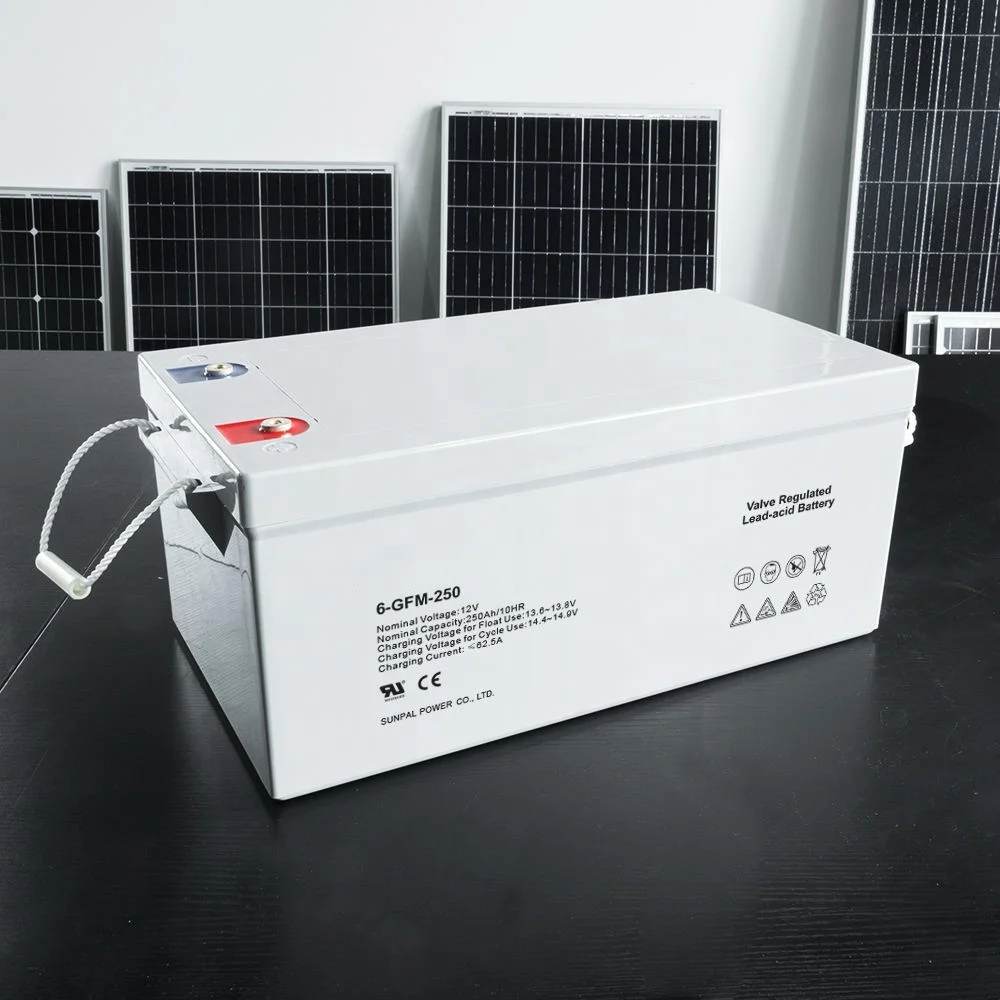

Lead Acid GEL Battery.

Nominal Voltage(Vdc): 12
Nominal Capacity(AH): 80-250Ah
Depth of Discharge: 70%

Main Disconnect Box.

DC Disconnect
AC Disconnect
Battery Disconnect
PV Combiner
Flexible Inputs Optional
IP65 Protection Degree

DC Cable & MC4 Connector.

Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years

Strict QC System

Certifications

Packing & Delivery

Project Case

FAQ

Q1: How to install and use the solar air conditioner system?
A1: We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation will be sent to you.

Q2: What if I don't have import experience ?
A2: We have reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep. Any way, we will help you choose the most suitable shipping service.

Q3: How is your technical support?
A3: We provide online service through Whatsapp / Wechat / Email. Any problem after delivery, we will offer you video call
anytime, our engineer will also go to oversea help our customers if necessary.

Q4: How can I make sure it's a secure transaction ?
A4: Alibaba can protect buyers' interest, all of our transactions will go through alibaba platform.

Q5: Can you get the the solar inverter customized for us ?
A5: Of course, brand name, machine color, designed unique patterns available for customization.

Q6: How to become your agent?
A6:Contact us through Alibaba, we will give you the best price and look forward to your greetings.

Q7: What can you provide?
A7:Residential/Home solar system, Rooftop solar power station, Large-scale ground-mounted solar power station,
Agriculture-complementary Solar Power Station, Aquaculture-complementary Solar Power Station.
