Автоматическая линия покрытия порошка металла с предварительной обработкой
- Категория: >>>
- Поставщик: Hebei Hanna Technology Co. Ltd.
Сохранить в закладки 1601079321964:
Описание и отзывы
Характеристики
Product Description
Automatic powder coating line component
1-Pre-treatment system(Dipping tank/spraying/shotblasting)
2-Drying oven for chemical pretreatment
3-Powder coating
4-Powder curing oven
Process Name | Mode | Temperature(℃) | Time | Remark |
Inspect raw material | RT | |||

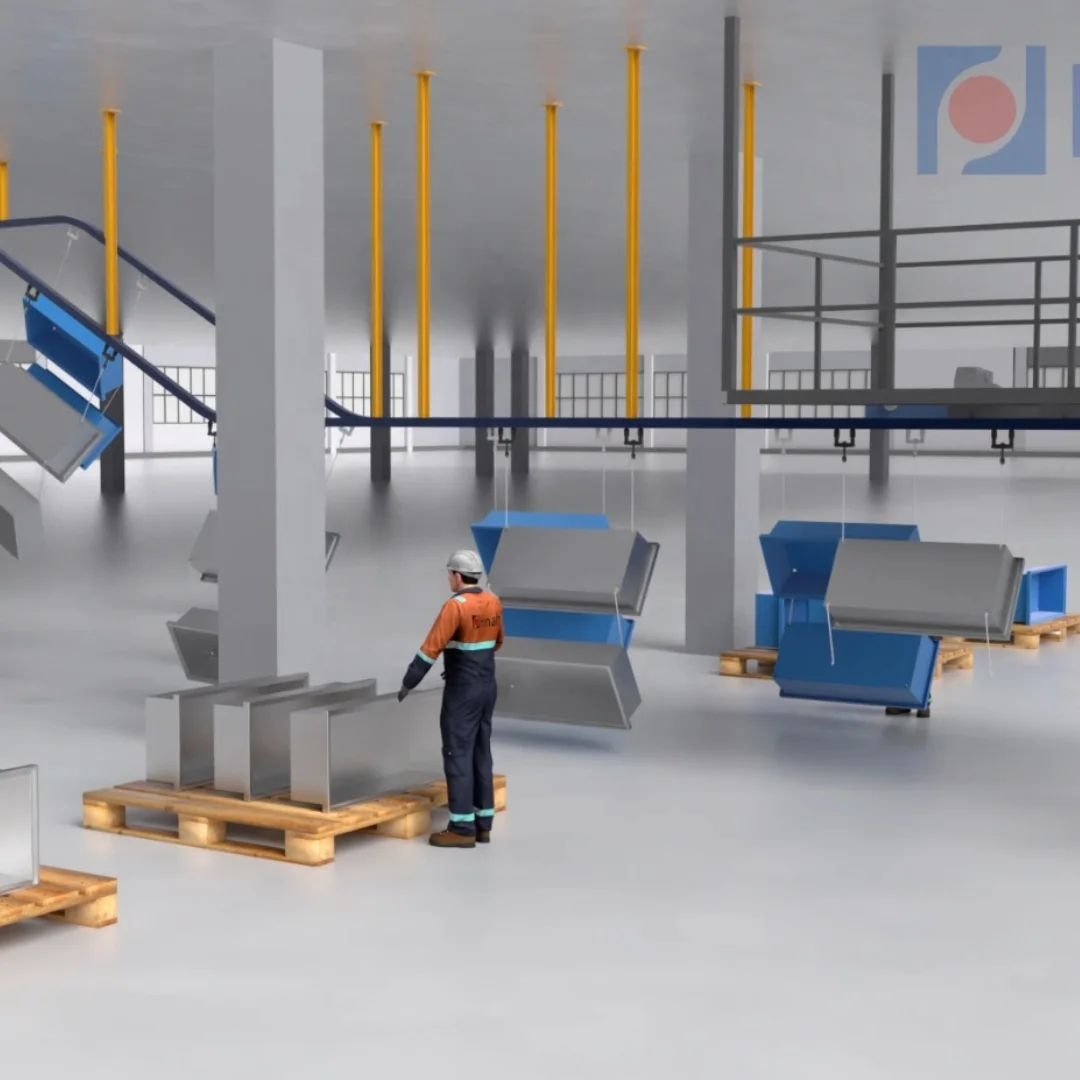

Hanging material | Manual | RT | ||
Pretreatment | Automatic | RT | as per the chemical | |
Powder coating | Automatic | RT | 1min | |
Curing | Automatic | 180-220℃ | 10-15min | |
Cooling | Natural | RT | ||
Unloading | Manual | RT | ||
Inspection&Package | RT |

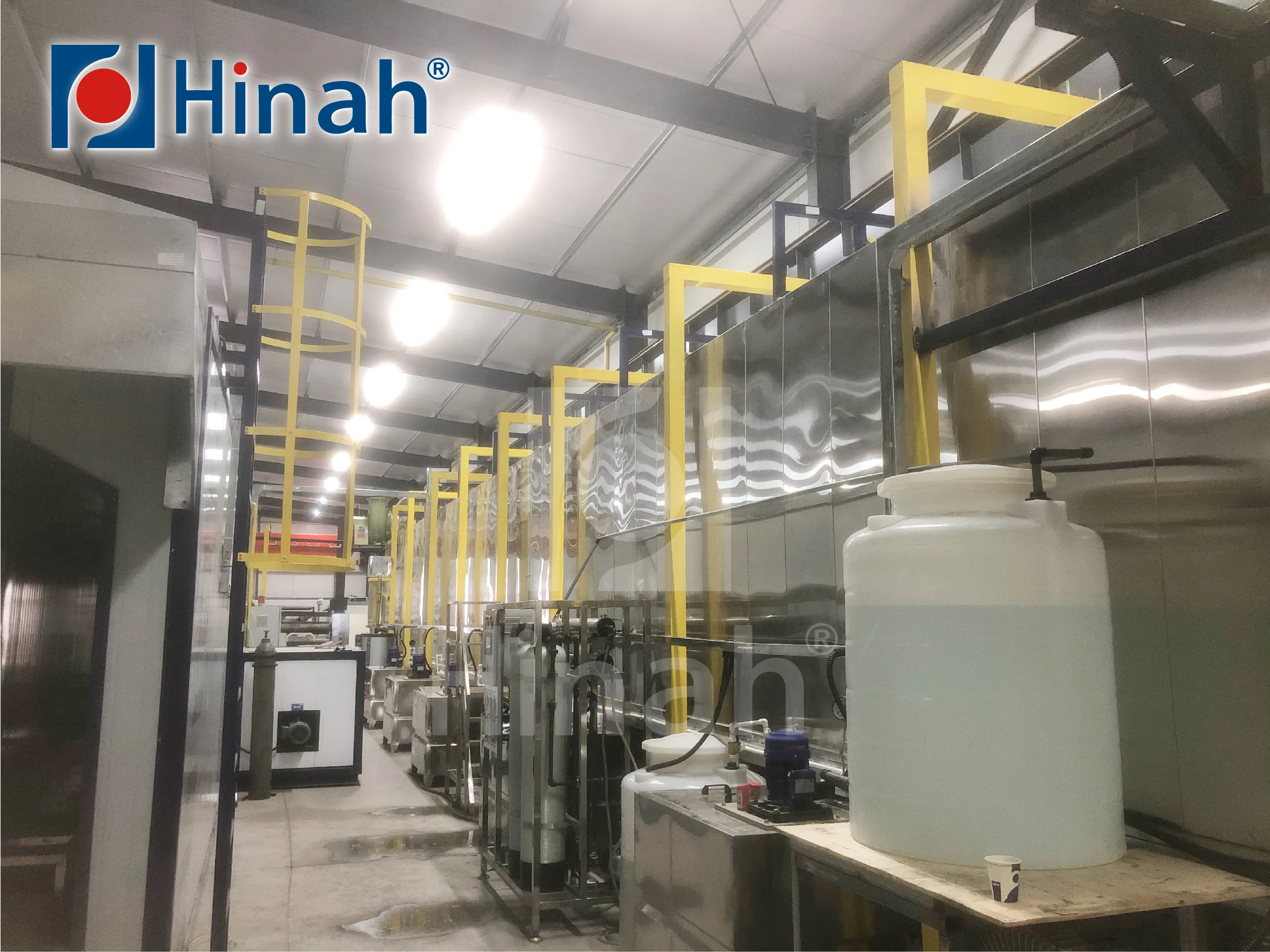

Pre-treatment System
CONTACT US
Stainless Chemical Tank With Pump
Spraying Nozzle
Stainless steel spraying tunnel
Process steps
Every process step consists of a tank with one or more strong vertical pumps distributing the liquid to a number of rinse ramps fitted with nozzles.
Pumps
The pumps are all highly efficient and made of acid proof steel. All motors are 100% IEC standard with no modification, and very easy to replace if needed.All pumps are tested and certified according to the HANNA quality control. They are mounted vertically in the tanks and immersed in the liquid.Reverse cascade system saves water
The rinse water is lead through the line in a reverse cascade rinse to minimize consumption of rinse water. We always design our systems with a minimum of two rinse steps, often even three.The design includes pre and after rinse systems, electronically controlled and ensuring minimal consumption of water, energy and chemicals.
Nozzles
The rinse ramps are made of stainless steel, and the quick clip-on nozzles are made of plastic. This is a very rigid
construction.Also memory nozzles are a possibility, making the cleaning and the service very easy. Both types are easily replaced.
Every process step consists of a tank with one or more strong vertical pumps distributing the liquid to a number of rinse ramps fitted with nozzles.
Pumps
The pumps are all highly efficient and made of acid proof steel. All motors are 100% IEC standard with no modification, and very easy to replace if needed.All pumps are tested and certified according to the HANNA quality control. They are mounted vertically in the tanks and immersed in the liquid.Reverse cascade system saves water
The rinse water is lead through the line in a reverse cascade rinse to minimize consumption of rinse water. We always design our systems with a minimum of two rinse steps, often even three.The design includes pre and after rinse systems, electronically controlled and ensuring minimal consumption of water, energy and chemicals.
Nozzles
The rinse ramps are made of stainless steel, and the quick clip-on nozzles are made of plastic. This is a very rigid
construction.Also memory nozzles are a possibility, making the cleaning and the service very easy. Both types are easily replaced.

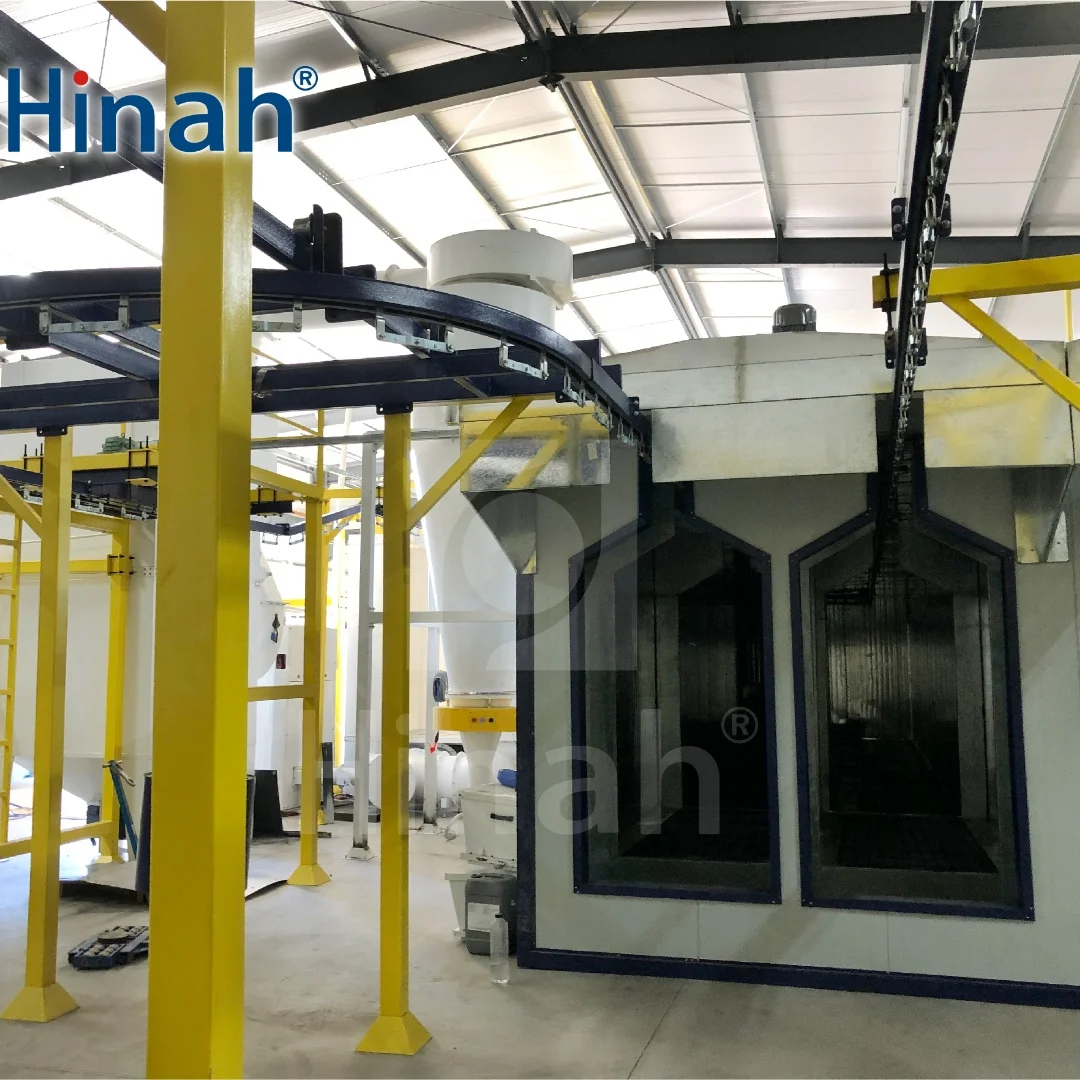

Powder Coating Booth
Quick color change powder coating booth with cyclone
Quick assemble filter recovery powder coating cabin

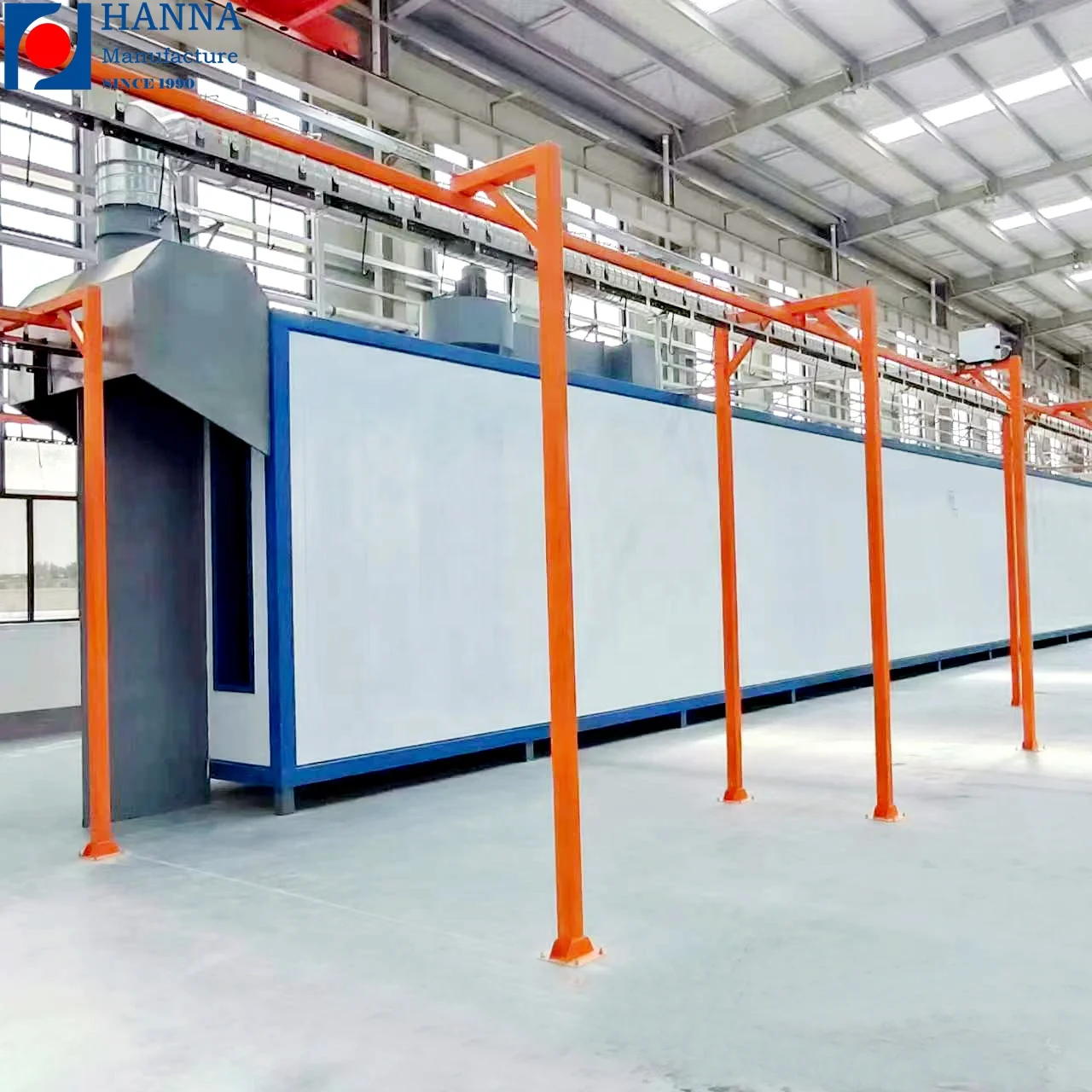

Drying Oven & Curing Oven
Hanna Brand Oven Advantage
1. Has Air Curtain At The Both Ends , The Hot Air In The Oven Won't Dissipate To Outside,Saving The Fuel .
2. Curing Oven Insulation Board Are All Plug-In Board ,Seamless Docking ,Thermal Bridge Transmission Technology ,
3. Hot Air Circulation Air Supply And Return Reach A Balance ,Reasonable Layout ,Uniform Oven Temperature .
After Testing ,the Temperature Difference In the Oven is Less Than ± 3 ℃
2. Curing Oven Insulation Board Are All Plug-In Board ,Seamless Docking ,Thermal Bridge Transmission Technology ,
3. Hot Air Circulation Air Supply And Return Reach A Balance ,Reasonable Layout ,Uniform Oven Temperature .
After Testing ,the Temperature Difference In the Oven is Less Than ± 3 ℃
150mm thickness insulation layer
Inside view for our curing oven
Oven temperature tracker record
Application
ALUMINUM PROFILES WINDOWS
STORAGE EQUIPMENTS
METAL CABINET/FURNITURE
Case Stories
Let us show and tell
HANNA is a specialist in lifting virtually all types of projects in the business of industrial surface treatment lines.
Having worked with and supplied to almost all industries, we have a unique knowledge of and experience with meeting a very wide range of operational and spatial requirements.
We have installed more than 4800 lines worldwide, and we have chosen some of the references to be described in detail.
Click on the brands to see the case stories with descriptions of the customer product and finishing system.
See the range of industries we work with and our references in these industries.
HANNA is a specialist in lifting virtually all types of projects in the business of industrial surface treatment lines.
Having worked with and supplied to almost all industries, we have a unique knowledge of and experience with meeting a very wide range of operational and spatial requirements.
We have installed more than 4800 lines worldwide, and we have chosen some of the references to be described in detail.
Click on the brands to see the case stories with descriptions of the customer product and finishing system.
See the range of industries we work with and our references in these industries.
Thailand Project
China Project
India Project
Qatar Project
UAE Project
Madagascar Project
Philippines Project
Bulgaria Project
Kenya Project
For more project cases, welcome contact us...
Certifications
About Us
Since 1990,From simple manual spraying to automatic powder spraying system.
We can provide you with innovative, rational and economical solutions. We can support you with advanced technologies.Delivering the best powder coating equipments and turn-key solutions.
We’ve built thousands of optimal customized lines and systems for powder coating operations across China
and around the world.
Our continuous research on the field as well as our constantly developing techniques and innovative nature
of our engineering dpt. enable our customers to catch up to the latest developments by modernizing their
equipment partly or wholly, so as to improve performance, increase profits and maintain their
competitiveness in the world of trade.
Our company has passed ISO9001 certification，CE certification, and has obtained more than 70 paten.
We can provide you with innovative, rational and economical solutions. We can support you with advanced technologies.Delivering the best powder coating equipments and turn-key solutions.
We’ve built thousands of optimal customized lines and systems for powder coating operations across China
and around the world.
Our continuous research on the field as well as our constantly developing techniques and innovative nature
of our engineering dpt. enable our customers to catch up to the latest developments by modernizing their
equipment partly or wholly, so as to improve performance, increase profits and maintain their
competitiveness in the world of trade.
Our company has passed ISO9001 certification，CE certification, and has obtained more than 70 paten.
Packing&Shipping
FAQ
Are you a trader or a factory?
We are manufacturer and exporter. Our own factory was found in 1990,Our export office was established in 2014.
What should I provide if interested in your powder coating equipment ?
A.The material/size（max）/weight（max）of your workpiece.
B.How many of your daily output(one day=8hours,one month=30days)?
C.What heating power do you prefer: electric,gas, diesel or coal?
D.The size of your factory(length, width and height)?
How to ensure the quality of the equipment?
A,We have hundreds of patents and passed the IS9001:2015 quality management system certification.
B,The Technical Review Committee,reasonably determines and divides the stages of design, production, installation and commissioning, and formulates detailed progress plans for each stage， Strengthen the quality assurance system and quality protection measures of equipment manufacturing department.
C,We manning quality inspectors specially to control the processing quality of product strictly.
How to install equipment after purchasing your equipment?
A,We will provide installation information and installation videos
B,Our engineers will guide the installation and run the equipment.
C,After the debugging, will provide complete training and track customer device usage.
How is your company's after-sales service done?
A,Provide the list of consumables to assist customers in establishing a
comprehensive equipment maintenance system.
comprehensive equipment maintenance system.
B,After the equipment is delivered to the customer, our company will send professionals to track the customer equipment for 60 days.
C,If customer has a device failure in the process of using the device,our company will operate the device remotely through the computer network through the authorization given by the customer, and eliminate all equipment failure problems. D,Any problems with the equipment, our company guarantees to give solutions within 12 hours.
