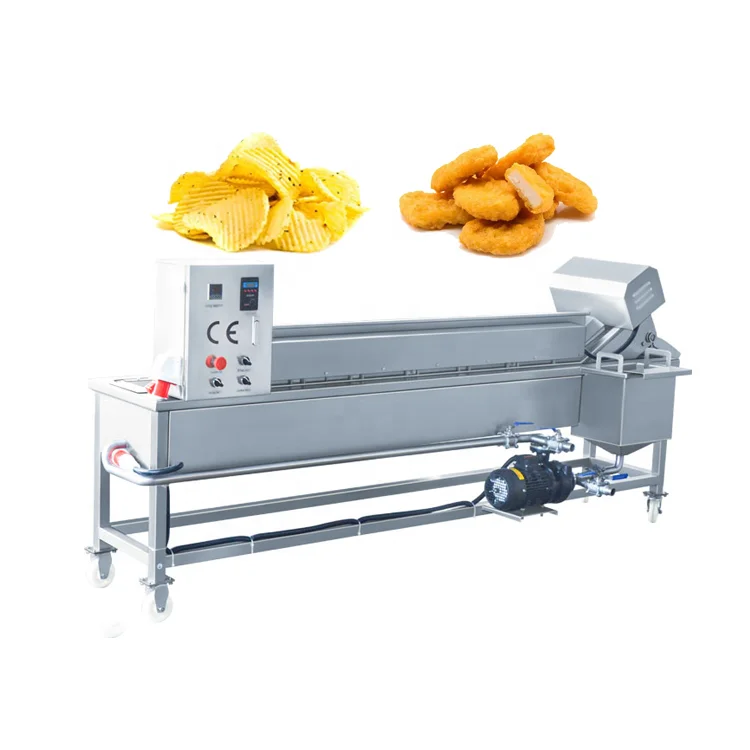

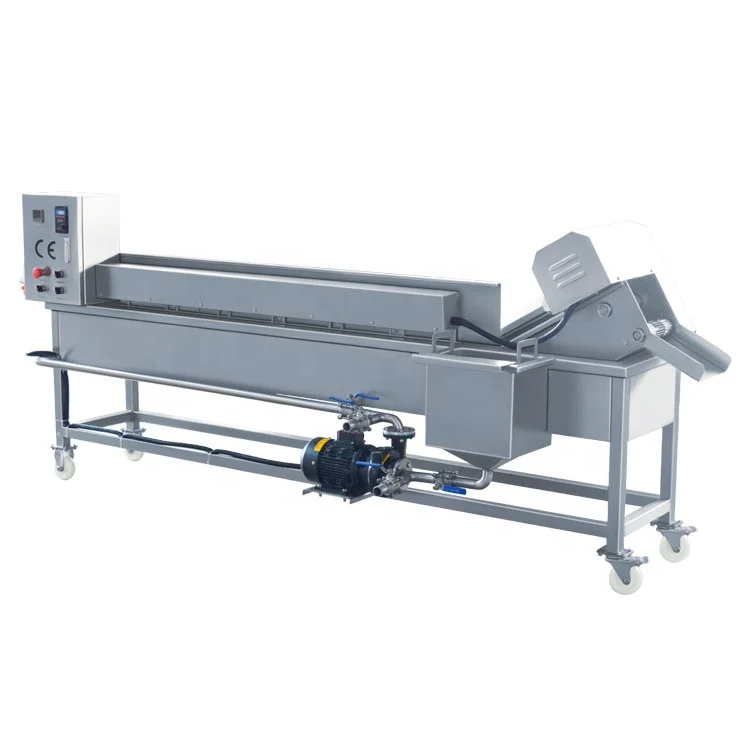

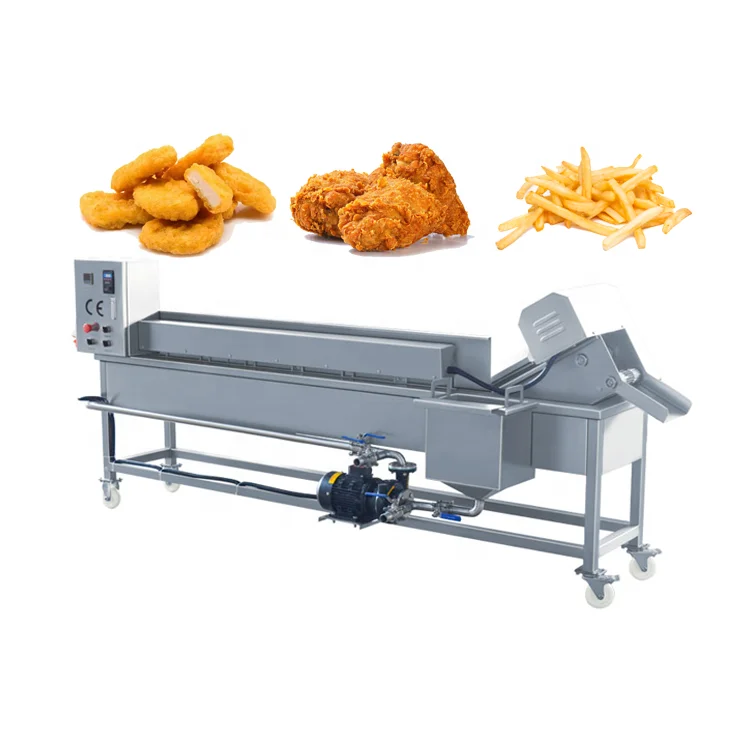

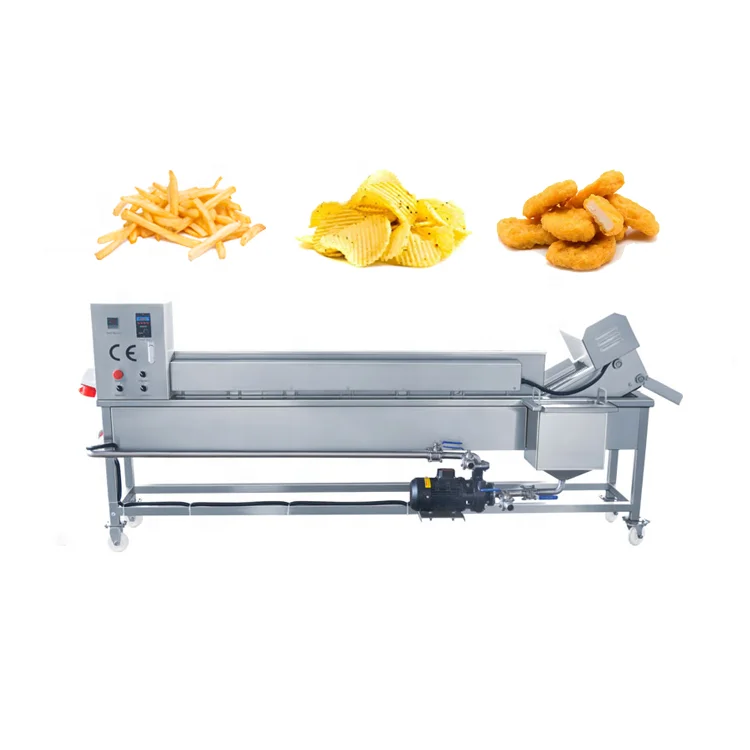

Автоматическая непрерывная газовая фритюрница машина для жарки картофельных чипсов электрическая с куриным крылом

Main structure and working principle for Automatic continuous belt continuous gas fryer potato chips frying machine electric chicken wing deep fryer

1. It is composed of transmission motor, chain conveyor, oil tank, filter device and electrical parts.
2. The mesh belt conveyor adopts frequency conversion stepless speed regulation, and the frying time can be controlled.
3. The upper and lower double-layer mesh belts are used for transmission, and the product is clamped in the middle of the double-layer mesh belt to avoid product floating; The distance between the upper and lower mesh belts is adjustable.
4. The equipment mesh belt rack can be lifted out for easy cleaning.
5. Inject the specified amount of oil into the oil tank, turn on the electric heating pipe switch, and determine the oil temperature according to different fried foods. When the oil temperature reaches the specified value, start the conveyor motor and the conveyor belt starts to operate. Set the frying time according to the fried food and adjust the speed of the conveyor chain. When the oil temperature rises, evenly put the food to be fried into the input port (the input amount should preferably account for 50 ~ 60% of the total area)

Operation use for Automatic continuous belt continuous gas fryer potato chips frying machine electric chicken wing deep fryer
1. Clean the oil tank and conveyor belt, remove foreign matters and dirt, and wipe dry the water.
2. Close the oil drain valve and fill the oil tank to the specified oil level. (generally, it can be flush with the plane of the net under the pressure strip)
3. Turn on the power.
4. When the oil temperature reaches 160 ℃, start the reducer to start the conveyor belt
5. Set the frying time and oil temperature. When the oil temperature rises to the required temperature (determined according to the fried food), put the fried food into the input port (the input amount should preferably account for 50 ~ 60% of the total area and put it evenly)
6 in order to effectively remove the suspended particle impurities of frying oil, inhibit the rise of acid value and prevent oxidation, so as to prolong the service life of frying oil. In order to ensure the quality of fried food, oil filter should be equipped with better effect.
u) If the machine is equipped with an oil filter, when the oil temperature is 120 ℃ ~ 170 ℃ after production, start the oil filter (see the operation manual of frying oil filter for the operation method). The filtered oil can be automatically pumped into the oil storage tank (the oil storage tank is provided by itself). After the oil in the frying oil tank is filtered, clean the oil tank, remove the slag removal device, clean the inside and outside of the sediment tank and equipment. After cleaning, put the oil in the oil tank back to the oil tank and cover the full cover plate.

Technical parameters for Automatic continuous belt continuous gas fryer potato chips frying machine electric chicken wing deep fryer

All functions can be customized according to customer requirements and can be used to match the nugget / burger forming line

Step 1: Firstly, the product is wrapped with stretched film.
Step 2: Secondly, put the product in and around the iron frame.
Step 3: Thirdly, the smoke proof board is sealed around the productfor export.
Step 4: Finally, the packaged product is shipped.

Q: Why don't person reply to me?
A: Our person is 24hours on-line. When nobody reply you , please leave your requirements on e-mail or chat tool, we will reply you as soon as possible.
Q:How do you make your price?
A: We make the price according to our comprehensive costing. And our price will lower than the trade company because we have our own factory.You will get competitive price and better quality.
Q:Can you guarantee your quality?
A:Of course. We are the manufacture factory. More important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.

Q:What's the machine voltage or power of your machine?
A:Usually in our country voltage is 220v/50hz(single phase) or 380v/50hz(three-phase), if you have special requirement , pls tell us, we will change the voltage according to your requirement.

Q:How to install the machine for us?
A:We can help you install by videos, email and pictures etc. If necessary, we can also arrange our technician to your factory for installation.
