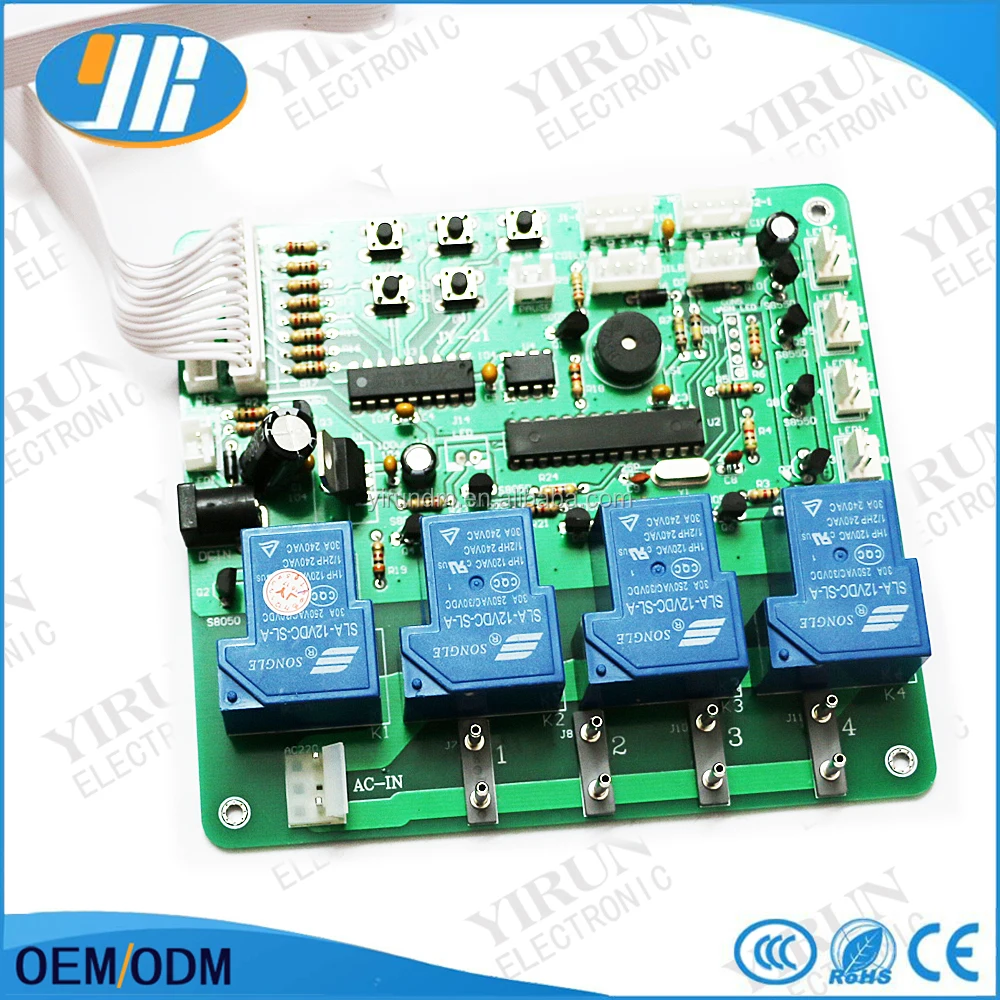

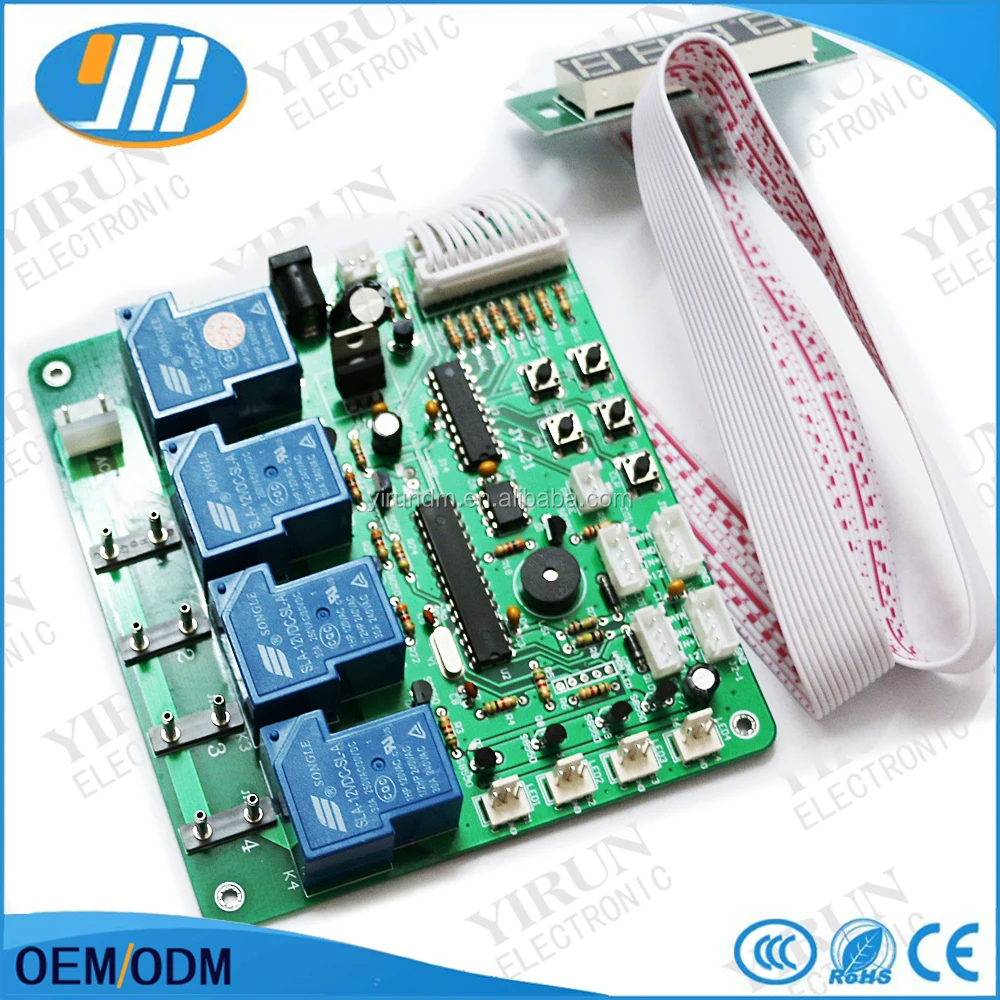

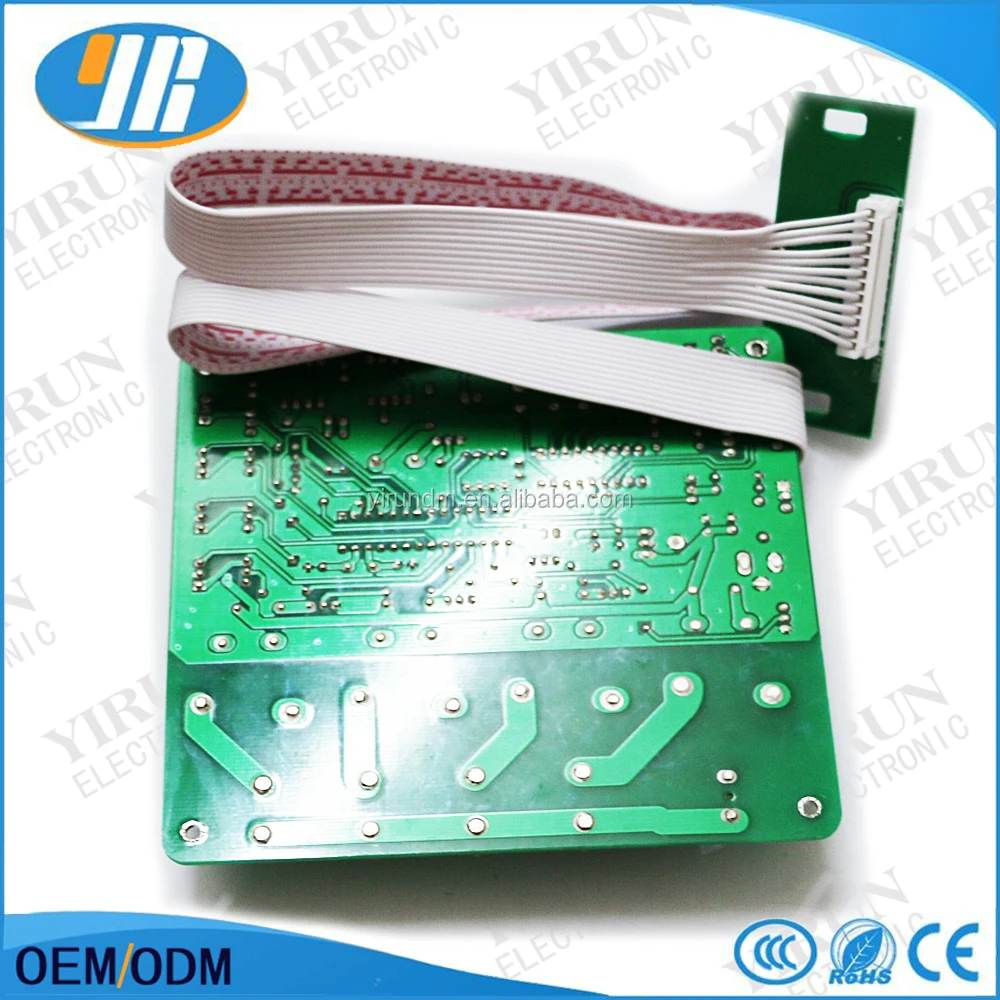

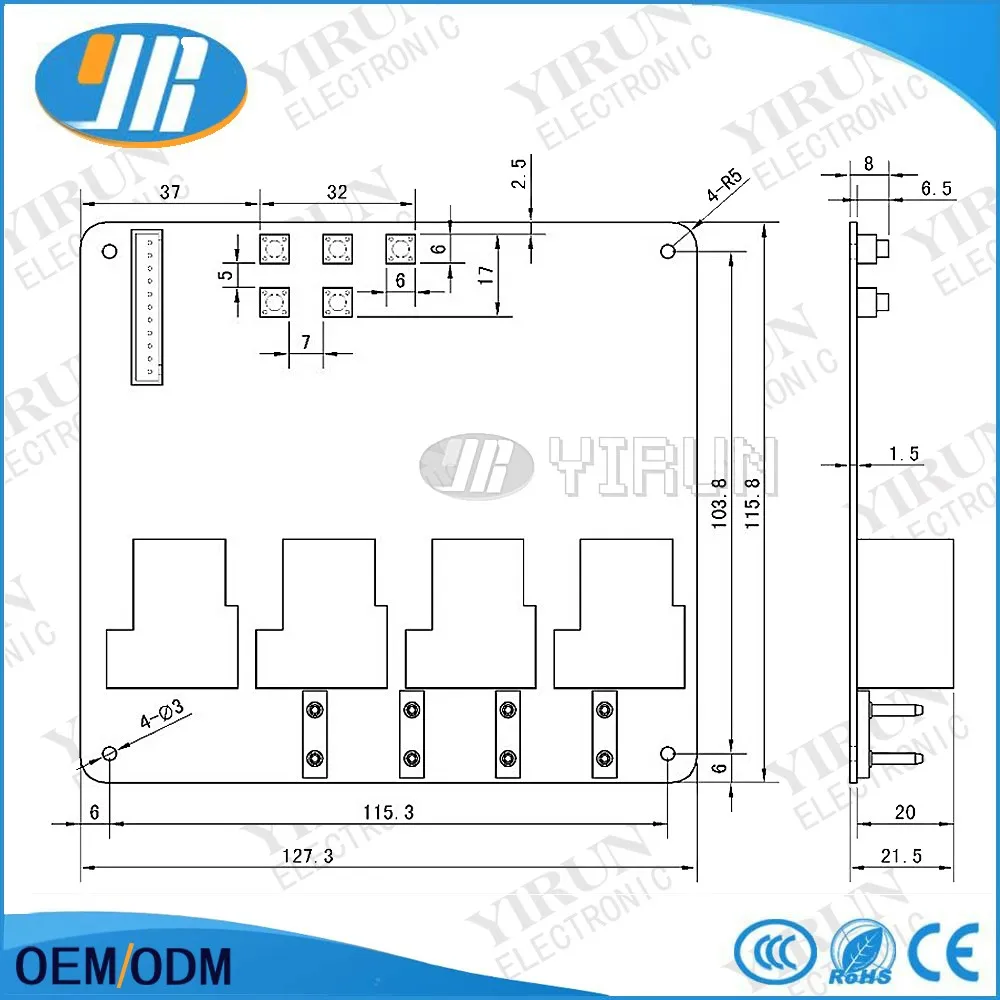

4 digits second coin operated timer board for 1-4 devices machines, time control pcb with all wires

4 digits minte: second coin operated timer board for 1-4 devices machines, time control pcb with all wires.

Free to set up price and time for every channel.

Free to set up time for warning sound.

Time is accumulative.

Button lights after customers push button for 1 channel.

Free to connect to 2 pcs of coin acceptor and counter.

Free to connect button for pausing.

Free to use adaptor with 5.5mm*2.1mm plug.

Free to check balance and remaining time for each device

Free to choose more than 2 devices at the same time during working

Mode Introduction

Operating Mode

01:01 mode User can only choose 1 device for working simultaneously.

01:02 mode User can choose up to 4 devices for working simultaneously.

Note:

Display shows time and warning sound works for first device user has chosen. The following devices work properly after user pushes buttons without showing time on display.

The Way of Accumulated Time:

1. The amount of coins is accumulated to value directly if user inserts coins when devices are working.


2. Time is accumulated after user pushes the button again for the working device.

-----------------------------------------------------------------------------------------------------------------

LIGHTING FOR BUTTON
02:03 mode  Buttons light all the time.

02:04 mode  Buttons light when devices can be used.

02:05 mode Buttons light when devices are working.

----------------------------------------------------------------------------------------------------

TIME TYPE

03:06 mode HOUR: MINUTE

03:07 mode MINUTE: SECOND

-----------------------------------------------------------------------------------------------------------------

MEMORY MODE

04:08 mode Continue counting time after power off and on

RESET AUTOMATICALLY

Description: Time and value will be reset automatically if User does not choose any

function after the user inserts coins.

05:??     : Please use button UP and DN to set up time from 1-60 minute for resetting automatically.

-----------------------------------------------------------------------------------------------------------------

DEFAULT

Operating Mode  01              Time Type    07

Lighting for Button 04              Memory Mode 08

HOW TO CONNECTION AND SETTING

OPERATING SETTING:

1. Please hold on button SET for seconds to get into operating mode.


2. Please use button UP and DN to set up CODE OF MODE based on reference.

TIME SETTING:

1. Please press button SET. Please use button UP and DN to set up FIRST 2 number.


2. Please press button SET. Please USE button UP and DN to set up LAST 2 number.


3. Please repeat step No. 1 and No.2 until time-setting for all devices is finished.

VALUE AND WARNING SOUND SETTING:

1.  Please press button VALUE. Please use button UP and DN to set up value for
    device 1.


2.  Please repeat step NO. 1 for other devices.


3. Please press button VALUE after forth devices setting.
   Please use button UP and DN to set up warning sound. 1-60 second is adjustable.

BALANCE and REMAINING TIME CHECKING

• User can check balance when pushing the button of interface 10 during staying by.


• User can check remaining time of each device by holding each SELECTING BUTTON for seconds.

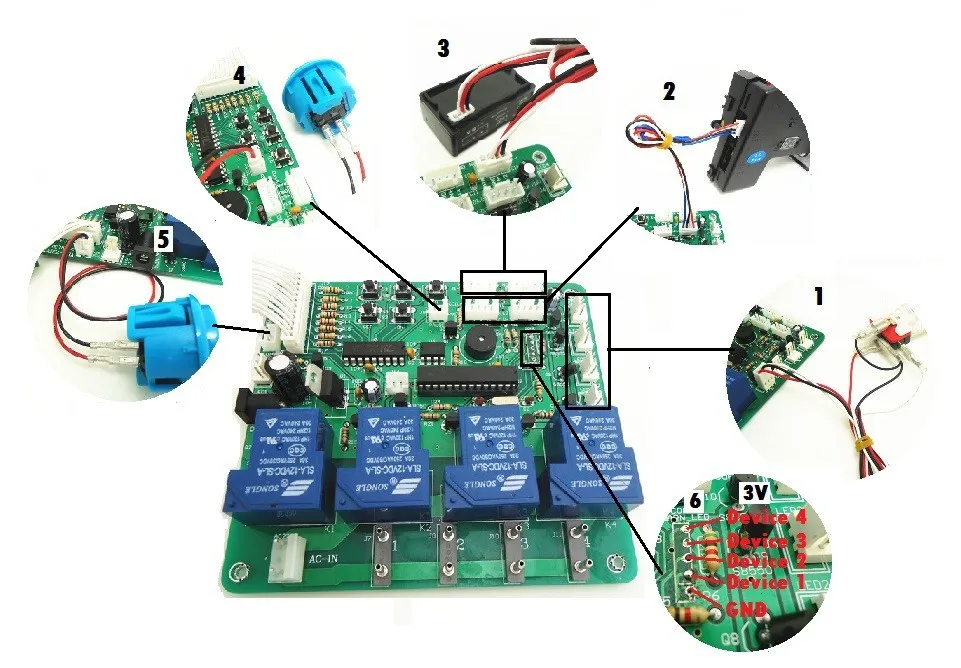

INTERFACE:

1-2 to counter

3-4 to coin acceptor

5 to connect button for pausing

6-9 selecting button and light for device 4 - device 1.

10 to connect button for check balance

11 DC12V input

12 DC12V 5.5*2.1mm jack

13power input for devices

14-17: power output for device 1 – device 4.

18:3V for warning LED light for each device

Note, either interface 11 and 12 need to be connected.
