OEM/ODM/OBM R290, подогрев воздуха и охлаждение/DHW/подогрев пола, многофункциональный водяной тепловой насос с управлением Wi-Fi
1 426,00 $ - 1 496,00 $
Система охлаждения с Wi Fi 12 кВт
- Категория: >>>
- Поставщик: Jiangsu Sunrain Solar Energy Co. Ltd.
Сохранить в закладки 1601080689070:
Описание и отзывы
Характеристики
Specification
DC Inverter Heat Pump for cooling heating and DHW （R290） | ||||||||||
Model | BLN-006TC1 | BLN-012TC1 | BLN-018TC1 | BLN-012TC3 | BLN-018TC3 | |||||
Power supply | 220~230V/1Ph/50Hz | 380~415V/3Ph/50Hz | ||||||||
Heating Condition - Ambient Temp.（DB/WB）: 7/6℃，Water Temp.（In/Out）：30/35℃ | ||||||||||
Heating capacity range (kW) | 2.92~9.10 | 4.30~15.20 | 7.24~22.10 | 4.30~15.20 | 7.24~22.10 | |||||
Heating power input range(kW) | 0.61~2.11 | 0.87~3.73 | 1.50~5.88 | 0.87~3.73 | 1.50~5.88 | |||||
Current input (A) | 2.80~9.25 | 4.02~16.38 | 6.86~30.25 | 1.78~6.04 | 2.82~9.16 | |||||
Heating Condition - Ambient Temp.（DB/WB）: 7/6℃，Water Temp.（In/Out）：47/55℃ | ||||||||||
Heating capacity range (kW) | 2.99~8.16 | 4.25~14.55 | 6.36~19.54 | 4.25~14.55 | 6.36~19.54 | |||||
Heating power input range(kW) | 1.03~2.92 | 1.45~4.28 | 2.15~6.85 | 1.45~4.28 | 2.15~6.85 | |||||
Current input (A) | 4.57~12.79 | 6.71~18.80 | 9.84~30.12 | 2.84~6.78 | 3.71~10.60 | |||||
cooling Condition - Ambient Temp.（DB/WB）:35/24℃，Water Temp.（In/Out）：12/7℃ | ||||||||||
Cooling capacity range (kW) | 1.38~5.70 | 3.65~11.40 | 4.55~17.20 | 3.65~11.40 | 4.55~17.20 | |||||
Cooling oower input range(kW) | 0.67~2.44 | 1.12~3.97 | 1.85~7.31 | 1.12~3.97 | 1.85~7.31 | |||||
Current input (A) | 3.06~10.27 | 5.18~17.44 | 8.47~32.10 | 1.97~6.30 | 2.99~11.26 | |||||
ERP level ( outlet water temp. at 35℃） | A+++ | |||||||||
Max. input power (kW) | 3.5 | 5.85 | 7.5 | 5.85 | 10.5 | |||||
Max. Input Current | 15.0 | 25.0 | 35.0 | 10.0 | 17.0 | |||||
Refrigerant / Charge / GWP | R290 / 0.55 / 3 | R290 / 1.05 / 3 | R290 / 1.4 / 3 | R290 / 1.05 / 3 | R290 / 1.4 / 3 | |||||
Rated water flow (m³/h) | 1.00 | 2.06 | 3.1 | 2.06 | 3.1 | |||||
Fan quanity | 1 | 1 | 2 | 1 | 2 | |||||
Fan motor type | DC inverter | |||||||||
Compressor | DC inverter | |||||||||
Circulating pump | Inverter type / Built-in | |||||||||
IP class | IPX4 | |||||||||
Sound pressure at 1m distance （dB（A）) | 46 | 53 | 56 | 54 | 56 | |||||
Max outlet water temperature ( ℃） | 75 | |||||||||
Water piping connections | G1" | G1" | G1-1/4" | G1" | G1-1/4" | |||||
Water pressure drop (kPa) | 20 | 20 | 50 | 20 | 50 | |||||
Noise dB(A) | 42 | 50 | 55 | 50 | 55 | |||||
Operating temp. range (heating mode) (℃） | -25~45 | |||||||||
Operating temp. range(cooling mode) (℃） | 16~45 | |||||||||
Net Dimension (L*W*H) mm | 1187*418*805 | 1287*448*904 | 1187*488*1456 | 1287*448*904 | 1187*488*1456 | |||||
Packed dimensions (L*D*W) mm | 1217*463*920 | 1317*493*1020 | 1217*538*1570 | 1317*493*1020 | 1217*538*1570 | |||||
Unpacked weight (kg) | 110 | 134 | 195 | 134 | 195 | |||||
packed weight (kg) | 122 | 146 | 208 | 146 | 208 | |||||

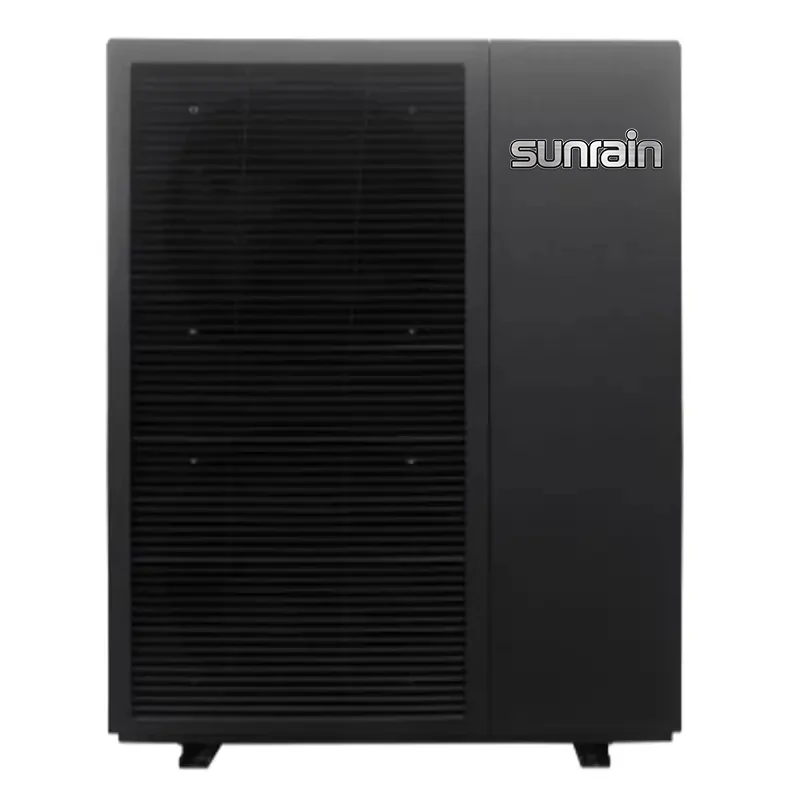

Product Description
R290 Multi-function Inverter heat pump features:
1). R290 refrigerant, low GWP (GWP=3). 2). Energy class: A+++.
3). Stable operation at -25℃. 4). Outlet water temperature up to 75℃.
5). Power Detection Function. 6). SG-READY Function.
6). 5-Inch TFT True Color Screen. 8). 5G/2.4G Compatioble WiFi Module.
5). Power Detection Function. 6). SG-READY Function.
6). 5-Inch TFT True Color Screen. 8). 5G/2.4G Compatioble WiFi Module.
9). Dual Temperature Zone. 10). Reserved RS485 Communication Port.
11). Linkage Control with PV Function.
LOW GWP R290 REFRIGERANT
Sunrain's R290 air-to-water heat pumps offer a compact solution for heating, cooling, and hot water needs. With the eco-friendly R290 refrigerant, these pumps minimize carbon emissions while ensuring high efficiency. Sunrain's commitment to sustainability drives us to contribute to a greener future and achieve global carbon neutrality. Join us in creating a more environmentally friendly world.
High Efficiency A+++ Energy Level
Sunrain's Monoblock heat pump R290 brings advanced design and cutting-edge heat pump technology together for exceptional performance. The heat pump uses eco-friendly R290 green refrigerant and inverter technology and meets high efficiency, stability, and noise criteria, ensuring maximum end-user satisfaction. The Monoblock heat pump R290 holds an A+++ energy label and delivers superior energy efficiency while functioning at 35℃ water outlet temperature, allowing for significant savings on energy bills and an investment in an environmentally conscious, sustainable future.
Stable operation at -25°C
Sunrain air source heat pump thrives in frigid temperatures, operating flawlessly even at -25°C. Experience uninterrupted
heating performance when you need it most. With our reliable technology, winter chills are no match for our resilient air source heat pump.
heating performance when you need it most. With our reliable technology, winter chills are no match for our resilient air source heat pump.
Dual Temperature Zone
You can enjoy tailor-made comfort with the air source heat pump's dual temperature zone, magnifying your living room floor heating to a comfortable 35°C and your room heater to 55°C, providing an ideal environment. With our new dual temperature zone function, we designed to elevate comfort and convenience at its best.

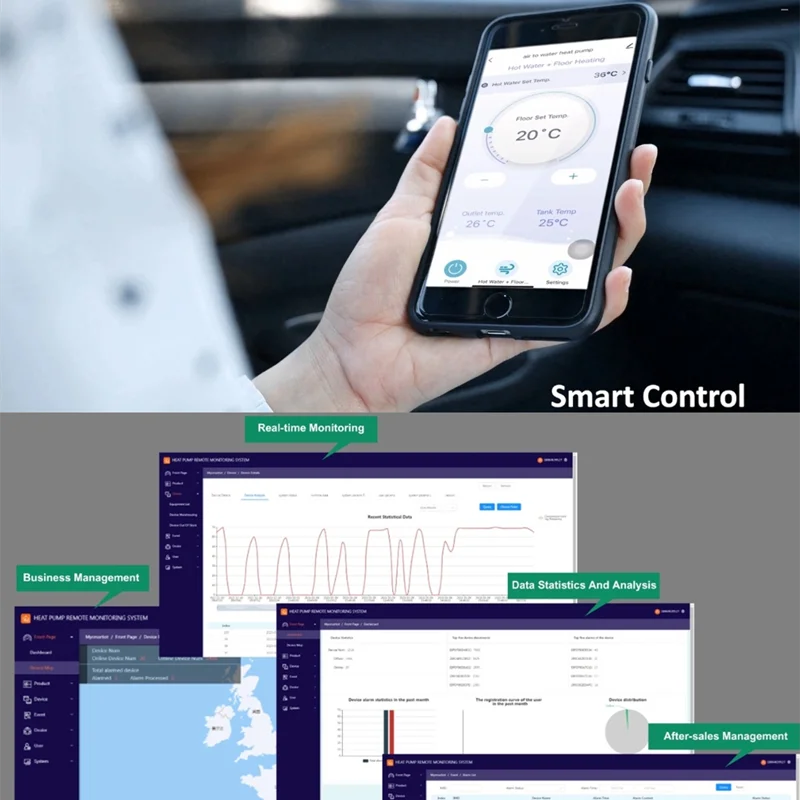

Efficient IoT Solution
Optimize dealer efficiency and save on labor costs with Solareast's IoT customer management platform. Connect with WIFI or DUT for remote data monitoring, recording all operating parameters of units, and keeping the management systems of dealers and manufacturers up to date. If an error report arises, dealers can interpret this report to provide the best solutions to users in a timely fashion.
Noise control,no disturbances
Sunrain understands the importance of a peaceful atmosphere, and Monoblock Heat Pump R290 embraces cutting-edge noise reduction technologies. Achieve tranquility with compressor stepless speed regulation and full DC technology, enabling precise 1Hz frequency control. Benefit from the stiffer ABS blades, providing enhanced wind resistance and durability.
5G/2.4G Compatible WIFI Module
Stay connected with our innovative air energy heat pump, which includes a 5G/2.4G Compatible WIFI Module. Using your smartphone or tablet, you can operate and monitor your heat pump system from anywhere. For maximum comfort and energy efficiency, enjoy the simplicity of altering settings, scheduling temperature adjustments, and getting real-time notifications.
Cut Costs, Conserve Energy
The range of R290 air-to-water heat pumps is designed to deliver exceptional energy-saving benefits for heating and domestic hot water production. These pumps effectively harness the ambient air to transfer heat to the water system, resulting in reduced energy consumption and substantial cost savings. With our air-to-water heat pumps, you can enjoy eco-friendly and cost-effective heating solutions.
Installation Instructions
Sunrain provides the monoblock heat pump with main circulation pump built inside. When installing the unit, installer should connect the heat pump with other parts including the buffer tank (for space heating/cooling), storage water tank (for domestic hot water) and water pumps (for space heating/cooling water circulation and domestic hot water). External fittings are also needed including the safety valve, water refill valve and hot water valves (three-way valve). Temperature sensor should be added in the storage water tank. Additional electric heater can be installed in the DHW tank or the buffer tank which can get the control signal from the heat pump.
Certification & Shipping
Sunrain has obtained many important mainstream certificates.
* CE(Conformité Européenne) * ErP(Energy-Related Products)
* KEY MARK * MCS
* SG Ready * BAFA
* KEY MARK * MCS
* SG Ready * BAFA
Package and Delivery
FAQ
1.Are you a manufacturer？
Yes, of course, We are a professional heat pump manufacturer with rich experience and complete R&D, production, sales and service supply, welcome to visit our factory.
2.What is your main product?
Our main products include Heat pump water heater, heat pump dryers, swimming pool heat pump, solar water heater, heat pump top kit, EVI heat pump, Etc.Which can meet the different demands from industrial, commercial and residential application.
3.What kind of payment term do you offer?
LCL order is 100% TT payment, container order is 30% TT deposit, 70% TT before loading. L/C and OA, etc.
4.What is your Delivery Time?
LCL order/Sample order:20 days. Full container order:35 days
5.How long is your warranty?
Two years warranty and long term technical support.
6.What is your Packing?
LCL order/Sample order in plywood case. Full container order in high quality export carton.
7.What is your FOB Port in China?
We accept FOB Shunde. Shenzhen etc.
8. I need to buy in large quantities. Can you provide sample service?
Yes, we can provide sample service, and we have engineers to help you solve installation problems.
