Резервуар для воды струйной промывки высокого давления с насосным блоком

High Pressure Jet Wash Water Tank With Pump Unit

Ship hull surface preparation

Painting removal

Rust removal

Water tank/Oil tank deposits removal

Industrial high pressure cleaning

Water blasting

 Hydro jetting

Pressure testing

Industrial tube/pipe cleaning,etc

 Product parameters:

PW-103-DD

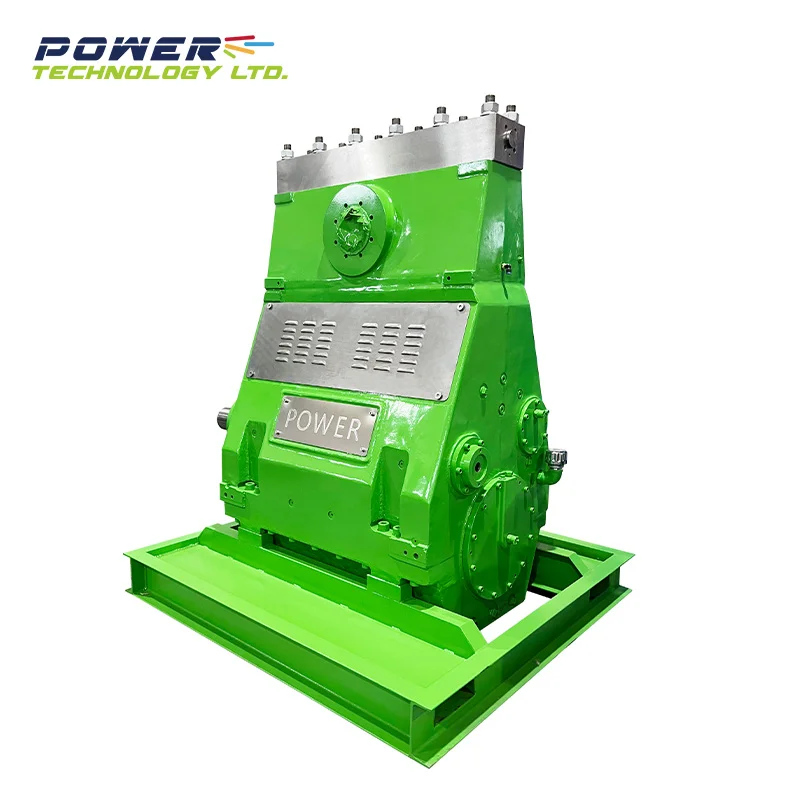

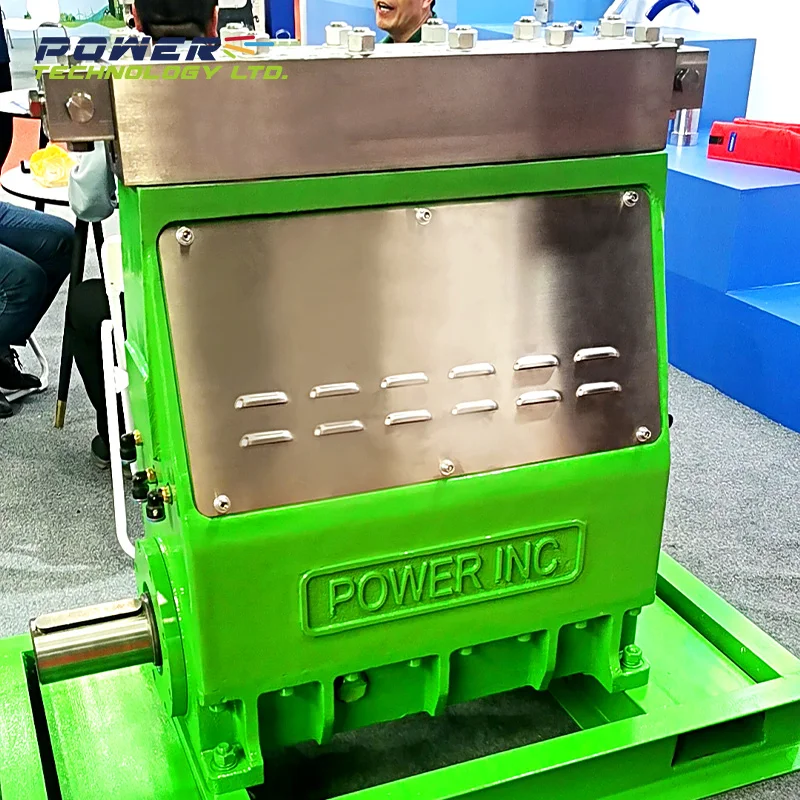

    Power PW-103-DD ultra-high-pressure diesel pump unit is the most advanced and efficient water blasting pump in the industry. It is powered by the diesel engine of 103kw-129kw(140HP-175HP). Optional Cummins, Weichai, Caterpillar diesel engine as the client's request.

Advantages:

1.Durable: the latest design makes the compact structure, the reducer ratio 3.68:1 makes the low speed 545rpm of pump. So that the service life is longer than the old type of pump.
2. Reliable: The twin helical gear transmission which horizontally oposed helical gears to eliminate the axilal stress makes the low noise, high efficiency and more reliable. The liquid end is seperated with the power end, the plunger and liner can be changed in 5 minuts. so the pump units can run continously. The rotating speed of pump can be reduced to 545rpm with the helical gears box, the low rpm means the long service life under the high pressure.

    The whole machine lightweight design, modular layout, the overall structure is reasonable and compact. Two kinds of lifting holes are convenient for assembly and lifting of different lifting equipment on site to ensure that the overall structure is not deformed when moving and lifting. Equipped with Weichai Power 345KW engine, three-stage emission standard. Advanced engine power unit, combined with self-developed electrical operation system, combined with multi-channel signal source data collection, to achieve the ATC function of the engine and high-pressure piston pump, to ensure the safety of operation, fuel economy.
