Product Description

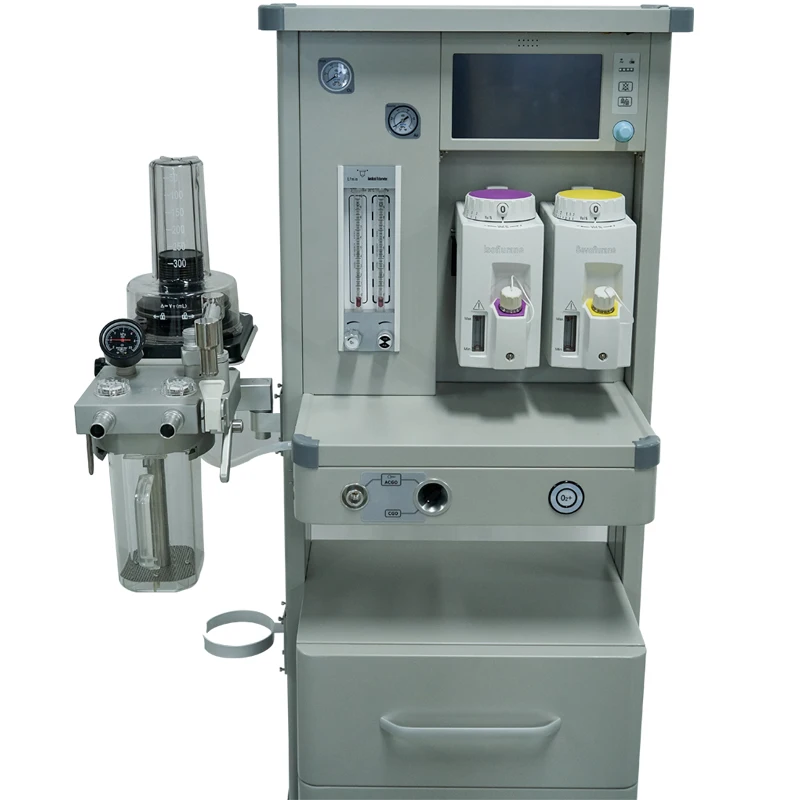

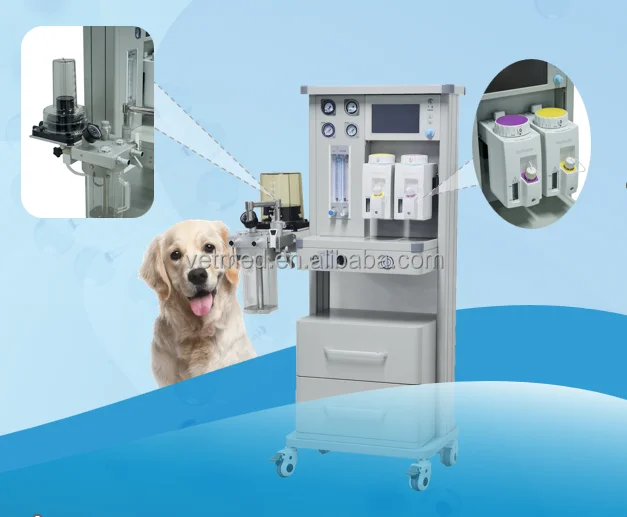

Veterinary Anesthesia Work Station SV-1600

SV-1600 is a high end veterinary anesthesia work station, it is specially designed for animal use. The vaporizer of SV-1600 has temperature, pressure and flow compensation function, ensures the anesthetic drug output accuracy under series conditions; the smart ventilator is very easy to set, surgeons need to set the animal weight only during the operation process, other parameters can be changed automatically. The application weight range of SV-1600 is from 0.5-100 KG.

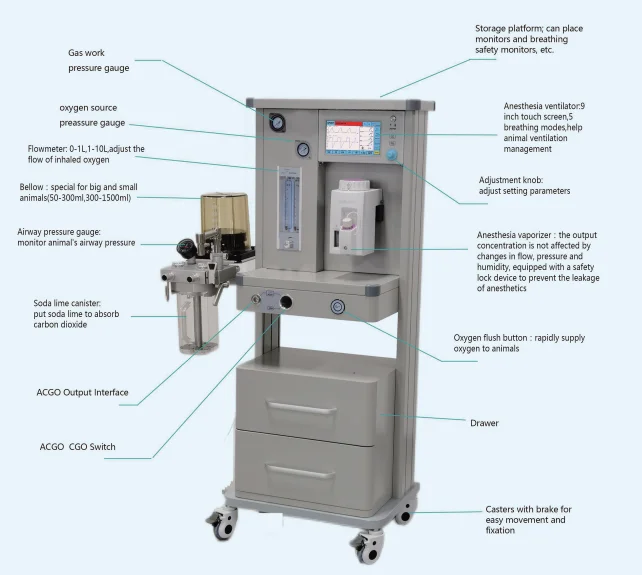

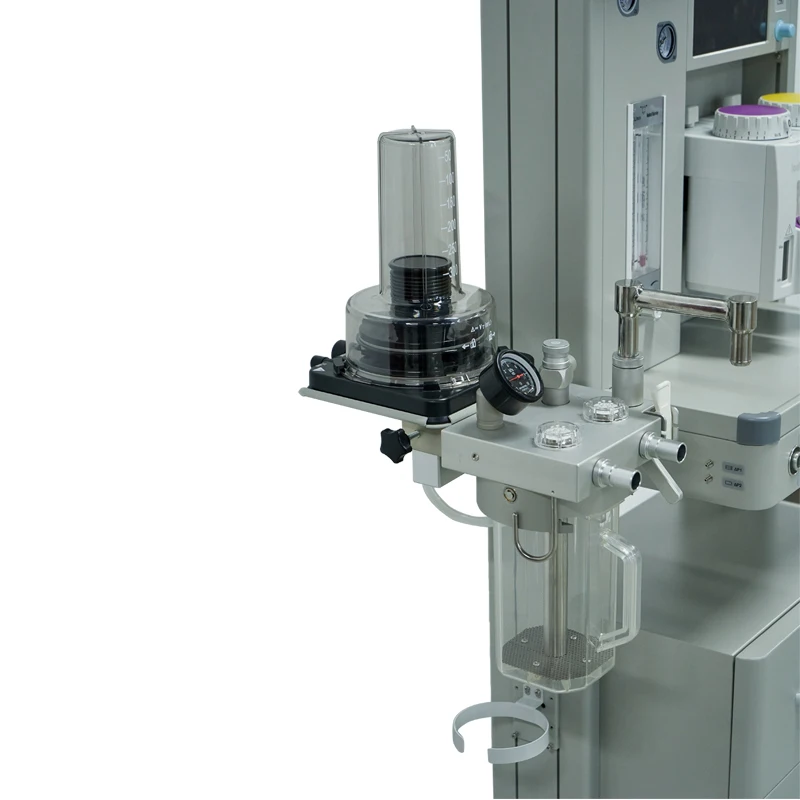

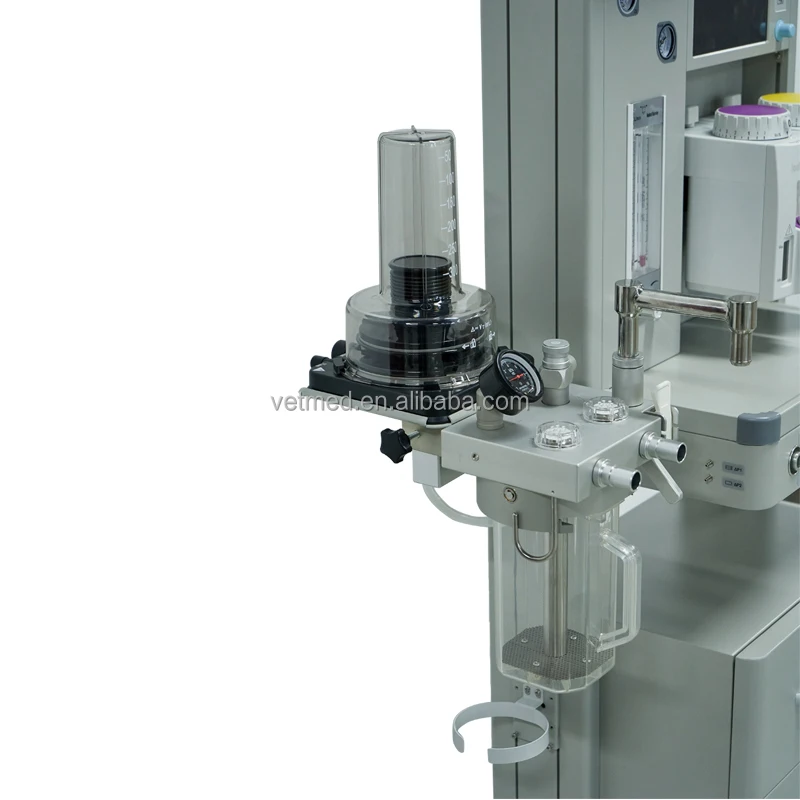

Details Images

Technical Paramenters

Main Unit
Working Mode	Closed, Semi-Closed, Semi-open, Open
Driven Mode	Pneumatically driven and manual controlled
Application Range	0.5-100 KG animal
Oxygen Flush	25-75 L/min
Anesthesia Ventilator
Screen	9 inch color touch screen
Ventilation Mode	VCV, PCV, SPONT, MANUAL, DEMO
Bellow	0-300 ml & 0-1500 ml
Waveform	Pressure, Flow, Volume
LOOP	P-V, P-F, F-V
Tidal Vlume	Auto-control: 20-1600 ml
Tidal Vlume		Manual-control: 5-1600 ml
Breathing Rate	1-100 bpm
I:E	9.9:1-1:9.9
Inspiratory Time	0.1-10.0 s
Inspiratory Pause	0-50%
Peep	Off, 3-20 cm H2O
Pressure Support	5-60 cm H2O
Flow Trigger	0.5-20L/min
Pressure Trigger	-1-20cm H2O

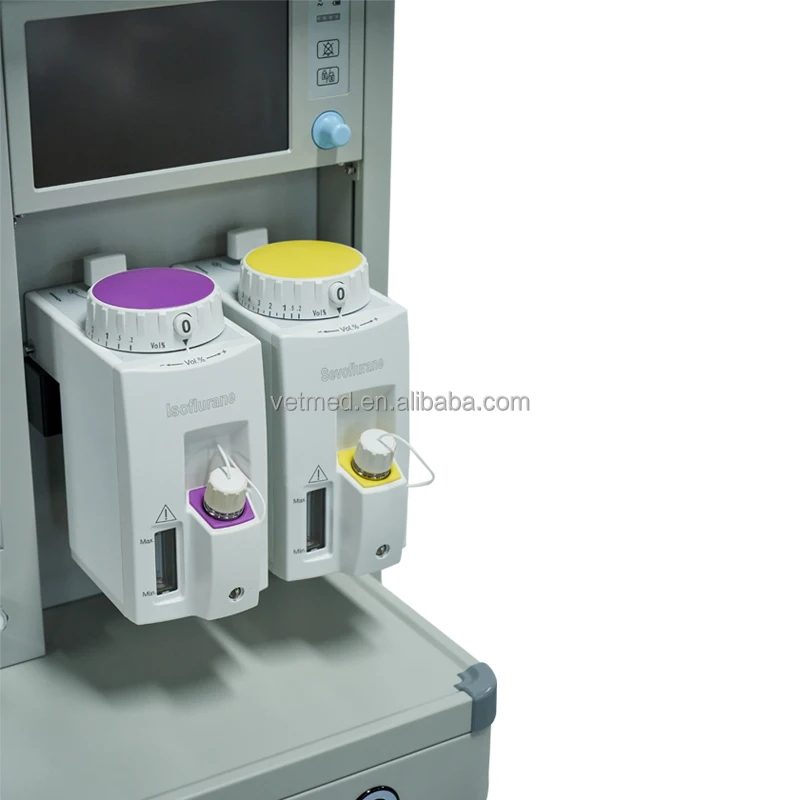

Vaporizer
Isoflurane	0.2%-5%
Sevoflurane	0.2%-8%
Vaporizor Volume	340 ml (dry) / 300ml (wet)

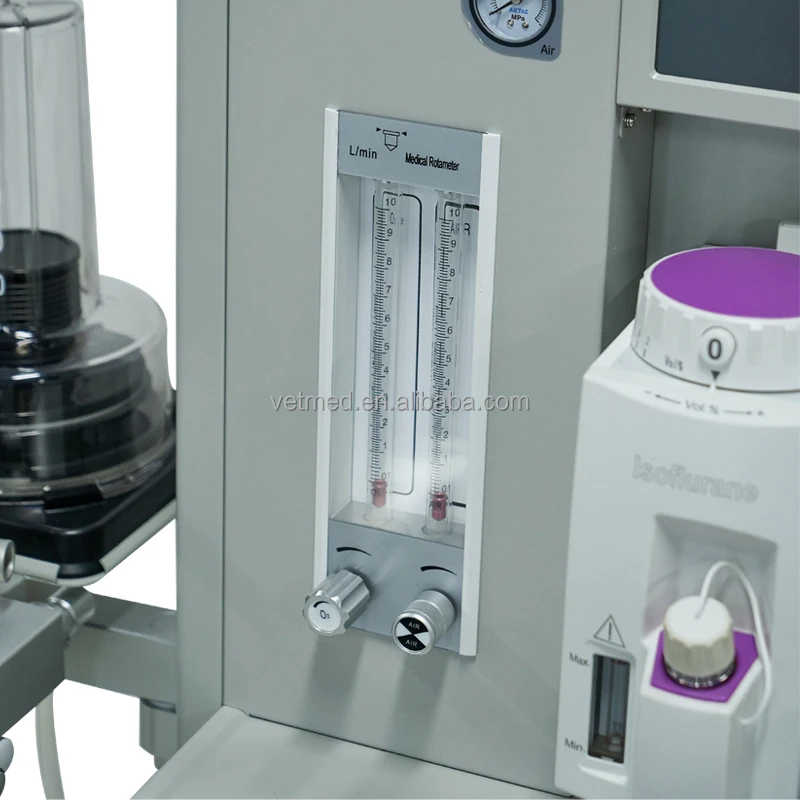

Flowmeter
Oxygen	0-1 L/min & 1-10 L/min
Monitoring
tidal Volume, breathing rate, spontaneous breathing rate, I:E, Spontaneous minite ventilation, minute ventilation, peak airway pressure, average airway pressure, PEEP, inspiratory platform pressure, FiO2
Warranty
Warranty	one year free warranty
Package & Weight
Package	Wooden Case
Package Size
Net Weight
Gross Weight

Company Profile

VeMED Tech Co., Ltd is a professional veterinary medical equipment since 2012 and we started to penetrate into international market from 2020. After years' experience, our product lines are enlarging quickly to meet the rising market requirement. Presently, VetMED's veterinary anesthesia machines and ultrasonic scalpels have passed CE registration.

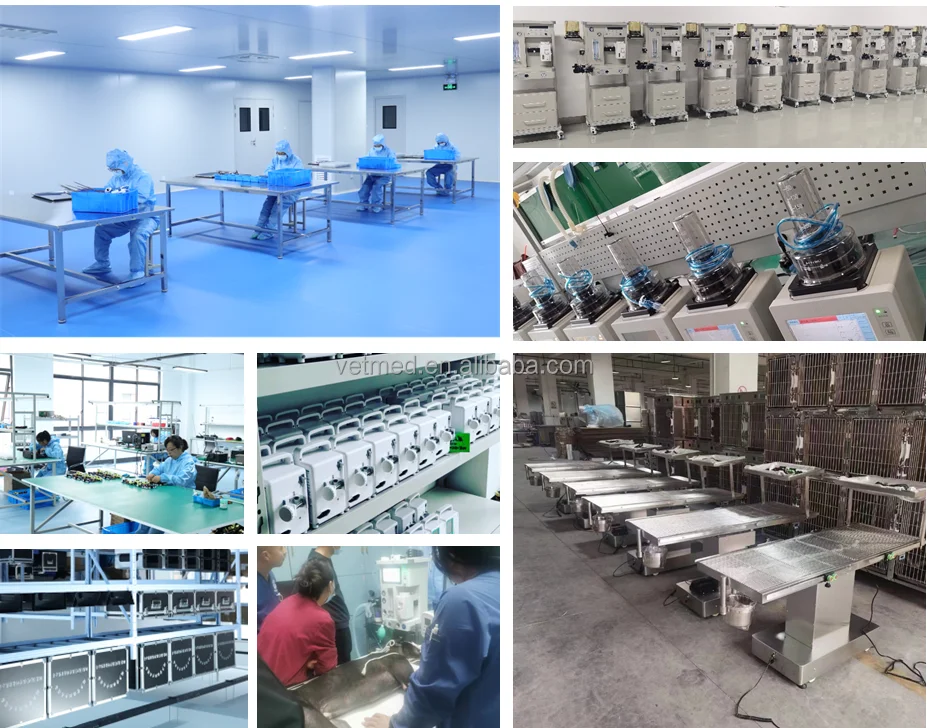

VetMED owns 3 production bases and each product line has independent R & D team to gurantee the professionality. VetMED focus on local service and we have world-wide distributor net. All distributors had received professional pre, intra and after sales training before the authorization letter issued to make sure every distributor can provide professional service to local end-users. Presently, our machines are used by doctors from countries and areas, such as Thailand, Turkey, Peru, Chile, Spain, France, Japan, Russia, Indonesia, Mexico, Russia and etc.

We will persist on developing and providing more and more reliabel and affortable veterinary medical equipment to doctors all over the world
