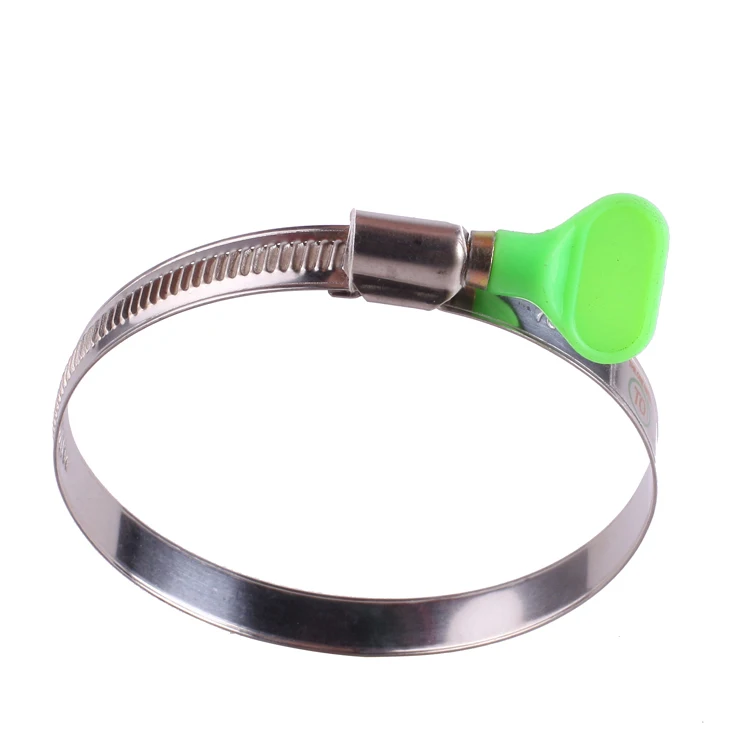

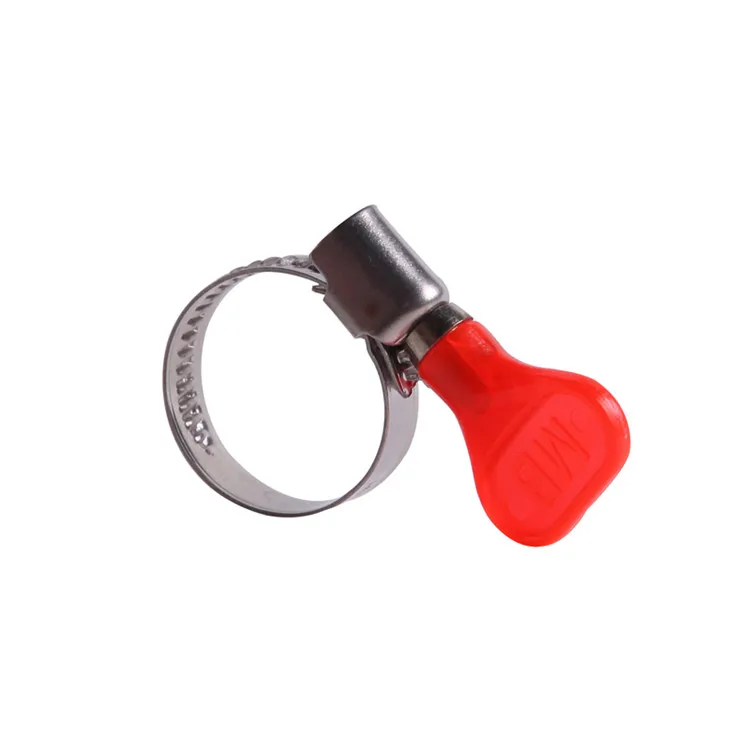

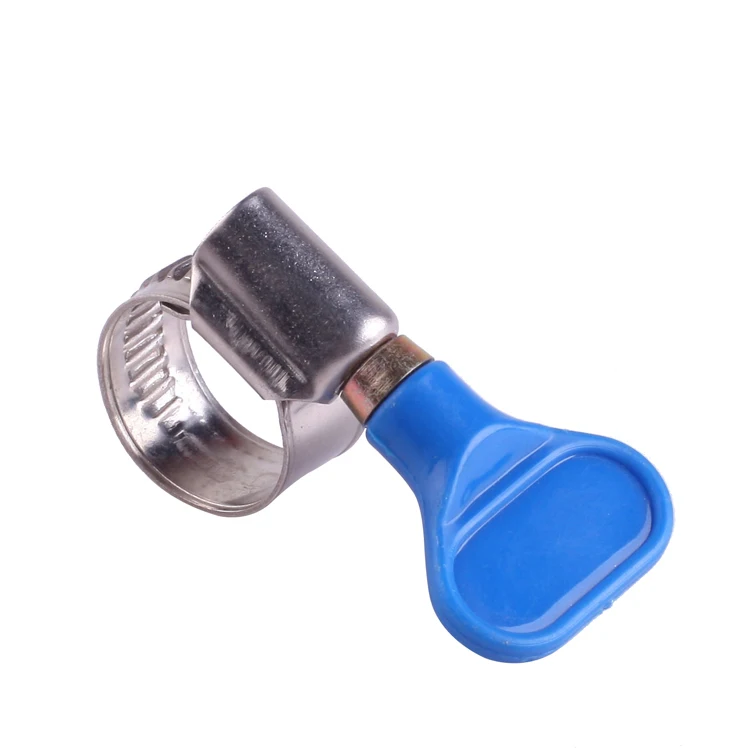

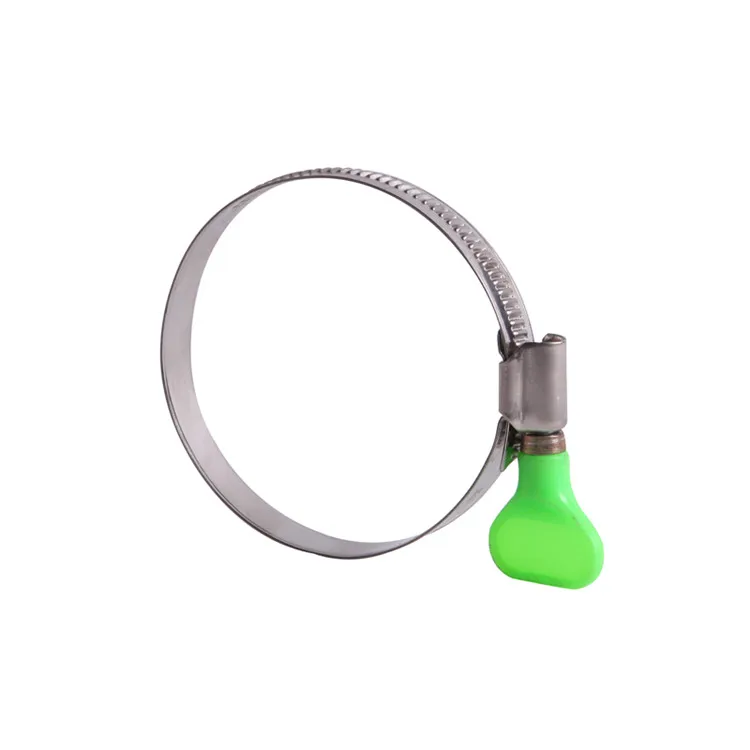

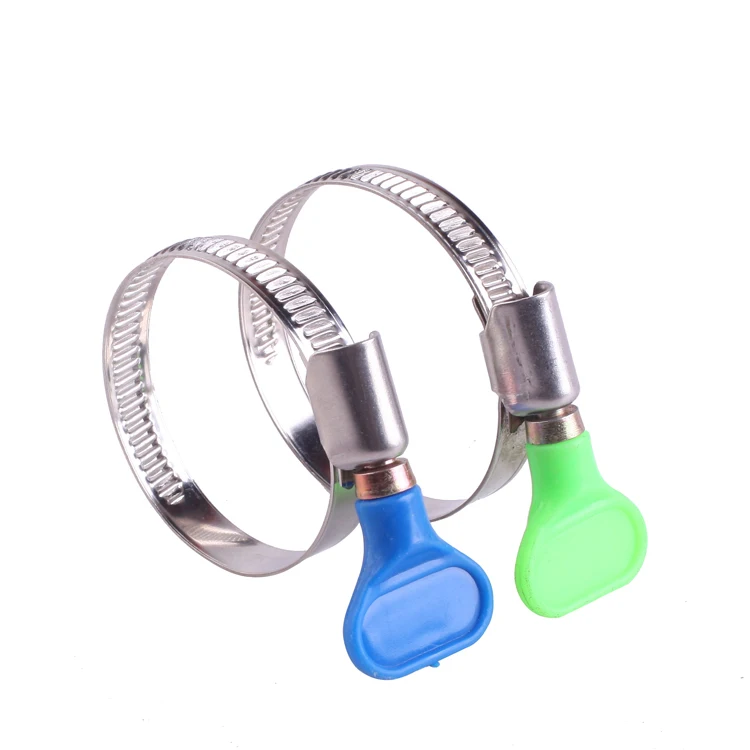

Червячный Привод Ручка для водопровода зажим из нержавеющей стали и оцинкованной системы измерения
- Категория: >>>
- Поставщик: Tianjin Theone Metal Products Co. Ltd.Tianjin Ltd.
Сохранить в закладки 1601082940136:
Описание и отзывы
Характеристики
Product Description
Product Name | Germany Type Worm Gear Hose Clamp |
Band Specification | 9*12mm*0.6/0.7mm |
Parts | band,housing and screw |
Material | w1: all parts are galvanized steel |
w2: band and housing are stainless streel , screw is galvanized steel | |
w4: all parts are stainless steel 200 or 300 | |
w5: all parts are stainless steel 316 | |
Screw | w1: "+" |
w2:"+" | |
w4& w5: ''-" |
DIN 3017 German Type Worm Drive Hose Clamp consist of a band, often galvanized or stainless steel, into which a screw thread
pattern has been cut or pressed.One end of the band contains a captive screw. The clamp is put around the hose or tube to be
connected, with the loose end being fed into a narrow space between the band and the captive screw. When the screw is turned, it
acts as a worm drive pulling the threads of the band, causing the band to tighten around the hose (or when screwed the opposite
direction, to loosen). Screw clamps are normally used for hoses 1/2 inch diameter and up, with other clamps used for smaller
hoses.
pattern has been cut or pressed.One end of the band contains a captive screw. The clamp is put around the hose or tube to be
connected, with the loose end being fed into a narrow space between the band and the captive screw. When the screw is turned, it
acts as a worm drive pulling the threads of the band, causing the band to tighten around the hose (or when screwed the opposite
direction, to loosen). Screw clamps are normally used for hoses 1/2 inch diameter and up, with other clamps used for smaller
hoses.
Drawing
Size(mm) | Bandwidth*Thickness (mm) | pcs/bag | pcs/ctn | Carton Size (cm) | Torque (N.m) |
8-12 | 9*0.6 | 100 | 1000 | 32*27*14 | ≥4.5 |
10-16 | 9*0.6 | 100 | 1000 | 32*27*14 | ≥4.5 |
12-22 | 9*0.6 | 100 | 1000 | 38*27*14 | ≥4.5 |
16-25 | 9*0.6 | 100 | 1000 | 38*27*14 | ≥4.5 |
20-32 | 9*0.6 | 50 | 1000 | 38*27*19 | ≥5 |
25-40 | 9*0.6 | 50 | 500 | 38*27*15 | ≥5 |
30-45 | 9*0.6 | 50 | 500 | 38*27*17 | ≥5 |
32-50 | 9*0.6 | 50 | 500 | 38*27*19 | ≥5 |
40-60 | 9*0.6 | 20 | 500 | 38*27*21 | ≥5 |
50-70 | 9*0.6 | 20 | 500 | 38*27*21 | ≥5 |
60-80 | 9*0.6 | 20 | 500 | 38*27*29 | ≥5 |
70-90 | 9*0.6 | 20 | 500 | 38*27*34 | ≥5 |
80-100 | 9*0.6 | 20 | 250 | 38*27*21 | ≥5 |
90-110 | 9*0.6 | 20 | 250 | 38*27*24 | ≥5 |
100-120 | 9*0.6 | 20 | 250 | 38*27*29 | ≥5 |
110-130 | 9*0.6 | 20 | 250 | 38*27*29 | ≥5 |
120-140 | 9*0.6 | 20 | 250 | 38*27*34 | ≥5 |
130-150 | 9*0.6 | 20 | 250 | 41*32*32 | ≥5 |
140-160 | 9*0.6 | 10 | 250 | 41*32*32 | ≥5 |
150-170 | 9*0.6 | 10 | 250 | 41*32*32 | ≥5 |
160-180 | 9*0.6 | 10 | 250 | 41*32*32 | ≥5 |
170-190 | 9*0.6 | 10 | 250 | 41*32*32 | ≥5 |
180-200 | 9*0.6 | 10 | 100 | 40*37*28 | ≥5 |
190-210 | 9*0.6 | 10 | 100 | 40*37*30 | ≥5 |
200-220 | 9*0.6 | 10 | 100 | 40*37*30 | ≥5 |
210-230 | 9*0.6 | 10 | 100 | 40*37*30 | ≥5 |
Product Usage
German Type Hose Clamps is widelyusedin automobiles, tractors, forklifts, locomotives, ships,mines, petroleum, chemicals, pharmaceuticals,agriculture,and other water,oil,steam, dust,etc.The hose clamp is tightly locked,tight and has a wide adjustment range.It is suitable for fasteners with soft and hard pipe connections.
◆sturdy lock
◆pressure resistance
◆torque balanced
◆big adjustable range
◆pressure resistance
◆torque balanced
◆big adjustable range
