Скорость подъема 9 м/мин из нержавеющей стали оцинкованная подвесная платформа Колыбель
4 700,00-5 000,00 $
Zlp800 800 кг 7 5 м оцинкованная стальная подвесная платформа/Колыбель/Гондола
- Категория: >>>
- Поставщик: Shanghai Power Engineering Machinery Co. Ltd.Shanghai Ltd.
Сохранить в закладки 1601083081602:
Описание и отзывы
Характеристики
Product description
SHENXI Galvanised ZLP800 Rope Suspended Platform Construction Gondola
Parameters of ZLP800 Suspended Platform | ||
Type | Bolt Type | |
1. Rated Load | 800kg | |
2. Lifting speed | 9.3m/min | |
3. Lifting height | 50m | |
4. Hoist | LTD8.0 | |
4.1 Power | 1.8kw, 2 Pcs | |
4.2 Voltage | 380V 50Hz 3PH | |
5. Safety Lock | LSG30, use 9.1mm Steel Rope | |
6. Electric Cabinet | 380V 50Hz 3PH | |
7. Platform Sise | L=7.5m(2.+2+2+1.5), W=0.69, H=1.18m | |
8. Steel Wire Rope | 4pcs, 100m/pcs, D=9.1mm | |
9. Electric Cable | 1pcs, 100m/pcs, 2.5mm2 | |
10. Safety Rope | 1pcs, 100m/pcs | |
11. Gross Weight (without Counterweight) | 980kg | |
12. Counter Weight (Optional) | Cement, 1000kg, 40pcs, 25kg/pcs | |
13. Quantity of one 20" Container | 13 sets | |

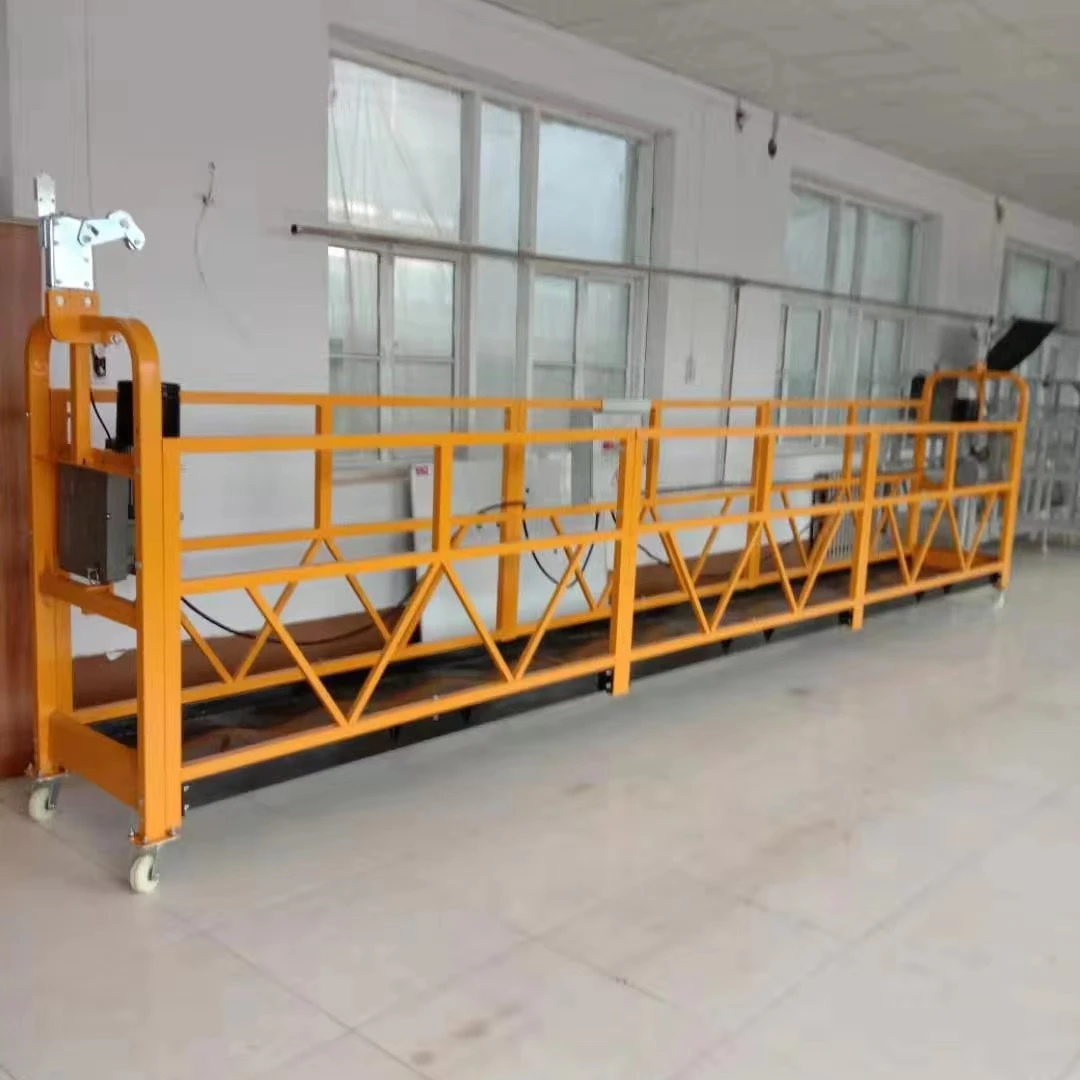

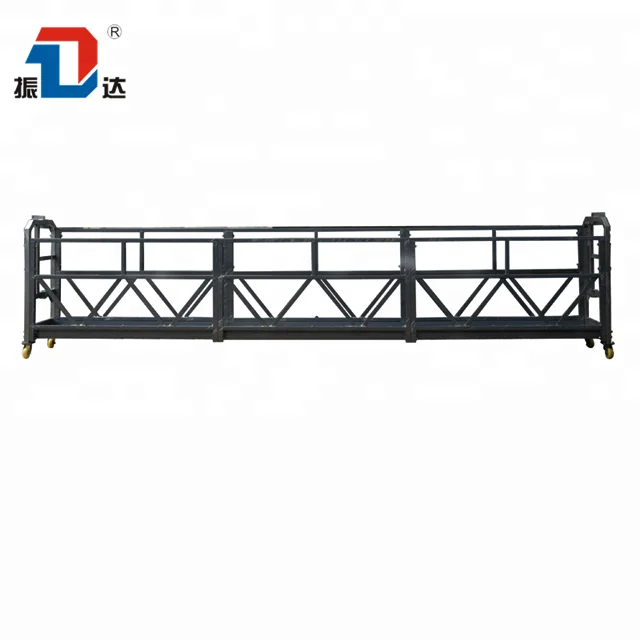

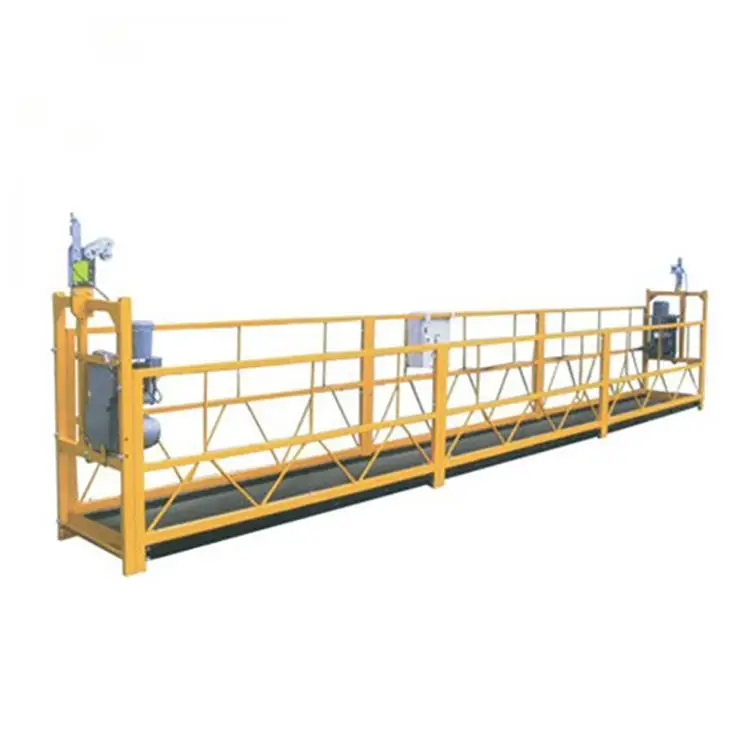

Working Platform: Steel + Galvanised; ( Steel+Painting or Aluminum Alloy+Painting is available also)
1.1 Working Platform is the workplace at heights for the workers.
1.2 Length of platform: 7.5m(2.5+2.5+2.5) (2+2+2+1.5)
1.3 With caster wheel fitted underneath, the platform is easy to move.

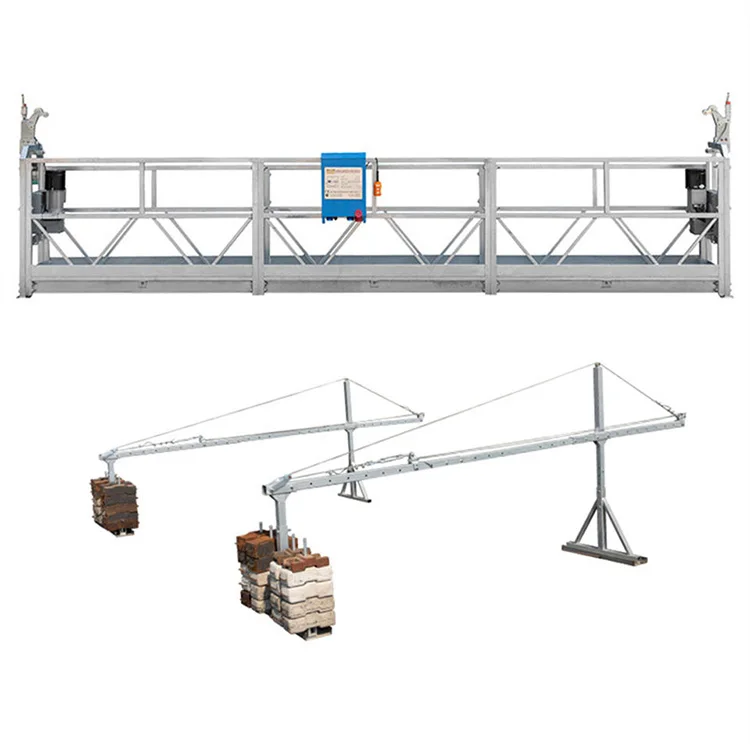

Roof Structure: Hot-dipped Galvanized
Roof Structure is on the top of the building to suspend the platforms through the steel rope.
Components:
LTD8.0 Hoist, 1.8kw, 2 pcs;
LSG30 Safety Lock, 2 pcs;
Electric Cabine: 1 pcs;
Steel Rope: 4pcs, 100m/pcs; D=9.1mm;
Electric Cabinet: 1pcs, 100m/pcs, Rubber, 2.5mmsq;
Counterweight (Optional): 40pcs, 25kg/pcs.
1.1 Working Platform is the workplace at heights for the workers.
1.2 Length of platform: 7.5m(2.5+2.5+2.5) (2+2+2+1.5)
1.3 With caster wheel fitted underneath, the platform is easy to move.
Roof Structure: Hot-dipped Galvanized
Roof Structure is on the top of the building to suspend the platforms through the steel rope.
Components:
LTD8.0 Hoist, 1.8kw, 2 pcs;
LSG30 Safety Lock, 2 pcs;
Electric Cabine: 1 pcs;
Steel Rope: 4pcs, 100m/pcs; D=9.1mm;
Electric Cabinet: 1pcs, 100m/pcs, Rubber, 2.5mmsq;
Counterweight (Optional): 40pcs, 25kg/pcs.
Product display

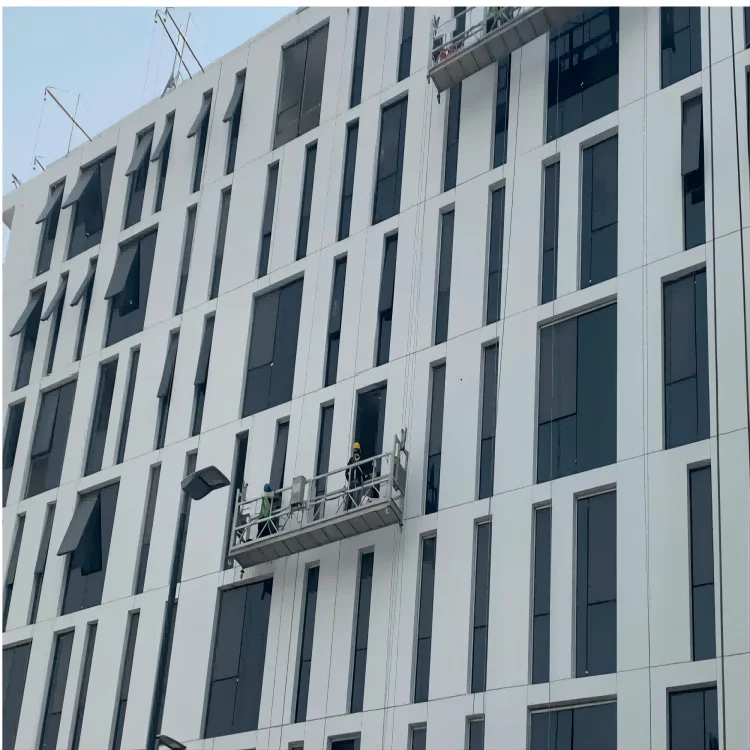

Successful Case

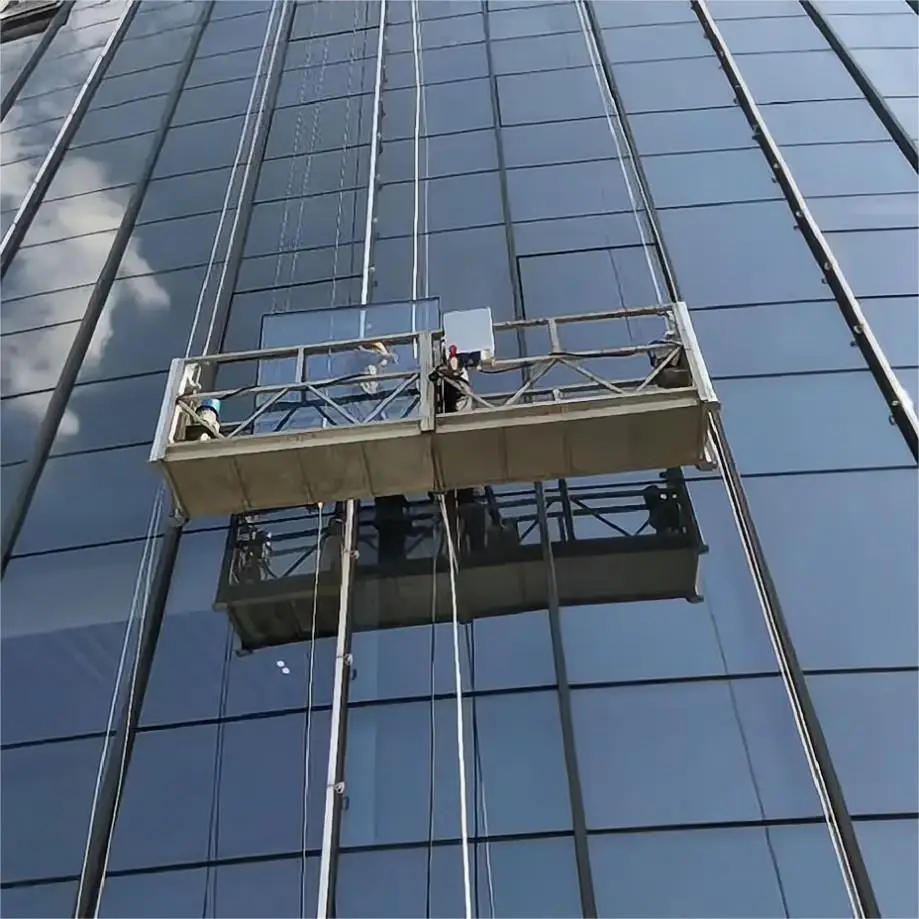

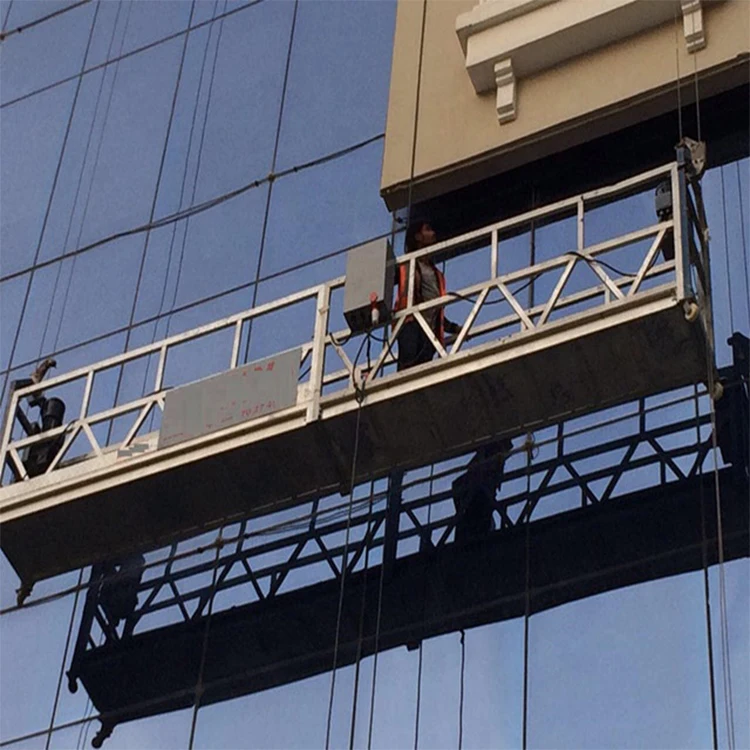

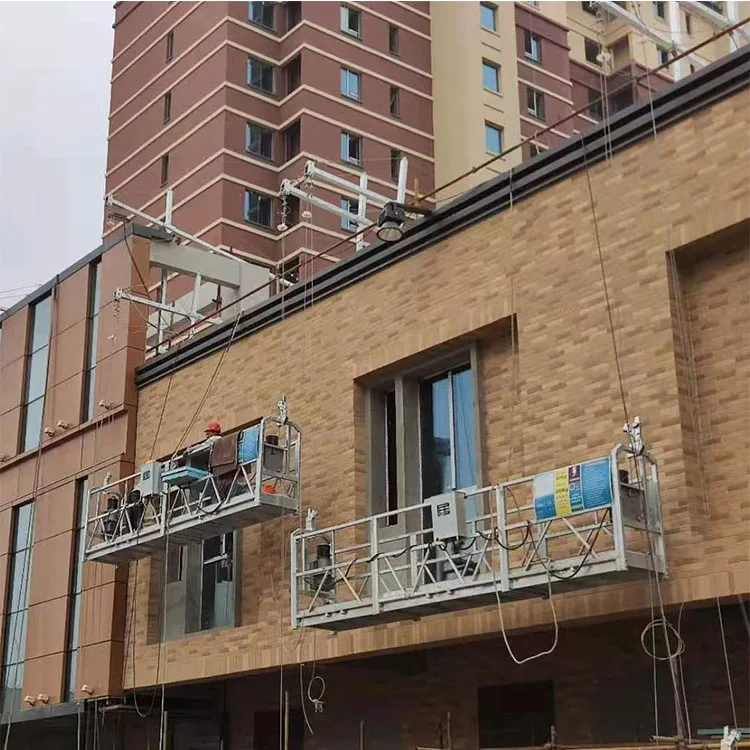

Our Construction gondola for window cleaning machine suspended platform have exported to more than 20 countries with good feedback from customers. We supply site access solutions according to different construction solution.
Technological process
Packing&Delivery
FAQ
1. How much is this suspended platform?
Price will offer you immediately after telling us your requirements of model, platform length,loading capacity, material, painting coat or galvanzied, voltage,with counterweight or not and price terms.
2. Features for Steel Platform with Plastic coating finish?
Color plastic spraying on platform surface with comptitive price compared with the aluminum alloy and hot dip gavalnized surface.----
Hot dip galvanized steel platform with good anti corrosion and Lower price than aluminum alloy platform.
3. What quality certificate you own for your products?
Our products own CCC, CE, EAC and ISO9001 certificate.
4. What payment terms do you accept?
T/T, L/C, Alibaba trade.
5. Product quality assurance and after-sales service?
One Year Quality Warranty And Life-time Technical Support. If any parts get damaged because of quality within 12 months after
shipping date. We will send new parts to replace right away.
6. Can you make suspended platform with our brand?
Yes.
7. How you arrange shipment?
By Sea/By Train/By Air or By Express,15-20days Against Deposit.
Price will offer you immediately after telling us your requirements of model, platform length,loading capacity, material, painting coat or galvanzied, voltage,with counterweight or not and price terms.
2. Features for Steel Platform with Plastic coating finish?
Color plastic spraying on platform surface with comptitive price compared with the aluminum alloy and hot dip gavalnized surface.----
Hot dip galvanized steel platform with good anti corrosion and Lower price than aluminum alloy platform.
3. What quality certificate you own for your products?
Our products own CCC, CE, EAC and ISO9001 certificate.
4. What payment terms do you accept?
T/T, L/C, Alibaba trade.
5. Product quality assurance and after-sales service?
One Year Quality Warranty And Life-time Technical Support. If any parts get damaged because of quality within 12 months after
shipping date. We will send new parts to replace right away.
6. Can you make suspended platform with our brand?
Yes.
7. How you arrange shipment?
By Sea/By Train/By Air or By Express,15-20days Against Deposit.
Похожие товары
Подвесная платформа стальной алюминиевый сплав 8 3 м/мин подъемная скоростная веревка механизированная подвесная
1 000,00-1 580,00 $
Подвесная платформа ZLP630 ZLP800 металлическая качающаяся сценическая веревка подвесная
1 000,00-1 580,00 $
Подвесная платформа серии ZLP для очистки стекла, подъемник для электрических алюминиевых лесов, подъемник для строительных фасадов
126 896,44-138 432,48 ₽
Лидер продаж-ZLP800 алюминиевый сплав Рабочая подвесные платформы
Электрическая Гондола сталь окрашенная ZLP630
1 350,00-1 400,00 $
Техническое обслуживание фасада Очистительная платформа строительная гондольная Колыбель
1 050,00-1 250,00 $

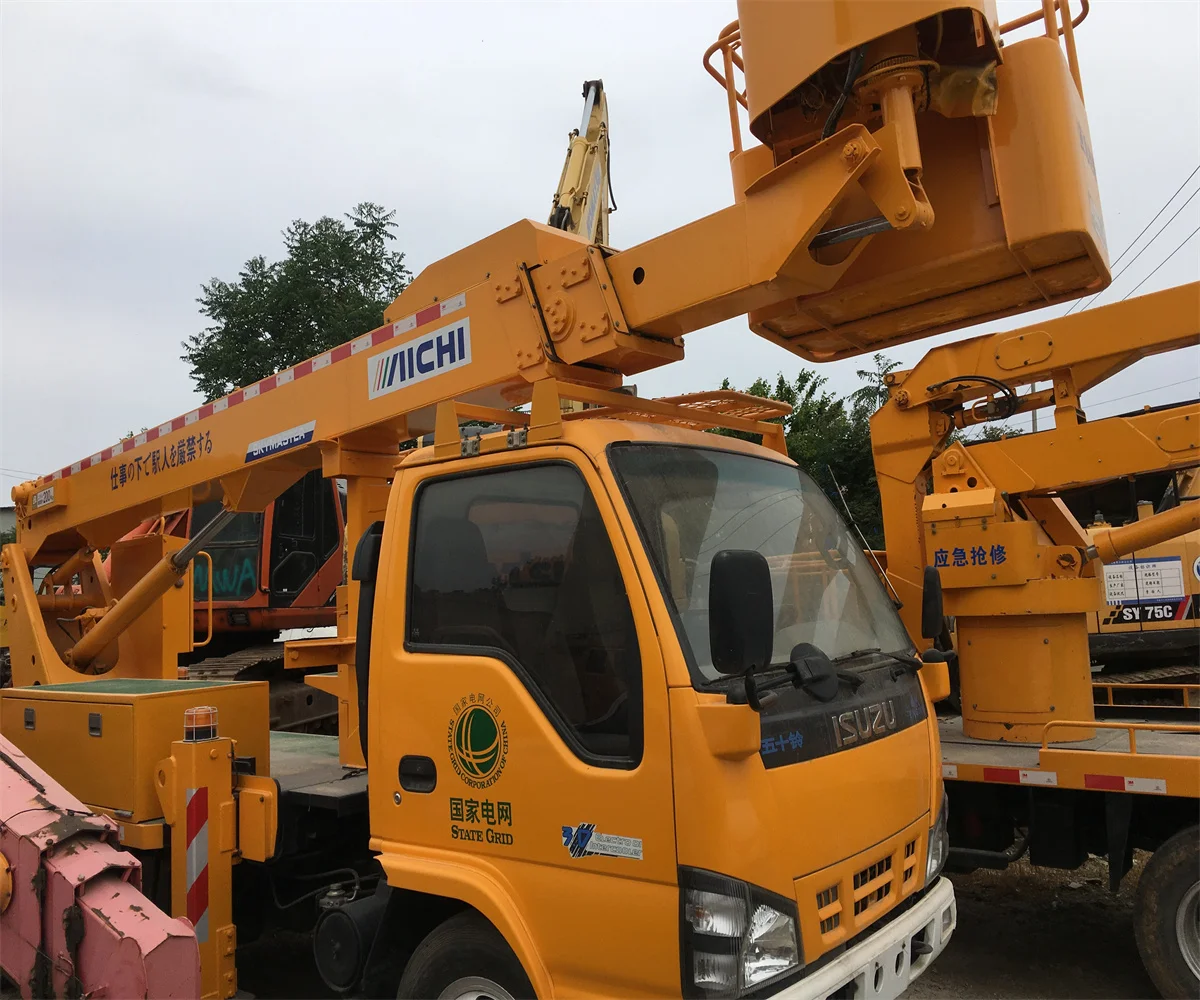

Б/у Aichi 23 м высокая воздушная Рабочая платформа в подержанных условиях
