On grid wind turbine inverter performance characteristics
(1) The main circuit uses the DSP chip produced by the American TI company, German Infineon
IGBT module, drive protection is the Japanese Mitsubishi movement, and the on grid output part
use isolation transformer, which is safe and reliable;
(2) Using SPWM pulse width modulation technology, pure sine wave output, automatic synchronous
tracking with the grid, power factor close to 1, low current harmonic content, no pollution to the grid,
no impact;
(3) Wind turbine input maximum power tracking technology (MPPT)
(4) The power curve of the wind turbine can be set, the default is 20 points, and the internal
expansion is 50
(5) 7-inch color touch screen display, system operation data and fault information at a glance,
and convenient parameter setting;
(6) On grid inverter current closed-loop control, controllable and adjustable;
(7) The input DC voltage range is wide, adapt to the needs of different occasions;
(8) Frequency disturbance detection technology to realize anti-island control;
(9) The comprehensive power protection scheme and perfect self-detection and protection functions
will stop the on grid inverter when a system failure occurs.
(10) Circuit structure is compact, the maximum efficiency≥98%
(11) Support RS485, WiFi, GPRS, Ethernet and other communication methods. You can monitor the
working status of the on grid wind power generation system in real time through the PC or mobile
phone, and you can also query the historical working status. The mobile terminal is compatible with
Android and IOS. All data can be connected to the Internet of Things.
Product Description
On grid wind turbine single phase inverter 3-5KW
On grid wind turbine inverter | DMWG3KTL | DMWG5KTL |
Rated output power (AC) | 3KW | 5KW |
Max. Output power (AC) | 3.3KW | 5.5KW |
Input voltage rang (DC) | 0-450V | 0-450V |
MPPT Voltage range (DC) | 100V-400V | 100V-400V |
Max. Input current (DC) | 11.2A | 18.7A |
Rated current | 10.2A | 17A |
THD Current harmonic | <3%(At rated power) | |
Power factor | >0.99 | |
Max. efficiency | 98% | |
Allowable grid voltage range (AC) | 110V/120V/220V (Single-phase)±20% | |
Allowable grid frequency range | 50Hz/60Hz±10% | |
Automatic operation conditions | DC input and power grid meet the requirements, the inverter operates automatically | |
Restart time after power failure | 2min ( Adjustable) | |
Function | wind turbine curve setting | |
Automatic protection | Inverter part: Polarity reverse connection protection, short circuit protection, island effect protection, LVRT, overheat protection, overload protection, ground fault protection, etc | |
Display | Touch screen | |
Monitoring content | DC output voltage, current, power; inverter output voltage,current ,power; Cumulative power generation; Grid voltage ,Current . | |
Protection level | IP20(Indoor)IP65 (Outdoors) | |
Telematics | RS485/USB/GPRS/WIFI/Ethernet (Optional) | |
Environment | Operating amb. Temp. & Hum -30-60°C,<90% no condensation | |
Noise (1m) | <40dB | |
Refrigeration mode | Forced air cooling | |
Size / weight | 450*275*770mm 39kg | 450*275*770mm 44kg |
*Above parameter only for reference. Could be custom made to user specifications.
On grid wind turbine Tree phase inverter 3-5KW
On grid wind turbine inverter | DMWG3KTL | DMWG5KTL |
Rated output power (AC) | 3KW | 5KW |
Max. Output power (AC) | 3.3KW | 5.5KW |
Input voltage rang (DC) | 0-800V | 0-800V |
MPPT Voltage range (DC) | 150V-700V | 150V-700V |
Max. Input current (DC) | 6.8A | 11.2A |
Rated current | 6.2A | 10.2A |
THD Current harmonic | <3%(At rated power) | |
Power factor | >0.99 | |
Max. efficiency | 98% | |
Allowable grid voltage range (AC) | 220V/380V/440V/480V (Three-phase)±20% | |
Allowable grid frequency range | 50Hz/60Hz±10% | |
Automatic operation conditions | DC input and power grid meet the requirements, the inverter operates automatically | |
Restart time after power failure | 2min ( Adjustable) | |
Function | wind turbine curve setting | |
Automatic protection | Inverter part: Polarity reverse connection protection, short circuit protection, island effect protection, LVRT, overheat protection, overload protection, ground fault protection, etc | |
Display | Touch screen | |
Monitoring content | DC output voltage, current, power; inverter output voltage,current ,power; Cumulative power generation; Grid voltage ,Current . | |
Protection level | IP20(Indoor)IP65 (Outdoors) | |
Telematics | RS485/USB/GPRS/WIFI/Ethernet (Optional) | |
Environment | Operating amb. Temp. & Hum -30-60°C,<90% no condensation | |
Noise (1m) | <40dB | |
Refrigeration mode | Forced air cooling | |
Size / weight | 550*225*770mm 49kg | 550*225*770mm 59kg |
On grid wind turbine Tree phase inverter 10-30KW
On grid wind turbine inverter | DMWG10KTL | DMWG20KTL | DMWG30KTL |
Rated output power (AC) | 10KW | 20KW | 30KW |
Max. Output power (AC) | 11KW | 22KW | 33KW |
Input voltage rang (DC) | 0-800V | 0-800V | 0-800V |
MPPT Voltage range (DC) | 150V-700V | 150V-700V | 150V-700V |
Max. Input current (DC) | 22.4A | 44.9A | 67.3A |
Rated current | 20.4A | 40.8A | 61.2A |
THD Current harmonic | <3%(At rated power) | ||
Power factor | >0.99 | ||
Max. efficiency | 98% | ||
Allowable grid voltage range (AC) | 220V/380V/440V/480V (Three-phase)±20% | ||
Allowable grid frequency range | 50Hz/60Hz±10% | ||
Automatic operation conditions | DC input and power grid meet the requirements, the inverter operates automatically | ||
Restart time after power failure | 2min ( Adjustable) | ||
Function | wind turbine curve setting | ||
Automatic protection | Inverter part: Polarity reverse connection protection, short circuit protection, island effect protection, LVRT, overheat protection, overload protection, ground fault protection, etc | ||
Display | Touch screen | ||
Monitoring content | DC output voltage, current, power; inverter output voltage,current , power; Cumulative power generation; Grid voltage ,Current . | ||
Protection level | IP20(Indoor)IP65 (Outdoors) | ||
Telematics | RS485/USB/GPRS/WIFI/Ethernet (Optional) | ||
Environment | Operating amb. Temp. & Hum -30-60°C,<90% no condensation | ||
Noise (1m) | <40dB | ||
Refrigeration mode | Forced air cooling | ||
Size / weight | 690*275*770mm 42kg | 690*275*770mm 58kg | 690*275*770mm 65kg |
On grid wind turbine Tree phase inverter 50-200KW
On grid wind turbine inverter | DMWG50K | DMWG100K | DMWG200K |
Rated output power (AC) | 50KW | 100KW | 200KW |
Max. Output power (AC) | 55KW | 110KW | 220KW |
Input voltage rang (DC) | 0-800V | 0-800V | 0-800V |
MPPT Voltage range (DC) | 350V-750V | 350V-750V | 350V-750V |
Max. Input current (DC) | 114.6A | 229A | 458.3A |
Rated current | 104A | 208A | 416.7A |
THD Current harmonic | <3%(At rated power) | ||
Power factor | >0.99 | ||
Max. efficiency | 98% | ||
Allowable grid voltage range (AC) | 220V/380V/440V/480V (Three-phase)±20% | ||
Allowable grid frequency range | 50Hz/60Hz±10% | ||
Automatic operation conditions | DC input and power grid meet the requirements, the inverter operates automatically | ||
Restart time after power failure | 2min ( Adjustable) | ||
Function | wind turbine curve setting | ||
Automatic protection | Inverter part: Polarity reverse connection protection, short circuit protection, island effect protection, LVRT, overheat protection, overload protection, ground fault protection, etc | ||
Display | Touch screen | ||
Monitoring content | DC output voltage, current, power; inverter output voltage,current , power; Cumulative power generation; Grid voltage ,Current . | ||
Protection level | IP20(Indoor)IP65 (Outdoors) | ||
Telematics | RS485/USB/GPRS/WIFI/Ethernet (Optional) | ||
Environment | Operating amb. Temp. & Hum -30-60°C,<90% no condensation | ||
Noise (1m) | <40dB | ||
Refrigeration mode | Forced air cooling | ||
Size / weight | 750*600*1320mm 340kg | 1460*860*1820mm 1.4t | 1460*860*1820mm 1.6t |
On grid wind turbine Tree phase inverter 300-500KW
On grid wind turbine inverter | DMWG300K | DMWG500K |
Rated output power (AC) | 300KW | 500KW |
Max. Output power (AC) | 330KW | 550KW |
Input voltage rang (DC) | 0-800V | 0-800V |
MPPT Voltage range (DC) | 350V-750V | 350V-750V |
Max. Input current (DC) | 573A | 955A |
Rated current | 520.8A | 868A |
THD Current harmonic | <3%(At rated power) | |
Power factor | >0.99 | |
Max. efficiency | 98% | |
Allowable grid voltage range (AC) | 220V/380V/440V/480V (Three-phase)±20% | |
Allowable grid frequency range | 50Hz/60Hz±10% | |
Automatic operation conditions | DC input and power grid meet the requirements, the inverter operates automatically | |
Restart time after power failure | 2min ( Adjustable) | |
Function | wind turbine curve setting | |
Automatic protection | Inverter part: Polarity reverse connection protection, short circuit protection, island effect protection, LVRT, overheat protection, overload protection, ground fault protection, etc | |
Display | Touch screen | |
Monitoring content | DC output voltage, current, power; inverter output voltage,current ,power; Cumulative power generation; Grid voltage ,Current . | |
Protection level | IP20(Indoor)IP65 (Outdoors) | |
Telematics | RS485/USB/GPRS/WIFI/Ethernet (Optional) | |
Environment | Operating amb. Temp. & Hum -30-60°C,<90% no condensation | |
Noise (1m) | <40dB | |
Refrigeration mode | Forced air cooling | |
Size / weight | 2010*1060*2100mm 1.8t | 2010*1200*2090mm 2.5t |

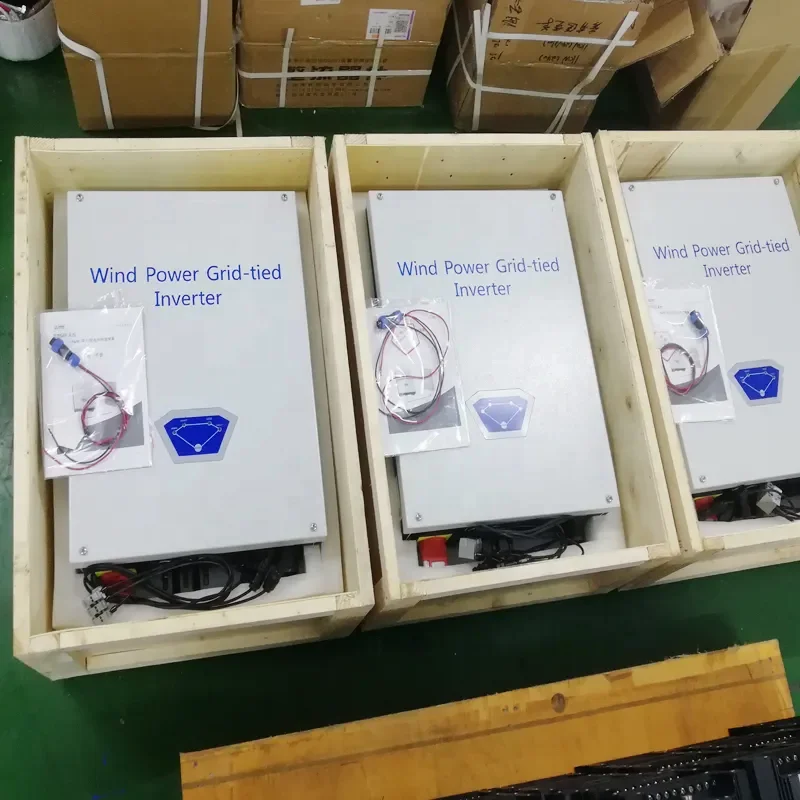

Packaging & Shipping
Packed by plywood case, standard export standard
Delivery by sea: Qingdao port
By air : Qingdao airport
FOB/C&F, CIF
Delivery by express: DHL/FEDEX/TNT...
Payment:
Support LC at sight, paypal payment, TT payment;Trade assurance
Our Services
As our corporate users, you enjoy the following service:
(1) The machine warranty for free in 2 year;
(2) Technical support;
(3) Within 24 hours for respond after receiving notification;
(4) Cost maintenance forever.
When you confirm the failure of equipment, please promptly contact us and provide the equipment model
and complete description of the problem.
However, any of the following situation happened, are not included in the warranty:
(1) Non-permitted by the company, went ahead with repair and damage;
(2) Install or modify arbitrarily;
(3) Incorrect operation or use;
(4) Do not depending on the manual to do cleaning or maintenance;
(5) Abnormal environment condition exceed the specifications, result in damage;
(6) The deliberate destruction of man-made;
(7) Irresistible natural disasters.
ce/iec testing report

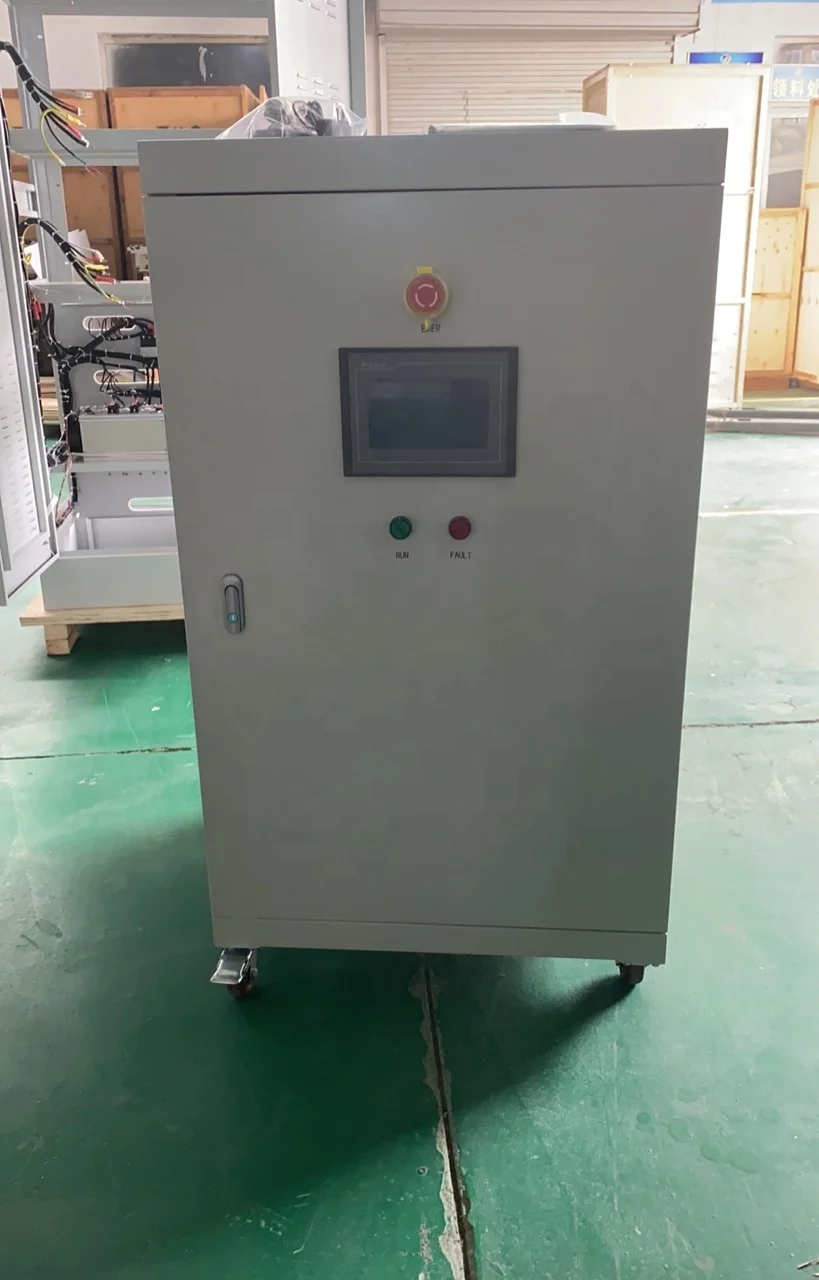

Inverter factory
Похожие товары

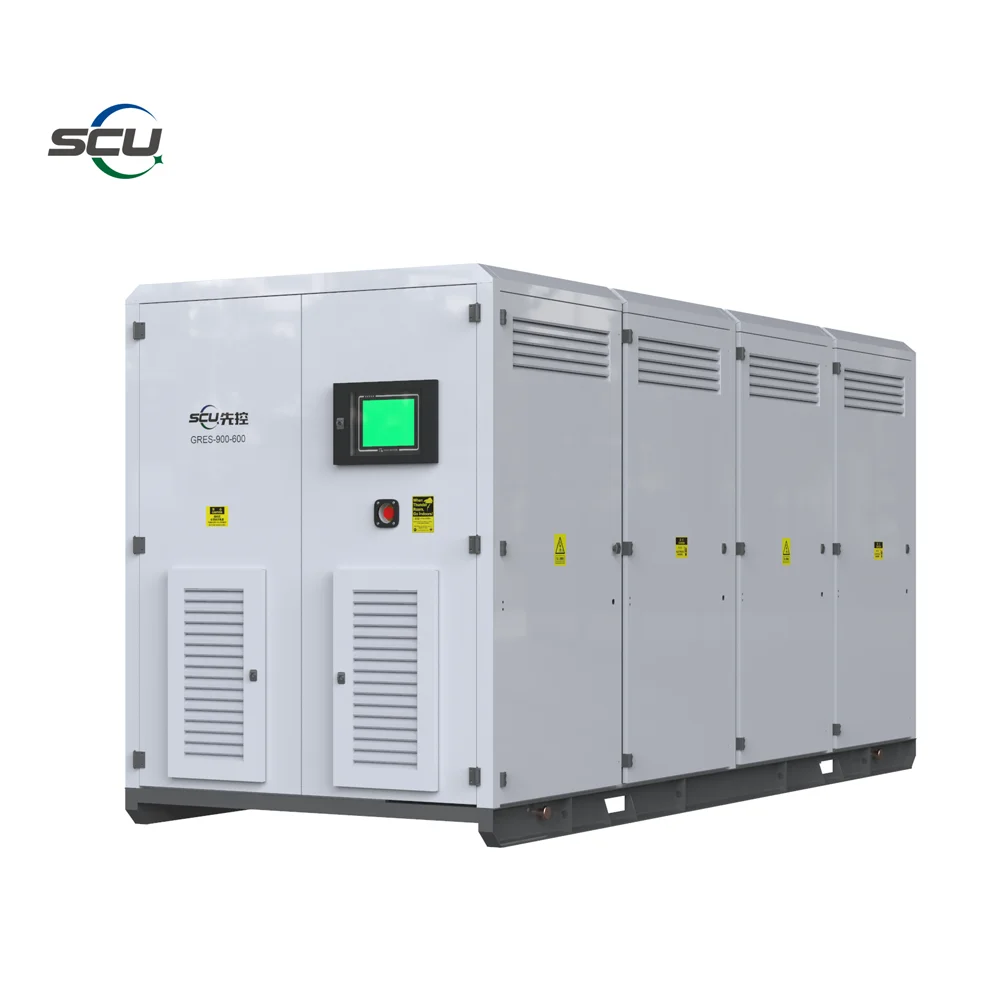

SCU 50 кВт сочетает в себе возобновляемую солнечную или ветровую энергию с аккумуляторным гибридным инвертором для дома и коммерческого использования
2 078 474,60 ₽ - 2 187 868,00 ₽

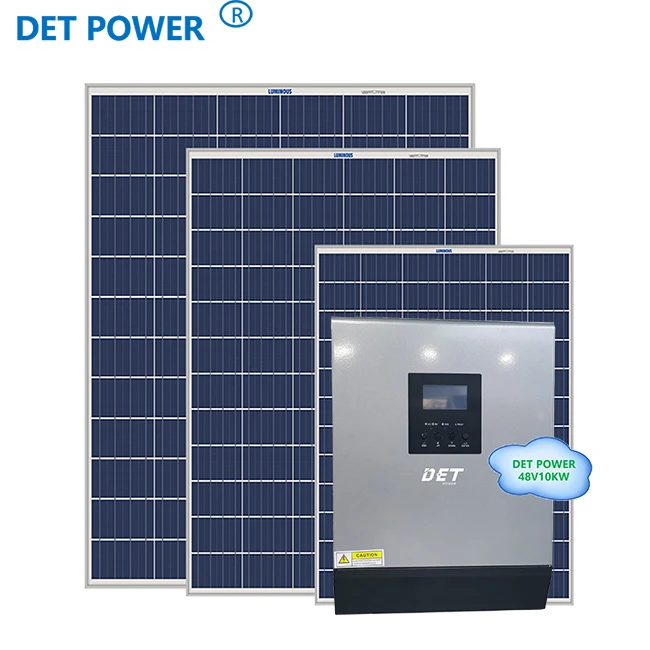

10 кВт ветровой солнечный гибридный солнечный дизельный генератор гибридная система Tesla power wall lifepo4 батарея солнечная панель
138 929,62 ₽ - 257 074,49 ₽

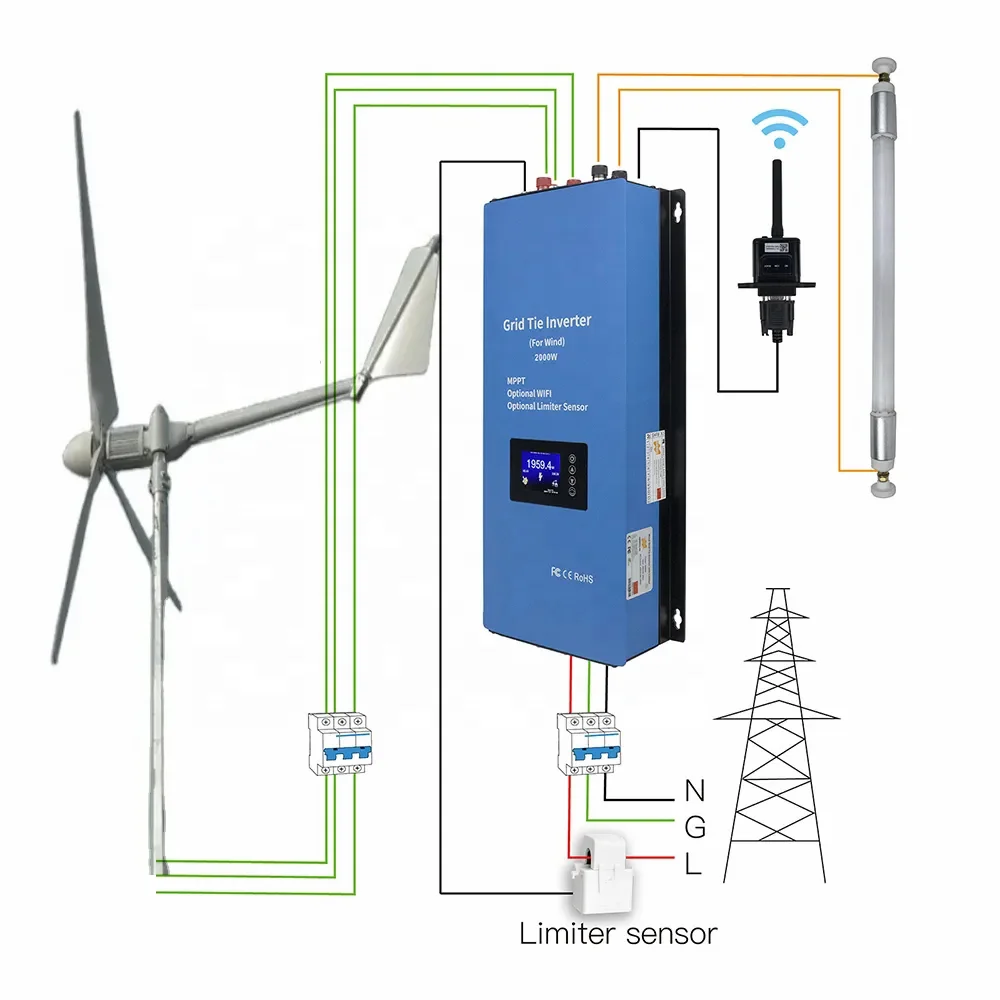

Инвертор 300 Вт для генератора ветряной турбины, сетчатый Инвертор постоянного тока/переменного тока, 22-50 в, вход на выход 120/230 В
8 751,48 ₽

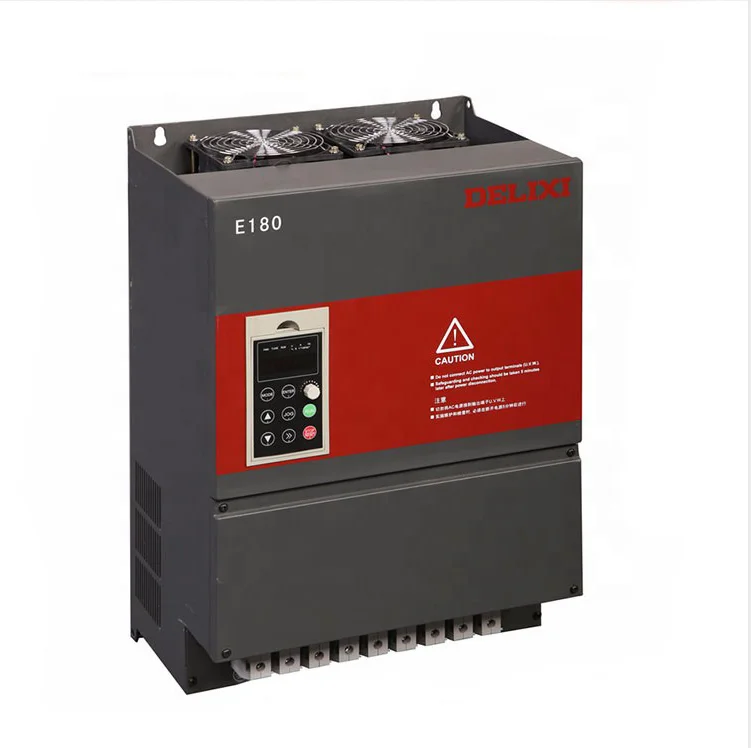

Простота в эксплуатации инвертор трехфазный 690V G280KW/P315KW привод переменного тока инвертора энергии ветра
