Products Description

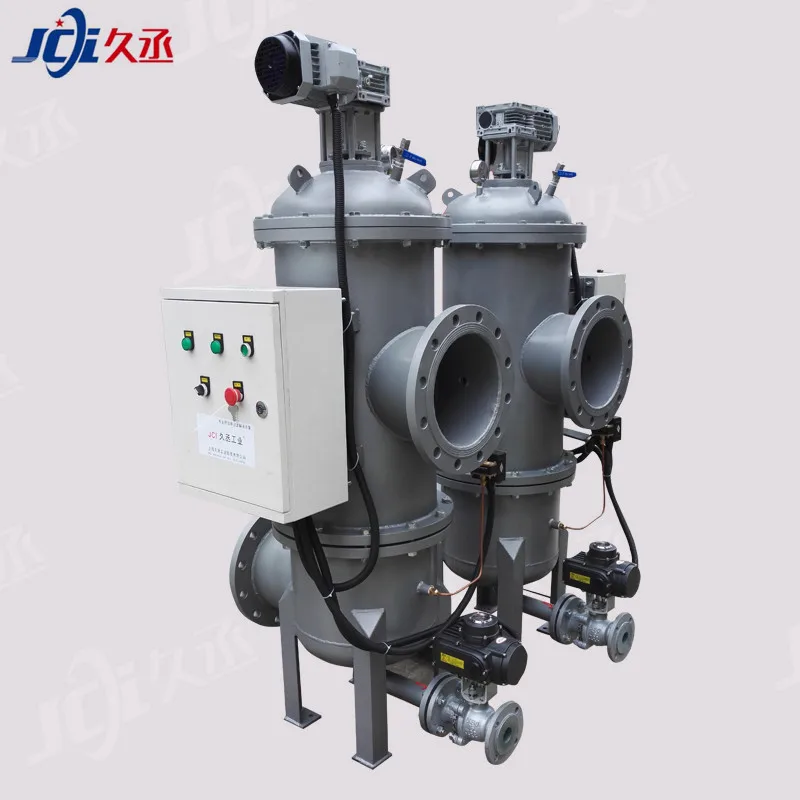

AR series multi-core backwash filter (AR filter for short) is a new type of self-cleaning filter with independent intellectual
property rights of Shanghai JCI Company. The AR filter integrates multiple slit-type filters. When the filter is clogged, it will
be reversed. The flushing arm will back flush the filter group by group. As a high-quality self-cleaning filter, AR filter is
specially designed for customers who take quality and reliability as an important consideration. It uses key components (such as filter screen, geared motor, self-cleaning control system, etc.) to be carefully designed.

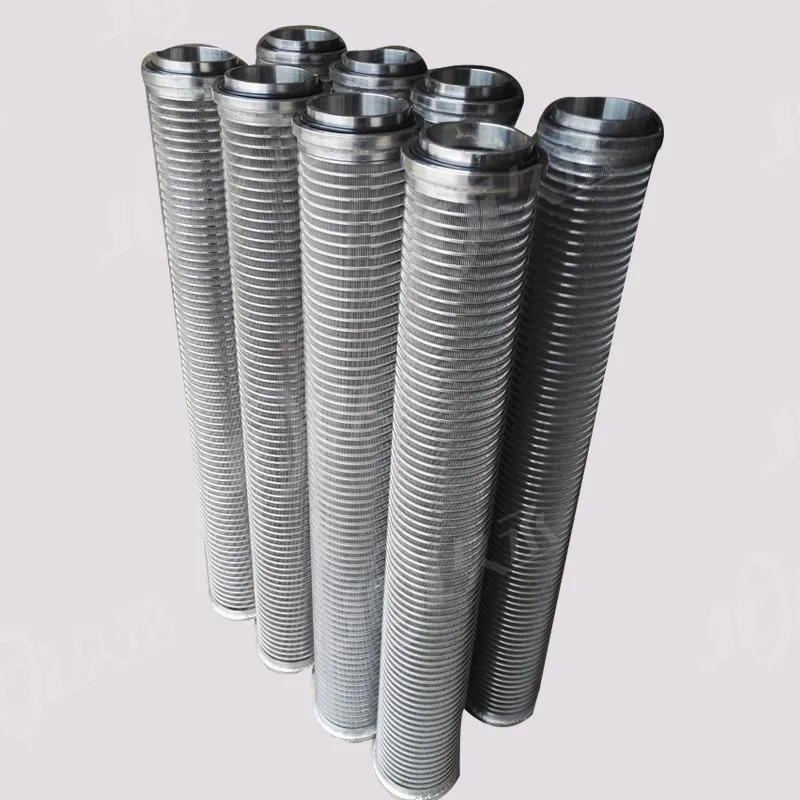

The AR filter has outstanding advantages different from ordinary mesh self-cleaning filters. The 50-2000um filter adopts very sturdy and durable wedge-shaped filter elements, surface gaps, single-machine super large filtration area, low surface flow rate and fine filtration, single machine super large flow Up to 8000m3/h, it has high reliability and can handle the poorer water quality, such as sludge-like impurities, soft viscous impurities, higher impurity content, and a small amount of hair and fiber impurities.
The AR filter can filter out solid particles in various water and low-viscosity liquids (such as sea water, machined cooling
water) to meet the requirements of system operation and downstream processes for liquid cleanliness, and can also be used to protect downstream key equipment Avoid particle blockage, abrasion or fouling, and improve the operating efficiency and life of key equipment. AR filter can automatically and continuously filter on-line, reducing downtime costs, maintenance costs and labor costs. It is a solution for water and aqueous liquid filtration.
Shanghai JCI has a full range of automatic backwash filters, which are subdivided into AR300，AR400，AR500，AR600，AR700，AR800，AR900 and AR1000, a total of 8 sub-series are suitable for use in different precision and different flow conditions to meet the various filtering needs of customers.
property rights of Shanghai JCI Company. The AR filter integrates multiple slit-type filters. When the filter is clogged, it will
be reversed. The flushing arm will back flush the filter group by group. As a high-quality self-cleaning filter, AR filter is
specially designed for customers who take quality and reliability as an important consideration. It uses key components (such as filter screen, geared motor, self-cleaning control system, etc.) to be carefully designed.
The AR filter has outstanding advantages different from ordinary mesh self-cleaning filters. The 50-2000um filter adopts very sturdy and durable wedge-shaped filter elements, surface gaps, single-machine super large filtration area, low surface flow rate and fine filtration, single machine super large flow Up to 8000m3/h, it has high reliability and can handle the poorer water quality, such as sludge-like impurities, soft viscous impurities, higher impurity content, and a small amount of hair and fiber impurities.
The AR filter can filter out solid particles in various water and low-viscosity liquids (such as sea water, machined cooling
water) to meet the requirements of system operation and downstream processes for liquid cleanliness, and can also be used to protect downstream key equipment Avoid particle blockage, abrasion or fouling, and improve the operating efficiency and life of key equipment. AR filter can automatically and continuously filter on-line, reducing downtime costs, maintenance costs and labor costs. It is a solution for water and aqueous liquid filtration.
Shanghai JCI has a full range of automatic backwash filters, which are subdivided into AR300，AR400，AR500，AR600，AR700，AR800，AR900 and AR1000, a total of 8 sub-series are suitable for use in different precision and different flow conditions to meet the various filtering needs of customers.
Specification

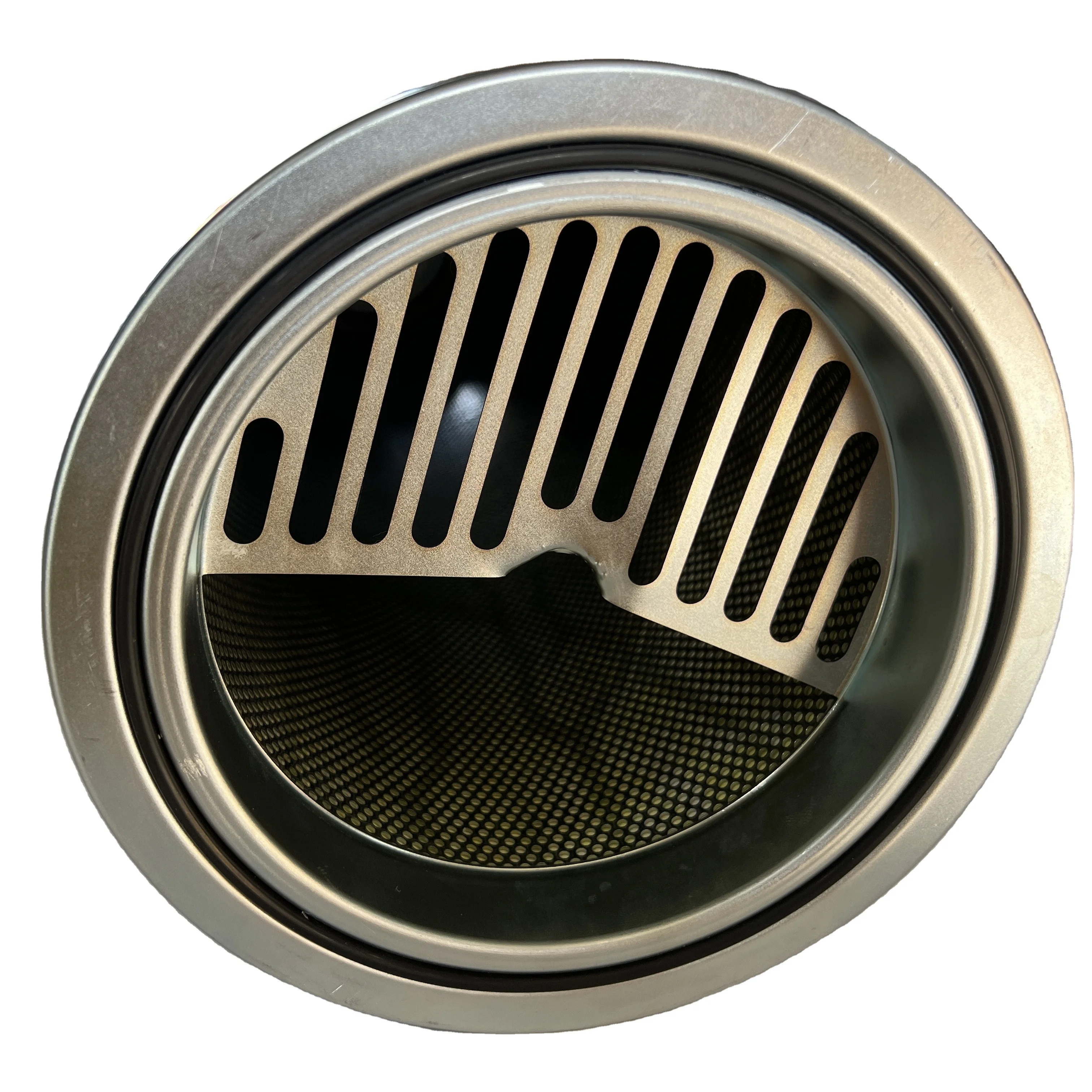

Model No. | AR300, AR400, AR500, AR600, AR700, AR800, AR900, AR1000 | ||||
Applicable liquid | Water and low viscous liquids(˂40cps); impurity level˂300ppm | ||||
Lowest working DP | Differential pressure between the outlet and discharging line >0.15MPa | ||||
Filter precision | 50-2,000μm | ||||
Design pressure | 0.6/1.0/1.6/2.0MPa(Higher pressure can be customized.) | ||||
Design temperature | 0-100°C | ||||
Single filtering area | 0.45㎡-14.40㎡ | ||||
Cleaning Pressure Drop | 0.05-0.1MPa | ||||
Control system | Parallel control of differential pressure and time | ||||
DP indicator | Differential pressure transmitter or differential pressure switch | ||||
Gear motor | Three-phase power, 380V, protection grade IP55; Turbine worm reducer | ||||
Inlet and outlet size | 2"-24" | ||||
Connection Standard | Flange, HG20592-2009(Standard), HG20615-2009( ANSI B16.5 Compatible | ||||
Filter elements | V-SLOT series slotted screen | ||||
Filter element material | 316L/Super Duplex Stainless 2205/Ti2 | ||||
Housing material | SS304/316L/CS, special material available (such as 904L, duplex S.S.) | ||||
Inner surface anti-corrosion coating | Epoxy, PA11 for CS Housing or special anti-corrosion requirement | ||||
Housing seal material | NBR Nitrile Rubber(Standard)/viton (FKM) fluoro rubber | ||||
Discharging valve | Pneumatic ball valve, protective grade IP65 | ||||
Facility supply | 380V AC, 0.4-0.6MPa Clean and dry compressed air | ||||
The main parameters and dimensions of the equipment:
TEM NO | Nominal diameter of inlet and outlet | Dimension | ||||||||||
H1 | H2 | H3 | H4 | D | L | |||||||
AR300 | DN80~DN150 | 870 | 175 | 165 | ≈1700 | 300 | 450 | |||||
AR500 | DN100~DN200 | 1175 | 540 | 170 | ≈2100 | 500 | 800 | |||||
AR600 | DN150~DN300 | 1280 | 640 | 220 | ≈2250 | 600 | 900 | |||||
AR900 | DN250~DN400 | 1600 | 450 | 220 | ≈2600 | 900 | 1300 | |||||
AR1000 | DN300~DN600 | 1951 | 870 | 190 | ≈3110 | 1000 | 1600 | |||||
Working principle
Filtering process

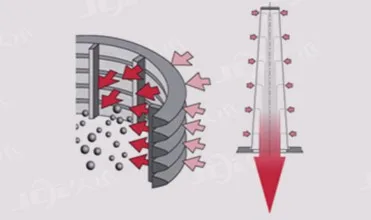

The liquid flows in from the inlet of the filter, part of the liquid enters the filter directly from the lower end of the filter
element, and the other part enters the top of the filter from the middle branch pipe, and then flows in from the top of the filterscreen. The liquid flows in at the same time from the lower opening of the filter screen and passes through the filter screen. The inner surface converges and flows out at the outlet. The particulate impurities are intercepted on the inner surface of the filter screen and accumulate into a filter cake, which gradually increases the pressure difference between the inlet and outlet, indicating that the filter cake reaches its thickness, and the flux of the filter screen gradually decreases.
element, and the other part enters the top of the filter from the middle branch pipe, and then flows in from the top of the filterscreen. The liquid flows in at the same time from the lower opening of the filter screen and passes through the filter screen. The inner surface converges and flows out at the outlet. The particulate impurities are intercepted on the inner surface of the filter screen and accumulate into a filter cake, which gradually increases the pressure difference between the inlet and outlet, indicating that the filter cake reaches its thickness, and the flux of the filter screen gradually decreases.
Backwashing process
When the set pressure difference or time is reached, the self-cleaning action starts, the decelerating motor drives the backwash rotating arm to aim at one or a group of filter screens, the upper end of the filter screen is sealed, the lower end is connected to the cleaning nozzle, and the backwash valve is opened. The filter screen is connected with the sewage pipe, and the pressure difference between the outside of the filter screen and the sewage outlet drives the filtered clear liquid to flow in the reverse direction to flush the filter cake on the inner surface of the filter screen and discharge it into the sewage pipe. After the backwashing of one filter element/group is completed, close the backwash valve, and aim the cleaning rotating arm at the next filter/group for backwashing. All filters are backwashed one by one/group.
The deceleration motor drive shaft is equipped with a positioning plate and a cleaning rotating arm. Each positioning hole on the positioning plate corresponds to each filter screen. The cleaning rotating arm corresponds to one of the positioning holes. When the positioning hole reaches the sensing channel of the positioning sensor, The positioning sensor output signal causes the motor to stop rotating, the cleaning rotor has been aligned with a filter element, the backwash valve is opened and closed after a few seconds, the cleaning is completed, the motor continues to run, the positioning sensor is turned on again by the next positioning hole, and the motor stops and cleans The next filter element.

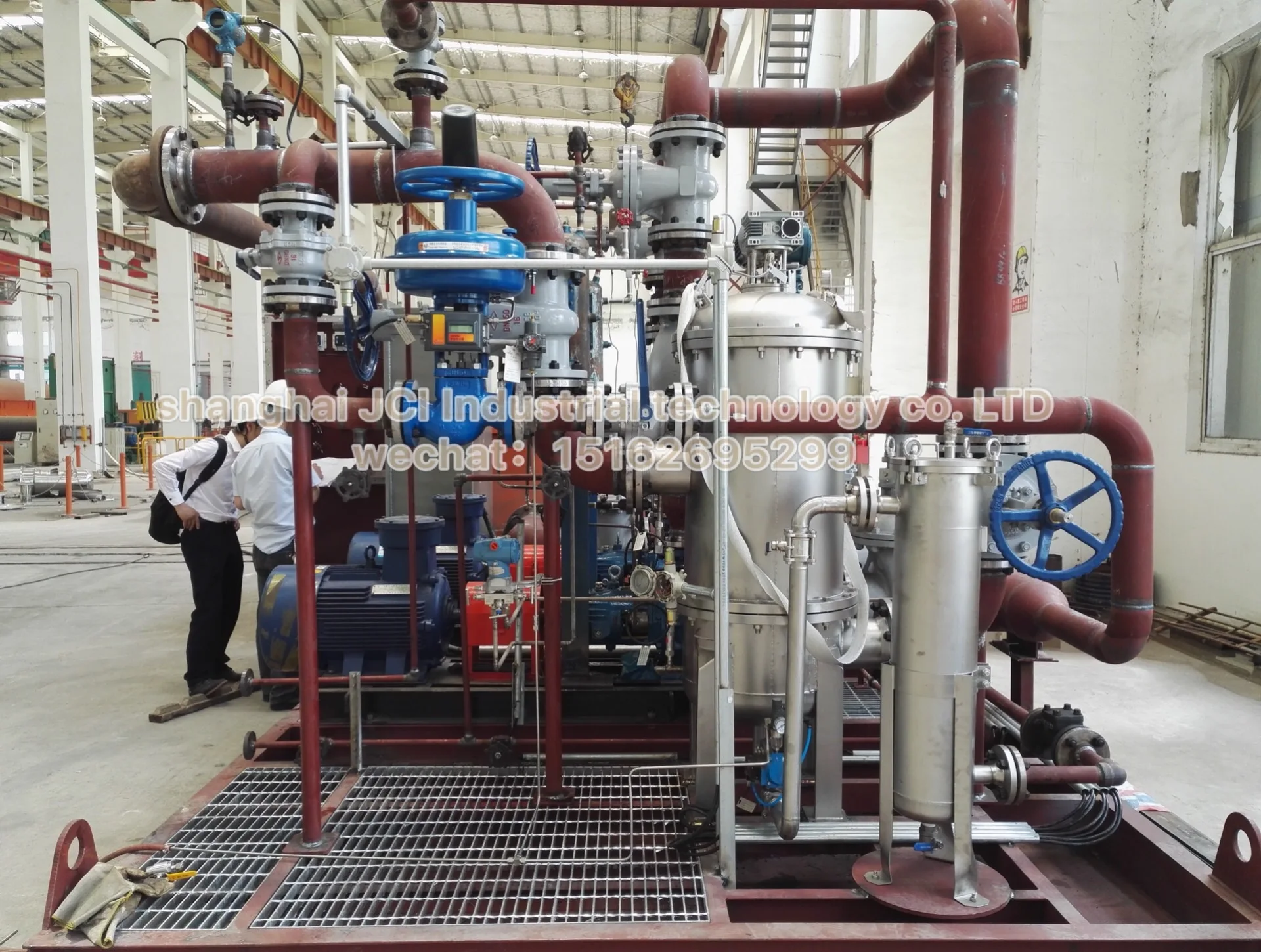

Application
* Applicable fields: Petrochemical, fine chemical, grease, water treatment, papermaking, etc.
* Applicable liquid types: Resin, paint, ploymer, adhesive, citric acid, fermentation broth, chitosan, cosmetics, agarose(gel),silicone resin solution, soap, sorbitol, sterodi, grain syrup, wet department of additives, pigments, lubricants, rubber,ethanol, mixed oie, edible oil, high temperature oil, fruit juice, diesel, etc.
* Applicable liquid types: Resin, paint, ploymer, adhesive, citric acid, fermentation broth, chitosan, cosmetics, agarose(gel),silicone resin solution, soap, sorbitol, sterodi, grain syrup, wet department of additives, pigments, lubricants, rubber,ethanol, mixed oie, edible oil, high temperature oil, fruit juice, diesel, etc.
Production Process
Our Advantages
1. Horizontal rotary scraping, scraping away impurities directly, good at filtering viscous liquids, removing viscous soft and
suspended impurities.

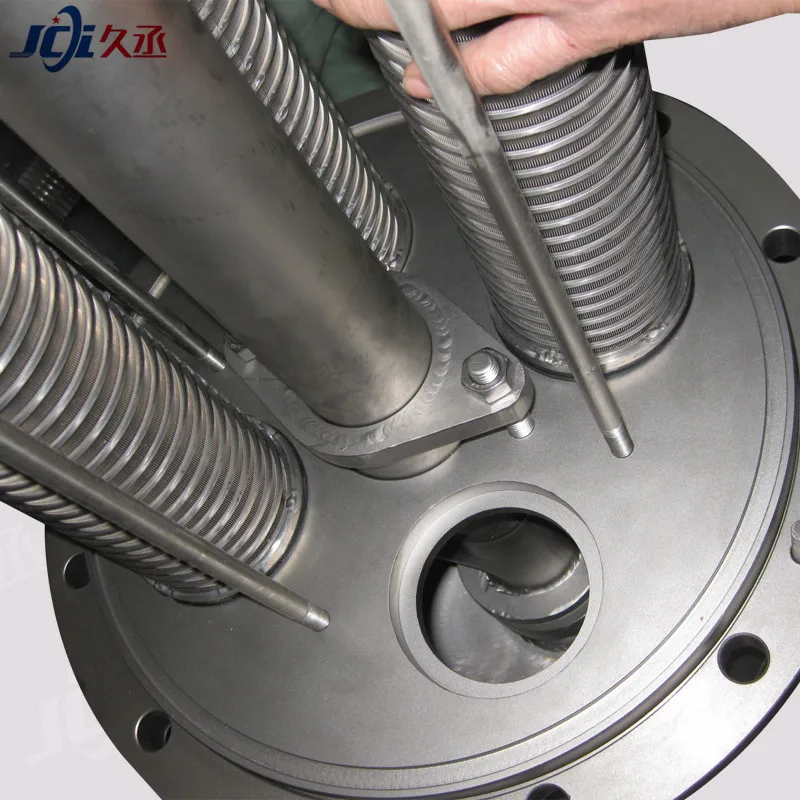

2. Simple structure, easy to disassemble and assemble, after removing the scraper, the filter screen can be easily taken out, and the inside is easy to clean.
3. Fully automatic operation, continuous online filtration, and stop the heavy filter replacement and cleaning work.
4. No disposable filtering consumables are generated, saving consumables costs and environmental protection costs.
5. The filtration pressure loss is extremely small, the flow rate is stable, energy consumption is saved, and the process is
continuous and stable.
6. Airtight filtration to prevent leakage of hazardous materials, which is beneficial to safe production and employee health.
7. The discharged waste liquid has a high impurity concentration and can be recycled, reducing the loss of high-value materials.
8. A variety of control systems are optional, powerful, high-energy operation, high reliability.
9. Optional components, high reliability, low operating cost.
suspended impurities.
2. Simple structure, easy to disassemble and assemble, after removing the scraper, the filter screen can be easily taken out, and the inside is easy to clean.
3. Fully automatic operation, continuous online filtration, and stop the heavy filter replacement and cleaning work.
4. No disposable filtering consumables are generated, saving consumables costs and environmental protection costs.
5. The filtration pressure loss is extremely small, the flow rate is stable, energy consumption is saved, and the process is
continuous and stable.
6. Airtight filtration to prevent leakage of hazardous materials, which is beneficial to safe production and employee health.
7. The discharged waste liquid has a high impurity concentration and can be recycled, reducing the loss of high-value materials.
8. A variety of control systems are optional, powerful, high-energy operation, high reliability.
9. Optional components, high reliability, low operating cost.
Related Products
Company Information
Shanghai JCI is a leading design and manufacturing company in the filtration industry, specializing in high-performance filtration equipment, especially in the field of self-cleaning filtration occupies an important position.Founded in 2014, the company is headquartered in Shanghai, with two production bases in Hai 'an, Jiangsu Province and Taiwan,China, and agents in Russia, the United States, Singapore, South Korea and other places. In March 2021, the company signed an investment and investment agreement with Jiangsu Haian City Government, and officially moved the factory to Nantong Haian in August of the same year. At present, the company has more than 5000 plants, the company currently has more than 40 patents, more than 2 invention patents, of which the company's self-developed self-cleaning and drying slag system fundamentally solves the pain points that have plagued the filtration industry for many years, and has been widely recognized by many customers and the industry.With excellent technical strength, exquisite product quality and excellent service system, JCI has won the trust and praise of many customers. At present, JCI has served more than 25 of the world's top 500 enterprises. In the future, Jiu Cheng will, as always, provide customers with better quality products and services to repay the support and trust of customers.
