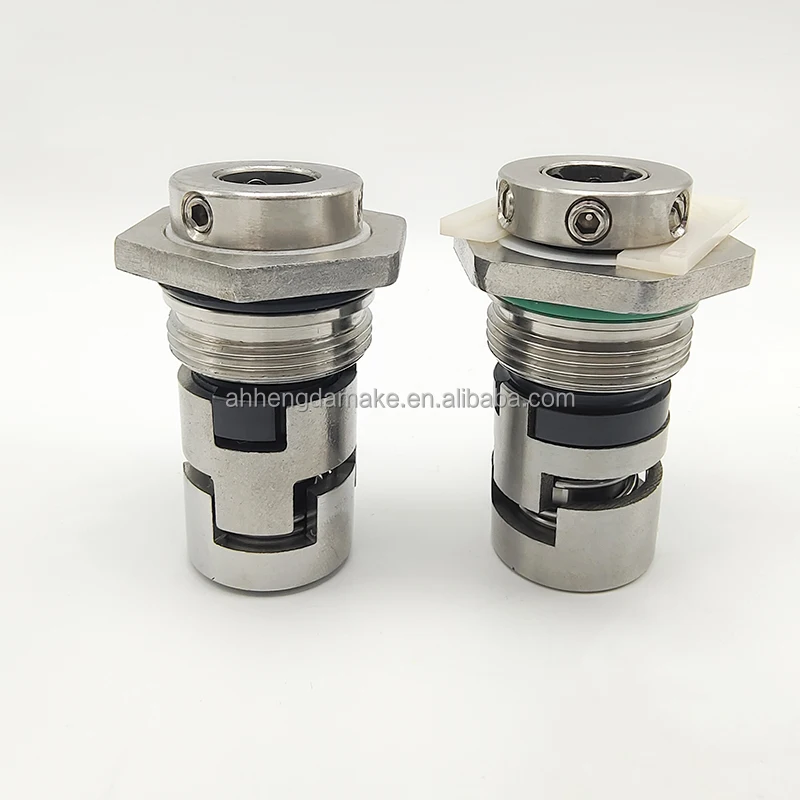

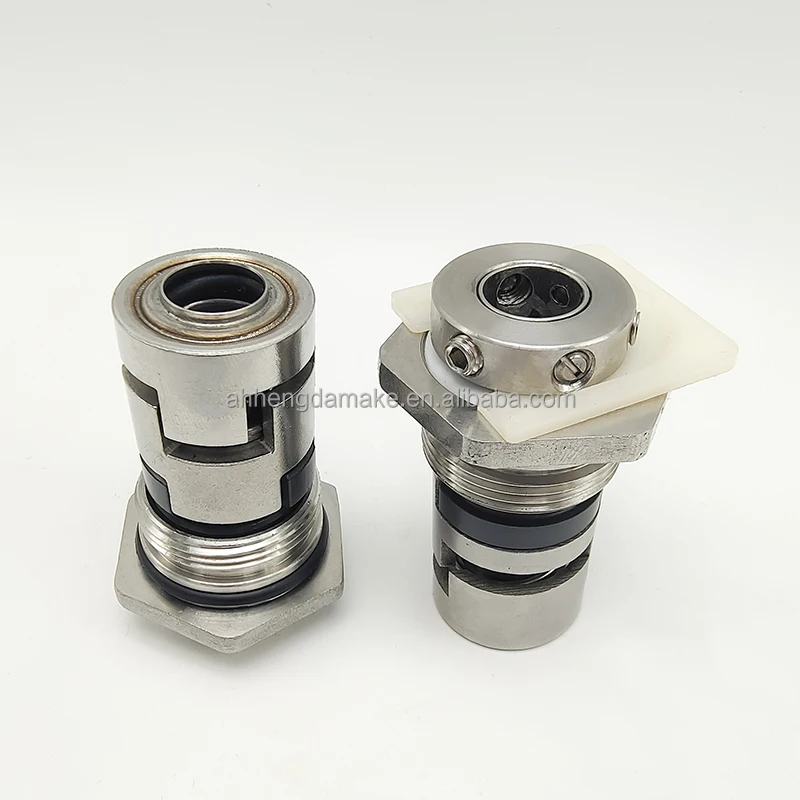

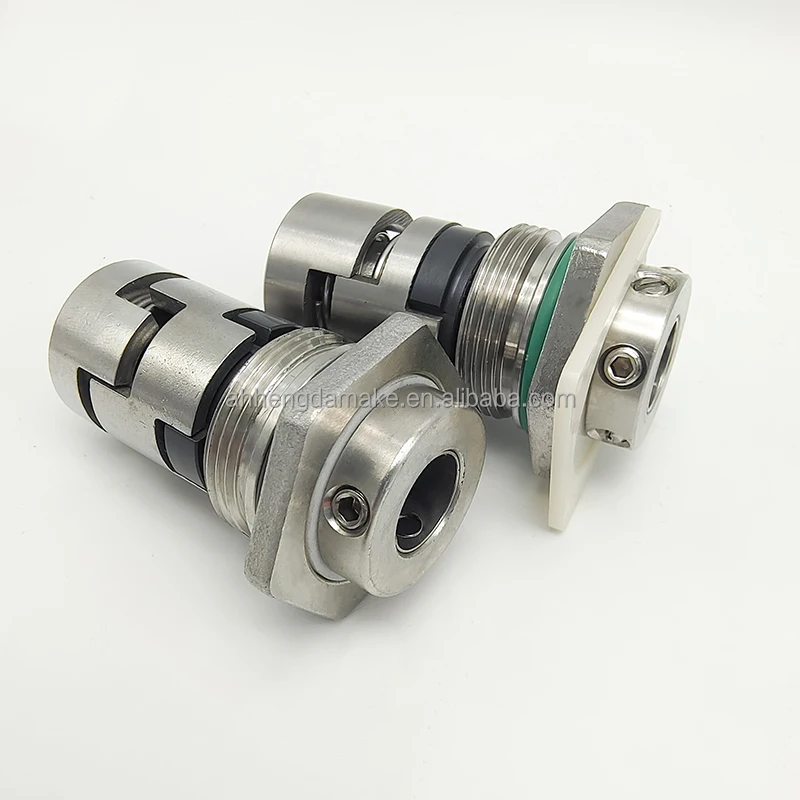

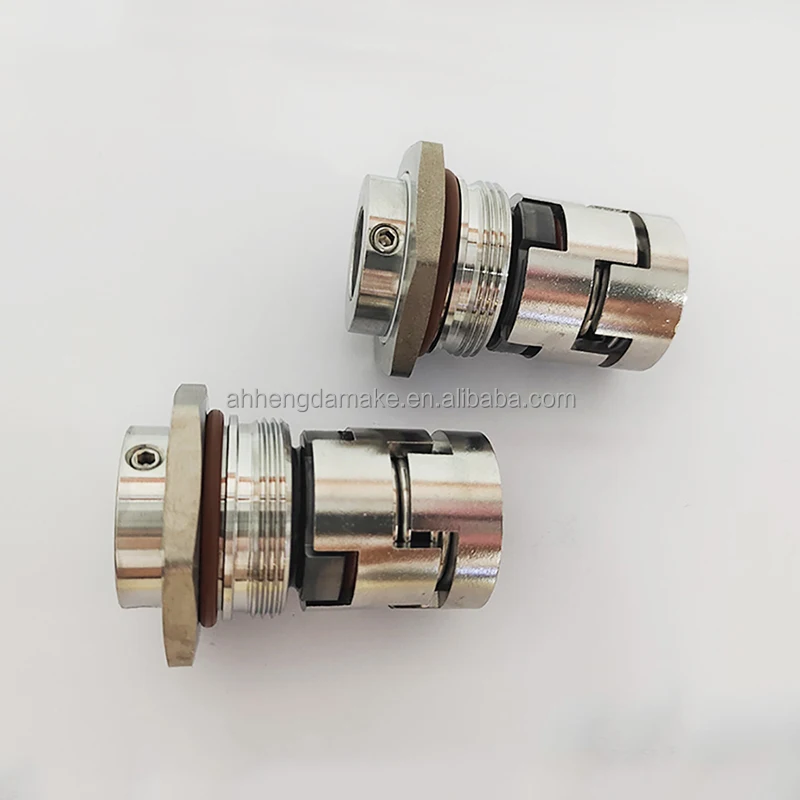

Механическое уплотнение QG1C16HBQE для насоса CR/CRI/CRN

Механическое уплотнение QG1C16HBQE для насоса CR/CRI/CRN

Категория: >>>
Поставщик: Anhui Hengda Mechanical Seal Manufacturing Co. Ltd.Anhui Ltd.

Цена:0,25-0,27 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Products Description

Mechanical Water Pump Seals Grundfo CR Pump Shaft Seal Kits For HQQE Or HQQV

1. Operational Conditions:
Temperature: -30ºC to +200ºC
Pressure: ≤2.5MPa
Speed: ≤10m/s
2. Materials:
Stationary Ring: Silicon Carbide, TC
Rotary Ring: Carbon, Silicon Carbide
Secondary Seal: NBR, EPDM, FKM,
Spring and Metal Parts: Steel
3. Seat Type:
4. Applications: Clean water, sewage water, oil and other moderately corrosive fluids

The cartridge mechanical seals are for GF CR1, 3, 5, 10, 15, 20, 32, 45, 64, 90 and CRN1, 3, 5, 10, 15, 20, 32, 45, 64, 90 pumps.
CR-12 for 96455082, 96455086, 96455083, 96455087 and 96455085, Pump models CR, CR8, CRI, CRN1, CRN3, CRN5, CRNE1, CRNE3-23HS;

CR-16 for 96511836, 96511840, 96511837, 96511844, 96511845 and 96511841, pump models CR, CRI, CRN10, CRN15 and CRN20;

CR-22 for 96416584, 96433365, 96525458, 96525459, 96525490, 96436728, pump models CR, CRN32, CRN45, CRN64 and CRN90.

Mechanical seals for more pump PN: 96436727 CR 32-5 96455084 96436728 96455085 96455084 CRE 32-5 CRE 32-7 CRE 32-4-2 CRE 45-2 CRE 45-1-1 CRE 32-5-2 CRE 45-1 CRE 32-6 CRE 45-3 CRE 45-2-1 CRE 45-4-2 CRE 64-1 CRE 64-2-1 CRE 90-1-1 CRE 64-2-2 CRE 90-2-1 CRN 120-1 CRIE 32-1-1 CRE 64-3-2 CRE 90-2-2 CRN 120-2 CRN 120-3 CRN 120-4-1 CRN 120-6-1 CRN 120-2-1 CRN 150-1 CRN 120-7 CRN 150-3-2 CRN 120-5-1 CRN 150-1-1 CRN 150-1-1 CRN 150-2-1 CRN 150-5-2 CRN 150-4-1 CRN 150-6 CRN 32-10 CRN 32-1 CRN 32-11 CRN 32-10-2 CRN 32-1-1 CRN 32-11-2 CRN 32-12 CRN 32-12-2 CRN 32-13 CRN 32-13-2 CRN 32-14 CRN 32-2 CRN 32-2-2 CRN 32-14-2 CRN 32-3 CRN 32-4-2 CRN 32-3-2 CRN 32-5 CRN 32-5-2 CRN 32-6 CRN 32-4 CRN 32-7

Company Profile

Product packaging

Certifications

Recommend Products

FAQ

1. Are you manufacturer or Trade Company?
We are a professional mechanical seals manufacturer from China, founded in 2001

2.Where is your factory located? How can I visit there?
Our factory is located in FUYANG CITY ,ANHUI PROVINCE, by air to Fuyang Xiguan Airport, by fast train to FuyangXi Station orLinquan station

3. What's the order process?
a. Inquiry---provide us all clear requirements
b. Quotation---official quotation form with all clear specifications.
c. Payment terms---LC/ AT SIGHT, T/T 30% deposit, and the balance according to the copy of the B/L
d. Develop mould---open the mould according to your request.
e. Sample confirmation---send you the sample for confirmation after finish the sample production
f. Production---mass order production
g. Shipping--- by sea, air or courier. Detailed picture of package will be provided.

4. What terms of payment you use?
T/T, L/C ,D/P ,Western Union, Cash

5. How can I get some samples?
We are honored to offer you samples.

6. How does your factory do regarding quality control?
"Quality is priority. Random check during the production,100% check during packaging according to the agreed standards
Our factory is certified by ISO9001, outsource to check in regular time,such as SGS.

Plant:Anhui Hengda Mechanical Seal Co.,ltd
Our trade company: Fuyang Hengmi Seal Co.,ltd

Our Advantage: 20 Year Manufacture Experience,OEM&ODM,accept non-standard customization,large quantity stocks and fast ship
