PRODUCT DETAILS

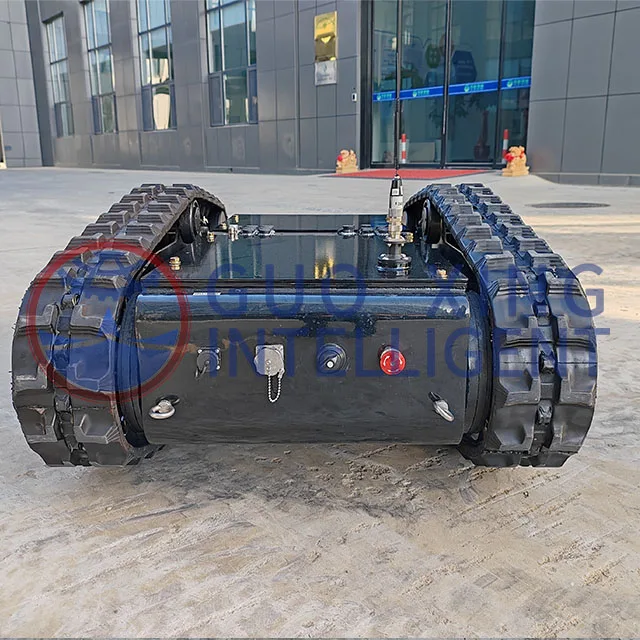

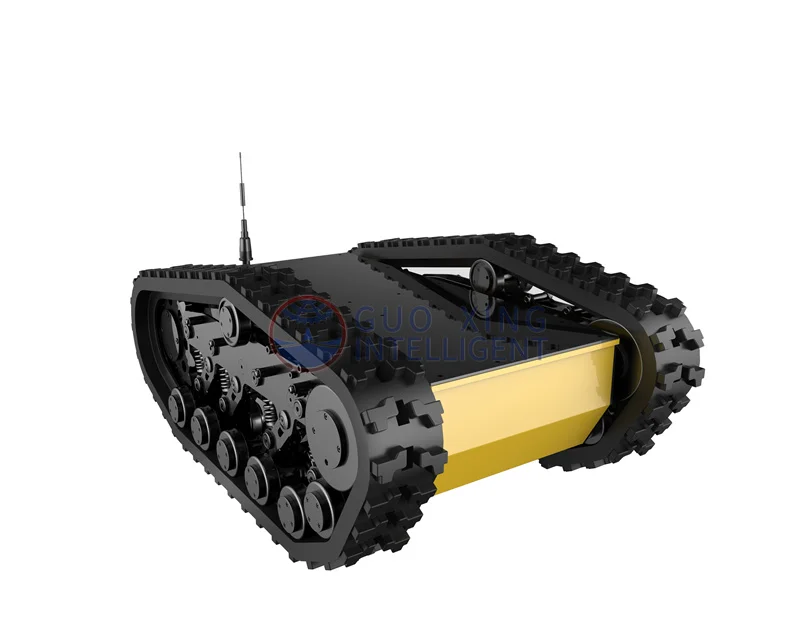

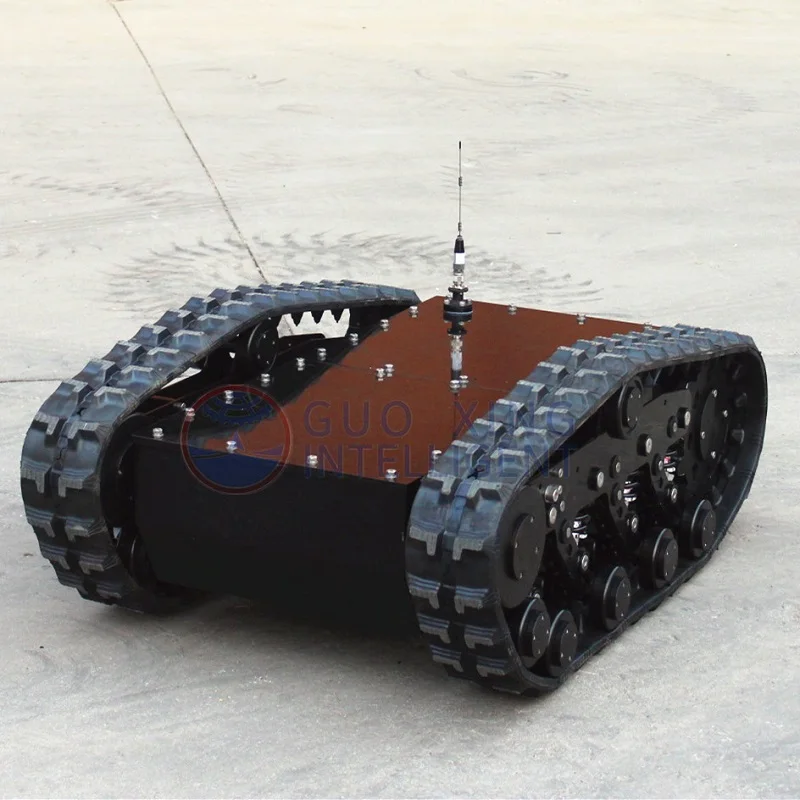

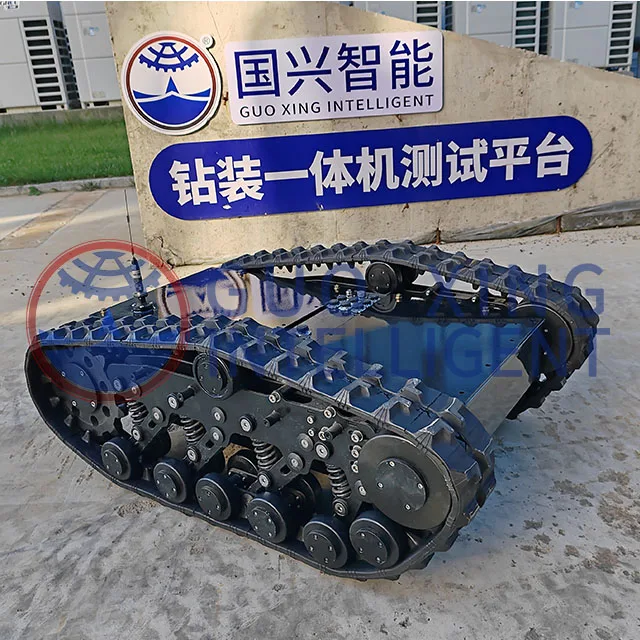

RC tracked carrier outdoor all-terrain crawler track robot platform trade pkt 1100 ugv tracked chassis robot
PKT1100 is a high strength,high accuracy and high speed mobile platform for series of robots.The unique rubber track design has good vibration ability and suitable for all terrains.It can equipped with different devices to realize different function.




FEATURES AT A GLANCE
(1) DC Brushless Servo Motors.

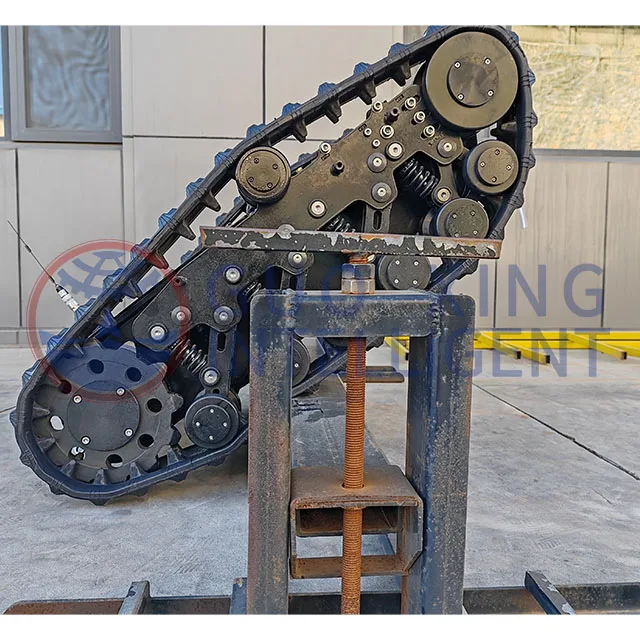

(2) Christie Suspension System good vibration reduction capacity.
(3) Equipped with adjustable tension device.
(3) Quality rubber embedded steel block.
(4) Aluminium-alloy/Iron wheel and high quality load-bearing.
(5) Lithium battery, big discharge current,high safety.
(6) Large interior space for developing.







Remote Control Mobile Robot Tank Chassis

We are the professional manufacturer provide full series robot chassis including:
Tracked robot chassis,
Wheeled robot chassis,
Universal robot chassis
Water-proof robot chassis,
Explosion-proof robot chassis
Heavy duty robot chassis,
Customized robot chassis solutions.

The styles here are not completed, click here to get free catalog now.





Universal Robot Chassis
Model:
Safari-138T
Safari-600T
Safari-600T Mini
Safari-880T
Safari-880T EN
Safari-900T
Safari-900T EN
Max Load weight 260kg


Water-proof Robot Chassis
Model:
PLT1000
PKT1200
Waterproof grade: IP66,
Optional IP67


Explosion-proof Robot Chassis
Model:
PKT1100 & Ex
PKT1300 & Ex
Explosion-proof grade:
Exd(id) II T4 Gb
Waterproof grade: IP67


Heavy Duty Robot Chassis
Model:
LKT1500 Load weight 300kg
LKT2000 Load weight 400kg



Wheeled Robot Chassis
Model:
SV1000 Four wheel differential
HV1000 Front wheel Ackerman steering
OV600 Four-wheeled Four turns
XH2700 Four-wheel electric steering column




Item
138T
600T
PLT-1000
Safari-880T
Safari-900T
LKT1500
Power
DC brushless motor
DC brushless motor
DC brushless motor
DC brushless motor
DC brushless motor
DC brushless motor
Working environment temperature
-20℃~55℃
-20℃~55℃
-20℃~60℃
-20℃~60℃
-20℃~55℃
-20℃~60℃
Suspension system
Christie
Christie
Christie + Matilda four wheel balance suspension
Christie + Mathilda 4-wheel balance
Christie
Christie
Rated power
138W*2
650W*2
1000W*2
1KW*2
1000W*2
2000W*2
Operation speed
0~1.2m/s
0~1.4m/s
0~1.6m/s
0~1.6m/s
0~1.6m/s
0~1.3m/s
Max obstacle clearance
50mm
170mm
180mm
200mm
160mm
220MM
Max climb ability
30°
35° （able to climb stairs）
40° （able to climb stairs）
40°（able to climb stairs）
35°（able to climb stairs）
40°able to climb stairs
RC distance
open 100M
open 300M
open 300M
open 300M
open 300M
open 300M
Working time
3H
1.5H
1.15H
1h20m
1.5H
1.5H
RC function
The right rocker controls the body movement
The right rocker controls the body movement
The right rocker controls the body movement
The right rocker controls the body movement
The right rocker controls the body movement
The right rocker controls the body movement
Size
Outer Dimension
600*450*190mm
1020*760*360mm
1100*800*460mm
1010*720*435mm
1215*820*440mm
1650*990*620mm
Inner dimension
300*240*80mm
600*300*230mm
800*370*300mm
600*320*240mm
1050*375*150mm
1270*400*310mm
Height of chassis
90mm
90mm
120mm
140mm
185mm
170MM
Width of track
80mm
150mm
150mm
150mm
150mm
150MM
Grounding length
330mm
540mm
740mm
740mm
760mm
995MM
Weight
Self weight
24kg
131KG
170kg
135kg
185kg
500KG
Load weight
20kg
70KG
100kg
Max.120kg
100kg
300KG
Material
Body
Stainless steel plate
carbon steel
Stainless steel plate
Stainless steel plate
carbon steel
Steel pipe
Track
High quality rubber with Kevlar fiber embedded
High quality rubber with Kevlar fiber embedded
High quality rubber with Kevlar fiber embedded
High quality rubber with Kevlar fiber embedded
High quality rubber inlaid with metal and Kevlar
High quality rubber with steel plate embedded
Battery
Capacity
20AH
30AH
30AH
30AH
30AH
100AH
Voltage
24V
48V
48V
48V
48V
48V



*Advantage of our robot tank chassis
1. Chassis body is made of stainless steel, solid and durable.
2. Independent Christie suspension, shock absorption, more stable.
3. Superior grip, perfect obstacle-crossingperformance.
4. Operation in complex environment.





*Make the industry more convenient!

Also provide completed customized robot solutions!

Robot chassis can be customized for a variety of advanced operation modes.

Users can communicate with the main control through CAN bus protocol.



Application:
Waterway surveying and mapping
Mineral exploration
Pipeline inspection
Security inspection
Firefighting robot chassis
Unconventional photographing
Special transportation


Main Parts

Package will include below main parts.
The robot chassis is ready to run when you get the product.
333


   Remote Control             Lithium Battery                Power Motor                          Driver



AFTER-SALE SERVICE


1: Online technology support!
2: Free video support
3: Free spare parts during warranty period
4: We have distributor station in Europe and North America
5: Worldwide on-site training, maintenance and repair services.





MORE PRODUCTS




COMPANY PROFILE


Founded in 2004, Shandong Guoxing Intelligent Technology Co., Ltd. is a special robots provider in China, with a vision to offer various solution for special and safety industries.
Guoxing Intelligent has developed a full line-up of robotics that fully meet special and safety industries requirements, including robot chassis, electrical&diesel firefighting robot, A G V security robot, E O D robot, some of them have obtained C E , K A & M A , and C N A S certification. Back by more than 20 years manufacturing experience, Guoxing intelligent also provides completed customized robot solutions comprising inspection robot and other solutions.






PRODUCT LINE






certification






Packing&transportation




FAQ


1：Are you a manufacturer?
Yes, we are a professional manufacturer for all kinds of robot chassis, firefighting robot, security robot and completed robot solutions such as customized inspection robot, etc. As we are the manufacturer, we can support OEM/ODM service.

2: How about the after-sales term?
We have a completed after-sales system.
The warranty is 1 year, oversea training is offered. More details contact us to check the after-sales document.

3: Does your product support secondary development?
Yes, users can communicate with the main control through CAN BUS protocol for variety of advanced operation modes. Such as camera, senors, mechanical arm, etc.

4: How about the shipment?
Our packing meets international shipment standard.
We can quote price based on EXW, FOB, CIF, DDP by sea or by air as you like.

5: How about the quality?
Our company obtained ISO9001, ISO14001, ISO45001, Three-A and other more than 30 certificates and honors.
We produce high-quality products in strict accordance with the certification system. Each product will undergo strict testing and inspection before shipment, and can provide production inspection video and report.
Our firefighting robots have passed the CANS certification, robot chassis with CE certification.


Похожие товары
Резиновый гусеничный шасси гусеничный ходовой части резиновый гусеничный робот
340,00 $ - 380,00 $
4-кнопочный джойстик для экскаватора
30,00 $ - 35,00 $
Экскаватор PC200-6 дрессельный мотор 7834-40-2000
Высококачественные детали для строительной техники для экскаваторного PC120-6 PC128 PC130-7 поворотный редуктор 203-26-00121
97 367,78 ₽
Экскаваторный двигатель 435AG 435G, 6685455 ходовой двигатель с редуктором для BOBCAT
27 302,46 ₽ - 49 341,78 ₽
Кабель для погрузчика подлинный Хорошая цена
109,65 ₽

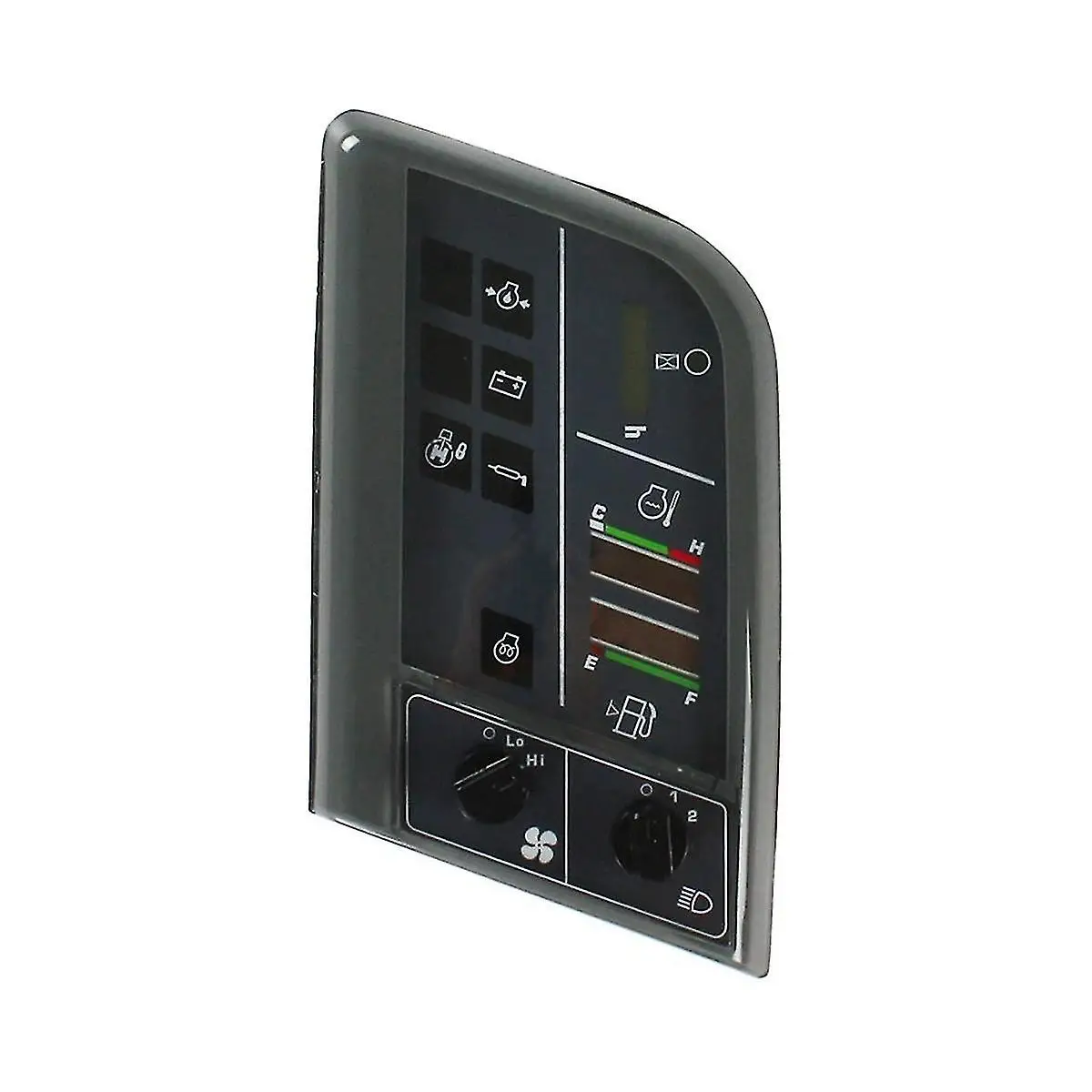

Заводская цена, PC60-7 PC70-7 ручной Дроссельный монитор для экскаватора Komatsu, дисплей, монитор 7834-73-2000, электрическая часть
12 061,33 ₽ - 29 605,07 ₽

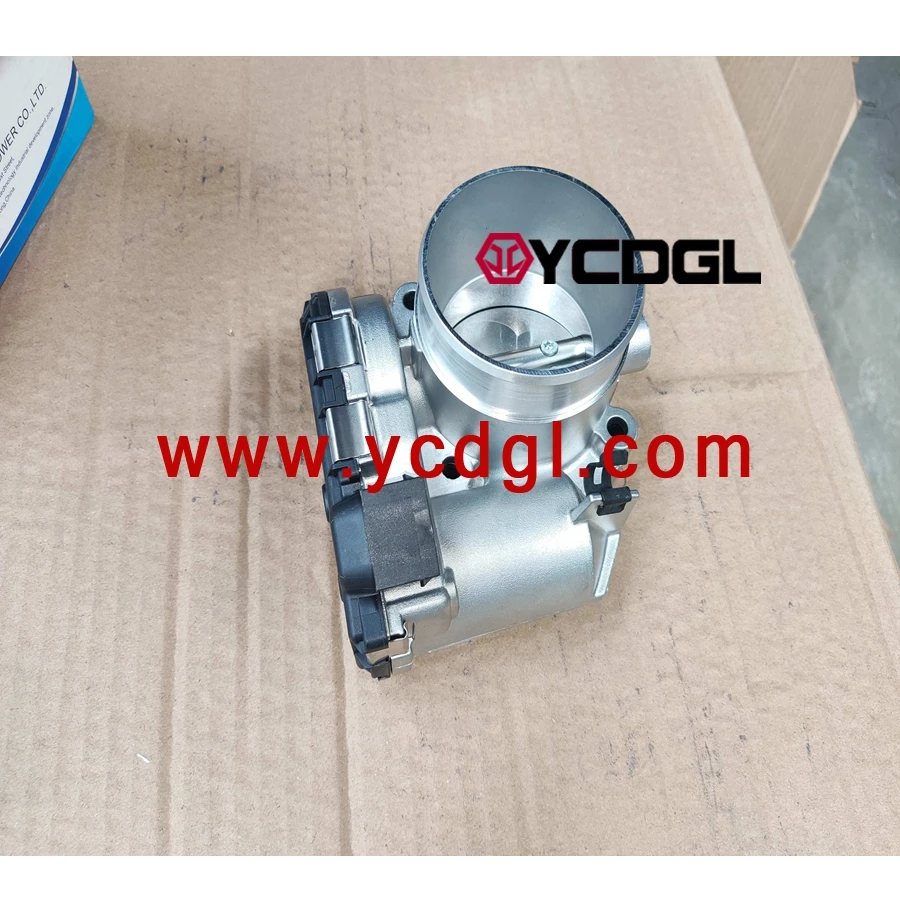

Горячая Распродажа Электронный дроссельной 0280750150 с хорошей ценой
