Домашнее хранение энергии 6000VA/6000 Вт 1 фазный/1 фазный солнечный инвертор на сетке солнечная энергетическая система
- Категория: >>>
- Поставщик: Shenzhen Gitenno Technology Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1601089267074:
Описание и отзывы
Характеристики

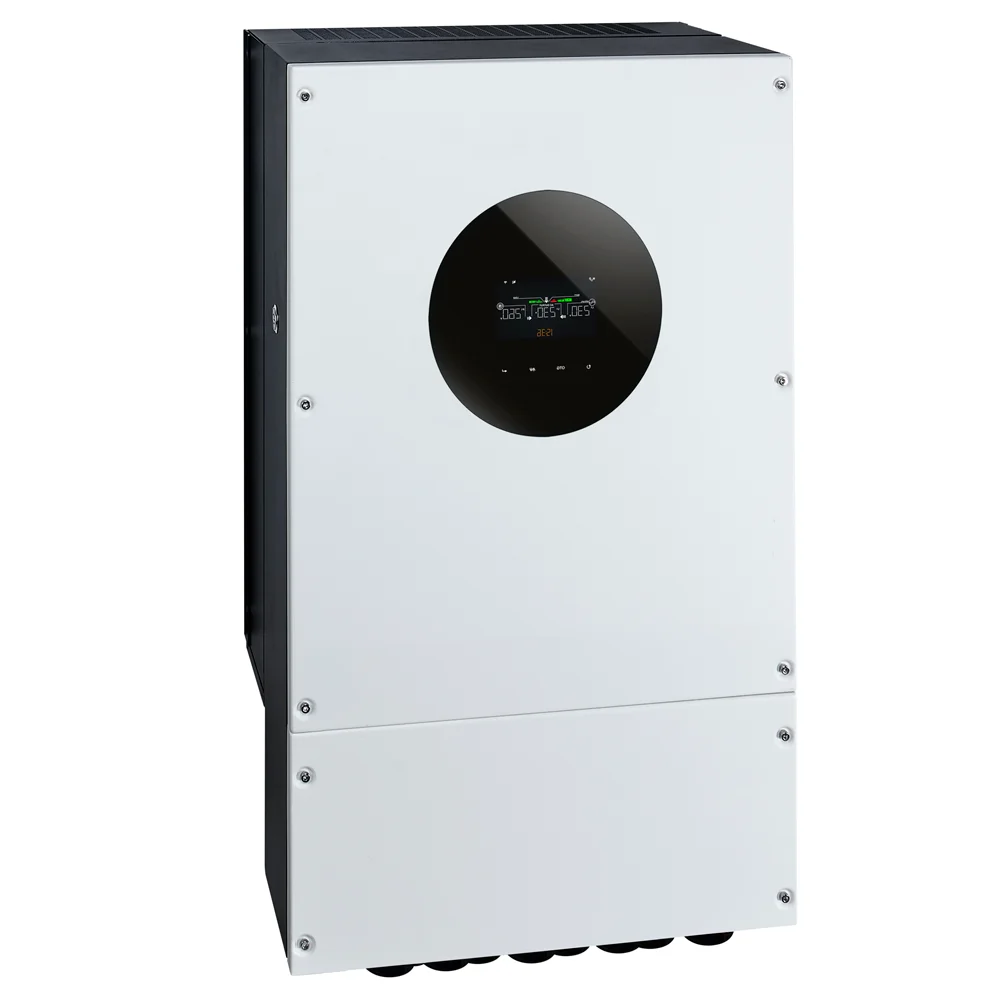

Details Images
Product feature description：
• IP65 waterproof and dustproof
• Dual outputs for smart load management
• Two independent AC power sources connected and switched automatically
• Self-consumption and Feed-in to the grid
• Programmable supply priority for PV, Battery or Grid
• Built-in communication port for BMS (RS485)
• User-adjustable charging current and voltage
• Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup
• Parallel operation up to 9 units
Product Paramenters
MODEL | Inffni V4 WP 6kw | |
RATED POWER | 6000VA/6000W | |
INPUT | ||
Voltage | 550 VDC | |
Selectable Voltage Range | 120 VDC ~ 450 VDC | |
Frequency Range | 50 Hz/60 Hz (Auto sensing) | |
OUTPUT | ||
AC Voltage Regulation (Batt. Mode) | 220/230/240 VAC | |
Overload capacity | 5s@≥150% load; 10s@110%~150% load; 100ms @ ≥200% load | |
Efficiency (Peak) | 93% | |
Transfer Time | 10 ms (For Personal Computers), 20 ms (For Home Appliances) | |
Waveform | Pure sine wave | |
Optional DC Voltage | 12 VDC ± 5%, 100W | |
BATTERY | ||
Battery Voltage | 48 VDC | |
Floating Charge Voltage | 54 VDC | |
Overcharge Protection | 66 VDC | |
SOLAR CHARGER & AC CHARGER | ||
Solar Charger Type | MPPT | |
Maximum PV Array Power | 6000 W | |
MPPT Range @ Operating Voltage | 120 ~ 430 VDC | |
Maximum PV Array Open Circuit Voltage | 500 VDC | |
Maximum PV Input Current | 27A | |
Maxmum Solar Charge Current | 120A | |
Maximum AC Charge Current | 120A | |
PHYSICAL | ||
Dimension, D x W x H (mm) | 192 x 360 x 665 | |
Net Weight (kgs) | 22.5 | |
Communication Interface | USB or RS-232/Dry Contact/RS485/Wi-Fi | |
OPERATING ENVIRONMENT | ||
Humidity | 0 ~ 95% RH (No condensing) | |
Operating Temperature | -25°C to 50°C | |
Storage Temperature | -25°C to 50°C | |
Certifications
Shenzhen Gitenno Technology Co., Ltd.
Shenzhen Gitenno Technology Co., Ltd. is a comprehensive company dedicated to the research and development, design, production and sales in UPS uninterruptible power supplies and new energy products such as photovoltaic inverters, batteries, energy storage and other products.Shenzhen Gitenno is based in Shenzhen, the core area of the Zhu River Delta Economic Zone and the center of China's R&D and manufacturing as well.
We have a large-scale R&D team in the industry, with more than 60 R&D personnel, more than 95% of whom have bachelor's and master's degrees or above.
The company has a first-class sales service team. Each worker has more than five years of foreign trade experience. They are well versed in foreign trade processes and familiar with the cultures of various countries. We respect and understand every customer and do our best to satisfy our business partners from all over the world. All of Gitenno people promise that you will receive the most professional and considerate services when cooperating with us.
Product packaging
FAQ
Q: Are you a manufacturer of a trading company?
A: We are a manufacturer as well a trading company.
Q: What are your main products?
A: Our products range from inverter, battery, energy storage to UPS power supplies etc.
Q: Can you provide a sample?
A: Yes, we can provide a sample. But you will pay for it.
Q: What is the production time for a sample?
A: 10-15 days.
Q: What is the production time for mass order?
A: 18-45 days as per the ordering quantity and our production schedule.
Q: Can you accept customized order?
A: Yes, we can.
Q: Can you provide logo printing?
A: Yes, we can. We also can provide different color in logo printing.
Q: What’s your business terms?
A: FOB is common but other business terms is negotiable.
Q: What is your frequently-used payment terms?
A: 1) T.T. 2) Alipay 3) Irrevocable LC 4) Other mode negotiable
Q: What's the FOB port?
A: Tianjin port, Guangzhou Port or Shenzhen Port.
A: We are a manufacturer as well a trading company.
Q: What are your main products?
A: Our products range from inverter, battery, energy storage to UPS power supplies etc.
Q: Can you provide a sample?
A: Yes, we can provide a sample. But you will pay for it.
Q: What is the production time for a sample?
A: 10-15 days.
Q: What is the production time for mass order?
A: 18-45 days as per the ordering quantity and our production schedule.
Q: Can you accept customized order?
A: Yes, we can.
Q: Can you provide logo printing?
A: Yes, we can. We also can provide different color in logo printing.
Q: What’s your business terms?
A: FOB is common but other business terms is negotiable.
Q: What is your frequently-used payment terms?
A: 1) T.T. 2) Alipay 3) Irrevocable LC 4) Other mode negotiable
Q: What's the FOB port?
A: Tianjin port, Guangzhou Port or Shenzhen Port.
