Happymodel ExpressLRS T type ES900TX ES900RX дальнего действия ELRS аппаратное обеспечение 915 мГц 868 950 вместо ES915TX ES915RX

ES900TX and ES900RX modules are a set of Long Range 915MHz/868MHz(optional) wireless transmission equipment developed and designed based on the open source software ExpressLRS. This set of modules is characterized by ultra-long range, stable operation and low latency. The module is compatible with most Opentx remote controllers, especially suitable for Radiomaster TX16S and Jumper T12 T16 T18 series remote controllers, basically plug and play. We have specially customized the heat sink for the transmitter module, and also reserve the installation position of the 2006 fan which can help the transmitter module to operate stably under high power conditions.

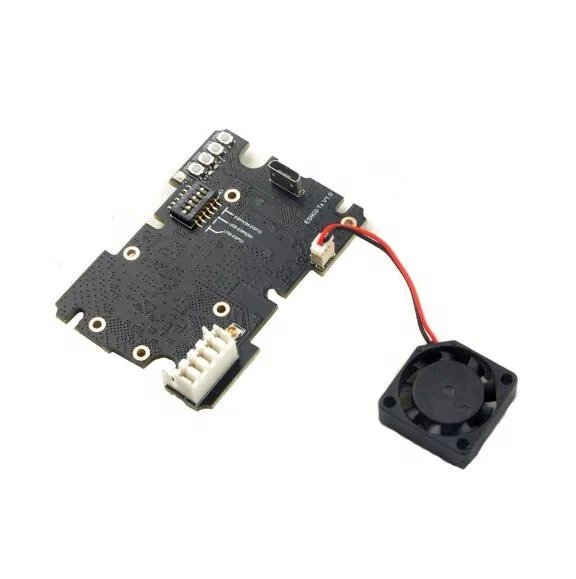

New ES900TX module coming with a 2006 Fan, it would working automatically when the TX power is 250mw.

Source on GitHub: https://github.com/ExpressLRS/ExpressLRS
ExpressLRS community:ExpressLRS – High Performance Radio Control Link

As ExpressLRS firmware is constantly being improved and updated, we strongly recommend that you use the ExpressLRS configurator update firmware to get the best experience
Configurator https://github.com/ExpressLRS/ExpressLRS-Configurator/releases
Firmware https://github.com/ExpressLRS/ExpressLRS/releases

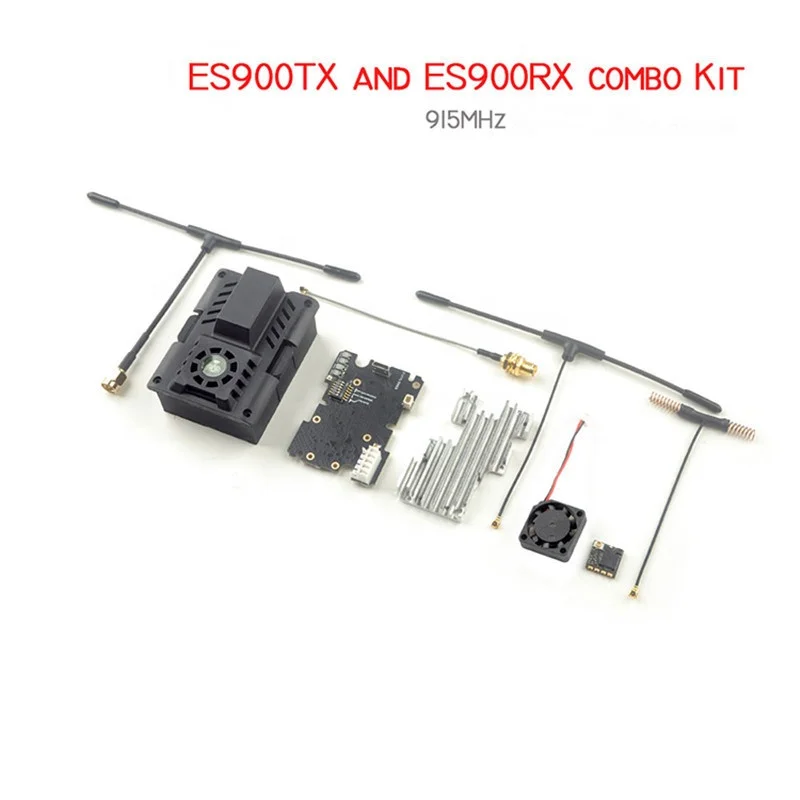

New version ES900TX and ES900RX kit Package include:
ES900 TX module x1(868MHz or 915MHz optional)
ES900 RX module x1(868MHz or 915MHz optional)
TX antenna x1(868MHz or 915MHz optional)
RX antenna x2(868MHz or 915MHz optional)
Molding JR Bay mounted case for TX module x1
Heat sink x1
Adapter wire x1
2006 Fan x1

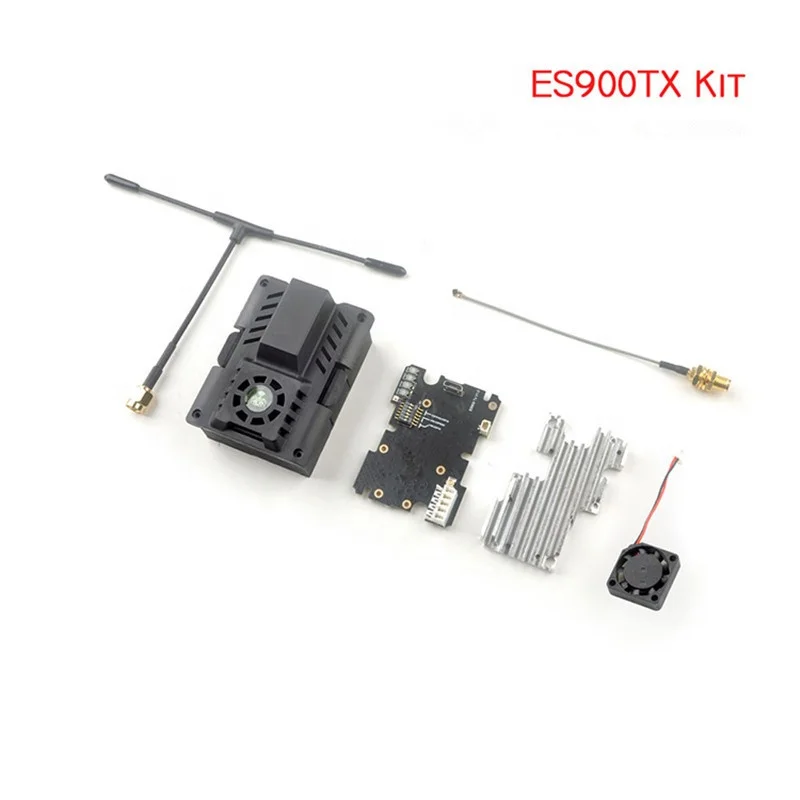

ES900TX Package include
ES900 TX module x1(868MHz or 915MHz optional)
TX antenna x1(868MHz or 915MHz optional)
Molding JR Bay mounted case for TX module x1
Heat sink x1
Adapter wire x1
2006 Fan x1

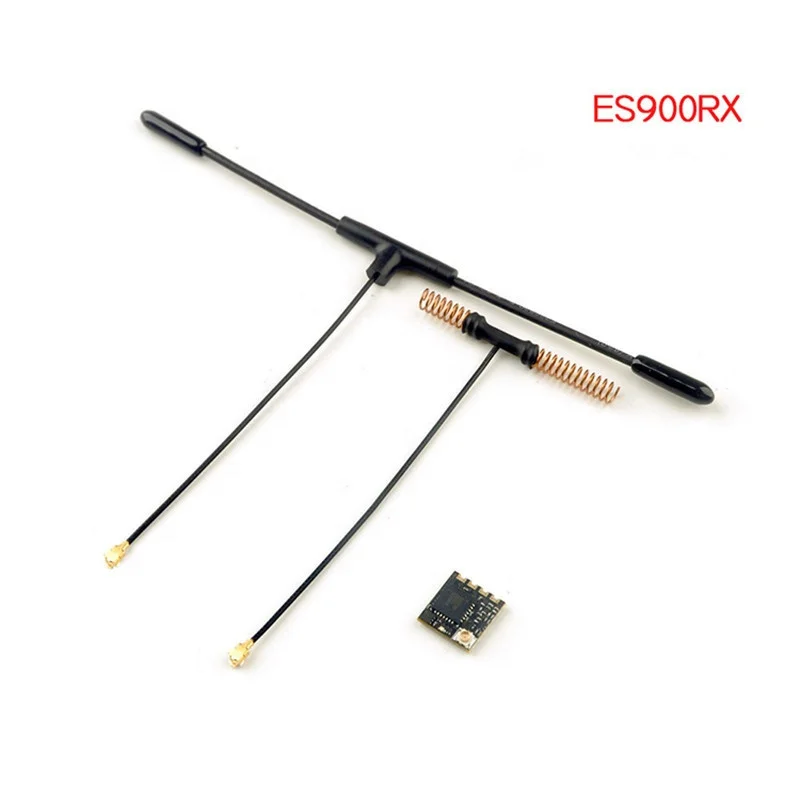

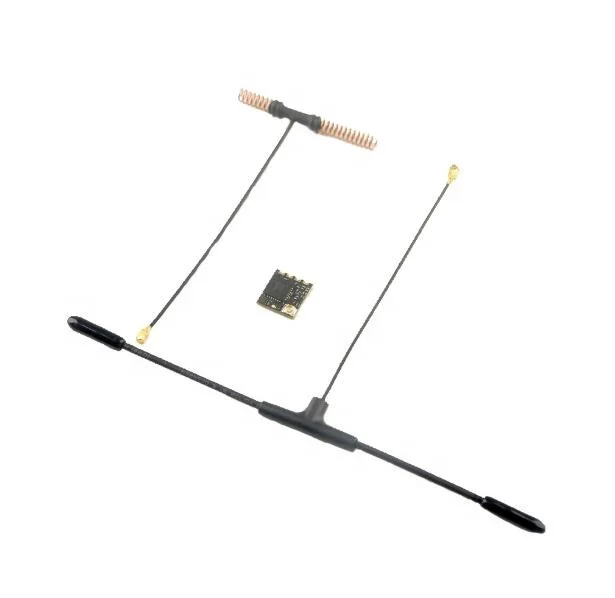

ES900RX Package include
ES900 RX module x1(868MHz or 915MHz optional)
RX antenna x2(868MHz or 915MHz optional)

Specifications:
ES900TX:
MCU:ESP32+ESP8285
Dimension: 55mm*39mm*11mm
Weight: 9.2gram (only the TX module)
Antenna connector: SMA
VCC input: 5~13v, Recommend 5v~9v
RF Frequency optional: 915mhz or 868mhz(EU)
Maximum Output Power: <33dBm(For >27dBm operation, we recommend add a fan for force cooling)
Wifi update firmware function for ES900TX would be available in a short time.

ES900RX:
MCU:ESP8285
VCC input: 5v
Operation current: ~100Ma
Rx To FC protocol: CRSF
RF Frequency optional: 915mhz or 868mhz(EU)
Dimension: 12mm*12mm*3mm
Weight: 0.60 gram (exclude antenna)
Antenna connector:  IPEX1
Telemetry output Power: <17dBm
RC7 Firmware for ES900RX download:
ExpressLRS RC7 firmware for ES900 RX 915MHz and 868MHz [update by wifi]

Note: Frequency optional: 915mhz or 868mhz, tell us what frequency do you need after order. or we will send 915mhz in default.
