Заводская цена стальной металлический кабельный лоток формовочная машина
496 005,96 ₽ - 1 102 168,11 ₽
Высокоскоростной полностью автоматический однослойный трапециевидный железный лист с 5 ребер кровельная плитка формовочная машина
- Категория: >>>
- Поставщик: Henan Dingkou Industrial Co. Ltd.
Сохранить в закладки 1601089957548:
Описание и отзывы
Характеристики
Product information
1. Product Image

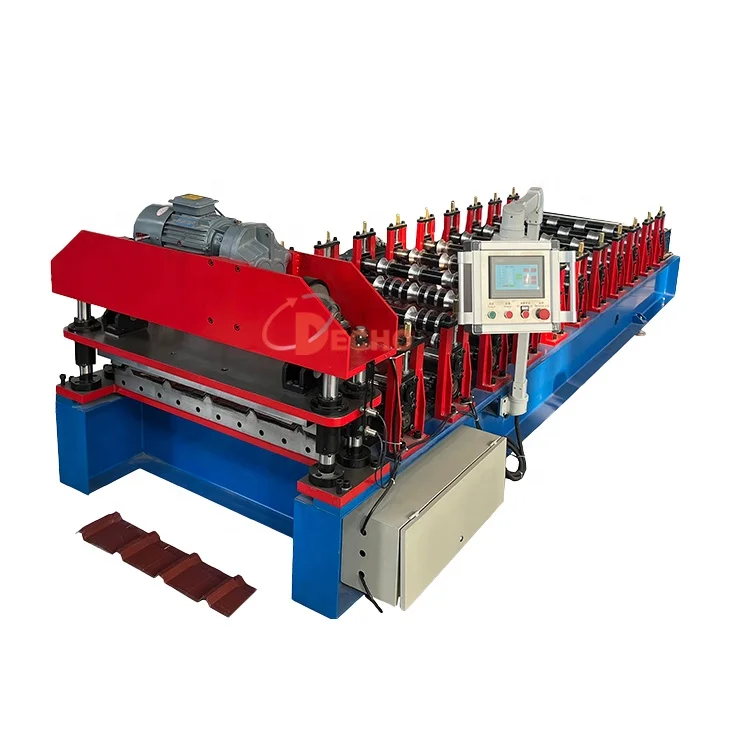

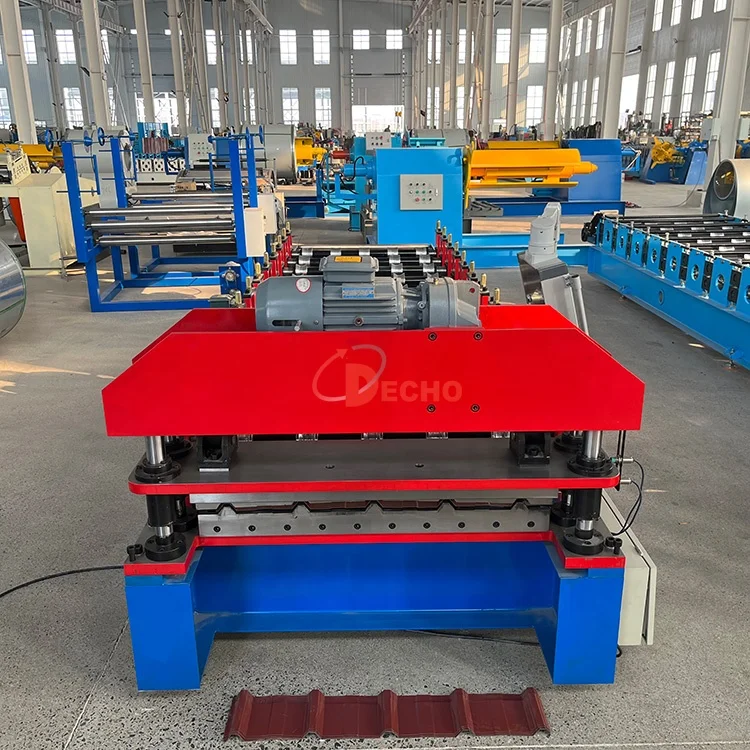

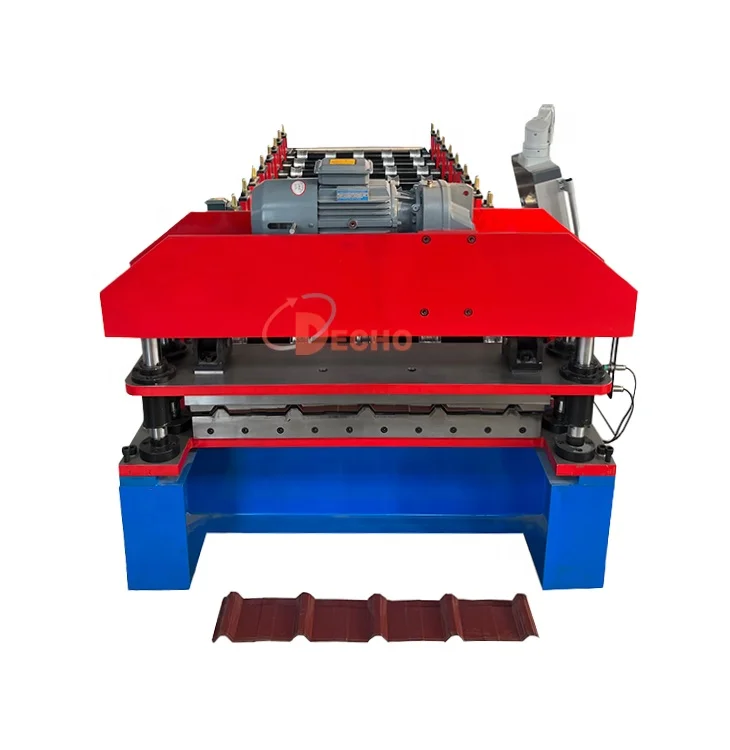

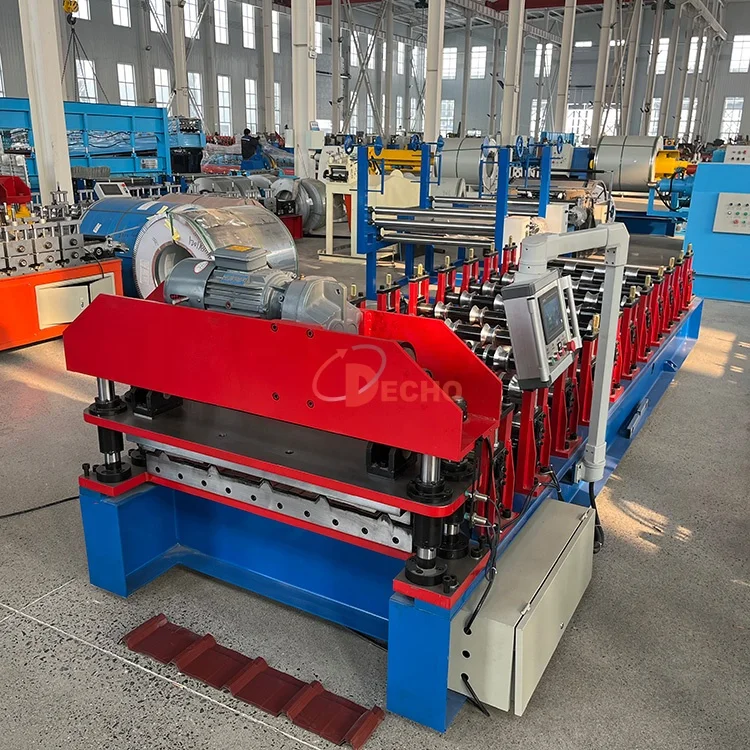

High speed single layer roof sheet roll forming machine, it can product roof tiles or wall tiles.
(Customized according to customer configuration requirements.)
This machine has upgraded all components to the technical standards of the original single-layer tile machine. Equipped with a 400H steel precision milling frame, cast iron middle plate, 40 # chromium steel shaft, GCr15 roller, SKD11 shear blade, electric uncoiling, electric shearing and other configurations. It is easy to operate, runs stably, and can achieve a production efficiency of 30 meters per minute.

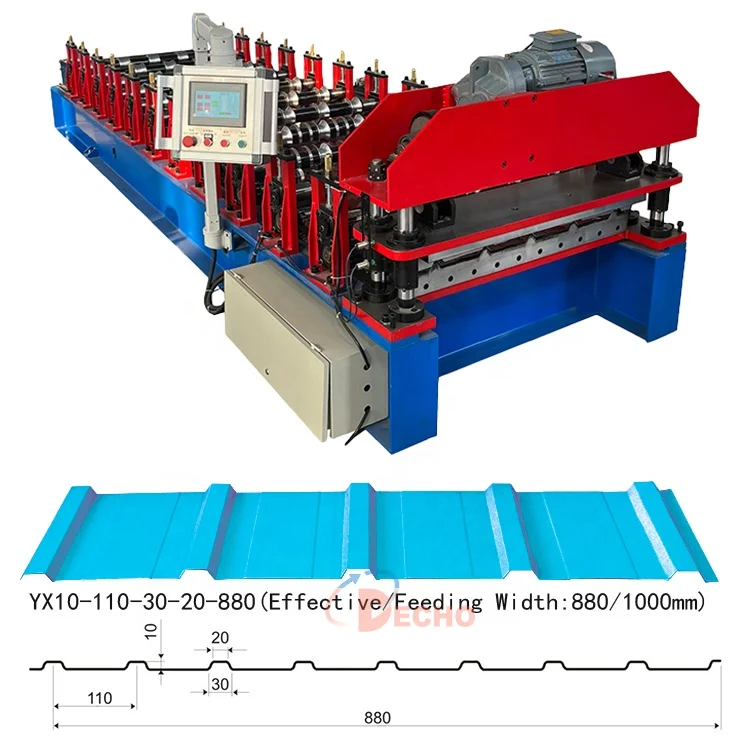

2.Typical tile type drawings
As the manufacturer of the roll forming machinery, we can produce most of the products according to your requirements, not just the size of the products on this page.
3. Work Flow
Capacity of the entire production line is 20-30 m/min. It consists of 5 parts. Un-coiler→Feeding material →Roll forming→Auto cutting→ Products receiving table, but It only takes 1 -2 worker.
4. Equipment List
NUM | Equipment Name | Quantity |
1 | Uncoiling Device | 1 set |
2 | Forming Main Machine | 1 set |
3 | Hydraulic Cutting System | 1 set |
4 | Material Receiving Table | 1 set |
5 | PLC Control System | 1 set |
6 | Supporting Accessories | 1 set |
5. Product Specification
Item | Parts | Specification & Description |
1.Raw Material | Type | GI / GL /PPGI / PPGL /Customization |
Thickness(mm) | 0.3-0.8 | |
2.Un-coiler Device | Type | Electric Decoiler |
Bearing(Tons) | 8T | |
Way of working | Electric tensioning crank. The center of the four-bar linkage is supported outward. | |
Panel Width(mm) | Typically ranging from 1000 to 1220. Can customize according to customer needs. | |
Coil Inner diameter | φ480-500mm | |
Inner contraction range | φ450-550mm | |
3.Forming Main Machine | Main frame | Material:350H steel Processing:CNC milling,precision machining,Welding frame. |
Material:Fine cast iron Thickness:18mm Processing:Casting, precision machining, heat treatment, surface electroplating. | ||
Material:40 # chromium steel，heat treated and quenched and tempered. Diameter: 80mm Processing:Precision turning, precision grinding, rust prevention treatment | ||
Material: GCr15 Processing:Precision machining - polishing - electroplating surface with hard chromium plating | ||
Roller Station | 11 stations or Customization | |
Transmission | Specifications:1.2 inch chain wheel with gear transmission Processing:Quenching heat treatment Gear oil:18 # hyperbolic gear oil | |
Power:5.5KW Brand:Lichao(optional) Reducer:Cycloidal reducer Protection level:IP55 Explosion-proof level:ExdIICT4 | ||
Type | Automatic high-speed electric shearing for Four guide pillars | |
material:SKD11 Processing :precision grinding, cutting, heat treatment. Service life: 500000 times | ||
Motor for cutter | Power: 3KW | |
5.Receiving rack | Type | 3M Electric receiving rack |
6.PLC Control System | PLC Control System | Plc brand：Delta(optional) Text control box：Vertical LCD control box/Swing arm LCD control box Language: English / Chinese / Customized |
Inverter | Rated power:7.5KW |
6. Product Details
Packaging & Shipping
Packaging Details
1. One container (20ft or 40ft ) for loading one set machine with manual decoiler and receiving rack.
2. The whole wiped Anti Rust Oil, PLC controller covered by foam film.
3. Spare parts and some small parts packed in plastic tooling box.
2. The whole wiped Anti Rust Oil, PLC controller covered by foam film.
3. Spare parts and some small parts packed in plastic tooling box.
Related Products
About Us
1.Company profile
Decho offers a wide range of products and good solutions for companies operating in construction, manufacturing industries. Our products include: Roofing forming machine / Purlin forming machine / Light steel keel forming machine / Storage Rack System forming machine / Floor decking forming machine / Shutter door forming machine /Highway Guardrall forming machine / Solar Panel Bracket forming machine / Truss roll forming machine / Channel roll forming machine / Ceiling roll forming machine / Slitter & cutter machine / Leveling & cutting machine / Bending machine / Decoiler (uncoiler).
2. Certificate
3. Customer case
Project in Thailand
Project in India
Project in Russia
FAQ
1. What is the production speed of your machine?
We can produce machines with a speed of 1-60m/min. Customers usually choose machines with a speed of 10-30m/min. We can customize according to your needs.
2. How long is the warranty period for this machine?
The service life of the solenoid valve is 3 years, and the rollers are replaced for free during the service life. The warranty period of the entire machine is 2 years.
3. Why purchase from us instead of from other suppliers?
We offer machines with higher cost-effectiveness, ensuring on-time delivery, longer warranty period, and providing after-sales installation services, including online and local installation.
4. How do I pay for my purchase order?
T/T, L/C at sight, Western Union, MoneyGram.
5. What is the lifespan of this machine？
Usually 15 to 20 years.
We can produce machines with a speed of 1-60m/min. Customers usually choose machines with a speed of 10-30m/min. We can customize according to your needs.
2. How long is the warranty period for this machine?
The service life of the solenoid valve is 3 years, and the rollers are replaced for free during the service life. The warranty period of the entire machine is 2 years.
3. Why purchase from us instead of from other suppliers?
We offer machines with higher cost-effectiveness, ensuring on-time delivery, longer warranty period, and providing after-sales installation services, including online and local installation.
4. How do I pay for my purchase order?
T/T, L/C at sight, Western Union, MoneyGram.
5. What is the lifespan of this machine？
Usually 15 to 20 years.
