Дробилка для глины цемента шлака кока-колы клинкера с двойным роликом дробилка продажи
330 633,90 ₽

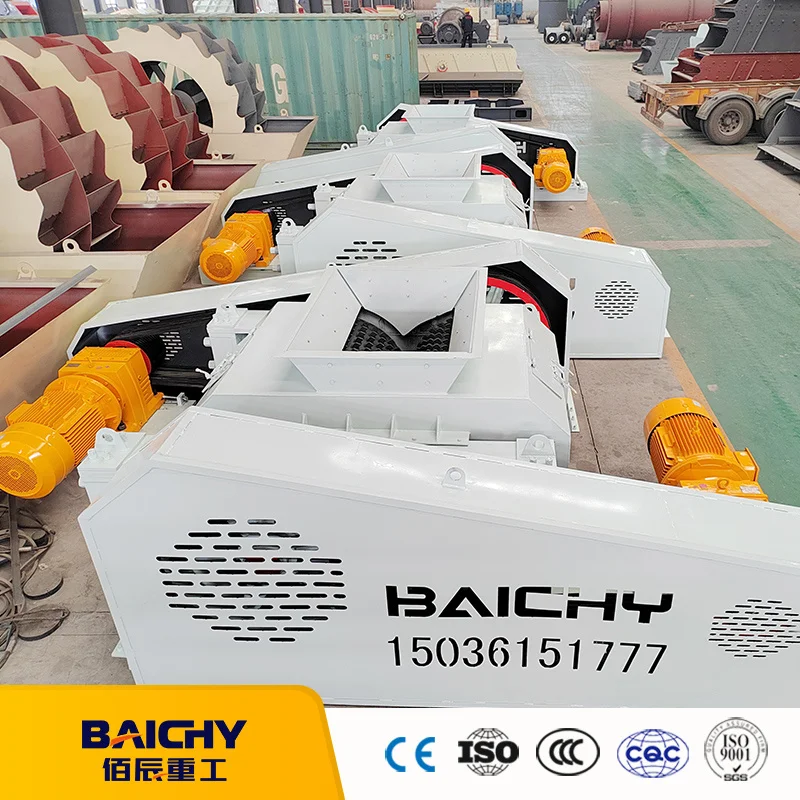

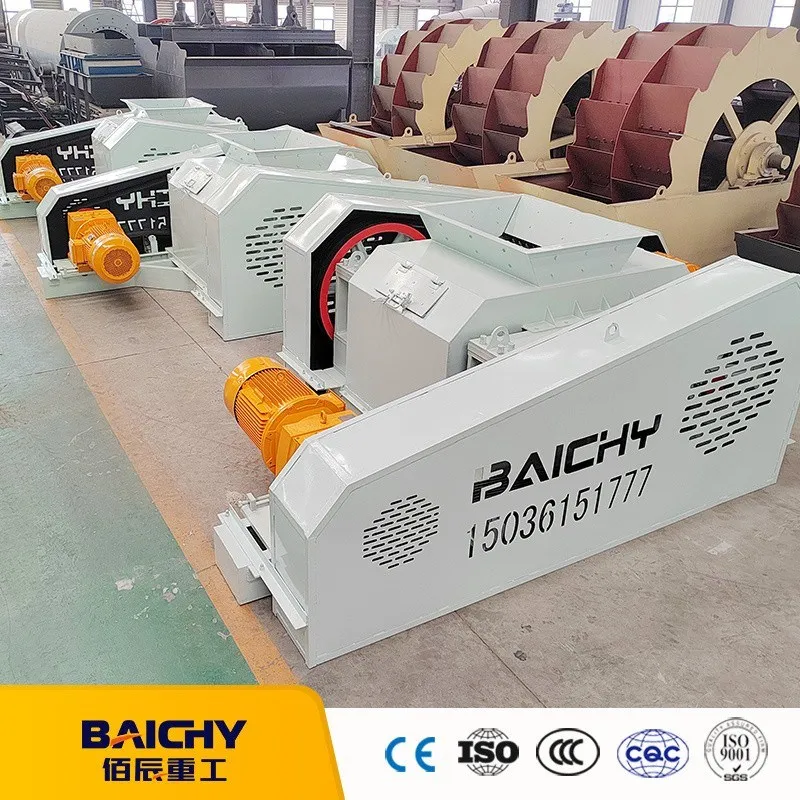

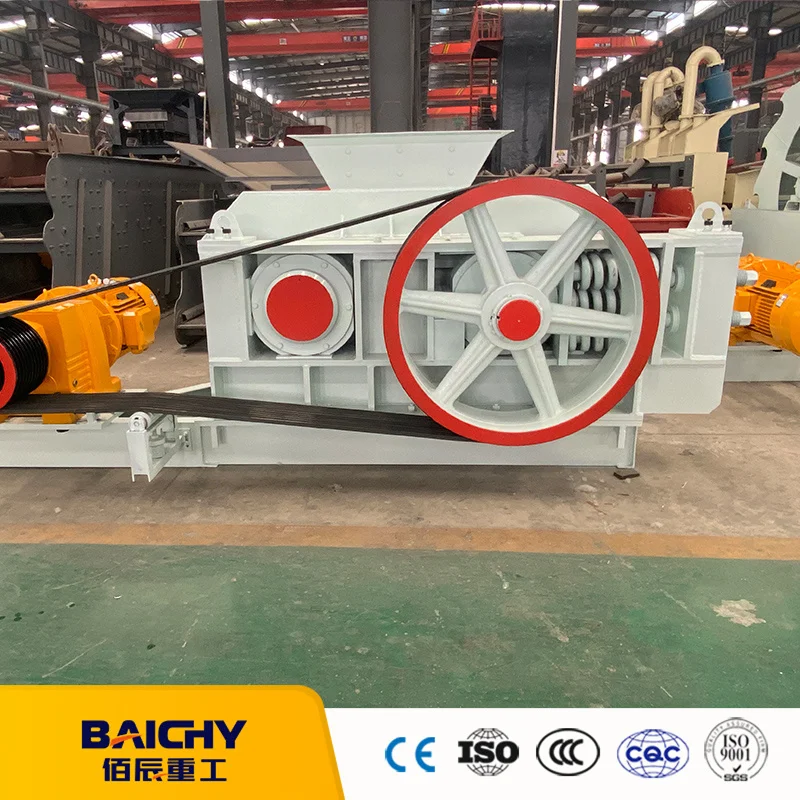

Самая популярная роликовая дробилка Модель 2PG 610*400 двойная от производителя машина для производства песка цена
- Категория: >>>
- Поставщик: Henan Baichy Machinery Equipment Co. Ltd.
Сохранить в закладки 1601090583453:
Описание и отзывы
Характеристики
Most Popular Roller Crusher Model 2PG-610*400 Double Roller Crusher Manufacturer Sand Making Machine Double Roller Crusher Price
Product Brief Introduction
Roller crusher is also called double roll crusher, double teeth roll crusher, etc. The surface of the roller crusher is made of high manganese steel, which can withstand heat treatment. Double roller crusher is suitable for rough and intermediate crushing of brittle materials in cement, chemical industry, electric power, mining, building materials, and metallurgy. The grain size of the input material is large, the particle size of the output product can be controlled, and it is possible to effectively destroy the material whose compressive strength is less than 160 MPa.
Advantage
1. The rollers are wear-resisting chromium molybdenum copper alloy with long service.
2. The gap between the rollers is adjustable so that the output size and capacity will be changed accordingly.
3. This crusher is equipped with a motorless scraper. When the raw material has a high moisture content, it can avoid affecting the output size and avoid sticking the roller or blocking the machine.

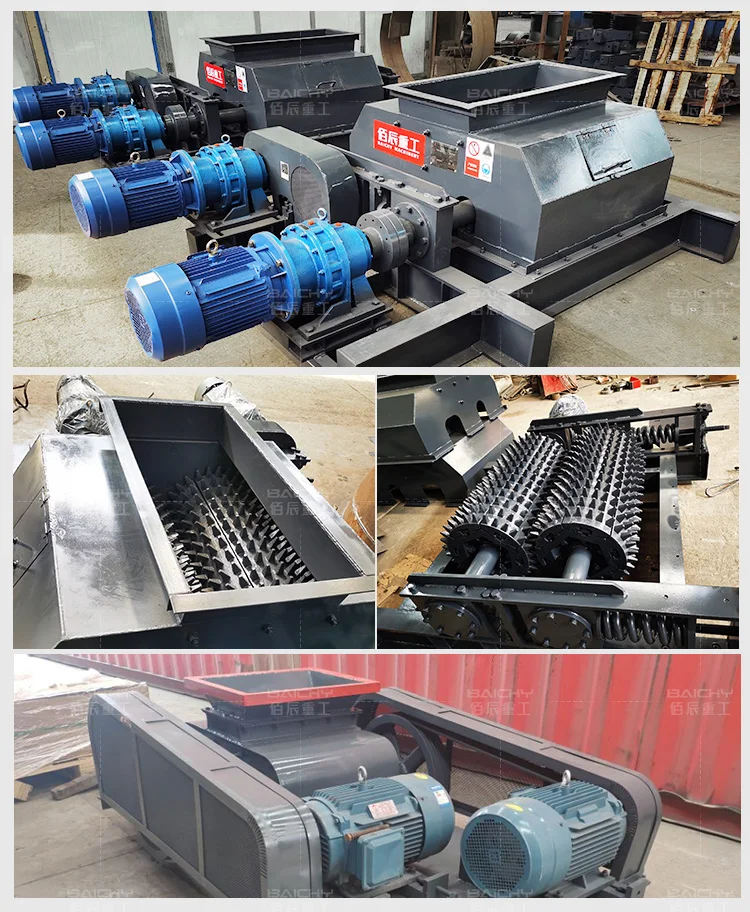

4. According to requirement, it could be in flat roller or toothed roller.

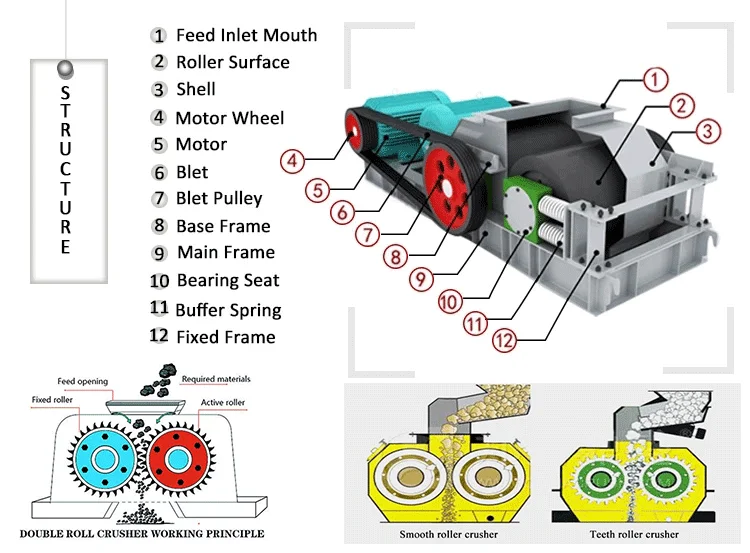

Working Principle

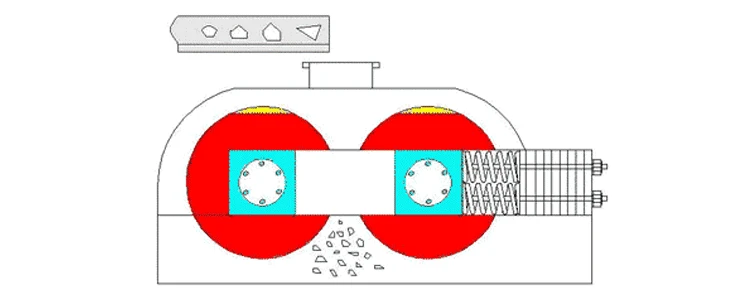

The materials to be crushed fall from the feeding mouth to the space between the two rolls. After being squeezed and crushed, the final products will naturally fall. When there are too-hard materials or materials that cannot be crushed, the rolls of the roller crusher will automatically withdraw under the effect of a hydraulic cylinder or spring to increase the gap between the rolls, and the too-hard materials or the materials that cannot be crushed will fall down. Thus protecting the machine from being damaged. There is a certain gap between the two rolls that rotate in the opposite direction, and the maximum discharging granularity of the final products can be controlled by changing this gap. Double roller crusher the materials by relying on the two round rollers rotating in the opposite direction, and four-roll crusher crushes the materials by relying on the two pairs of round rollers rotating in the opposite direction.
| Model | Roller Diameter (mm) | Roller Length (mm) | Feeding Size (mm) | Output Size (mm) | Capacity (t/h) | Motor Power (kw) |
| 2GP-400X250 | 400 | 250 | ≤ 25 | 1-8 | 5-10 | 5.5*2 |
| 2GP-500X450 | 500 | 450 | ≤ 30 | 1-15 | 10-20 | 11*2 |
| 2GP-610X400 | 610 | 400 | ≤ 40 | 1-20 | 13-35 | 15*2 |
| 2GP-750X500 | 750 | 500 | ≤ 40 | 2-20 | 15-40 | 18.5*2 |
| 2GP-800X600 | 800 | 600 | ≤ 40 | 3-20 | 20-50 | 22*2 |
| 2GP-1000X500 | 1000 | 500 | ≤ 120 | 3-20 | 30-60 | 37*2 |
| 2GP-1100X600 | 1100 | 600 | ≤ 150 | 3-20 | 50-80 | 37*2 |
| 2GP-1000X1000 | 1000 | 1000 | ≤ 120 | 3-20 | 60-80 | 45*2 |
Jaw crusher
Impact crusher
Cone crusher
Ball mill
Grinding mill
Mobile Sand Crusher
20 national service mileage:
Service mileage for local customers to provide equipment installation, commissioning, and after-sales service
Baichy headquarters is located in the industrial park in Jiaozuo City. It covers a total area of 200,000 square meters, including 150,000 square meters of standardized workshops. There are more than 200 sets of various large and medium-sized metal processing lathes, riveting machines, welding equipment, and assembly equipment. We have more than 500 workers, including more than 20 middle and senior technicians. Baichy is mainly focused on 4 series of products: stone crusher machines, sand-making equipment, powder grinding mills, mineral processing equipment, and their spare parts. Every year, Baichy can turn out 1,000 sets of crushers and 10,000 tons of crusher parts.
1. Are you a manufacturing or trading company?
We are a factory, established in 2003.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
There is a 30% deposit in T/T advance and a 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at the lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We have already built many mining projects in China and overseas.
