Панели солнечной энергии Aiko, 635 Вт, высокоэффективные монофоновые 640, 645 Вт, 650 Вт, 655 Вт, двухфазные солнечные панели
12,97 ₽ - 15,13 ₽

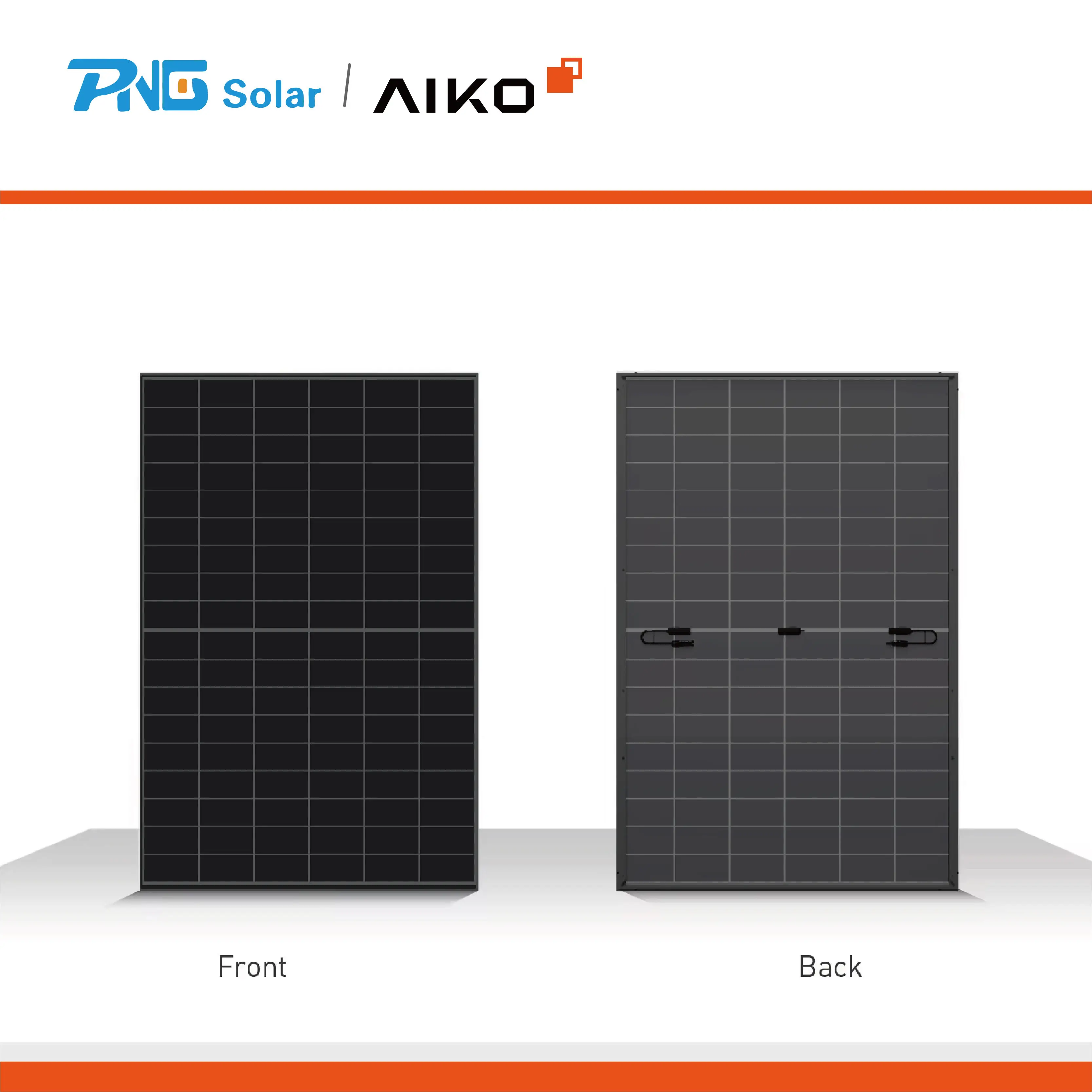

Aiko Solar Neostar 2S двойной стеклянный модуль 440 Вт 445 450 455 460 N Тип ABC полностью черные солнечные панели
- Категория: >>>
- Поставщик: Hefei Pinergy Solar Technology Co. Ltd.
Сохранить в закладки 1601091231010:
Описание и отзывы
Характеристики
Product Description
MECHANICAL DATA | ||
Module Dimensions | 1757*1134*30mm | |
Weight | 24.5kg | |
Glass | Dual glass, 2.0 + 2.0mm coated semi tempered glass | |
Frame | Black Anodized aluminum | |
Junction-Box | IP68, 3 bypass diodes | |
PV Connector | MC4-Evo2 | |
Cables | 4mm², 12AWG, 1200mm | |
Cell Type | N-Type ABC, 108cells(6*9*2) | |
Package Detail | 36pcs per pallet / 216pcs per 20'GP / 936pcs per 40'HC | |
Model | AIKO-440-MAH54Db | AIKO-445-MAH54Db | AIKO-450-MAH54Db | AIKO-455-MAH54Db | AIKO-460-MAH54Db |
Max. Power | 440W | 445W | 450W | 455W | 460W |
Open Circuit Voltage | 40.61V | 40.71V | 40.81V | 40.93V | 41.06V |
Short Circuit Current | 13.85A | 13.95A | 14.05A | 14.15A | 14.25A |
Max. Power Voltage | 33.60V | 33.70V | 33.80V | 33.90V | 34.00V |
Max. Power Current | 13.10A | 13.21A | 13.32A | 13.43A | 13.54A |
Efficiency² | 22.1% | 22.3% | 22.6% | 22.8% | 23.1% |
PACKAGING | ||
Model | AIKO-A440-460-MAH54Db | |
Packaging | 36 pcs per Pallet, 936pcs per 40'HQ | |
Note: The above packing information contained in this web is subject to change without notice. We will offer wooden box packing with extra material and labor costs if your order less than a pallet, we accept any customized packing as per your requests. | ||
Material
- Low iron tempered embossed glass.
- 3.2mm thickness, enhance the impact resistance of modules.
- Self- cleaning function.
- The bending strength is 3-5 times that of ordinary glass.
- 3.2mm thickness, enhance the impact resistance of modules.
- Self- cleaning function.
- The bending strength is 3-5 times that of ordinary glass.
- Half cut mono solar cells, up to 22% efficiency.
- High-precision screen printing to ensure accurate grid position for automatic soldering and laser cutting.
- No color difference, outstanding appearance.
- High-precision screen printing to ensure accurate grid position for automatic soldering and laser cutting.
- No color difference, outstanding appearance.
- 2 to 6 terminal blocks can be set as needed.
- All connection methods are connected by quick plug-in.
- The shell is made of imported high-grade raw materials and has high anti-aging and UV resistance.
- IP67 & IP68 rate protection level.
- All connection methods are connected by quick plug-in.
- The shell is made of imported high-grade raw materials and has high anti-aging and UV resistance.
- IP67 & IP68 rate protection level.
- Silver frame are optional.
- Strong corrosion and oxidation resistance.
- Strong strength and firmness.
- Easy to transport and install, even if the surface is scratched, it will not oxidize and will not affect performance.
- Strong corrosion and oxidation resistance.
- Strong strength and firmness.
- Easy to transport and install, even if the surface is scratched, it will not oxidize and will not affect performance.
- Enhance the light transmission of the components.
- The cells are packaged to prevent the external environment from affecting the electrical performance of the cells.
- Bonding solar cells, tempered glass, TPT together, with a certain bond strength.
- The cells are packaged to prevent the external environment from affecting the electrical performance of the cells.
- Bonding solar cells, tempered glass, TPT together, with a certain bond strength.
Factory

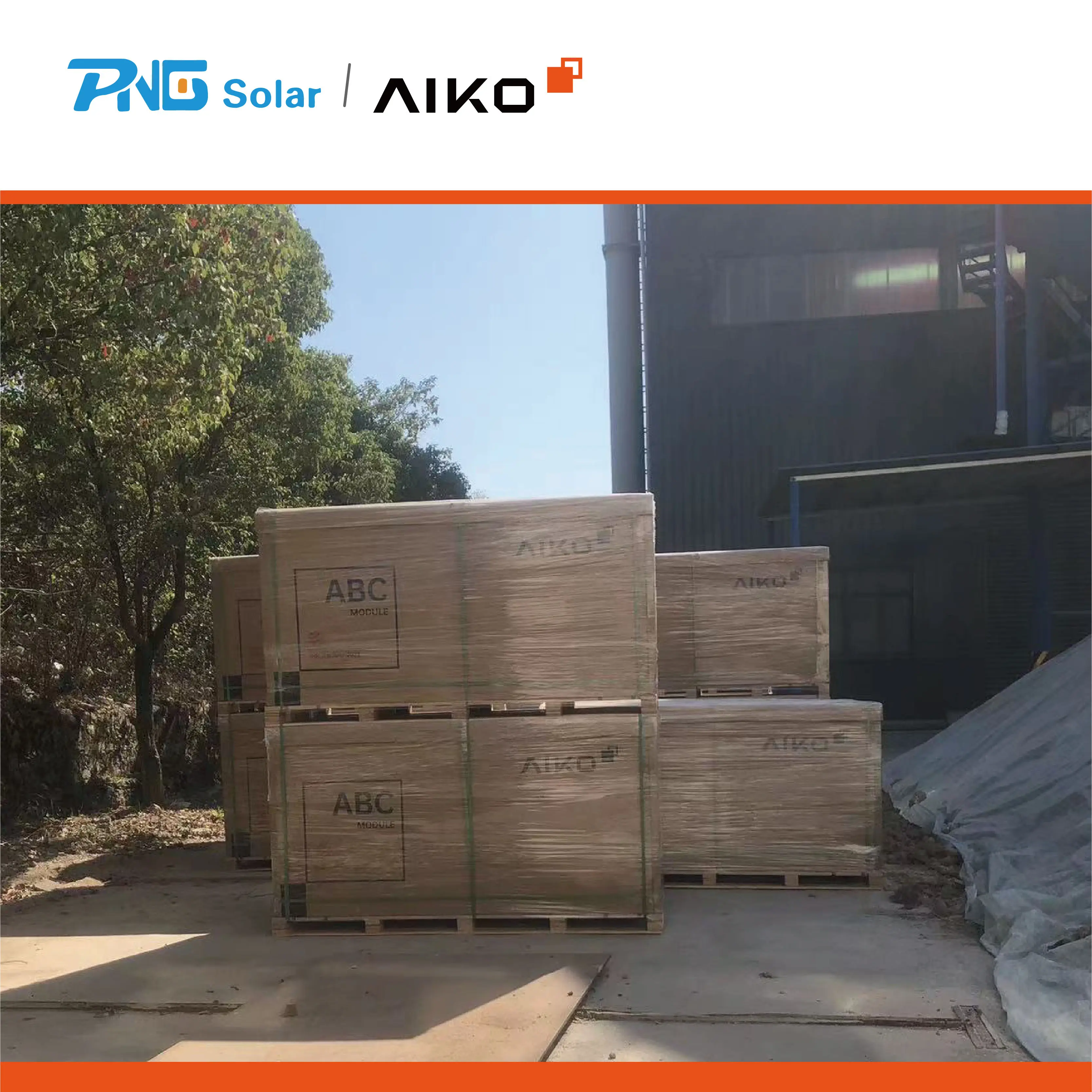

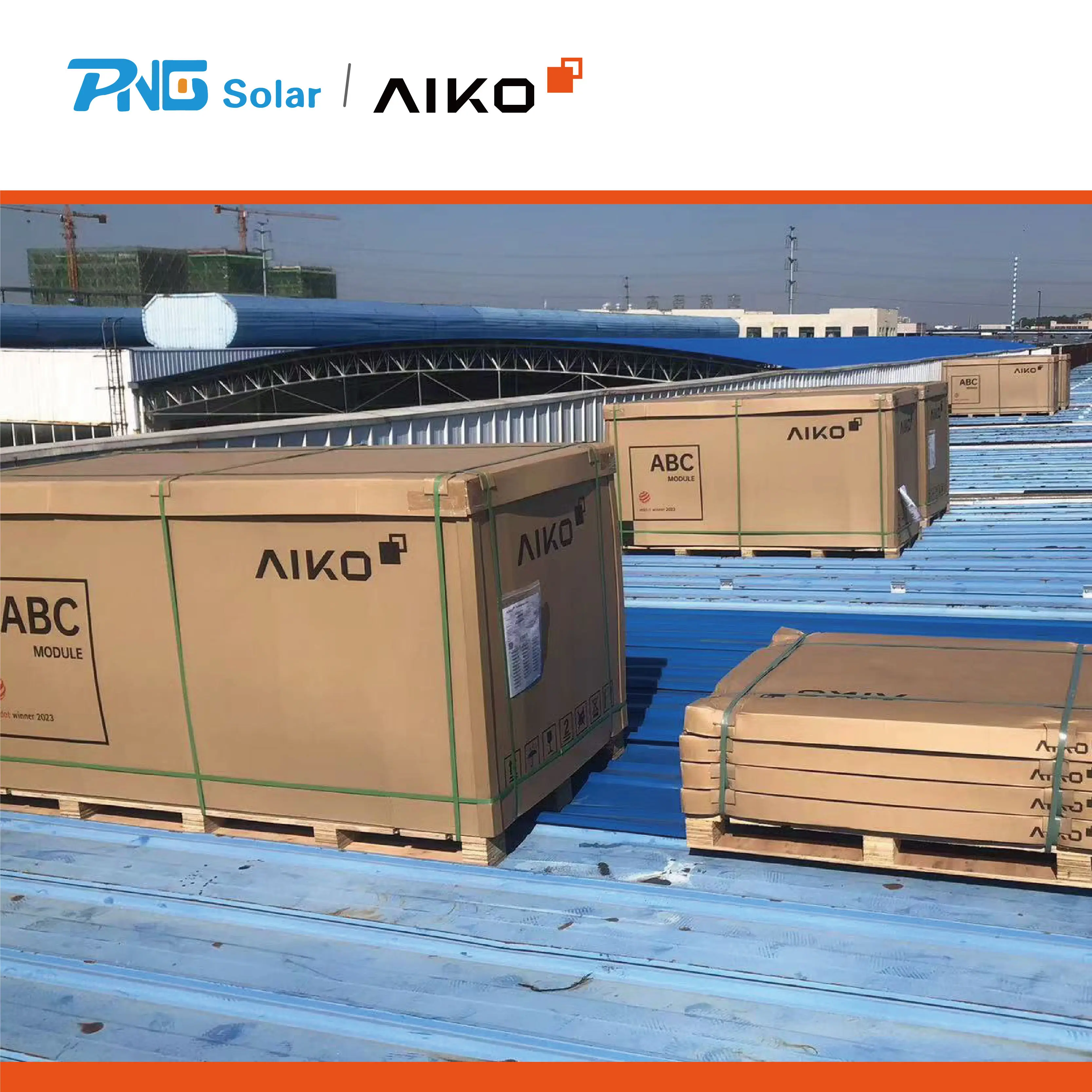

Packing & Delivery

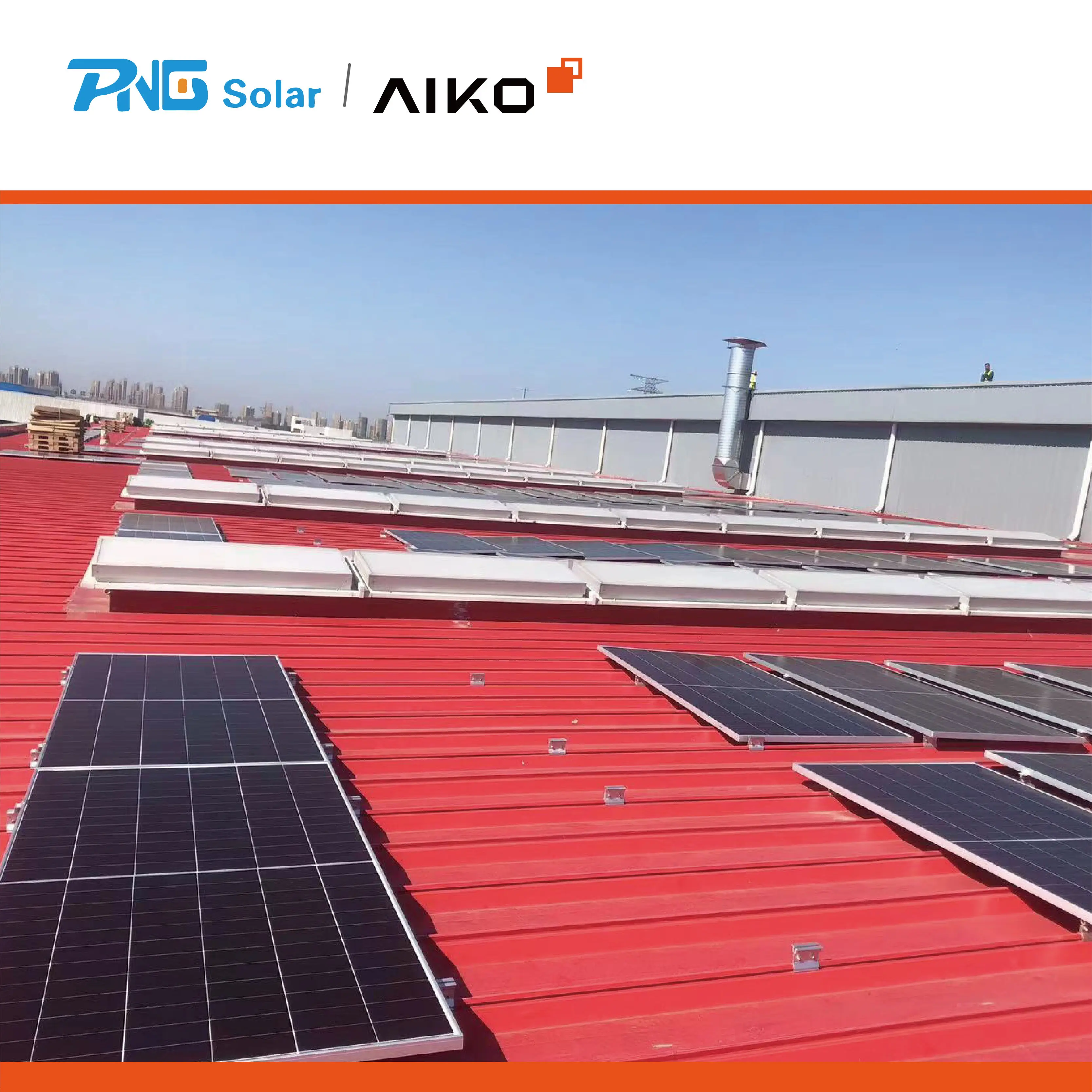

Project Case
Certifications
Company Profile
FAQ
1. What is your payment conditions and terms ?
T/T , L/C at sight under FOB, CIF, CFR, DDU etc.
2. Why we choose PNG SOLAR ?
If you want reliable quality and looking forward to a long term partnership, we are your best supplier !
We have lots of loyal customers who have been our partners for many years, thanks to the quality products and one-stop service.
3. What is your key advantage ?
OEM and ODM. With annual capacity 1.2GW. We do OEM for Tier 1 brands and global customers. If you are going to build up your own brands at your local markets, we are your best choice !
4. Which country have you ever been exported to ?
Europe- Spain, Italy, Poland, Germany, Netherlands , Ukraine etc.
Asia- China, Vietnam, Thailand, Indonesia, Cambodia, Myanmar, India, etc.
South America- Argentina, Ecuador, Brazil etc.
2. Why we choose PNG SOLAR ?
If you want reliable quality and looking forward to a long term partnership, we are your best supplier !
We have lots of loyal customers who have been our partners for many years, thanks to the quality products and one-stop service.
3. What is your key advantage ?
OEM and ODM. With annual capacity 1.2GW. We do OEM for Tier 1 brands and global customers. If you are going to build up your own brands at your local markets, we are your best choice !
4. Which country have you ever been exported to ?
Europe- Spain, Italy, Poland, Germany, Netherlands , Ukraine etc.
Asia- China, Vietnam, Thailand, Indonesia, Cambodia, Myanmar, India, etc.
South America- Argentina, Ecuador, Brazil etc.
