Новый дизайн гибридный солнечный инвертор 3 5 кВт 3500 Вт
41 447,10 ₽ - 46 271,63 ₽
Официальный трехфазный Гибридный инвертор Deye после обслуживания SUN 10K SG04LP3 AU батарея LV поддерживается для домашнего использования
- Категория: >>>
- Поставщик: Anhui Minvic Import & Export Co. Ltd.
Сохранить в закладки 1601091647954:
Описание и отзывы
Характеристики
Product Description
SUN-5K-SG04LP1-EU
* Colorful touch LCD, IP65 protection degree
* AC couple to retrofifit existing solar system
* Max. 16 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
* Max. charging/discharging current of 140A
* 6 time periods for battery
* AC couple to retrofifit existing solar system
* Max. 16 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
* Max. charging/discharging current of 140A
* 6 time periods for battery
charging/discharging
* Support storing energy from diesel generator
* Support storing energy from diesel generator

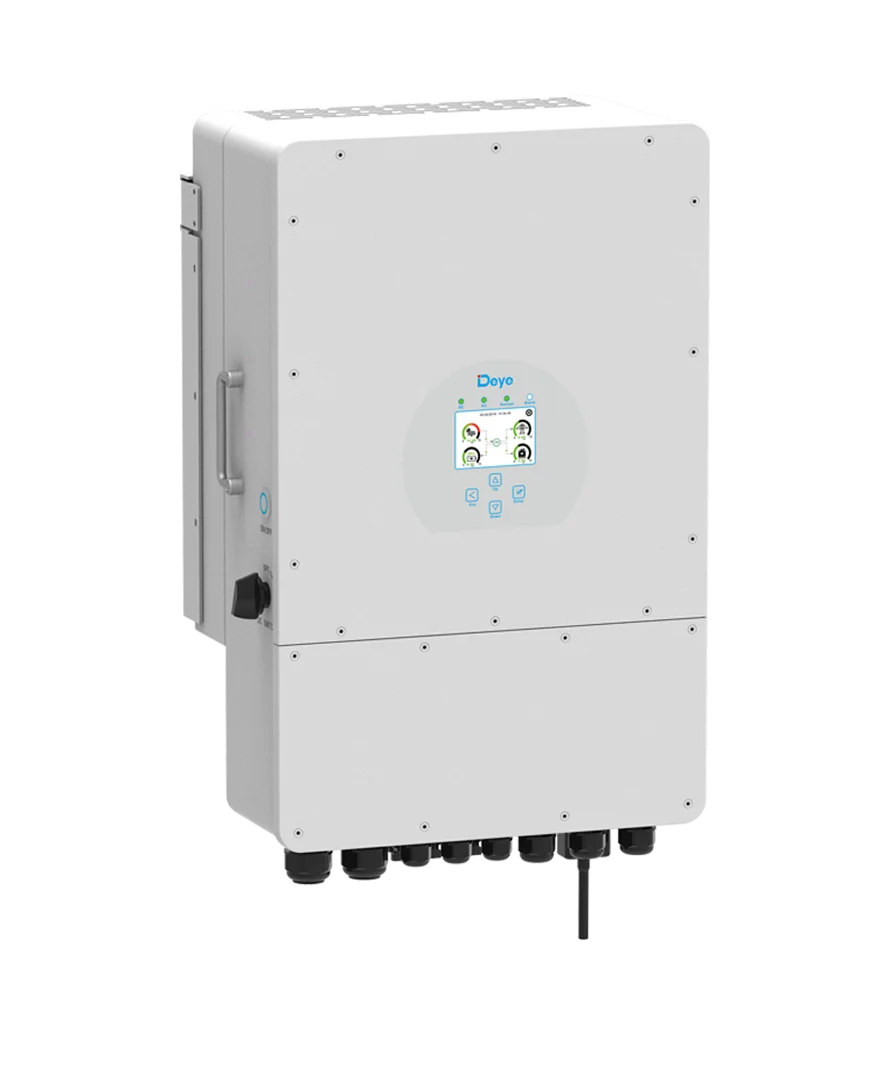

SUN 5K-SG04，hybrid inverter, is suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy impendence. During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via SUN 3/6K-SG04. Finally, the stored energy can be released when the loads require it. The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout.

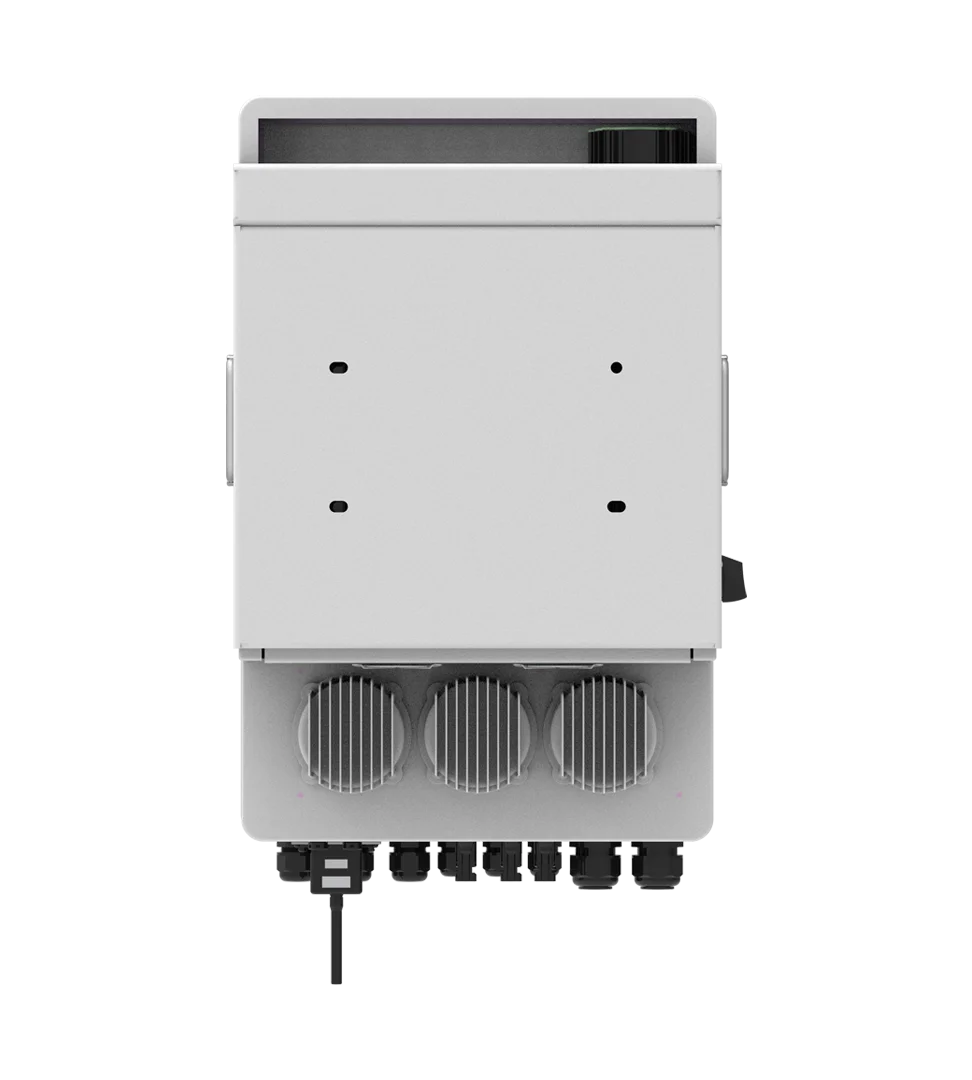

The back view of the inverter

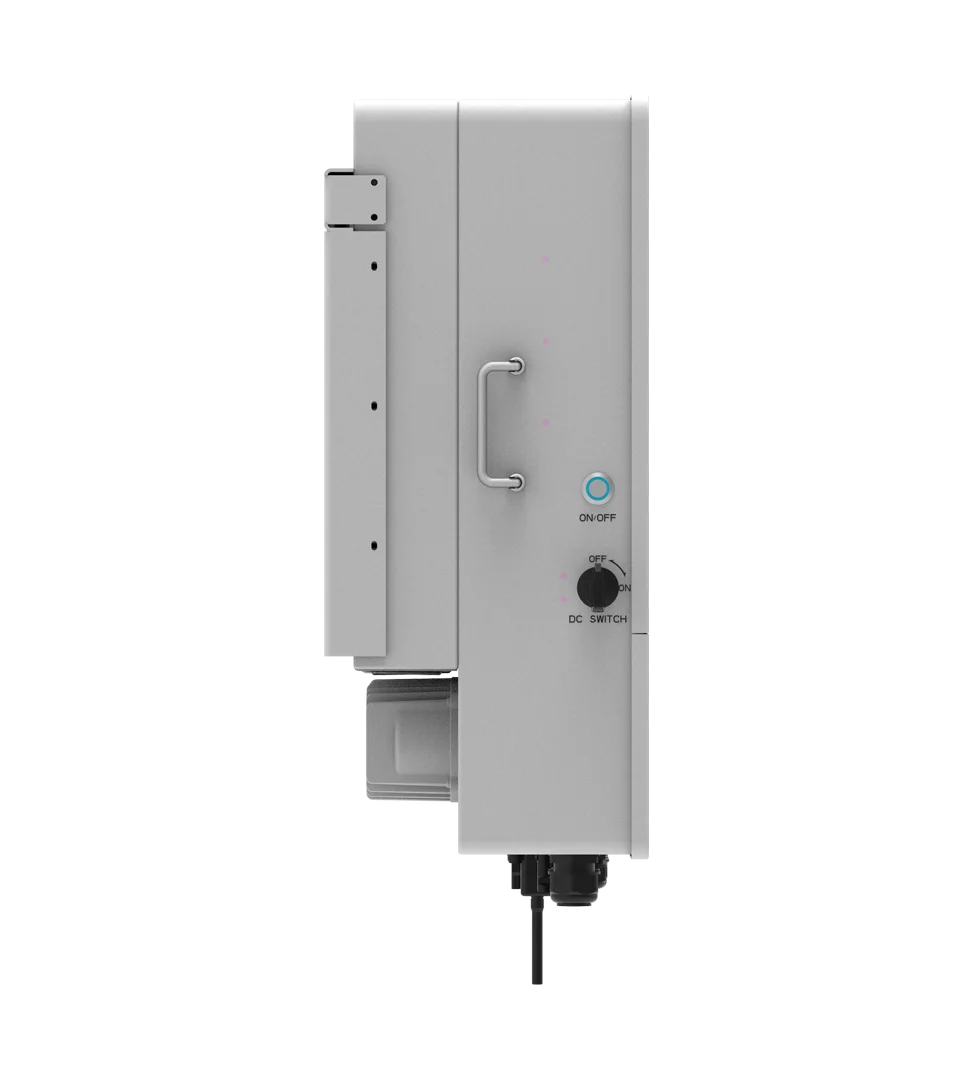

The side view of the inverter

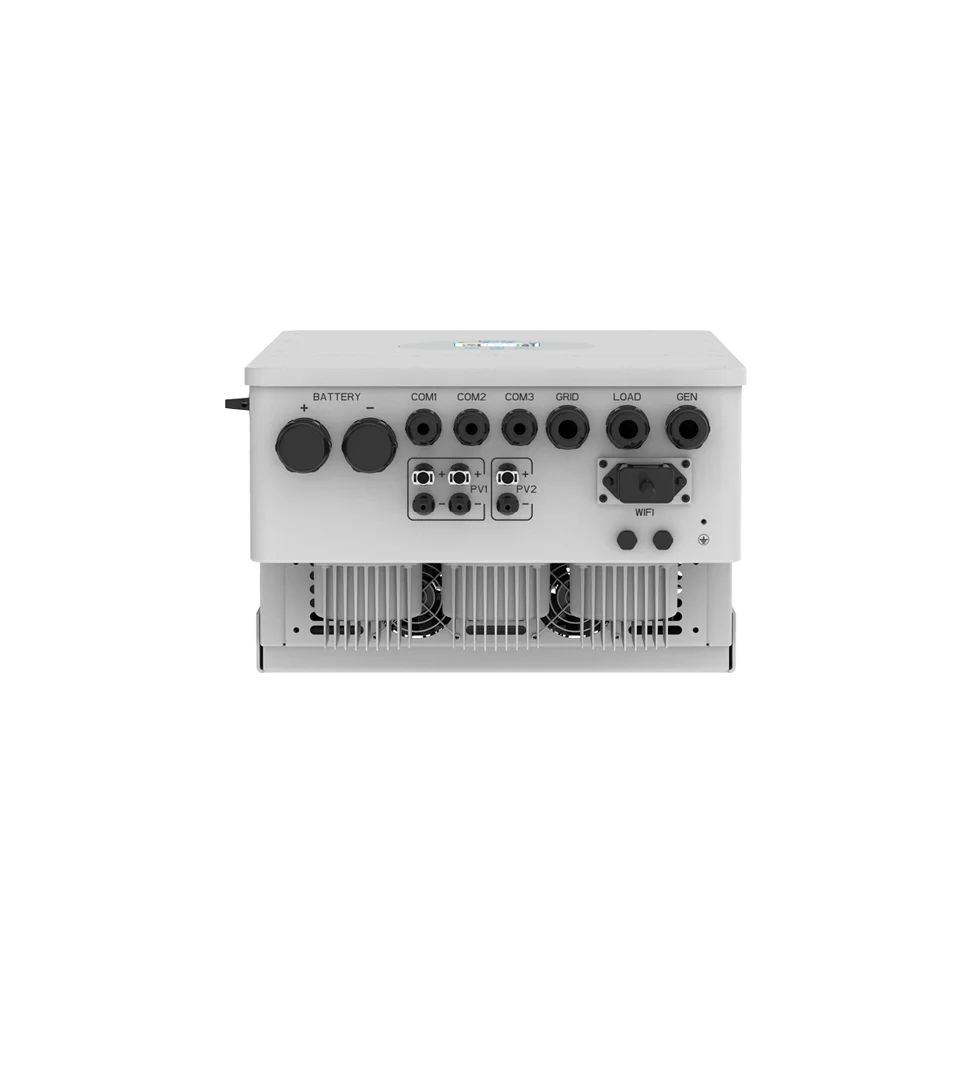

The bottom of the inverter
Specification
Model | SUN-3K-SG04LP1-24-EU | SUN-3K-SG04LP1-EU | SUN-3.6K-SG04LP1-EU | SUN-5K-SG04LP1-EU | SUN-6K-SG04LP1-EU | ||||
Battery Input Data | |||||||||
Battery Type | Lead-acid or Lithium-ion | ||||||||
Battery Voltage Range(V) | 20-30 | 40-60 | |||||||
Max.Charging Current(A) | 140 | 70 | 90 | 120 | 135 | ||||
Max.Discharging Current(A) | 140 | 70 | 90 | 120 | 135 | ||||
Charging Strategy for Li-ion Battery | Self-adaption to BMS | ||||||||
Number of battery input | 1 | ||||||||
PV String Input Data | |||||||||
Max DC Input Power（W） | 3900 | 3900 | 4680 | 6500 | 7800 | ||||
Max DC Input Voltage（V） | 500 | ||||||||
Start-up Voltage（V） | 125 | ||||||||
MPPT Voltage Range（V） | 150-425 | ||||||||
Rated DC Input Voltage(V) | 370 | ||||||||
Max Input Short-Circuit Current（A） | 17 | 17+17 | |||||||
Max Operating PV Input Current（A） | 13 | 13+13 | |||||||
No.of MPP Trackers/No.of String Per MPP Tracker | 1/1 | 2/1+1 | |||||||
AC Input/Output Data | |||||||||
Rated AC Input/Output Active Power（W） | 3000 | 3600 | 5000 | 6000 | |||||
Max AC Input/Output Apparent Power （VA） | 3300 | 3960 | 5500 | 6600 | |||||
Peak Power (off-grid)（W） | 2 times of rated power,10s | ||||||||
Rated AC Input/Output Current（A） | 13.6/13 | 16.4/15.7 | 22.7/21.7 | 27.3/26.1 | |||||
Max AC Input/Output Current（A） | 15/14.3 | 18/17.2 | 25/23.9 | 30/28.7 | |||||
Max Continuous AC Passthrough (grid to load)（A） | 35 | 40 | |||||||
Rated Input/Output Voltage/Range(V) | 220V/230 0.85Un-1.1Un | ||||||||
Grid Connection Form | L+N+PE | ||||||||
Rated Input/Output Grid Frequency/Range | 50Hz/45Hz-55Hz 60Hz/55Hz-65Hz | ||||||||
Power Factor Adjustment Range | 0.8 leading to 0.8lagging | ||||||||
Total Current Harmonic Distortion THDi | <3% (of nominal power) | ||||||||
DC Injection Current | <0.5%ln | ||||||||
Efficiency | |||||||||
Max Efficiency | 97.6% | ||||||||
Euro Efficiency | 96.5% | ||||||||
MPPT Efficiency | ＞99% | ||||||||
Equipment Protection | |||||||||
Integrated | DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection AC Output Overvoltage Protection, AC Output Short Circuit Protection, Thermal Protection DC Terminal Insulation Impedance Monitoring, DC Component Monitoring, Ground Fault Current Monitoring Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch Overvoltage Load Drop Protection, Residual Current (RCD) Detection, Surge protection level | ||||||||
Surge Protection Level | TYPE II(DC),TYPE II(AC) | ||||||||
Interface | |||||||||
Communication Interface | WIFI,RS485,CAN | ||||||||
General Data | |||||||||
Operating Temperature Range | -40 to+60℃,＞45℃ Derating | ||||||||
Permissible Ambient Humidity | 0~100% | ||||||||
Permissible Altitude | 2000m | ||||||||
Noise | ＜30 | ||||||||
Ingress Protection(IP) Rating | IP 65 | ||||||||
Inverter Topology | Non-Isolated | ||||||||
Over Voltage Category | OVC II(DC),OVC III(AC) | ||||||||
Cabinet size（W*H*D）[mm] | 330*433*229（Excluding connectors and brackets） | ||||||||
Weight[kg] | 17 | ||||||||
Warranty | 5 Years/10 Yearsthe Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy | ||||||||
Type Of Cooling | natural cooling | Intelligent air cooling | |||||||
Grid Regulation | IEC 61727,IEC 62116,CEI 0-21,EN 50549，NRS 097,RD 140,UNE 217002,OVE-Richtlinie R25,G99,VDE-AR-N 4105 | ||||||||
Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||||||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Exhibition
Company Profile
Anhui Minvic New Energy Technology Co., Ltd, established in 2018, has a subsidiary, Anhui Minvic Import & Export Trading Co. We focus on the development, production and sales of photovoltaic new energy products. We are committed to helping our global partners make great strides in products, technologies and solutions related to new energy generation. We are adhering to our vision of linking the world's trading partners and driving the global PV industry forward to achieve a carbon neutral world.
FAQ
1. who are we?
We are based in Anhui, China, start from 2018,sell to Northern Europe(10.00%),Eastern Europe(10.00%),Western Europe(8.00%),Domestic Market(8.00%),Mid East(8.00%),Southern Europe(8.00%),Central America(8.00%),South America(8.00%),North America(8.00%),Africa(6.00%),Eastern Asia(5.00%),Oceania(5.00%),Southeast Asia(5.00%),South Asia(3.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Solar Panels/Solar Inverters/Energy Storage Batteries/Solar Systems
4. why should you buy from us not from other suppliers?
New energy integrated company, more than 10 years experience in PV industry, having complete supply chain for solar modules, inverters and energy storagy products. Also, provide the whole system design, development and implementation.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
We are based in Anhui, China, start from 2018,sell to Northern Europe(10.00%),Eastern Europe(10.00%),Western Europe(8.00%),Domestic Market(8.00%),Mid East(8.00%),Southern Europe(8.00%),Central America(8.00%),South America(8.00%),North America(8.00%),Africa(6.00%),Eastern Asia(5.00%),Oceania(5.00%),Southeast Asia(5.00%),South Asia(3.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Solar Panels/Solar Inverters/Energy Storage Batteries/Solar Systems
4. why should you buy from us not from other suppliers?
New energy integrated company, more than 10 years experience in PV industry, having complete supply chain for solar modules, inverters and energy storagy products. Also, provide the whole system design, development and implementation.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
