Hot Runner Used Injection Molds For Plastic Injection Nozzles
PZ type hot nozzle,suitable for all kinds of plastic,the gate of the nozzle has material handle,which is of 10mm length.Lengthen gate is of 30mm length,which can process the slope freely according to the product,easy to change the color.
These hot nozzles are widely used in various of hot runner plastic product.

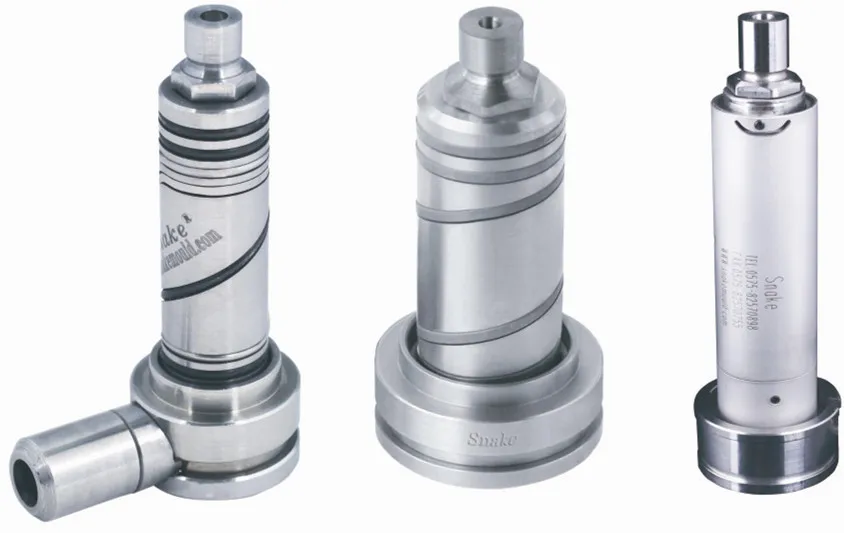

Product Show
PSZ Hot Nozzle Show See More Detail
DPSZ Hot Nozzle Show See More Detail
PZ Hot Nozzle Show See More Detail

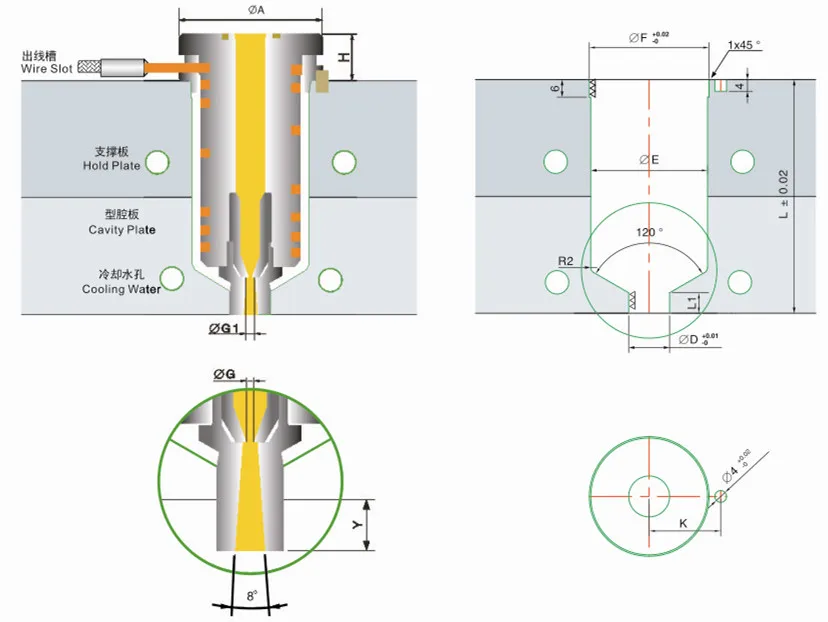

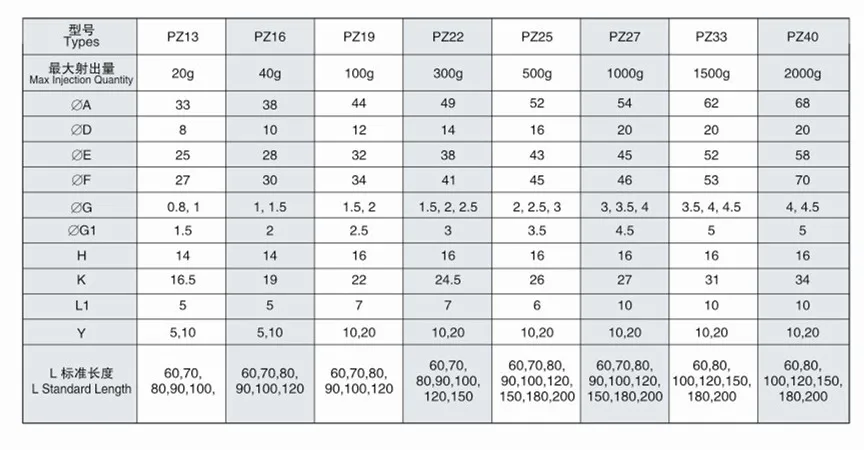

PZ Hot Nozzle Specification
Type | PZ13 | PZ16 | PZ19 | PZ22 | PZ25 | PZ27 | PZ33 | PZ40 |
Max Injection Quantity | 20g | 40g | 100g | 300g | 500g | 1000g | 1500g | 2000g |
Φ A | 33 | 38 | 44 | 49 | 52 | 54 | 62 | 68 |
Φ D | 8 | 12 | 12 | 14 | 16 | 20 | 20 | 20 |
Φ E | 25 | 28 | 32 | 38 | 43 | 45 | 53 | 58 |
Φ F | 27 | 30 | 34 | 41 | 45 | 46 | 53 | 70 |
Φ G | 0.8,1.1 | 1,1.5 | 1.5,2 | 1.5,2,2.5 | 2,2.5,3 | 3,3.5,4 | 3.5,4,4.5 | 4,4.5 |
Φ G1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4.5 | 5 | 5 |
H | 14 | 14 | 16 | 16 | 16 | 16 | 16 | 16 |
K | 16.5 | 19 | 22 | 24.5 | 26 | 27 | 31 | 34 |
L1 | 15 | 5 | 7 | 7 | 6 | 10 | 10 | 10 |
Y | 5,10 | 5,10 | 10,20 | 10,20 | 10,20 | 10,20 | 10,20 | 10,20 |
L Standard Length | |
PZ13 | 60,70,80,90,100 |
PZ16 | 60,70,80,90,100,120 |
PZ19 | 60,70,80,90,100,120 |
PZ22 | 60,70,80,90,100,120,150 |
PZ25 | 60,70,80,90,100,120,150,180,200 |
PZ27 | 60,70,80,90,100,120,150,180,200 |
PZ33 | 60,80,100,120,150,180,200 |
PZ40 | 60,80,100,120,150,180,200 |

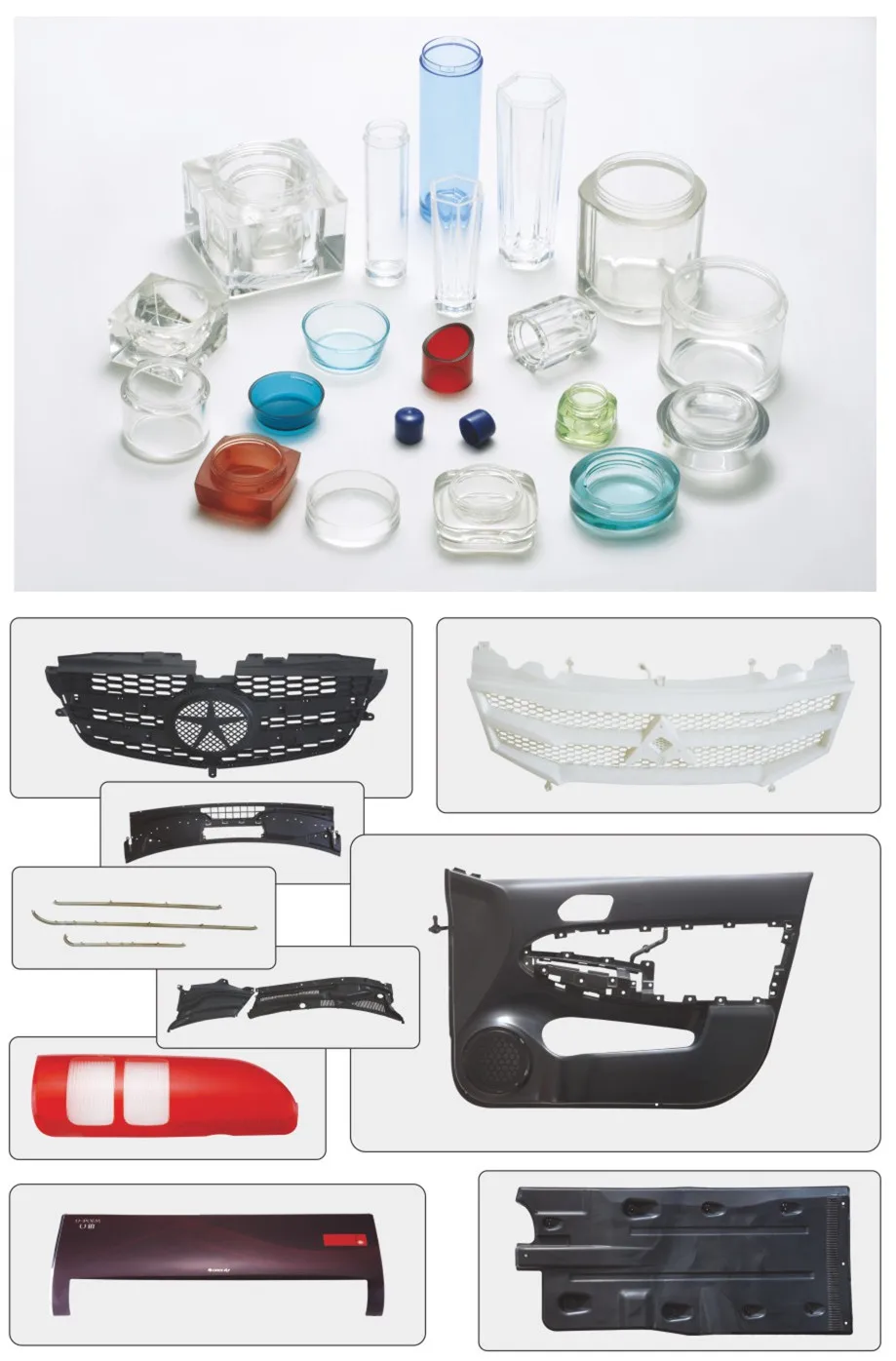

Final Products Application
Our products are widely applied in automobiles, home electric appliance, electron, commodity ,medical equipment packaging material and other industries.
Package show
Our Advantage
(1)More than ten years of researching and developing with great concentration
(2)Can customized the goods for customers
(3)good quality
(4)We offer the reasonable price
(5)Our company has passed ISO9001 quality management system certification and CE certification
Our Services
(1) All your questions, e-mail,inquiry etc , will be replied in 24 hours.
(2) We can give you our prices in one hour as long as receiving your detailed drawings.
(3) If you have problems in design or technology, we can also provide you our professional ideas for your reference.
Certificate show
Company Show
Snake Hot Runner CO.LTD. in Shangyu City, Zhejiang Province is a company specialized in designing, manufacturing and installing the injection moulds of hot runner system. The company has passed the authentication of ISO9001international quality system&CE certification and got 2 technical patens. Since the company developed the first heating coil of hot nozzle ,it has set up stable cooperation relationship with over 500moulds& plastic companies.
The products are widely applied in automobiles, home electric appliance, electron, commodity ,medical equipment packaging material and other industries.
With ten years of researching and developing with great concentration ,the company gains the experience to solvehundreds of kinds of special projects.
Special-designed deep-hole drilling for runner holes and polishing facility is the technical guarantee to be on top of domestic similar manufacturers.
Response within 24 hours, free maintenance for 1year,follow-up services for all life and after other service methods wins full trust from the clients.
Continual innovation is the dynamic force of the company development. Simple non-eccentric needle valve, sequence control, multi-pin thin gate needle valve and other hot runner systems will the preference of many clients with their reliable performance.
If you have any question or issue,please do not hesitate and contact me.
Olivia Fan
Skype:olivia.fan6
QQ:1120571737
