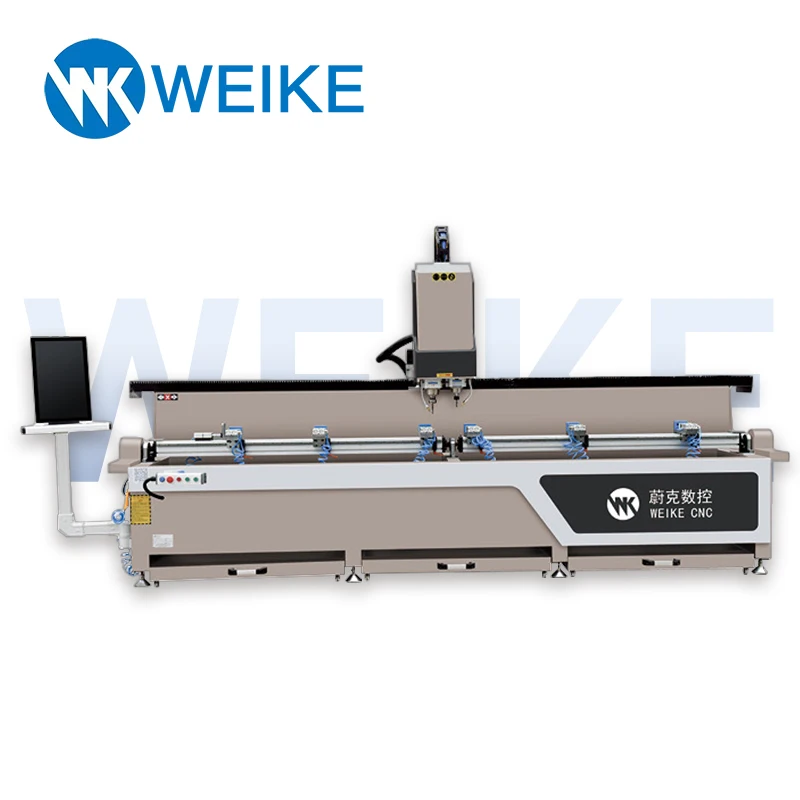

WEIKE CNC WSZ3200 3-осевой обрабатывающий центр для алюминиевого навесного настенного профиля дверей и окон
882 364,79-907 793,17 ₽

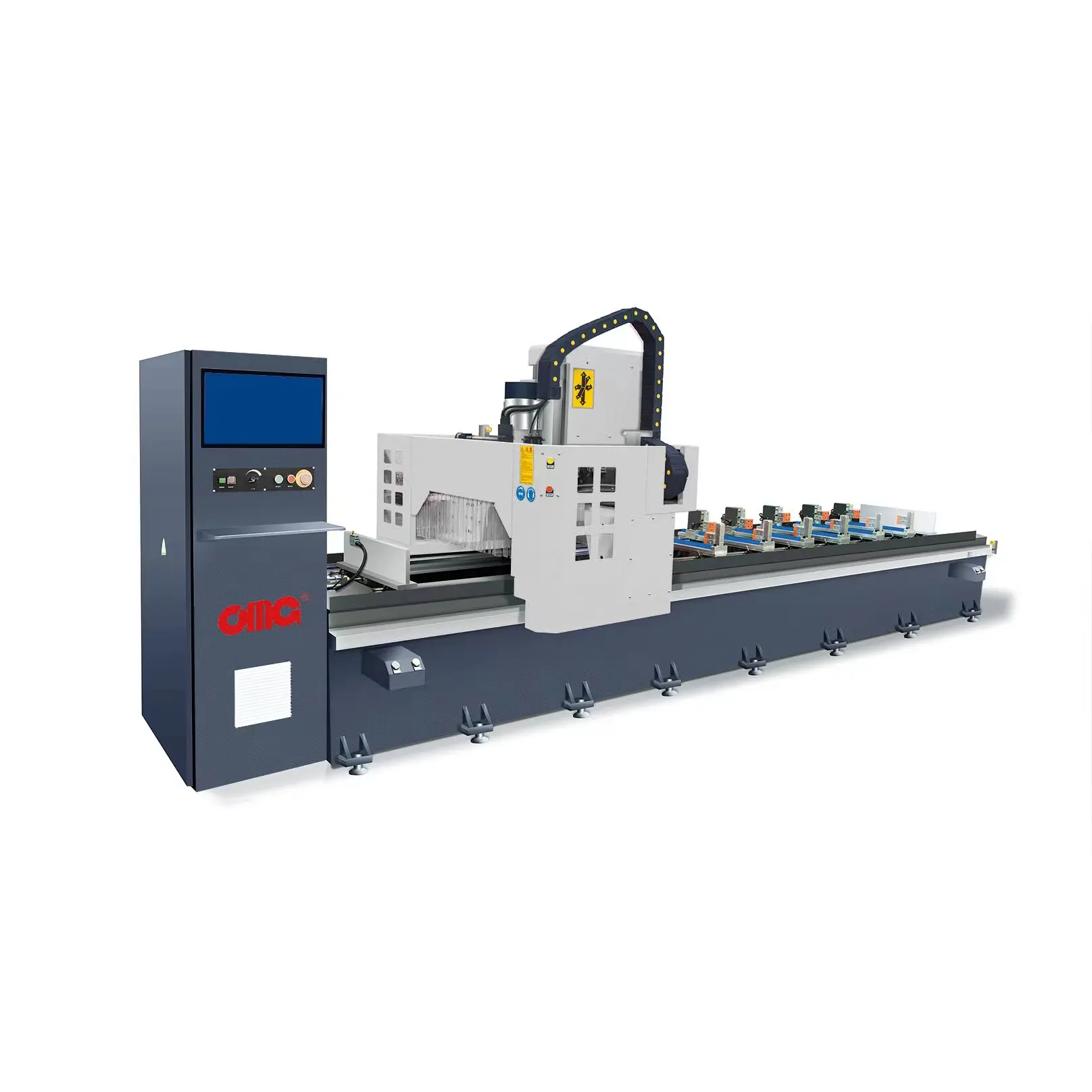

5 Оси CNC алюминиевый профиль маршрутизатор обрабатывающий центр
- Категория: >>>
- Поставщик: Shandong Camag Intelligent Technology Co. Ltd.Shandong Ltd.
Сохранить в закладки 1601092353014:
Описание и отзывы
Характеристики
Products Description
Three axis CNC machining center
1. Equipment Features
1.1 This machine is designed for processing round holes, slots, keyhole etc on aluminum profile, window door and curtain wall industry, it is also suitable for processing milling, chamfering,engraving plane surface and other procedure.
1.2Main spindle adopt air-cooling electric spindle, 9KW power, 0~18000/min , have the function of high precision, high safety and high reliable.
1.3Adopt Taiwan SYNTEC CNC control system.Have professional CAD CAM programming software. It can transform processing G code automatically, have the function of easy operation, high efficiency and lower labor intensity.
1.4 Imported guide rail, sliding block, X axis adopt high precision oblique gear and rack driving. Y and Z axis adopts high precision ball screw drive. The drive is stable, so can improve the precision of whole machine.
1.5 The worktable can overturn 180°.-90°~0°~+90°,Clamping one time profile can realize three faces processing, When processing deeply hole (hetero type hole ), it can realize deeply hole processing through overturn worktable, so can highly improve processing efficiency.
1.6 Adopt manual pump oil supply system, blades adopt system control spray cooling device.
1.7 The main electrical parts: circuit breakers, AC contactor are all SCHNEIDER brand.
1.8 The main components adopt steel structure and they are all through aging treatment.
1.1 This machine is designed for processing round holes, slots, keyhole etc on aluminum profile, window door and curtain wall industry, it is also suitable for processing milling, chamfering,engraving plane surface and other procedure.
1.2Main spindle adopt air-cooling electric spindle, 9KW power, 0~18000/min , have the function of high precision, high safety and high reliable.
1.3Adopt Taiwan SYNTEC CNC control system.Have professional CAD CAM programming software. It can transform processing G code automatically, have the function of easy operation, high efficiency and lower labor intensity.
1.4 Imported guide rail, sliding block, X axis adopt high precision oblique gear and rack driving. Y and Z axis adopts high precision ball screw drive. The drive is stable, so can improve the precision of whole machine.
1.5 The worktable can overturn 180°.-90°~0°~+90°,Clamping one time profile can realize three faces processing, When processing deeply hole (hetero type hole ), it can realize deeply hole processing through overturn worktable, so can highly improve processing efficiency.
1.6 Adopt manual pump oil supply system, blades adopt system control spray cooling device.
1.7 The main electrical parts: circuit breakers, AC contactor are all SCHNEIDER brand.
1.8 The main components adopt steel structure and they are all through aging treatment.
1 | Travel range | X-6500mm |
Y-400mm | ||
Z-400mm | ||
2 | Worktable load | 1000kg |
3 | Motor power | main shaft -7.5kw |
X-3.0kw | ||
Y-1.8kw | ||
Z-1.8kw | ||
4 | Maximum spindle speed | 12000r/min |
5 | Tool magazine form | UFO style |
6 | Tool magazine capacity | 16 |
7 | Time for changing adjacent tool positions | 2s |
8 | Movement speed | X- 60m/min |
Y- 30m/min | ||
Z- 30m/min | ||
9 | Feed Speed | 15000 m/min |
10 | Spindle taper | BT30 |
11 | Positioning accuracy | X- 0.05mm |
Y- 0.02mm | ||
Z- 0.02mm | ||
12 | Pressure demand | 5-8kg/cm2 |
13 | Weight | 6000kg |
Three axis machining center
1 | Travel range | X-7000mm |
Y-630mm | ||
Z-330mm | ||
2 | Worktable load | 1000kg |
3 | Motor power | 9kw |
X-2.0kw | ||
Y-1.5kw | ||
Z-1.0kw | ||
4 | Maximum spindle speed | 24000r/min |
5 | Tool magazine form | Carousel |
6 | Tool magazine capacity | 8 |
7 | Time for changing adjacent tool positions | 3s |
8 | Movement speed | X- 60m/min |
Y- 45m/min | ||
Z- 45m/min | ||
9 | Feed Speed | 15000 m/min |
10 | Spindle taper | ISO30 |
11 | Positioning accuracy | X- 0.05mm |
Y- 0.02mm | ||
Z- 0.02mm | ||
12 | Pressure demand | 5-8kg/cm2 |
13 | Weight | 5000kg |

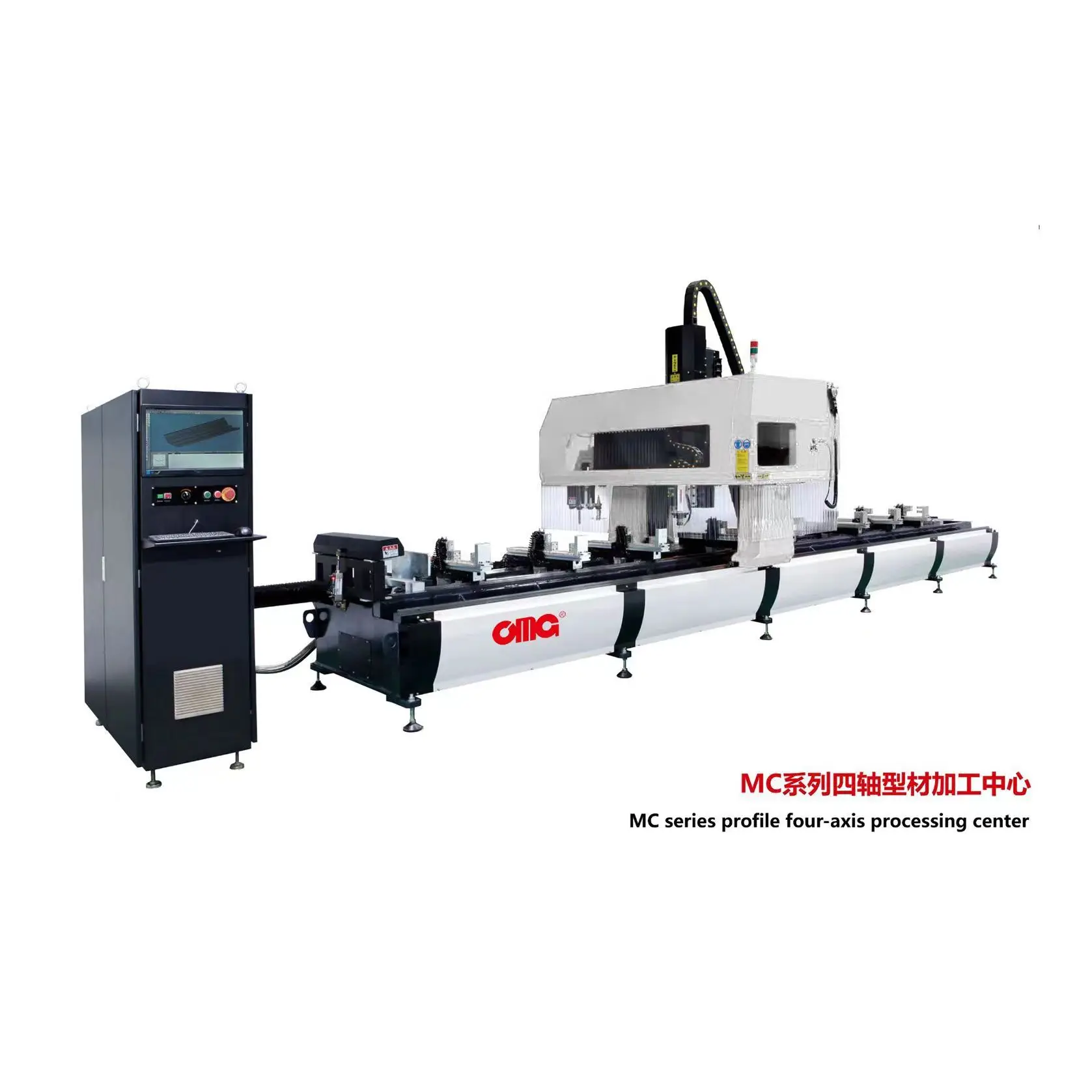

Four axis machining center
1 | Travel range | X-7000mm |
Y-630mm | ||
Z-330 | ||
2 | Worktable load | 1000kg |
3 | Motor power | 9kw |
X-2.0kw | ||
Y-1.5kw | ||
Z-1.0kw | ||
4 | Maximum spindle speed | 24000r/min |
5 | Tool magazine form | Carousel |
6 | Tool magazine capacity | 8 |
7 | Time for changing adjacent tool positions | 3s |
8 | Movement speed | X- 60m/min |
Y- 45m/min | ||
Z- 45m/min | ||
9 | Feed Speed | 15000 m/min |
10 | Spindle taper | ISO30 |
11 | Positioning accuracy | X- 0.05mm |
Y- 0.02mm | ||
Z- 0.02mm | ||
12 | Pressure demand | 5-8kg/cm2 |
13 | Weight | 5000kg |
Profile five axis machining center
1 | Travel range | X-6500mm |
Y-630mm/510MM | ||
Z-590mm | ||
2 | Worktable load | 1500kg |
3 | Motor power | 8.5kw/18kw |
X-4.0kw | ||
Y-3.2kw | ||
Z-3.2kw | ||
4 | Maximum spindle speed | 16000r/min |
5 | Tool magazine form | Carousel |
6 | Tool magazine capacity | 8+1 |
7 | Time for changing adjacent tool positions | 3s |
8 | Movement speed | X- 90m/min |
Y- 40m/min | ||
Z- 25m/min | ||
9 | Feed Speed | 2000 m/min |
10 | Spindle taper | HSK-F63 |
11 | Positioning accuracy | X- 0.05mm |
Y- 0.02mm | ||
Z- 0.02mm | ||
12 | Pressure demand | 5-8kg/cm2 |
13 | Weight | 6000kg |
Product packaging
Packaging | Whole film packaging machine; anti-collision package edge; fumigation-free plywood wooden box and pallets with iron binding belt. |
Shipping | We cooperate with SINOTRANS company whose experience in the ocean transportation will guarantee your machine safety. We also provide train transport, especially to Russia, Ukraine and other inland countries. |
Warranty and Service | 1.Guarantee for 5 years. 2. Maintenance free of charge for 3 years . 3.We will provide the consumable parts at an agency price. 4.24 hours online service, free technical support. 5.Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me. 6.We have manual instruction and CD (Guiding Videos) for software Installation, operation and machine's using and maintenance. |
Payment | We support T/T, L/C, VISA, Mastercard payment terms with Alibaba Trade Assurance |

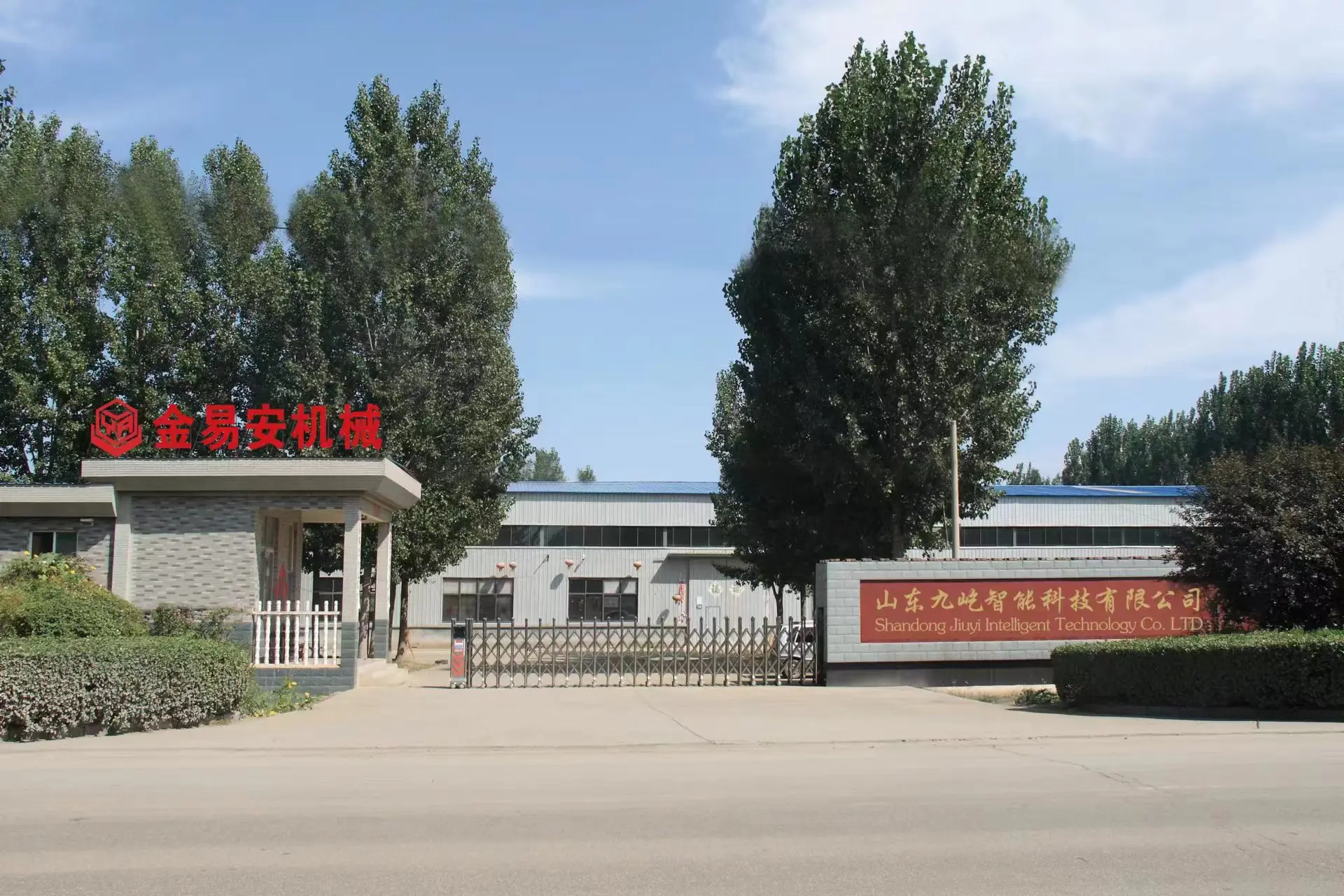

Company Profile
Our company is a professional manufacturer of laser cutting machines with over 20 years of experience in the industry. We carefully improve the stability, processing efficiency, and precision of the equipment! Multiple Southeast Asian countries,companies from the United States, Russia, etc., purchase multiple units and place repeated orders for customization!
Certifications
FAQ
1. Can I have samples of this type of machine to test the quality?
Yes, you can buy any samples to test the quality,our MOQ is 1 set.
2. What's the delivery time and can you lower the price?
It depends on your order. The delivery time is 15 workdays after we received your prepayment. If you have place an order of large quantities, then ,of course, the price can be lowered.
3. What's the payment method?
L/C, 30% deposit by T/T,70% spare payment L/C.
T/T, 30% deposit by T/T,70% spare payment before shipment.
Western Union
4.What’s your warranty?
a.The warranty time is one year.
b.We can send you free components to you if your machines are in guarantee time.
c.We can send our engineers to repair your machines
5.Why choose us?
We are China Leading Manufacture; Alibaba Assessed Gold Supplier;Professional
and patient sales;Best quality with reasonable price.
Yes, you can buy any samples to test the quality,our MOQ is 1 set.
2. What's the delivery time and can you lower the price?
It depends on your order. The delivery time is 15 workdays after we received your prepayment. If you have place an order of large quantities, then ,of course, the price can be lowered.
3. What's the payment method?
L/C, 30% deposit by T/T,70% spare payment L/C.
T/T, 30% deposit by T/T,70% spare payment before shipment.
Western Union
4.What’s your warranty?
a.The warranty time is one year.
b.We can send you free components to you if your machines are in guarantee time.
c.We can send our engineers to repair your machines
5.Why choose us?
We are China Leading Manufacture; Alibaba Assessed Gold Supplier;Professional
and patient sales;Best quality with reasonable price.
Похожие товары

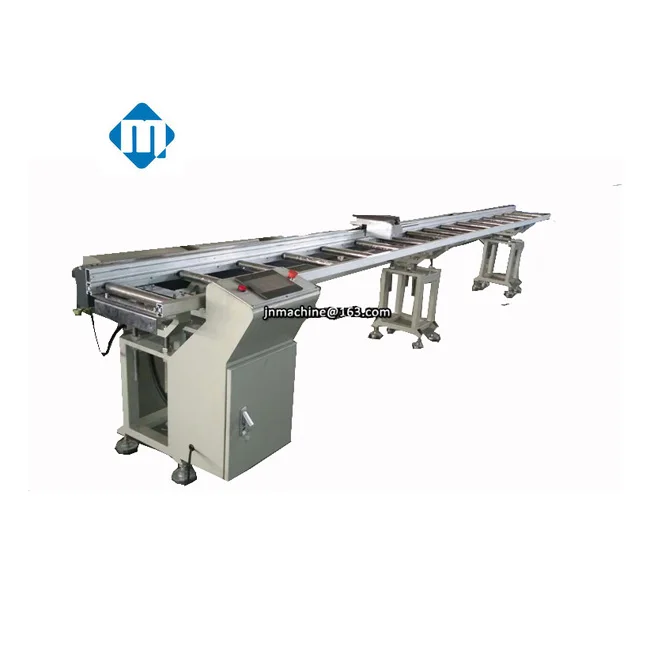

Автоматическое измерение длины и автоматическая остановка для резки пилы
457 710,84-483 139,22 ₽
2024 новый дизайн Алюминиевые Окна Фрезерный станок с ЧПУ алюминиевый профиль фрезерный
381 425,70-406 854,08 ₽
Алюминиевый Горячий продукт с ЧПУ 2024 окон 3 кВт 1200 2 лет другие гибочные машины арочные алюминиевые
1 309 561,57 ₽

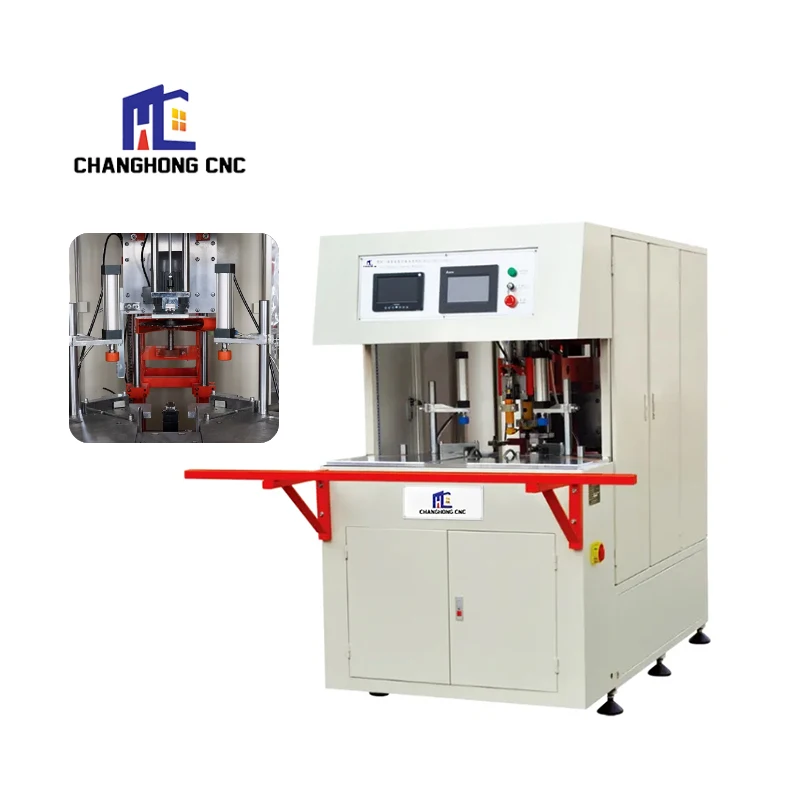

НПВХ инструменты для чистки углов окон и дверей ручной станок по хорошей цене
