4000 Вт 6000 7000 модель США IP 20 чистый синусоидальный солнечный инвертор 5 кВА
- Категория: >>>
- Поставщик: Thlinkpower New Energy Technology Co. Ltd
Сохранить в закладки 1601092451490:
Описание и отзывы
Характеристики

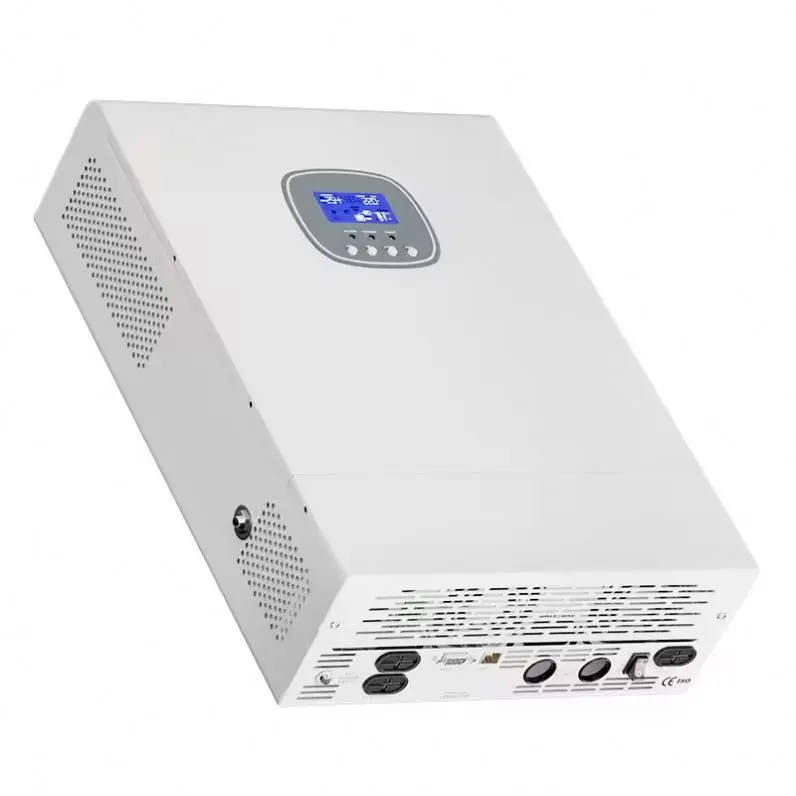

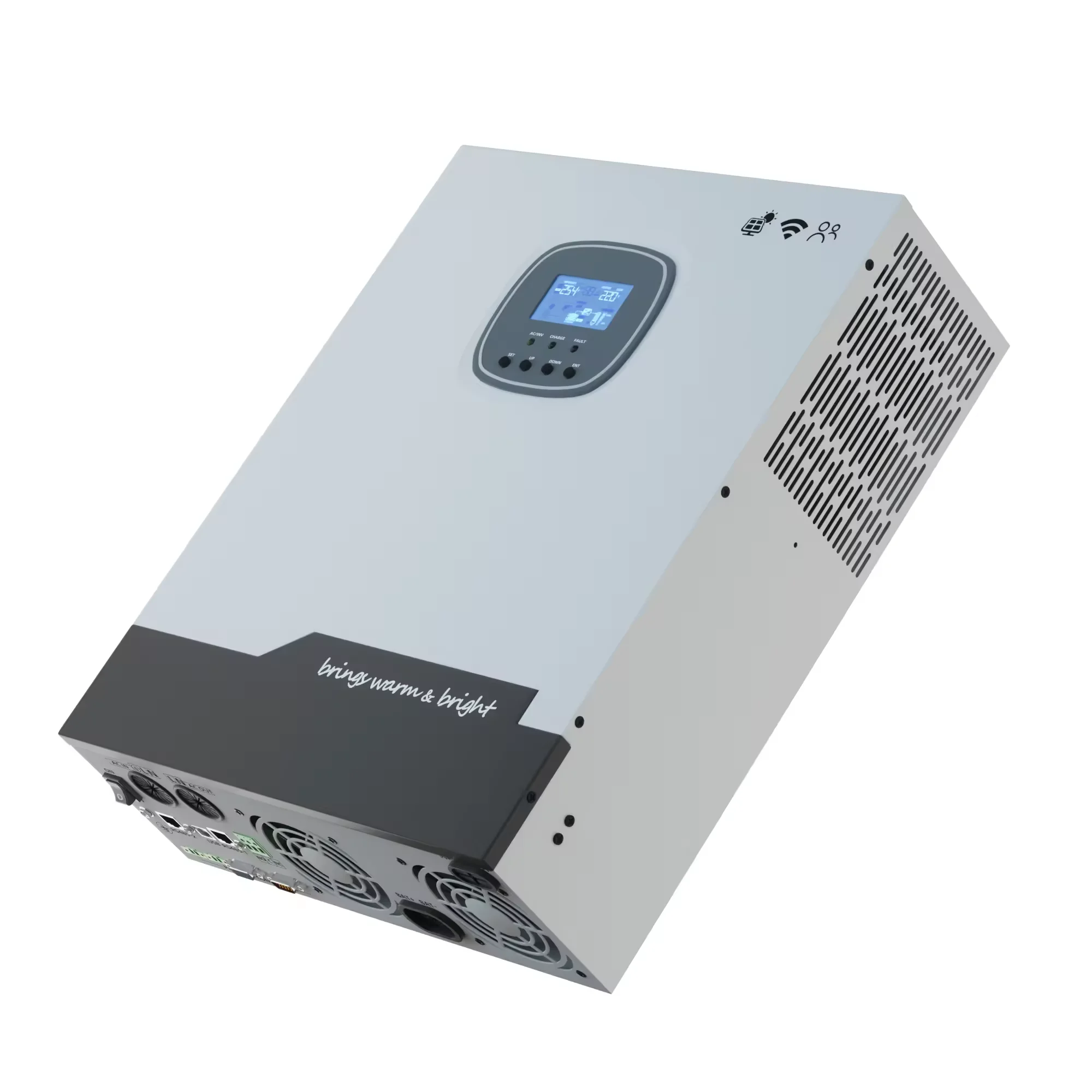

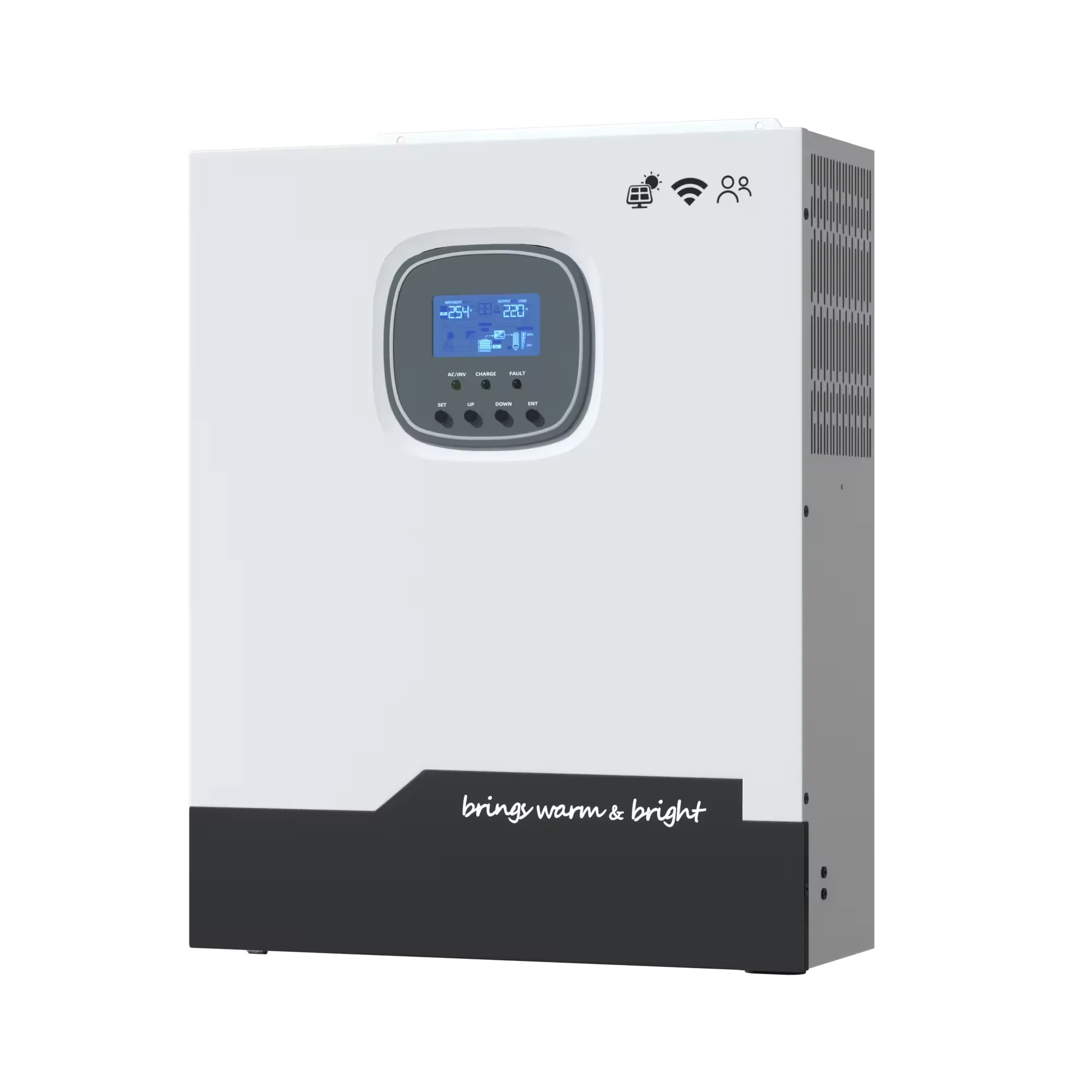

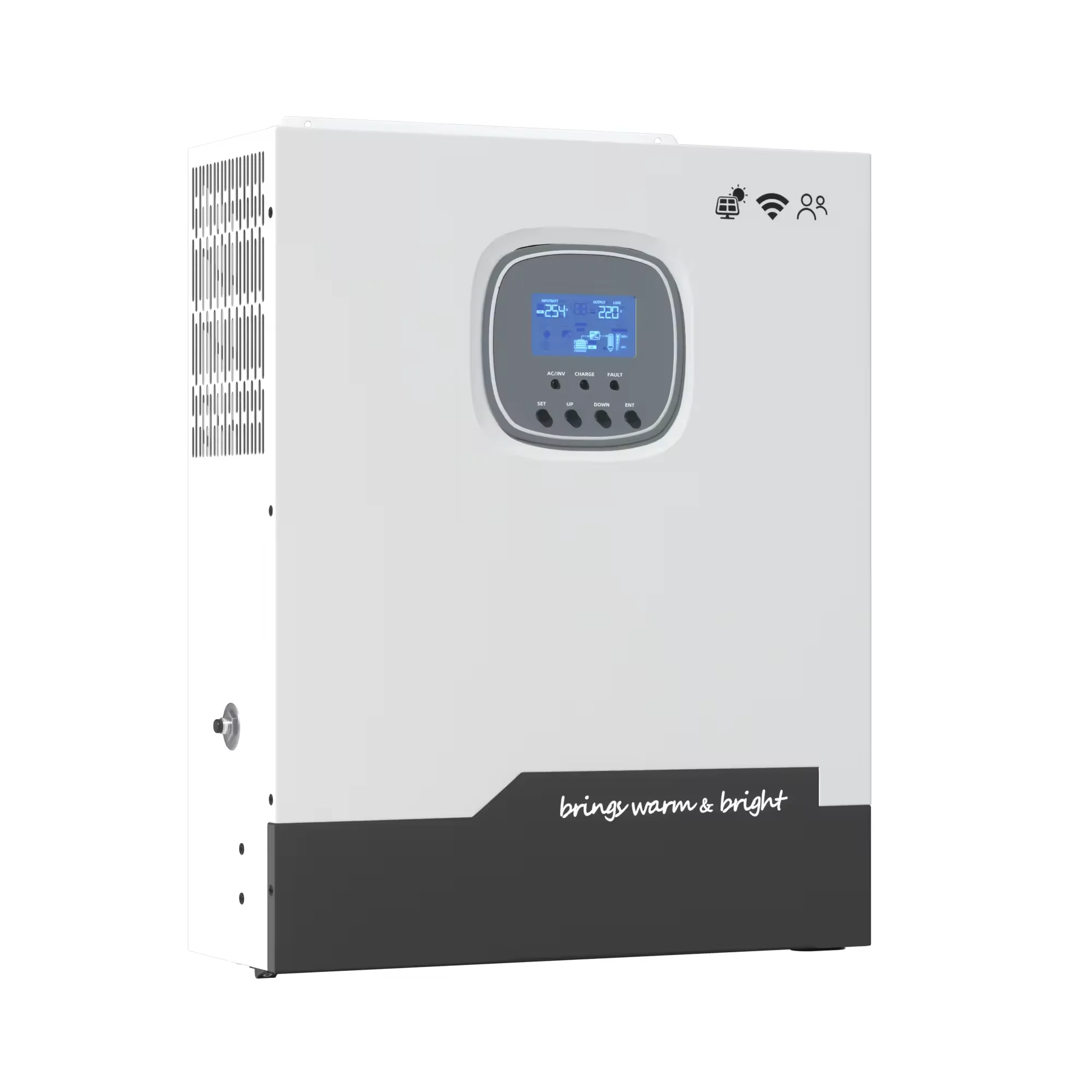

I SDPL Grid Solar Inverter
Grid Solar Inverter can be widely used in various home storage application environments.
Combined with smart display, it makes operation and maintenance easier.
Product parameters
Rated Output Power | 4000W | 6000W | |
Maximum PV Input Power | 6200W | 6500W | |
Maximum Solar Charging Current | 140A | 120A | |
Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC | ||
Nominal DC Voltage/Maximum DC Voltage | 90VCD/120VCD | ||
Maximum DC Voltage | 90~450VDC | ||
Number of MPPT Trackers/Maximum Input Current | 1/27A | ||
Nominal Output Voltage | 200/230/240VAC | ||
Output Voltage Range | 195.5~253VAC | ||
Nominal Output Current | 18.2A | 27.0A | |
Power Factor | >0.99 | ||
Feed-in Grid Frequency Range | 49-51Z士1Hz | ||
Maximum Conversion Efficiency( Solar to AC) | 98% | ||
Full Load | 4200W | 6200W | |
Maximum Main Load | 4200W | 6200W | |
Maximum Second Load(battery mode) | 1400W | 2067W | |
Main Load Cut Off Voltage | 22V DC | 44V DC | |
Main Load Return Voltage | 24V DC | 48V DC | |
AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | ||
Acceptable Input Voltage Range | 90-280VAC or 170-280VAC | ||
Super Power | 8400W | 12400W | |
Nominal Output Voltage | 24V DC | 48V DC | |
Output Waveform | Pure sine wave | ||
Efficiency(DC to AC) | 94% | ||
Nominal DC Voltage | 24V DC | 48V DC | |
Maximum Charging Current (Solar to AC) | 140A | 120A | |
Maximum AC Charging Current | 100A | ||
Dimension,D x W x H(mm) | 420*310*110 | ||
Net Weight(kgs) | 11 | 11 | |
Communication Port | RS232/WIFI/GPRS | ||
Operating Temperature | -10~50°C | ||
For more models and information of solar inverter, please feel free to Contact us
Recommend Products
Products Details
Application
Why Choose Us
FAQ
Q1: Are you direct manufacturer or trading company?
Thlinkpower is a global leading energy storage solution provider, owning three manufacturing centers in Ningbo China. We have 550+ employees, and a R&D team of 150+ people with more than 10 years experience in this industry, who has deep understanding for energy storage and global carbon neutrality.
Q2: What services can thlinkpower provide you?
1. pre-sale service: Custom scheme design Pre-installation design of the system Early design of system debugging.
2. Quick install: Delivered with installation kit and video Remote Online Video Installation Guide.
3. Remote training: Online Product Training Online Troubleshooting Training.
Thlinkpower is a global leading energy storage solution provider, owning three manufacturing centers in Ningbo China. We have 550+ employees, and a R&D team of 150+ people with more than 10 years experience in this industry, who has deep understanding for energy storage and global carbon neutrality.
Q2: What services can thlinkpower provide you?
1. pre-sale service: Custom scheme design Pre-installation design of the system Early design of system debugging.
2. Quick install: Delivered with installation kit and video Remote Online Video Installation Guide.
3. Remote training: Online Product Training Online Troubleshooting Training.
4. After-sales service: 7 days x 24 hours dedicated and timely service Remote diagnostics and technical support and regular system maintenance.
Q3: why choose Thlinkpower inverter ?
1 Thlinkpower Solar inverters have been installed in more than 60 countries (e.g. Mid-East, EU ,Africa, Latin-America ) with currently 3 manufacture base in Ningbo ,Huizhou Shenzhen.
2 It is Your Best Choice For AC Storage Hybrid Solutions and String Inverters.
3 all Thlinkpower Solar inverters and distributors are insured by US CHUBB Insurance corporation company.
4 All Solar inverters are equipped with Standard WiFi communication.
5.All thlinkpower Solar inverters are equipped with 25-year data storage capabiliity (Internal SD Card).
Q4: What's the different between inverter and solar inverter?
Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q5: May I take some samples to test before placing the order ?
Yes, we can provide sample but customer should pay cost of sample and freight charge.
Q6: How about the after-sales service?
We have a big after-sales team, if you have any problems, please tell us directly and we will try our best to solve all of your problems.
