304 из нержавеющей стали инвестиционного литья американского стандарта фланец шаровой клапан
4 751,28-5 090,66 ₽
Высокоплатформенный фланцевый шаровой клапан вафильного типа 304 316 из нержавеющей стали
- Категория: >>>
- Поставщик: Jining Yanzhou District Shangdian Valve Co. Ltd.Jining Ltd.
Сохранить в закладки 1601092889464:
Описание и отзывы
Характеристики
Product Information
Stainless steel wafer ball valves and wafer insulation jacketed ball valves are suitable for Class150, PN1.0~2.5MPa, operating temperature -19~+180°C (the sealing ring is reinforced polytetrafluoroethylene) or -19~+300°C ( The sealing ring is made of para-polystyrene on various pipelines. It is used to cut off or connect the medium in the pipeline. Different materials are selected and can be applied to water, steam, oil, nitric acid, acetic acid, oxidizing media, and urea respectively. etc.
Parts name | Q41F-(16-64)C | Q41F-(16-64)P | Q41F-(16-64)R | ||
Body | WCB | ZG1Cr18Ni9TiCF8 | ZG1Cr18Ni12Mo2TiCF8M | ||
Bonnet | WCB | ZG1Cr18Ni9TiCF8 | ZG1Cr18Ni12Mo2TiCF8M | ||
Ball | 1Cr18Ni9Ti304 | 1Cr18Ni9Ti304 | 1Cr18Ni12Mo2Ti316 | ||
Stem | 1Cr18Ni9Ti304 | 1Cr18Ni9Ti304 | 1Cr18Ni12Mo2Ti316 | ||
Sealring | Poltetrafluorethylene(PTFE) | ||||
Packing | Poltetrafluorethylene(PTFE) | ||||
DN | d | L | D | K | D1 | C | H | N-Ф | W |
15 | 15 | 35 | 95 | 65 | 46 | 10 | 65 | 4-M12 | 100 |
20 | 20 | 37 | 105 | 75 | 56 | 11 | 70 | 4-M12 | 110 |
25 | 25 | 42 | 115 | 85 | 65 | 12 | 80 | 4-M12 | 125 |
32 | 32 | 53 | 135 | 100 | 76 | 14 | 90 | 4-M16 | 150 |
40 | 38 | 62 | 145 | 110 | 85 | 16 | 96 | 4-M16 | 160 |
50 | 50 | 78 | 160 | 125 | 100 | 17 | 104 | 4-M16 | 180 |
65 | 58 | 90 | 180 | 145 | 118 | 18 | 110 | 4-M16 | 200 |
80 | 76 | 110 | 195 | 160 | 132 | 18 | 130 | 4-M16 | 250 |
100 | 90 | 134 | 215 | 180 | 156 | 19 | 145 | 4-M16 | 270 |
125 | 100 | 197 | 245 | 210 | 185 | 22 | 180 | 4-M18 | 320 |
150 | 125 | 231 | 480 | 240 | 207 | 24 | 200 | 4-M23 | 320 |
Nominal pressure | PN1.6,2.5,4.0,6.4MPa |
Strength test pressure | PT2.4.3.8,6.0,9.6MPa |
Low pressure seal test pressure | 0.6MPa |
Applicable medium | Q41F-(16-64) Water, oil, gas |
Applicable temperature | -29~180℃ |
Applicable medium | 41F-(16-64) P Nitric acid,Q41F-(1664)P Acetic acid |

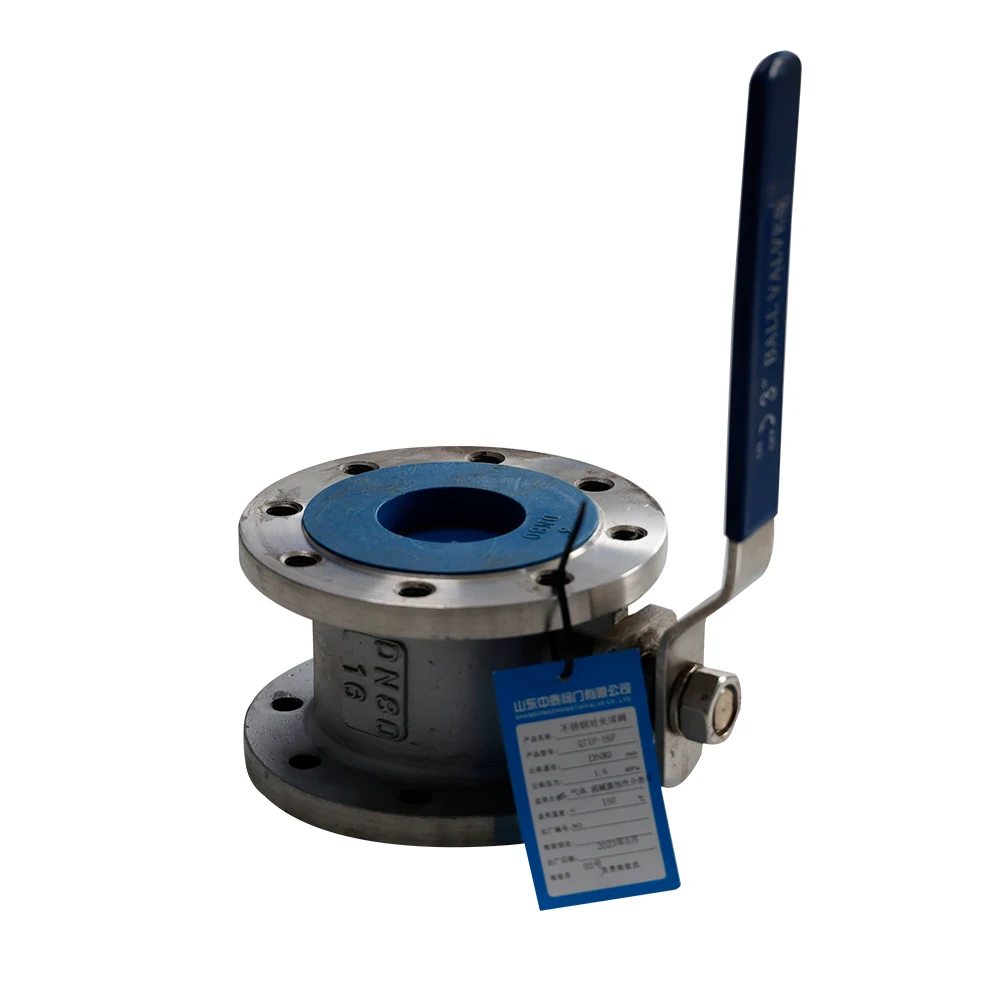

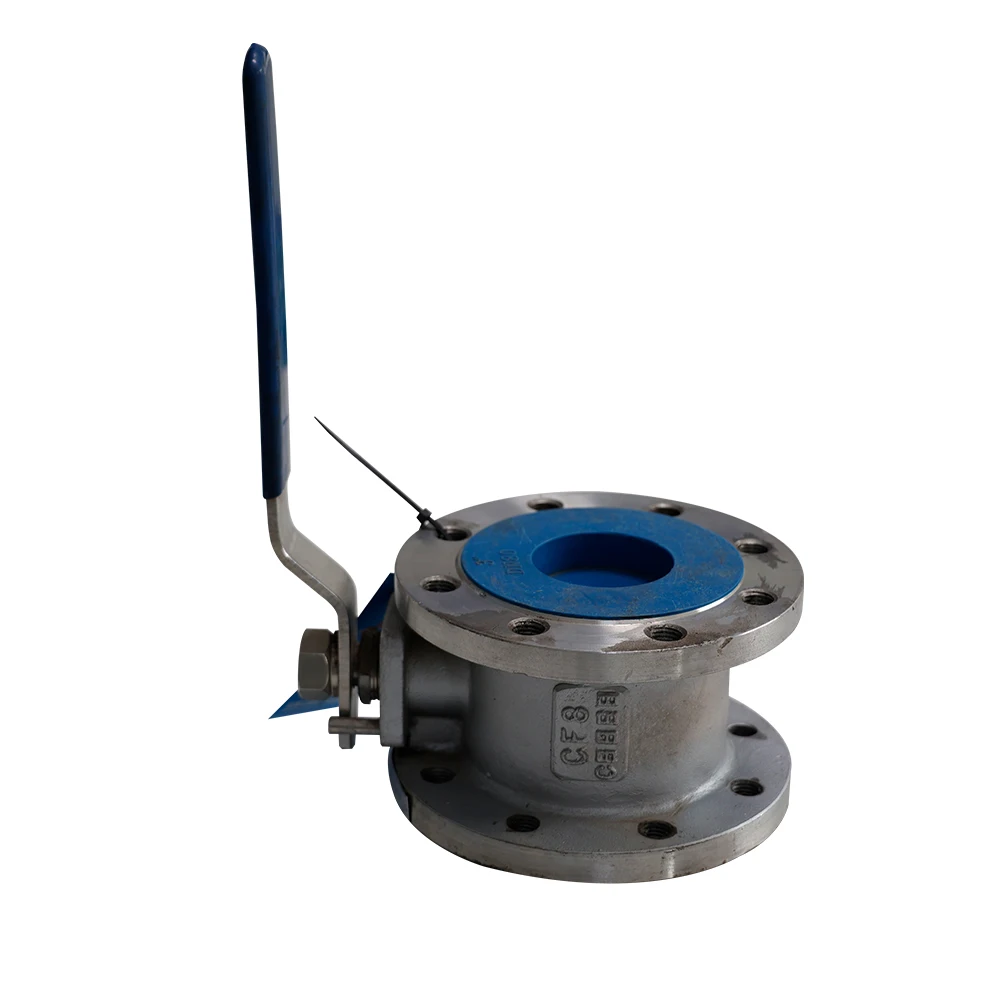

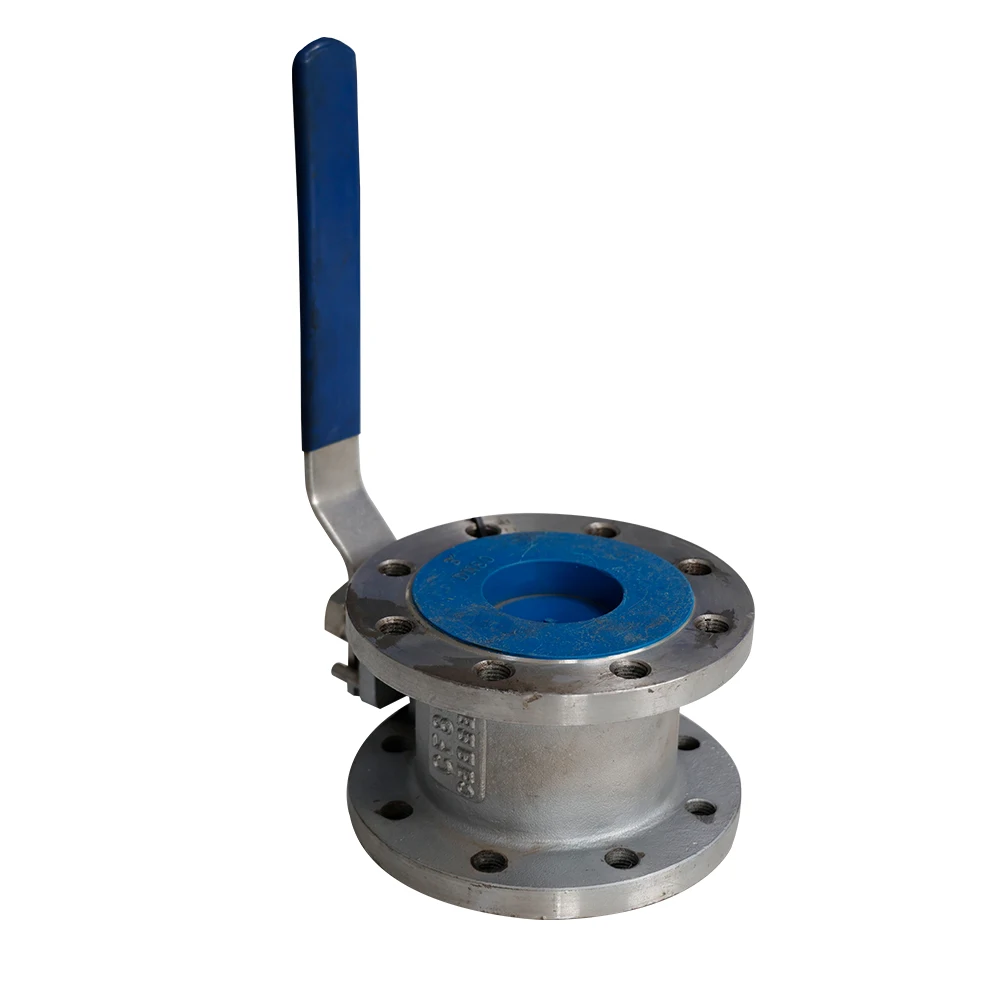

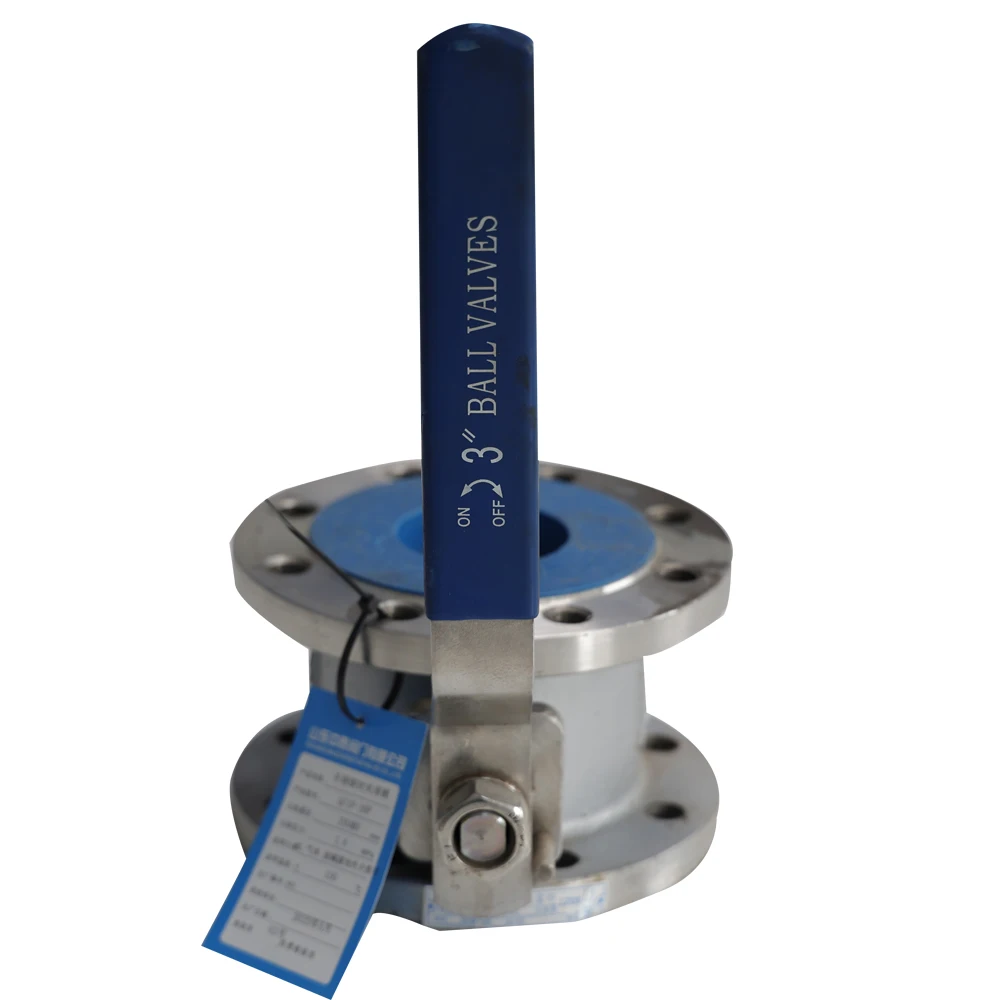

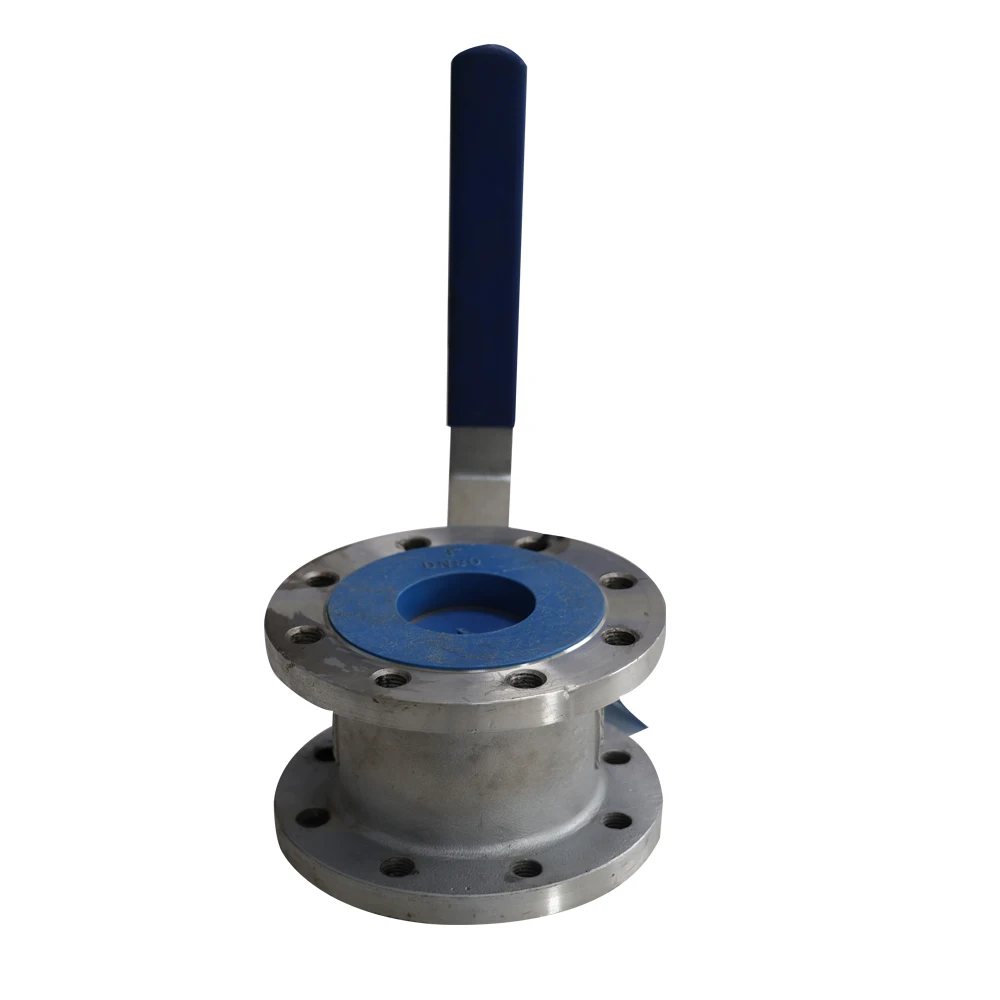

Product Show
Product Feature
1. The valve body is made of high-quality materials to produce a high-temperature and wear-resistant valve body (working temperature -29~180℃).
2. The surface of the valve body is smooth, with less friction, smoother rotation, no burrs on the surface, long service life and no rust.
3. The combination of chromium and nickel creates a layer of anti-oxidation on the surface of the material, which acts as an anti-rust. It is not afraid of sunlight and rain, and is durable.
4. The valve is easy to operate and the small torque switch saves effort.
2. The surface of the valve body is smooth, with less friction, smoother rotation, no burrs on the surface, long service life and no rust.
3. The combination of chromium and nickel creates a layer of anti-oxidation on the surface of the material, which acts as an anti-rust. It is not afraid of sunlight and rain, and is durable.
4. The valve is easy to operate and the small torque switch saves effort.
Product Application
For Class150, PN1.0~2.5MPa, operating temperature -19~+180°C (sealing ring is reinforced
polytetrafluoroethylene) or -19~+300°C (sealed Rings are made of para-polystyrene on various pipelines, used to cut off or connect the medium in the pipeline. Different materials are selected, and can be applied to water, steam, oil, nitric acid, acetic acid, oxidizing media, urea, etc..Products are widely used in pipeline introduction devices in chemical industry, fertilizer, metallurgy, pharmaceutical power, steel plants, wineries, paper mills, coal mines, engineering construction, municipal administration, HVAC, liquefied gas, water supply, etc.
polytetrafluoroethylene) or -19~+300°C (sealed Rings are made of para-polystyrene on various pipelines, used to cut off or connect the medium in the pipeline. Different materials are selected, and can be applied to water, steam, oil, nitric acid, acetic acid, oxidizing media, urea, etc..Products are widely used in pipeline introduction devices in chemical industry, fertilizer, metallurgy, pharmaceutical power, steel plants, wineries, paper mills, coal mines, engineering construction, municipal administration, HVAC, liquefied gas, water supply, etc.
More Product
Packing & Delivery
Company Profile
Jining Yanzhou District Shangdian Valve Co., Ltd. adopts advanced production equipment, using a new industrial concept and strong technical force, for produce high-quality end products in line with international standards, thereby accelerating the pace of industrialization of enterprises. Whether it is the selection of raw materials fol products or the inspection of the products, strict compliance with international standards is strictly applied to ensure that the qualified rate of manufactured products remains at 100%, and the excellent quality of products is truly ensured.
As a professional valve supply chain manufacturer, we specialize flow gate valves, globe valves, control valves.butterfly valves, ball valves, filters, flanges, pipes and fittings.Welcome to visit our factory
As a professional valve supply chain manufacturer, we specialize flow gate valves, globe valves, control valves.butterfly valves, ball valves, filters, flanges, pipes and fittings.Welcome to visit our factory
FAQ
-About Products
Q1: How is the quality?
A1: Quality is priority. We pay much attention to the quality check. Every product will be fully assembled and carefully tested before it's packed for shipment.
Q2: Do you have a list of your most popular products?
A2: Here is a list of our most popular products.
- About Samples
Q1: Can you provide free ball valve samples?
A1: Yes, but the shipping cost needs to be borne by the buyer.
Q2: How much for a sample?
A2: Please tell me the samples and other details you want, and I will quote you as soon as possible.
- About MOQ
Q1: What is your minimum order quantity?
A1: The MOQ for each product is different, so it would be recommended to refer to the detail page of the product you are
interested in. If you need further clarification, send me the product link, and I will reply as soon as possible.
-About Customized
Q1: Can I customize products?
A1: Yes. Let me know the specific customization requirements, and I will get back to you as soon as possible.
Q2: Can I customize the logo and packaging?
A2: Yes, we can customize products based on your design and packaging requirements. Please send your detailed requirements to us.
- About Price
Q1: Why is the actual price higher than the price on the website?
A1: The price on the website is for the most basic style and the smallest size, while we will recommend the right product to you according to your actual requirement, which will make the actual product different from the basic style, so the price will be different, and at the same time the bigger the size, the higher the price will be. Each quotation is the best price we have calculated to give.
Q2: What is the price?
A2: For an accurate quote, please provide us with more details like logo or packaging customization requirements, quantity preference, shipping address, etc.
- About Production
Q1: What is the lead time of your products?
A1: It mainly depends on the types of products, quantity, and season. As for most of the products with small quantities, we can deliver them within 15 days while it will take about 30 days for the products with large quantities. In addition, we also have some products in stock. Please feel free to talk with us about the lead time of specific products.
Q2: How long is your production cycle?
A2: The production cycle for each product is different. If you need further clarification, send me the product link with the sizes, quantity and special requirements you need, and I will reply as soon as possible.
