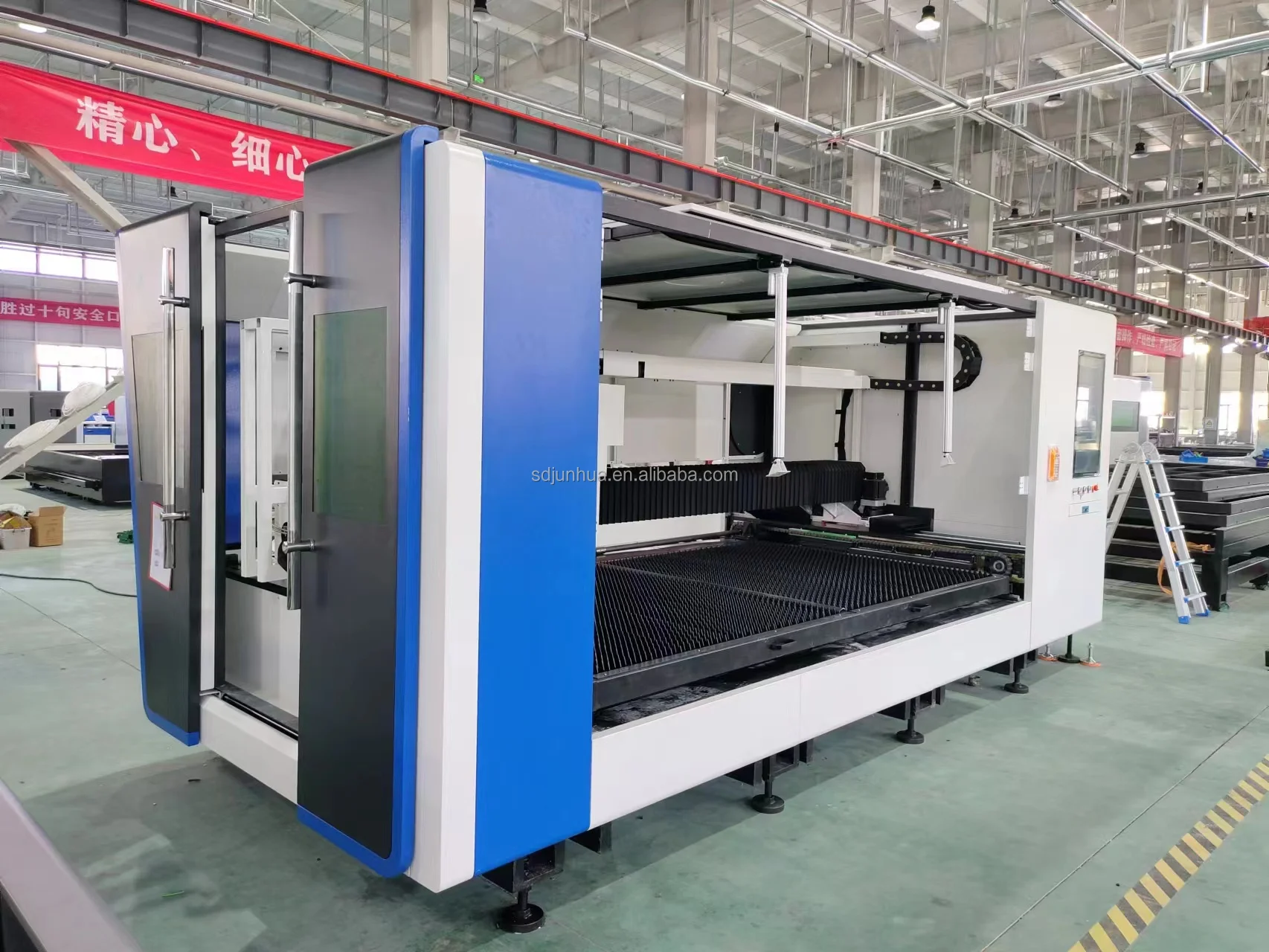

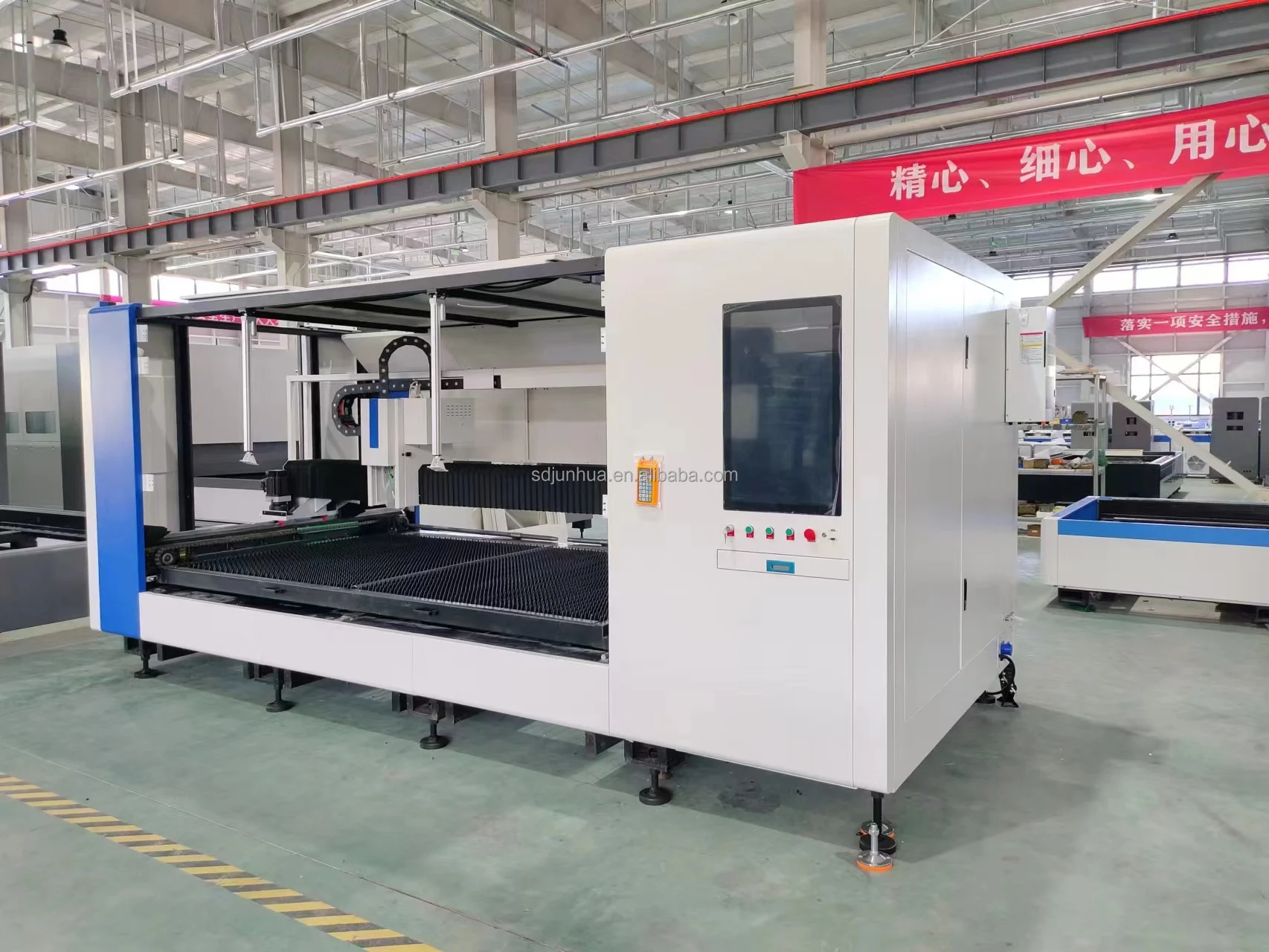

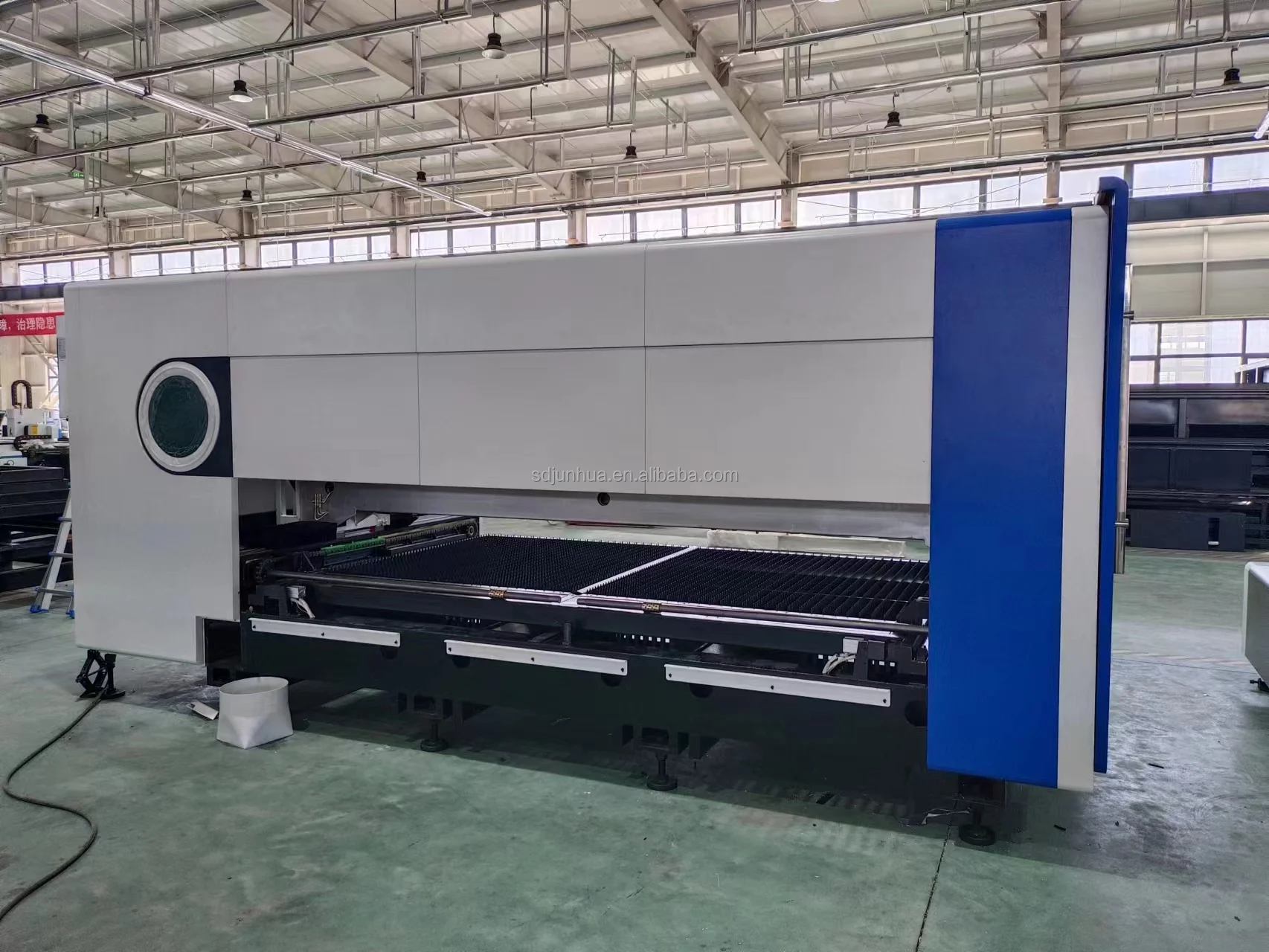

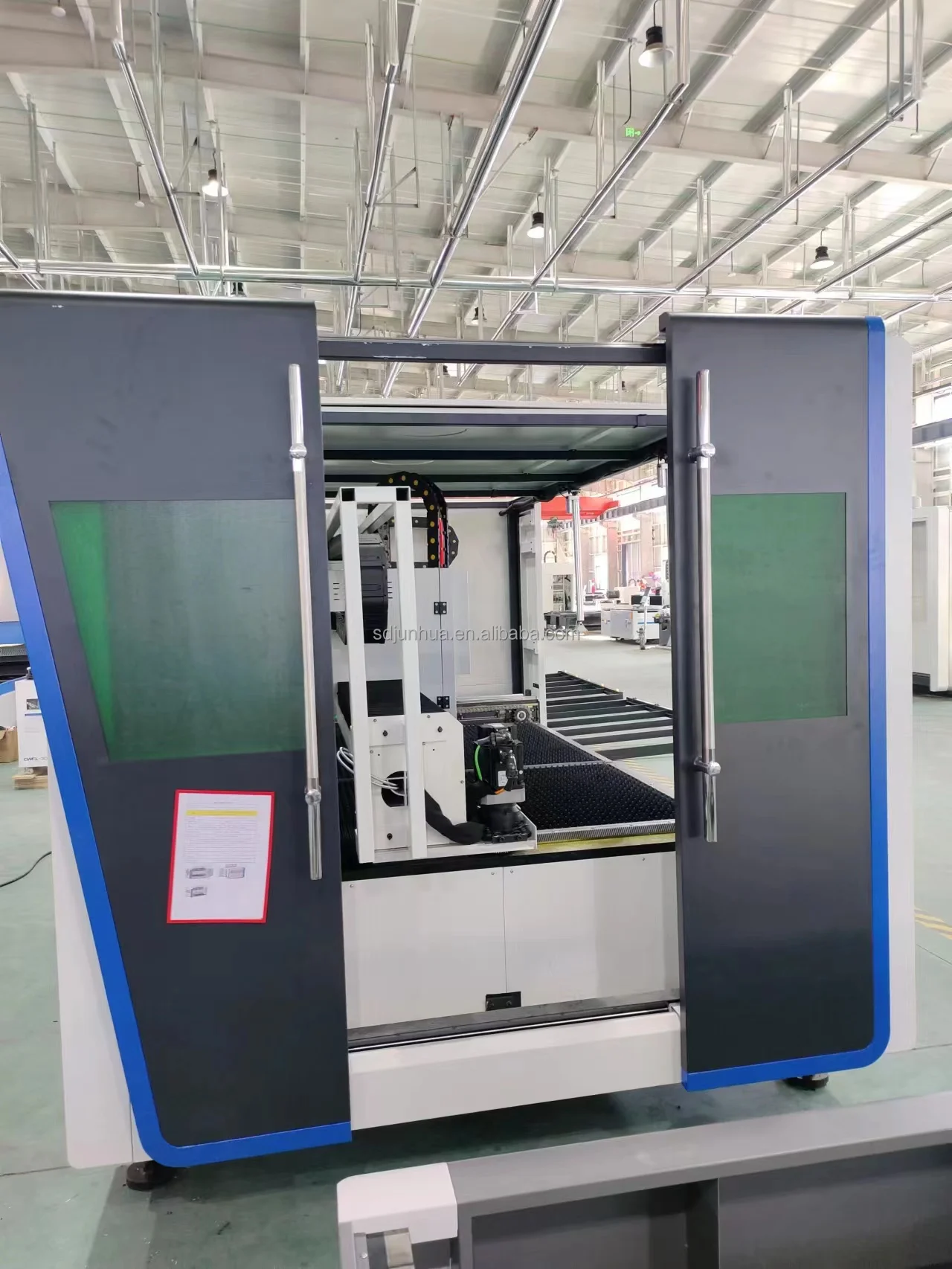

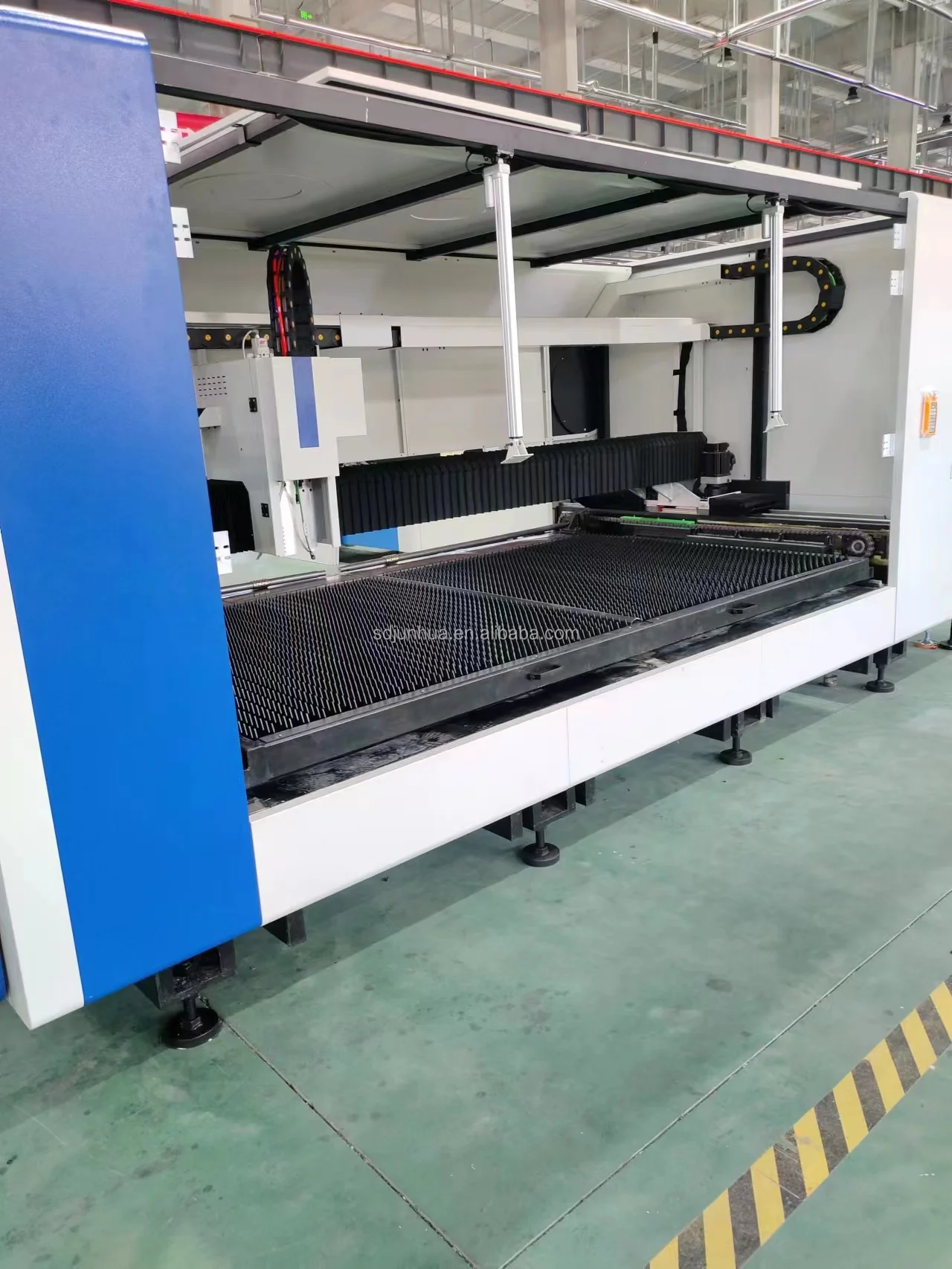

3015 для боковой подачи 6 кВт 3 волоконно лазерная машина резки металла цена

Сохранить в закладки 1601093384804:


Цена:3 240 186,00 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики





Product Description


■ Metal Tube welding. ■ Italian COLGAR machine milling boring.
■ Machine weight 8 tons. ■ Machine error accuracy 0.02mm.
■ With 24 hours quenching process. ■ Support max moving speed 80m/min.





Specification


Machine model
JH-3015
Laser Source
1000W to 300000W
Controller
Cypcut, Raytools or Ncstudio
Working Area(Board processing)
1500*3000 mm
X-axis length
1515mm
Y-axis length
3030mm
Z-axis length
100mm
X-axis motor power
750W
Y-axis motor power
750W
Z-axis motor power
400W
Positioning accuracy of X / Y axis
±0.05mm
Repeated positioning precision of X / Y axis
±0.02mm
Water cooler Power
1.5KW
Guide
Taiwan HIWIN
Rack
Taiwan HIWIN
Servo Motor
Leadshine, FUJI, DELTA Servo motor
Reducer
Planetary speed reducer
Minimum cutting width
0.08-0.1MM
Maximum cutting thickness
Depends on power of laser sources
Maximum moving speed
80m/min
Electricity requirements
380V/50/60HZ
Graphic Format Supported
PRO/E.UG, Solidworks
Acceleration
1.0G
Presser of N2/O2/AIR
15-20/6-8/15-30 bar
Total Weight
2.5T
Work per day
16H
Oil Box
Auto Oil Injection System


Fiber laser cutting machine is used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway parts, automobiles, grain machinery, textile machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising, metal external processing, kitchenware processing and other manufacturing and processing industries.


Cutting samples








Electrical power cost
Equipment components
Power consumption (KW)
Total
Laser source
4.5

11.5 KW/H
Machine bed
4.0
Water chiller system
3


Auxiliary gas cost
Gas type
Air cost
Life time
Total consume
Cutting effect
Note
Oxygen
$2 /Bottle
80 minutes
2.5 $/H
Black edge
Take 1mm carbon steel as example
Nitrogen
$4/Bottle
40 minutes
2.6$/H
White edge
Take 1mm stainless steel as example


Note: The number above is Chinese cost. Just for your reference. By the way, if you use nitrogen a lot, you can consider it in can. So it just cost quarter of the total. Also, you could save the time to change bottles


Machine main parts
