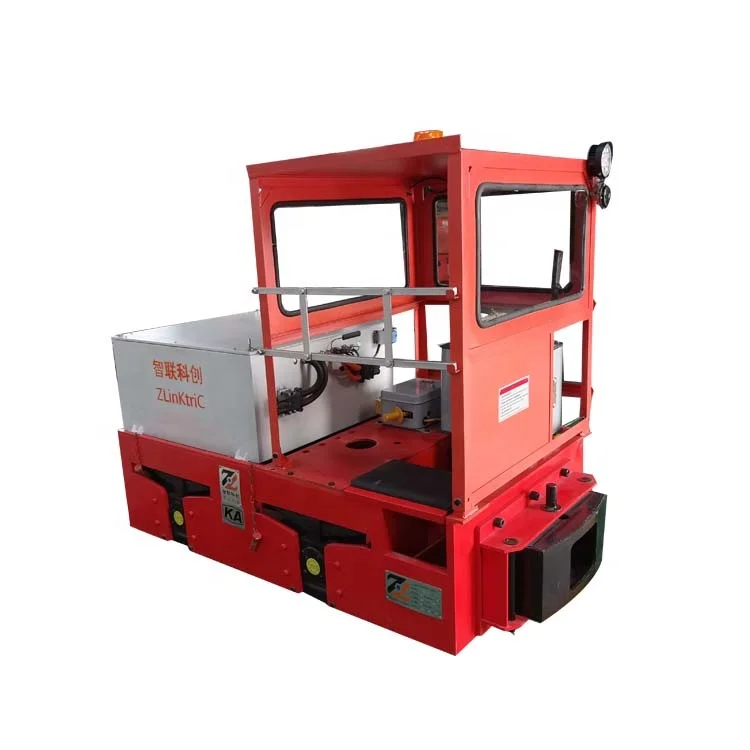

Малогабаритная модель CTY2.5 железная дорога подземный электровоз с литиево-свинцово-кислотным аккумулятором и гидравлическим тормозом
747 123,36 ₽
Малогабаритная дорога 1 5 тонны 2 железнодорожные подземные электровозы с литиево свинцово кислотными аккумуляторами и гидравлическим тормозом
- Категория: >>>
- Поставщик: Yantai Zlinktric Mining Equipment Co. Ltd.
Сохранить в закладки 1601093782705:
Описание и отзывы
Характеристики
Product Description
The length of the entire Underground Coal Mine battery locomotive for mining is only 1.66 meters, which is directly below the cage.

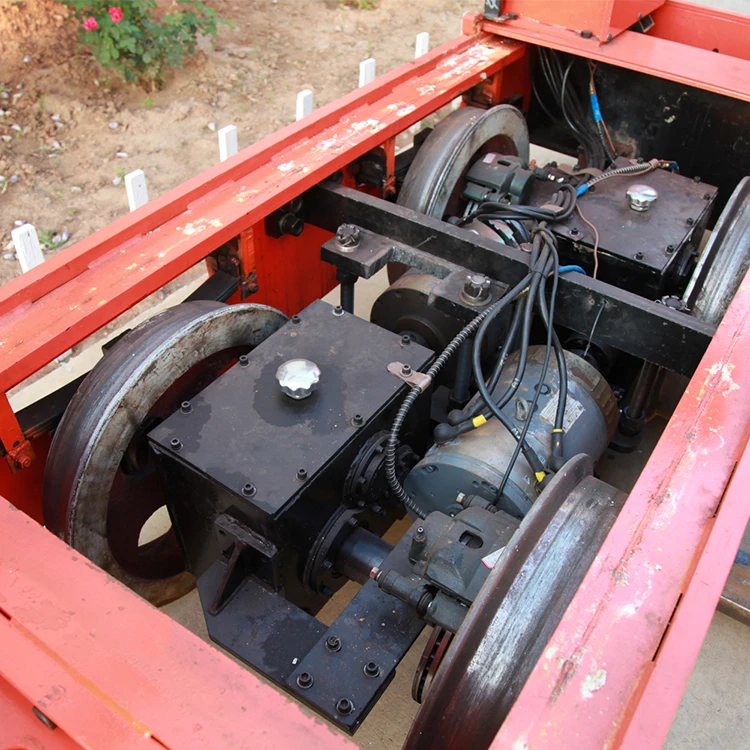

The self-developed three-stage gearbox design is small in size and large in speed ratio, which improves the traction of the entire Underground Coal Mine battery locomotive for mining.
All gearbox gears are made of 40CrMnTi, heat treatment process, high strength and impact resistance.
The engine casing is processed by seamless steel tubes, specially developed for mine conditions, resistance to moisture and earthquakes.
The steel wheel is cast in manganese steel, wear resistant and durable.
The appearance of the entire 2.5T Underground Mine Electric Trolley Locomotive electric locomotive is electrostatically sprayed, which is more resistant to corrosion.
The external structure of the Underground Coal Mine battery locomotive for mining is screwed in for ease of maintenance.
Explosion-proof drive battery to prevent equipment downtime caused by the battery.
Regulation Cutter speed regulation, steady start, effectively protect engine and gearbox gear from impact.
wireless remote control function is optional, 100 meters remote control range, safer and more efficient.
Product Parameter
| Specification/Parameter | Value |
| Name | CTY2.5/6GB(A single motor) |
| Adhesive weight | 2.5t |
| Dimensions (L x Wx H) | 1660(2100)*970*1550mm |
| Traction power rating | 4kw |
| Rated weight | 18t(About 12 0.75 cubic meters of mining wagon ) |
| Rated traction | 4.7KN |
| Maximum Traction | 7.23KN |
| Traction Height | 320mm |
| Brake model | Double-axle four-wheel hydraulic disc brake self-locking (pedal type) |
| Chopper speed regulation | |
| Speed regulation | Resistor controlled |
| Transmission | Triple gear reduction |
| Charger power | 2.5kw |
| Battery Capacity | 330AH |
| Speed (km/h) | 5.8km/h |
| Wheel diameter | 460mm |
| Min. turning radius | 4m |
| Wheelbase | 750mm |
| Track gauge | 600mm |
| Specification/Parameter | Value | Value | Value | Value | Value |
| Adhesive weight | 1.5t | 2.5t | 2.5t | 5t | 8t |
| Dimensions (L x Wx H) | 1660*950*1550mm | 1660*970*1550mm | 1660*970*1550mm | 231*970*1550mm | 4580*1095*1550mm |
| Traction power rating | 4kw | 4kw | 8kw(4kw*2) | 15kw(7.5kw*2) | 22kw(11kw*2) |
| Traction | 3.8KN | 4.7KN | 4.7KN | 10KN | 17KN |
| Rated weight | 11t(About 7 0.75 cubic meters of mining wagon ) | 18t(About 12 0.75 cubic meters of mining wagon ) | 18t(About 12 0.75 cubic meters of mining wagon ) | 35t(About23 0.75 cubic meters of mining wagon ) | 56t(About 30 1.05 cubic meters of mining wagon ) |
| Charger power | 2.5kw | 2.5kw | 2.5kw | 5kw | 5kw |
| Charging time | 6h | 8h | 8h | 8h | 8h |
| Using time | 10h | 10h | 10h | 10h | 10h |
| Electrolyte capacity | 102L | 102L | 102L | 210L | 420L |
| Speed (km/h) | 5.8km/h | 5.8km/h | 5.8km/h | 5.8km/h | 6.8km/h |
| Min. turning radius | 4m | 4m | 4m | 4m | 7m |
2.5T Mining Underground Mining battery locomotive for mining Details![Model CTY5.0 railway electric Lithium/lead-acid battery locomotive pulling 40T in mining tunnel]()
A Variety Of Machine Are Available:
Company Profile
Yantai Zlinktric Mining Equipment Co., Ltd. is the production of mining equipment and accessories for the main science and technology enterprises, the company is located in scenic coastal city - Longkou city, where three sides sea, odds abundance, east of Yantai, Qingdao to the south, near the port, sea and air transport West Longkou is very convenient. The company has a modern enterprise management mechanism, first-class processing equipment, iperfect testing equipment, high-quality scientific research staff, (in cooperation with Huazhong University of Science and Technology) and quality tracking services. Production and sales of hydraulic tunnel now separation machines, battery operated Underground Coal Mine battery locomotive for mining, belt loader, spine rails, bathtub and other mining equipment. And work to achieve a relationship between the devices through the intelligent control system for production operations in the mine to improve work efficiency and reduce security risks. We look forward to your choice, and always ready to provide you with the most dedicated service.
Packing And Shipping
RFQ
1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
3. How about your delivery time?
A: Generally, it will take 15 to 30 days after receiving your advance payment. Sometimes we have them in stock.The specific delivery time depends on the items and the quantity of your order.
4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
5: How do you make our business long-term and good relationship?
Relying on scientific and technological innovation, customer satisfaction as the goal, equipment to provide customers with quality products and comprehensive after-sales service.
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
3. How about your delivery time?
A: Generally, it will take 15 to 30 days after receiving your advance payment. Sometimes we have them in stock.The specific delivery time depends on the items and the quantity of your order.
4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
5: How do you make our business long-term and good relationship?
Relying on scientific and technological innovation, customer satisfaction as the goal, equipment to provide customers with quality products and comprehensive after-sales service.
