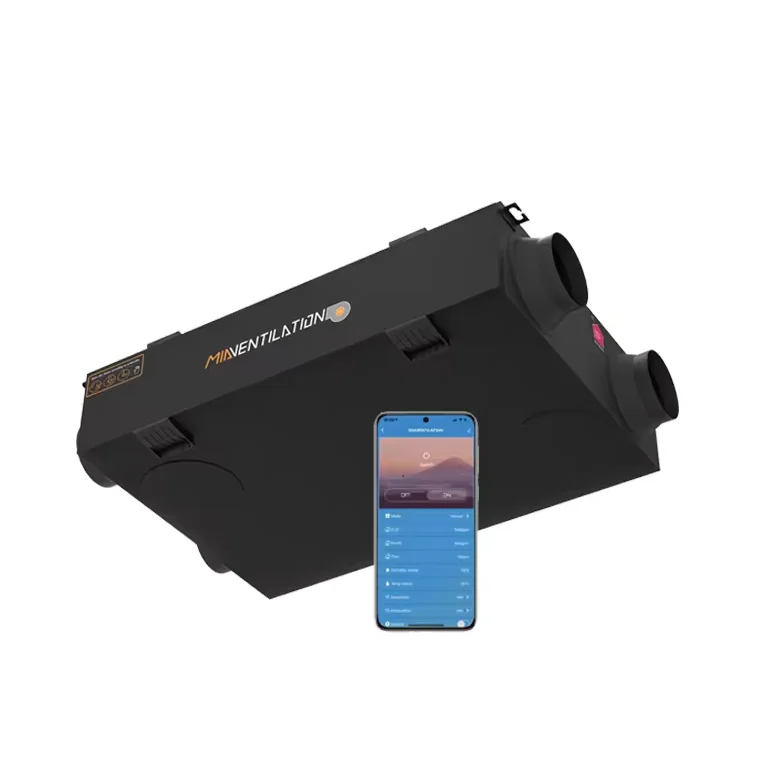

350 м3/ч Tuya Wifi умный вентилятор системы свежего воздуха Hvac контроллер пользовательского логотипа Merv рекуперация тепла вентиляция

Сохранить в закладки 1601093838144:


Цена:51 498,72 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики



NOTE
Please contact us to confirm the price details before placing an order.
Contacts: Anne Wang
Tel/WhatsApp: 0086-17761909290
Email: anne.miavent@miachina.net
Website: www.miachina.net

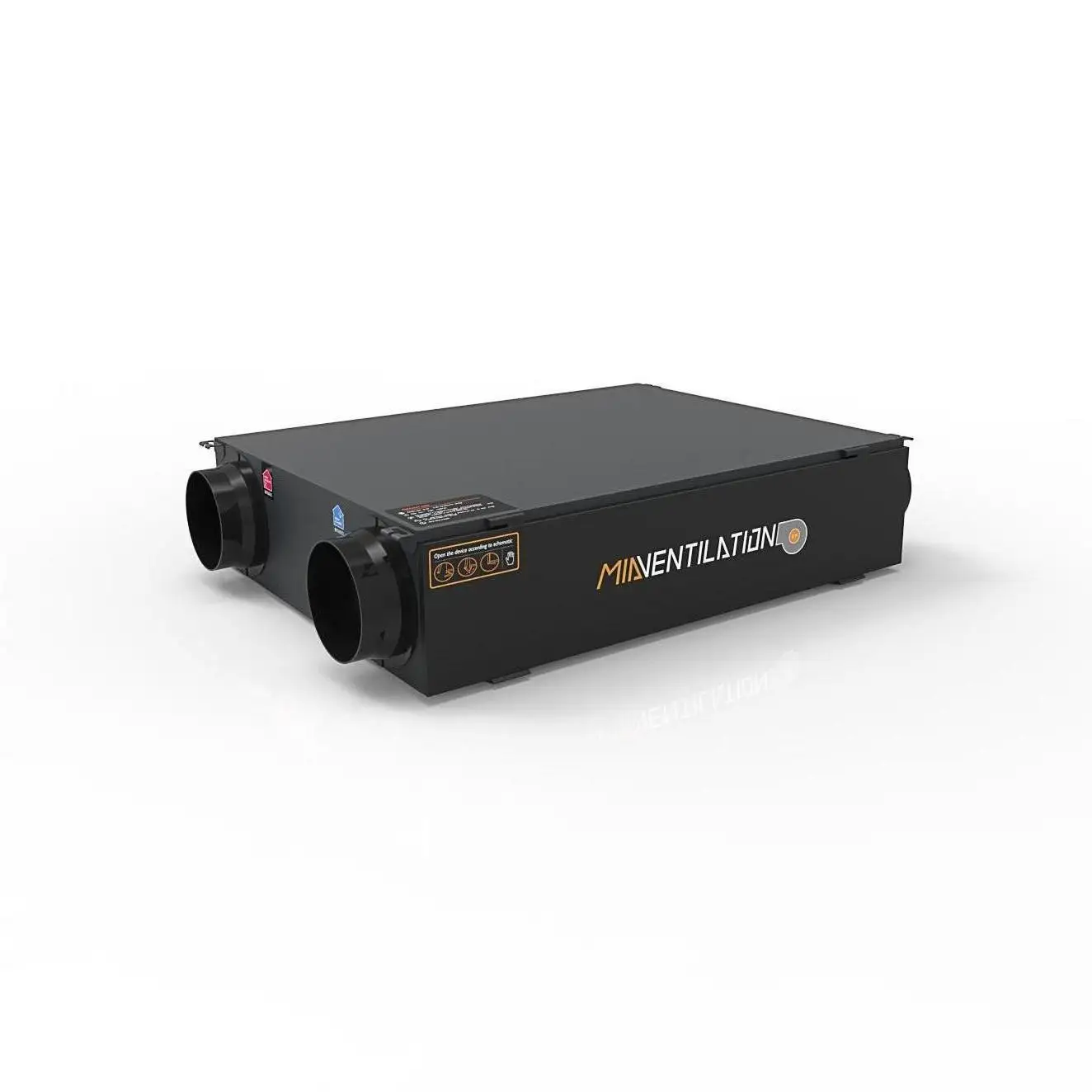

Residential High-pressure Ceiling type ERV Series


Energy Recovery Ventilator 150m3/h-500m3/h
Household High-Pressure Ceiling Type Energy Recovery Ventilator ERV Series

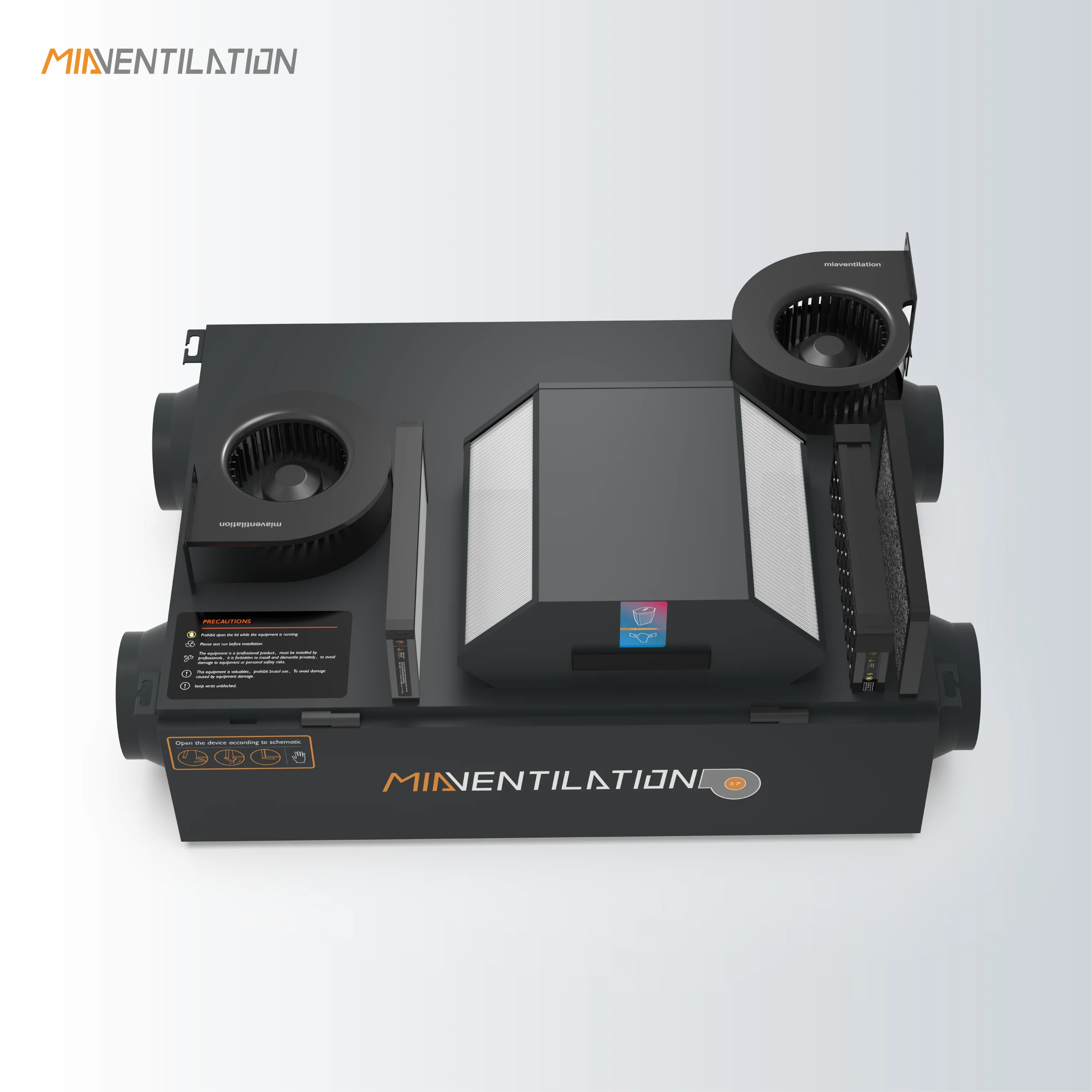

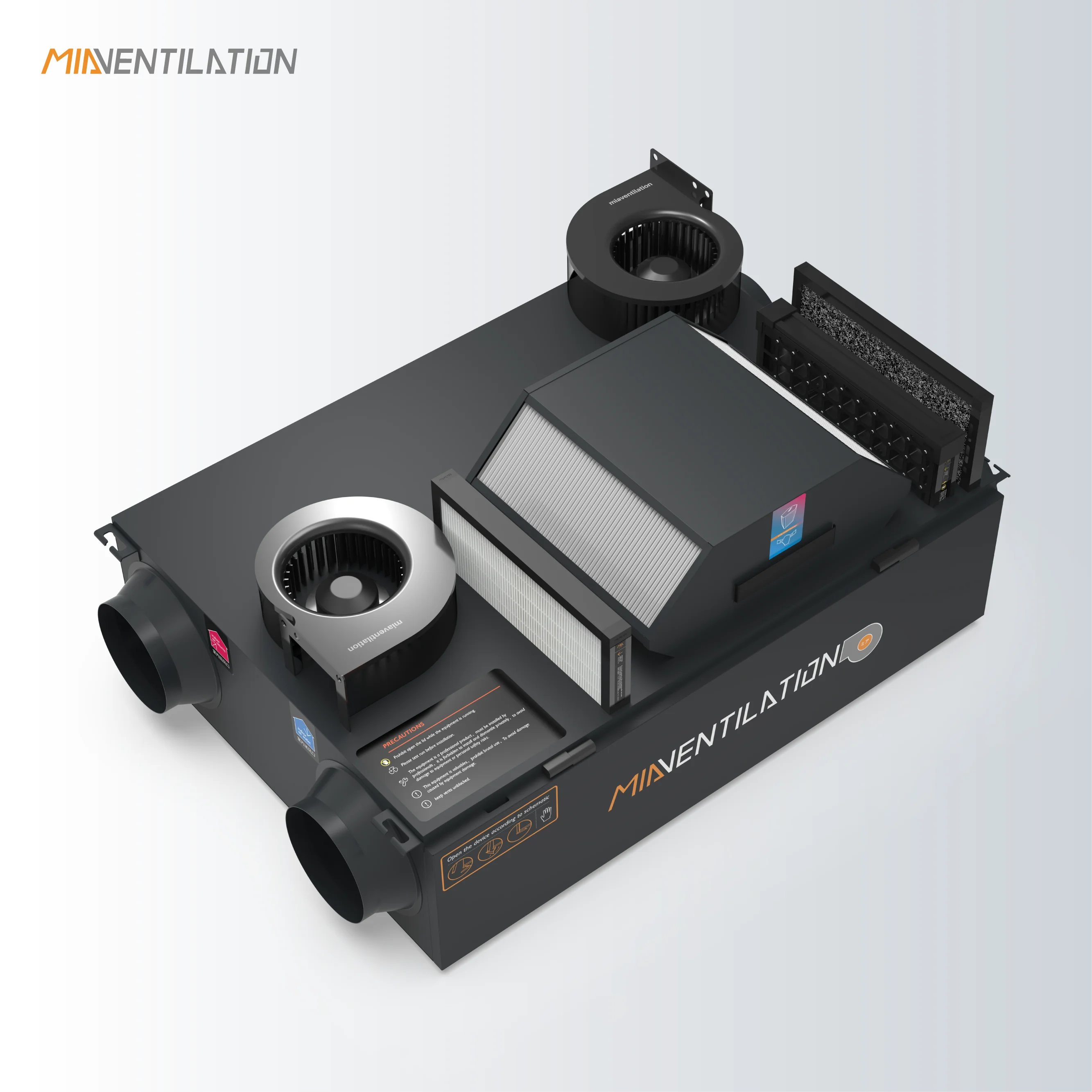

Energy Recovery Exchanger Details

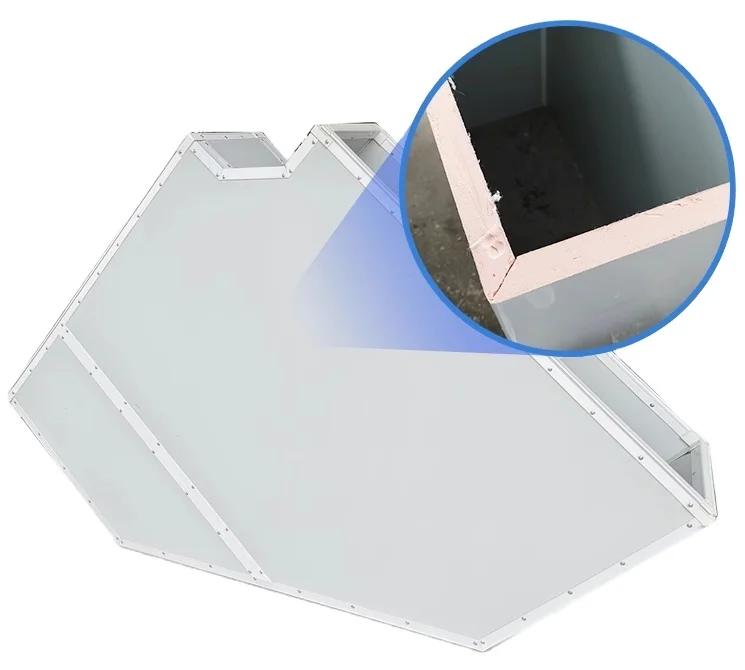

Energy Recovery Exchanger
The PSY high thermal conductivity of molecular material, developed by Japanese DR team, has high heat recovery efficiency. It can infiltrate water molecules in the process of heat exchange;with the washable material, also can avoid the problem of bacteria and molds production.






Filter Details




Early Effect+ Activated Carbon
The sealing property is far more than paper border with using the plastic margin. The filter with the composite fiber, sprayed with activated carbon powder, can filter duct particle efficiently and the wind resistance is very small. The even-distributed activated carbon power can maximize the role of activated carbon. This washable filter can be used repeatedly, and two in one way, early effect+activated carbon, greatly reduces the total cost of consumables.

High efficiency Particulate Air Filter
The sealing property is far more than paper border with using the plastic margin. To ensure the health and non-pollution, we take the environmental friendly imported sealant, no color and no odor. The filter element that we use is 3M HEPA, meeting the European standard-H13, and the PM2.5 removal rate can be up to 99.97%, this large dust holding capacity helps to save the total cost.

High-voltage Electrostatic Dust
With pin type electric discharge way,the high-voltage electrostatic dust can replace the traditional tungsten filament
high-voltage electrostatic dust collection. It's thickness is only 4 cm, can be suitable for all kinds of models. The removal rate of PM2.5 is high to 98%, so that can effectively kill the bacteria and prevent the infection. It's washable, also can be cleaned with brush, ans will not increase the using cost.

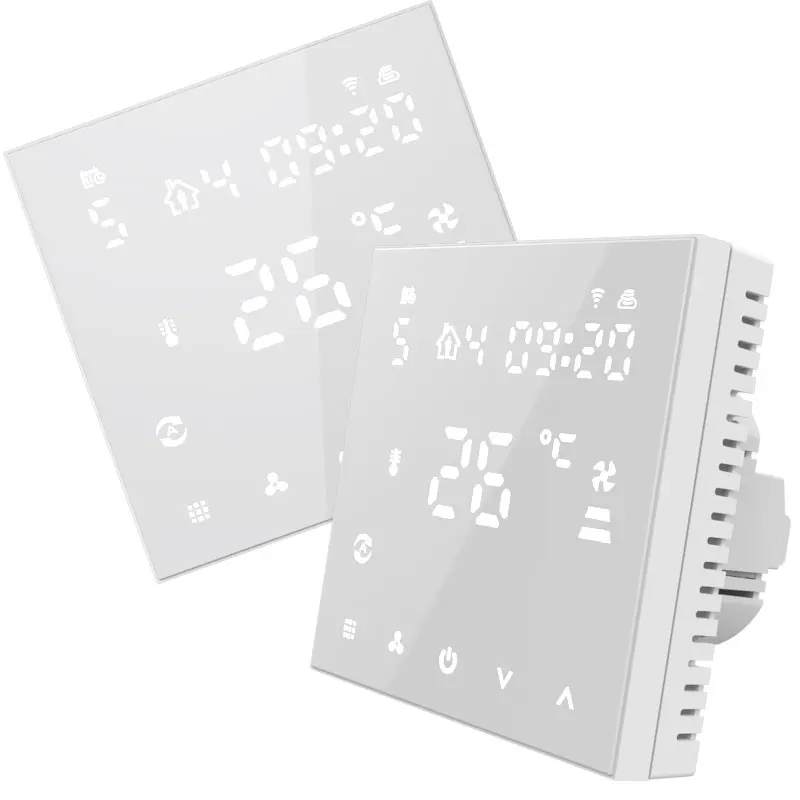

Intelligent Controller




Model and corresponding configuration instruction




MIA-AHE· N:Ceiling Energy recovery ventilator equipped with activated carbon and AC inner rotor fan
MIA-AHE· NB:Ceiling Energy recovery ventilator equipped with activated carbon and AC outer rotor fan
MIA-AHE· NB/C:Ceiling Energy recovery ventilator equipped with activated carbon and DC brushless fan



Model
Voltage
(v)
Power
(w)
Air volume
(m3/h)
Pressure
(Pa)
Efficiency
Noise
dB(A)
Motor
MIA-AHE15N
220
70
150
115
88%-96%
26
AC
MIA-AHE15NB/C
220
92
150
290
86%-92%
30
BLDC
MIA-AHE25N
220
78
250
132
87%-95%
28
AC
MIA-AHE25NB
220
178
250
370
86%89%
32
AC
MIA-AHE25NB/C
220
166
250
370
86%89%
32
BLDC
MIA-AHE35N
220
88
350
140
86%-94%
29
AC
MIA-AHE35NB
220
246
350
392
85%-88%
35
AC
MIA-AHE35NB/C
220
233
350
392
85%-88%
35
BLDC
MIA-AHE50N
220
120
500
160
86%-94%
30
AC
MIA-AHE50NB
220
453
500
453
84%-87%
37
AC
MIA-AHE50NB/C
220
288
500
425
84%-87%
37
BLDC


MIA-AHE· GL:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter and AC inner rotor fan
MIA-AHE· GLB:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter and AC outer rotor fan
MIA-AHE· GLB/C:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter and DC brushless fan


Model
Voltage
(v)
Power
(w)
Air volume
(m3/h)
Pressure
(Pa)
Efficiency
Noise
dB(A)
Motor
MIA-AHE15GL
220
73
150
115
88%-96%
26
AC
MIA-AHE15GLB/C
220
98
150
285
86%-92%
31
BLDC
MIA-AHE25GL
220
82
250
132
87%-95%
28
AC
MIA-AHE25GLB
220
182
250
360
86%-89%
33
AC
MIA-AHE25GLB/C
220
176
250
360
86%-89%
33
BLDC
MIA-AHE35GL
220
96
350
140
86%-94%
29
AC
MIA-AHE35GLB
220
265
350
385
85%-88%
36
AC
MIA-AHE35GLB/C
220
241
350
385
85%-88%
36
BLDC
MIA-AHE50GL
220
128
500
160
86%-94%
30
AC
MIA-AHE50GLB
220
462
500
420
84%-87%
38
AC
MIA-AHE50GLB/C
220
306
500
420
84%-87%
38
BLDC


MIA-AHE· JDN:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter, high voltage electrostatic dust filter and AC inner rotor fan.
MIA-AHE· JDB:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter, high voltage electrostatic dust filter and AC outer rotor fan.
MIA-AHE· JDB/C:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter, high voltage electrostatic dust filter and DC brushless fan.


Model
Voltage
(v)
Power
(w)
Air volume
(m3/h)
Pressure
(Pa)
Efficiency
Noise
dB(A)
Motor
MIA-AHE15JDN
220
73
150
115
88%-96%
26
AC
MIA-AHE15JDB/C
220
98
150
285
86%-92%
31
BLDC
MIA-AHE25JDN
220
82
250
132
87%-95%
28
AC
MIA-AHE25JDB
220
182
250
360
86%-89%
33
AC
MIA-AHE25JDB/C
220
176
250
360
86%-89%
33
BLDC
MIA-AHE35JDN
220
96
350
140
86%-94%
29
AC
MIA-AHE35JDB
220
265
350
385
85%-88%
36
AC
MIA-AHE35JDB/C
220
241
350
385
85%-88%
36
BLDC
MIA-AHE50JDN
220
128
500
160
86%-94%
30
AC
MIA-AHE50JDB
220
462
500
420
84%-87%
38
AC
MIA-AHE50JDB/C
220
306
500
420
84%-87%
38
BLDC
