Высокоэффективная машина для первичного разрушения рудного камня PE600x900 щековая дробилка
6 943 311,90 ₽ - 7 494 368,40 ₽
Машина для разрушения камня мобильная щековая дробилка мелкого гравия гранита дизеля или двигателя pe250x400 цена
- Категория: >>>
- Поставщик: Henan Baixu Machinery Equipment Co. Ltd.
Сохранить в закладки 1601093991378:
Описание и отзывы
Характеристики
stone breaking machine mobile fine gravel granite diesel or motor pe250x400 jaw crusher price
Product Description
Jaw crusher, also known as stone crusher, is widely used in mining, metallurgy, building materials, highway, railway, water conservancy, chemical industry and other industries. For all kinds of ore, rock large materials of medium size crushing, crushing compressive strength in 147~245MPa has coarse, medium and fine.
Stone, limestone, pebbles, river pebbles, quartzite, basalt, iron ore, granite, shale, gypsum and so on
The working mode of jaw crusher is grinding and extrusion. Its working principle is：
through the eccentric wheel to move jaw up and down, when the jaw rises to the fixed jaw plate close, and at the same time the material is crushed or split; When the moving jaw goes down, the Angle between the elbow plate and the moving jaw becomes smaller, the moving jaw plate leaves the fixed jaw plate under the action of the pull rod and the spring.

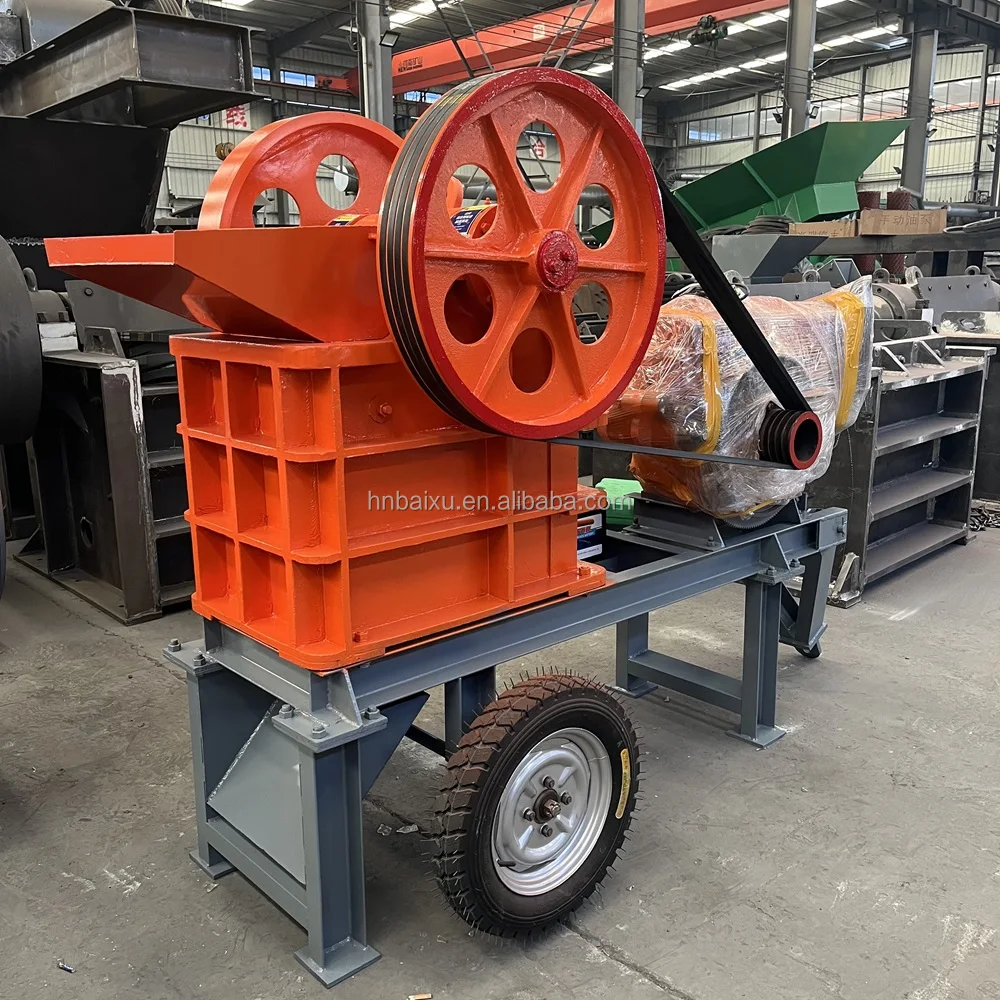

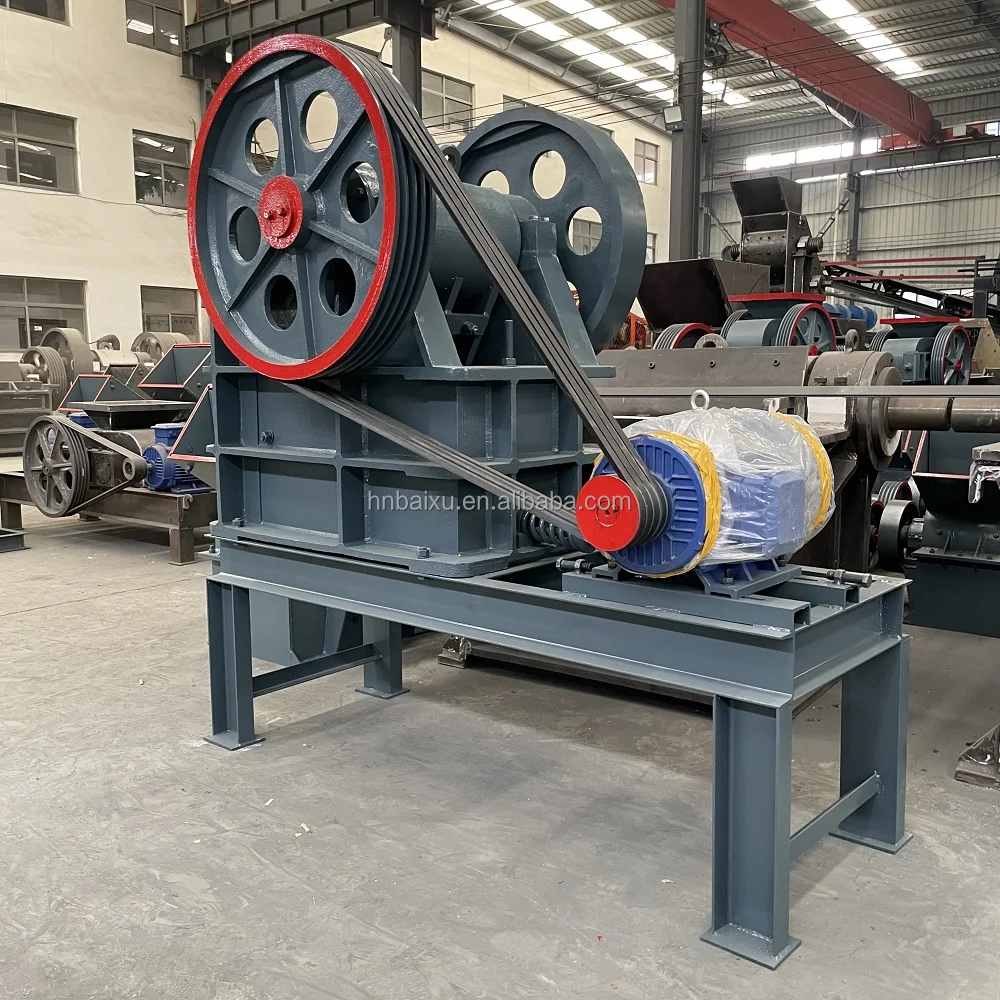

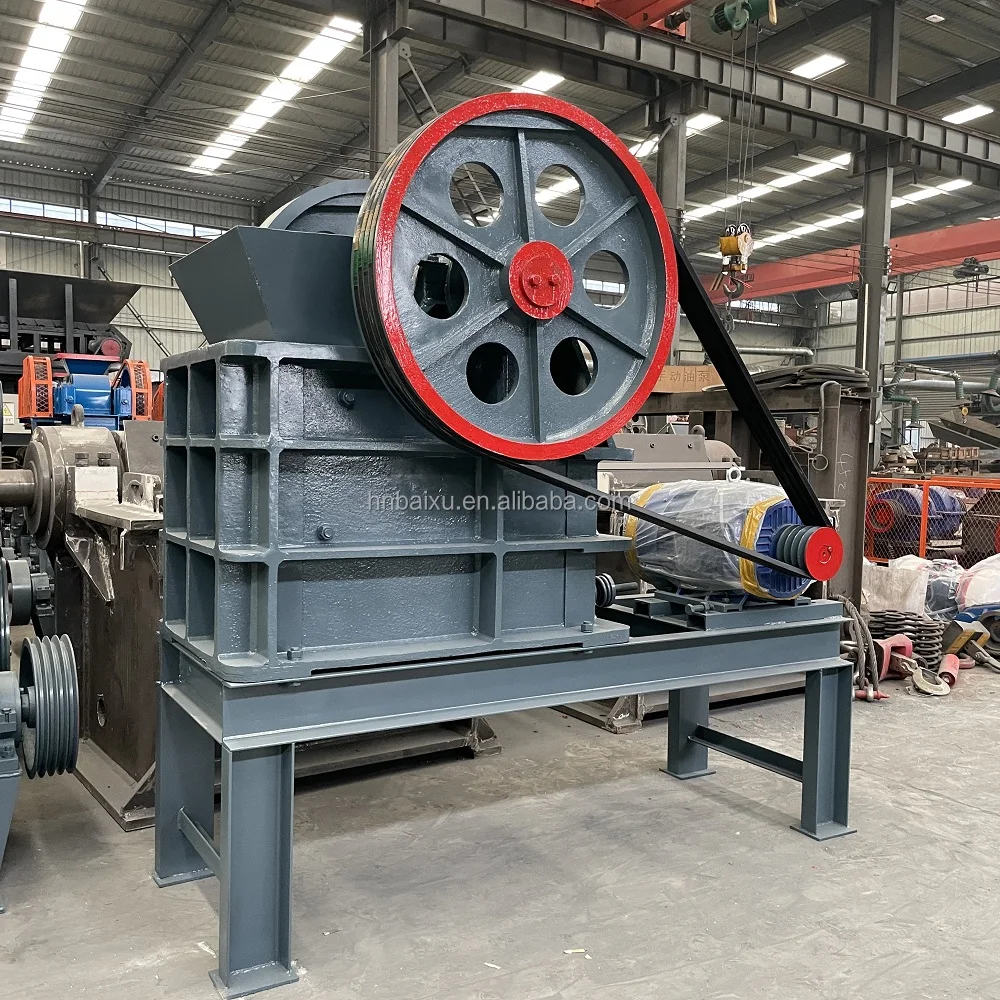

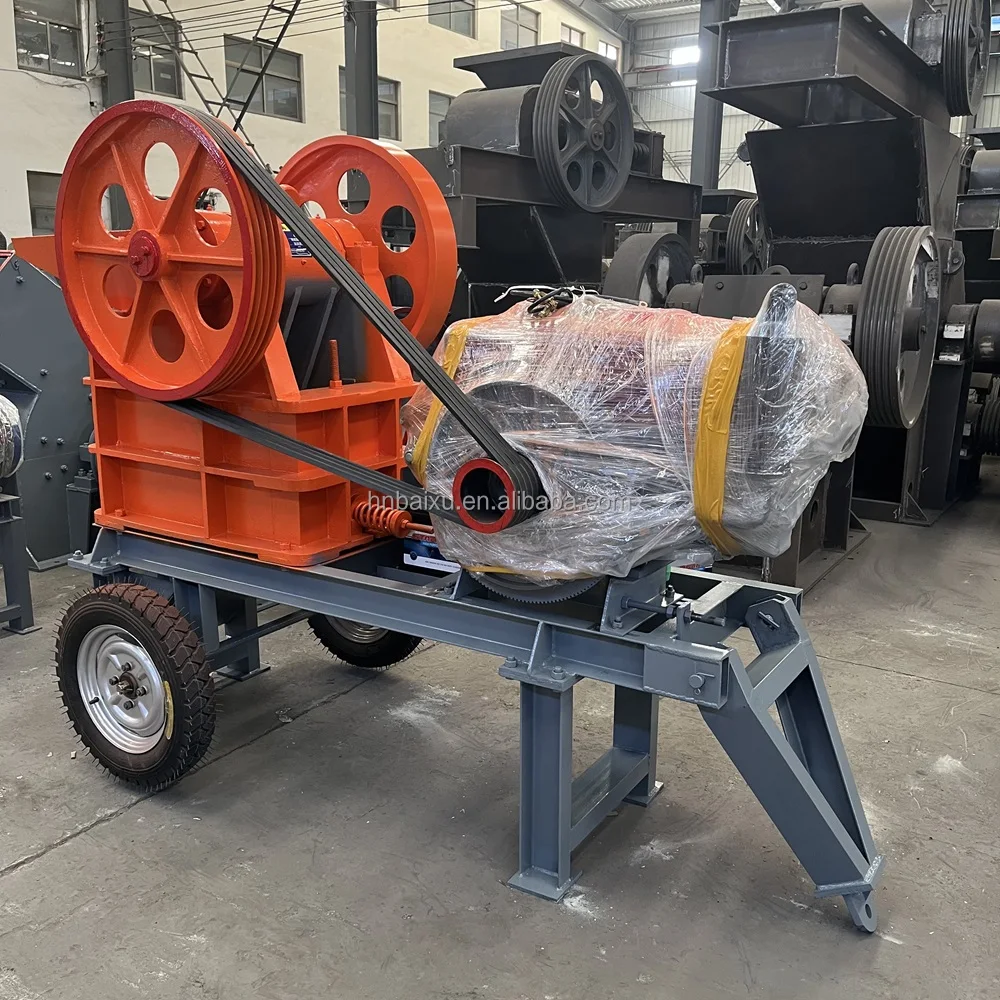

Product display
The style configuration can be customized on request
Product details:

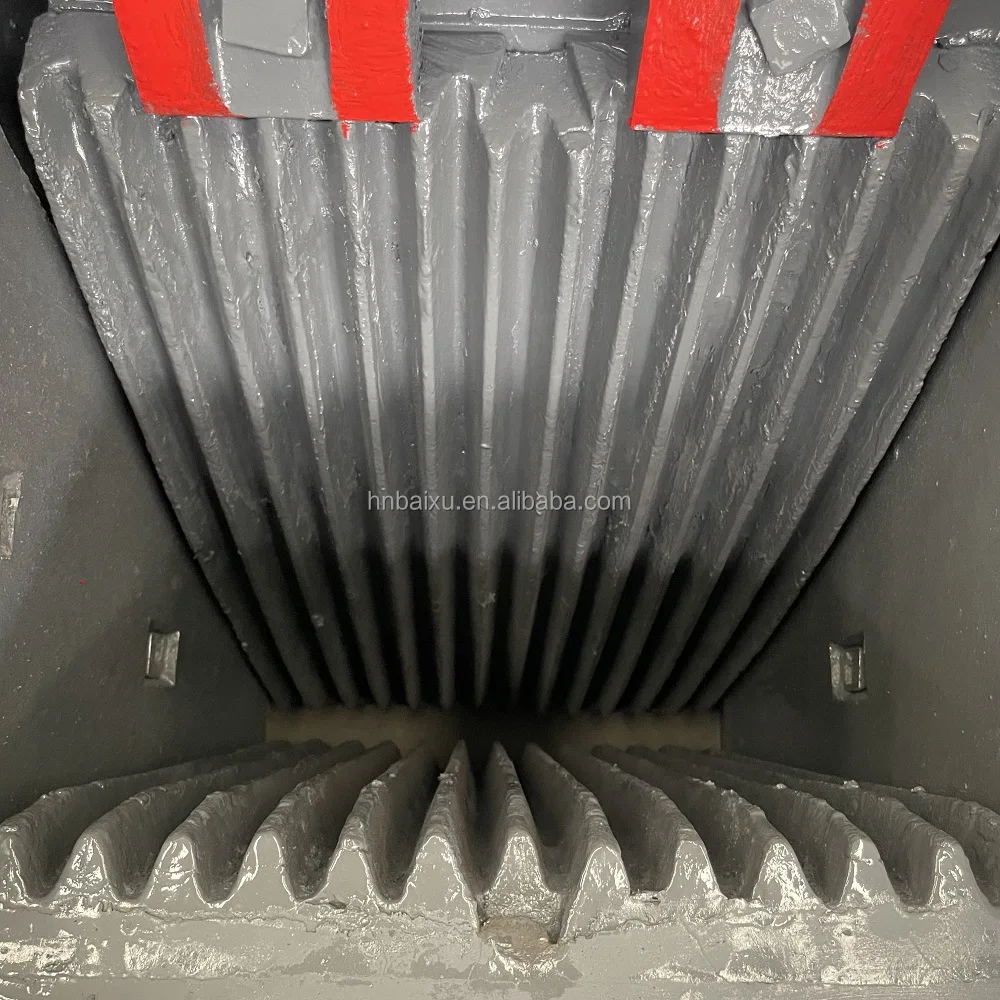

The jaw plate and lining plate are the most prone to wear. Baixu machinery adopts high manganese steel material to increase the service life of wear-resistant parts
Technical parameter
Model number | Feed port size (mm) | Maximum feed size (mm) | Discharge port adjustment range (mm) | yield（t/h) | Motor power (kw) | weight(t) |
PE-150x250 | 150x250 | 125 | 10-40 | 1-3 | 5.5 | 0.8 |
PE-200x300 | 200x300 | 180 | 15-50 | 2-6 | 7.5 | 1.2 |
PE-220x350 | 220x350 | 180 | 18-70 | 3-10 | 11 | 1.5 |
PE-250x400 | 250x400 | 210 | 20-60 | 5-15 | 15 | 2.8 |
PE-300x500 | 300x500 | 280 | 25-80 | 5-20 | 18.5 | 3.5 |
PE-400x600 | 400x600 | 340 | 40-100 | 16-60 | 30 | 7 |
PE-500x750 | 500x750 | 425 | 50-100 | 40-110 | 55 | 12 |
PE-600x900 | 600x900 | 500 | 65-160 | 50-180 | 75 | 17 |
PE-750x1060 | 750x1060 | 630 | 80-140 | 110-320 | 110 | 29 |
PEX-100x600 | 100x600 | 80 | 10-30 | 5-15 | 7.5 | 2.8 |
PEX-150x750 | 150x750 | 120 | 18-48 | 8-25 | 15 | 3.8 |
PEX-250x750 | 250x750 | 210 | 25-60 | 13-35 | 22 | 5.5 |
PEX-250x1000 | 250x1000 | 210 | 25-60 | 16-52 | 30 | 7 |
PEX-250x1200 | 250x1200 | 210 | 25-60 | 20-61 | 37 | 9.7 |
PEX-300x1300 | 300x1300 | 250 | 20-90 | 16-105 | 55 | 15.6 |
Product advantage
1. Moving jaw guard plate
2. Side guard plate
3. Fix the jaw plate
4. Movable jaw plate
2. Side guard plate
3. Fix the jaw plate
4. Movable jaw plate
5: Rack
6. Move your jaw
7. Adjust the seat
8. Spring
9. Elbow boards
10. Move jaw pull plate
6. Move your jaw
7. Adjust the seat
8. Spring
9. Elbow boards
10. Move jaw pull plate
Company introduction
Henan Baixu Machinery Equipment Co., Ltd. has become and mining equipment, cement machinery, building materials equipment production, research and development, sales in one of the enterprises. The main production of jaw crusher, hammer crusher, impact crusher, crusher production lines, engineering building materials machinery and other products. It is widely recognized in stone crushing, construction sand, mineral processing equipment and other business fields. Business and service agencies all over the
country, and exported to Eastern Europe, Central Asia and other countries.
country, and exported to Eastern Europe, Central Asia and other countries.
Exhibition hall, workshop, well equipped：
Customer feedback：
Mine equipment has been exported to more than 20 countries, serving more customers
Packing and transportation
FAQ
Q:Are you a factory or a trading company?
A:We are a manufacturing plant
A:We are a manufacturing plant
A: Jaw crusher can break pebbles, granite, cement block and a series of hard materials.The material can be broken into small pieces, the size is optional.
Q: How can I see the crushing effect I want?
A: You can tell me the material you want to be broken. I will find it and shoot a trial video for you in the factory
A: You can tell me the material you want to be broken. I will find it and shoot a trial video for you in the factory
Q: Are the wearing parts of the crushing equipment durable?
A: First of all, the wearing parts need to be replaced within a certain period of time. I can let you sell the wearing parts at factory price
A: First of all, the wearing parts need to be replaced within a certain period of time. I can let you sell the wearing parts at factory price
Q: Is it easy to replace the wearing parts of crushing equipment?
A: Yes, we can provide you with video guides if you need them
A: Yes, we can provide you with video guides if you need them
Q: How do I help customers install equipment?
A: They are usually assembled and ready to use when they are delivered. Video instructions will be provided if required
A: They are usually assembled and ready to use when they are delivered. Video instructions will be provided if required
Похожие товары
Высокоэффективная дробильная машина для первичного разрушения рудного камня PE600x900 щековая дробилка
2 755 282,50 ₽ - 2 893 046,63 ₽
Конусная дробилка для агрегата автоматическая гидравлическая конусная 5 футов
3 234 701,66 ₽
Мини-машина для дробления камня цена самодельная щековая дробилка домашнего использования
159 806,39 ₽ - 209 401,47 ₽
ПЭ 150x250 щековая дробилка каменная 1 тонна
165 316,95 ₽ - 192 869,78 ₽
Туннельная коническая дробилка мобильная щековая машина для производства гравия
Мобильная машина для дробления камня с вибрационным экраном и питателем
7 935 213,60 ₽ - 8 706 692,70 ₽

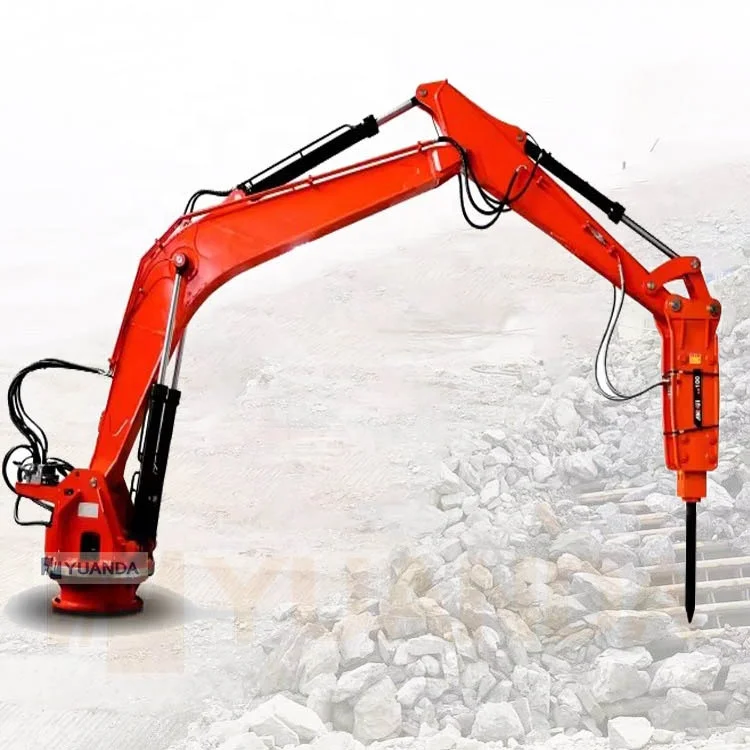

Гидравлический экскаваторный молоток стационарный камнеробломающий станок передняя головка гидравлических отбойных молотков
