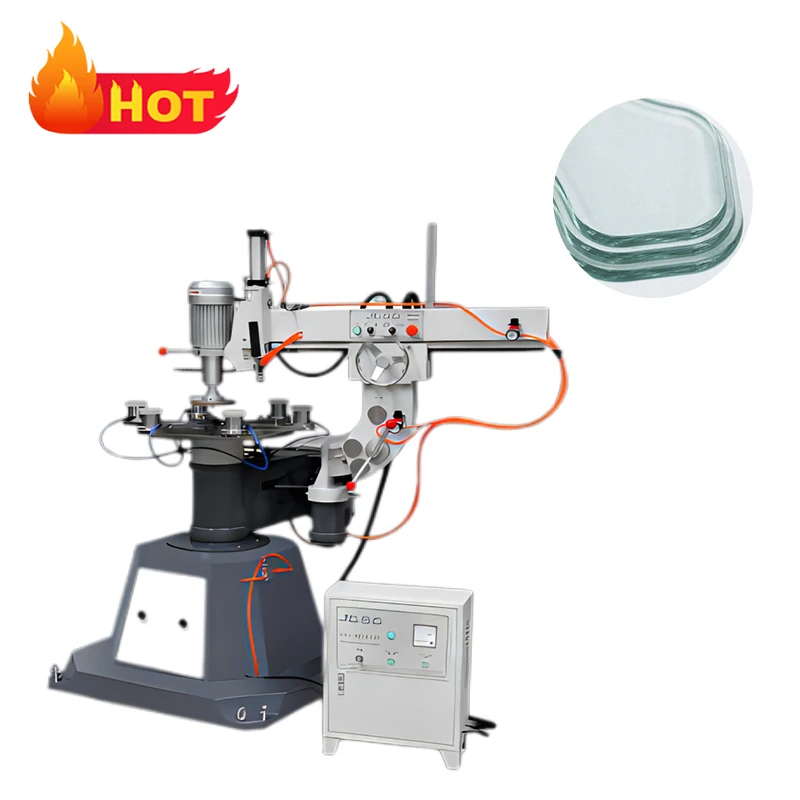

Промышленная машина для полировки стекла шлифования и автоматическая
901 176,86-918 396,80 ₽
Ручной шлифовальный станок
- Категория: >>>
- Поставщик: Hubei Juren Machinery Co. Ltd.Hubei Ltd.
Сохранить в закладки 1601094148219:
Описание и отзывы
Характеристики
Product Description

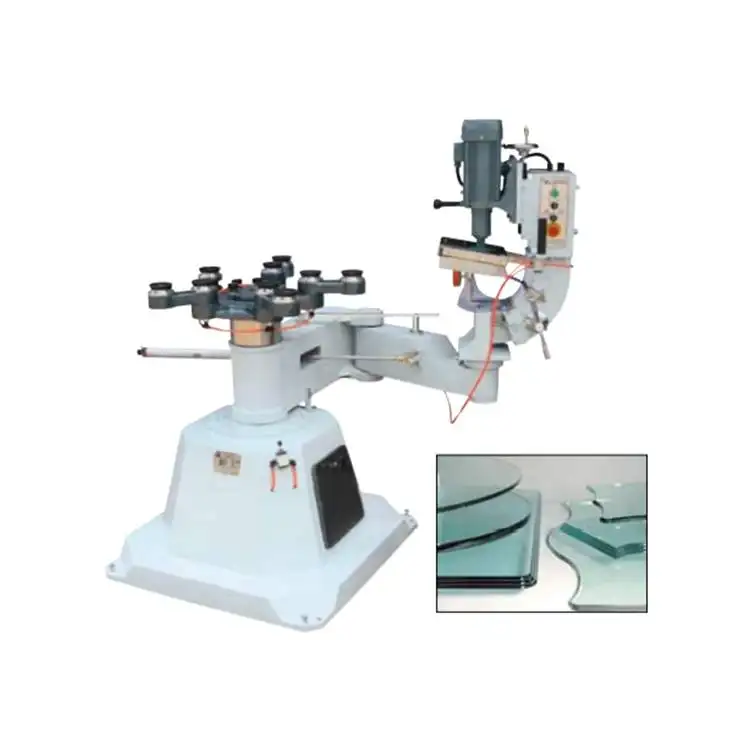

Cheap Manual Glass Edging Grinding Beveling Machine By Hand for Special Shape Glass Round Square Shape Features:
1. Suitable for grinding and polishing round table, ellipse table; round edge, duckbill edge and beveled edge of special-shaped glass.
2. It uses the vacuum pump to attach the glass onto the suction cup, and the motor drives the turntable to rotate or a unique turntable on the disk to rotate. The rotation speed of the turntable can be adjusted at will during operation.
3. This machine can also semi-automatically grind simple open shaped glass by using the cylinder.
4. When grinding the periphery, three grinding wheels can be installed for rough grinding, fine grinding and polishing.
5. When grinding the bevel, you can install a bowl-shaped grinding wheel, tilt the grinding head back, adjust the bevel angle, grind and process the end face.
1. Suitable for grinding and polishing round table, ellipse table; round edge, duckbill edge and beveled edge of special-shaped glass.
2. It uses the vacuum pump to attach the glass onto the suction cup, and the motor drives the turntable to rotate or a unique turntable on the disk to rotate. The rotation speed of the turntable can be adjusted at will during operation.
3. This machine can also semi-automatically grind simple open shaped glass by using the cylinder.
4. When grinding the periphery, three grinding wheels can be installed for rough grinding, fine grinding and polishing.
5. When grinding the bevel, you can install a bowl-shaped grinding wheel, tilt the grinding head back, adjust the bevel angle, grind and process the end face.
Specification
Voltage | 380V/50HZ |
Power | 2.3KW |
Min Glass turning diameter | 130*130mm |
Max Glass turning diameter | 2100*2100mm |
Thickness size of glass | 3-25mm |
Glass edge angle | 0-15° |
Turntable angle | 0.5-2.5m/min |
Weight | 650kg/1000kg |
Overall size(L*W*H) | 1000×1000×1600mm |
Motor speed | 1400r/min 2800r/min |
Sucker speed | 0-3m/min |
Support different shape-1
Square and rectangular glass edging.
Support different shape-2

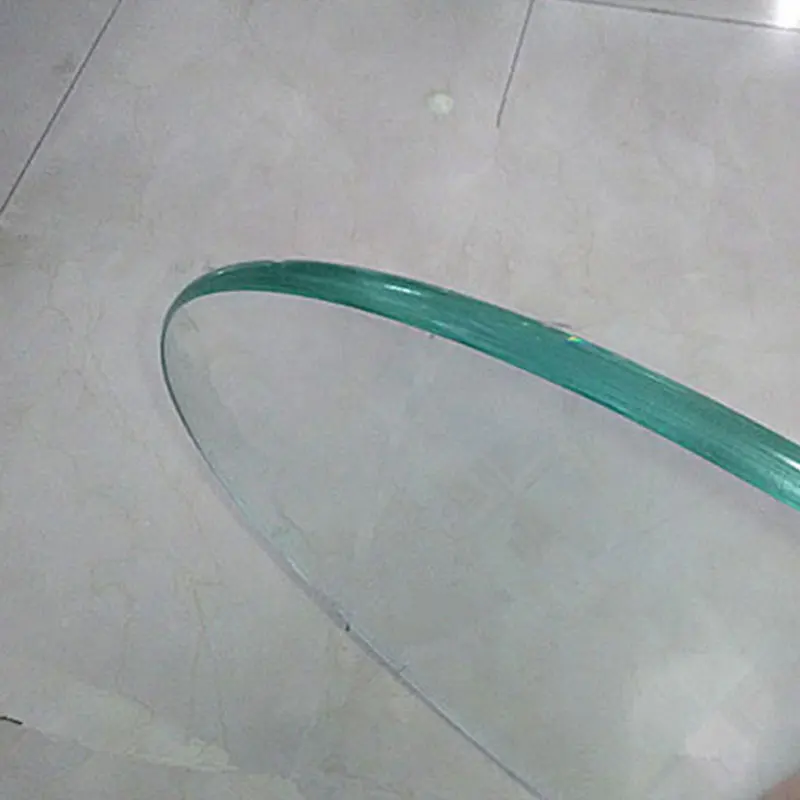

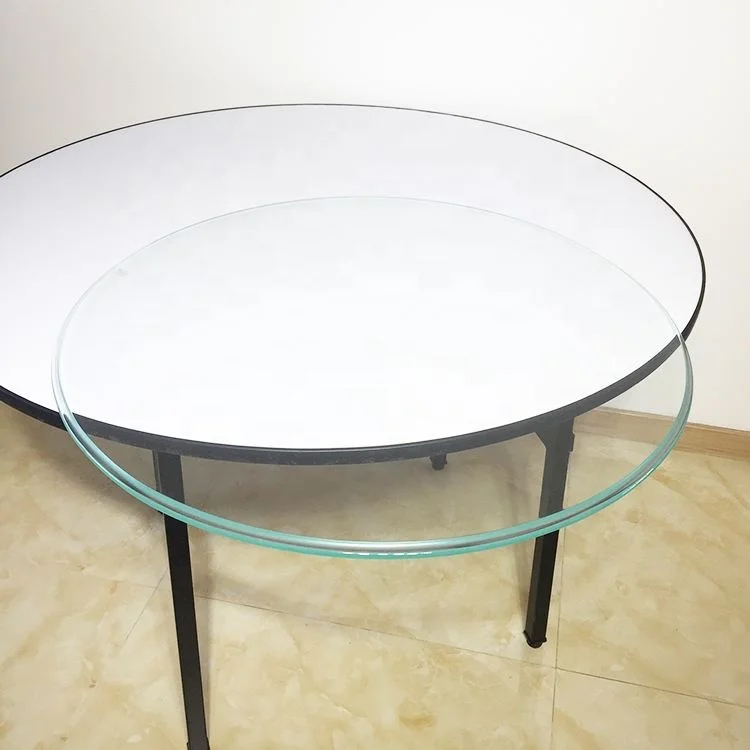

Round and oval glass edging.
Support different shape-3
Small glass cubes are chamfered.
Casting base
The picture shows the casting base, which is durable, heavy and stable. The price is more expensive than the product with a rigid base. Customers can choose according to their needs.
Steel base
The picture shows the steel base, which is durable and lighter than the cast base. It also makes the machine stable and affordable. Customers can choose according to their needs.
Aluminum Sucker
Aluminum suction cup, affordable, cost-effective, stable performance.Available for customers to choose.
Copper suction
Copper suction cups are more expensive than aluminum suction cups and are durable. Available for customers to choose.
Support the installation of multiple wheels.
The grinding wheel can be freely selected (round edge, straight edge, beveled edge), and can also support edge grinding, polishing, chamfering, and various functions.

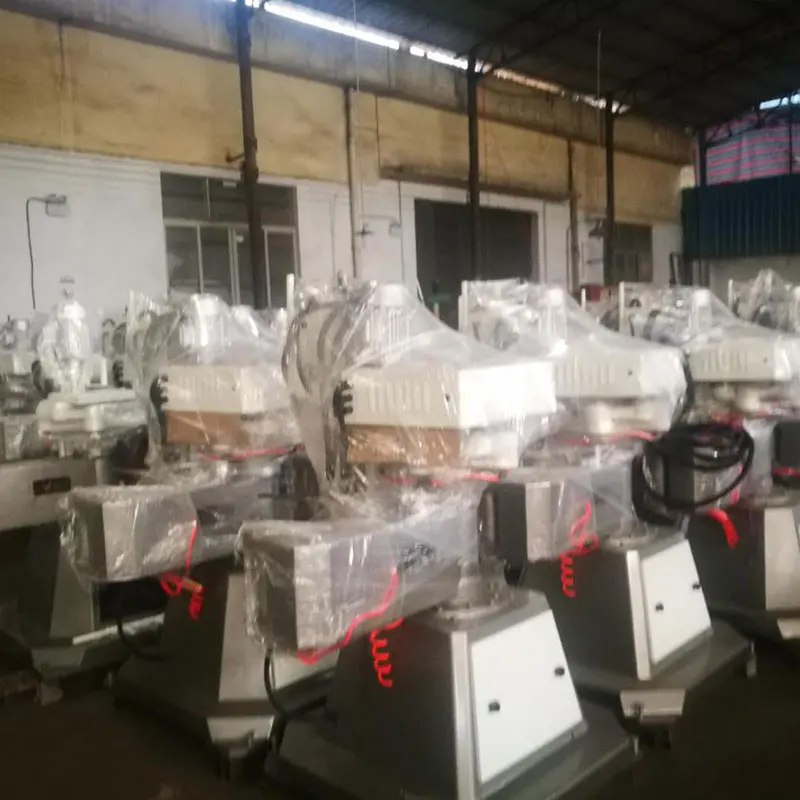

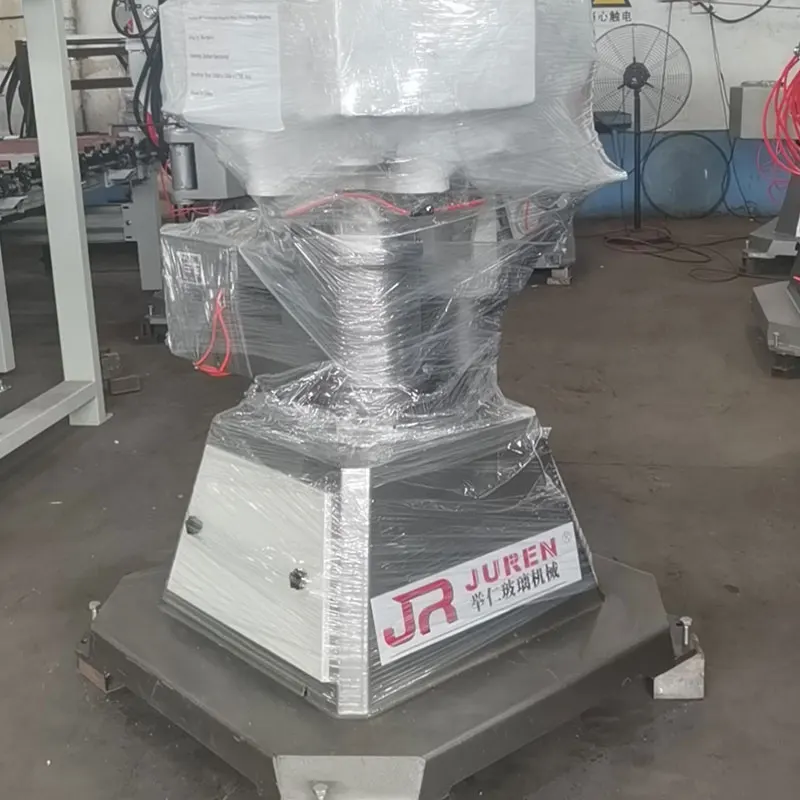

Packing & Delivery
If ship out the goods in customer's container, we can choose to recommend film packaging, saving packaging costs. For bulk shipments, wooden boxes are required to protect the machine from damage.
FAQ
Q:Are you a factory or a trading company？
A:We are factory
Q:How long is the equipment warranty？
A:One year.
Q:How to provide after-sales service？
A:Provide on-site installation, commissioning and training.Free accessories within one year.Provide remote service and video guidance.
Q:What operating language of the machine？
A:Standard English, can also be changed as required.
Q:How long is the delivery time？
A:10 days after receive the deposit.
Q:This machine is not suitable for me, do you have more models available?
A:Sure, in order to meet different customers' different requirements, we developed many other different machines.
Q: If the machine has problem in my place, how could I do?
A: Usually there won't be any problem under "normal use" as per the user manual. But in case you have any problem, our professional after-service team will provide you any support you need any time!
B.We can send you free components to you if your machines are in guarantee time.
C.We can send our engineers to repair your machines.
Q: This is my first time using this kind of machine, is it easy to operate?
A: Of course the machine is easy to operate. We will send you the English version user manual and install video which shows how to assemble and use the machine clearly, almost all the customers can operate the machine easily. No need to worry about this, after all, Parker will always be here to help!
A:We are factory
Q:How long is the equipment warranty？
A:One year.
Q:How to provide after-sales service？
A:Provide on-site installation, commissioning and training.Free accessories within one year.Provide remote service and video guidance.
Q:What operating language of the machine？
A:Standard English, can also be changed as required.
Q:How long is the delivery time？
A:10 days after receive the deposit.
Q:This machine is not suitable for me, do you have more models available?
A:Sure, in order to meet different customers' different requirements, we developed many other different machines.
Q: If the machine has problem in my place, how could I do?
A: Usually there won't be any problem under "normal use" as per the user manual. But in case you have any problem, our professional after-service team will provide you any support you need any time!
B.We can send you free components to you if your machines are in guarantee time.
C.We can send our engineers to repair your machines.
Q: This is my first time using this kind of machine, is it easy to operate?
A: Of course the machine is easy to operate. We will send you the English version user manual and install video which shows how to assemble and use the machine clearly, almost all the customers can operate the machine easily. No need to worry about this, after all, Parker will always be here to help!
Похожие товары

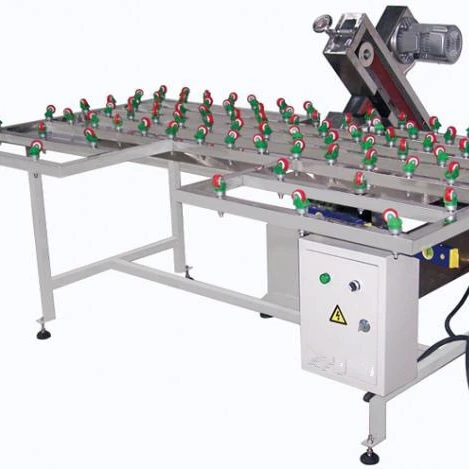

Ручная полировальная машина для окантовки стекла
229 599,20-286 999,00 ₽

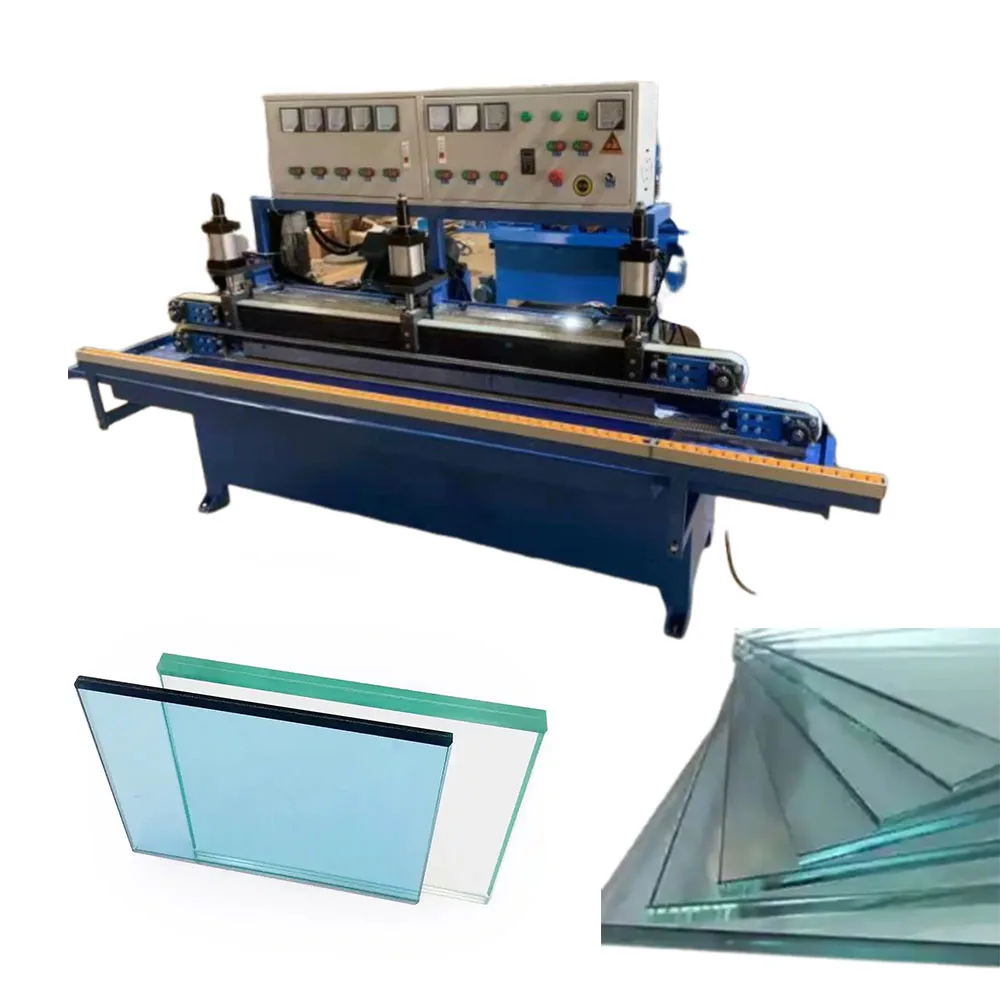

Разумный дизайн 10 двигателей TPZM10 стекло автоматический шлифовальный станок кромка
918 396,80-1 033 196,40 ₽

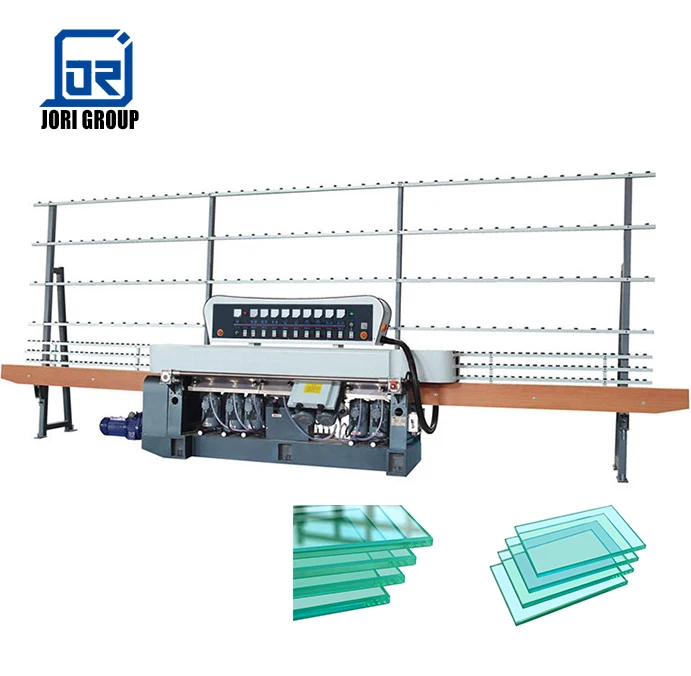

Высококачественный стеклянный шлифовальный станок резак
264 039,08-459 083,61 ₽
Китайский производитель быстрая шлифовальная машина для стекла
177 939,38-183 679,36 ₽
Станок для шлифования стекла внутренних и внешних кругов круглого
516 598,20-533 818,14 ₽
Моторный горизонтальный автоматический станок для шлифования стекла с ЧПУ линейный шлифовальный и полировальный
367 358,72-390 318,64 ₽

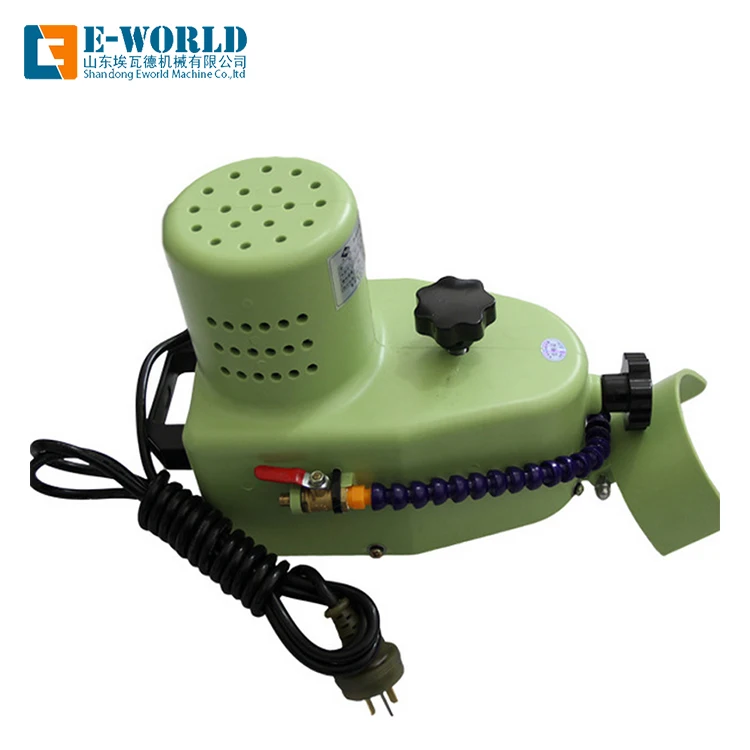

Портативная машина для полировки кромки органического стекла/небольшая шлифовальная стекла
