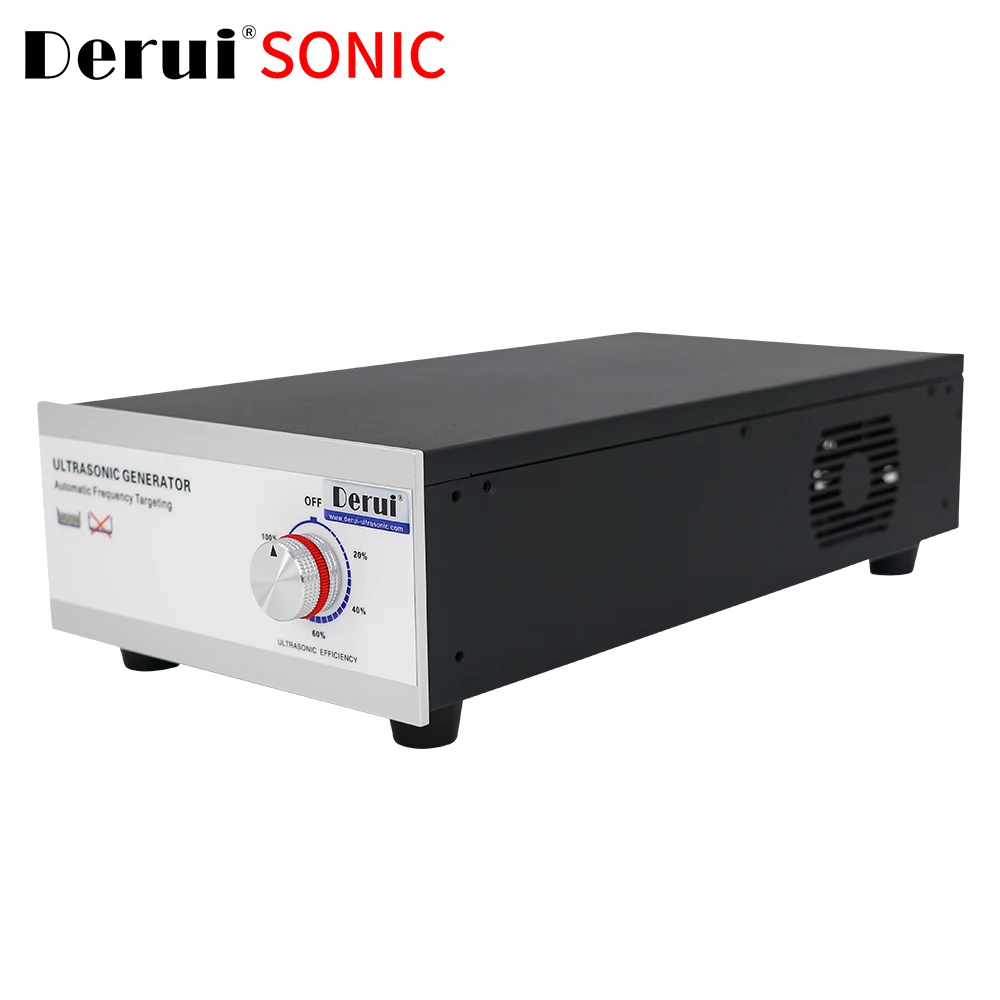

Новый ультразвуковой генератор 28 кГц 500 Вт 400 300 200
- Категория: >>>
- Поставщик: Shenzhen Derui Ultrasonic Equipment Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1601094265534:
Описание и отзывы
Характеристики
ULTRASONIC GENERATOR
When placing an order,please indicate the style,model,quantity,capacitance and working voltage of the generator,so that we can ship it. lf you are interested in further details and applicability of the generator,please contact us at derui-ultrasonic.com.
PRODUCT PARAMETERS
Ultrasonic Frequency | 17kHz、20kHz、25kHz、28kHz、33kHz、40kHz |
Ultrasonic Power(supply voltage) | 200-1200W(110-120/220-240VAC)1300-2600w(220-240VAc) |
Power Adjustable | 0%-100% |
Full Bridge Phase Shift | Yes |
Constant Power Control | Yes |
Automatic Frequency-tracking | Yes |
Load Self-adaption | Yes |
Communication Interface | RS485(MODBUS RTU) |
working Temperature | 0-40°C/0-90%RH |
Protection Class | IP21 |
Size | 85*390*195 mm(L*W*H) |
Weight | 3.9kg |
Self Protection | Overcurrent、Overtemperature Overvoltage、Short Circuit |
Our Advantage
1.The factory integrating R&D, design, production and sales has better product adaptability, longer service life, faster after-sales service and lower maintenance costs. Optimum performance, fit and controllability.
2.Low resistance, high conversion performance, low parameter change with temperature change.
3.The ultrasonic circuit board is fully upgraded and adopts the V1.3 control system, stronger vibration and more stable power.
1.The factory integrating R&D, design, production and sales has better product adaptability, longer service life, faster after-sales service and lower maintenance costs. Optimum performance, fit and controllability.
2.Low resistance, high conversion performance, low parameter change with temperature change.
3.The ultrasonic circuit board is fully upgraded and adopts the V1.3 control system, stronger vibration and more stable power.

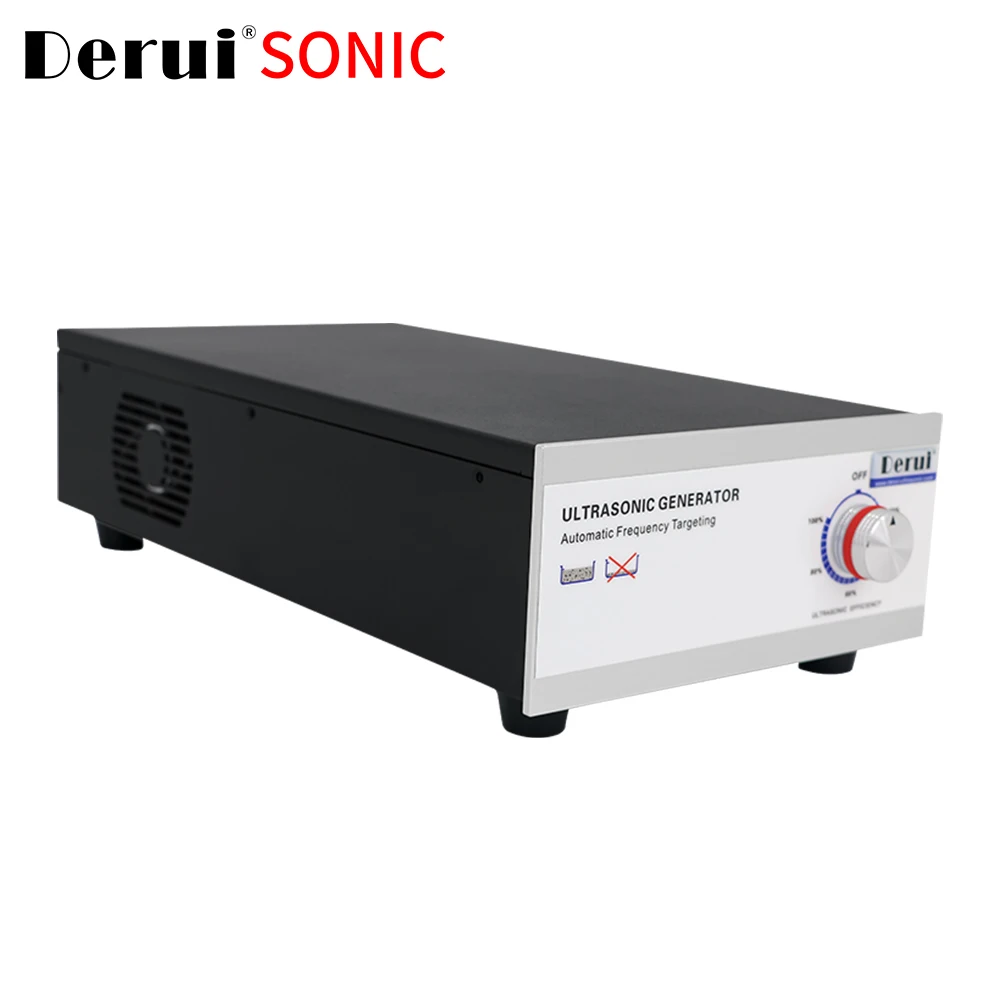

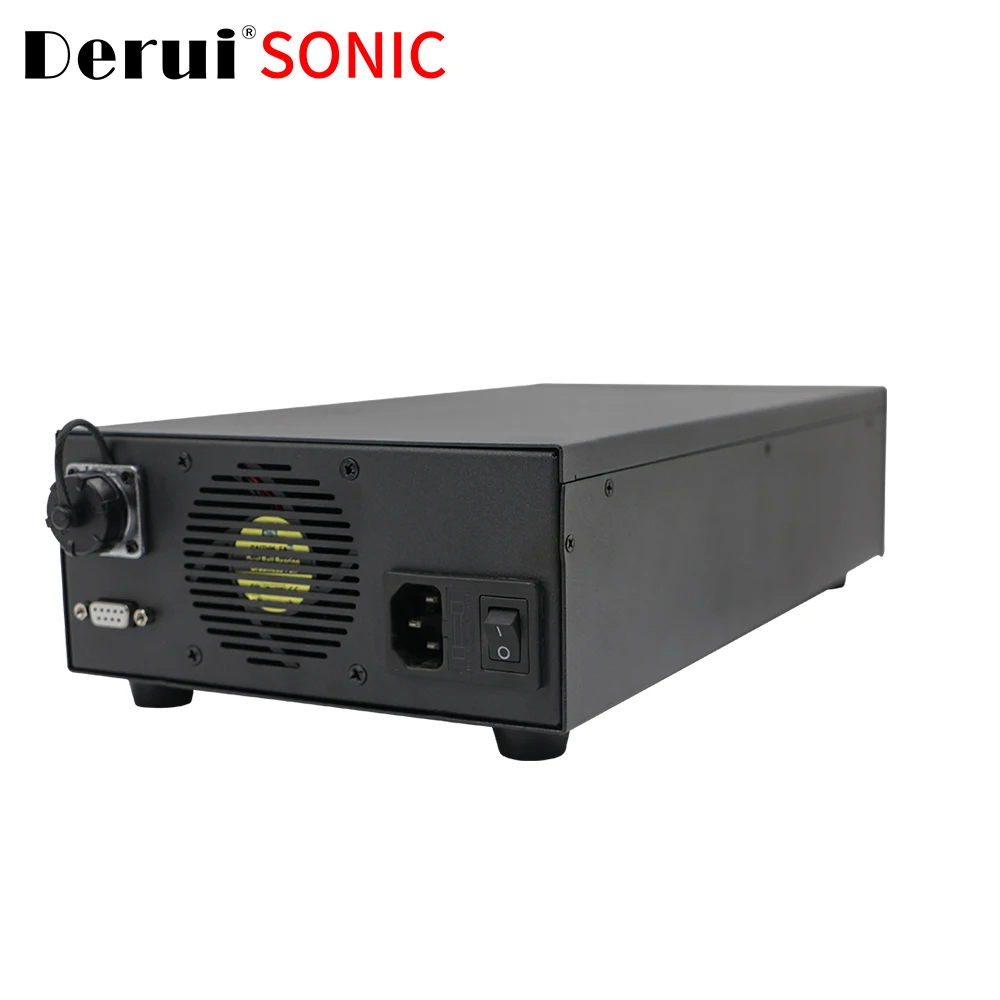

PRODUCT DISPLAY
TU series generator is an ultrasonic generator located in the field of industrial cleaning
developed by Derui after more than ten years of experience. Developed with V1.3 new
technology, it is an ultrasonic technology product with full-bridge phase shifting, constant
power output, automatic frequency tracking and automatic impedance change, which can
further improve the adaptability and stability of the generator for different working conditions.
developed by Derui after more than ten years of experience. Developed with V1.3 new
technology, it is an ultrasonic technology product with full-bridge phase shifting, constant
power output, automatic frequency tracking and automatic impedance change, which can
further improve the adaptability and stability of the generator for different working conditions.

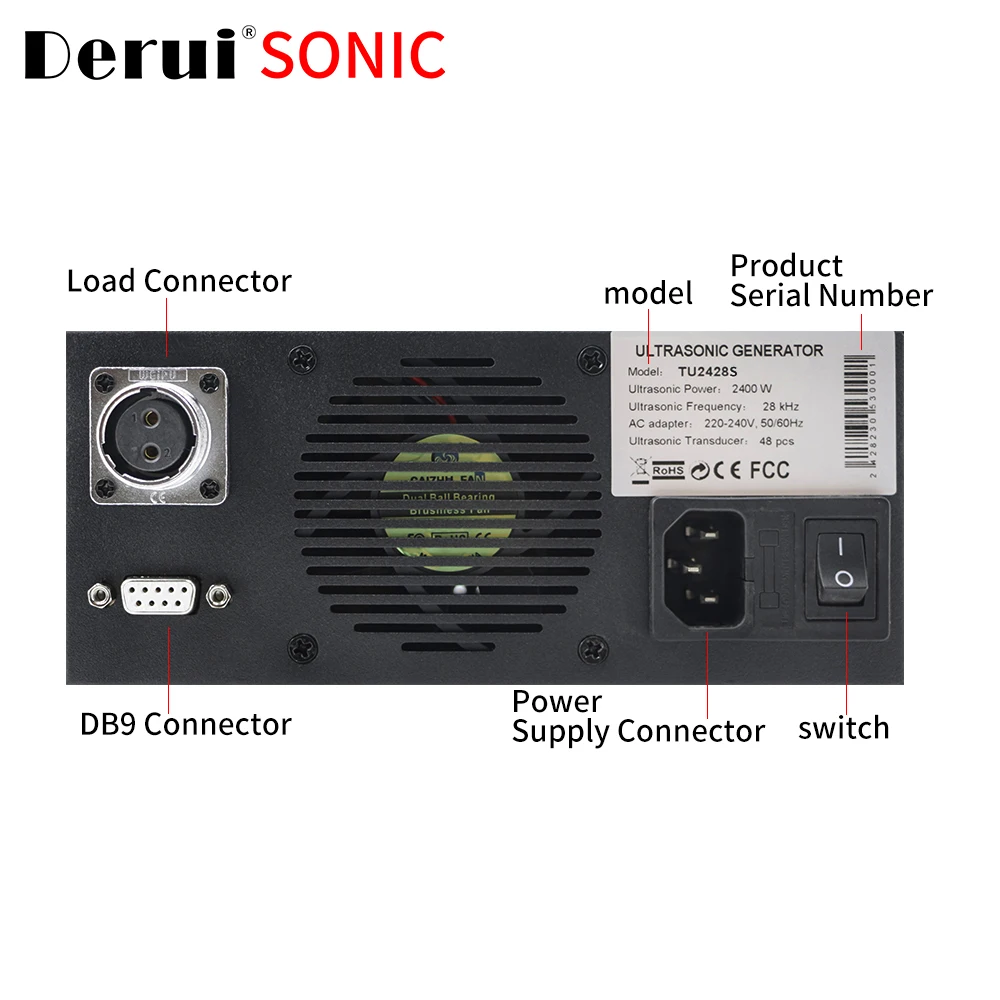

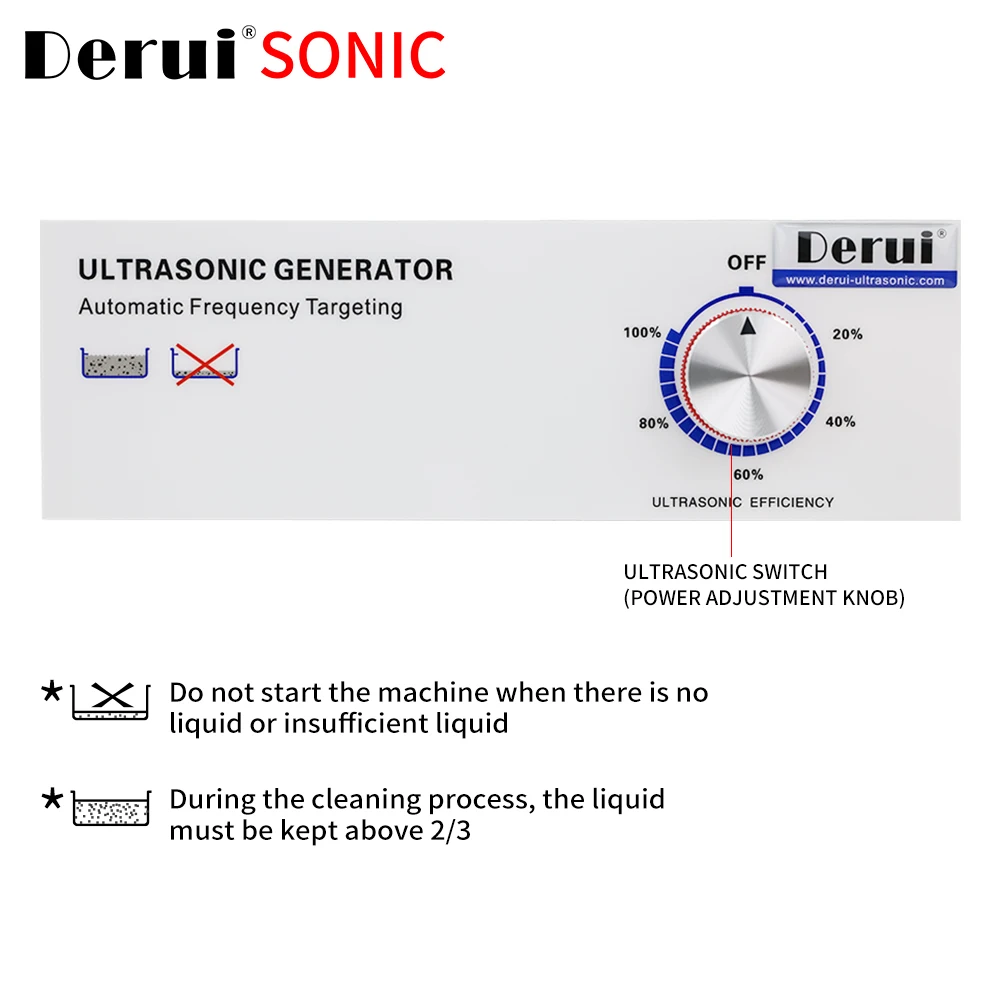

PRODUCT DETAIL
PRODUCT APPLICATION
Features
1.Adopts the V1.3 control system, stronger vibration and more stable power.
2.Develop compound cleaning working mode for stubborn stains.
3.IGBT full bridge phase shift technology,20-100% power adjustable linearly.
3.IGBT full bridge phase shift technology,20-100% power adjustable linearly.
4.Constant power output for different working conditions.
5.Automatic frequency tracking and impedance change technology to ensure that the generator works at a suitable frequency point.
6.1.2 Times peak power technology which has better cleaning
effect to stubborn stains.
6.1.2 Times peak power technology which has better cleaning
effect to stubborn stains.
7.Frequency sweep function which can effectively eliminate
stand wave and improve ultrasonic performance.
stand wave and improve ultrasonic performance.
8.Conversion efficiency up to 95%.
9.LCD touch screen, support parameter setting and status monitoring.
10.Internal protection for over current,over voltage and short circuit.
11.Remote control,connectable to PLC and HMI etc.
11.Remote control,connectable to PLC and HMI etc.
12.Support RS485 and MODBUS RTU communication.
13.Can be integrated into 19’’cabinet.
ABOUT US
About Us
Process of production
OTHER SERIES PRODUCTS
Submersible transducer and
ultrasonic generator
Power and frequency and size can be customized
according to customer requirements
ultrasonic generator
Large industrail ultrasonic cleaner
Mode of transport
Похожие товары
Измеритель звукового давления ультразвуковой очиститель прибор для измерения интенсивности звука
2 650,00-2 850,00 $

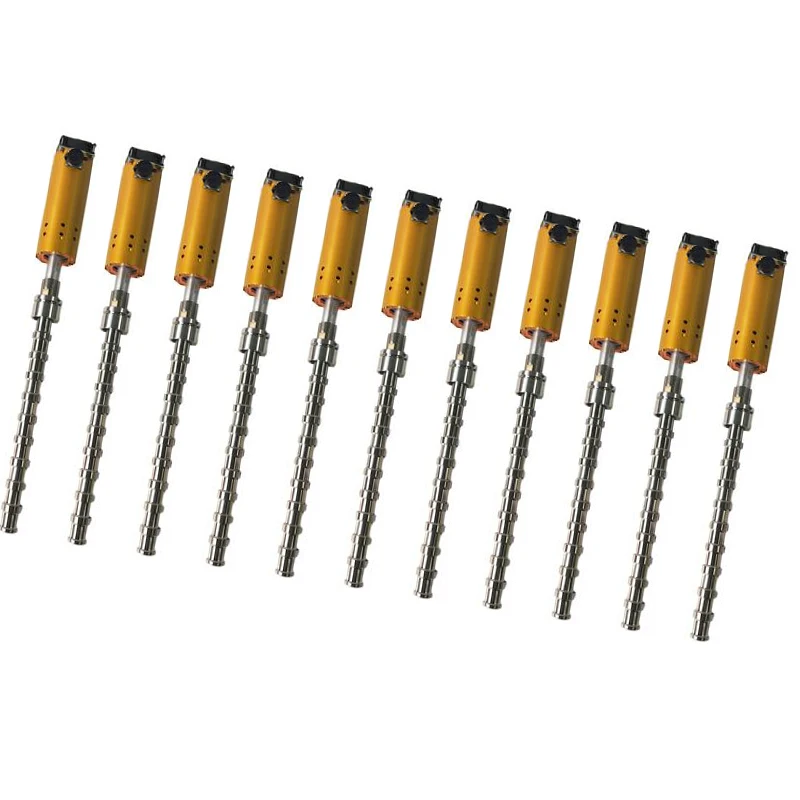

Ультразвуковой зонд 20 кГц 900 Вт 220 В
1 850,00-1 950,00 $

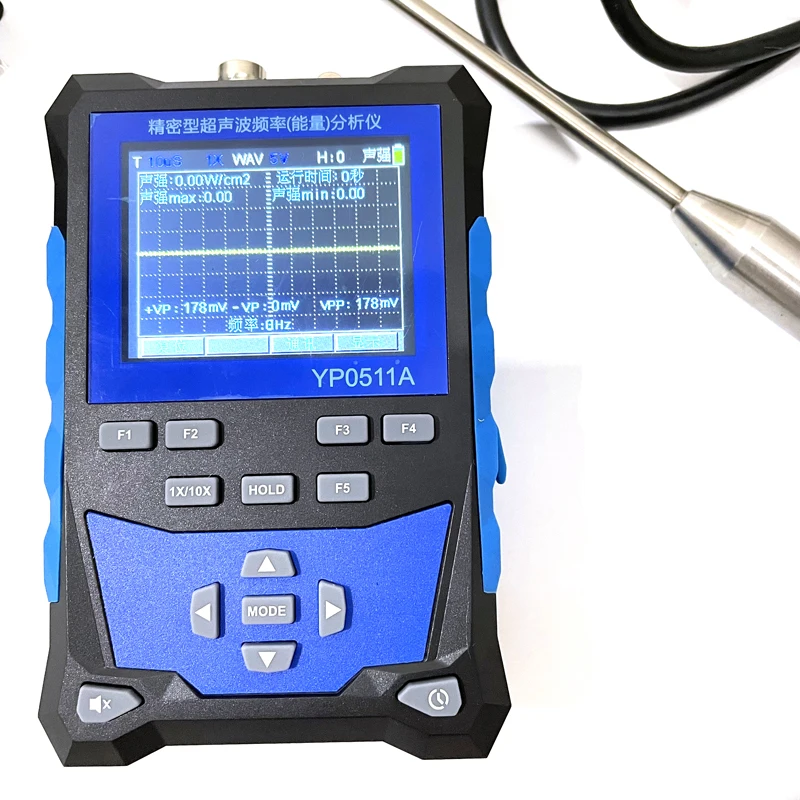

Заводская поставка ультразвуковой измеритель интенсивности и частоты
2 650,00-2 850,00 $

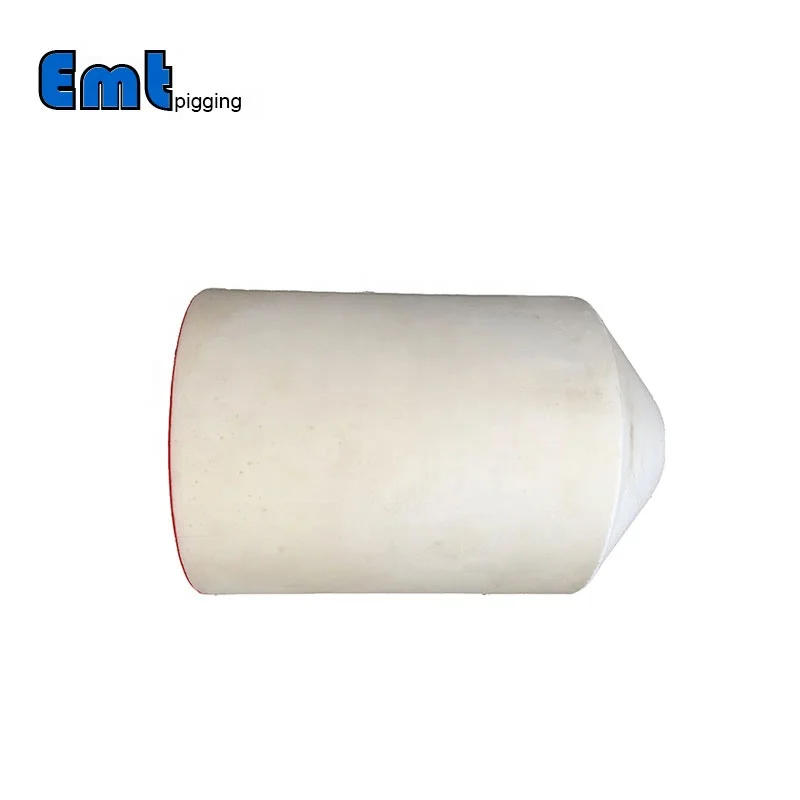

Полиуретановая поролоновая свинья высокой плотности/средней плотности/низкой плотности
1 093,00-2 070,94 ₽

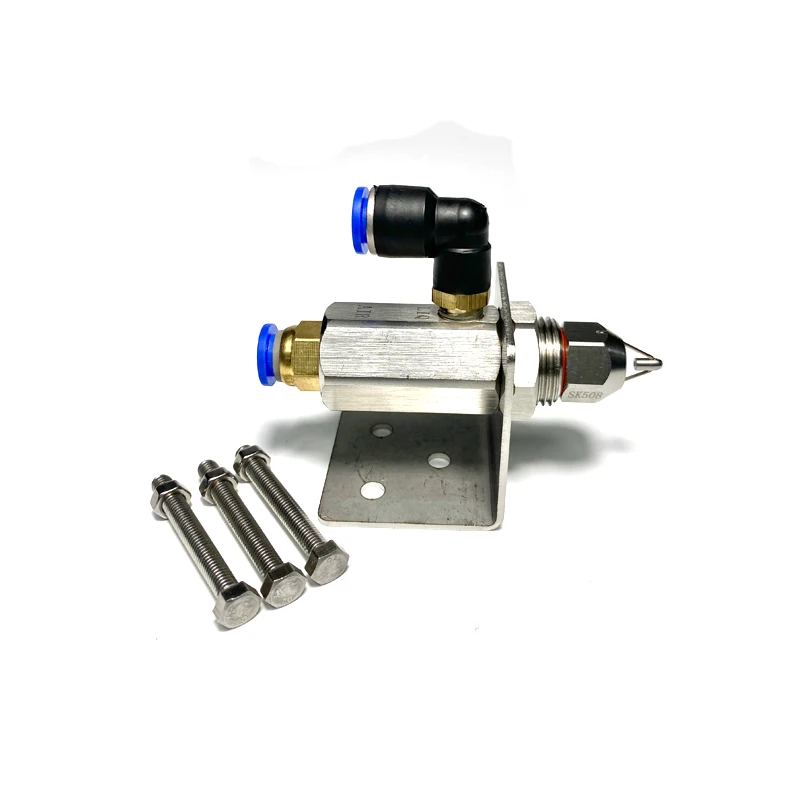

Высококачественная ультразвуковая форсунка из нержавеющей стали для распыления воздуха, насадка для сухого тумана SK508, насадка для распыления воды и воздуха

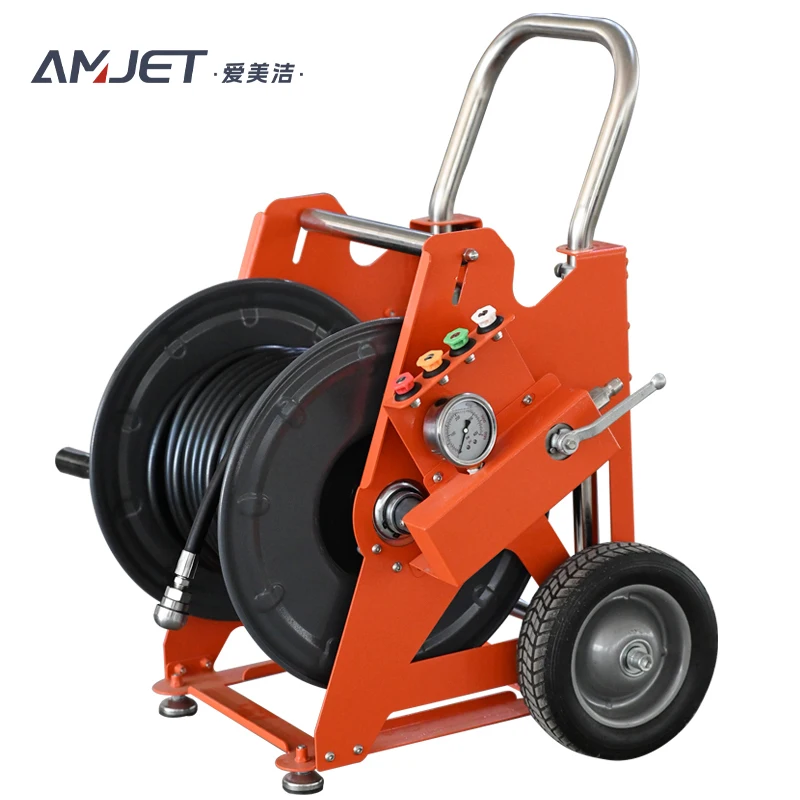

Машина для очистки канализации высокого давления 3/8 Дюймов 30 метров
680,00-700,00 $

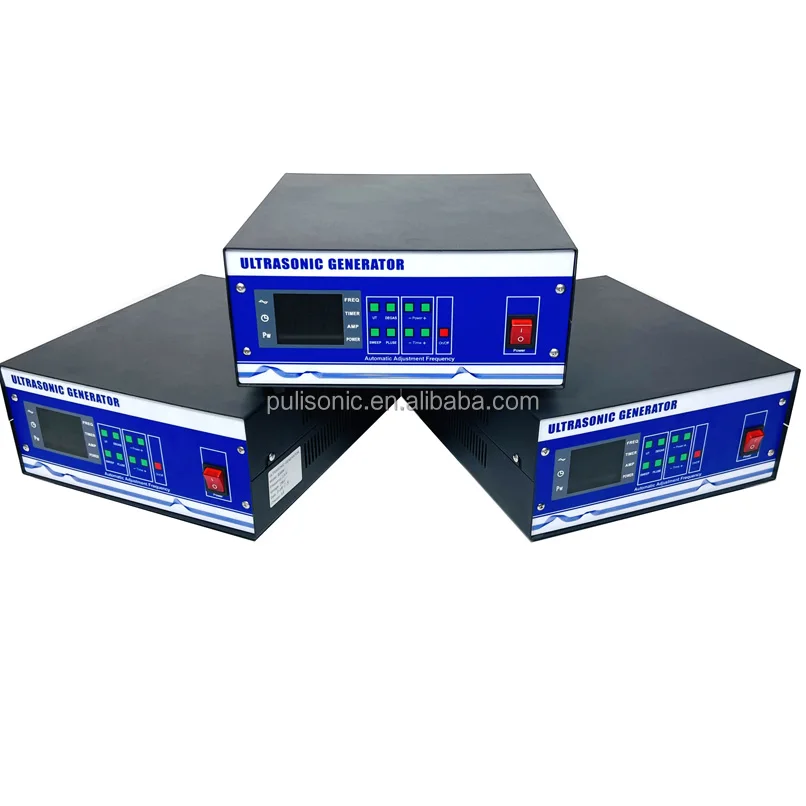

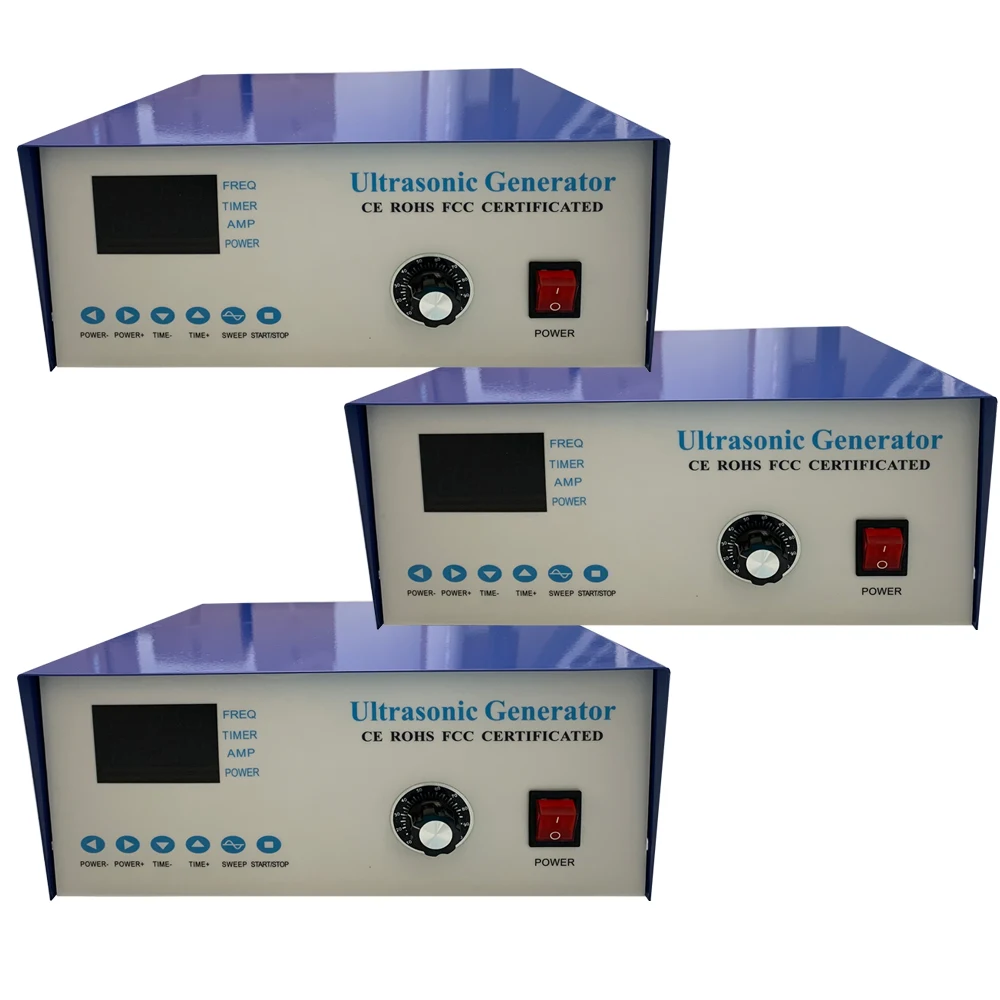

Цифровой ультразвуковой генератор с частотой развертки 3000 Вт 28 кГц Ультразвуковой очиститель для 360 л инжектор слепой очистной машины
