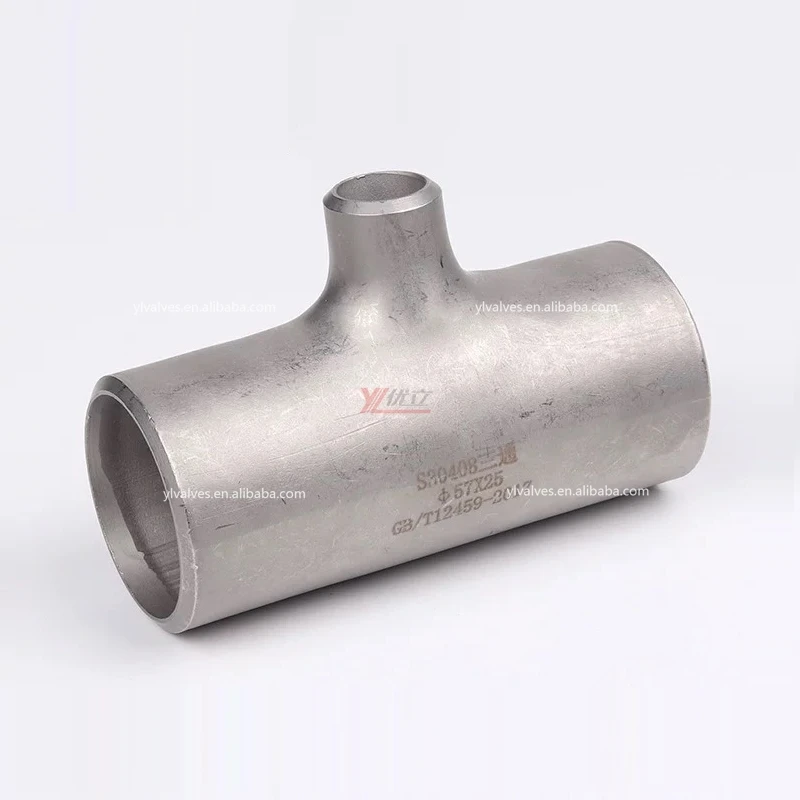

YOULI промышленная Дробеструйная травилка из нержавеющей стали ANSI WCB 304 SS316L тройник для сокращения стыковой сварки
132,49 ₽ - 176,65 ₽
DIN стандарт PN16 6 дюймовая Торцевая поверхность полностью герметичный гибкий фланцевый соединитель расширяет резиновое расширительное соединение
- Категория: >>>
- Поставщик: Hengshui Landa Pipe Industry Co. Ltd.
Сохранить в закладки 1601095642523:
Описание и отзывы
Характеристики
Product Description

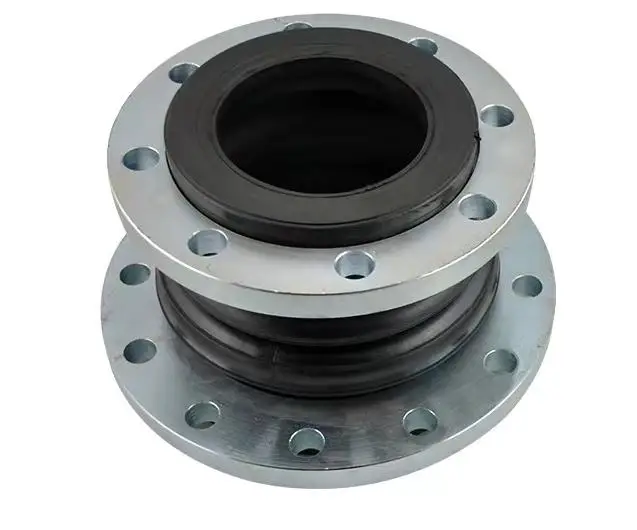

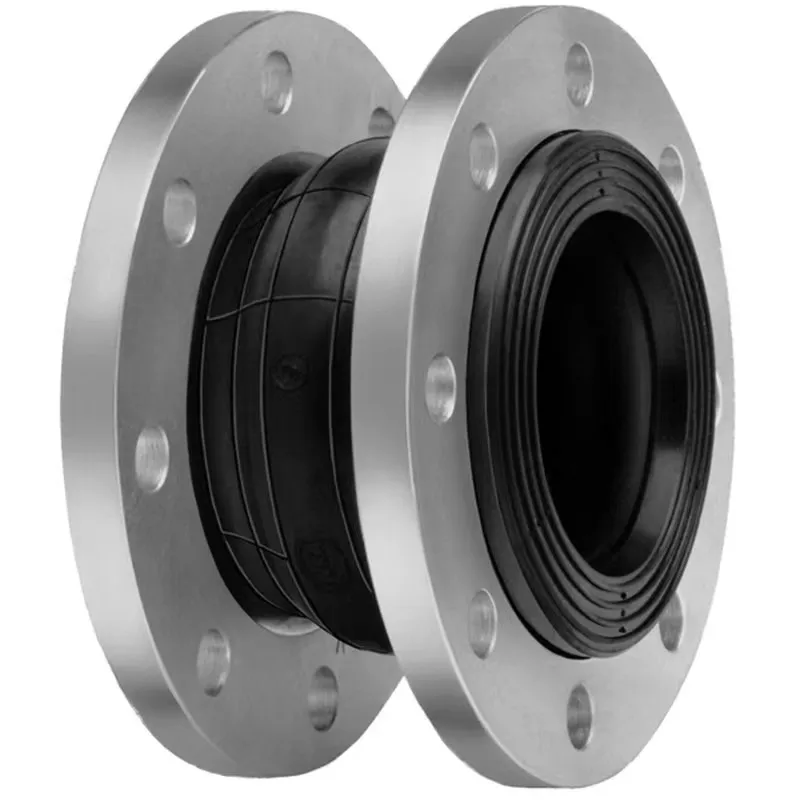

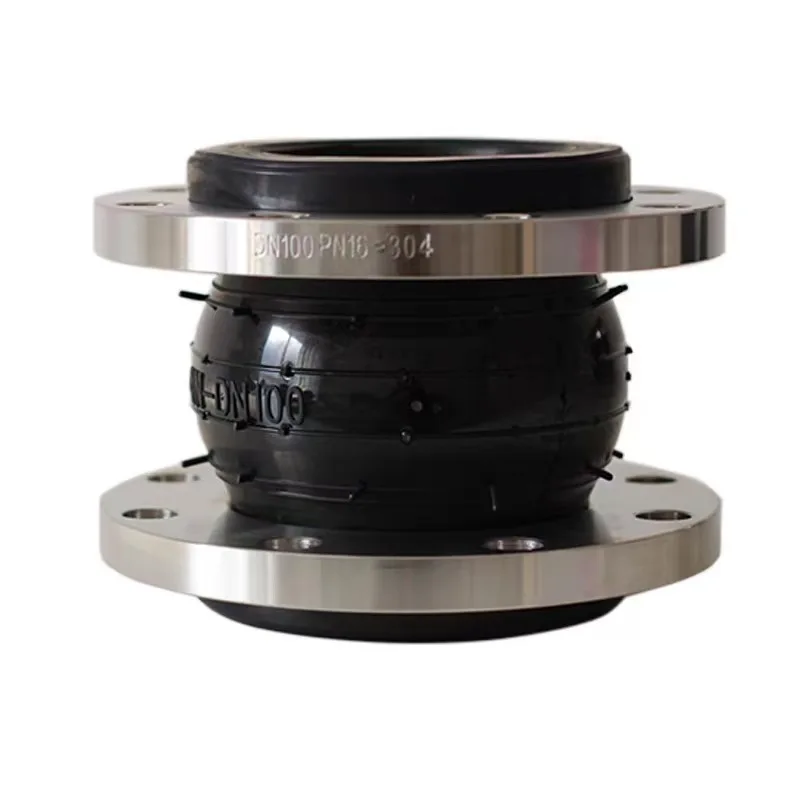

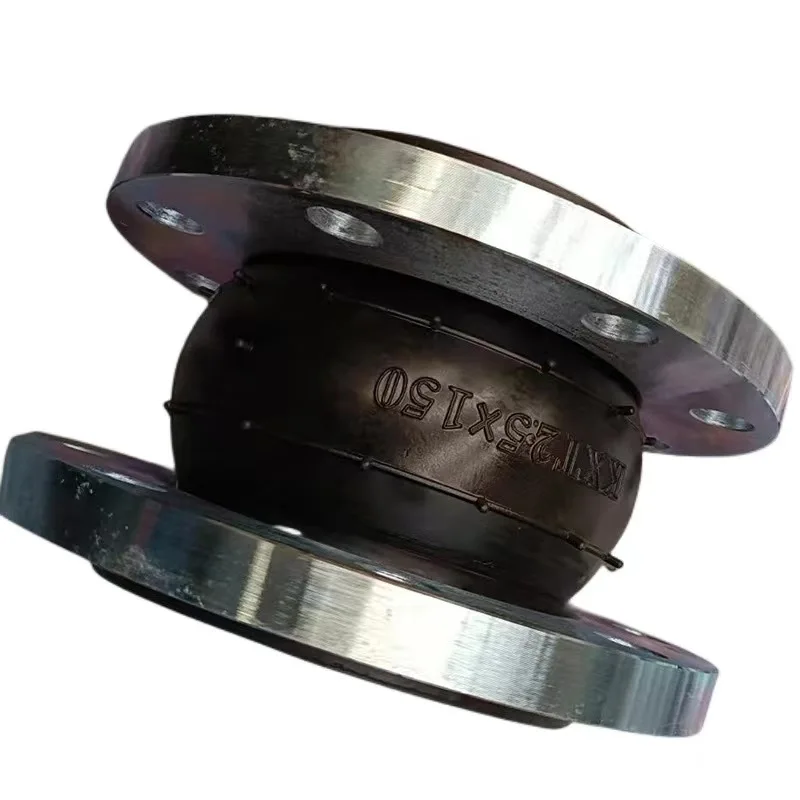

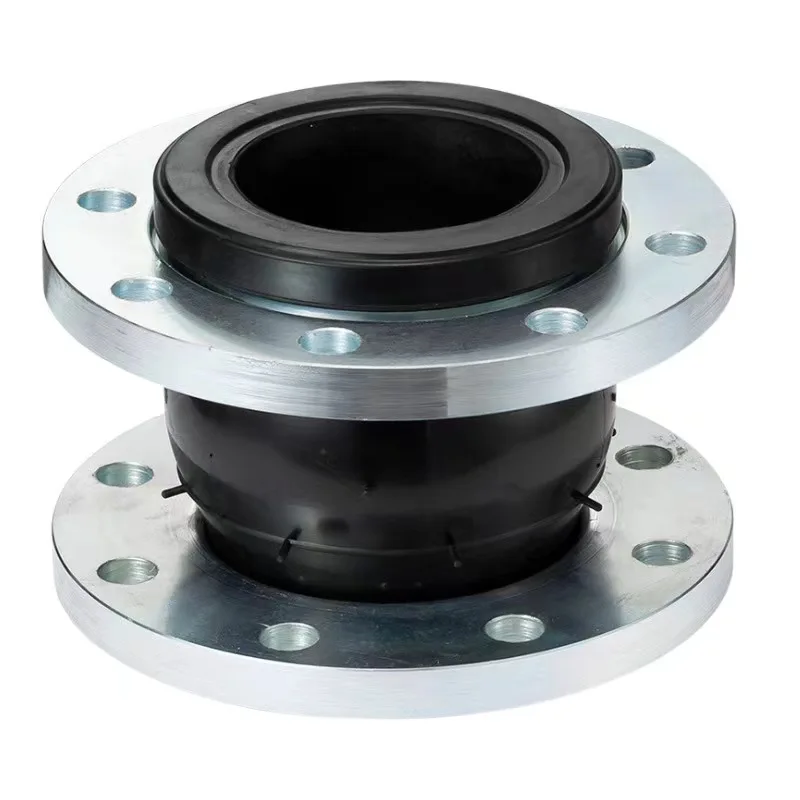

Brief Description of Rubber Expansion Joint
flexible rubber expansion joint consists of rubber body and metal flanges or screw thread, which is used in metal pipe system for vibration isolation, reducing noise and displacement compensation. The rubber flexible joint consists of inner layer rubber, reinforcing layer with polyester cord fabric and outside layer rubber with compounded rubber pipeline. flexible rubber expansion joint can choose any kind of inner layer rubber material and outer material, such as IIR, CR, EPDM, NR, NBR and so on. The external and internal layers of rubber material can be different. But skeleton layer of rubber joint are produced by polyester fabric and enhancement layer has a steel wire ring. Flange material is also diverse, common material is like Q235 SS304 and SS316.
Metal expansion joint is a compensation element, effective use of bellows telescopic body deformation, dimensional change in the absorption of pipeline, pipe,conduits, containers, thermal expansion and contraction caused by pipeline transverse and angular displacement. It is mainly used for noise reduction and vibration reduction. It is widely used in modern industry.
Nominal Diameter | Quantity of Ripple | Effective Area of corrugated tube (cm2) | Maximum external diameter(mm) | Flange Length(mm) |
32 | 8 | 16 | 225 | 160/250 |
32 | 16 | 16 | 225 | 224/291 |
40 | 8 | 23 | 244 | 164/259 |
40 | 8 | 23 | 244 | 230/304 |
50 | 16 | 37 | 259 | 172/276 |
50 | 8 | 37 | 259 | 240/342 |
65 | 8 | 55 | 270 | 215/294 |
65 | 12 | 55 | 270 | 260/334 |
80 | 8 | 81 | 284 | 240/338 |
80 | 10 | 81 | 284 | 270/368 |
100 | 6 | 121 | 304 | 235/317 |
700 | 4 | 4717 | 1110 | 490 |
700 | 6 | 4717 | 1110 | 690 |
800 | 4 | 5822 | 1265 | 502 |
800 | 6 | 5822 | 1265 | 610 |
The above data is for reference only, if you need special size, we can also customize according to your needs.pls click here to contact us now!
Specification
item | value |
Warranty | 1 years |
Customized support | OEM, ODM, OBM |
Place of Origin | China |
Hebei | |
Brand Name | LANDA |
Technics | Casting |
Connection | Flange |
Shape | Equal |
Head Code | Round |
Product name | Rubber/Metal Expansion Joint |
Material | EPDM/Hardened Steel |
Material of the flanges | CS,SS304, SS316, SS316L, SS321, SS310, SS904L, SS2205, SS2507 |
Feature | High Pressure Resistance |
Company Profile
Hebei Landa Pipe Industry Co., Ltd. is located in Qilizhuang, Jing County, Hengshui City, Hebei Province, China. Business scope includes other rubber products manufacturing. Manufacture and sales of metal hose, polyurethane oil hose, steam hose, compensator, marine hose, marine fittings, high pressure hose assembly, cloth-clamped hose, nylon resin hose assembly, polyethylene tetrafluoroethylene hose, hydraulic cylinders and fittings, rubber products, nylon products, plastic products, mechanical fittings processing. Products are widely used in: electric power, dock, construction, iron and steel, mining, petroleum, chemical, cement, transportation and other industries on a variety of pipelines and equipment, and in the country's key projects have been applied to win the user's praise and the right to the products have been recognized through the IS09001 authority, more than was named "provincial and municipal product quality trustworthy enterprises "International quality system certification.
Certifications
FAQ
Q:Can you make the product as per client's requirement?
A:Yes, of course. It will be provided according to the needs of customers.
Q:What are your payment terms?
A:T/T (30% as deposit, the rest 70% will be paid before delivery), L/C at sight.
Q:Where is your nearest loading port?
A: Qingdao or Tianjin, China.
Q:How can you guarantee the quality or any warranty?
A:If any quality problems during use, all the products can be returned or according to consumer's requests.
Q:Do you accept small quantity order?
A:Of course we do.
Q:And what is your shipment and delivery time?
A:By sea or air. Normally 7 to 14 Days for delivery, according to your order quantity.
A:Yes, of course. It will be provided according to the needs of customers.
Q:What are your payment terms?
A:T/T (30% as deposit, the rest 70% will be paid before delivery), L/C at sight.
Q:Where is your nearest loading port?
A: Qingdao or Tianjin, China.
Q:How can you guarantee the quality or any warranty?
A:If any quality problems during use, all the products can be returned or according to consumer's requests.
Q:Do you accept small quantity order?
A:Of course we do.
Q:And what is your shipment and delivery time?
A:By sea or air. Normally 7 to 14 Days for delivery, according to your order quantity.
Похожие товары

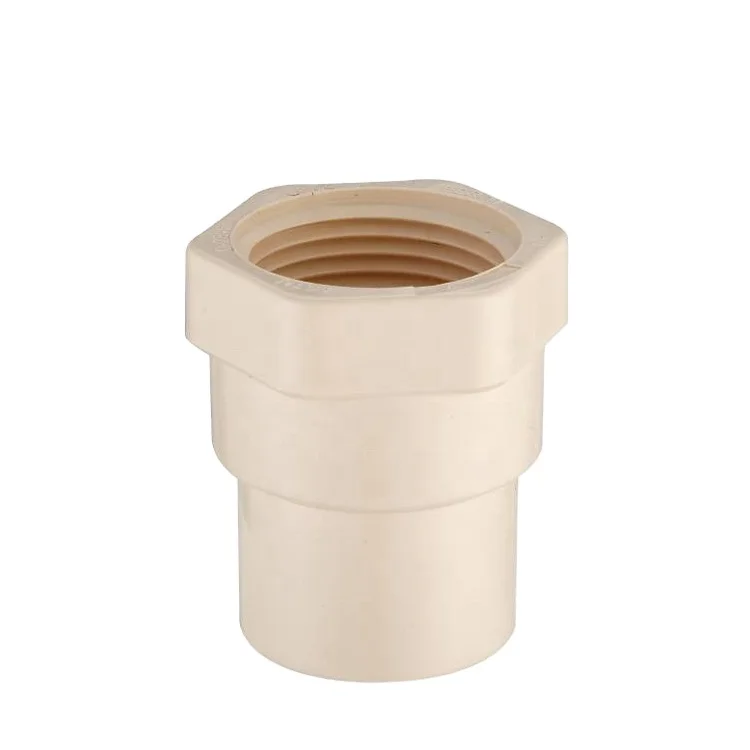

CPVC D2846 фитинги для труб и соединительный коннектор водопроводной трубы втулка с внутренней резьбой
