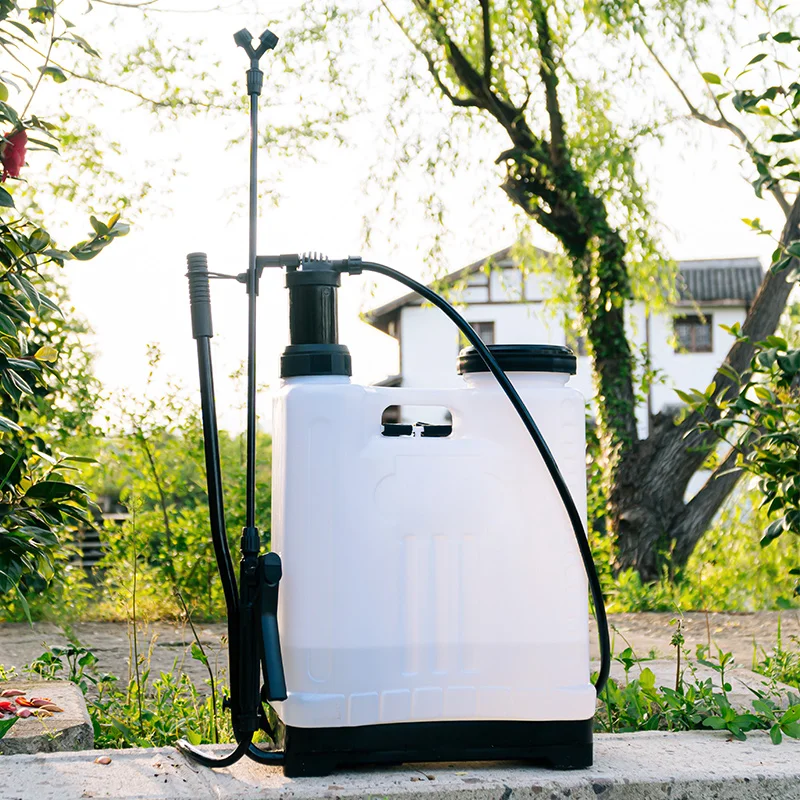

RUIPU 16L новая противотуманная машина из полипропилена для сельского хозяйства большая емкость полупрозрачный белый рюкзак ручной распылитель
975,93 ₽ - 1 496,42 ₽
Концентрированный рассол система обработки испарения оборудование subgrade очистки сточных вод испаритель распыления
- Категория: >>>
- Поставщик: Cangzhou Blue Ocean Environmental Protection Equipment Co. Ltd.
Сохранить в закладки 1601096544406:
Описание и отзывы
Характеристики
Product Description
Specification
Product Name | Mechanical Atomization Evaporator |
Total power | 22KW |
Water flow | 60-150L/min |
Maximum spray range | 40-50m |
Mist particle size | 50-150μm |
Pitch angle | 0°-40° |
Horizontal rotation angle | 80° |
Machine Weight | 1T |
Sealing Performance | No leakage |
Other pollution | Polution- free |
Removable | Modular unit, easy to replace |
Maintainability | Easy maintenance |

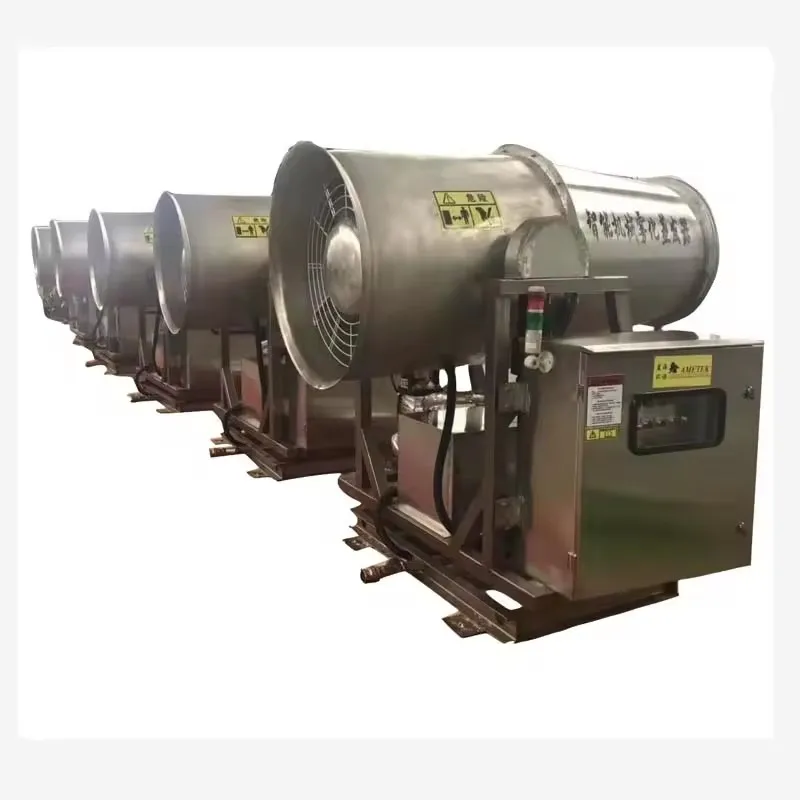

Evaporation pond mechanical atomization evaporator

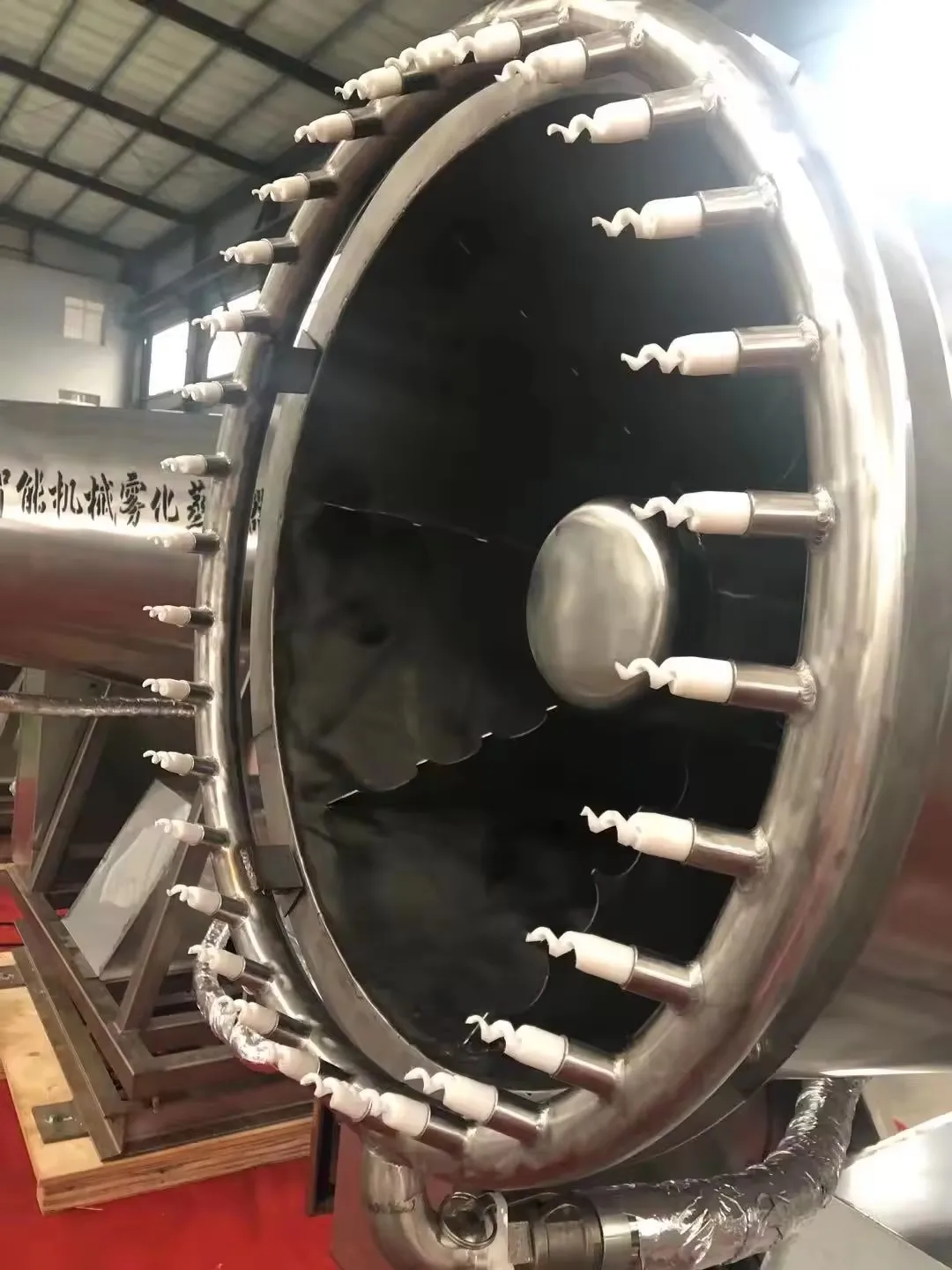

The principle of high-efficiency mechanical evaporation is to use the mechanical force synthesized by special pressure nozzle and super strong fan to turn the water mist into micro water droplets and spray them on the target area; at this time, the relative specific surface area of the droplets increases sharply, resulting in the rapid evaporation of sewage water under natural conditions. According to the user's evaporation volume requirements and local temperature, humidity, wind speed, water quality and site conditions, through two years of R & D and design of Cangzhou blue sea environmental protection equipment Co., Ltd. , the developed equipment can control the particle size, movement speed and movement direction of the water droplets, solved the adverse impact of scaling, suspended solids, salt crystallization and many other factors on the evaporation effect, and avoided salt dispersion, so as to ensure that on the one hand it can evaporate in large scale, on the other hand, it can prevent environmental pollution.
At present, mechanical atomization evaporation is regarded as an alternative process of reverse osmosis and chemical demineralization in wastewater treatment, and it can also be used for evaporation of high concentration wastewater after reverse osmosis treatment. Natural evaporation is to use a natural evaporation pond (evaporation rate is slow, evaporation pond area is large), which is usually limited by the site restriction or the cost of evaporation pond, and also consider the cost of environmental cleaning and vegetation destruction.
Mechanical atomization evaporation can greatly increase the evaporation rate of high concentration sewage. The mechanical evaporation rate of the same pool area is more than 10 times that of the ordinary evaporation pool. The mechanical evaporator has compact structure, high efficiency and stability, and is easy to install and transport. Mechanical evaporation is a low-cost and efficient evaporation method under the existing evaporation pond conditions, and it can greatly reduce the area of the new evaporation pond.
At present, mechanical atomization evaporation is regarded as an alternative process of reverse osmosis and chemical demineralization in wastewater treatment, and it can also be used for evaporation of high concentration wastewater after reverse osmosis treatment. Natural evaporation is to use a natural evaporation pond (evaporation rate is slow, evaporation pond area is large), which is usually limited by the site restriction or the cost of evaporation pond, and also consider the cost of environmental cleaning and vegetation destruction.
Mechanical atomization evaporation can greatly increase the evaporation rate of high concentration sewage. The mechanical evaporation rate of the same pool area is more than 10 times that of the ordinary evaporation pool. The mechanical evaporator has compact structure, high efficiency and stability, and is easy to install and transport. Mechanical evaporation is a low-cost and efficient evaporation method under the existing evaporation pond conditions, and it can greatly reduce the area of the new evaporation pond.
Company Profie
Cangzhou blue ocean environmental protection equipment(Group) Co., Ltd. is a national high-tech enterprise. Our company is located in Botou Jiaohe Development Zone, Cangzhou City, Hebei province. Since its foundation, our company has been researching , innovating and developing new products and new projects，is a key research and development base for spraying machinery and dust removal equipment in our country. Our company is an environmental protection manufacturer integrating R & D, production, sales and installation.
Our products include dry fog mainframe, dry mist box assembly, water vapour distributor, micro mist mainframe, two fluid spray equipment, environmental long range sprayer, dust suppressant spray equipment, agricultural and forestry spray medicine machine, sewage filter, industrial dust removal and other products. The products are widely used in various industrial conditions, such as coal, thermal power generation, metallurgy, coal chemical industry and petrochemical industry, port and wharf storage and transportation, shipbuilding, agriculture, forestry, animal husbandry and fishery. It is also suitable for large-scale sterilization and epidemic prevention in landfills and public health places. Its dust reduction cannon equipment can also be used to reduce urban PM10 and PM2.5 haze, dust, sulfur dioxide, particulate suspension. Effectively improve air quality.
The company's products have passed ISO9001:2008 quality management system certification and won a number of national new practical patents. It has 20 years of research and development, design and production experience. Its products have the advantages of easy operation, stable performance, low use cost, long working life and so on. Since its establishment, it has been developing rapidly and its business has been constantly growing. We always adhere to the principle of "customer first, serve customers attentively, and use our own quality and service to impress customers. Moreover, we adhere to the business philosophy of" when People lack,we have; when people have we are excellent, when people excellent we are perfect”, insist on providing customers with high quality service.
Our products include dry fog mainframe, dry mist box assembly, water vapour distributor, micro mist mainframe, two fluid spray equipment, environmental long range sprayer, dust suppressant spray equipment, agricultural and forestry spray medicine machine, sewage filter, industrial dust removal and other products. The products are widely used in various industrial conditions, such as coal, thermal power generation, metallurgy, coal chemical industry and petrochemical industry, port and wharf storage and transportation, shipbuilding, agriculture, forestry, animal husbandry and fishery. It is also suitable for large-scale sterilization and epidemic prevention in landfills and public health places. Its dust reduction cannon equipment can also be used to reduce urban PM10 and PM2.5 haze, dust, sulfur dioxide, particulate suspension. Effectively improve air quality.
The company's products have passed ISO9001:2008 quality management system certification and won a number of national new practical patents. It has 20 years of research and development, design and production experience. Its products have the advantages of easy operation, stable performance, low use cost, long working life and so on. Since its establishment, it has been developing rapidly and its business has been constantly growing. We always adhere to the principle of "customer first, serve customers attentively, and use our own quality and service to impress customers. Moreover, we adhere to the business philosophy of" when People lack,we have; when people have we are excellent, when people excellent we are perfect”, insist on providing customers with high quality service.
After Sales Service
Complete after-sales service
1. Free technical support and free accessories supply.
2. Engineer available to service machinery overseas.
3. One year warranty is provided.
4. Long life technical guidance for free.
5. We always offer technical support, quick response, all your inquire will be replied in 24 hours.
2. Engineer available to service machinery overseas.
3. One year warranty is provided.
4. Long life technical guidance for free.
5. We always offer technical support, quick response, all your inquire will be replied in 24 hours.
FAQ
1. Q: How to visit our company? A: Fly to Beijing Airport: By fast train From Beijing South station to Cangzhou west station
(1hour), then we can pick up you to factory(40min). Fly to Shanghai Airport: By fast train From Shanghai Hongqiao station to Cangzhou west station(4.5 hours), then we can pick up you to factory(40min).
2. Q: What should I provide if I want to customized machine? A: You need provide profile drawing, material, thickness, voltage and your special requirements.
3. Q: What is the Warranty? A: Within 12 mouths, all technicals are ready to serve you at any time.
4. Q: What can you do if the machine broken? A: Our machine's warranty period is 12 months, if the broken parts can't repair, we will send new parts replace the broken parts free, but you need pay the express cost if after warranty period. we can negotiate to solve the problem, and we supply the technical support for whole life of equipment.
5. Q: If need technician to workshop to debug and teach, how to do? A: We sent technician to your country to fix the machine. Buyer should bear cost including: visa, round trip ticket and suitable accommodation, also buyer should pay the salary 100 USD/day.
(1hour), then we can pick up you to factory(40min). Fly to Shanghai Airport: By fast train From Shanghai Hongqiao station to Cangzhou west station(4.5 hours), then we can pick up you to factory(40min).
2. Q: What should I provide if I want to customized machine? A: You need provide profile drawing, material, thickness, voltage and your special requirements.
3. Q: What is the Warranty? A: Within 12 mouths, all technicals are ready to serve you at any time.
4. Q: What can you do if the machine broken? A: Our machine's warranty period is 12 months, if the broken parts can't repair, we will send new parts replace the broken parts free, but you need pay the express cost if after warranty period. we can negotiate to solve the problem, and we supply the technical support for whole life of equipment.
5. Q: If need technician to workshop to debug and teach, how to do? A: We sent technician to your country to fix the machine. Buyer should bear cost including: visa, round trip ticket and suitable accommodation, also buyer should pay the salary 100 USD/day.
Похожие товары
Клеевая смесительная трубка AB, статическая дозирующая головка, двухкомпонентная дозирующая головка AB
16,27 ₽ - 28,20 ₽

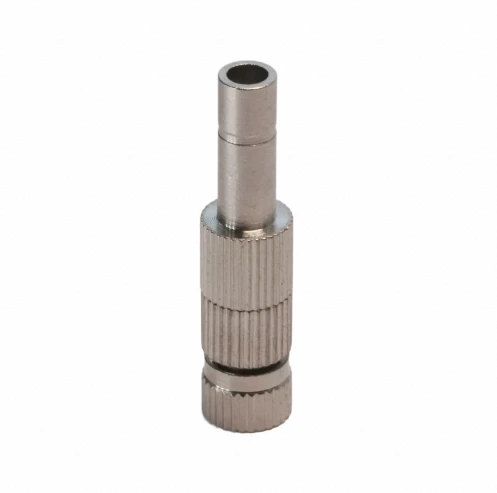

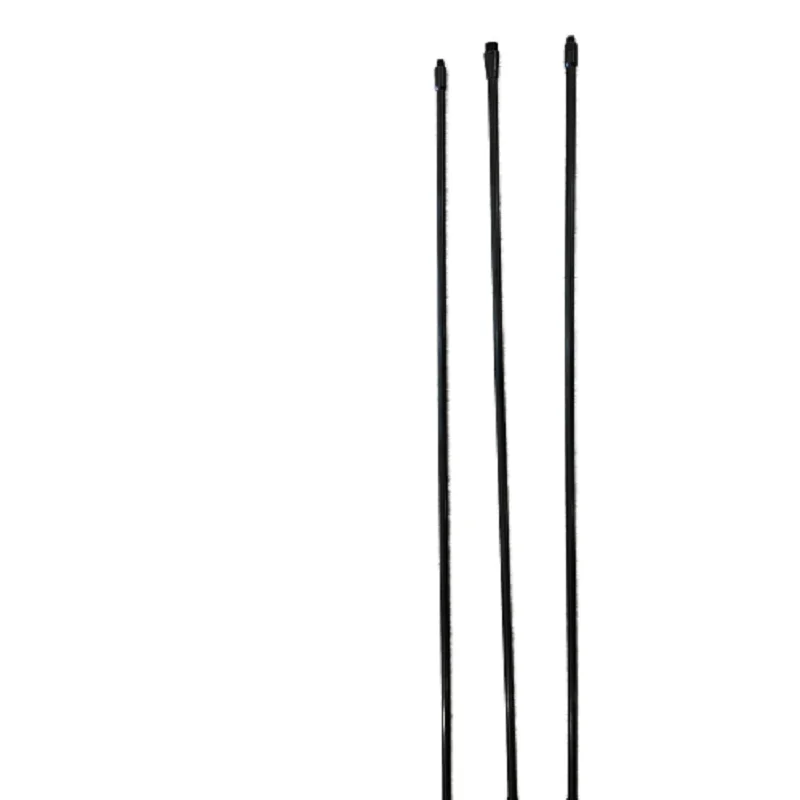

Новая технология профессионального производства распылитель тумана с длинным соплом
103,02 ₽ - 121,45 ₽
Ранец 20 л Опрыскиватель Сельскохозяйственный мощный опрыскиватель по лучшей заводской цене
1 409,67 ₽ - 1 626,54 ₽
Стекловолоконный опрыскиватель устойчив к коррозии и кислотности и щелочи

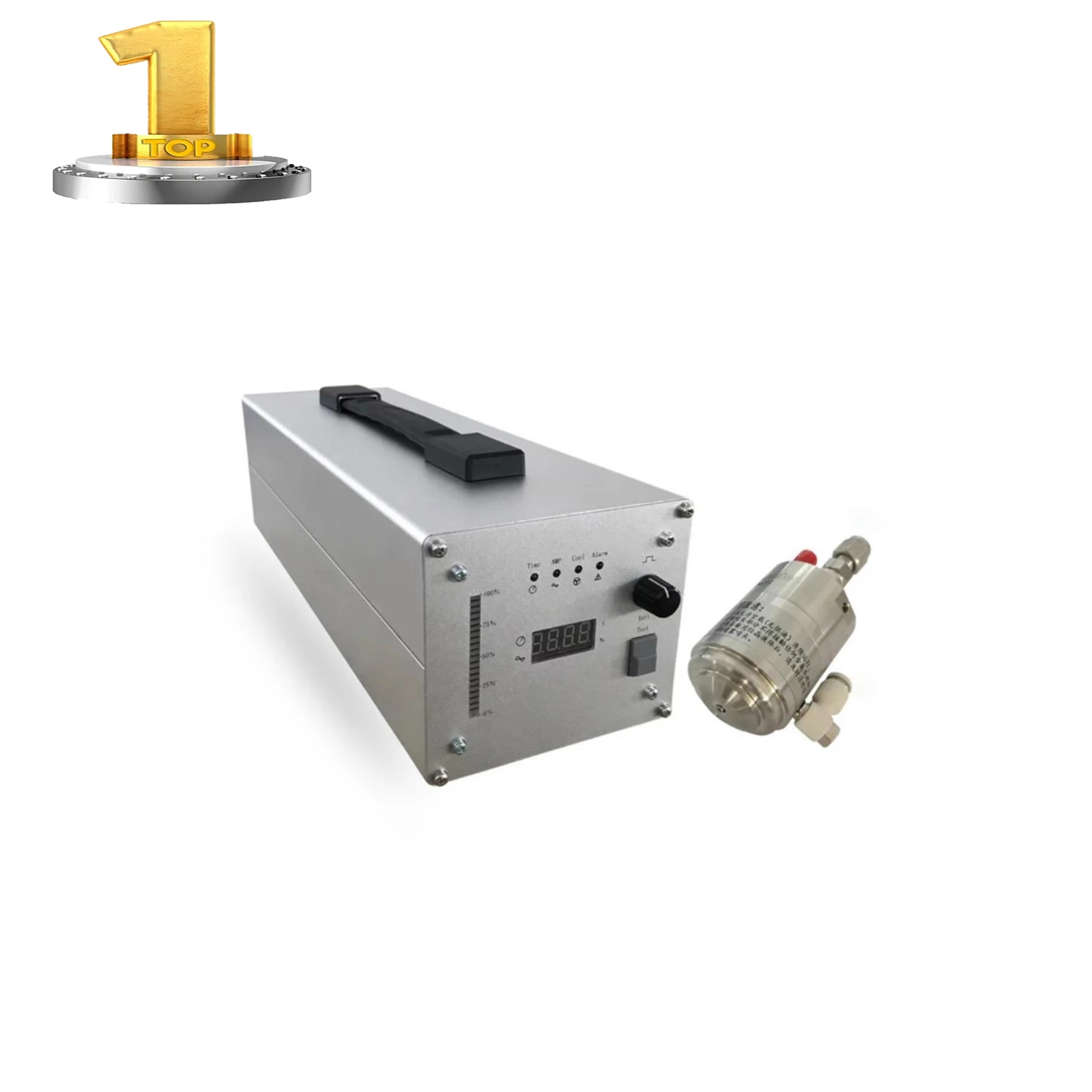

50 кГц нанораспылитель системы распыления, ультразвуковой распылитель, ультразвуковой распылитель

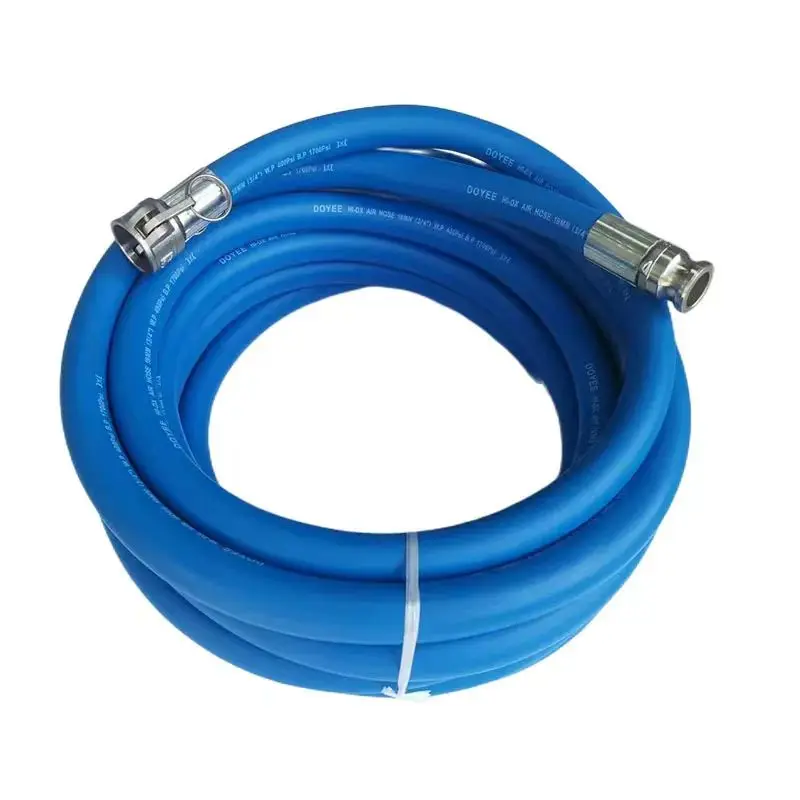

Труба высокого давления, Взрывозащищенная труба, антирастрескивающий раствор, распылительная машина, труба для краски из настоящего камня

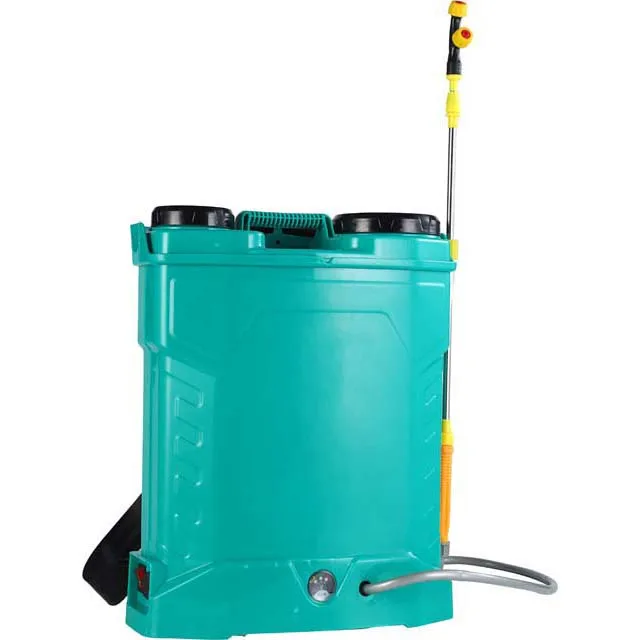

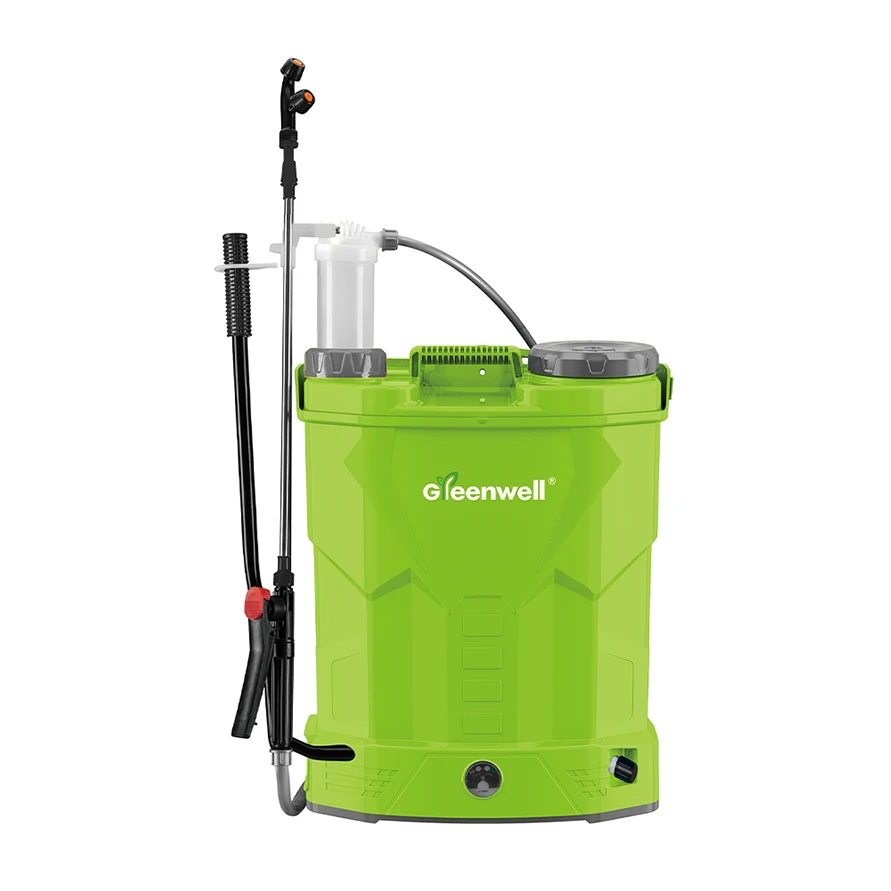

Заводской высококачественный рюкзак-распылитель 2 в 1
