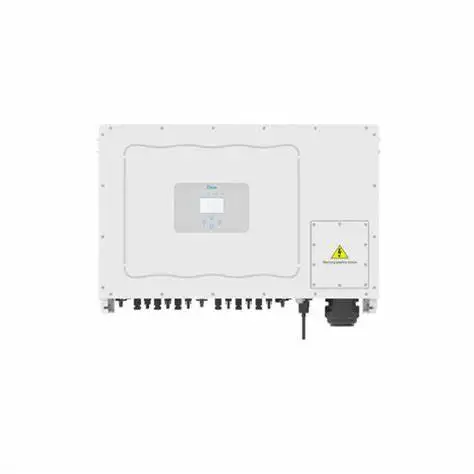

Солнечный инвертор DEYE 75 кВт 80 100 250 солнечный гибридный без аккумулятора SUN-80K-G
188 571,54 ₽ - 208 740,21 ₽

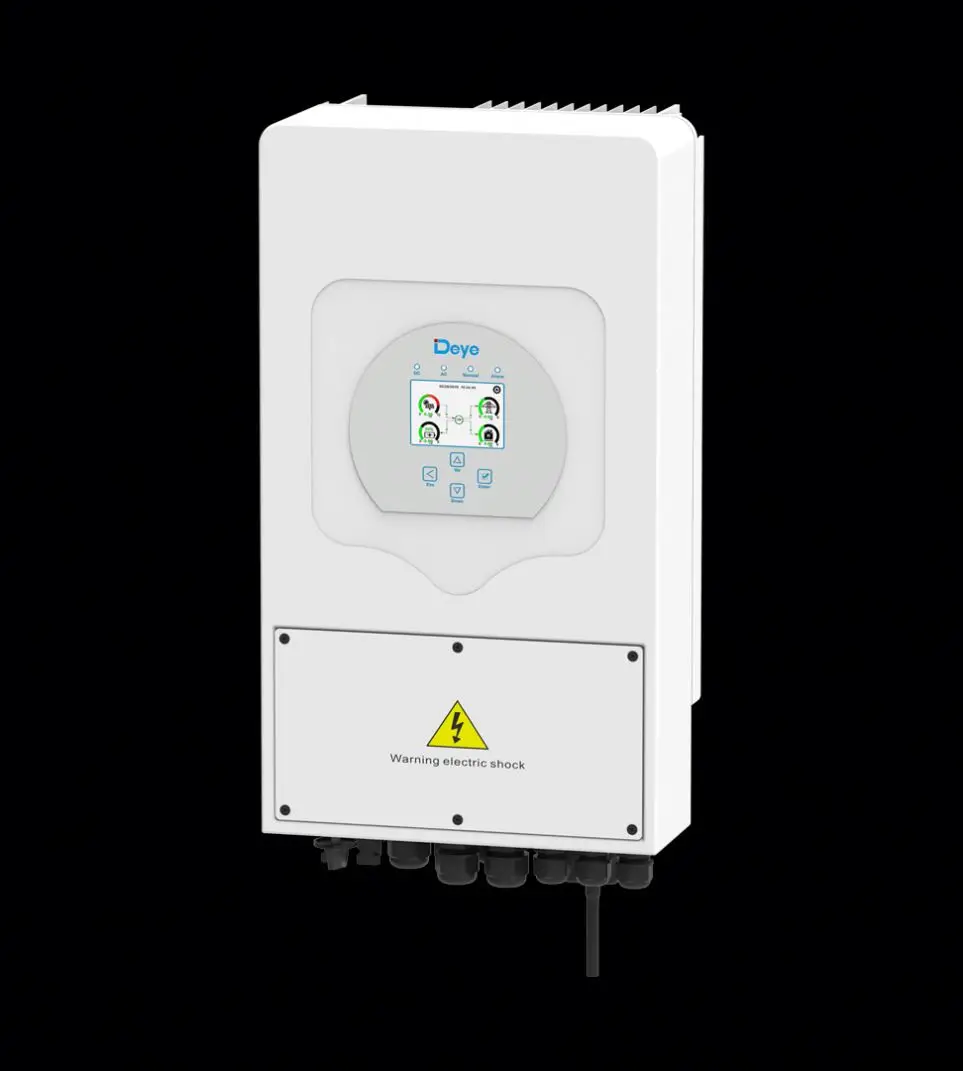

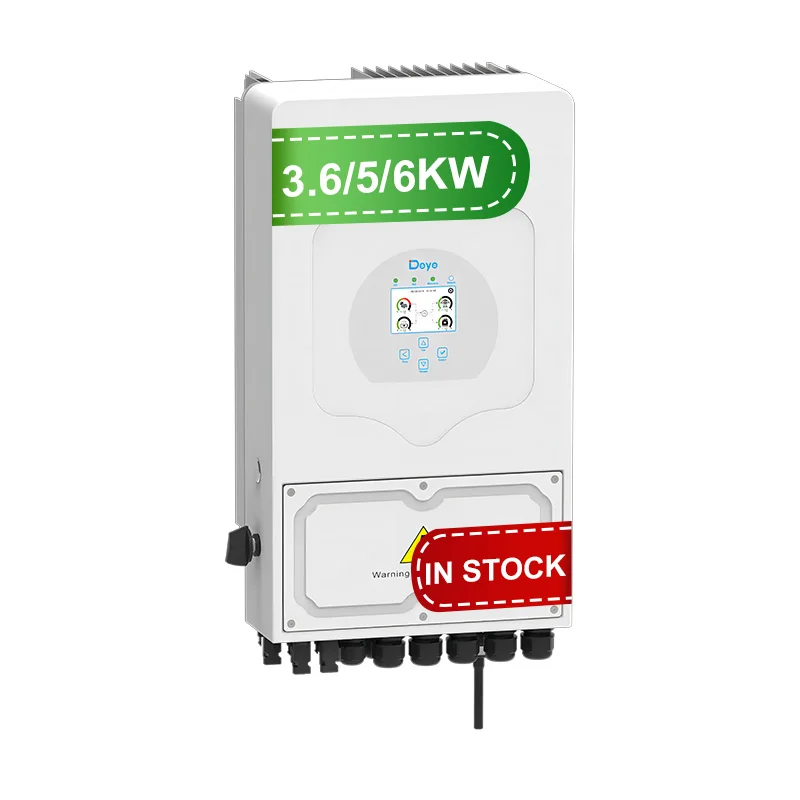

Hydro Deye sun 5k sg03lp1 eu Гибридный инвертор 5 кВт Инвертор солнечной энергии
- Категория: >>>
- Поставщик: Yichun Hertz Energy Storage Co. Ltd.
Сохранить в закладки 1601097161056:
Описание и отзывы
Характеристики
1.Frequency droop control algorithm
The frequency droop control algorithm allows a maximum of 16 inverters to be connected in parallel, which meets needs of small-scale industrial and commercial energy storage scenarios.
2.Automatic switching time
The inverter automatically switches between the on- and off-grid mode within 4ms, ensuring uninterrupted power supply for critical load.
3.Configurable charge and discharge time
6 configurable charge and discharge time periods can be set.
4.Supporting diesel generator
The inverter supports diesel generator to directly charge the battery, guaranteeing uninterrupted supply for the system on a 24/7 basis.
5.High charging efficiency
Maximum charge efficiency: 95.5%
Maximum charge and discharge current
Maximum charge and discharge current: 240A (12KW model)
6.Intelligent AC coupling
The intelligent AC coupling solution can easily upgrade the existing grid-tied system.
The frequency droop control algorithm allows a maximum of 16 inverters to be connected in parallel, which meets needs of small-scale industrial and commercial energy storage scenarios.
2.Automatic switching time
The inverter automatically switches between the on- and off-grid mode within 4ms, ensuring uninterrupted power supply for critical load.
3.Configurable charge and discharge time
6 configurable charge and discharge time periods can be set.
4.Supporting diesel generator
The inverter supports diesel generator to directly charge the battery, guaranteeing uninterrupted supply for the system on a 24/7 basis.
5.High charging efficiency
Maximum charge efficiency: 95.5%
Maximum charge and discharge current
Maximum charge and discharge current: 240A (12KW model)
6.Intelligent AC coupling
The intelligent AC coupling solution can easily upgrade the existing grid-tied system.
Product Paramenters
Model | SUN-3.6K-SG03LP1-EU | SUN-5K-SG03LP1-EU | SUN-6K-SG03LP1-EU | |||
Battery Input Data | ||||||
Battery Type | Lead-acid or Li-lon | |||||
Battery Voltage Range (V) | 40~60 | |||||
Max. Charging Current (A) | 90 | 120 | 135 | |||
Max. Discharging Current (A) | 90 | 120 | 135 | |||
External Temperature Sensor | Yes | |||||
Charging Curve | 3 Stages / Equalization | |||||
Charging Strategy for Li-Ion Battery | Self-adaption to BMS | |||||
PV String Input Data | ||||||
Max. DC Input Power (W) | 4680 | 6500 | 7800 | |||
Rated PV Input Voltage (V) | 370 (125~500) | |||||
Start-up Voltage (V) | 125 | |||||
MPPT Voltage Range (V) | 150-425 | |||||
Full Load DC Voltage Range (V) | 300-425 | |||||
PV Input Current (A) | 13+13 | |||||
Max. PV I S C (A) | 17+17 | |||||
No.of MPP Trackers | 2 | |||||
No.of Strings per MPP Tracker | 1 | |||||
AC Output Data | ||||||
Rated AC Output and UPS Power (W) | 3600 | 5000 | 6000 | |||
Max. AC Output Power (W) | 3690 | 5500 | 6600 | |||
AC Output Rated Current (A) | 16.4/15.7 | 22.7/21.7 | 27.3/26.1 | |||
Max. AC Current (A) | 18/17.2 | 25/23.9 | 30/28.7 | |||
Max. Continuous AC Passthrough (A) | 35 | 40 | ||||
Peak Power (off grid) | 2 time of rated power, 10 S | |||||
Power Factor | 0.8 leading to 0.8 lagging | |||||
Output Frequency and Voltage | 50/60Hz; L/N/PE 220/230Vac (single phase) | |||||
Grid Type | Single Phase | |||||
DC injection current (mA) | THD<3% (Linear load<1.5%) | |||||
Efficiency | ||||||
Max. Efficiency | 97.60% | |||||
Euro Efficiency | 96.50% | |||||
MPPT Efficiency | 99.90% | |||||
Protection | ||||||
Integrated | PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge protection | |||||
Output Over Voltage Protection | DC Type II/AC Type III | |||||
Certifications and Standards | ||||||
Grid Regulation | CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11 | |||||
Safety EMC / Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | |||||
General Data | ||||||
Operating Temperature Range (℃) | -40~60℃, >45℃ derating | |||||
Cooling | Natural cooling | |||||
Noise (dB) | <30 dB | |||||
Communication with BMS | RS485; CAN | |||||
Weight (kg) | 20.5 | |||||
Size (mm) | 330W x 580H x232D | |||||
Protection Degree | IP65 | |||||
Installation Style | Wall-mounted | |||||
Warranty | 5 years | |||||
Products Description
The following illustration shows the basic application of this inverter. It also includes the following devices to have a Complete running system. - Generator or Utility - PV modules Consult with your system integrator for other possible system architectures depending on your requirements. This inverter can power all kinds of appliances in the home or office environment, including motor-type appliances such as refrigerators and air conditioners.
DC Breaker for battery
SUN 8K-SG: 250A DC breakerSUN 10K-SG:300A DC breaker
SUN 12K-SG:300A DC breaker
AC Breaker for grid and backup load
SUN 8K-SG: 80A AC breakerSUN 10K-SG:80A AC breaker
SUN 12K-SG:80A AC breaker
AC Breaker for grid and backup load
SUN 8K-SG: 20A AC breakerSUN 10K-SG:32A AC breaker
SUN 12K-SG:32A AC breaker
AC Breaker for home load
Depends on household loads
SUN 8K-SG: 250A DC breakerSUN 10K-SG:300A DC breaker
SUN 12K-SG:300A DC breaker
AC Breaker for grid and backup load
SUN 8K-SG: 80A AC breakerSUN 10K-SG:80A AC breaker
SUN 12K-SG:80A AC breaker
AC Breaker for grid and backup load
SUN 8K-SG: 20A AC breakerSUN 10K-SG:32A AC breaker
SUN 12K-SG:32A AC breaker
AC Breaker for home load
Depends on household loads
Projects

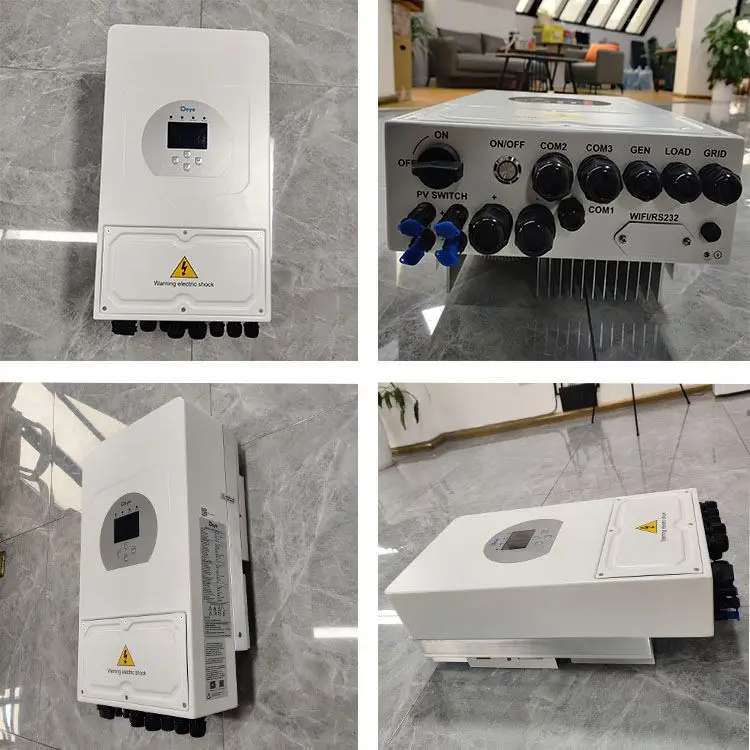

Customer's installation project results
Company Profile
Похожие товары
Deye версия в наличии IP65 уровень интеллектуального управления однофазный 220 В 230 Гибридные солнечные инверторы 6 кВт
77 147,91 ₽ - 88 169,04 ₽

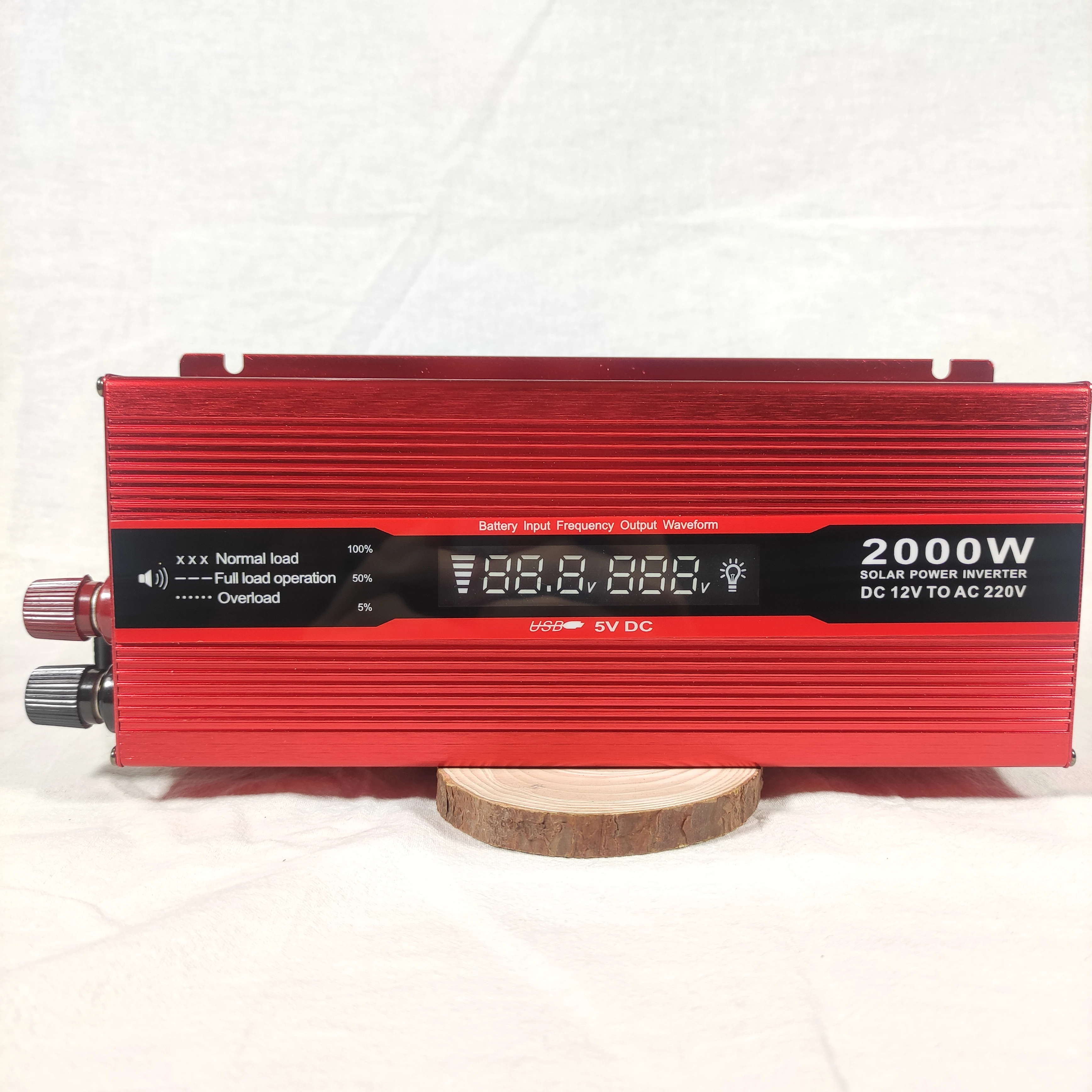

Новое поступление DC 12 В в AC 220 2000 Вт инверторы и преобразователи ЖК-дисплей USB-порты
2 204,23 ₽ - 2 755,29 ₽

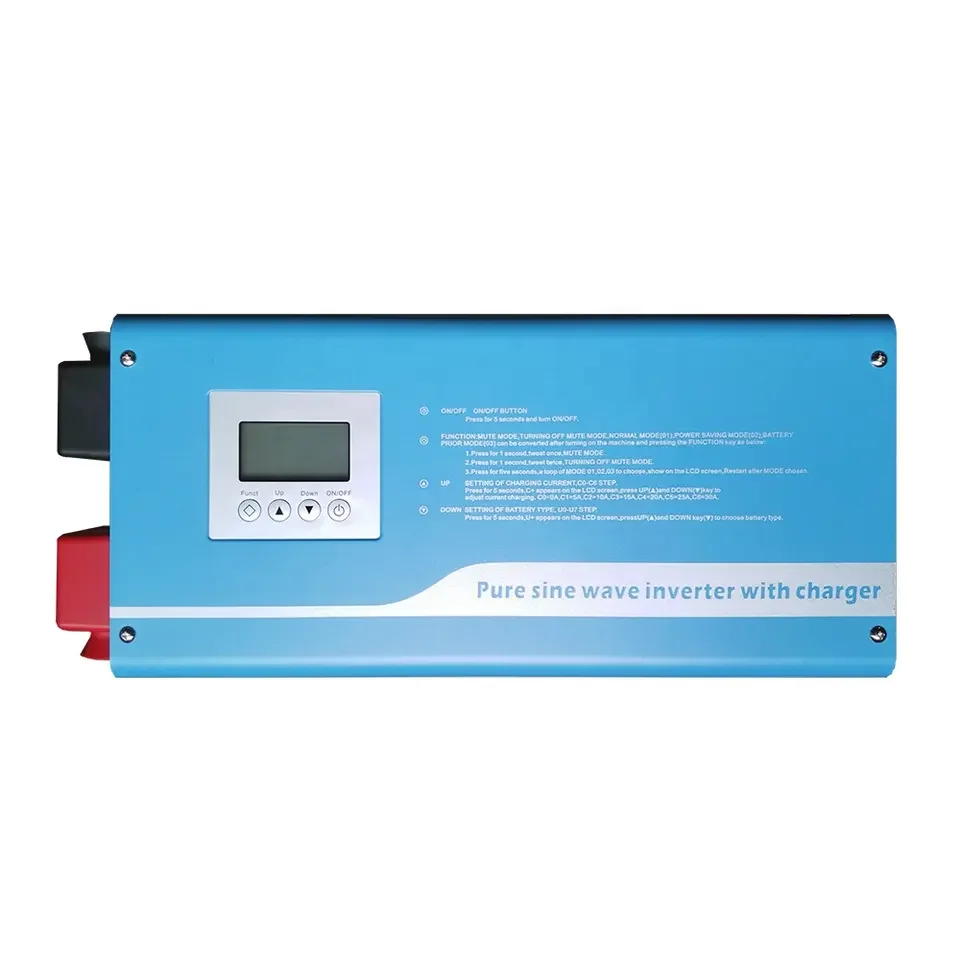

ESG Высокое качество 1 кВт 2 3 4 5 6 7 Инвертор солнечной энергии чистый синусоидальный инвертор Mppt Контроллер заряда
8 816,91 ₽ - 11 021,13 ₽

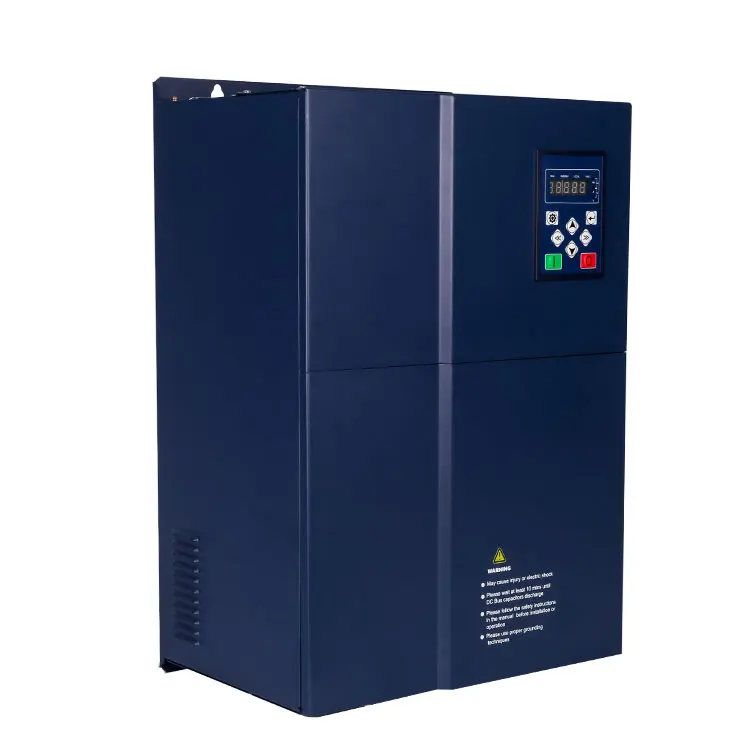

Лидер продаж Заводская поставка 22 кВт инвертор солнечного насоса в Китае
123 326,45 ₽
200 Вт модифицированный синусоидальный Солнечный преобразователь инвертор напряжения постоянного тока 12 В в переменный ток 220 110 двойной разъем автомобильный
1 190,29 ₽ - 1 542,96 ₽

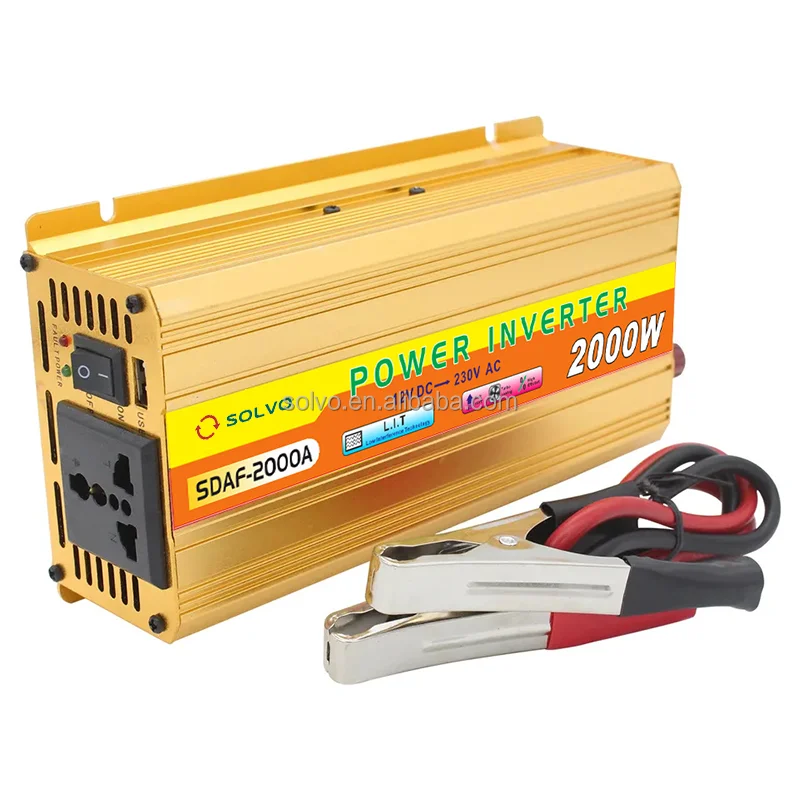

Инвертор Solvo Pakistan 12 В 24 2000 Вт
