Erhuan фильтр промышленный Hepa воздушный фильтр элемент пылеуловитель плиссированный Фильтр-Картридж
1 080,07 ₽ - 3 564,21 ₽
Синтетический целлюлозный промышленный индивидуальный Пылезащитный фильтр универсальные гофрированные бумажные фильтрующие картриджи
- Категория: >>>
- Поставщик: Jiangsu Erhuan Environmental Technology Co. Ltd.
Сохранить в закладки 1601097368564:
Описание и отзывы
Характеристики
Video Description
Products Description

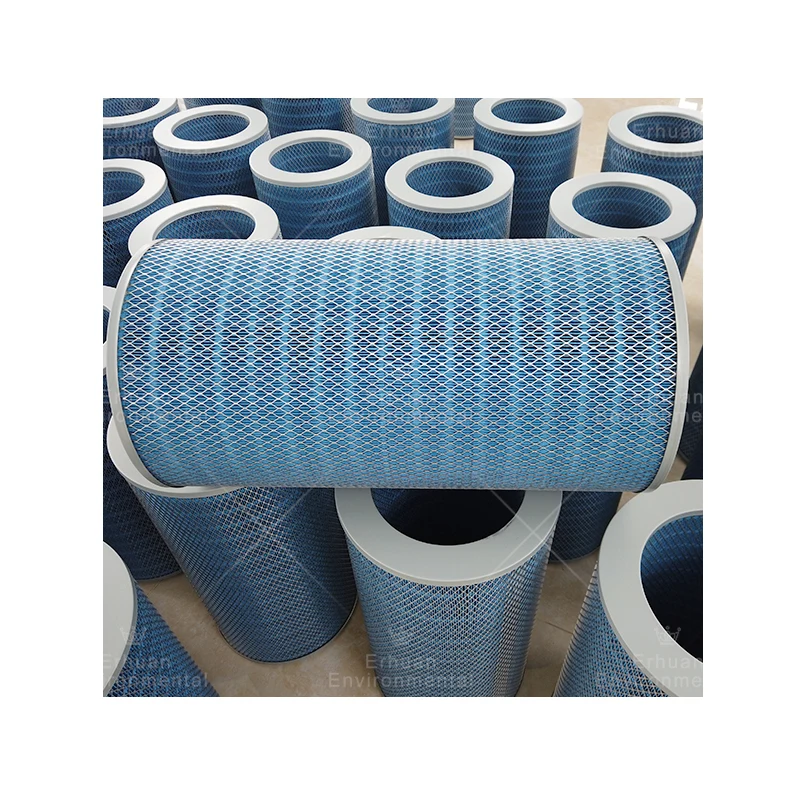

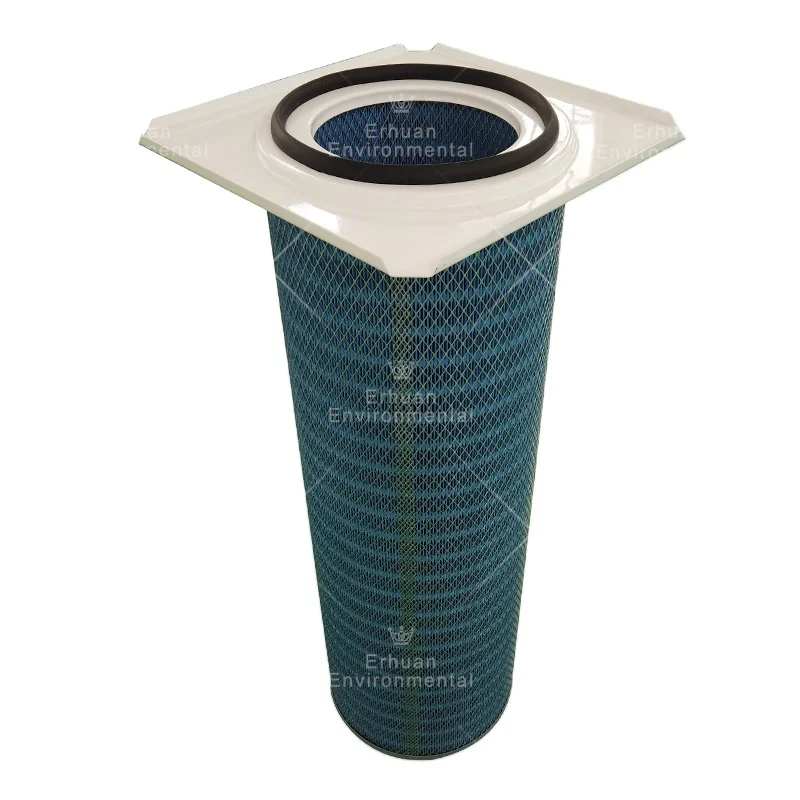

Cellulose Air Filter Cartridge
1. Wood pulp paper filter cartridge is a composite fiber filter paper made from wood pulp fibers as thesubstrate, mixed with a certain amount of other modified fibers.
2.The essential difference between filter paper and filter cloth is that filter paper has higher toughnessthan filter cloth. It is usually used to make filter paper into air filter tubes, with a weight of 135 grams persquare meter.
3. Filter paper has good breathability, and blended fibers can effectively intercept dust in the air. Theusual purification levels are MERV11-MERV14, F6-F8.
4. Fiber paper has a low weight and is thinner than filter cloth. Taking a 350 * 660mm filter cartridge asan example, the filtration area of fiber paper filter cartridges is 21-23.5 square meters per cartridge, andthat of polyester filter cartridges is9-10 square meters per cartridge.
Features
1.1.The essential difference between filter paper and filter cloth is thatfilter paper has higher toughness than filter cloth. It is usually used tomake filter paper into air filter tubes, with a weight of 135 grams persquare meter.
1.2.Fiber paper has a low weight and is thinner than filter cloth. Taking a350 * 660mm filter cartridge as an example, the filtration area of fiberpaper filter cartridges is 21-23.5 square meters per cartridge, and that ofpolyester filter cartridges is 9-10 square meters per cartridge.
▪ 1.3.Filter paper has good breathability, and blended fibers can effectivelyintercept dust in the air. The usual purification levels are MERV11-MERV14, F6-F8.
1.4.Fiber paper filter cartridges have a larger filtration area, but lowertoughness than non-woven fabrics. Therefore, the filter paper of the paperfilter cartridge needs to be fixed with a metal mesh on the outside, andlow filtration speed is adopted.The filtration speed is usually 0.5-0.8meters/minute.
Product Paramenters
Base Media | Cellulose fiber (80%cellulose and 20%polyester) | Cellulose with nanofiber | Cellulose with flame retardant |
Base Media | |||
Efficiency Rating | F9 | F9 | F9 |
Maximum Operating Temperature | 80°C | 80°C | 80°C |
Abrasion Resistance | Good | Good | Good |
Special Characteristics | Wide pleat spacing, great filter surface. Electrochemical plate top and bottom, no rust. Long filter life and high filtration efficiency on many applications | Nanofiber media provides excellent surface loading and dust release capabilities. | Wide pleat spacing, great filter surface. Flame Retardant material. Perforated zinc galvanized metal inner core, allows good airflow. |
Applications | Good choice for dry dirty dust, such as Chemical processing, Metalizing, Pharmaceutical,General industrial, Paint pigments, Carbon black,Thermal spray, Welding,Gas Turbine, Compressor, Sand Blasting, Tobacco etc. | Pharmaceutical, Food processing, Grain handing, Lead-acid storage battery | Particular suitbale for Grinding, Laser/Plasma cuting, Polishing, Powder coating, metal buffing, woodworking etc. |
Available Dust Collectors | EH-DFT,EH-DWS-EH-PT,EH-DB2000 | EH-DFT,EH-DWS-EH-PT,EH-DB2000 | EH-DFT,EH-DWS-EH-PT,EH-DB2000,EHI, EHVT |
Current available Models
Model | O.D | I.D | Length | Filtration surface |
EH/Z3266 | 324mm | 213mm | 660mm | 21m2 |
EH/Z3566 | 352mm | 241mm | 660mm | 23m2 |
EH/Z3275 | 324mm | 213mm | 750mm | 26m2 |
EH/Z3288 | 324mm | 213mm | 880mm | 27m2 |
EH/Z3290 | 324mm | 213mm | 915mm | 28m2 |
Details Images
Air Clean Equipment System
Shot/Sand Blasting Dust Collector
Paper Powder Plant Dust Collector
Electronic Plant Dust Collector
Welding Fumes Dust Collector
Milk Powder Dust Collector
Product packaging
Company Profile
Exhibitions & Customer
Certifications
FAQ
Q:What is the price?
A:The price is based on your request technical data, such as the air volume, application, configurationetc, different model has different price, so if you need the price, please send me your detail technical dataor photos.
Q:What payment methods your company accept?
A: We accept most of the payment methods,but mainly accept T/T,L/C,Western Union etc.
Q:How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery at best.
Q:What's the delivery time of your company?
A:Honest speaking, they depends on the quantity and the difficult of your order.As you know , but mostly ,the shipment time is 4 weeks after deposit for 380v/50hz/3phase fan, if special electic, the delivery time iswithin 6-8 weeks after deosit.
Q:Do you give any discount ?
A:We will surely try my best to help you get those by the best price and good service at the same time.
Q:I would like to ask you if it's possible to have my logo on the dust collector machine?
A:We hope you know that our company Erhuan supports customized logo service. But, we also hope youknow that it's an
extraservice,so a little bit extra service fee is needed.
Q:Can you design products according to my needs?
A:Of course, we have our own product design team to meet your personal customization needs.
A:The price is based on your request technical data, such as the air volume, application, configurationetc, different model has different price, so if you need the price, please send me your detail technical dataor photos.
Q:What payment methods your company accept?
A: We accept most of the payment methods,but mainly accept T/T,L/C,Western Union etc.
Q:How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery at best.
Q:What's the delivery time of your company?
A:Honest speaking, they depends on the quantity and the difficult of your order.As you know , but mostly ,the shipment time is 4 weeks after deposit for 380v/50hz/3phase fan, if special electic, the delivery time iswithin 6-8 weeks after deosit.
Q:Do you give any discount ?
A:We will surely try my best to help you get those by the best price and good service at the same time.
Q:I would like to ask you if it's possible to have my logo on the dust collector machine?
A:We hope you know that our company Erhuan supports customized logo service. But, we also hope youknow that it's an
extraservice,so a little bit extra service fee is needed.
Q:Can you design products according to my needs?
A:Of course, we have our own product design team to meet your personal customization needs.
