Product Description

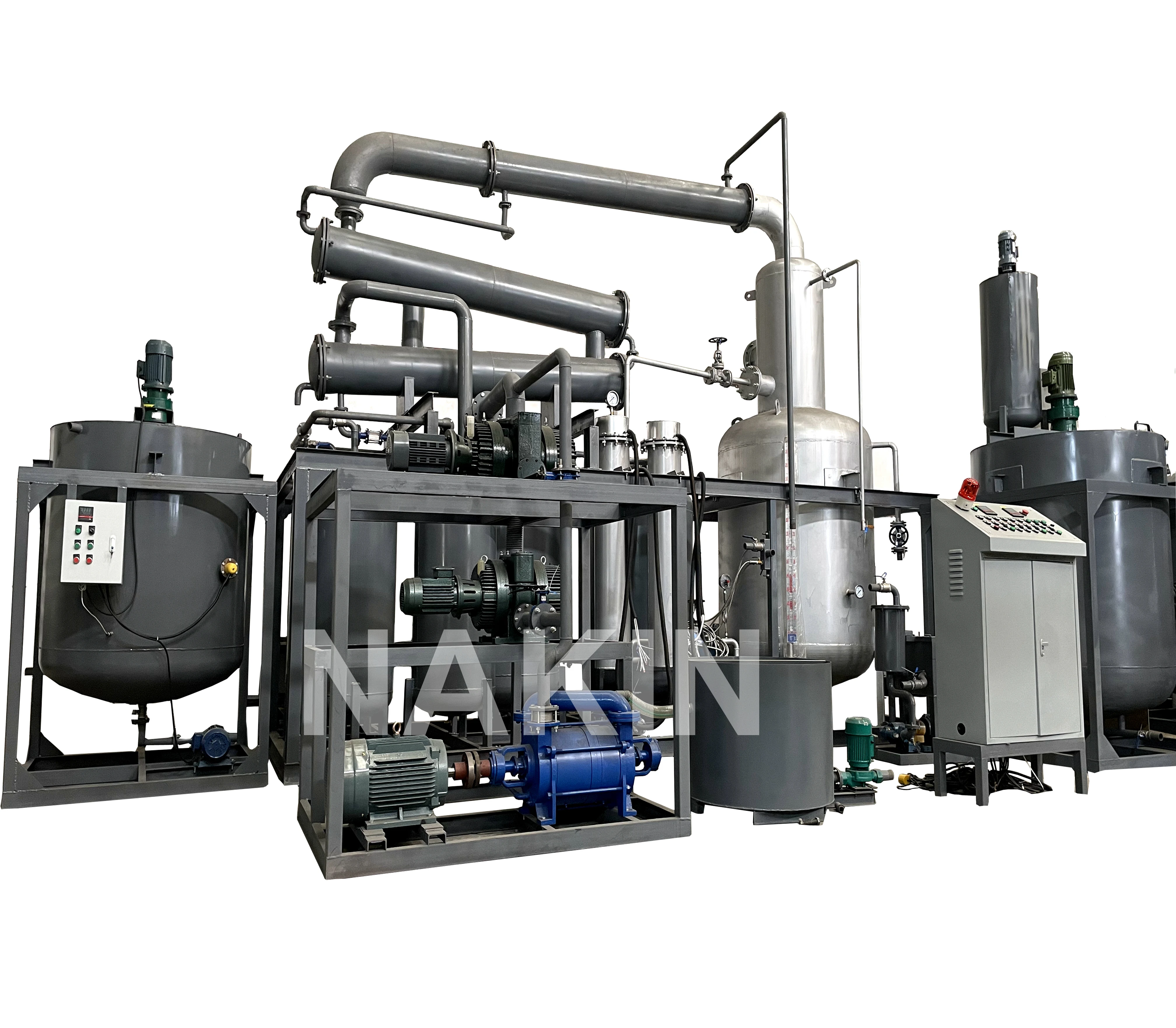

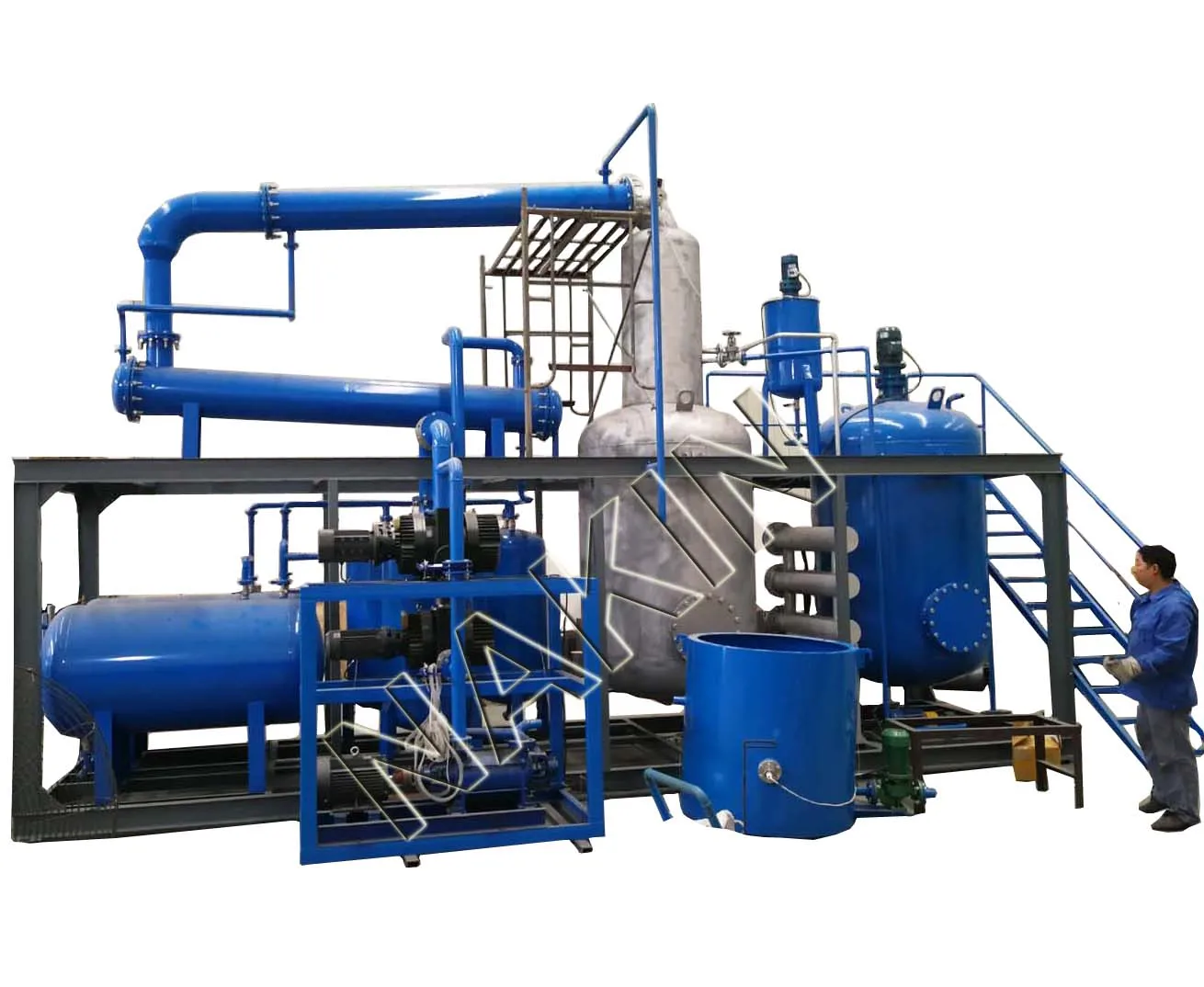

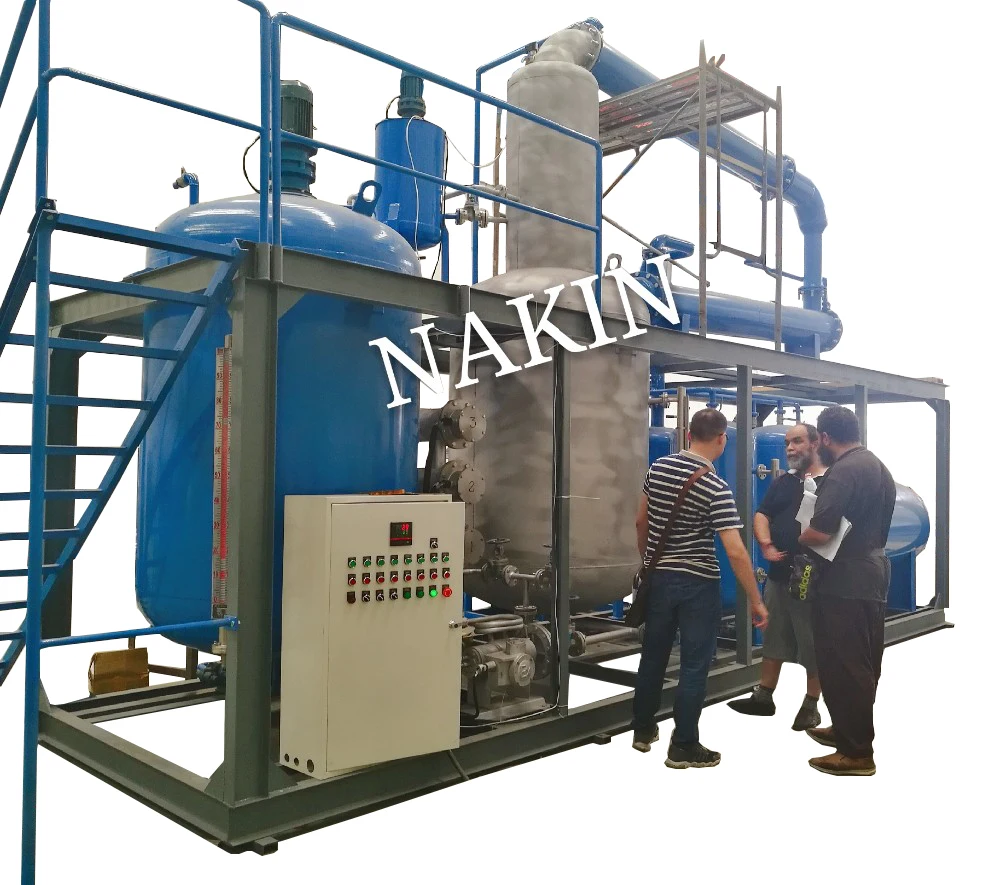

5 Tons Waste Engine Oil Recycling Machine Waste Engine Oil To Base Oil Plant
Application:
Waste oil usually collected from machinery, vehicles, ships etc. which color is black and very dirty. Because the waste oil contains too much contamination, including non-hydrocarbon, alkene, polycyclic aromatic hydrocarbon, metal hydronium, impurities, metal particles, asphaltene and colloid etc. thereby it is harmful for the lubricating system and car engine etc, waste oil lost it’s control friction which have to be replaced.
Transitional way to recycling the waste oil is by acid way, which will produces much waste sludge, bad smell, non-friendly environment, and the produced base oil is not purity, and it is easily oxidized. Many countries forbid the acid way.
So our company researches the new waste oil vacuum distilling machine (JZC waste oil distillation machine), it is special for distilling and regenerating the black waste lube oil, including waste engine oil, lube oil, hydraulic oil, gear oil, dirty diesel oil, mixed oils etc. This equipment adopts physicochemical way to polymerize, passivity, absorb, eliminate impurities and harmful contaminations.
Waste oil usually collected from machinery, vehicles, ships etc. which color is black and very dirty. Because the waste oil contains too much contamination, including non-hydrocarbon, alkene, polycyclic aromatic hydrocarbon, metal hydronium, impurities, metal particles, asphaltene and colloid etc. thereby it is harmful for the lubricating system and car engine etc, waste oil lost it’s control friction which have to be replaced.
Transitional way to recycling the waste oil is by acid way, which will produces much waste sludge, bad smell, non-friendly environment, and the produced base oil is not purity, and it is easily oxidized. Many countries forbid the acid way.
So our company researches the new waste oil vacuum distilling machine (JZC waste oil distillation machine), it is special for distilling and regenerating the black waste lube oil, including waste engine oil, lube oil, hydraulic oil, gear oil, dirty diesel oil, mixed oils etc. This equipment adopts physicochemical way to polymerize, passivity, absorb, eliminate impurities and harmful contaminations.
working principle:
Adding one kind of catalyst (NAOH) by a ratio way (The catalyst is common chemical, which is available in most countries, The chemicals cost is USD 15 to distill one ton waste oil) to catalyze the waste oil. The mixed waste oil will be heated to (from 110℃ to 350℃) different temperature range under high vacuum condition in the distilling kettle, the waste oil is vaporization, then the oil-gas goes into the effective oil cooler, oil-gas condense to liquid oil again after through the oil cooling system. The production can be the gasoline oil, diesel oil and base oil SN150, SN350, SN500.
Specification
Item | Value |
Applicable Industries | Manufacturing Plant, Construction works , Energy & Mining, Other |
Showroom Location | Russia, Tajikistan, Honduras,Panama, Cameroon etc. |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2024 |
Warranty of core components | 3 years |
Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pump |
Condition | New |
Flow | 5 tons per day |
Place of Origin | China |
Chongqing | |
Brand Name | NAKIN |
Voltage | 380 V, 50 Hz, 3 Phase (Or According user demand) |
Power | 60 KW/H |
Dimension(L*W*H) | 8 m*3.2 m*5 m |
Weight | 6500 kg |
Warranty | 3 years |
Product name | Car Used Oil Recycling Machine |
Keywords | Recycle Engine Oil, Oil Recycle Machine |
Application | It is used for distilling and regenerating the black waste lube oil, including waste engine oil, lube oil, hydraulic oil, gear oil, dirty diesel oil, mixed oils etc. |
Function | It makes Hydrocarbon molecules break out, and re-order combination, forming diesel oil, lubricating base oil etc. |
Advantages | The final diesel oil, gasoline oil and base oil are good anti-oxidation with good color, there is no bad odor. |
Heating method | Electric Heater or boiler ( fuel, natural gas or coal) |
Raw material | Stainless steel and carbon steel |
Final product | 85% base oil, 8% gasoline and diesel, 2% water, 5% oil residual |
Technology | This equipment adopts physicochemical way to polymerize, passivity, absorb, eliminate impurities and harmful contaminations. |
Working Noise | Less than 75 dB (A) |
Advantage:
◆ Safety design, during the working process, raw materials oil is always flowing and flashing between the distillation tank and heating system, there is no any coking happen in the pipes and tanks, so the system is 100% safety, and long life time.
◆ There are optional ways to heat the oil, like the boiler way by using fuel, natural gas or coal. Also, if machine is small capacity, we can use the electric heating way.
◆ By using the high vacuum distilling way, so the distilling temperature is low, energy saving and safety.
◆ Using the special chemicals to catalyze the waste oil, which makes sure the final diesel oil, gasoline oil and base oil are good anti-oxidation with good color, there is no bad odor. The final oil can be storage for one year without color change and odor change.
◆ Oil cooler system adopts the stainless steel 304, which has the good heating exchange function, long life time.
◆ Environmental friendly, there is only 5-8% of the oil residual under the distilling kettle, which can be use as the boiler heavy fuel, so there is no pollution.
◆ The final oil is high purity; gasoline/diesel oil and lube base oil be loaded in different oil tanks.
◆ Machine design life is more than 20 years, long working life time.
◆ Easy operation, only 1 or 2 workers can operate the machine.
◆ Safety design, during the working process, raw materials oil is always flowing and flashing between the distillation tank and heating system, there is no any coking happen in the pipes and tanks, so the system is 100% safety, and long life time.
◆ There are optional ways to heat the oil, like the boiler way by using fuel, natural gas or coal. Also, if machine is small capacity, we can use the electric heating way.
◆ By using the high vacuum distilling way, so the distilling temperature is low, energy saving and safety.
◆ Using the special chemicals to catalyze the waste oil, which makes sure the final diesel oil, gasoline oil and base oil are good anti-oxidation with good color, there is no bad odor. The final oil can be storage for one year without color change and odor change.
◆ Oil cooler system adopts the stainless steel 304, which has the good heating exchange function, long life time.
◆ Environmental friendly, there is only 5-8% of the oil residual under the distilling kettle, which can be use as the boiler heavy fuel, so there is no pollution.
◆ The final oil is high purity; gasoline/diesel oil and lube base oil be loaded in different oil tanks.
◆ Machine design life is more than 20 years, long working life time.
◆ Easy operation, only 1 or 2 workers can operate the machine.
Packing & Delivery
Before each machine is shipped, it will be inspected by professional engineers to ensure that the machine has no quality problems. At the same time, we will not ship the goods without your permission, please rest assured.
Delivery Details：
◆Step 1.Test products with a high-precision tester by quality inspector
◆Step 2. Wrap film to ensure products waterproof and dust-proof
◆Step 3. Pack products in export standard wooden case
◆Step 4. Load products into the container with a forklift
◆Step 1.Test products with a high-precision tester by quality inspector
◆Step 2. Wrap film to ensure products waterproof and dust-proof
◆Step 3. Pack products in export standard wooden case
◆Step 4. Load products into the container with a forklift
Company Profile
Chongqing Nakin Electromechanical Co., Ltd. is a professional mechanism manufacturer from Chongqing, China. Our company is a joint-stock high-tech enterprise. After more than 15 years of development, our company has grown into a comprehensive enterprise engaged in the production of vacuum oil purifiers and airless tools, and Import & Export trading.
NAKIN products are widely applied in projects of transformer substations, electric departments, steel structures, bridges, autos, railways, aviation, chemicals, and petroleum. The products are exported to more than 30 countries and regions, such as Europe, America, the Middle East, and Southeast Asia. The products get a good reputation from the dealers and end users.
Multiple Product Options (Contact 0086-13648393875 to see more details)
Why Choose Us
The most outstanding features of our waste oil vacuum distillation machine
1.First of all, our machine comes with a Macleod vacuum gauge meter so you can test the vacuum system when starting the machine.
2.Secondly, our machine is equipped with a circulation oil pump, if your machine does not have such an oil pump, it is easy to coking in distillation tank.
3.Thirdly, our cooler is stainless steel, it's long life time. As the cooler is strong, some oil gas will not go out from vacuum pump, so you will not smell oil gas when you work the machine.
Since the foundation of our company, we have always devoted our efforts to developing good quality products. Relying on strong and complete technical support, advanced production equipment, perfect quality inspection methods, and fast and outstanding after-sales services, our company has developed into a nationally renowned mechanism equipment manufacturer in China.
We have a number of experts and experienced engineers from the nationally famous military enterprises. With the advanced management and encouraging policy, our firm provides development for staff and encourages the staff to exert potential.
All NAKIN people are actively dedicated to the development of good quality products, and creating and building the brand-Nakin. The guideline of product development always aims at the International forefront technology. Many products reach the international advanced level.
Successful Cases
Currently our waste engine oil vacuum distillation machines have been sold to Honduras, Panama, Mexico, Russia, Tajikistan, Turkmenistan, Greece, Turkey, Mongolia, Malaysia, Cambodia, Cameroon, Cote d'Ivoire, Sierra Leone, Ghana etc.
We have received good reviews from customers in different countries.
Chongqing Nakin Electromechanical Co., Ltd. will always adhere to the business philosophy of "Responsible for product, Responsible for user, Responsible for ourselves". We keep the faith of "create a national brand, keep innovation, keep improving and Keep making the high quality products with first-class after-sales service" for getting the customers' trust and love. We hope to create a new era with our customers.
FAQ
Answer: After the distillation, you can get more than 8% gasoline oil&diesel oil, and 85% base oils( SN150, SN350, SN500).
Question 2. What is your heating methods?
A: Electromagnetic / Electric Heater or Boiler( fuel, natural gas or coal)
Question 3. What is the machine operating steps?
A: 1.The first step is to filter out the water, gas and impurities in the waste oil with the plate press oil purifier.
2.In the second step, sodium hydroxide is added to the waste oil to play the role of flocculation and precipitation, and filter out the impurities in the waste oil. The waste oil is then transferred to the distillation tower, where it is distilled at (from 110℃ to 350℃) different temperature range under high vacuum condition to obtain the gasoline oil, diesel oil and base oil SN150, SN350, SN500.
3.The third step is to refine the base oil with silica gel to remove the asphaltenes, colloids and impurities from the oil and make the base oil of good quality. It can be storage for one year without color change and odor change.
(If you need more details, please feel free to contact me via the contact details below.)
