Различные спецификации конкурентоспособная цена обмотки проводов для погружных насосных двигателей
- Категория: >>>
- Поставщик: Shandong Boshan Water-Pump Equipment Factory Co. Ltd.Shandong Ltd.
Сохранить в закладки 1601097668962:
Описание и отзывы
Характеристики
Specification | |
Inlet diameter | 65-400mm |
Capacity Q | 30-2000m3/h |
Head H | 10-370m |
Power P | 3-630KW |
Motor | Brand optional,100% Copper Wire |
Voltage | 380V/415V/660V/1140V |
Material | Cast Iron/SS316/SS304/Copper,Can be customized |
Scope of supply | Pump,Motor,Pipe,Control cabinet,Flange,Wearing parts,Other Accessories |
Certification | ISO 9001 |
Certification | One Year/According to customer requirements |

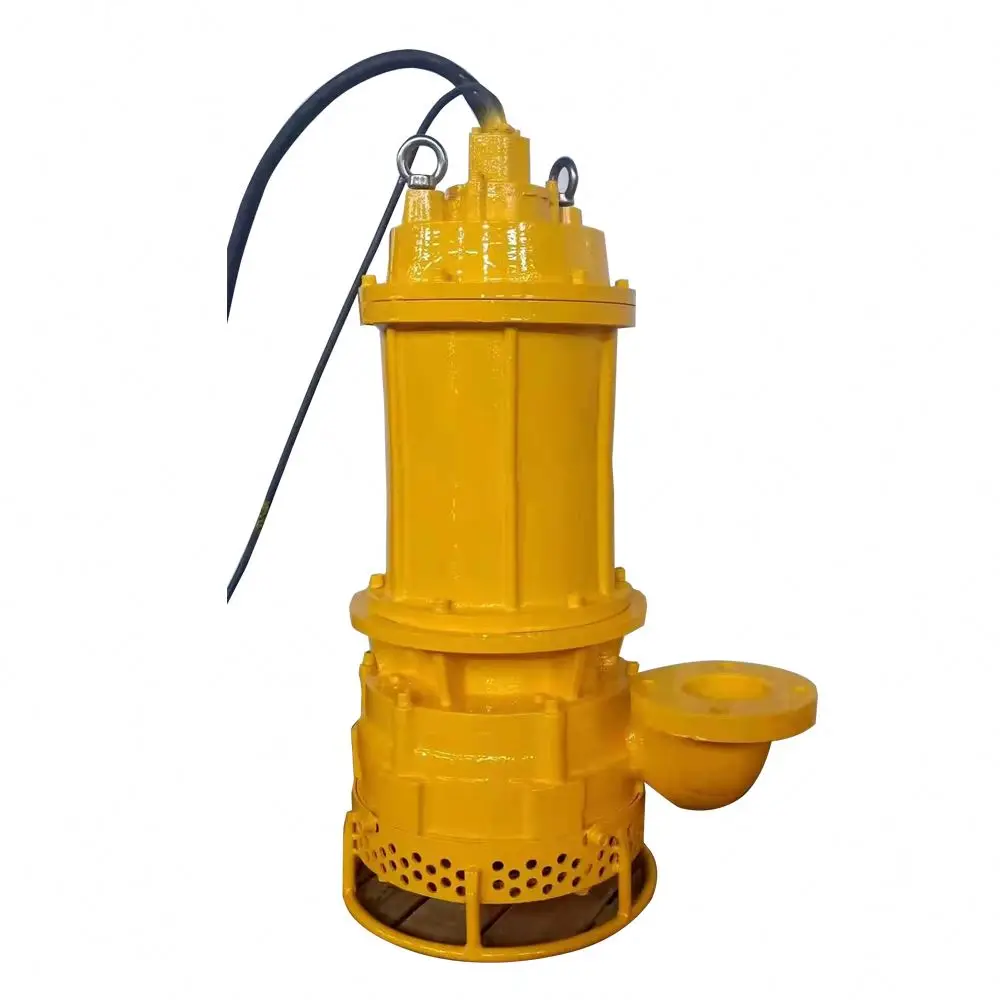

In order to meet the development needs of electric power,metallurgy, coal and other industries, in view of the characteristics of ash removal and slag conveying conditions,the latest generation of high-flow, high-head series of submersible slurry pump units are developed by our company.This unit is equipped with submersible electric agitators.which increase the suction concentration of the slurry pump. It is a new transmission with principle of K-H-V less tooth differential planetary transmission.
Electric submersible dredge sand centrifugal water pump.Can be widely used in mining, power, metallurgy, coal,environmental protection and other industries to transport slurry containing abrasive solid particles. Such as metallurgical beneficiation plant slurry transportation, thermal power plant ash removal, coal washing plant coal slurry and heavy medium transportation, dredging rivers, river dredging and so on. In the chemical industry,some corrosive slurries containing crystals can also be transported.
For example :SZWJQ200-15-22 L
SZWJQ - submersible slurry pump
200- rating capacity(m³/h)
15- rating head(m)
22- motor power(KW)
L- additional cooling device
SZWJQ - submersible slurry pump
200- rating capacity(m³/h)
15- rating head(m)
22- motor power(KW)
L- additional cooling device

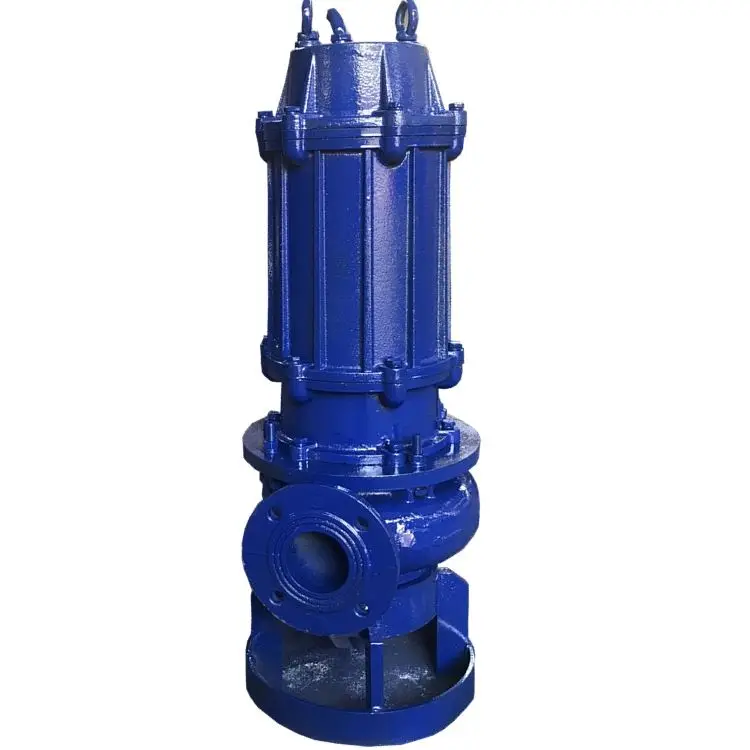

Electric submersible dredge sand centrifugal water pump.
1.Using modern CAD design methods, excellent hydraulic performance, high efficiency and low wear rate;
2.Spacious flow channel, good anti-blocking performance;
3.The combined type seal make sure no leakage on the slurry pump;
4.The reliability design ensures long mean time between failures;
5.Thin oil lubrication metric bearing; reasonable cooling system ensure that the bearing runs at low temperature;
6.The flow passage component are made of special materials, which have good wear resistance and corrosion resistance;
7.The slurry pump can be used in working conditions such as seawater ash removal and electrochemical corrosion of seawater and salt spray;
8.It can be used in multiple stages in series within the permissible pressure range.
1.Using modern CAD design methods, excellent hydraulic performance, high efficiency and low wear rate;
2.Spacious flow channel, good anti-blocking performance;
3.The combined type seal make sure no leakage on the slurry pump;
4.The reliability design ensures long mean time between failures;
5.Thin oil lubrication metric bearing; reasonable cooling system ensure that the bearing runs at low temperature;
6.The flow passage component are made of special materials, which have good wear resistance and corrosion resistance;
7.The slurry pump can be used in working conditions such as seawater ash removal and electrochemical corrosion of seawater and salt spray;
8.It can be used in multiple stages in series within the permissible pressure range.
Model | Capacity(m3/h) | Head(m) | Power(KW) | Outlet Diameter(mm) |
SZWJQ25 | 25 | 12-40 | 3-15 | 65-80 |
SZWJQ30 | 30 | 10-30 | 3-7.5 | 65-80 |
SZWJQ45 | 45 | 15-25 | 5.5-7.5 | 80 |
SZWJQ50 | 50 | 10-50 | 5.5-22 | 65-100 |
SZWJQ60 | 60 | 30-46 | 15-30 | 100 |
SZWJQ70 | 70 | 20-38 | 11-30 | 80-100 |
SZWJQ100 | 100 | 10-110 | 7.5-110 | 100-150 |
SZWJQ150 | 150 | 18-80 | 15-90 | 100-150 |
SZWJQ200 | 200 | 12-240 | 18.5-250 | 100-150 |
SZWJQ250 | 250 | 20-70 | 30-132 | 150 |
SZWJQ300 | 300 | 15-240 | 30-355 | 150-200 |
SZWJQ400 | 400 | 15-280 | 37-250 | 200-250 |
SZWJQ500 | 500 | 15-80 | 45-220 | 200-250 |
SZWJQ600 | 600 | 15-240 | 55-630 | 250-300 |
SZWJQ700 | 700 | 26-30 | 110-132 | 250-300 |
SZWJQ800 | 800 | 25-55 | 110-220 | 300 |
SZWJQ1000 | 1000 | 18-50 | 110-250 | 300 |
SZWJQ1200 | 1200 | 15-35 | 132-220 | 300-350 |
SZWJQ1500 | 1500 | 20-40 | 200-280 | 350 |
SZWJQ1750 | 1750 | 15-30 | 185-250 | 350 |
SZWJQ2000 | 2000 | 20-35 | 200-315 | 400 |
1 / Q: Are you a manufactory or trading company?
A: We are water pump manufactory with more than 30 years production experience.
2 / Q: What’s your MOQ?
A: Trial sample order is OK .
3 / Q: What’s your payment terms?
A: T/T , L/C , ......
4 / Q: What certificates do you have ?
A: CE , ISO 9001 , UL .....
5 / Q: How about the warranty ?
A: One year warranty for pumps .
6 / Q: What is the delivery time ?
A: 10-30 days according to customer quantities .
7 / Q: Can you do OEM brand ?
A: Yes, Welcome .
8 / Q: How to buy our pumps ?
A: Firstly we should know from you :
What is the fluid ?
Clean water(temperature), dirty water(temperature), particles,or slurry ?
What is the capacity and head ?The capacity and head range ?
Other conditions from customer if possible : pump type , motor ?
With complete information, then we selected the pump and feedback to you.
If you have special requirement, such material, please inform us .
9 / Q: How to replace parts ?
A: In the order period, we will list our vulnerable parts and their quantities to our customer, and sold at competitive price,then ship together with pumps if customer needs.
FOR MORE QUESTIONS, PLEASE CONTACT OUR SALES.
2 / Q: What’s your MOQ?
A: Trial sample order is OK .
3 / Q: What’s your payment terms?
A: T/T , L/C , ......
4 / Q: What certificates do you have ?
A: CE , ISO 9001 , UL .....
5 / Q: How about the warranty ?
A: One year warranty for pumps .
6 / Q: What is the delivery time ?
A: 10-30 days according to customer quantities .
7 / Q: Can you do OEM brand ?
A: Yes, Welcome .
8 / Q: How to buy our pumps ?
A: Firstly we should know from you :
What is the fluid ?
Clean water(temperature), dirty water(temperature), particles,or slurry ?
What is the capacity and head ?The capacity and head range ?
Other conditions from customer if possible : pump type , motor ?
With complete information, then we selected the pump and feedback to you.
If you have special requirement, such material, please inform us .
9 / Q: How to replace parts ?
A: In the order period, we will list our vulnerable parts and their quantities to our customer, and sold at competitive price,then ship together with pumps if customer needs.
FOR MORE QUESTIONS, PLEASE CONTACT OUR SALES.
Похожие товары
Кноп pc200-7

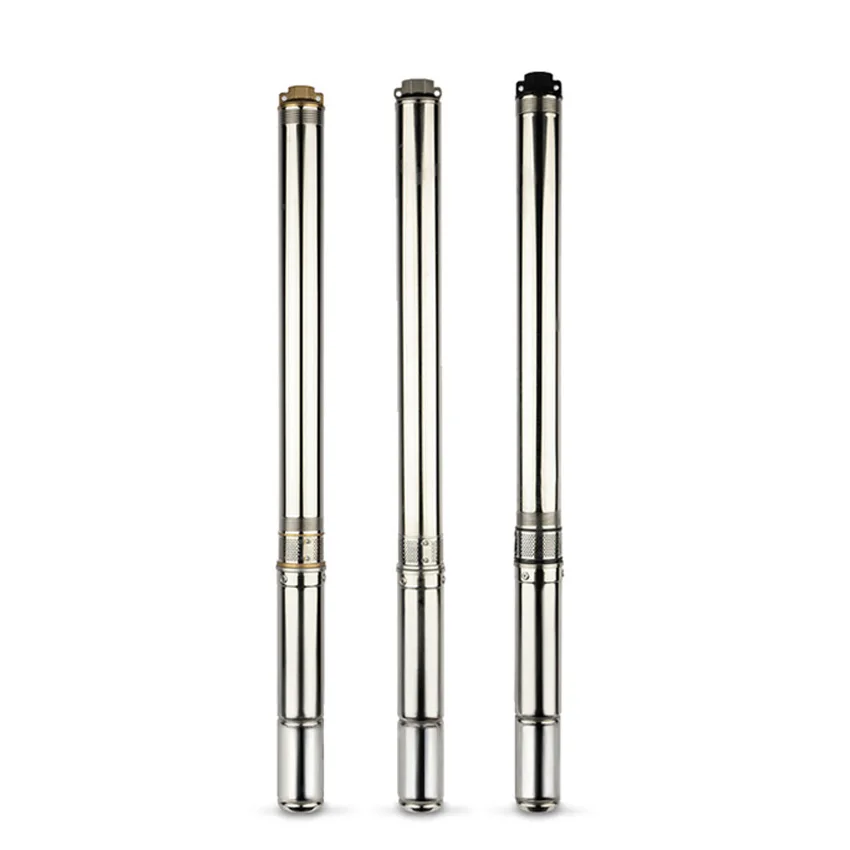

Лидер продаж 220 В 1 5 кВт 0 33 л.с. Ip 68 защита из нержавеющей стали глубинные насосы от производителя Электрический погружной насос
89,70-93,30 $

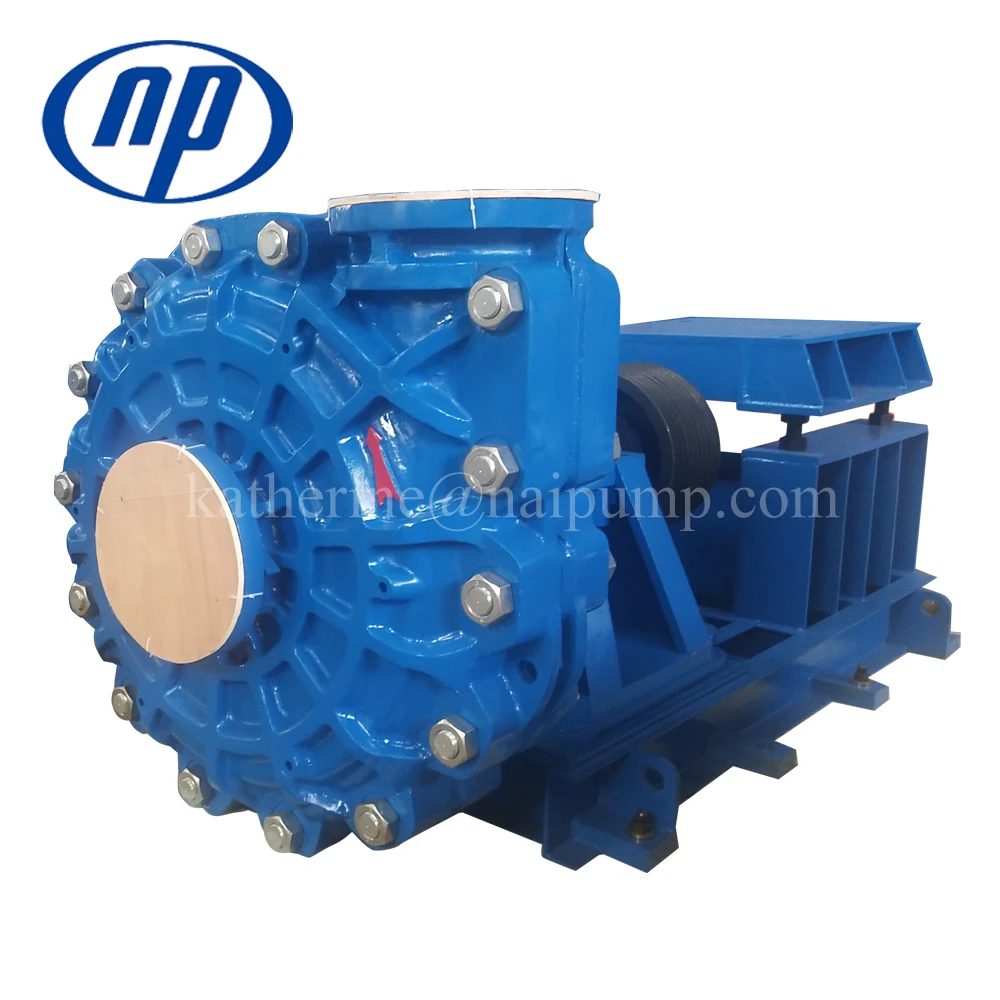

Промышленный насос для канализации Naipu 8 / 6 S - H
18 000,00 $

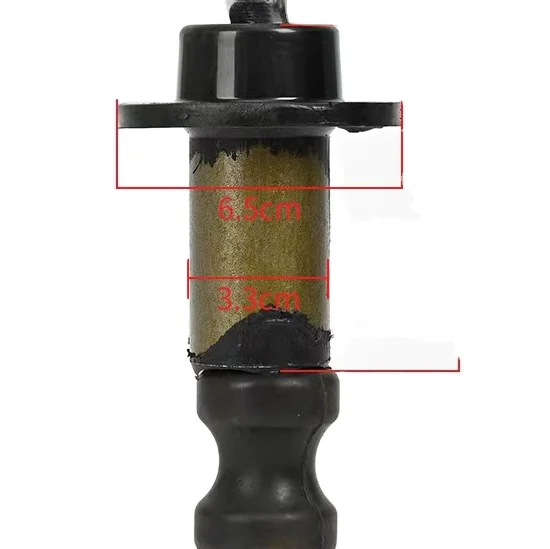

Ротор статора винта погружного насоса
0,55 $
CM4-50 220V/380V/50Hz промышленные нержавеющая сталь многоступенчатый горизонтальный центробежный насос

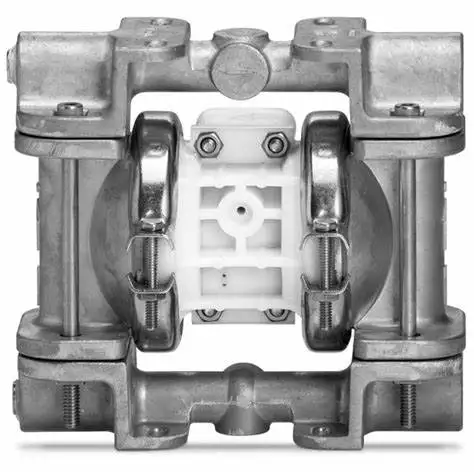

Original 1/4 Inch Wilden Pneumatic Diaphragm Pump for Transfer Liquid Best AODD Pumps
