Роскошный складной и выдвижной контейнерный дом сборный передвижной Стандартный с расширяемыми функциями
5 950,00-7 998,00 $
Контейнерный дом по заводской цене передвижной с расширяемым пространством для продажи
- Категория: >>>
- Поставщик: Henan Panels Industry Co. Ltd.Henan Ltd.
Сохранить в закладки 1601097902162:
Описание и отзывы
Характеристики
Buyer reviews
Product Description
20 ft 40 ft living folding expandable prefabricated container house
Living folding expandable container house and prefab houses is a modular building product based on steel frame and light wall panel structure system. This product adopts the proprietary third-generation packing box technology, which is composed of top frame, bottom frame, corner post and interchangeable wall panels. It can be packaged, easy to install, and convenient for land or sea transportation. It can be used as an office, accommodation, restaurant , sanitary ware and combined large space use, which can meet the needs of construction site barracks, field work barracks, municipal resettlement houses and various commercial houses. It is currently widely used in Europe, Africa, Southeast Asia, North America, South America and the Middle East and other regions .
Specification
20 FT Expandable Container | ||
Expand Size | 5900*6300*2480mm | |
folded size | 5900*2200*2480mm | |
Overall framework | Galvanized iron square ,Q 235B, Overall spray molding | |
Wall | 75mm rock wool sandwich panel; double side with colored steel sheet | |
Roof | 50mm rock wool sandwich panel; double side with colored steel sheet | |
Partition | 50mm rock wool sandwich panel; double side with colored steel sheet | |
Floor | Middle:Mgo panel or Cement fiber panel; two sides(expandable part): bamboo plywood | |
Window | 6 *plastic steel or aluminum alloy windows | |
Entrance door | 1*Security door | |
Interior door | 2* steel door | |
Bathroom door | Titanium magnesium alloy door 750*2030mm(Glass opaque) | |
Ceiling | High qualoty ceiling panel | |
Light | 6(installation; factory-built) | |
Decorative floor | PVC plastic cement floor board ;customized color | |
Electrical distribution | Main line 6m, air conditioning 4 sockets 2.5m, light wire 1.5m, all wire socket switches (can be matched with other national standards) | |
Water supply and drainage | Water supply pipeline PPR, drainage pipeline PVC | |

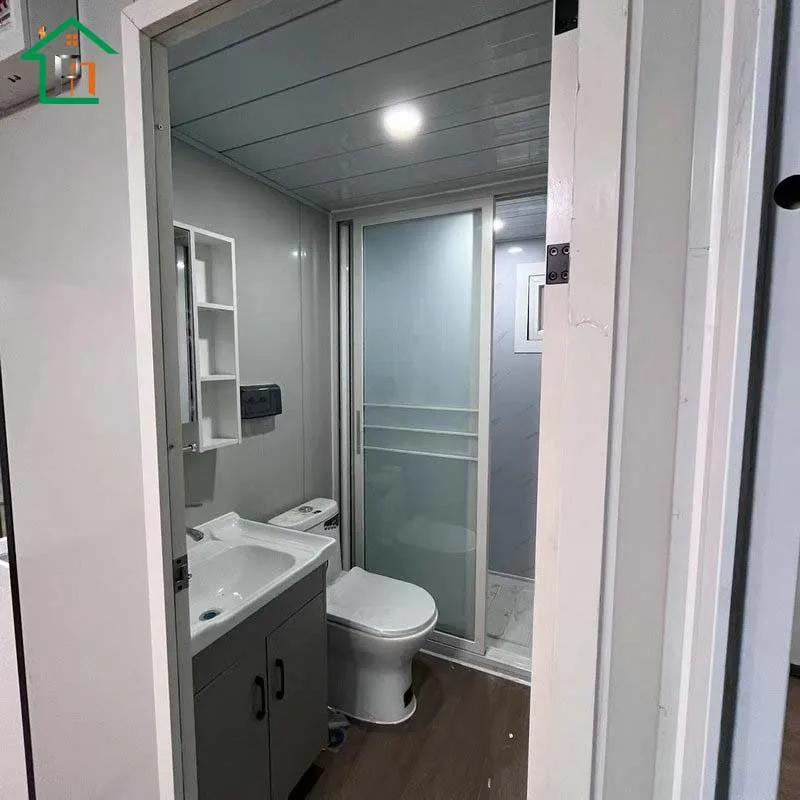

Bathroom | Wash cabinet set with mirror, ceramic wash basin, and ceramic toilet | |
Shower room | 800 * 800 integrated shower room | |

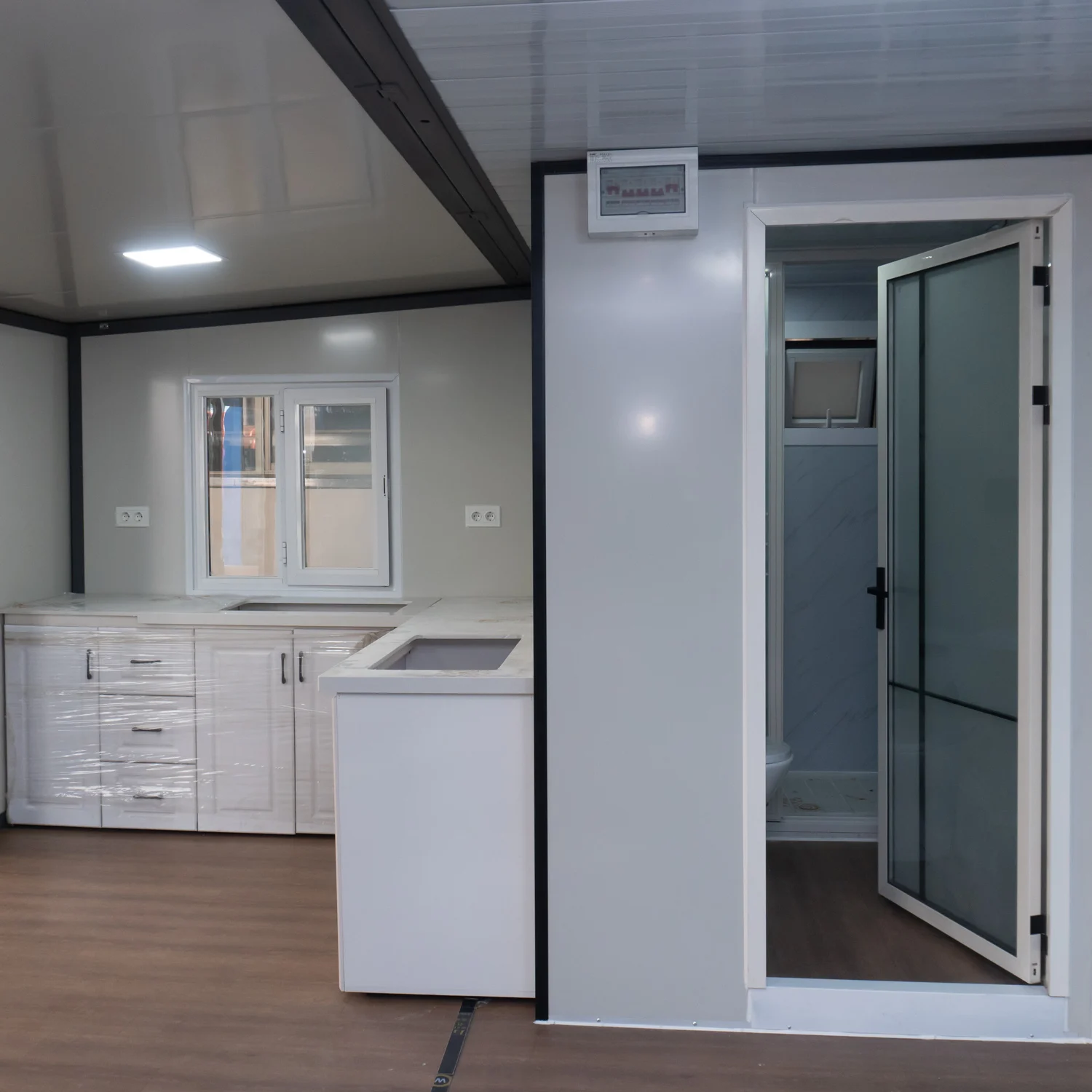

Kitchen | L-shaped cabinet with vegetable sink | |
40FT Expandable Container | ||||
Basic information | Expand Size | 11800*6300*2480mm | ||
folded size | 11800*2200*2480mm | |||
Frame structure | Main beam | Galvanized 80*100*2.27MM Q235B | ||
Column | Galvanized 150*210*2.27MM Q235B | |||
Sub-frame | Galvanized square tube( 40*80*1.48MM ) Q235 B Galvanized square tube(40*60*1.48MM ) Q235 B | |||
Box body head | Galvanized 210*150*160*4MM Q235B | |||
Hinge | Galvanized hinge enlarged and thickened : 5mm Q235 B | |||
Floor | The mid floor | Fireproof MGO Board | ||
Both sides of the floor | Bamboo plywood | |||
Ceiling | Ceiling | PPGI ceiling panel | ||
Insulation wall | Side wall | 75mm rockwool sandwich panel Color steel sheet double side 0.376mm | ||
Partition | 50mm rockwool sandwich panel Color steel sheet double side 0.376mm | |||
Main roof and side roof | 75mm rockwool sandwich panel Color steel sheet double side 0.376mm | |||
Electrical system | Parameter | 1. Standard configuration of national standard wires: Inlet wire 6 ² Air conditioning socket wire 4 ² Ordinary socket wire 2.5 ² Lighting wire 1.5 ² (Circuits that meet certification requirements can be customized according to the country) 2. Lighting : LED ceiling lights * 6 (Waterproof, dustproof, and corrosion-resistant). 3. Socket : be configured according to customer requirements | ||
Door and window system | Entrance door | Kentucky Hollow Tempered Glass Doors *1 | ||
Interior Door | Steel door *2 | |||
Toilet Door | Titanium magnesium alloy door (glass opaque) | |||
Window | Aluminum alloy double-glass hollow tempered sliding window | |||
Sewerage system | Drain off water | Water supply pipeline ： PPR material Drainage pipeline : PVC material | ||
Bathroom | Bathroom | Hand washing cabinet set with mirror, ceramic sink, ceramic toilet | ||
Shower room | Wet and dry separation bathroom, shower, i.e. hot water heater, wall waterproof stone plastic board | |||
Kitchen | Kitchen | High density particle panel L-shaped cabinet with vegetable washing basin | ||
Layout | Layout | Two bedrooms, one living room, one kitchen, and one bathroom | ||
Packing and shipping
Various engineering cases
Company Strength
Henan Panels Industry Co.Ltd
Headquartered in Zhengzhou City, Henan Province. It Currently has total assets of 45 million USD, more than 200 emplovees, and an annual production capacity of 1.2 million square meters of sandwich panels. After 15 years of development, the products are sold in China domestic market and overseas market. Has been exported to more than 60 countries, including the USA,Russia,Australia,New Zealand,Britain,France,Cambodia,Peru,Brazil and other countries.
Henan Panels Industry Co.Ltd has its own experimental equipment, and regularly inspects the quality of products to ensure the safety of shipments.
At present, the second set fully imported automatic continuous production line we have invested has started production,it is globally advanced six-component continuous foaming technology.The formed board has excellent fire protection, thermal insulation, environmental protection and other characteristics, providing an excellent choice for industrial building envelope systems.Ensuring that the wall panels of expandable container houses are strong and safe.
The steel structure frame of the 40ft Expandable container house is the most important component of the container house, which determines the service life of the house. Henan Panels Industry Co.Ltd has its own steel structure factory to provide a strong main beam for the container house.
Certifications
FAQ
1.You are manufacture factory or trading company?
We are manufacture factory. And you are welcomed to visit us at any time. The quality control flow and sales team will
show you our professionalism. Also you will can get best and most competitive price after visiting us.
show you our professionalism. Also you will can get best and most competitive price after visiting us.
2.Do you accept container house loading inspection?
You are welcomed to send an inspector, not only for the container loading, but any time during the production time.
3.What is the delivery time?
Delivery time depends on order quantities. In general the delivery time to nearest seaport in China will be 30 days afterreceiving deposit.
4.What is the MOQ?
1 set of expandable folding container house.
5.Is it difficult to build a prefab house?
It's very easy to build a 40ft expandable container house, it only takes 4 people 30 minutes to build a living luxury container house.
