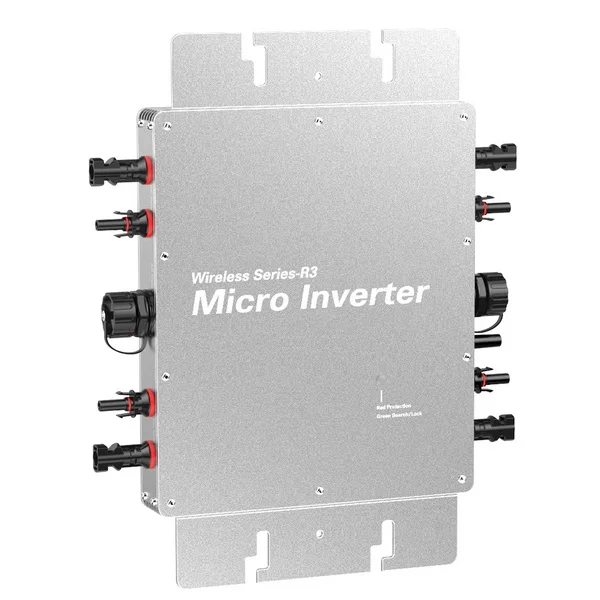

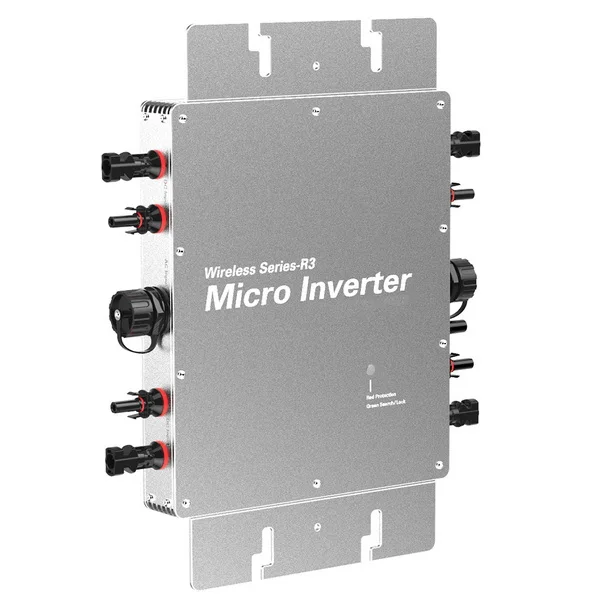

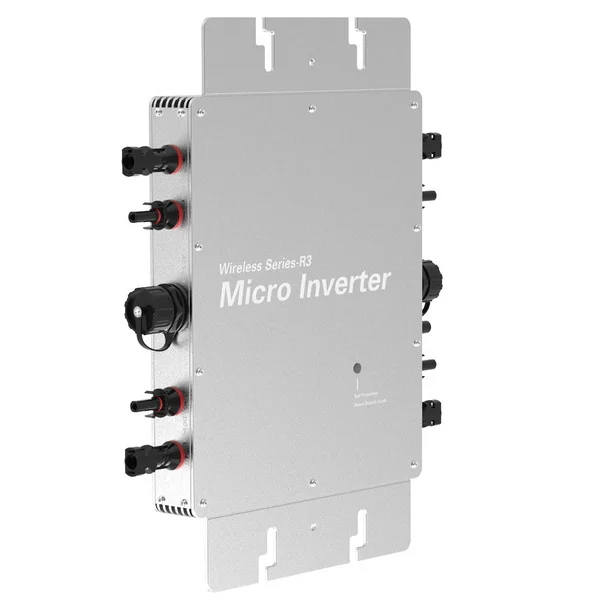

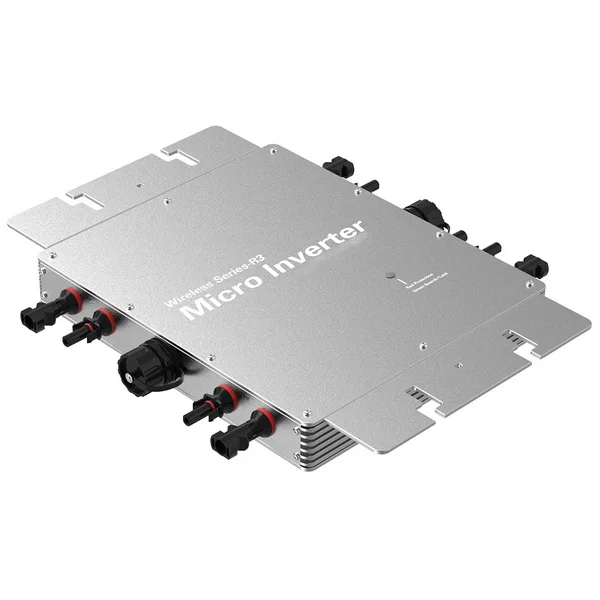

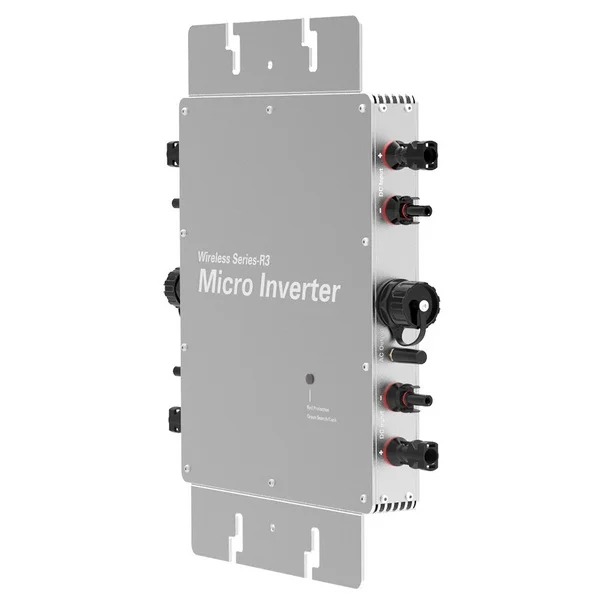

Model | WVC-1200 | |
Maximum input power | 4*375Watt | |
Output Voltage mode | 120/230V Auto | |
Open circuit voltage range | 30-60Voc | |
Peak power tracking voltage | 22-60V | |
Min / max starting voltage | 22-60V | |
Maximum DC short-circuit current | 4*12A | |
Maximum input working current | 4*14A | |
Output | AC 120V | AC 240V |
Peak output power | 1200Watt | 1200Watt |
Rated output current | 10A | 5.22A |
Rated voltage range | 85-160V | 185-265V |
Rated frequency range | 50/60Hz | 50/60Hz |
Power Factor | >95% | >95% |
Max number of branches | 3pcs(Single-phase) | 6pcs(Single-phase) |
Output Efficiency | ||
Static MPPT efficiency | 99.80% | |
Maximum output efficiency | 95% | |
Night time power consumption | <0.5W | |
Total current harmonics | <3% | |
Appearance and technical features | ||
Ambient temperature range | -20°C to +50°C | |
Dimensions (L × W × H) | 370mm*300mm*41.6mm | |
Weight | 2.52kg | |
Waterproof rating | IP65 | |
Heat dissipation mode | Self-cooling | |
Communication Mode | WiFi 2.4G | |
Power transmission mode | Reverse transfer,load priority | |
Monitoring System | Mobile APP, PC browser | |
Electromagnetic Compatibility | EN 50549-1:2019,EN 50549-2:2019 EN 61000-6-1:2007,EN
| |
Power Grid standard | 61000-6-3:2007+A1:2011+AC2012 IEC/EN 62109-1:2010,IEC/EN 62109-2:2011 | |
Certificate | CE |
High efficiency MPPT / independent high frequency modulation
and grid connection / cloud intelligent IoT monitoring multiple
inverters stacked / compact and portable / easy to install
we provide quality goods, timely lead time and aftersale service and high speed of product iteration
Dongguan KaiDeng Energy Technology Co., Ltd. is a high-technology enterprise which concentrates on the research and development, design and production of all kinds of solar/wind energy on/off grid micro inverters and switch power supplies. We devotes to providing high quality, high usability and low-cost products to meet client demands. All our products have full autonomy intellectual property and tens of core technical patents. As a leading original manufacturer in the industry, Kaideng always insists on the tenet of "Advanced Technology as the Base", and ceaselessly innovates the micro inverter technology.
Being in micro inverter field for over 10 years and 5 generations of product evolutions, we have successfully developed a series of micro inverters with wide power range from 300W to 2800W with peak efficiency over 93%. As the source manufacturer, we have our
own intellectual property right from inner chips and external apperance design. Our continious high speed of product iteration will meet the market future needs.
Currently we have had exported many countries in North
America and Europe and win wide popularity. we also have obtained certificates like CE, ETL,INMETRO and VDE.
1. who are we?
We are based in Guangdong, China, start from 2010,sell to Northern Europe(20.00%),North America(20.00%),Western Europe(15.00%),Oceania(10.00%),Eastern Europe(5.00%),Eastern Asia(5.00%),South America(3.00%),Southeast Asia(3.00%),Southern Europe(3.00%),Mid East(3.00%),Central America(2.00%),South Asia(1.00%),Africa(1.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Micro Inverter,Grid Tie Inverter,Solar Inverter,Off Grid Inverter,Mini Inverter
4. why should you buy from us not from other suppliers?
Dongguan Kaideng Energy Technology Co., Ltd. is a technology-based enterprise integrating R&D, design and production. Kaideng products are cost-effective, compact and lightweight, and easy to install. We welcome your inquiries at any time!
5. what services can we provide?
Accepted Delivery Terms: FOB,Express Delivery;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
