Промышленный пневматический фланцевый шаровой клапан с фланцем из ПВХ 2-стороннее 1/2 1 2 4 дюйма
7 543,07 ₽ - 9 872,55 ₽
Фланцевый шаровой клапан 304 316 316L промышленного контроля потока Пневматический с переключателем предела
- Категория: >>>
- Поставщик: Guangdong Yuantong Industrial Technology Co. Ltd.
Сохранить в закладки 1601098458594:
Описание и отзывы
Характеристики
Product Showcase
Product Features

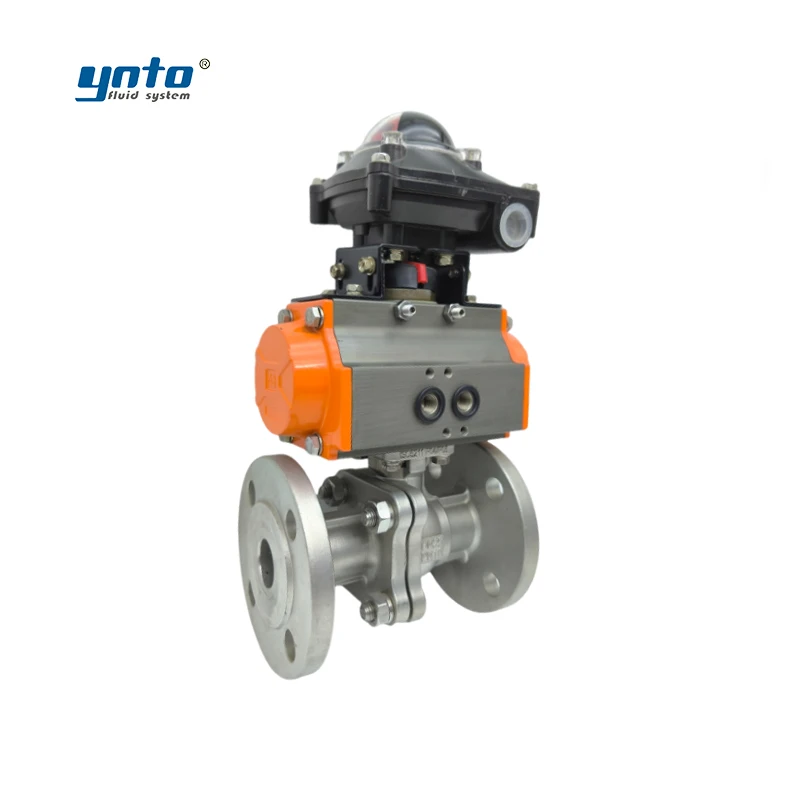

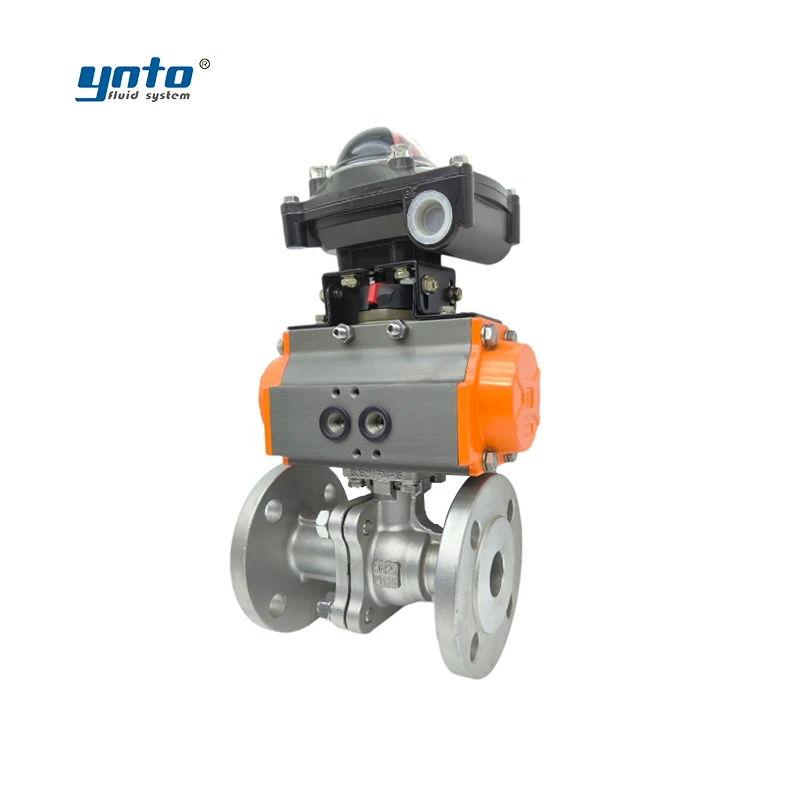

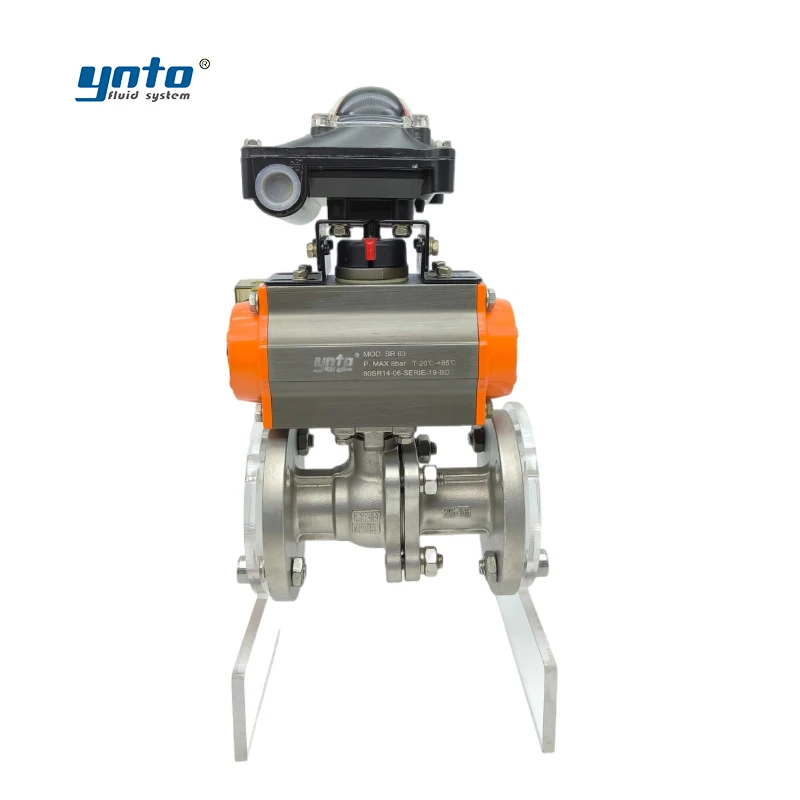

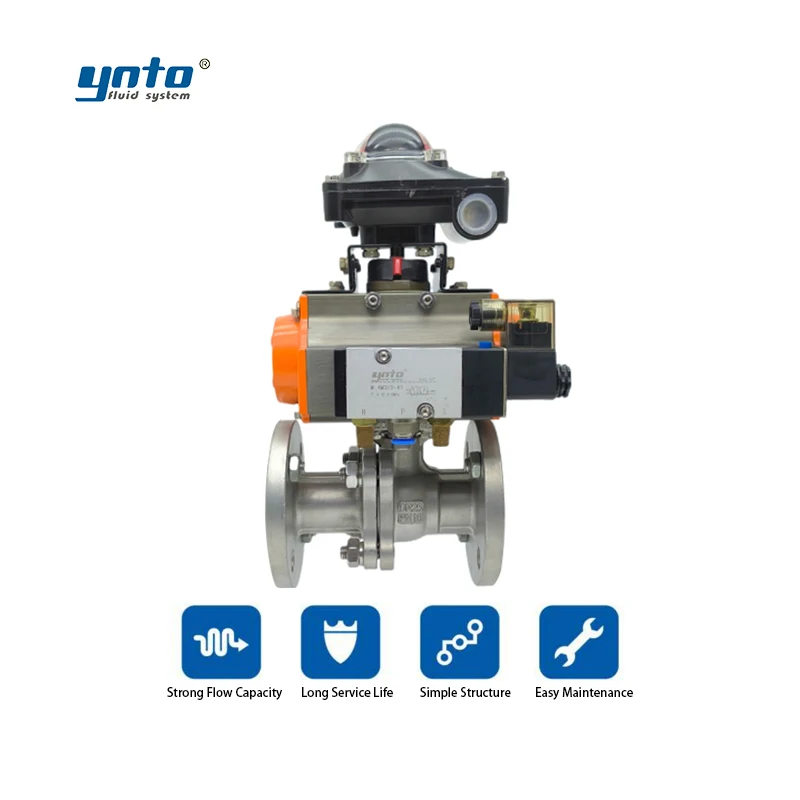

Pneumatic Flanged Ball Valve (Q641F) is a type of 90° rotary ball valve with excellent sealing performance, large flow capacity,
low flow resistance, simple structure, easy maintenance, and long service life. The valve body passage and connecting pipe
diameter are the same, allowing media to flow through almost without loss. It is equipped with a KES actuator and is typically
used in applications with stringent sealing requirements. In addition to controlling gas, liquid, and steam media, it is also
suitable for controlling media with fiber impurities in water. This valve is widely used in industries such as petroleum,
chemical, metallurgy, light industry, papermaking, power plants, and refrigeration.

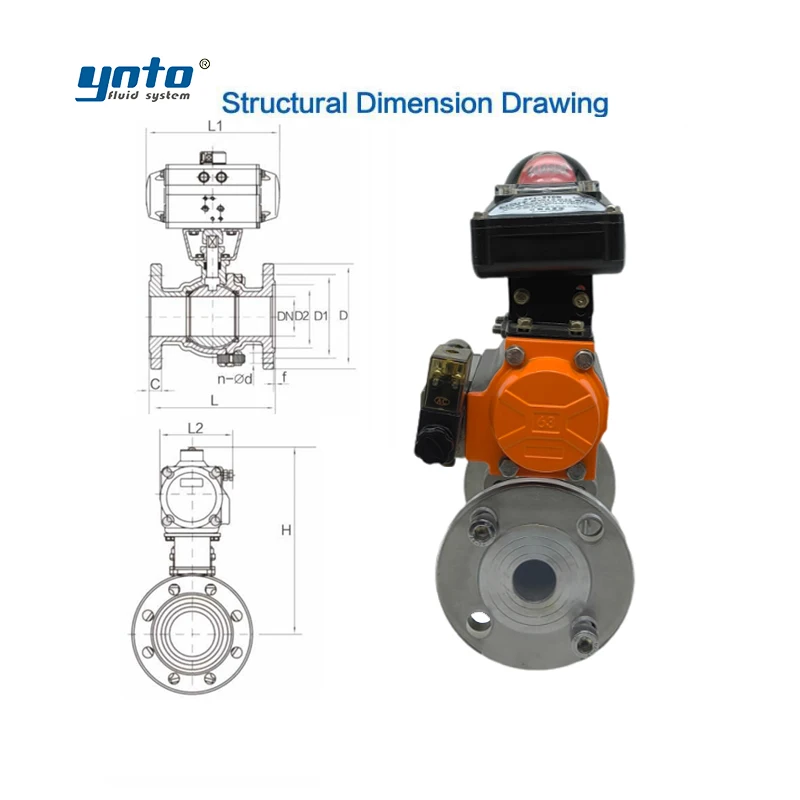

Main Performance Parameters & Specifications | ||
DN(mm) | DN15-DN200 | |
Nominal Pressure(Mpa) | 1.0Mpa(PN10) - 6.4Mpa(PN64) | |
Applicable Temperature | PTFE150C, PPL200C, metal hard seal 425°C | |
Applicable Medium | water, oil, steam, acid and alkali | |
Connection Method | flange | |
Valve Body | cast steel, stainless steel (304, 316, 316L), duplex steel, etc. | |
Valve Plate | stainless steel (304, 316, 316L), duplex steel, etc. | |
Valve Stem | stainless steel (304, 316, 316L), duplex steel, etc. | |
Packing | PTFE, high temperature PPL, metal hard seal, etc. | |
Store Hot Sale
Why Choose Us?
Certifications
Product packaging
Exhibition
FAQ
1. Which voltage of the electric actuator?
DC24V, AC24V, AC110V, AC220V AC380V can be customized and DC12V is available for some smaller torque of actuator.
2. What is the actuation time for electric actuator?
It depends on the torque of actuator.
3. Can the actuation time be faster?
Electric actuator can be customized the quick actuation gear, the soonest actuation time can be reach 1 seconds to open and close.
4. What type of electric actuator you provide?
ON/OFF type, Regulation type and Intelligent type.
5. What is the difference from ON/OFF type, Regulation type and Intelligent type?
(1)ON/OFF type ON/OFF type is fully open and fully closed.
(2)Regulation type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
(3)Intelligent type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system. 4.With display screen to acheieve site control.
6. Can this electric valve be resettable (normally open / closed) automatically when power is removed?
Our regular electric actuator can't be resettable automatically while power-off. But it can go to the multiturn electric actuator
model with the extra electrical storage device along, which acheieve the valves can be automatic reset(normally closed) while
power failure.
7. Have the electric actuator had the presence of limit switches (contact about the position of the cut-off device)?
Yes, there is the position indicator on the top of actuator. The open/closed status can be checked visually.
8. Which type of protection class of this electric actuator? IP65, IP67, IP68,Explosion proof.
9.Is there any manual override of electric valve?
Yes, every electric valve includes the manual override. You can open/close
10. Have the electric valve had the limiting operating time?
Electric haven't had the limiting operating time. It can be working for 99 hours continually without getting heating.
DC24V, AC24V, AC110V, AC220V AC380V can be customized and DC12V is available for some smaller torque of actuator.
2. What is the actuation time for electric actuator?
It depends on the torque of actuator.
3. Can the actuation time be faster?
Electric actuator can be customized the quick actuation gear, the soonest actuation time can be reach 1 seconds to open and close.
4. What type of electric actuator you provide?
ON/OFF type, Regulation type and Intelligent type.
5. What is the difference from ON/OFF type, Regulation type and Intelligent type?
(1)ON/OFF type ON/OFF type is fully open and fully closed.
(2)Regulation type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system.
(3)Intelligent type
1.With input/output signal:4-20mA or 0-10V;
2.Opening position of valve can be adjusted by signal;
3.Available for PLC system. 4.With display screen to acheieve site control.
6. Can this electric valve be resettable (normally open / closed) automatically when power is removed?
Our regular electric actuator can't be resettable automatically while power-off. But it can go to the multiturn electric actuator
model with the extra electrical storage device along, which acheieve the valves can be automatic reset(normally closed) while
power failure.
7. Have the electric actuator had the presence of limit switches (contact about the position of the cut-off device)?
Yes, there is the position indicator on the top of actuator. The open/closed status can be checked visually.
8. Which type of protection class of this electric actuator? IP65, IP67, IP68,Explosion proof.
9.Is there any manual override of electric valve?
Yes, every electric valve includes the manual override. You can open/close
10. Have the electric valve had the limiting operating time?
Electric haven't had the limiting operating time. It can be working for 99 hours continually without getting heating.
Похожие товары
Нержавеющая сталь 304 316 электрическая Вафля
9 195,89 ₽ - 14 975,22 ₽

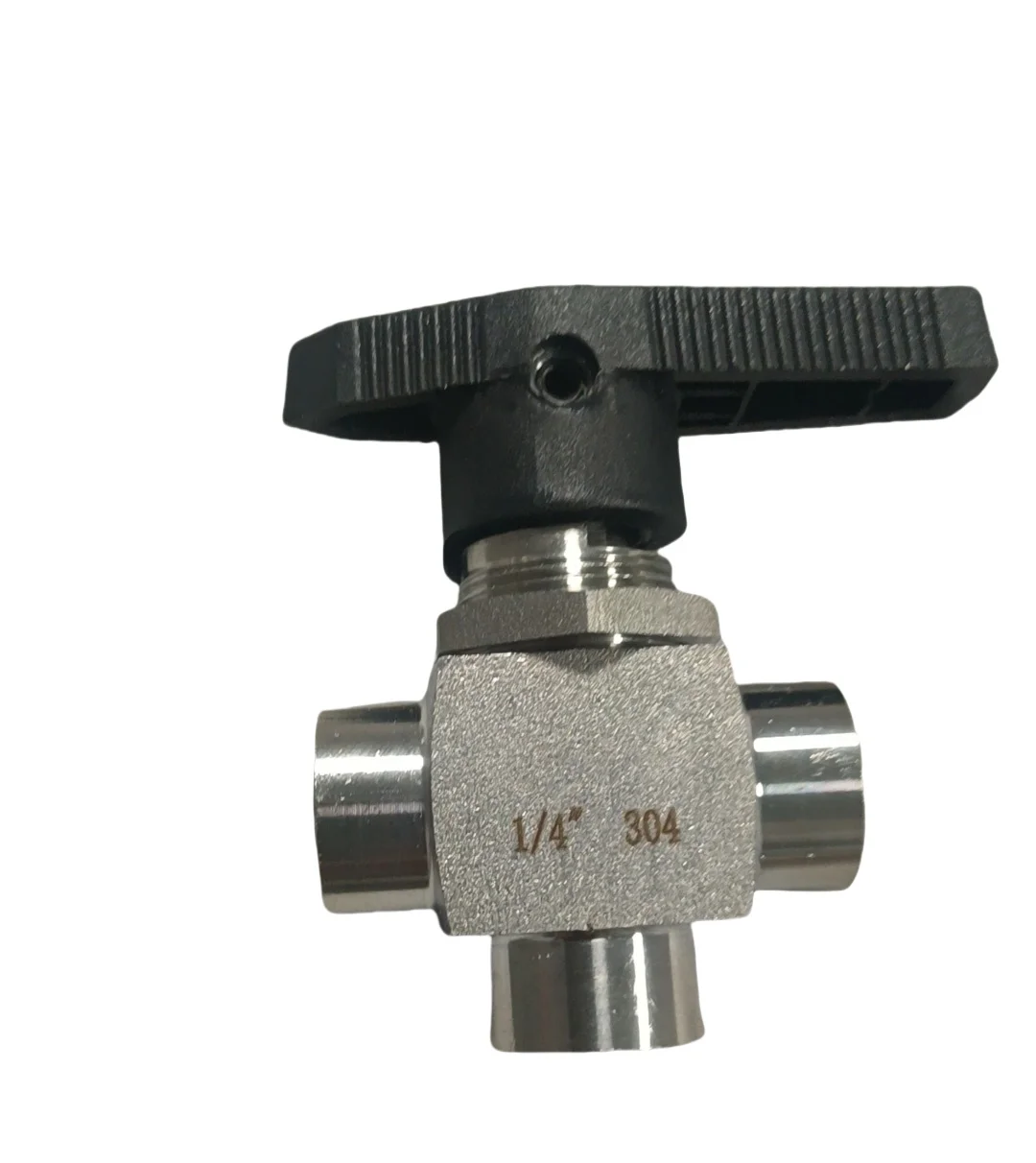

Промышленный шаровой клапан с внутренней резьбой 304 316 нержавеющей стали 316L пневматический трехходовой
