Гусеницы экскаватора 24t JY623ELB с ковшом м3
8 772 791,10-10 044 210,10 ₽
Механический экскаватор небольшой
- Категория: >>>
- Поставщик: Shandong Yuchi Intelligent Equipment Co. Ltd.Shandong Ltd.
Сохранить в закладки 1601098624146:
Описание и отзывы
Характеристики
Product Information
Mini excavator, also known as mini excavation machine, is an earth-moving machinery that uses a bucket to excavate materials that are higher or lower than the bearing surface, and loads them into transport vehicles or unloads them to the material yard. The excavated materials mainly include soil, coal, sediment, and pre loosened soil and rocks.
model | 08 | 12 | 13 | 15W | 18W | 20W | 25W |
Working weight (kg) | 800 | 980 | 1080 | 1380 | 1480 | 1800 | 2000 |
Size(mm) | 2300*730*1800 | 2150*930*2120 | 2150*1000*2120 | 2750*1000*2150 | 2750*1000*2150 | 2280*1200*2750 | 2350*1300*2800 |
Bucket width(mm) | 300 | 400 | 400 | 430 | 430 | 430 | 530 |
Boom length (mm) | 1050 | 1500 | 1500 | 1500 | 1500 | 1720 | 1800 |
Stick length (mm) | 850 | 850 | 850 | 800 | 800 | 850 | 950 |
Climbing ability | 35° | 35° | 35° | 35° | 35° | 35° | 35° |
engine | Koop 192F | Koop 192F | Koop 192F | Koop 192F | Kubota D722 | Kubota D722 | Kubota D722 |
power | 7.6KW | 7.6KW | 7.6KW | 7.6KW | 10.2KW | 10.2KW | 18.4KW |
Maximum excavation depth (mm) | 1200 | 1600 | 1600 | 1700 | 1700 | 1900 | 2260 |
Maximum excavation height (mm) | 2450 | 2570 | 2570 | 2510 | 2510 | 3000 | 2900 |
Maximum unloading height (mm) | 1750 | 1800 | 1800 | 1700 | 1700 | 2100 | 2100 |
Total length of track (mm) | 1150 | 1220 | 1220 | 1220 | 1220 | 1500 | 1820 |
Chassis width (mm) | 730 | 930 | 1000 | 1000 | 1000 | 1200 | 1300 |
Track shoe width (mm) | 150 | 180 | 180 | 180 | 180 | 180 | 230 |
Track grounding length (mm) | 950 | 1050 | 1050 | 1050 | 1050 | 1300 | 1600 |
Walking speed (km/h) | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
hydraulic pump | Gear pump | Gear pump | Gear pump | Dual pump | Dual pump | Triple pump | Triple pump |
Multiway valve | Joint venture | Joint venture | Joint venture | Taifeng | Taifeng | Taifeng | Taifeng |
Operation method | mechanical | mechanical | mechanical | forerunner | forerunner | forerunner | forerunner |
Rotation angle | 360° | 360° | 360° | 360° | 360° | 360° | 360° |

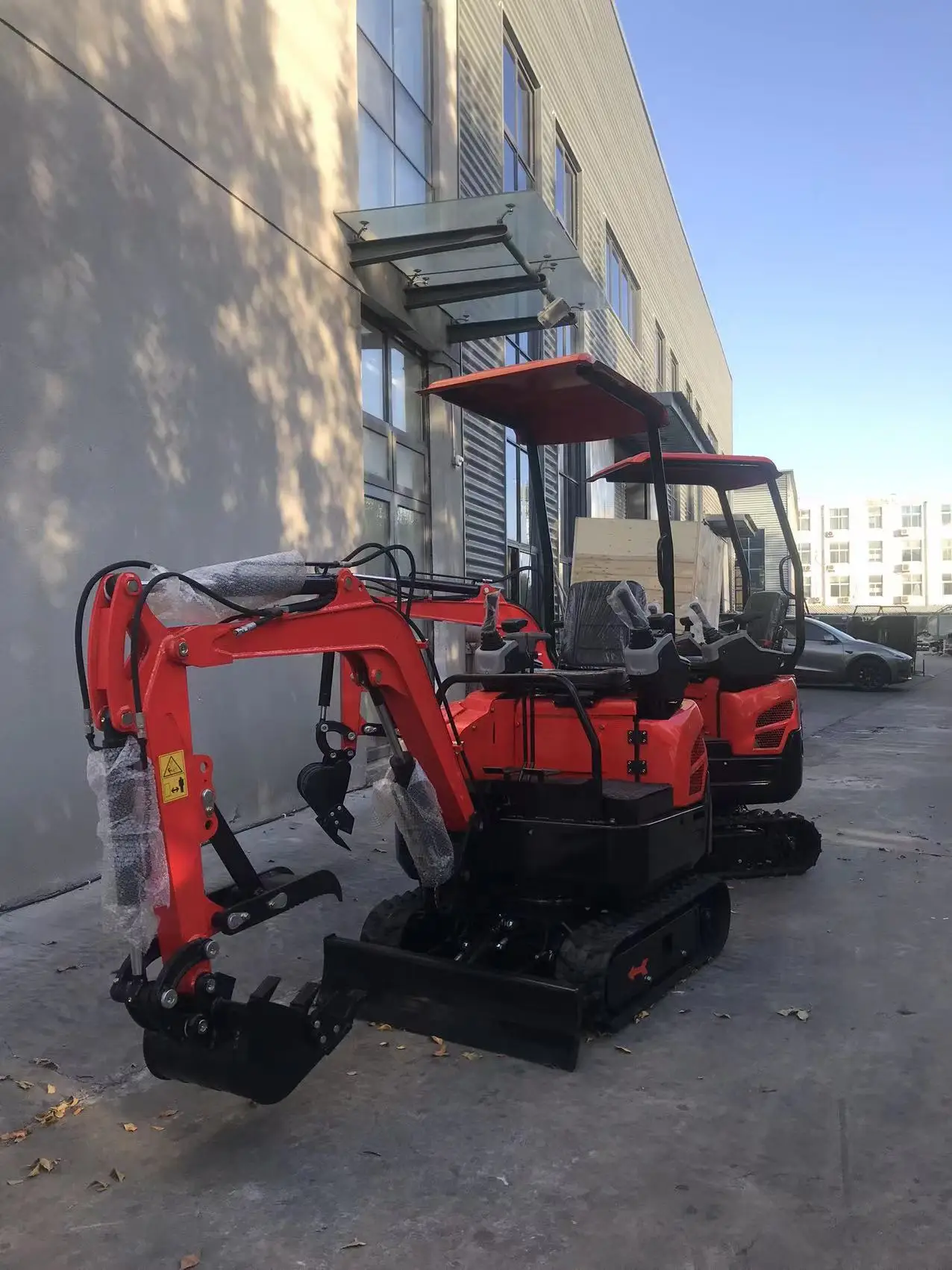

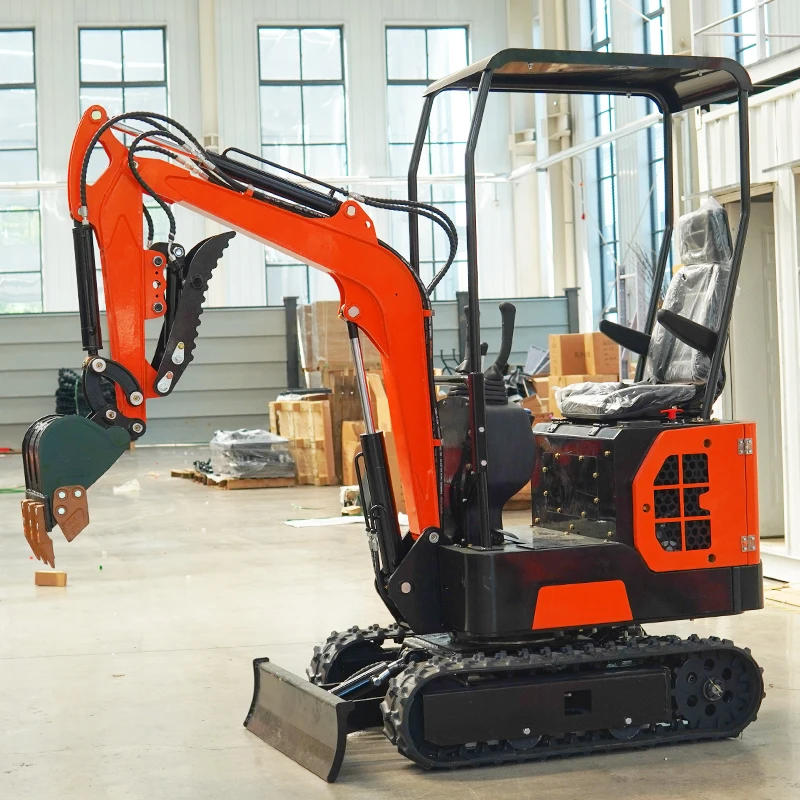

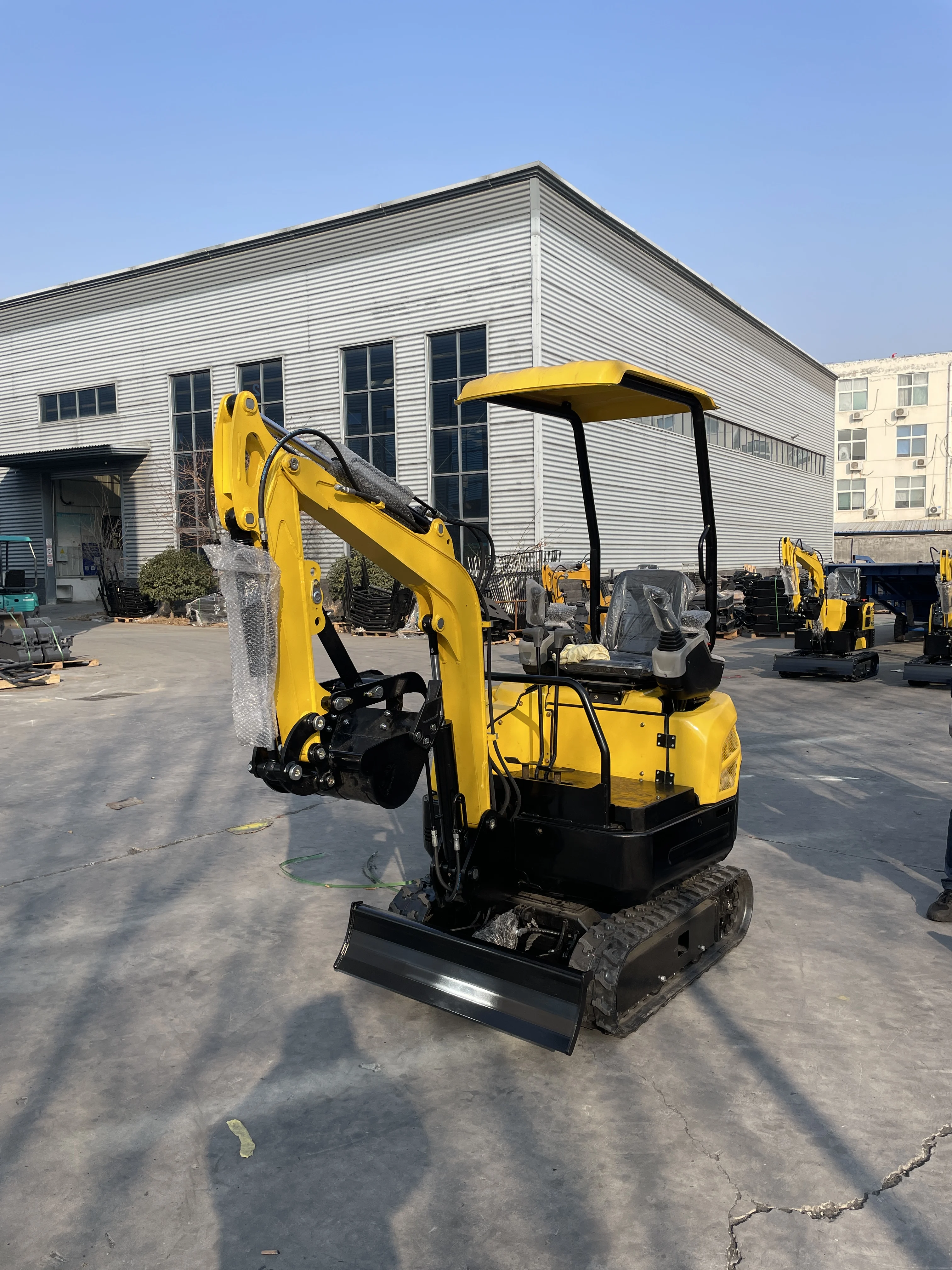

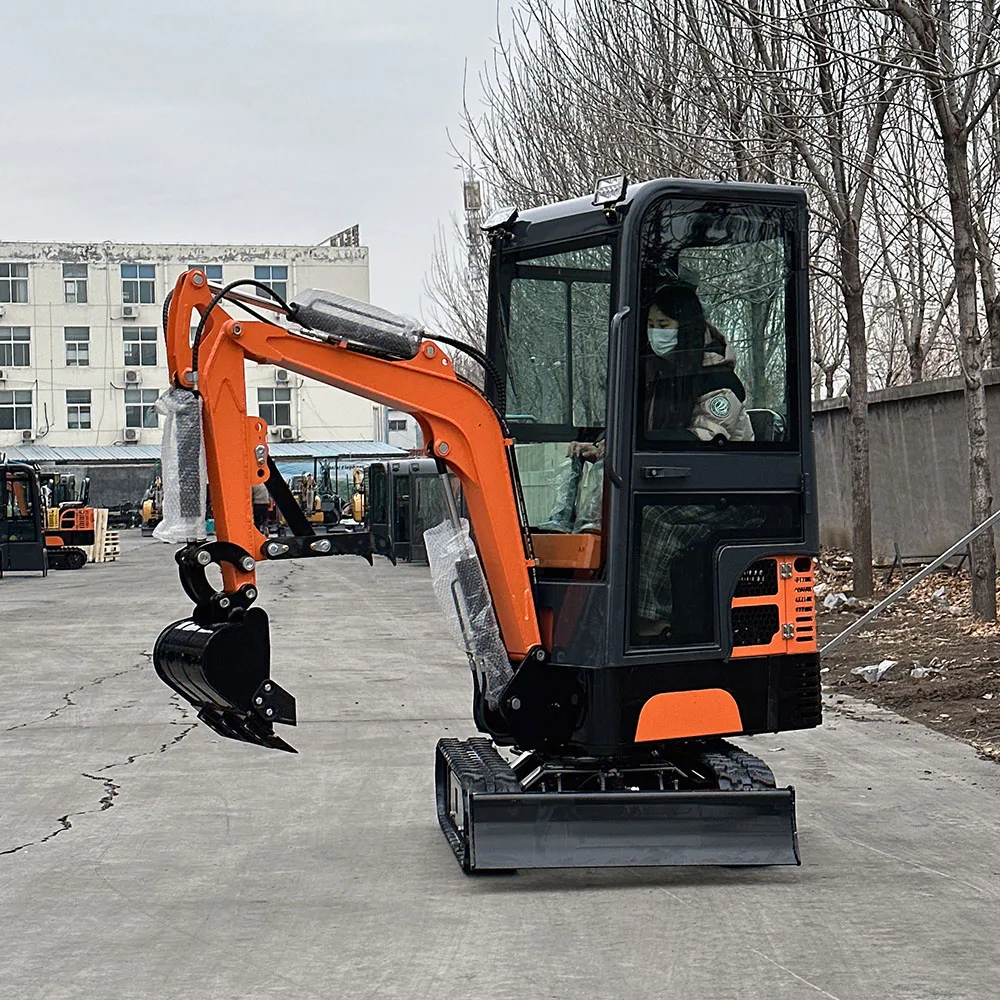

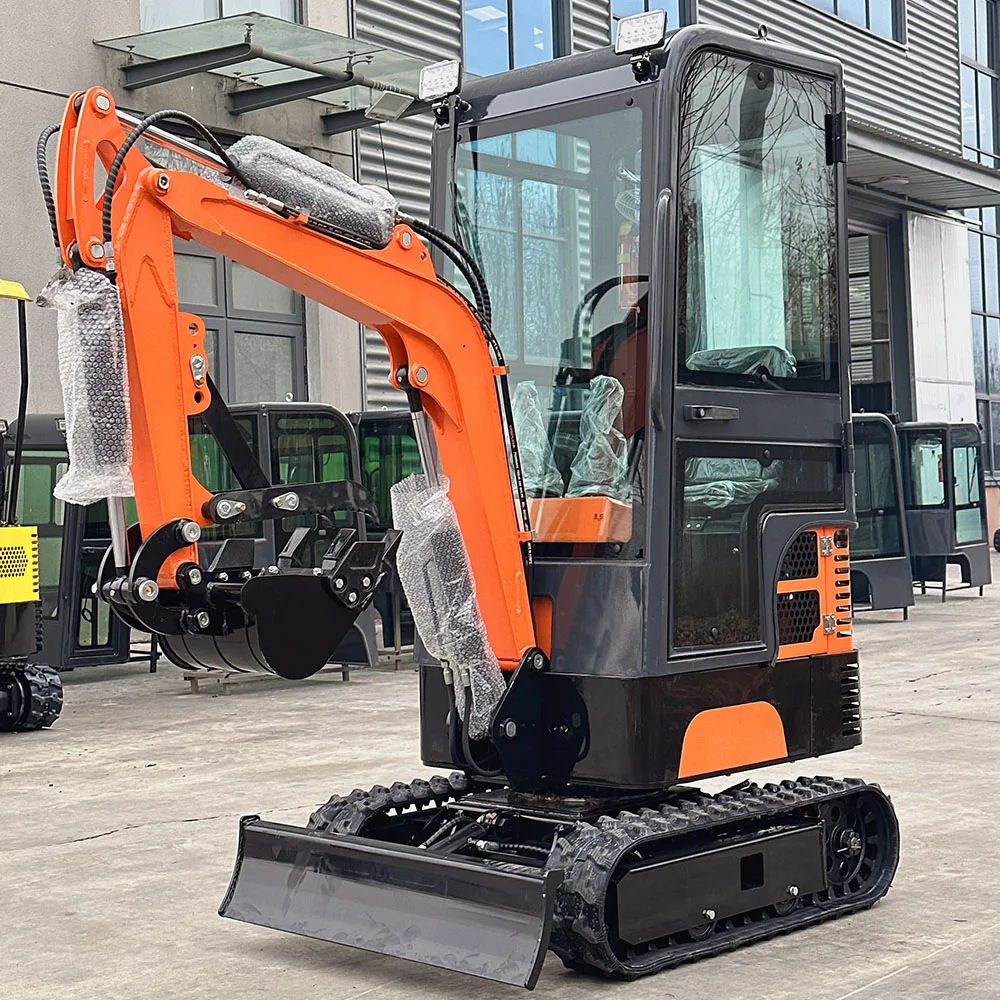

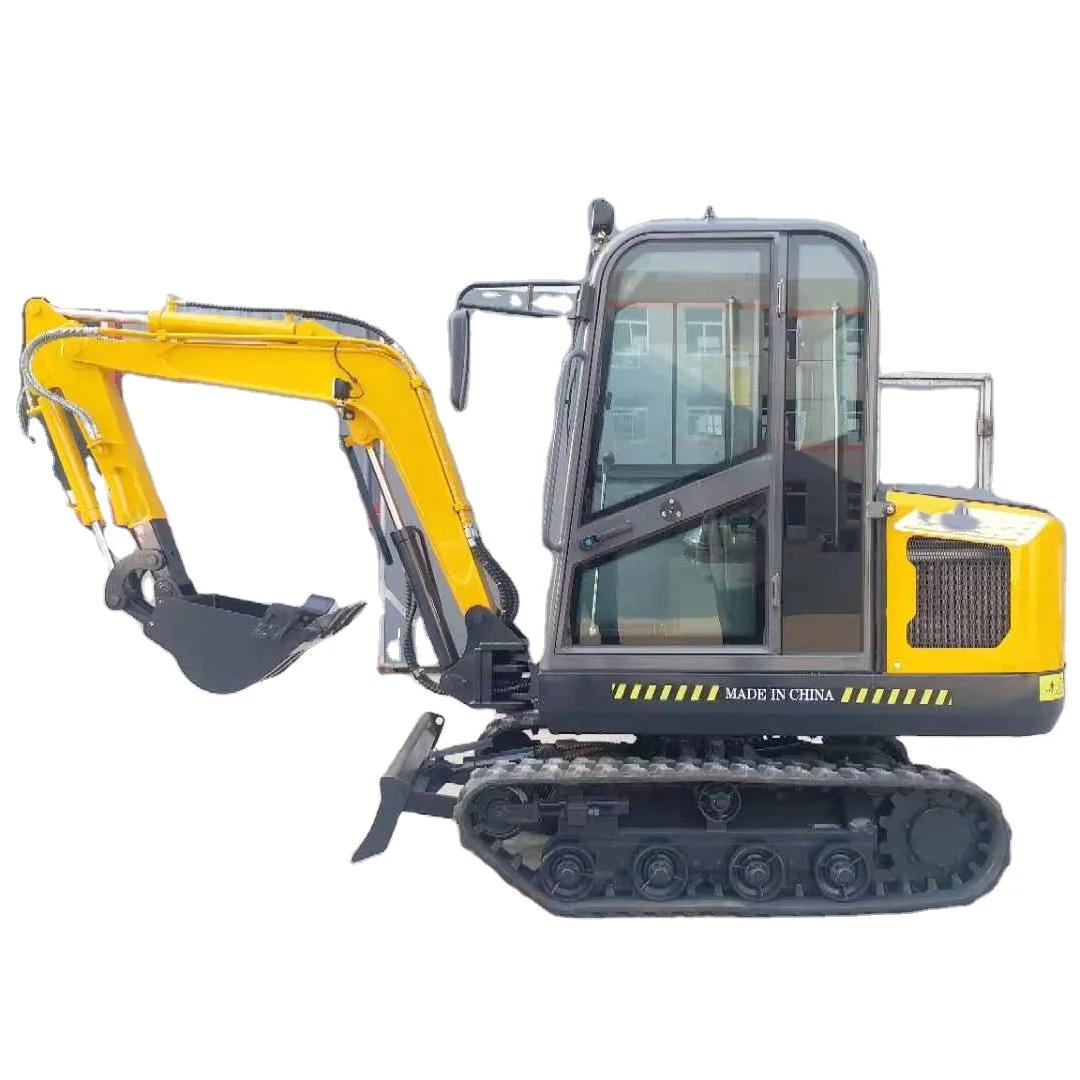

Product Show
Product Detail
01.

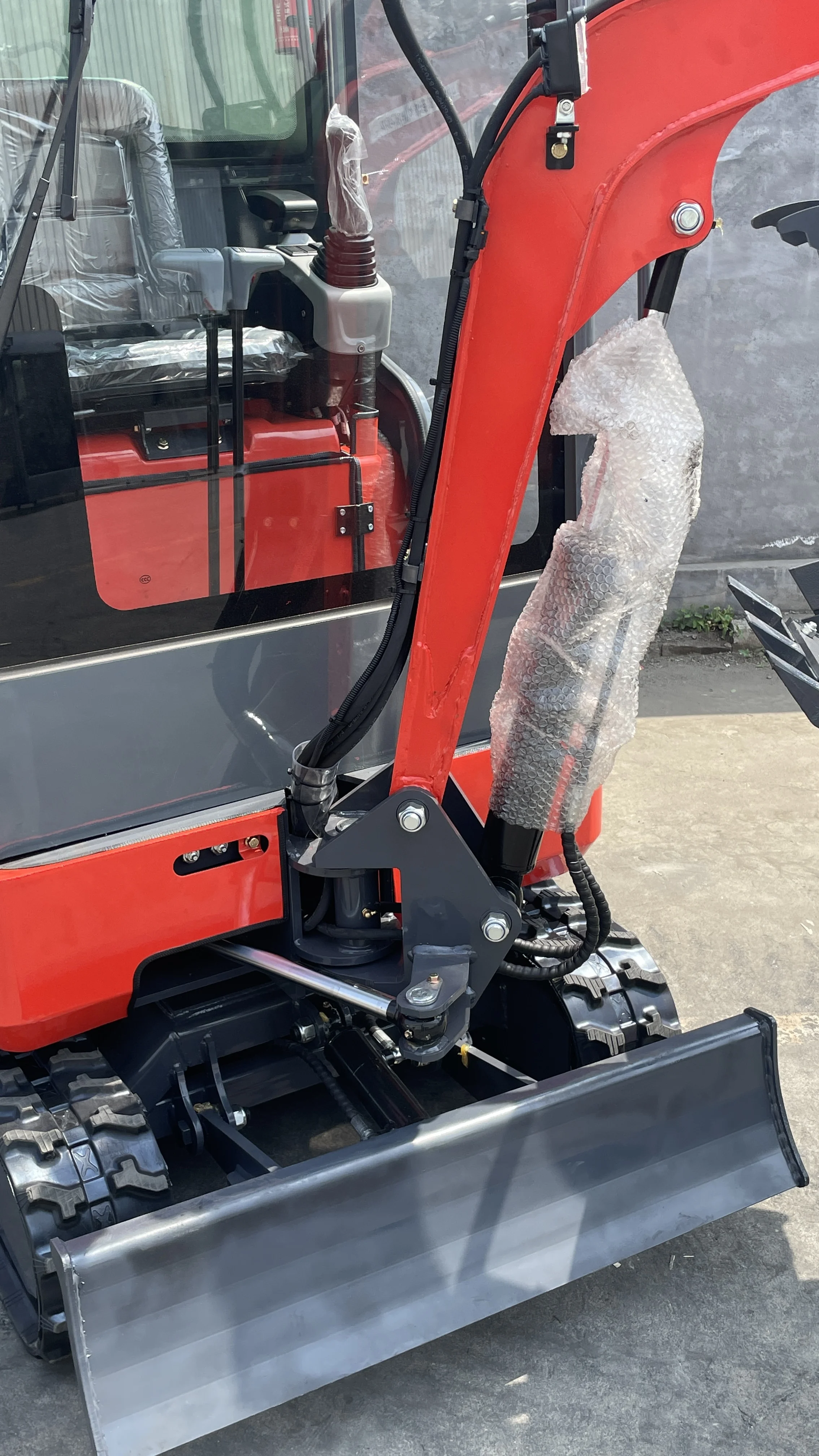

Arm Swing Boom
02.
Chassis Stretch
03.
Famous Brand Engine
04.
Hydraulic Pilot Joystick
Product Features
1.Has excellent work efficiency and excellent cost-effectiveness.
2.Easy to operate, compact and flexible, convenient for transportation, capable of working in narrow areas.
3.With standard configuration, it can level the site, backfill soil, and increase the stability of the entire machine.
4.Can rotate 360 degrees, more suitable for narrow field operations.
2.Easy to operate, compact and flexible, convenient for transportation, capable of working in narrow areas.
3.With standard configuration, it can level the site, backfill soil, and increase the stability of the entire machine.
4.Can rotate 360 degrees, more suitable for narrow field operations.
Product Application
Mini excavators have played a significant role in agricultural planting, landscaping, orchard and forest trenching and fertilization, municipal engineering, mountain road construction, and other construction projects, making significant contributions to saving manpower and material resources.
Packing & Delivery
Company Information
ABOUT US
Shandong Yuchi Smart Equipment Co., Ltd. is a modern enterprise that integrates research and development, production, and sales. With a comprehensive testing system and management mechanism, our company specializes in the development, production, and sales of agricultural, forestry, animal husbandry, fisheries, engineering, mining, railway transportation machinery, intelligent agricultural machinery, and new energy mechanical equipment.
Our products are not only popular in the domestic market but also exported overseas. Guided by the people-oriented spirit, we have gathered a large number of top-tier scientific and technological research talents, making our company technically strong and capable of developing innovative products. We strive to become a leading enterprise specializing in production globally.
Strictly adhering to ISO9001 and overseas certification standards, our service tenet is to actively provide customers with top-notch products and services. We believe that there is no best, only better. Meeting customer needs is our eternal pursuit. We sincerely welcome new and old customers to negotiate business and seek common development.
Our products are not only popular in the domestic market but also exported overseas. Guided by the people-oriented spirit, we have gathered a large number of top-tier scientific and technological research talents, making our company technically strong and capable of developing innovative products. We strive to become a leading enterprise specializing in production globally.
Strictly adhering to ISO9001 and overseas certification standards, our service tenet is to actively provide customers with top-notch products and services. We believe that there is no best, only better. Meeting customer needs is our eternal pursuit. We sincerely welcome new and old customers to negotiate business and seek common development.
FAQ
Q: How can we do if there are problems for the products?
A: Our engineers will analyze the problems for you and find the best solution. We have dealers in some countries,for some technical problems which you can not solve by yourself, we can ask them to help you.
A: Our engineers will analyze the problems for you and find the best solution. We have dealers in some countries,for some technical problems which you can not solve by yourself, we can ask them to help you.
Q: Is OEM or ODM service available?
A: We can do OEM and ODM products for you. For OEM products, you can choose any color you want, design your own brand label, we can stick or stamp your logo on the products.
A: We can do OEM and ODM products for you. For OEM products, you can choose any color you want, design your own brand label, we can stick or stamp your logo on the products.
Q: What is the delivery time for your products?
A: Once we promise the delivery time, we will try our best to do so. Special procedures such as emergency inventory will be used to maintain your uninterrupted supply of the products.
A: Once we promise the delivery time, we will try our best to do so. Special procedures such as emergency inventory will be used to maintain your uninterrupted supply of the products.
Q: Is there any guarantee for your products?
A: Most of our products have one year guarantee( for the main parts).
A: Most of our products have one year guarantee( for the main parts).
Q: How can you control your product quality?
A: A: Quality is always considered as the most important part during our manufacturing process. All of our products come under strict quality control system from raw material inspection, component inspecting, semi-finished product inspecting, performance test of finished products, to random inspection before delivery.
Every product is carefully inspected before sending out to guarantee every product our customer received is with good quality.
A: A: Quality is always considered as the most important part during our manufacturing process. All of our products come under strict quality control system from raw material inspection, component inspecting, semi-finished product inspecting, performance test of finished products, to random inspection before delivery.
Every product is carefully inspected before sending out to guarantee every product our customer received is with good quality.
