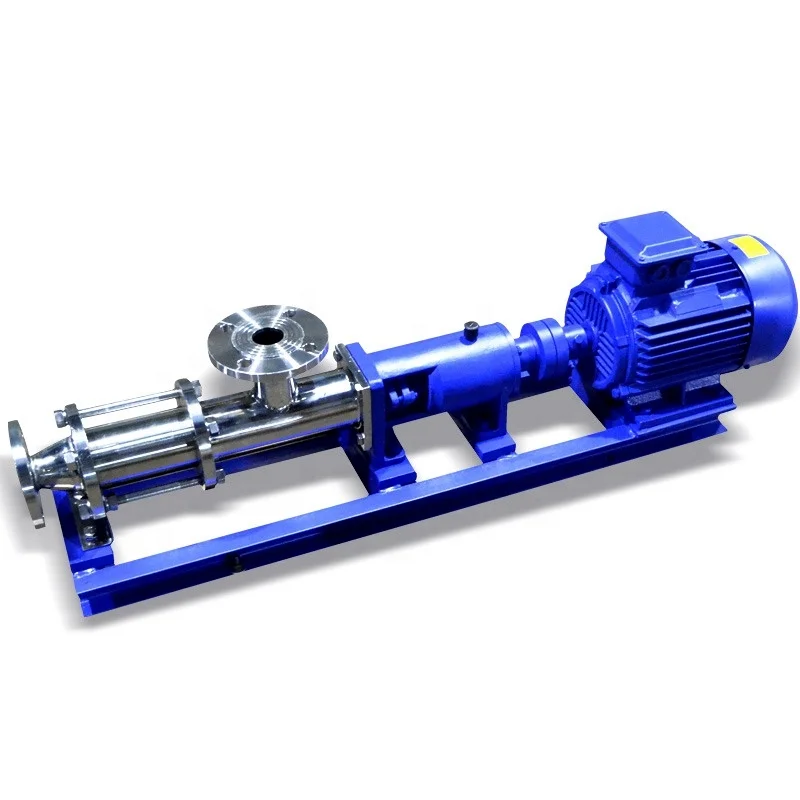

Горизонтальный насос с прогрессивной полостью серии G Alibaba
61 028,12-63 570,95 ₽
Заводская изготовленная на заказ дешевая оптовая цена 500Bar насос высокого давления
- Категория: >>>
- Поставщик: Shandong Boshan Water-Pump Equipment Factory Co. Ltd.Shandong Ltd.
Сохранить в закладки 1601098982895:
Описание и отзывы
Характеристики
Specification | |||
Capacity Q | 25-850m3/h | ||
Head H | 54-1176m | ||
Power P | 11-2500KW | ||
Motor | Brand optional,100% Copper Wire | ||
Voltage | 380V/415V/660V/1140V | ||
Material | Cast Iron/SS316/SS304/Copper,Can be customized | ||
Scope of supply | Pump,Motor,Coupling,Base,Pipe,Control cabinet,Flange,Wearing parts,Other Accessories | ||
Certification | ISO 9001 | ||
Warranty | One Year/According to customer requirements | ||

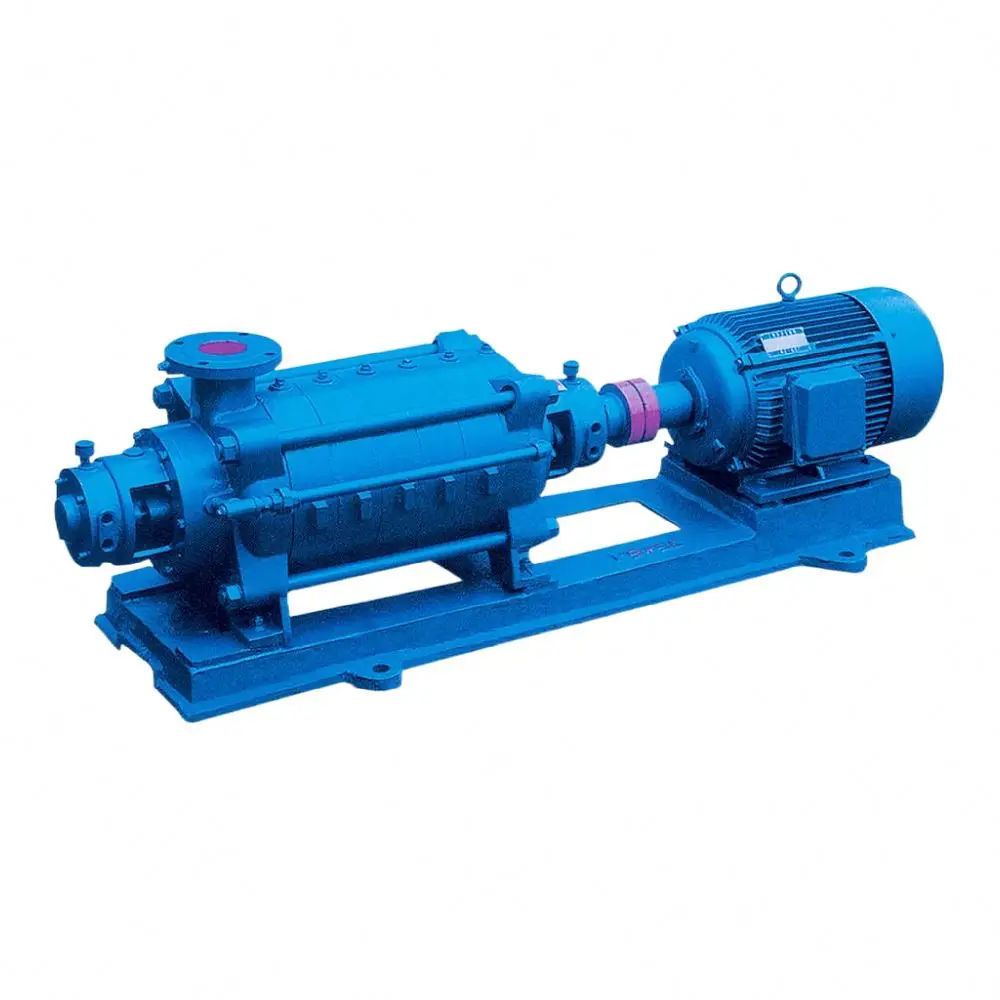

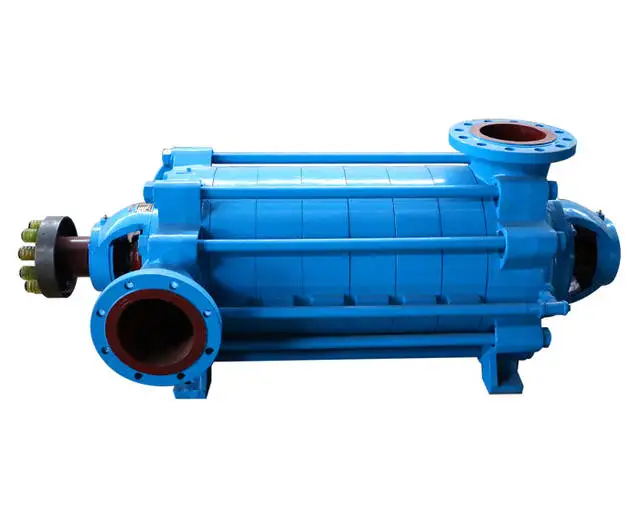

The SWD type horizontal multistage centrifugal pump is made of wear-resistant material and is suitable for mine, factory and urban water supply and drainage. Neutral mine water with a solid particle content of not more than 1.5%, a particle size of less than 0.5 mm and neutral sewage without suspended solids. Liquid temperature is not higher than 80 ℃.If the main corrodible parts are made of stainless steel, and other parts that are in contact with corrosive liquids are sprayed with corrosion-resistant materials, which have good corrosion resistance and are not easy to fall off.Suitable for acid mine drainage and acidic sewage of PH ≥3 in mine factories.
For example: SWD 46 - 50 × 4
SWD--Horizontal multistage centrifugal pump
46--Flow:46m³/h
50-- Head of single stage(m)
4--Number of stage
SWD--Horizontal multistage centrifugal pump
46--Flow:46m³/h
50-- Head of single stage(m)
4--Number of stage
Model | Capacity (m3/h) | Head (m) | Power (KW) | Stage |
SWD25 | 25 | 150-600 | 22-110 | 3-12 |
SWD35 | 35 | 220-1320 | 55-355 | 2-12 |
SWD46 | 46 | 100-600 | 30-132 | 2-12 |
SWD50 | 50 | 160-960 | 55-280 | 2-12 |
SWD85 | 85 | 200-1200 | 110-560 | 2-12 |
SWD100 | 100 | 165-994 | 90-500 | 2-12 |
SWD120 | 120 | 520-1560 | 315-1000 | 2-12 |
SWD150 | 150 | 220-1320 | 160-900 | 2-12 |
SWD155 | 155 | 134-804 | 110-630 | 2-12 |
SWD250 | 250 | 640-1760 | 710-1800 | 4-10 |
SWD270 | 270 | 596-1640 | 710-2000 | 4-11 |
SWD280 | 280 | 130-780 | 185-1120 | 2-12 |
SWD300 | 300 | 320-1920 | 450-2800 | 2-12 |
SWD350 | 350 | 150-900 | 250-1600 | 2-12 |
SWD400 | 400 | 280-1680 | 450-2800 | 2-12 |
SWD420 | 420 | 186-1116 | 315-2000 | 2-12 |
SWD450 | 450 | 120-720 | 250-1600 | 2-12 |
SWD500 | 500 | 114-684 | 220-1400 | 2-12 |
SWD580 | 580 | 120-720 | 315-1800 | 2-12 |
SWD600 | 600 | 120-720 | 315-1800 | 2-12 |
SWD650 | 650 | 120-720 | 315-1800 | 2-12 |
SWD720 | 720 | 120-720 | 355-2000 | 2-12 |
SWD850 | 850 | 120-720 | 400-2500 | 2-12 |
Horizontal multistage boiler feed centrifugal water pump.Suitable for coal, mining, factories and so on. Neutral mine water and other similar media with a solid particle content of no more than 1.5% (particle size less than 0.5 mm). The temperature should be less than 40 °C.

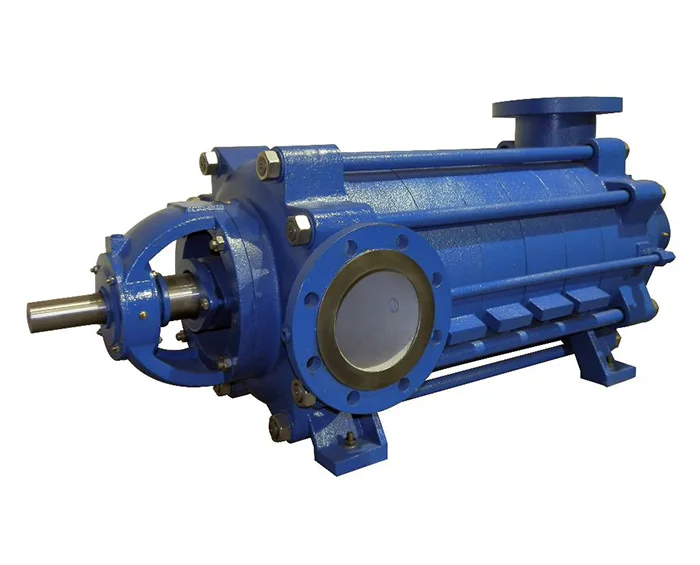

SWD type pump is a horizontal single suction multistage segmented centrifugal pump. The head can increase or decrease the number of pump stages.The working chamber of the pump is formed by inlet section, middle section, guide vanes, outlet section guide vanes, outlet section and end cap.The liquid enters from single side along with the direction of shaft.The axial force generated by pump operation is balanced by the balance disc.
(1)Shaft seal: soft packing or mechanical seal,according to user’s requirements.
(2)Transmission: driven by the motor directly through the elastic coupling.
(3)Sealing ring: to prevent high pressure water in the pump from leaking back into the inlet.It is replaceable after wear.
(4)Balance disc: located between the outlet section and the end cap for balancing axial forces.
(5)Balance ring and balance sleeve: fixed on the water outlet section.To form the balance device together with balance disc.
(6)Shaft sleeve: located in the two packing chambers, which can be replaced after wear.
(1)Shaft seal: soft packing or mechanical seal,according to user’s requirements.
(2)Transmission: driven by the motor directly through the elastic coupling.
(3)Sealing ring: to prevent high pressure water in the pump from leaking back into the inlet.It is replaceable after wear.
(4)Balance disc: located between the outlet section and the end cap for balancing axial forces.
(5)Balance ring and balance sleeve: fixed on the water outlet section.To form the balance device together with balance disc.
(6)Shaft sleeve: located in the two packing chambers, which can be replaced after wear.
1 / Q: Are you a manufactory or trading company?
A: We are water pump manufactory with more than 30 years production experience.
2 / Q: What’s your MOQ?
A: Trial sample order is OK .
3 / Q: What’s your payment terms?
A: T/T , L/C , ......
4 / Q: What certificates do you have ?
A: CE , ISO 9001 , UL .....
5 / Q: How about the warranty ?
A: One year warranty for pumps .
6 / Q: What is the delivery time ?
A: 10-30 days according to customer quantities .
7 / Q: Can you do OEM brand ?
A: Yes, Welcome .
8 / Q: How to buy our pumps ?
A: Firstly we should know from you :
What is the gas ?
Air?Water vapor?Oxygen?
What is the pressure ?The Max.suction capacity range ?
Other conditions from customer if possible : pump type , motor ?
With complete information, then we selected the pump and feedback to you.
If you have special requirement, such material, please inform us .
9 / Q: How to replace parts ?
A: In the order period, we will list our vulnerable parts and their quantities to our customer, and sold at competitive price,then ship together with pumps if customer needs.
FOR MORE QUESTIONS, PLEASE CONTACT OUR SALES.
A: We are water pump manufactory with more than 30 years production experience.
2 / Q: What’s your MOQ?
A: Trial sample order is OK .
3 / Q: What’s your payment terms?
A: T/T , L/C , ......
4 / Q: What certificates do you have ?
A: CE , ISO 9001 , UL .....
5 / Q: How about the warranty ?
A: One year warranty for pumps .
6 / Q: What is the delivery time ?
A: 10-30 days according to customer quantities .
7 / Q: Can you do OEM brand ?
A: Yes, Welcome .
8 / Q: How to buy our pumps ?
A: Firstly we should know from you :
What is the gas ?
Air?Water vapor?Oxygen?
What is the pressure ?The Max.suction capacity range ?
Other conditions from customer if possible : pump type , motor ?
With complete information, then we selected the pump and feedback to you.
If you have special requirement, such material, please inform us .
9 / Q: How to replace parts ?
A: In the order period, we will list our vulnerable parts and their quantities to our customer, and sold at competitive price,then ship together with pumps if customer needs.
FOR MORE QUESTIONS, PLEASE CONTACT OUR SALES.
