Direct manufacturer with design patent and utility model patent
CE ROHS Approval
Model | FAT-LED-F1C | Charging Time | 24Hrs |
Input Voltage | AC85V-265V | IP Rating | IP30 |

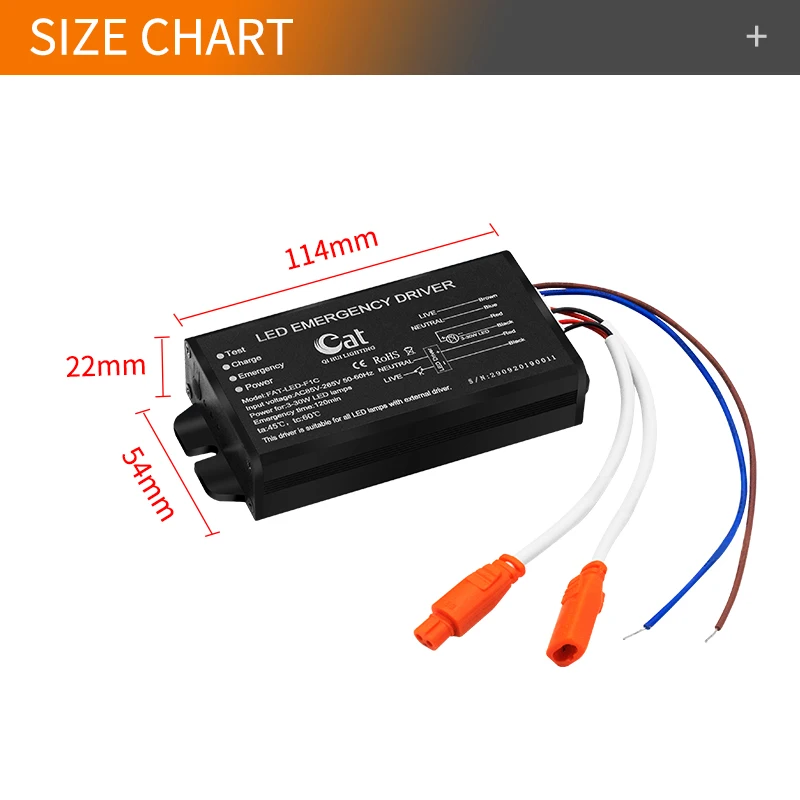

Input Power | 3-30W (Max 45W) | Dimension | 114*54*22 mm |
Output Power | 3-4W | Working Temperature | -15-40°C |

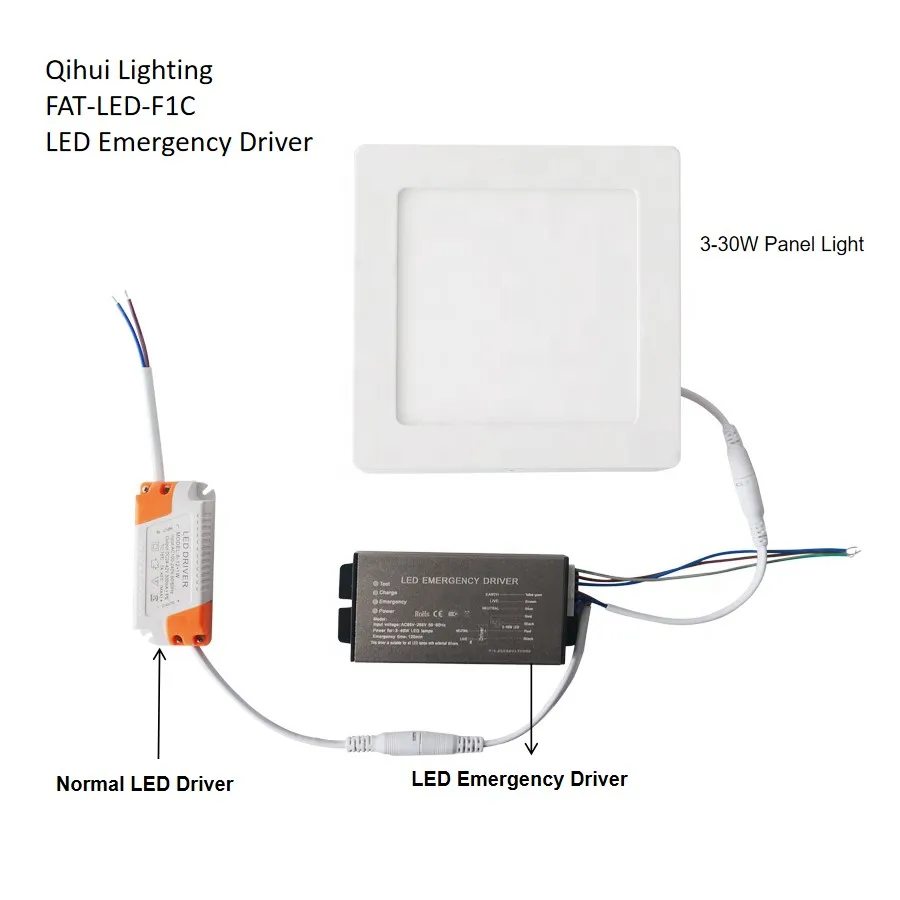

Type of Lamp | LED luminaire with external led driver | Switching time to emergency | 2s |
Battery | Li-ion battery 3.7V 2200mAh | Charging Time | 24Hrs |
Backup Duration | >2Hrs |
1. Got CE, RoHS certificate & Patent design by our factory.
2. Wide input voltage, suitable for 3-30W (Max 45W )3. Aluminum alloy housing can accelerate heat dissipation.

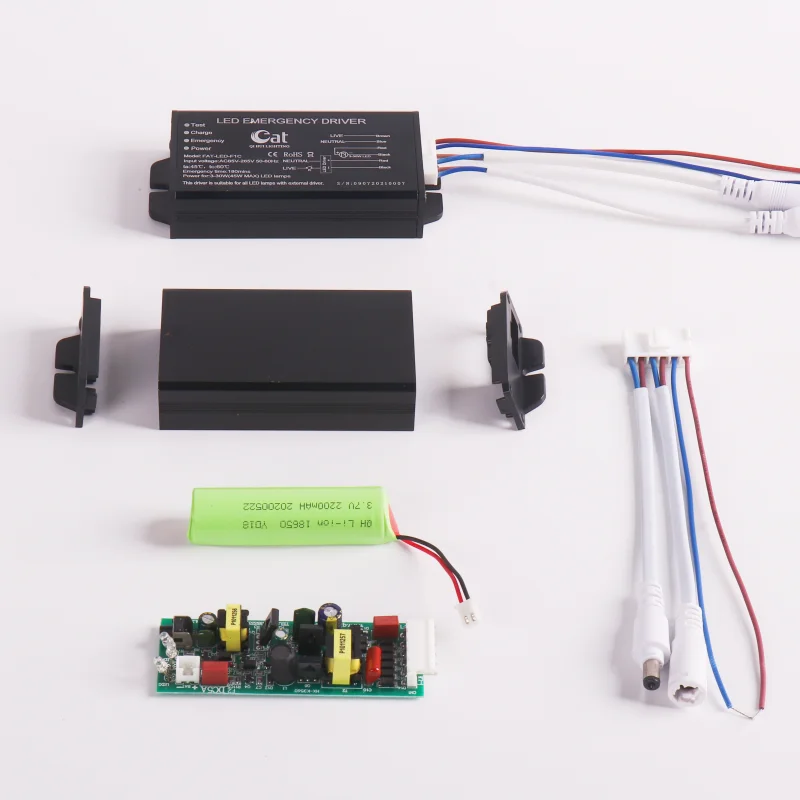

4. Internal Li-ion battery, 2200mAh, long lifespan.
5. Safety for use: No loading protection, short circuit protection,overcharge and over discharge protection reverse polarity protection.

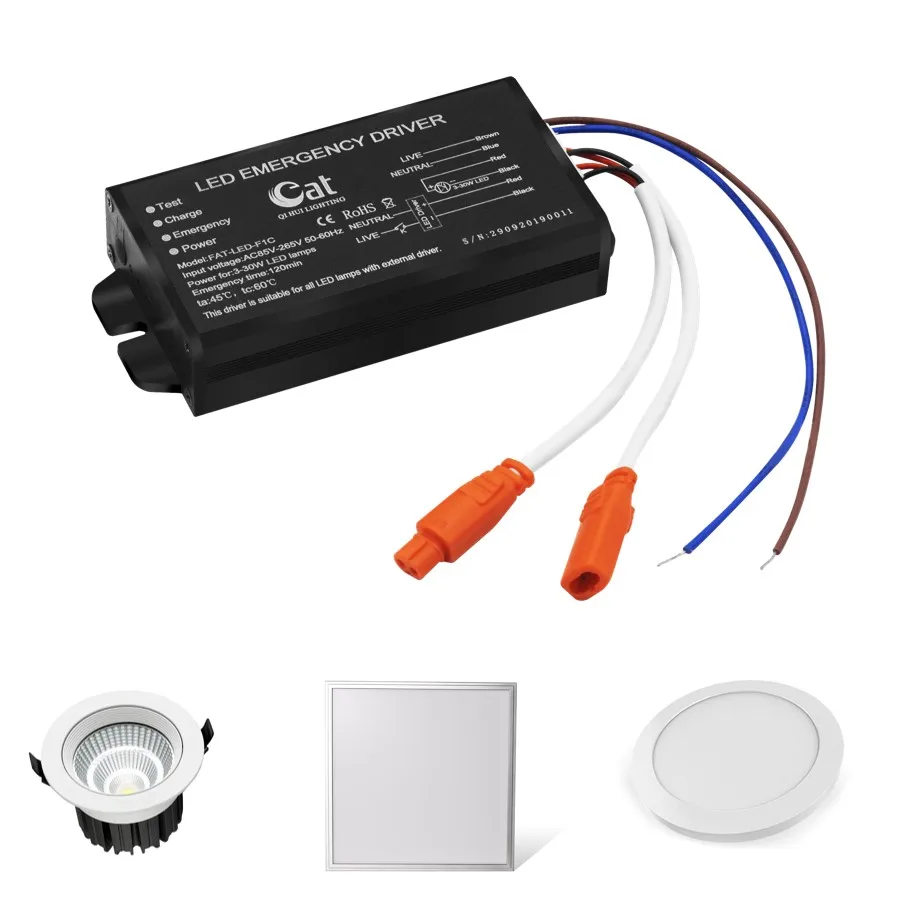

6. Fit for all kind of LED lamp, such as panel lights, tube, downlights.
Notes about battery and light source
Please change battery when discharging time is less than 100 minutes after being
charged for 24 hours or battery leakage.
When changing battery, cut off the main power, take apart the lamp, removing the battery plug.The new battery must be the same specification.
Note:
The positive and negative of battery should not be connected reverse to avoid directly short-circuit.
Explosion will be caused if using unmatched battery.
Light source: 3-40W (50W max.) LED lamps with external driver, please change to the
same light source if light source is broken or brightness is not enough.
Warning!

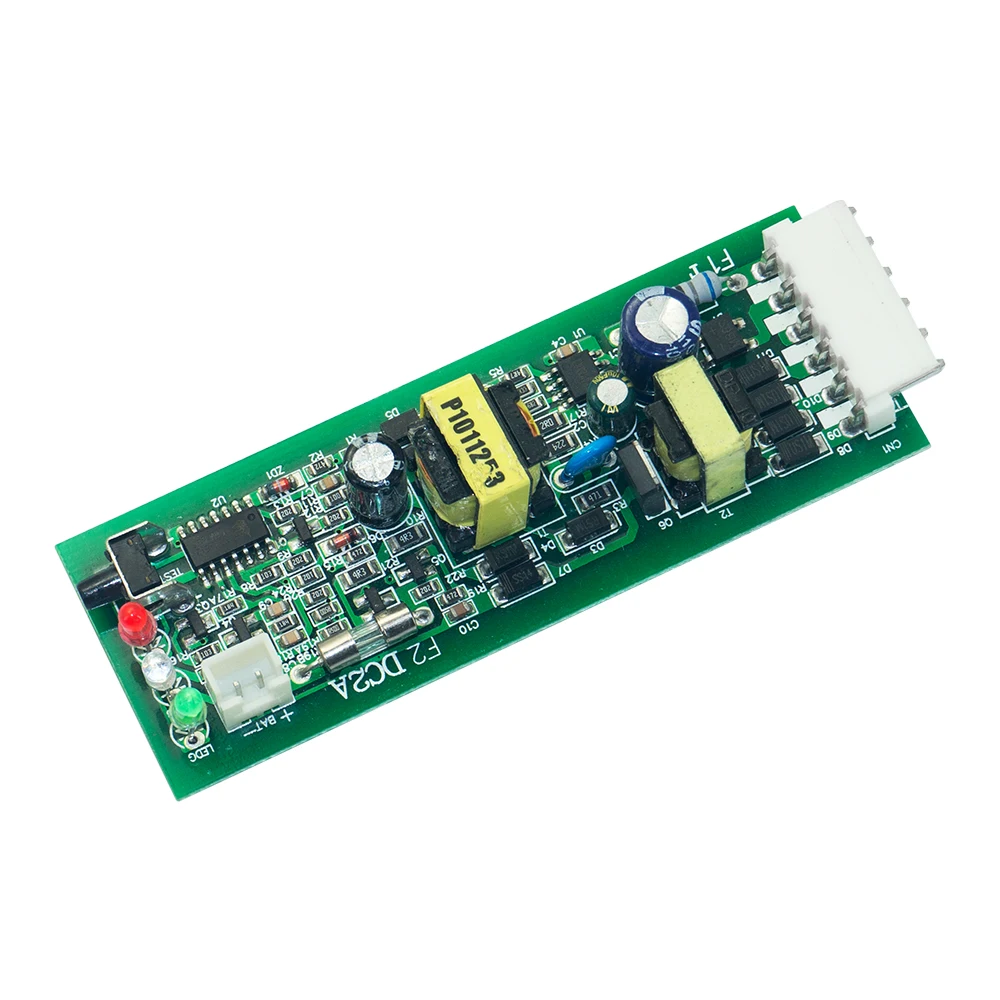

As the inner PCB includes 220V/50HZ high voltage, so it must be unloaded/opened ONLY by professional technician
Please change battery when discharging time is less than 100 minutes after being
charged for 24 hours or battery leakage.
When changing battery, cut off the main power, take apart the lamp, removing the battery plug.The new battery must be the same specification.
Note:
The positive and negative of battery should not be connected reverse to avoid directly short-circuit.
Explosion will be caused if using unmatched battery.
Light source: 3-40W (50W max.) LED lamps with external driver, please change to the
same light source if light source is broken or brightness is not enough.
Warning!
As the inner PCB includes 220V/50HZ high voltage, so it must be unloaded/opened ONLY by professional technician
Problems | Analysis | Solution |
Green light is off | Something wrong with the led driver | Checking the led driver |
Green light is broken or the circuit is disconnected | Checking circuit or changing green light | |
Red light is off | Not being charged | Checking the charging circuit or battery |
Red light is broken or the circuit is disconnected | Checking circuit or changing red light | |
Disconnecting the main power supply, make the led lights work in emergency status for 30mins, make the led light return to work in main power status aqain | ||
Blue light is off | The battery is open circuit | Checking the battery |
Light source is open circuit or short circuit | Ensuring light source is connected correctly | |
PCB is broken | Checking the Maintaining the circuit board |
Maintenance

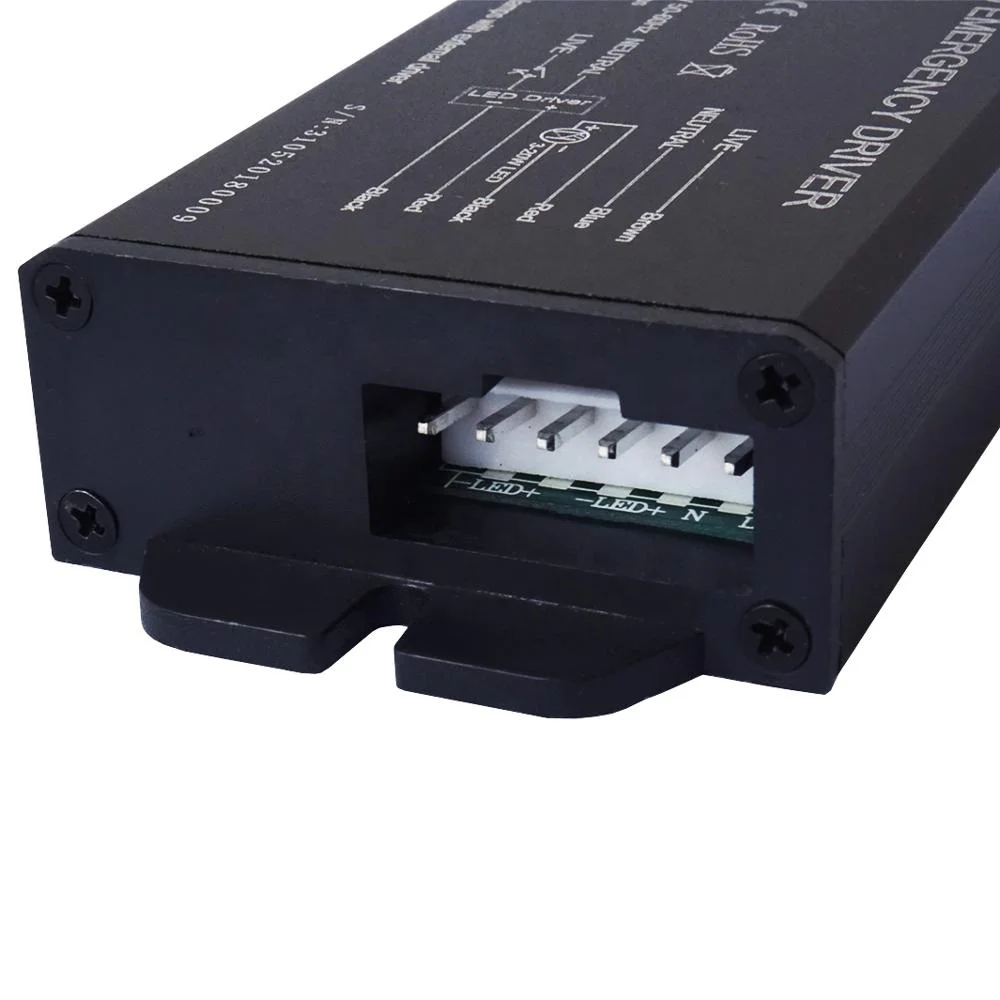

1. It should be connected according to the wiring diaqram on the emergency kit's surface.
strictly

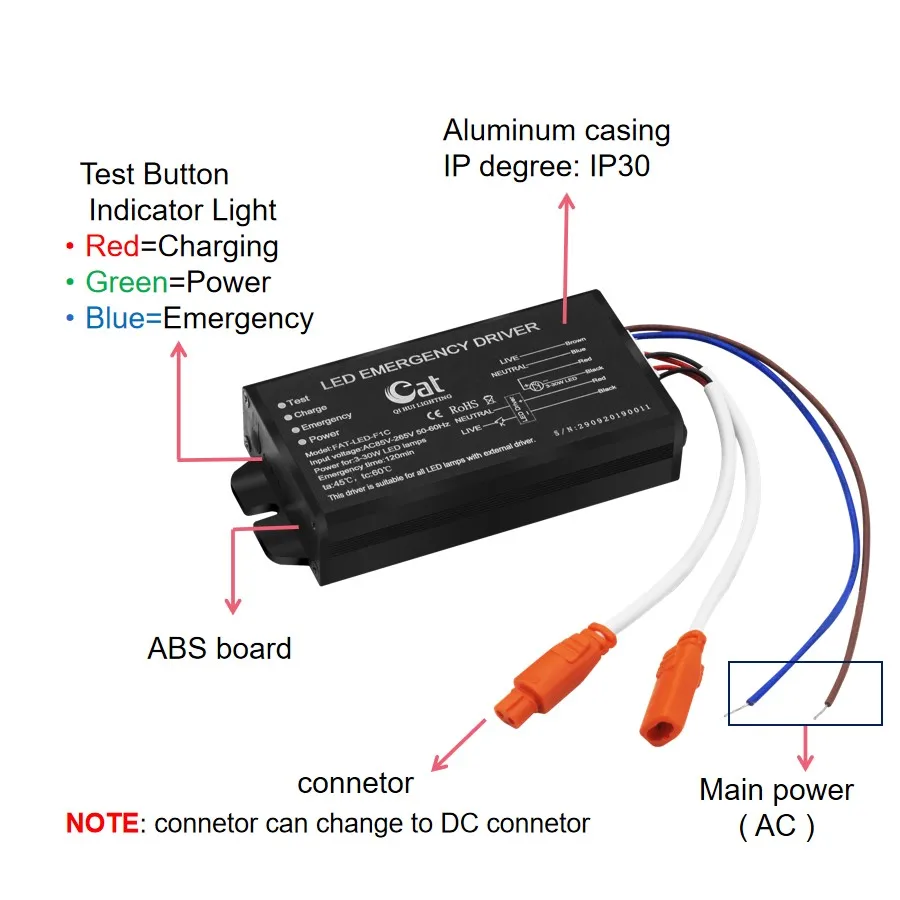

2. When connecting to AC power, see if it works normally, at this time, qreen indicating light is on.
At the same time, red indicating light would be ON, but it will be off after full charged.
Two status of LED lamp:
The LED lamp is off when its own driver is not connected 220V AC power.
The LED lamp if on when its own driver is connected 220V AC power.
3. Press the test button, the emergency kit enters the status of simulation of power failure.
At this time, the indicating liqht of main power (green) and charging (red) is off, while the emergency indicating light (blue
is on, it is in emergency status, and the LED lamp is workinq, but the brightness is not so high. After loosing the button, it wil return to main power status again.
4. Cut off the emergency kit input switch, the LED lamp will be in emergency status
5. Cut off the LED lamp's connection to the emergency kit in emergency status, the emergency kit will stop supplying power to the LED lamp, the emergency indicating light would be off
6. Checking reqularly to ensure its lifespan and usage
strictly
2. When connecting to AC power, see if it works normally, at this time, qreen indicating light is on.
At the same time, red indicating light would be ON, but it will be off after full charged.
Two status of LED lamp:
The LED lamp is off when its own driver is not connected 220V AC power.
The LED lamp if on when its own driver is connected 220V AC power.
3. Press the test button, the emergency kit enters the status of simulation of power failure.
At this time, the indicating liqht of main power (green) and charging (red) is off, while the emergency indicating light (blue
is on, it is in emergency status, and the LED lamp is workinq, but the brightness is not so high. After loosing the button, it wil return to main power status again.
4. Cut off the emergency kit input switch, the LED lamp will be in emergency status
5. Cut off the LED lamp's connection to the emergency kit in emergency status, the emergency kit will stop supplying power to the LED lamp, the emergency indicating light would be off
6. Checking reqularly to ensure its lifespan and usage
Customized logo or packaging is available
The case, connector and LOGO of our emergency driver can be customized.
The package of inner and out box can also be customized.
Company Profile
Jiangmen Pengjiang Qihui Lighting Electrical Appliances Co.,Ltd covers an area of 2500㎡, which own the brand name "FAT".
We have more than 10-year expriences on design, production and sales for emergency drivers, emergency lights and emergency exit sign.
Our products have passed CB,CEEMC and RoHS certifications
as well as more than 10 product patents.
Our products are exported overseas and have attracted many customers. High-quality products and considerate pre-sales and after-sales service, also make many customers choose to repurchase.
Похожие товары
Лидер продаж 2024 светодиодный драйвер IP67 водонепроницаемый пластиковый круговой корпус 1А 24 В Вт источник питания
2024 оптовая продажа с фабрики IP67 водонепроницаемый светодиодный драйвер пластиковый прямоугольный корпус DC12V 12W 1A Светодиодный источник питания
Завод продает источники питания с водонепроницаемым рейтингом IP67 и lightning 6/10KV
12,22 $
2024 завод оптовая продажа постоянное напряжение ip67водонепроницаемый ультратонкий Светодиодный источник питания 6.25A 24V 150W драйвер
8,40-8,80 $
Хорошее качество оптовая продажа с фабрики IP67 водонепроницаемый Светодиодный источник питания пластиковый прямоугольный корпус DC24V 60 Вт светодиодный драйвер
Оптовая Продажа с фабрики IP67 Водонепроницаемый Ультратонкий алюминиевый корпус AC90V-260V Светодиодный источник питания Dc24V 100 Вт светодиодный драйвер

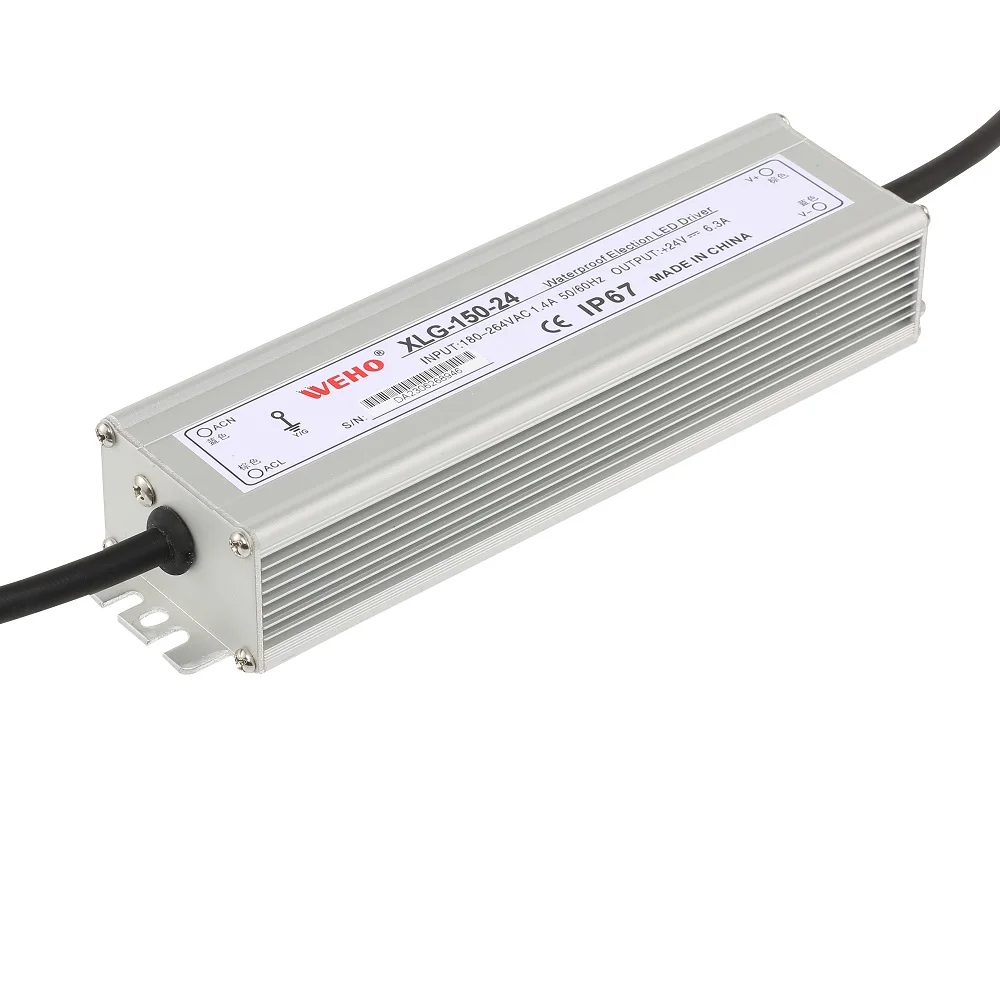

Эффективность 91% XLG-150-24 6.3а Рабочая температура-20 ℃ ~ + 60 Трехлетняя гарантия 150 Вт 24 В переменного тока в постоянного импульсный источник питания
