Лазерный уровень Huawei 4D 16 линий Z04CG ЖК экран Bluetooth и пульт дистанционного управления Osram зеленый луч с 2 кратными литий ионными батареями
- Категория: >>>
- Поставщик: Huipu Opto-Electronic Instrument (Zhenjiang) Co. Ltd.
Сохранить в закладки 1601099447122:
Описание и отзывы
Характеристики
Products Description
Z04CG 4x 360 Green Laser Level Specifications: |
● Laser Beam: Green Beam ● Projection: 16Green Laser Lines ● Laser Class: Class 2(IEC/EN60825-1/2014), <1mW power output ● Laser Wavelength: Germany Osram 505nm-520nm ● Horizontal / Vertical Accuracy: ±2mm/10m,±1/13 in. at 33 ft ● Leveling / Compensation Range: 3.5°±1° ● Leveling Time: ≤3s ● Working Distance: ≥20m, ≥40m with detector ●Working Time: About 7 hours with li-ion battery, About 1.5 hours with AA battery ● Power Source: 7.4V / 2600mAh Li-ion battery & 4 x AA battery ● Mount Size: 1/4''-20 & 5/8''-11 ● IP Rating: IP54, waterproof, dustproof and shockproof, reliability and robustness ● Operating Temperature: Between -10℃ and +50℃ ● Storage temperature: Between -20℃ and +70℃ |
Laser Class: | Class 2 (IEC/EN60825-1/2014), <1mW power output | Screen Type: | LCD screen with backlight | ||
Laser Wavelength: | 510nm-530nm | Laser Diode: | Germany Osram Green Beam | ||
Horizontal/Vertical Accuracy: | ±3mm/10m(±1/9 inch at 33Ft) | Reference Operating Time: | About 5 hours with li-ion battery, About 0.5 hours with AA battery | ||
Leveling Time: | ≤3s | Charging Port: | Type-C | ||
Compensation Range: | 3.5°±1° | Mount Size: | 1/4"-20 | ||
Functions: | With Bluetooth & Remote Control Functions | Features: | With 2pcs Li-ion Batteries | ||
Working Distance: | ≥25m, ≥40m with detector | Operating Temperature: | Between -10℃and +50℃ | ||
Power Source: | 7.4V/2600mAh Li-ion battery& 4 x AA battery | Storage temperature: | Between -20℃and +70℃ | ||
IP Rating: | IP54, waterproof, dustproof and shockproof, reliability and robustness | ||||

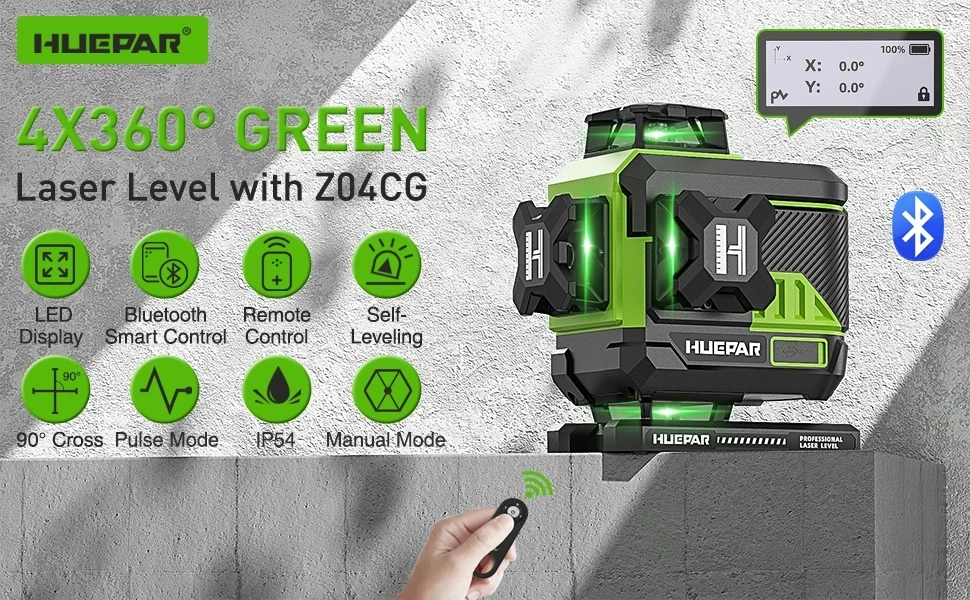

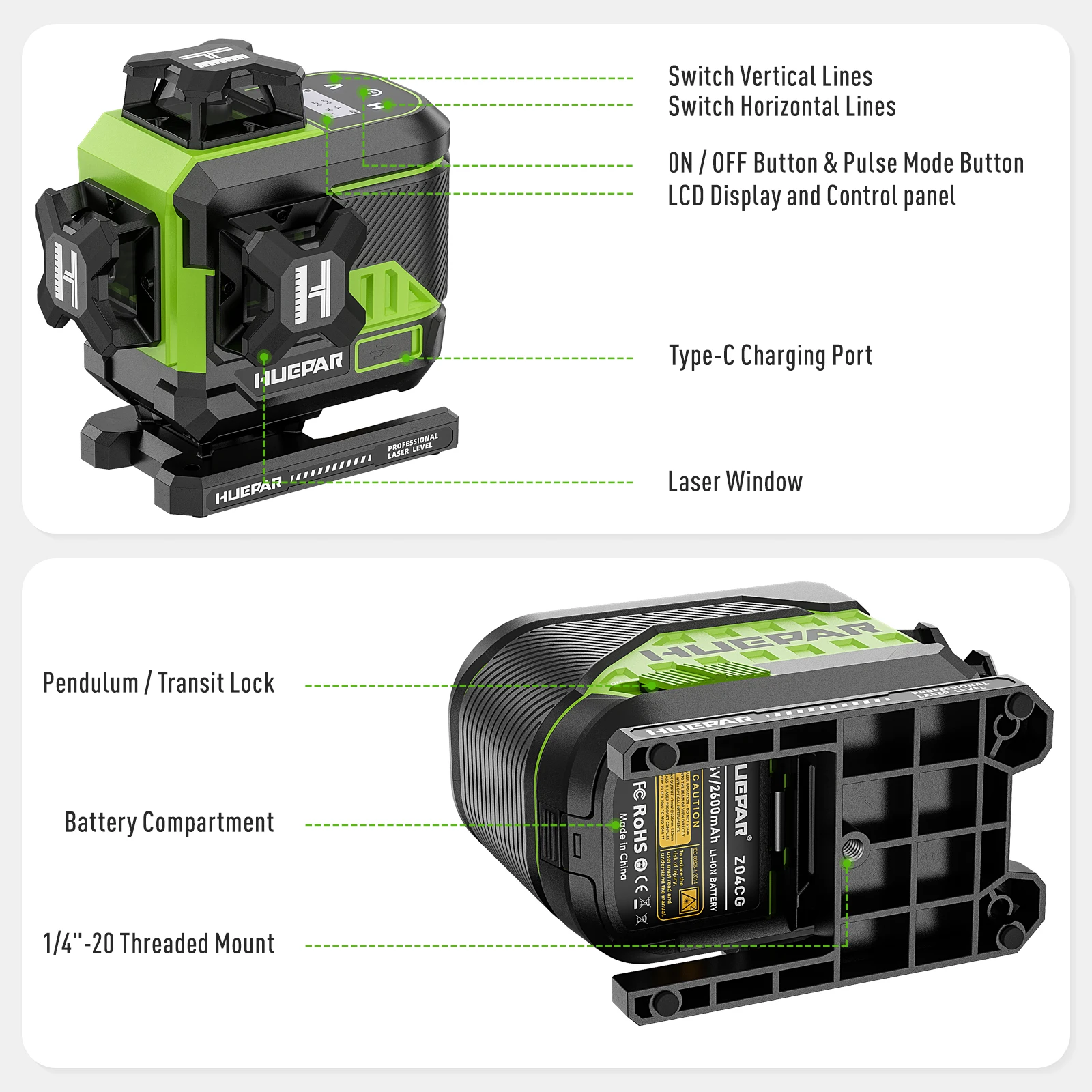

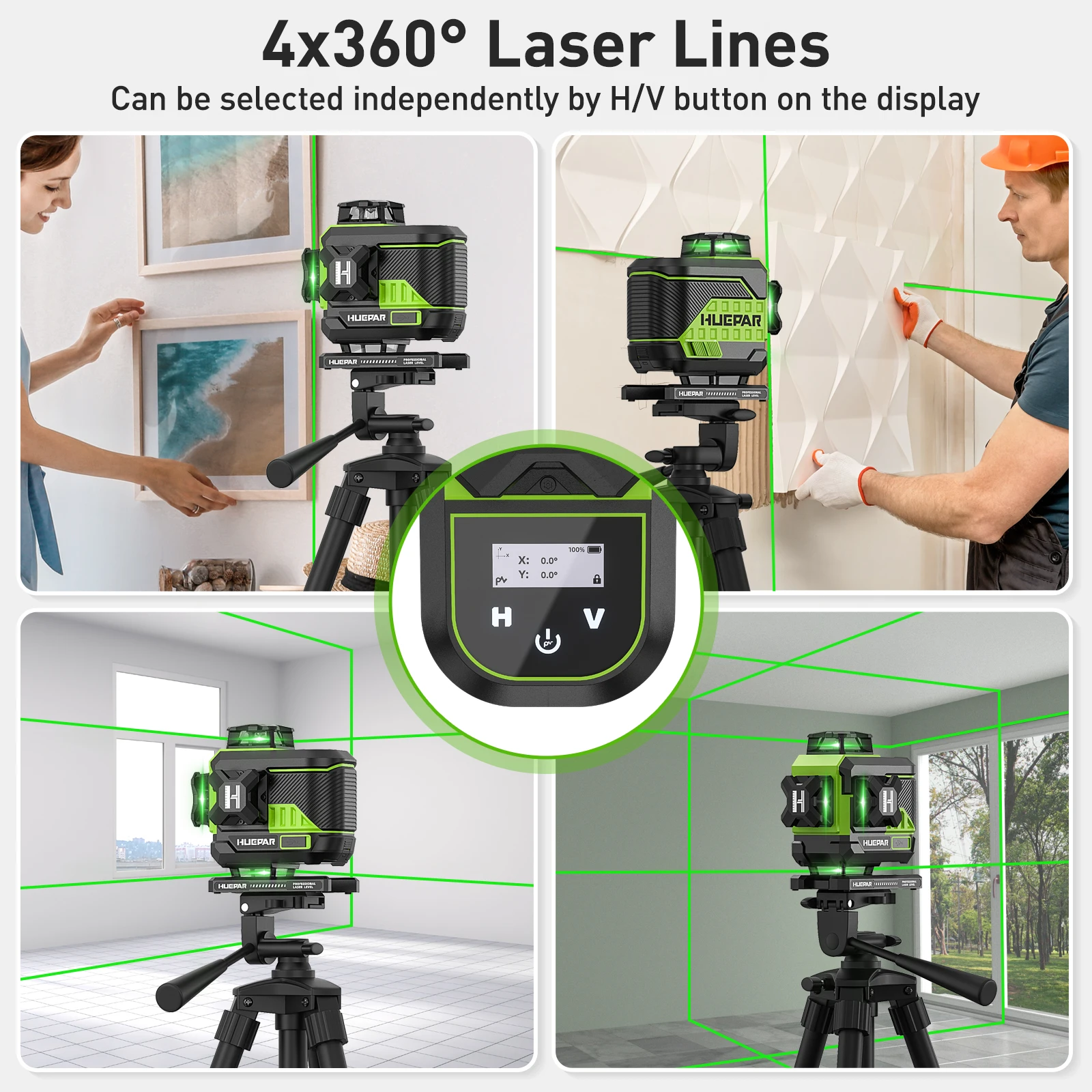

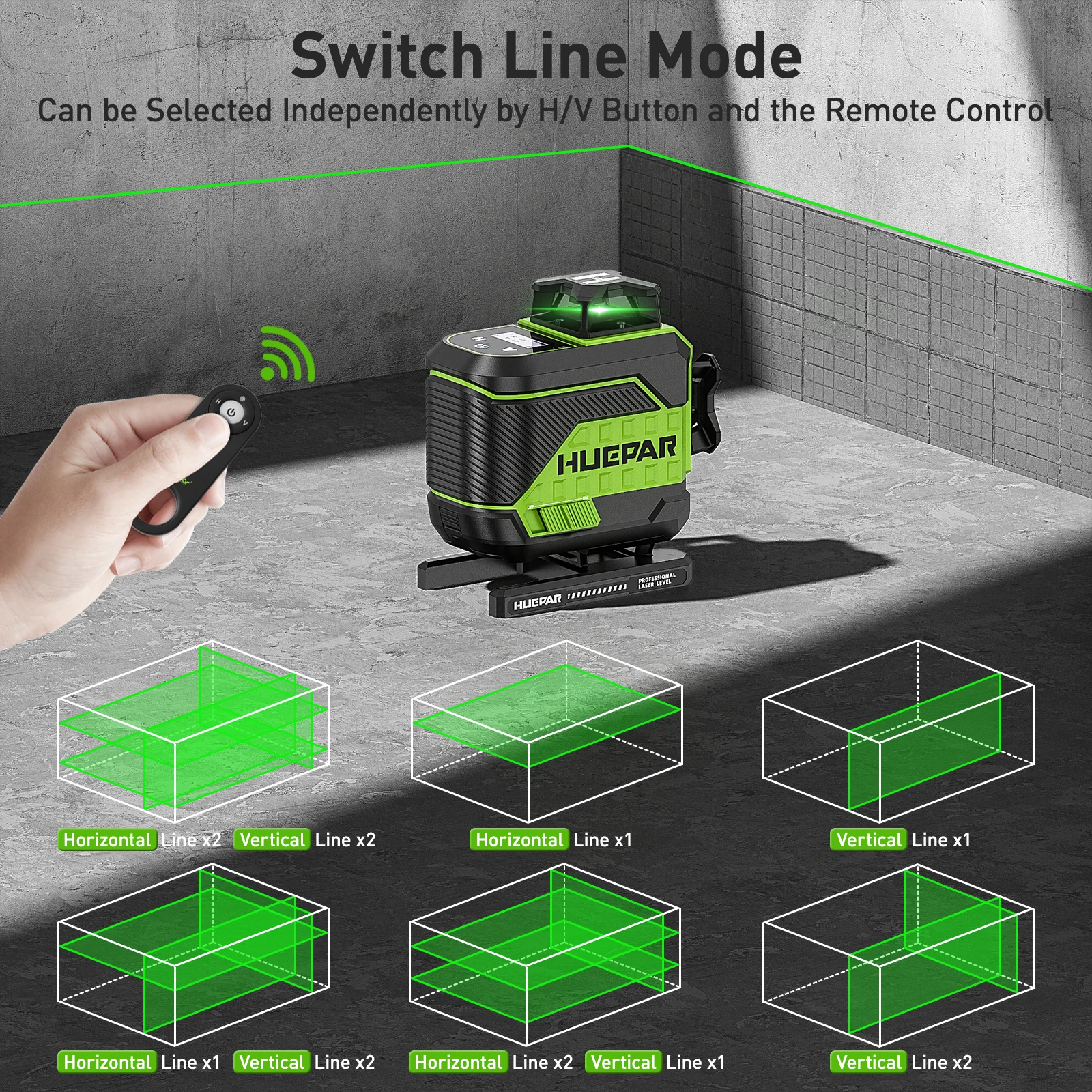

4x360° Laser Lines Switching With Remote Control Function:
* Short press H and V button on the keypad to switch the Horizontal and Vertical laser lines separately.
* The remote control enables to Turn ON /OFF the laser lines and switch four 360° laser lines individually at a distance up to 33Ft.
* With the remote control, users can also turn on/off the pulse mode.
* The laser lines can be selected separately according to job requirements.
* The remote control enables to Turn ON /OFF the laser lines and switch four 360° laser lines individually at a distance up to 33Ft.
* With the remote control, users can also turn on/off the pulse mode.
* The laser lines can be selected separately according to job requirements.

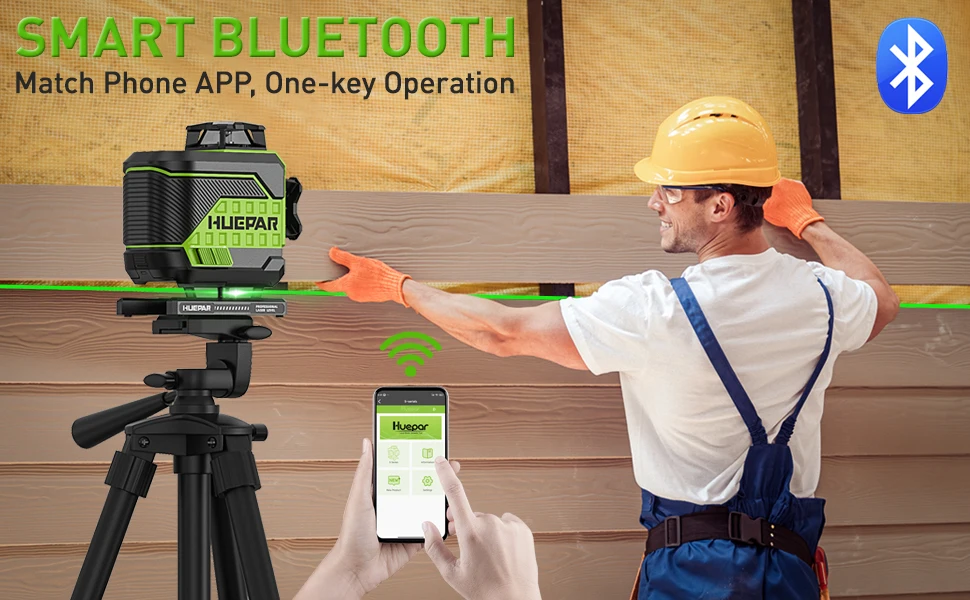

Connected With Smart Bluetooth:
* Connect Z04CG Laser Level with Free Huepar APP via Bluetooth Technology, users can control the laser tool by Mobile phone.
* The laser tool can connect two phones at the same time, whether on Android or iOS.
* The functions of the laser tool can be easily operated with the Bluetooth feature.
* The laser tool can connect two phones at the same time, whether on Android or iOS.
* The functions of the laser tool can be easily operated with the Bluetooth feature.

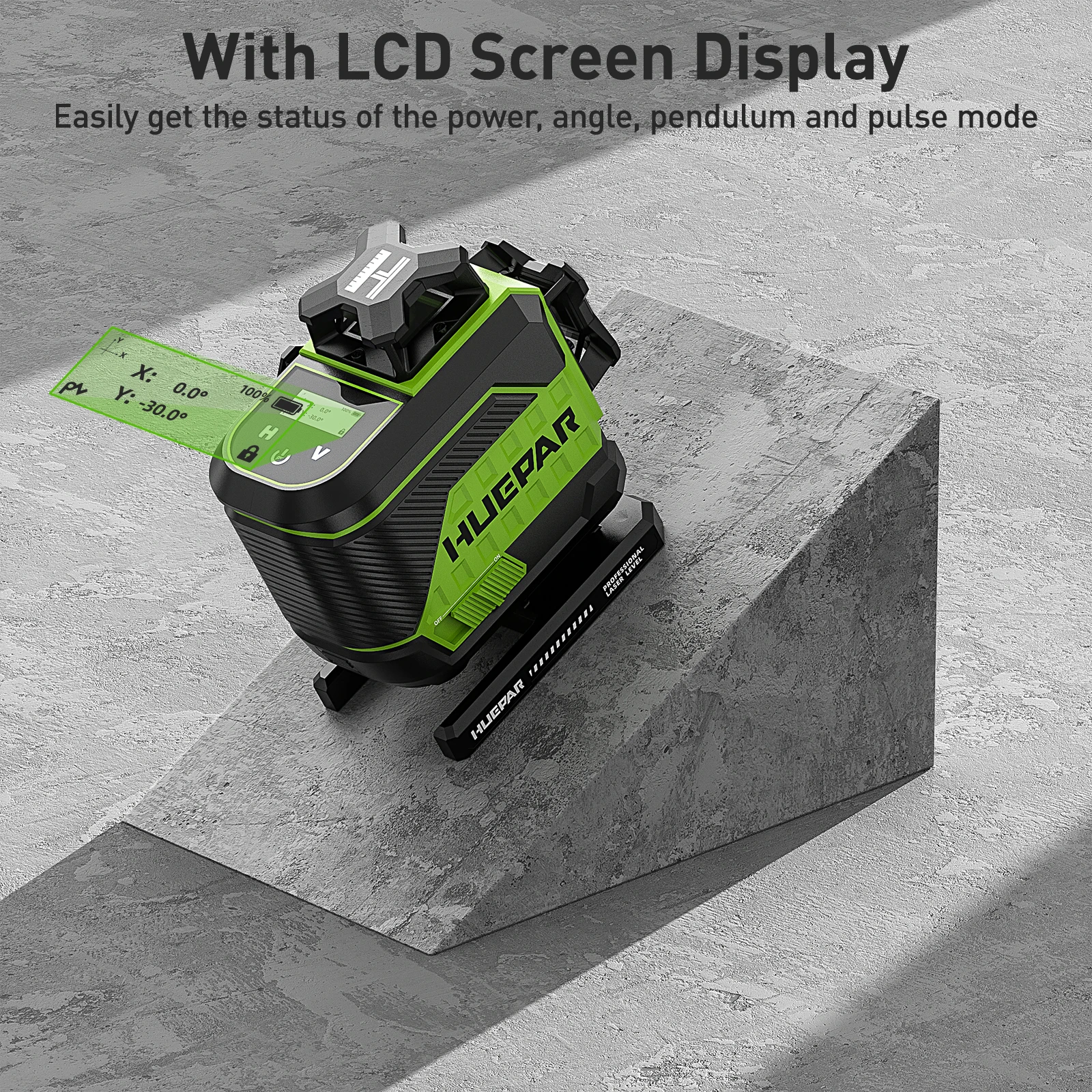

With LCD Display Screen:
* The laser level kit features LCD screen display.
* Users can easily get the status of the power, angle, pendulum and pulse mode on the display.
* Users can easily get the status of the power, angle, pendulum and pulse mode on the display.

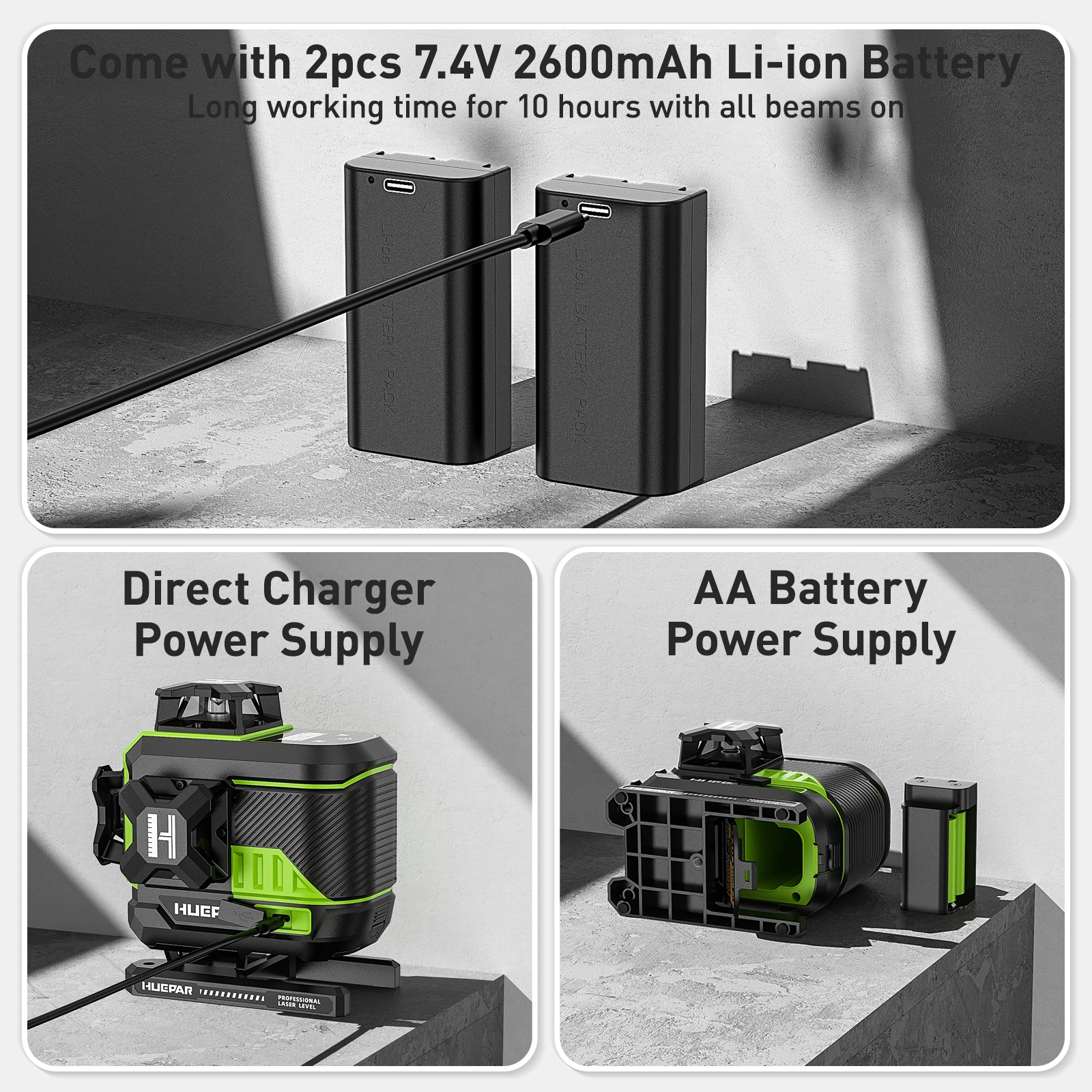

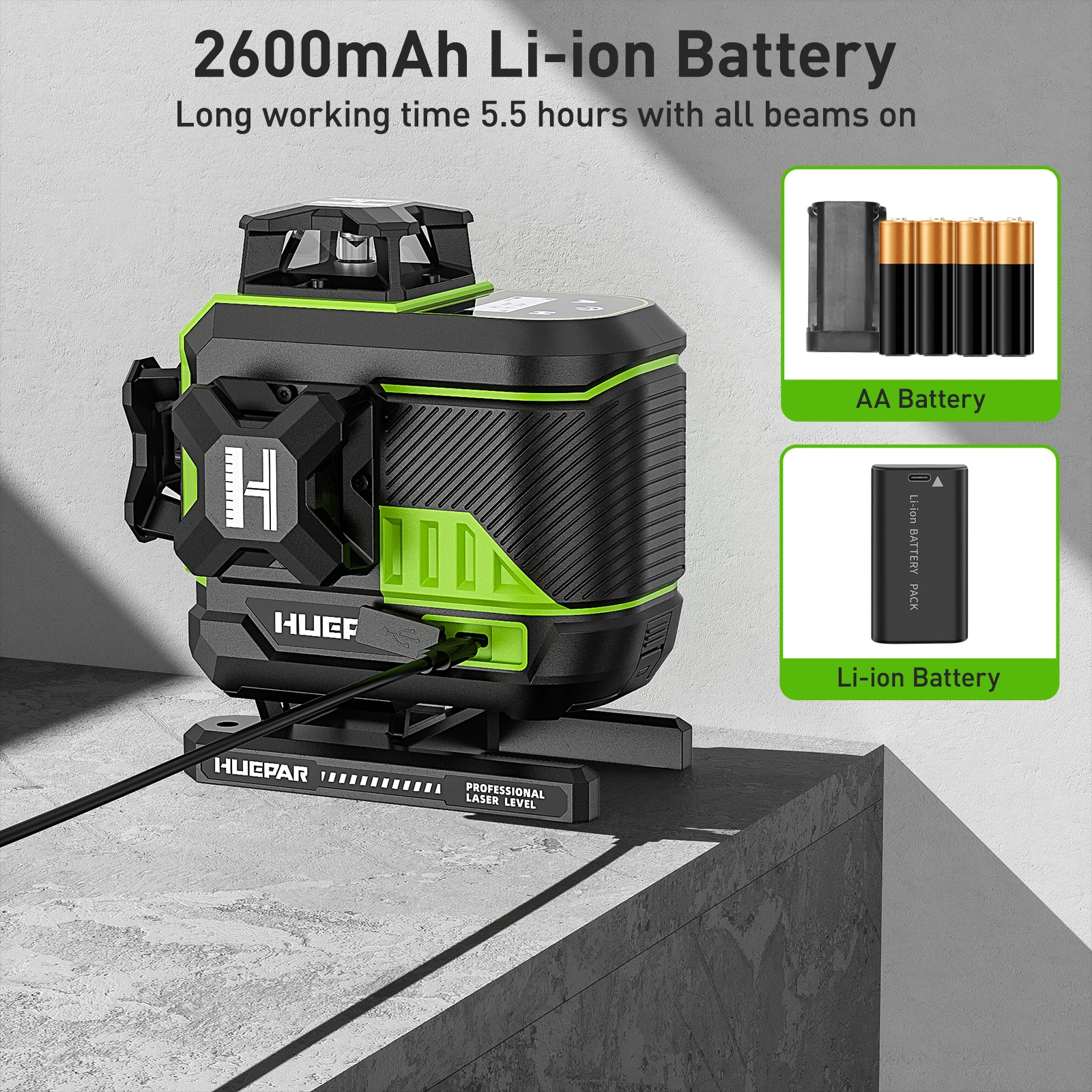

2 x Li-ion Batteries & AA Batteries Supplied:
* With 2pcs Large-capacity li-ion battery: 5 hours of extra-long working.
The batteriers could be also charged by the Type-C cord.
* Direct input charging: This laser tool can be used at job site with direct input charging even if take out the battery.Charging protection help prevent the tool from overcharge.
* It could be also worked with 4pcs AA battery for 0.5h usage, fully meet your usage needs.
The batteriers could be also charged by the Type-C cord.
* Direct input charging: This laser tool can be used at job site with direct input charging even if take out the battery.Charging protection help prevent the tool from overcharge.
* It could be also worked with 4pcs AA battery for 0.5h usage, fully meet your usage needs.

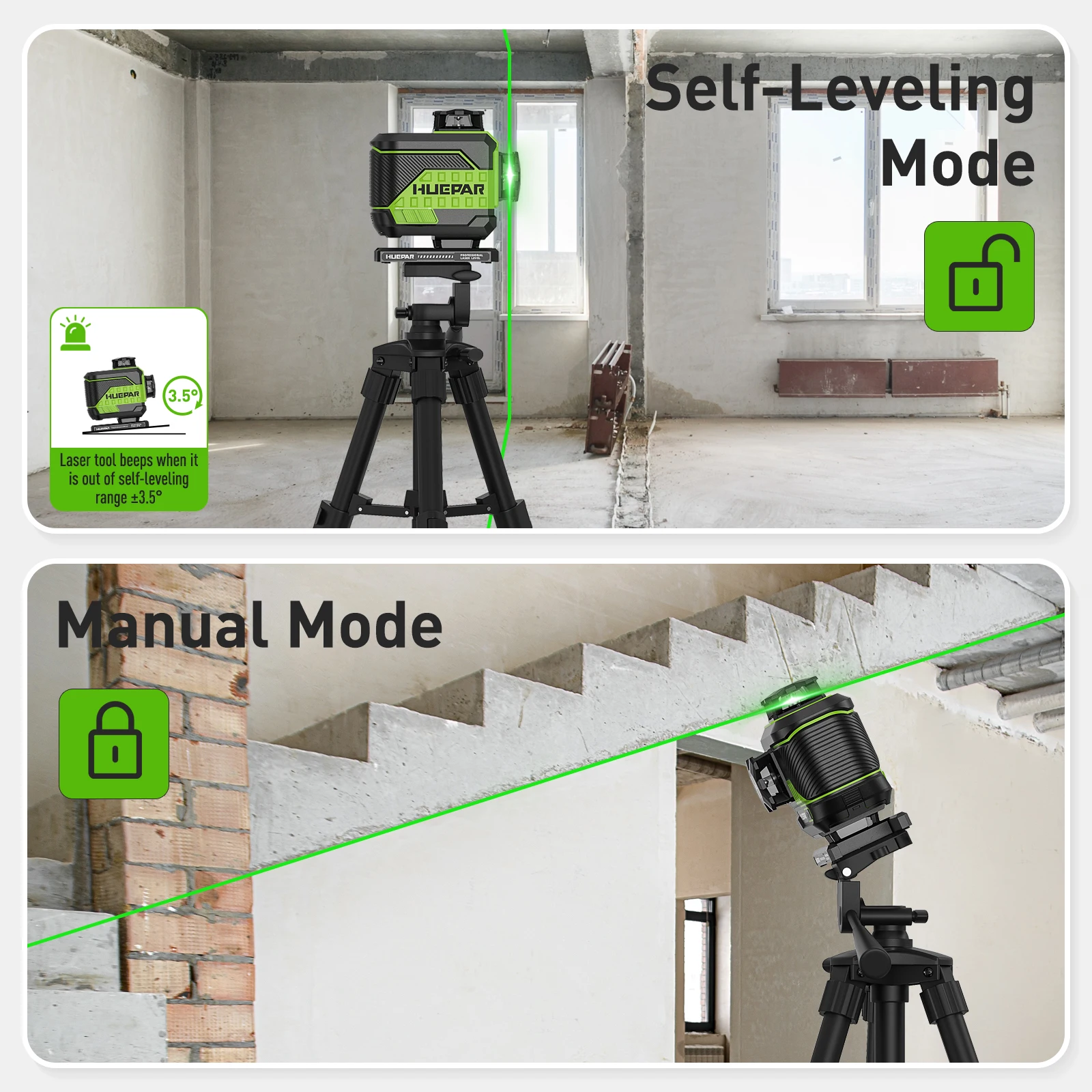

Self-leveling mode:
* Once the pendulum unlocked, self-leveling mode is enabled.
* The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range ±3.5
* The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range ±3.5
Manual mode:
* When the pendulum locked, the laser tool can be placed for use at any angle.
* The laser beam will blink every 3-5 seconds to remind you it's not self-leveling now
* The laser beam will blink every 3-5 seconds to remind you it's not self-leveling now

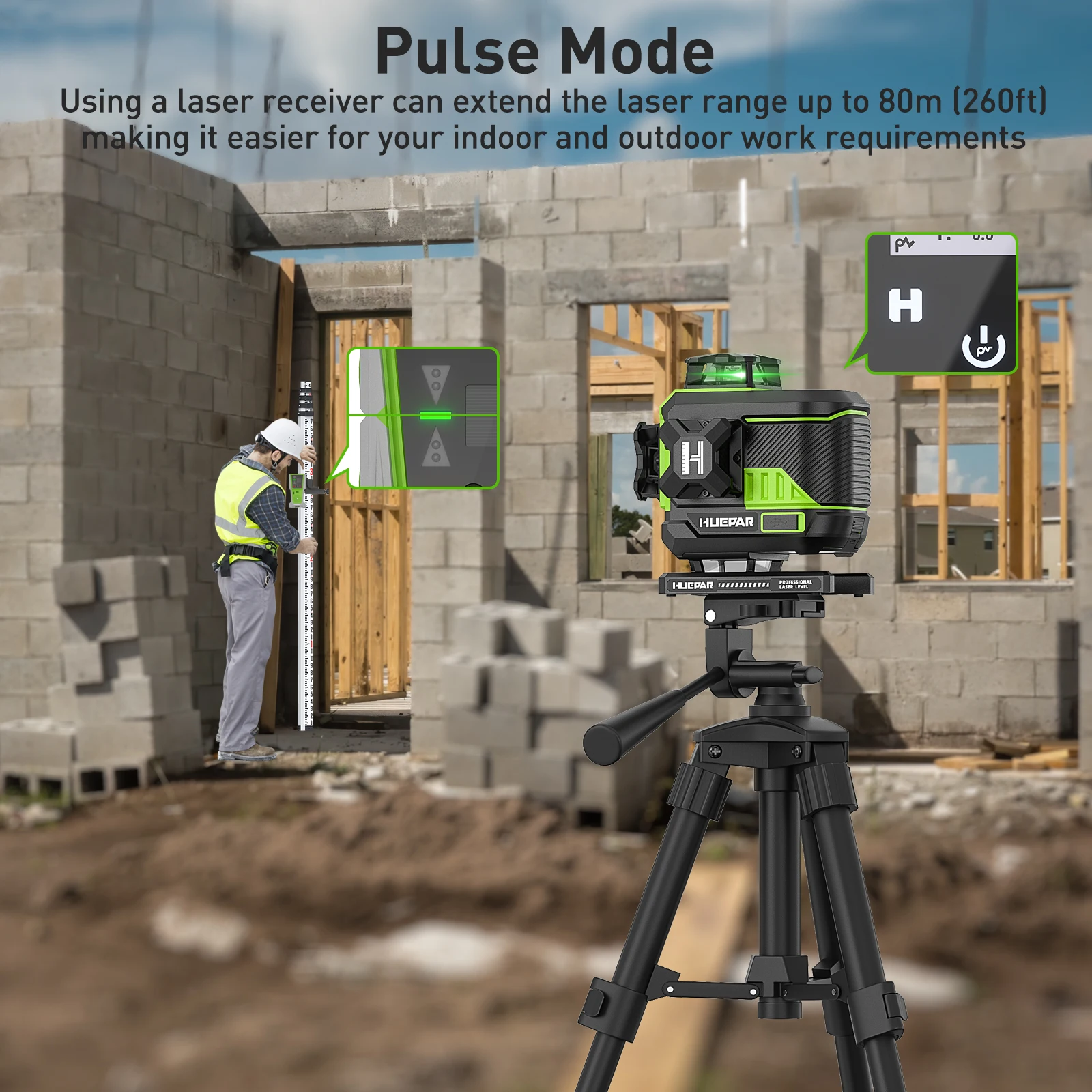

Pulse Mode:
* How to turn on the pulse mode? - Turn on the laser tool, short press power button to switch to Pulse Mode. The laser beams are dimmer in pulse mode.
* Pulse mode extends the working range up to 260Ft. in brighter working conditions when using with Huepar Line Laser Receiver.
* It is compatible with Huepar LR-8RG&LR-5RG Line Laser Receiver only.
* Pulse mode extends the working range up to 260Ft. in brighter working conditions when using with Huepar Line Laser Receiver.
* It is compatible with Huepar LR-8RG&LR-5RG Line Laser Receiver only.

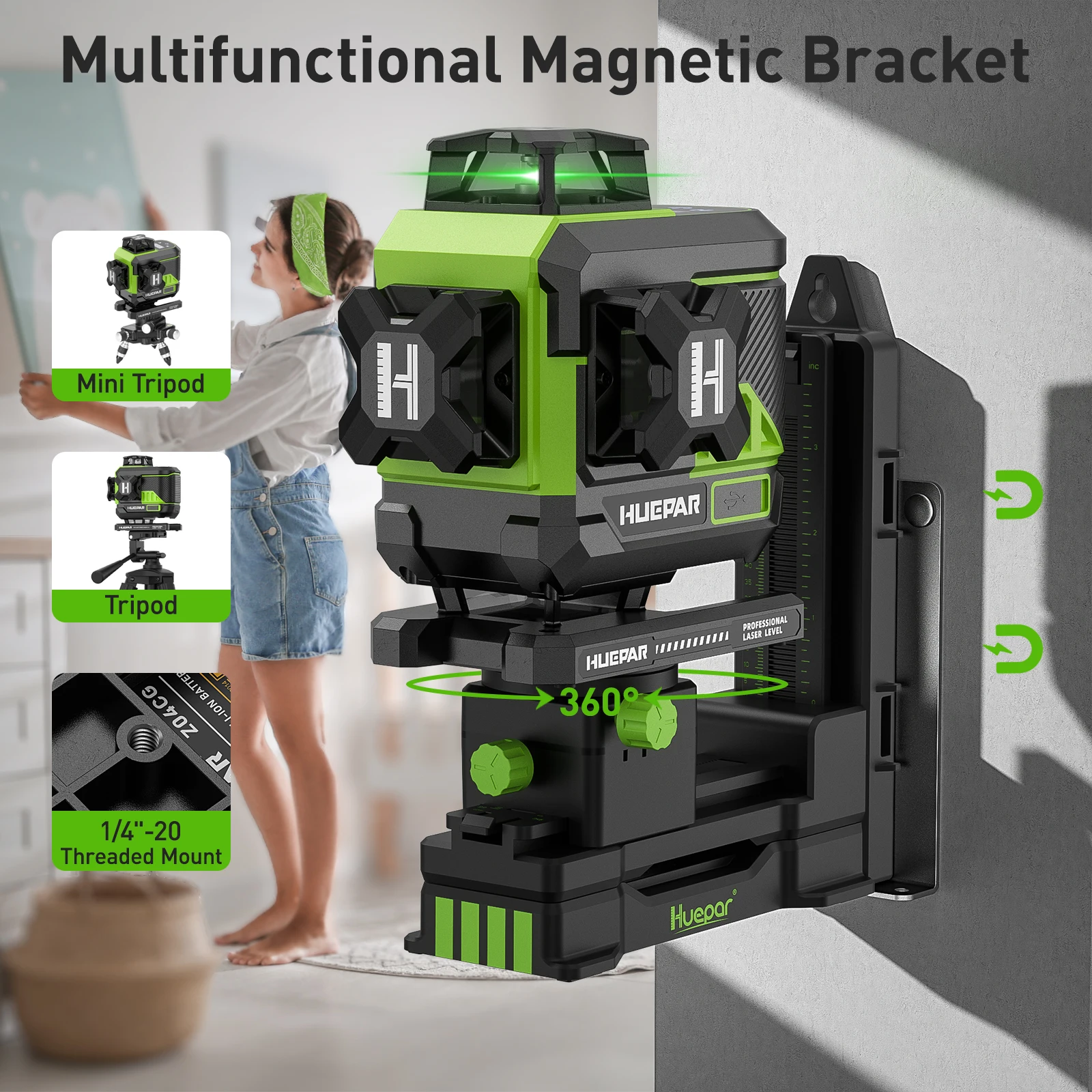

Multiple Installation Method:
* Strong Magnetic L-shape Pivoting Base: Allows for attachment to metal track and steel.
* The package also includes the laser level base of AT-2, it is good to use when you need to put the level face.
* Mount Size: 1/4"-20 mounting thread for temporarily fastening in place or being fixed on tripod. We do supply the 5/8" threaded adapter in the package.
* The package also includes the laser level base of AT-2, it is good to use when you need to put the level face.
* Mount Size: 1/4"-20 mounting thread for temporarily fastening in place or being fixed on tripod. We do supply the 5/8" threaded adapter in the package.

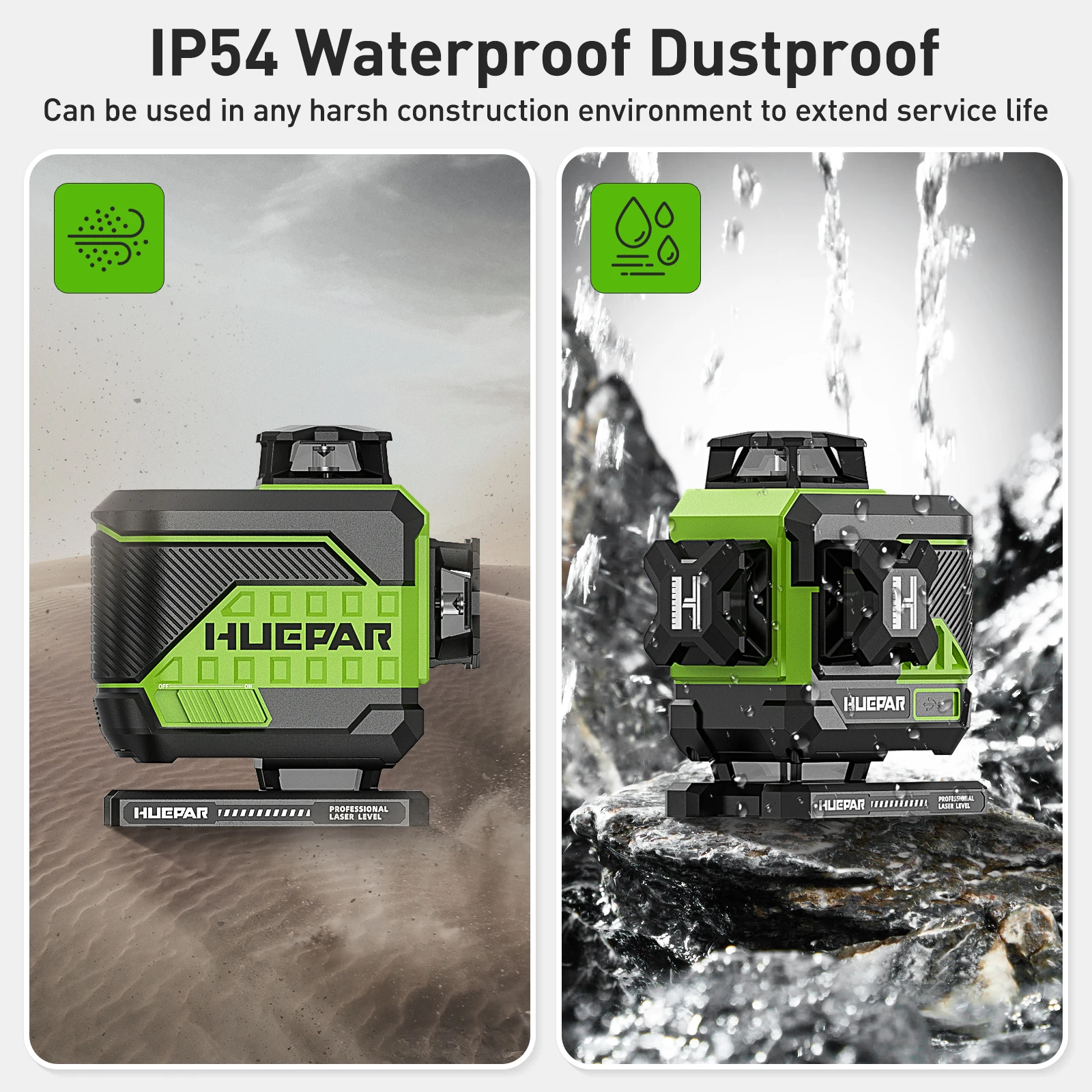

IP54 Waterproof and Dustproof
Can be used in any harsh construction environment to extend service lift.
Product packaging

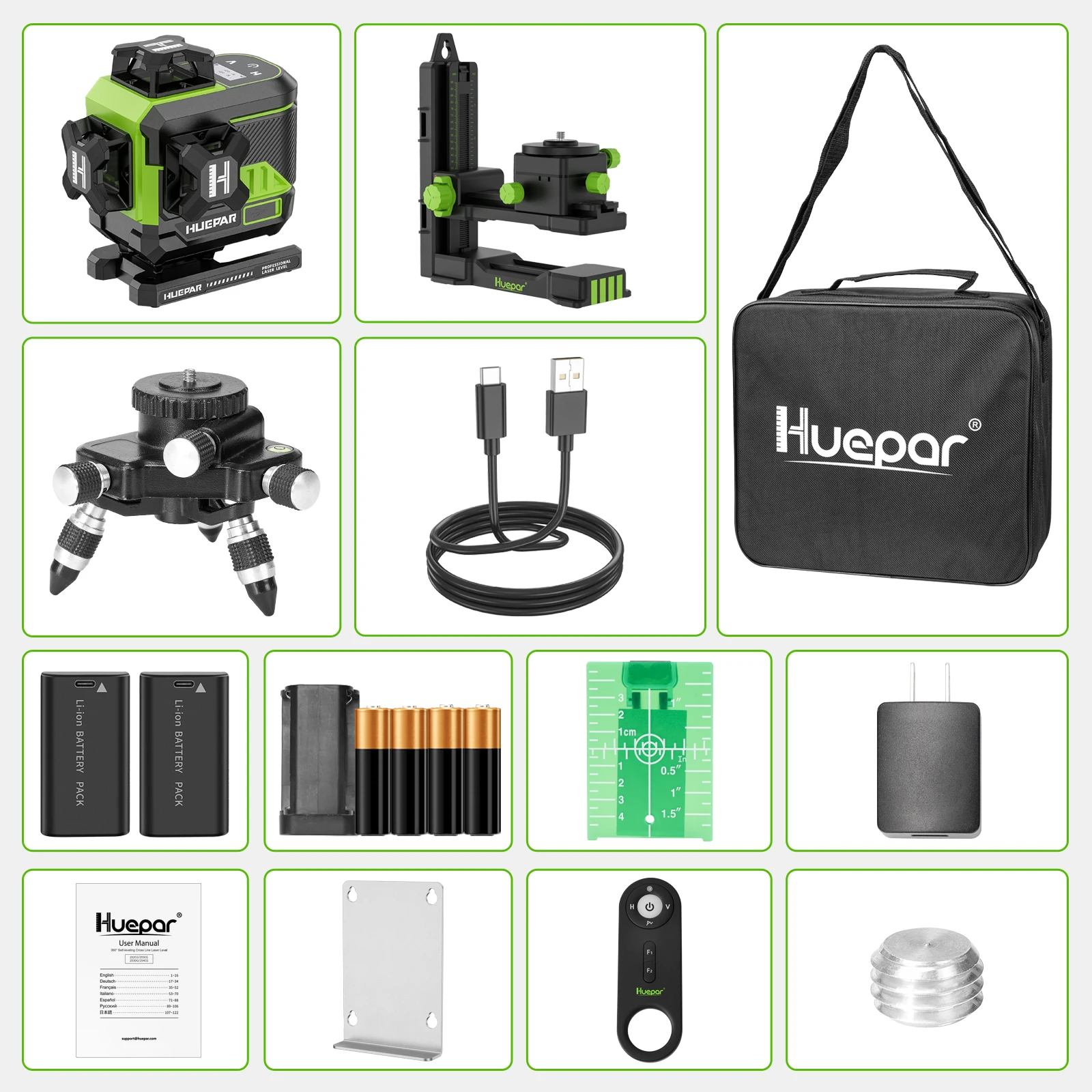

Package Contents - Basic Set:
* 1 x Green Laser Level Z04CG
* 1 x L-Shape Multifunctional Wall Bracket
* 1 x Laser Level Base AT-2
* 1 x Type-C Cord
* 2 x 2600mAh Li-ion Batteries
* 1 x AA Battery Compartment
* 4 x AA battery ( AA battery is not included if from China)
* 1 x Green Target
* 1 x Power Adapter
* 1 x Multi-language User Manual
* 1 x Wall Hanging Plate
* 1 x Remote Control
* 1 x 5/8" Threaded adapter
* 1 x Cloth Bag
* 1 x L-Shape Multifunctional Wall Bracket
* 1 x Laser Level Base AT-2
* 1 x Type-C Cord
* 2 x 2600mAh Li-ion Batteries
* 1 x AA Battery Compartment
* 4 x AA battery ( AA battery is not included if from China)
* 1 x Green Target
* 1 x Power Adapter
* 1 x Multi-language User Manual
* 1 x Wall Hanging Plate
* 1 x Remote Control
* 1 x 5/8" Threaded adapter
* 1 x Cloth Bag
