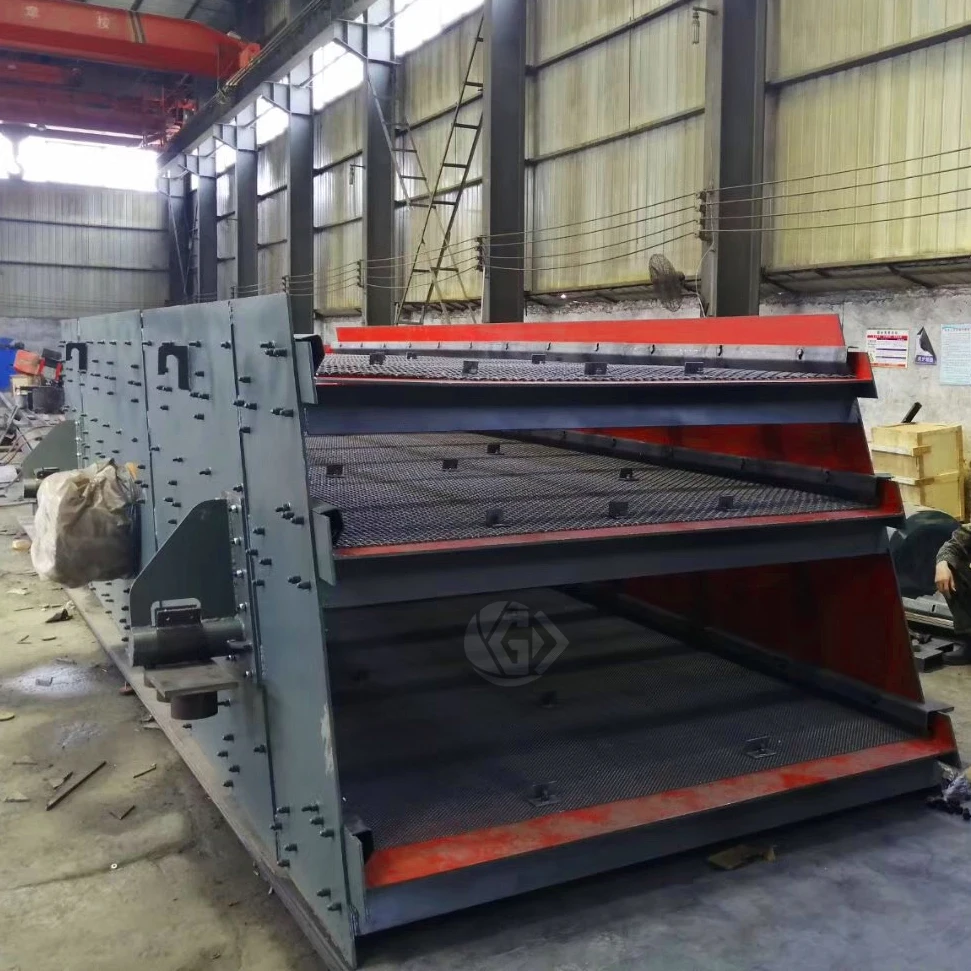

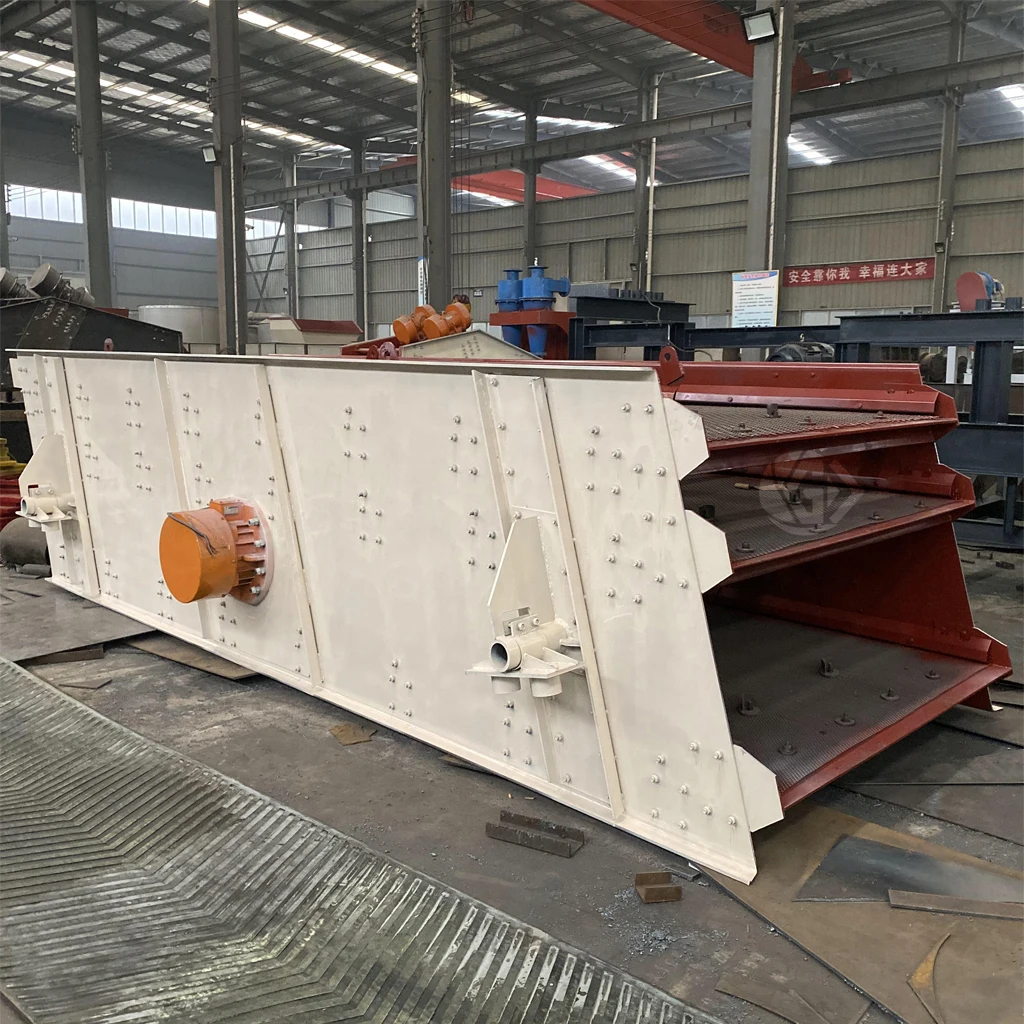

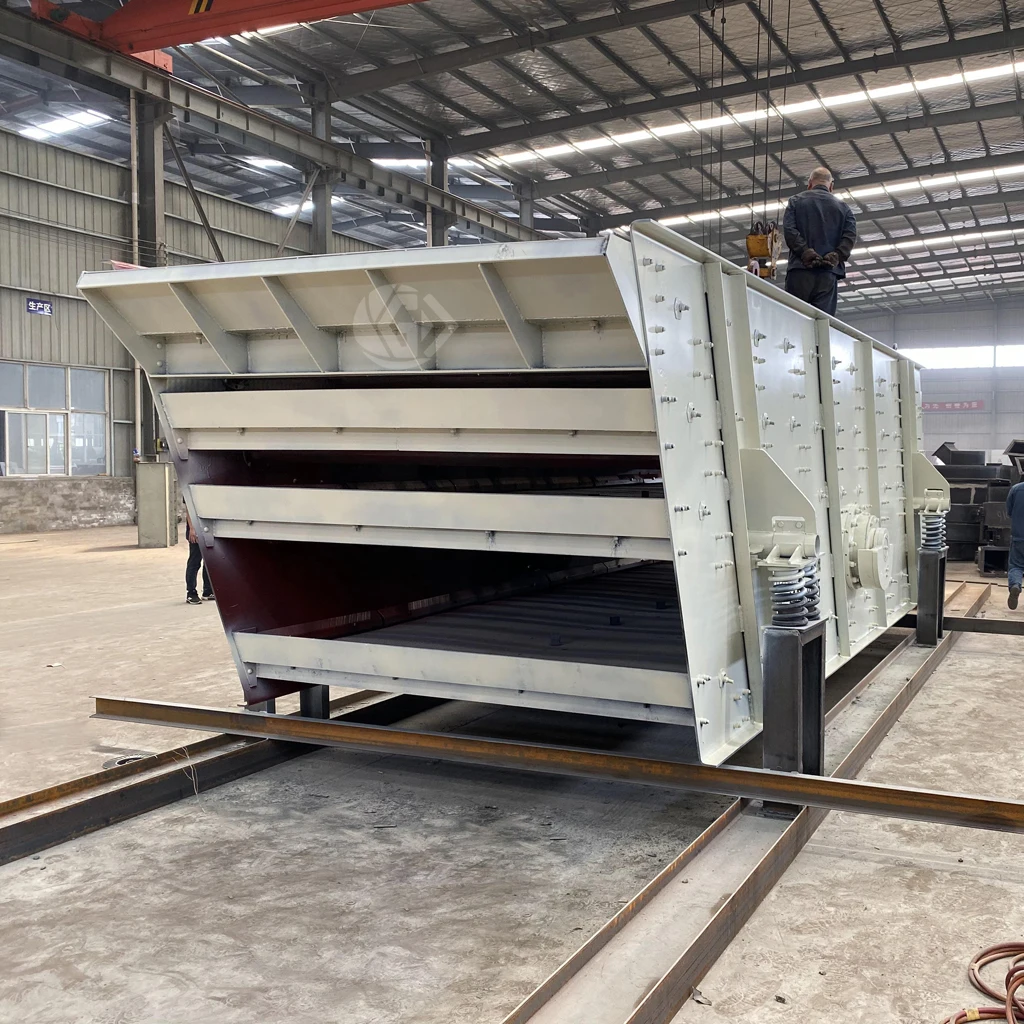

Песок Xxnxx горячий механический просеиватель двойной Дека Вибрационный экран
148 785,26 ₽ - 165 316,95 ₽
3 х палубный круговой Вибрационный экран для гравийного классификатора угольный шахтный сепаратор вибрационного экрана
- Категория: >>>
- Поставщик: Henan Gaoda Machinery Manufacturing Co. Ltd.
Сохранить в закладки 1601099466465:
Описание и отзывы
Характеристики
(1) Large processing capacity and high screening efficiency.
(2) The vibrator adopts the bearing thin oil lubrication and external block eccentric structure. It has the characteristics of large excitation force, small bearing load, low temperature and low noise. (The temperature rise of the bearing is less than 35°).
(3) The vibrator is disassembled and assembled as a whole, and it is easy to maintain and replace, which greatly shortens the maintenance cycle. (It only takes 1~2 hours to replace the vibrator).
(4) The side plate of the screen machine adopts the whole plate cold work, no welding, high strength and long service life. The connection between the beam and the side plate is connected by torsional shear high-strength bolts, no welding, and the beam is easy to replace.
(5) The sieve machine adopts rubber spring to reduce vibration, compared with metal spring, it has the advantages of low noise, long life, stable vibration zone, and small dynamic load of each fulcrum of the sieve machine.
(6) The flexible coupling is used for the connection between the motor and the exciter, which has the advantages of long service life and small impact on the motor.
(2) The vibrator adopts the bearing thin oil lubrication and external block eccentric structure. It has the characteristics of large excitation force, small bearing load, low temperature and low noise. (The temperature rise of the bearing is less than 35°).
(3) The vibrator is disassembled and assembled as a whole, and it is easy to maintain and replace, which greatly shortens the maintenance cycle. (It only takes 1~2 hours to replace the vibrator).
(4) The side plate of the screen machine adopts the whole plate cold work, no welding, high strength and long service life. The connection between the beam and the side plate is connected by torsional shear high-strength bolts, no welding, and the beam is easy to replace.
(5) The sieve machine adopts rubber spring to reduce vibration, compared with metal spring, it has the advantages of low noise, long life, stable vibration zone, and small dynamic load of each fulcrum of the sieve machine.
(6) The flexible coupling is used for the connection between the motor and the exciter, which has the advantages of long service life and small impact on the motor.
型号 | 层数 | 最大进料 | 处理能力(t/h) | 振动频率(r/min) | 双振幅(mm) | 功率(kw) | 外形尺寸(mm) |
2YA1236 | 2 | ≤200 | 10-90 | 800-970 | 8 | 7.5 | 3502×2127×1868 |
3YA1236 | 3 | ≤200 | 30-90 | 800-970 | 8 | 7.5 | 3538×2168×2245 |
2YA1548 | 2 | ≤200 | 50-190 | 970 | 8 | 15 | 5745×2573×3367 |
3YA1548 | 3 | ≤200 | 50-200 | 970 | 8 | 15 | 5909×2573×3367 |
4YA1548 | 4 | ≤200 | 50-200 | 970 | 8 | 18.5 | 5909×2573×3845 |
2YK1860 | 2 | ≤400 | 100-350 | 970 | 8 | 18.5 | 6965×2971×3276 |
3YK1860 | 3 | ≤400 | 100-350 | 970 | 8 | 22 | 7129×2971×3744 |
4YK1860 | 4 | ≤400 | 100-350 | 970 | 8 | 30 | 6417×3439×4276 |
2YK2160 | 2 | ≤400 | 150-450 | 850 | 8 | 30 | 7005×3470×3654 |
3YK2160 | 3 | ≤400 | 150-450 | 850 | 8 | 30 | 7172×3528×4133 |
4YK2160 | 4 | ≤400 | 150-450 | 850 | 8 | 37 | 7326×3545×4523 |
2YK2460 | 2 | ≤400 | 200-650 | 850 | 8 | 37 | 7010×3796×3654 |
3YK2460 | 3 | ≤400 | 200-650 | 850 | 8 | 37 | 7176×3816×4133 |
4YK2460 | 4 | ≤400 | 200-650 | 850 | 8 | 45 | 7328×3896×4523 |
2YK3070 | 2 | ≤400 | 300-950 | 850 | 8 | 44 | 7970×4465×4764 |
3YK3070 | 3 | ≤400 | 300-950 | 850 | 8 | 60 | 8225×4582×4822 |
Guangxi Liuzhou Powder Production Line

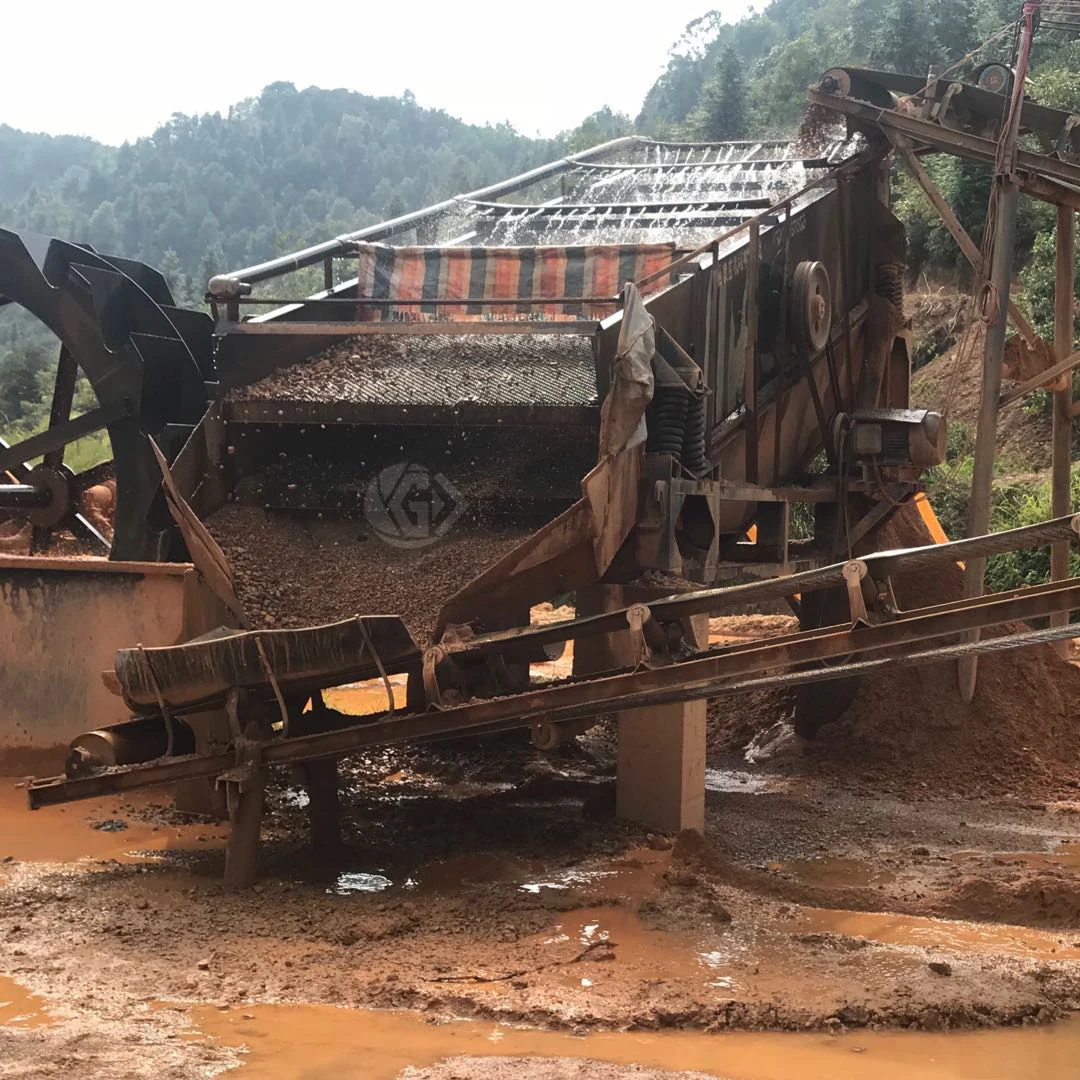

African gold mine washing project
Indonesian tailings washing complete process
FAQ:
Q: How long is your delivery time?
A: 7-10 days for the stock, 15-30 days for the mass production.
Q: How long is the warranty? Does your company supply the spare parts?
A: One year. Spare parts for you at lowest cost.
Q: If I need the complete crushing plant can you help us to build it?
A: Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
Q: What are the special advantages of the Jaw crusher equipment?
A: These Jaw crushers have features of a deep, symmetrical crushing chamber, easy settings adjustment, a large feed opening for its size, and an ideal nip angle that offers smooth material flow and high reduction efficiency.
A: 7-10 days for the stock, 15-30 days for the mass production.
Q: How long is the warranty? Does your company supply the spare parts?
A: One year. Spare parts for you at lowest cost.
Q: If I need the complete crushing plant can you help us to build it?
A: Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
Q: What are the special advantages of the Jaw crusher equipment?
A: These Jaw crushers have features of a deep, symmetrical crushing chamber, easy settings adjustment, a large feed opening for its size, and an ideal nip angle that offers smooth material flow and high reduction efficiency.
Company Information
Henan Gaoda Mechanical Manufacturing Co., Ltd. is located on the Central West Road of Gongyi City, Henan Province. It is a professional manufacturer of mining equipment and environmental protection equipment, with many years of technical strength and experience. The main products developed and produced are: crushing equipment, sand making equipment, screening and washing equipment, mobile crushers, mobile screening equipment, sand washing and recovery equipment, dehydration screens, vibrating screen separators, etc. 5 major series and nearly 50 products, which are widely sold to various parts of China as well as Indonesia, Iran, Russia, Pakistan, India, South Africa and other 10 countries.
Похожие товары
Классификатор для экранов
925 774,92 ₽ - 1 058 028,48 ₽
Новое состояние стальной вращающийся барабанный фильтр для руд оборудование переработки пластмасс роторный вибрационный экран сито

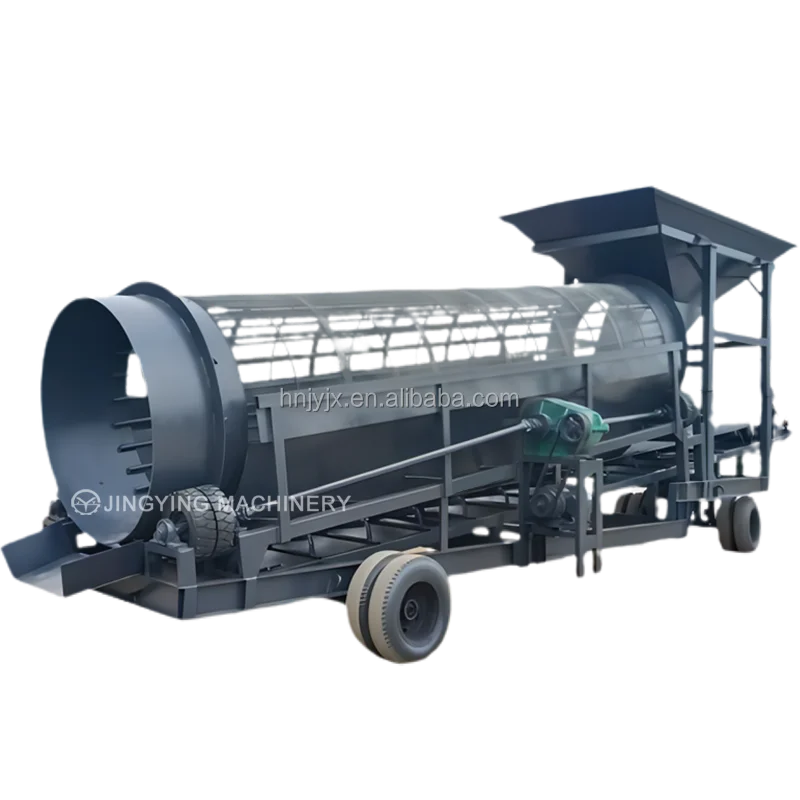

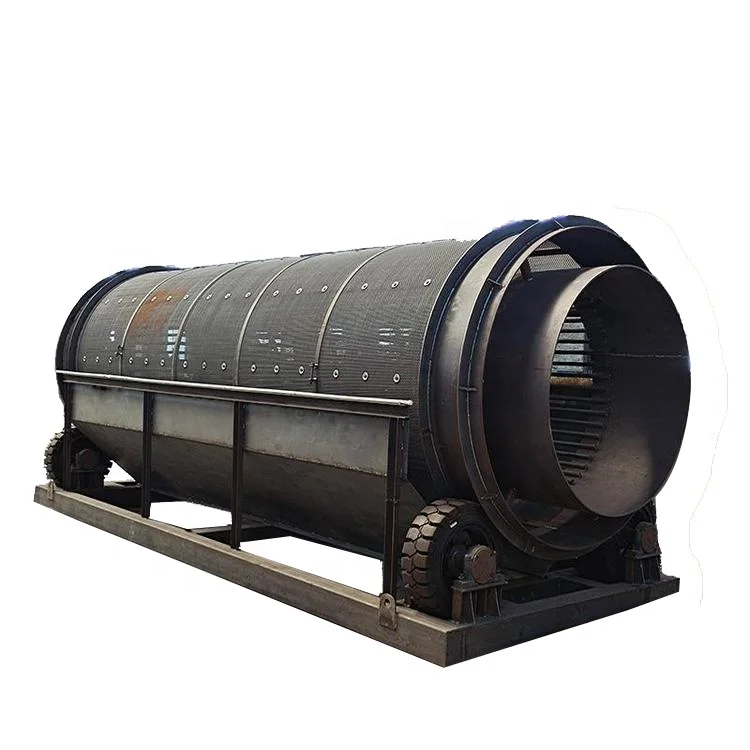

Китайский маленький мобильный Барабанный Фильтр Trommel
275 528,25 ₽

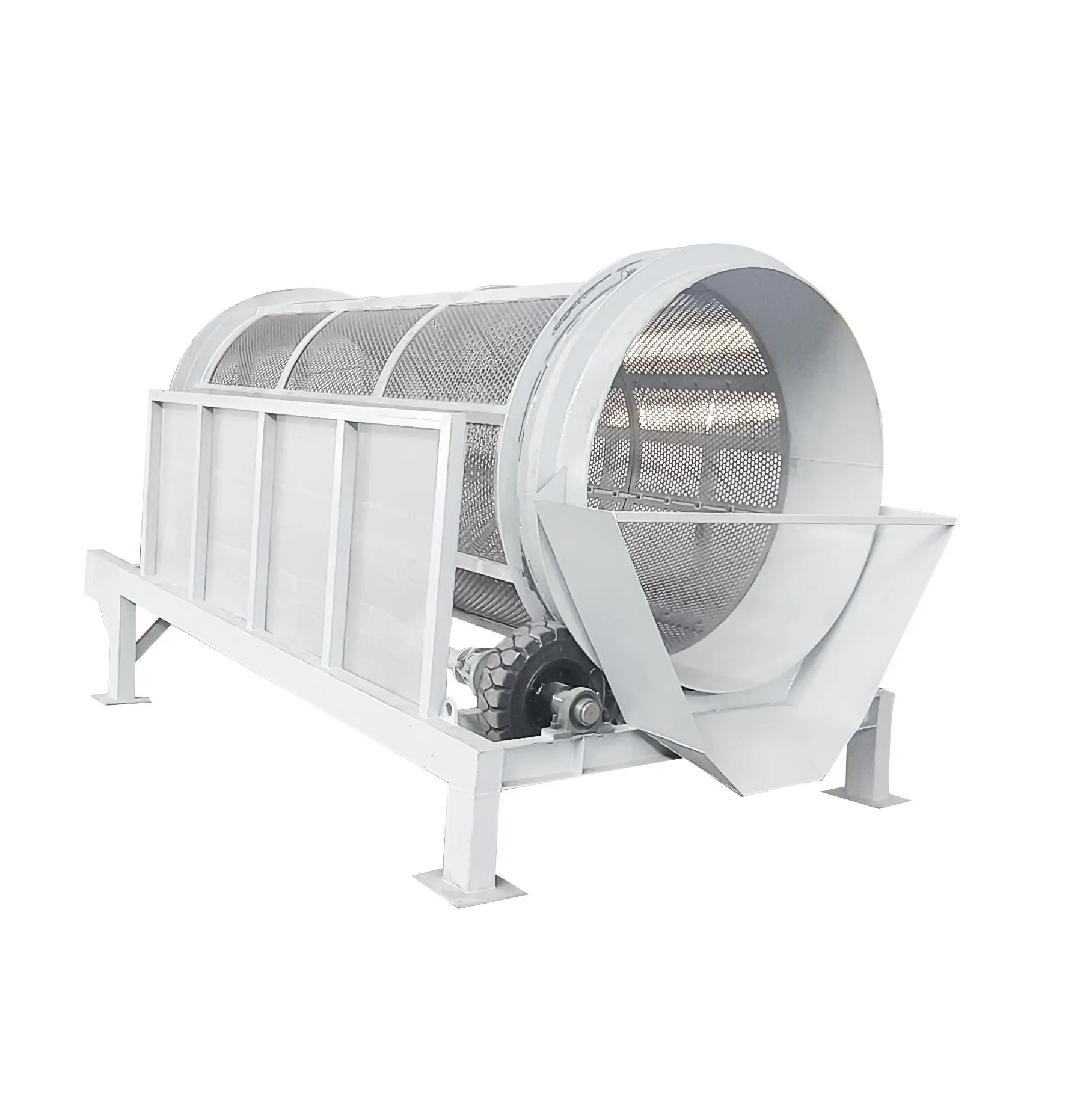

Ротационный барабан для добычи почвы песка золота просеивания производители
440 845,20 ₽
100-300 T шлифовальный барабан без вала и каменный вращающийся экран машина для обработки камня троммель сталь
385 739,55 ₽ - 1 261 919,39 ₽
Фильтр для DZJXRBWL-1 1000 м3/ч
273 324,03 ₽ - 286 549,38 ₽

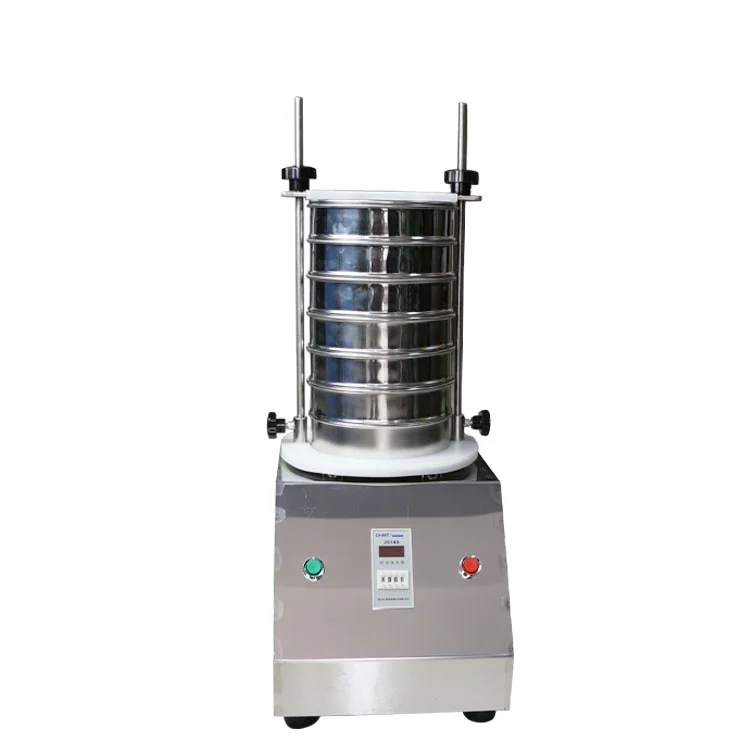

Круглое тестовое вибрационное сито из нержавеющей стали
