Экспортный завод 16-22 м Электрический шарнирный/телескопический подъемник самоходная Строительная платформа
931 347,20-1 746 276,00 ₽
Распродажа телескопический подъемник JMC 28 м 30 31
- Категория: >>>
- Поставщик: Xuzhou Zory Construction Machinery Co. Ltd.Xuzhou Ltd.
Сохранить в закладки 1601099486684:
Описание и отзывы
Характеристики
PRODUCT OVERVIEW

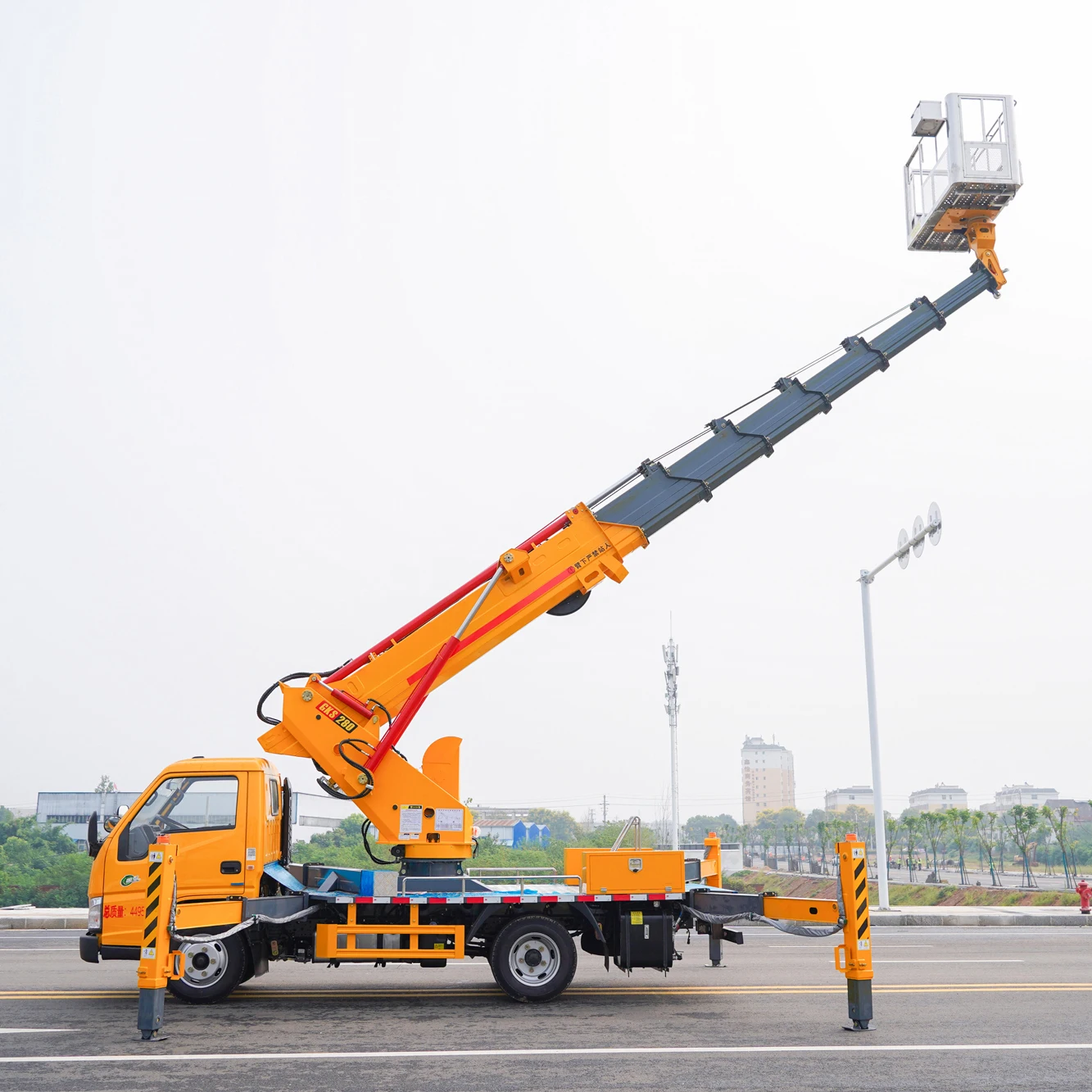

ZORY 28M Bucket Truck Aerial Working Platform
28M 7 Section Boom Aerial Work Vehicle uses a fully automatic remote control system, equipped with intelligent controller and LCD, which can realize amplitude control, automatic throttle, load, amplitude, height display and other operation information.
PRODUCTS DESCRIPTION
Overall Dimension | 5995×2050×2750mm（L*W*H） | Emission Standard | Euro6/Euro5/Euro4/Euro3 |
Transmission | Miles Yang 5th gear | Tyre | 700R16*7 |
Wheelbases | 3360mm | Motor Model | Q23-132E60 |
Motor Displacement | 2300ml | Motor Power | 85kw |
Working boom | Six-section, fourteen-sided boom, telescopic are using double rope structure, double luffing cylinder. | Outriggers | V front and V rear double-section outriggers |
Lateral Span | 5400mm | Longitudinal span | 5100mm |
Bucket Size | 1600×700×1000mm（L*W*H） | Bucket rated weight | 200kg |
Maximum working height | 28m | Option | Cab,2000/2200*700*1000 folding basket, hydraulic winch, oil and electricity dual-use machine |
PRODUCT ADVANTAGES
Introduction of advanced 14-sided arm manufacturing process
Small bending and welding deformation, high precision of arm, anti-bending and anti-twisting.
Wireless Remote Control
1.Coverage radius 100M
2.Multi-motion synchronized operation Wireless remote control operation, savelabor, save cost,and open the field ofvision Wider, more efficient and safer
3.With a display screen, it can show the working status of the boom in real time, including amplitude, angle, height and boom length.
Seat operation
1. Hydraulic handle operation, can operate multiple motions at the same time, easy to operate and wide field of vision;
2. Equipped with display screen, which can show the working status of the boom in real time, including amplitude, angle, height and boom length.
3. Equipped with lighting switch, remote control switch, working bucket rotation, engine start/stop, emergency stop, etc.
2. Equipped with display screen, which can show the working status of the boom in real time, including amplitude, angle, height and boom length.
3. Equipped with lighting switch, remote control switch, working bucket rotation, engine start/stop, emergency stop, etc.
The wireless remote control can be placed in the basket operation, good field of vision, convenient for construction personnel to operate, high efficiency, more secure
Outrigger Operation
The legs are manually operated with independent hydraulic handles, which can operate each leg individually or at the same time.
CUSTOMER CASE
2 x 30M aerial work trucks shipped to Russia
1 x 23M Aerial Work Platform shipped to Kyrgyzstan
OPTIONAL
Operating The Cab
Folding Basket
2000/2200*700*1000mm
Hydraulic Winches
FRODUCT FEATERES
3D simulation, CAE safety analysis and calculation, drawing size accurate to each screw hole. Ensure product consistency.
Industrial robot welding, uniform and beautiful weld seam, no air holes, no false welding.
All structural parts are fully treated with pickling, phosphatizing, electrophoresis surface, structural parts are not easy to rust. All structural parts are individually painted and then assembled.
WHY CHOOSE US
Xuzhou ZORY Construction Machinery Co., Ltd. specializes in designing, developing, and manufacturing truck-mounted cranes, with a focus on innovation and technology. Our product range, spanning over 37,000 square meters of factory space, includes the SQ01-SQ55 series of truck-mounted cranes, marine cranes, pickup cranes, and Aerial Working Platforms. Strict quality control system makes us pass ISO quality management system and CE certificate to ensure our product quality.
Now 90% we have been exporting in bulk to EU, America, Africa, Middle east, Southeast Asia and Russia, India, Pakistan and Hong Kong etc. Over 120 countries and regions. Our products are highly praised by foreign clients.
FAQ
1.What's your payment link?
There are 2 solutions, first you pay 30% advanced payment, balance pay before shipment. second 30% advanced payment, balance pay by L/C.
2.What chassis do you use?
We use JMC,Isuzu,Dongfeng and SINOTRUK HOWO chassis and so on .
3.Can you provide double row seats?
We can design double row seats for you according to your needs.
4.Is your car fully automatic?
Yes, our car is fully automatic and equipped with a remote control.
If you have any needs, please feel free to contact me.
5.What is your MOQ?
One Set is ok for your trial order.
6.What is the delivery time?
Most of the order will within 20days, sometimes depend on your quantity and our present production plan.
7.How about your Warranty and after sale service?
Normally is 1 year, if large quantities we can negotiate.We will mail the accessories to you for free if have problems within one year.
8.OEM or ODM is available?
Yes, we can produce with your logo.
There are 2 solutions, first you pay 30% advanced payment, balance pay before shipment. second 30% advanced payment, balance pay by L/C.
2.What chassis do you use?
We use JMC,Isuzu,Dongfeng and SINOTRUK HOWO chassis and so on .
3.Can you provide double row seats?
We can design double row seats for you according to your needs.
4.Is your car fully automatic?
Yes, our car is fully automatic and equipped with a remote control.
If you have any needs, please feel free to contact me.
5.What is your MOQ?
One Set is ok for your trial order.
6.What is the delivery time?
Most of the order will within 20days, sometimes depend on your quantity and our present production plan.
7.How about your Warranty and after sale service?
Normally is 1 year, if large quantities we can negotiate.We will mail the accessories to you for free if have problems within one year.
8.OEM or ODM is available?
Yes, we can produce with your logo.
