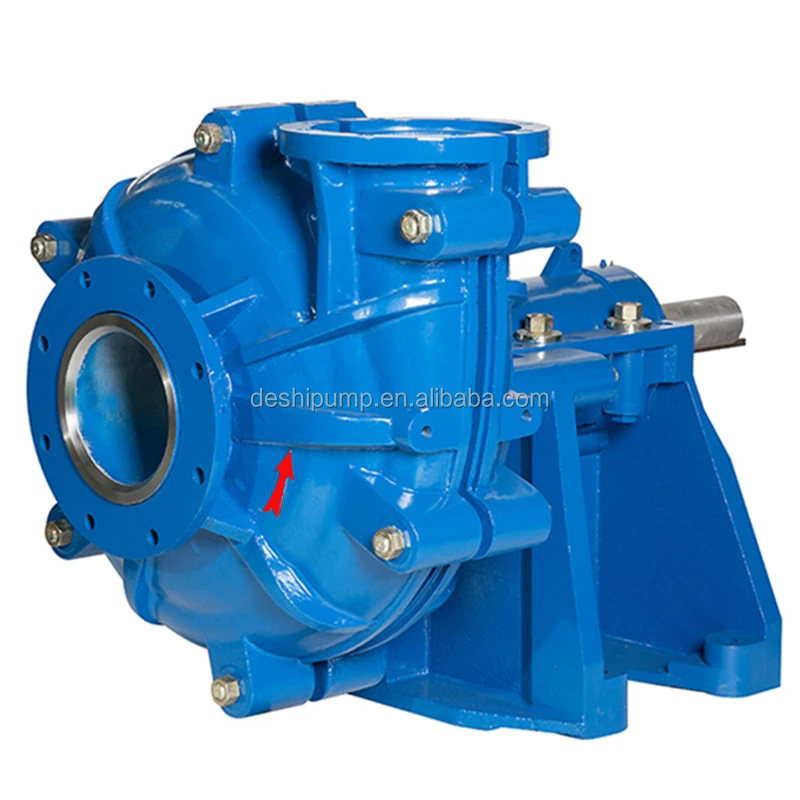

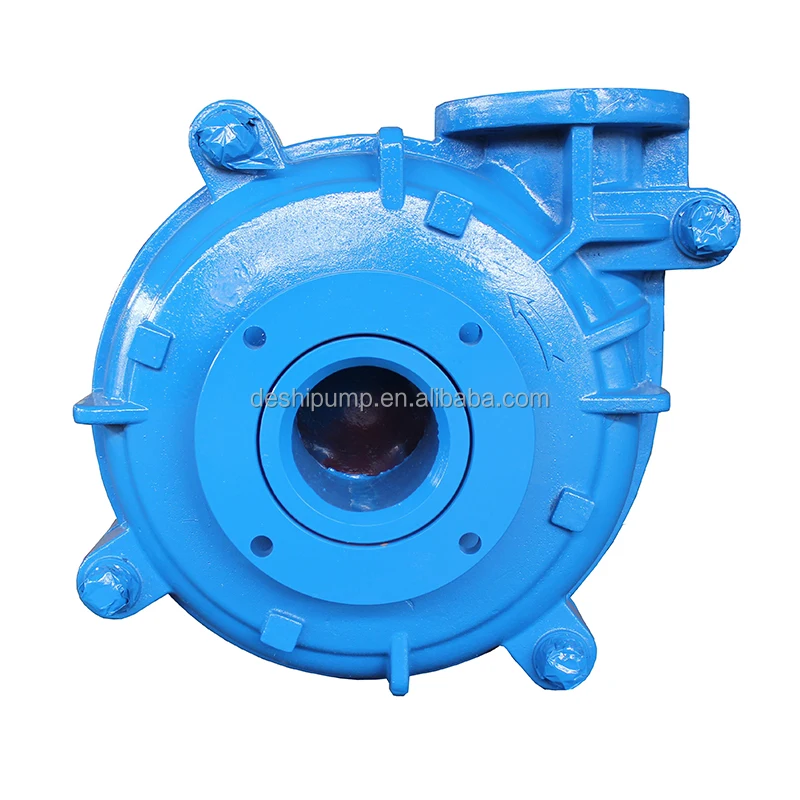

HS HSR Industrial heavy duty horizontal slurry pump sand pump for mining minerals processing floation tailings coal...

Introduction:
HS series horizontal slurry pump is designed for the continuous pumping of high abrasive, high density slurries with minimal maintenance requirements. The wearing parts are made of superior anti-wear high chrome alloy or abrasion/corrosion resistant rubber. It will maintain high efficiency over the wear life of its components.

The metal wet parts and rubber ones can be interchangeable for handling different liquids or slurries.

Overview:

Discharge Size: 1" to 22"
Flow Rate: 3.6-5400 m3/h
Head: 6-125 m
Handing solids: 0-130mm
Slurry Concentration: 0%-70%

Pump casings: Ductile Cast Iron
Impeller, frame plate liner, cover plate liner, throatbush: high-chrome alloy, Rubber, Polyurethane, Ceramic, Stainless steel etc

This centrifugal pumps are available with a variety of impellers and shaft seals to provide the perfect fit for a wide range of applications.

Typical Application:

Design Features:

1. Cylindrical structure of bearing assembly: convenient to adjust the space between impeller and front liner
and can be removed completely;
2. Interchangeable anti-abrasive wet parts made of high-chrome alloys and abrasion resistant polymer
3. Casing halves of ductile iron with external reinforcing ribs provide high operating pressure capabilities
and an extra measure of safety.
4. The discharge branch can be oriented to any eight positions at the interval of 45 degrees;
5. Various drive types: DC(direct connection), V-belt drive, gear box reducer, hydraulic couplings, VFD,
SCR control, etc;
6. The shaft seal uses the packing seal, expeller seal and mechanical seal

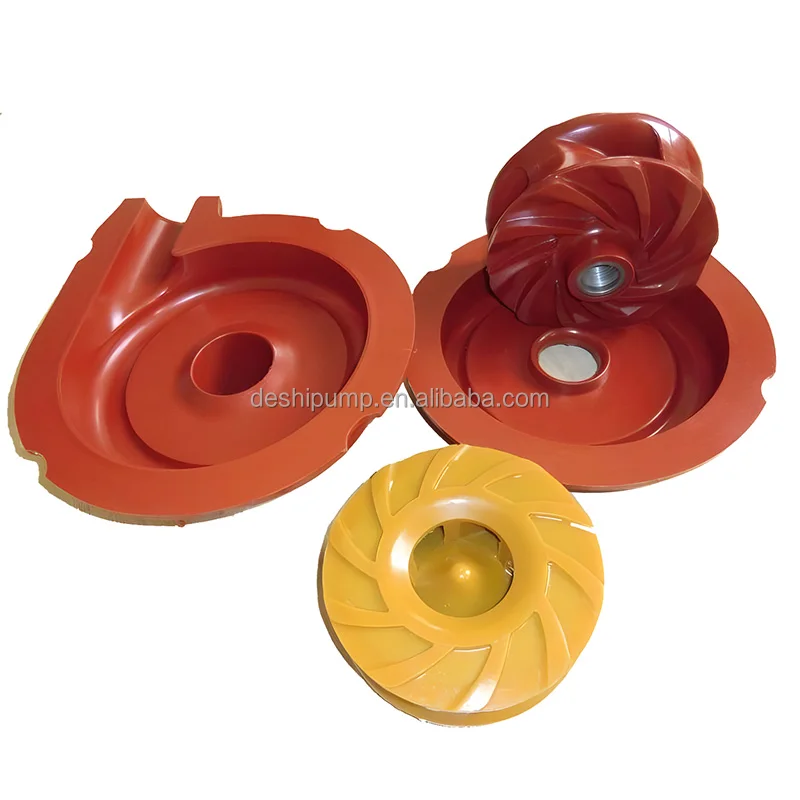

Slurry Pump Wear Parts

Shaft Seal Arrangement:

Horizontal Slurry Pump Brief Slection Curve

Horizontal Slurry Pump Model Parameters

Note:

1. “M” means high chrome alloy;     “RU” means rubber(polymer)

2. Flow Rate range recommended : 50%Q≤Q≤110%Q

Horizontal Slurry Pump Outline Dimensions:

Slurry Pump Drive Type

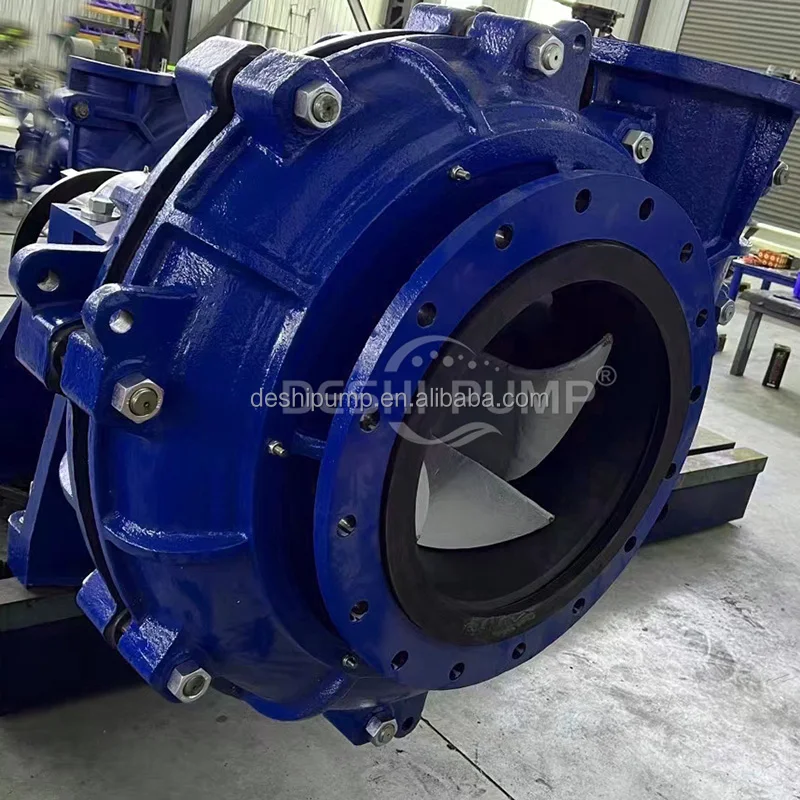

Slurry Pump Assembly Workshop

Packaging & Shipping

Slurry Pump Applications

Deshi Pump mainly produce various slurry pumps and sand pumps
